USER MANUAL VMF720-B2 SANUS

Technical line drawing of a mechanical assembly with two vertical supports and a central vertical component (no text or symbols)

VMF720-B2

VMF720-S2

INSTRUCTION MANUAL

GET IT RIGHT

THE FIRST TIME

Follow this step-by-step instruction manual to speed up your installation.

Want to watch a video that shows how easy this DIY project will be?

Watch it now at: SANUS.com/2792

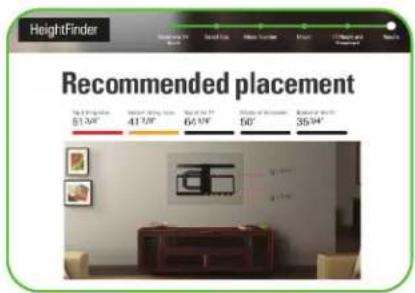

HeightFinder Recommended placement 51.04" 41.04" 64.04" 56" 35.04"

Get it right the first time. HeightFinder™ shows you where to drill.

Check it out at: SANUS.com/2567

Two men in a modern office environment, one using a headset, with blurred office background (no visible text or symbols)

Our install experts are standing by to help.

Call us at:

US: 800-359-5520

EMEA: [phone]

UK: 0800 056 2853

AUS: [phone]

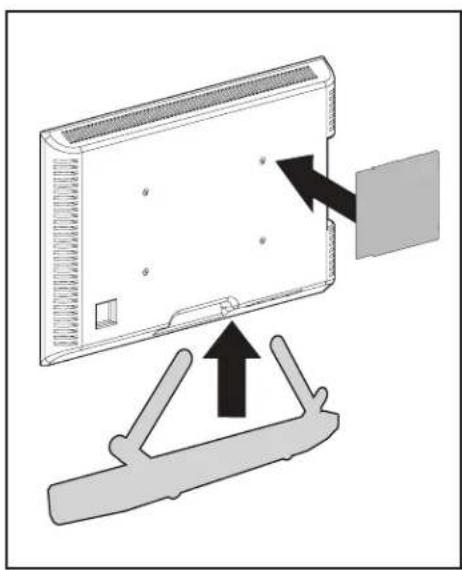

Before you begin

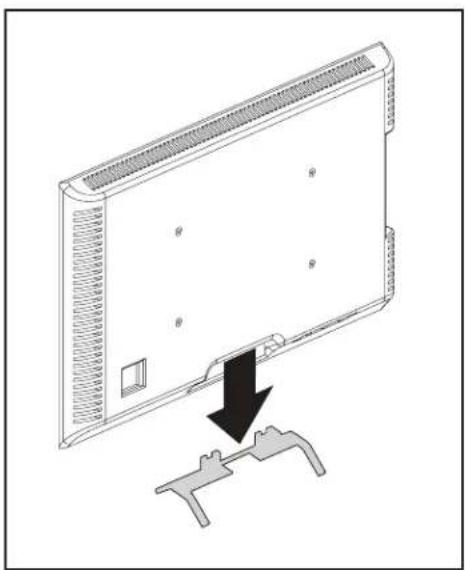

Remove the stand from your TV — if attached.

Install any accessories you may have purchased — if they require the TV to be removed from the wall for assembly. The TV is removable for future accessory purchases.

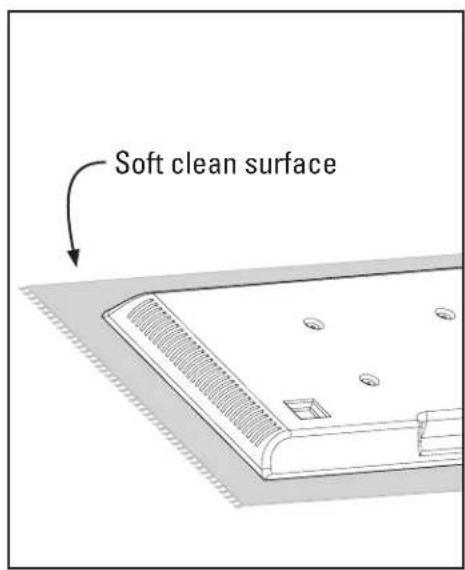

Protect the face of your TV when laying it down for installation.

Diagram of a computer monitor with a black arrow pointing to a handle, showing no text or symbols.

Diagram showing a device with an arrow pointing to a panel, mounted on a stand (no text or symbols present)

Soft clean surface

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you're comfortable with this easy install process.

Check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service: US: 800-359-5520 [EMEA]: [phone] [UK]: 0800 056 2853 [AUS]: [phone].

CAUTION: Avoid potential personal injuries and property damage!

• This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
  — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
• This product is designed for INDOOR USE ONLY.
• The wall must be capable of supporting five times the weight of the TV and mount combined.
• Do not use this product for any purpose not explicitly specified by manufacturer.
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit

(including accessories)

DO NOT EXCEED

55 lbs. (24.9 kg)

If your TV (including accessories) exceeds this weight, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a compatible mount.

Wall Construction

ONLY install on these acceptable wall types.

Unsure

Call

Customer

Service

[EMEA]: [phone]

[UK]: 0800 056 2853

[AUS]: [phone]

CAUTION:

DO NOT install in drywall alone

Drywall alone will NOT hold the weight of your TV.

wood studs Solid conc

Diagram of a wooden fence with four vertical posts and a magnified inset showing a rectangular block (no text or symbols)

ACCEPTABLE ACCB

rete or concrete block

Illustration of a brick wall with a magnified inset showing a cinder block (no text or symbols)

ABLE

Tools Needed

Measure

Pencil Level Tape

ScrewdriverTape

Electric Drill

Socket Wrench

Wood Stud Install

Stud Finder

Awl

Drill Bit

Concrete Install

Drill Bit

Hammer

Attach TV Bracket to TVSTEP 1

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

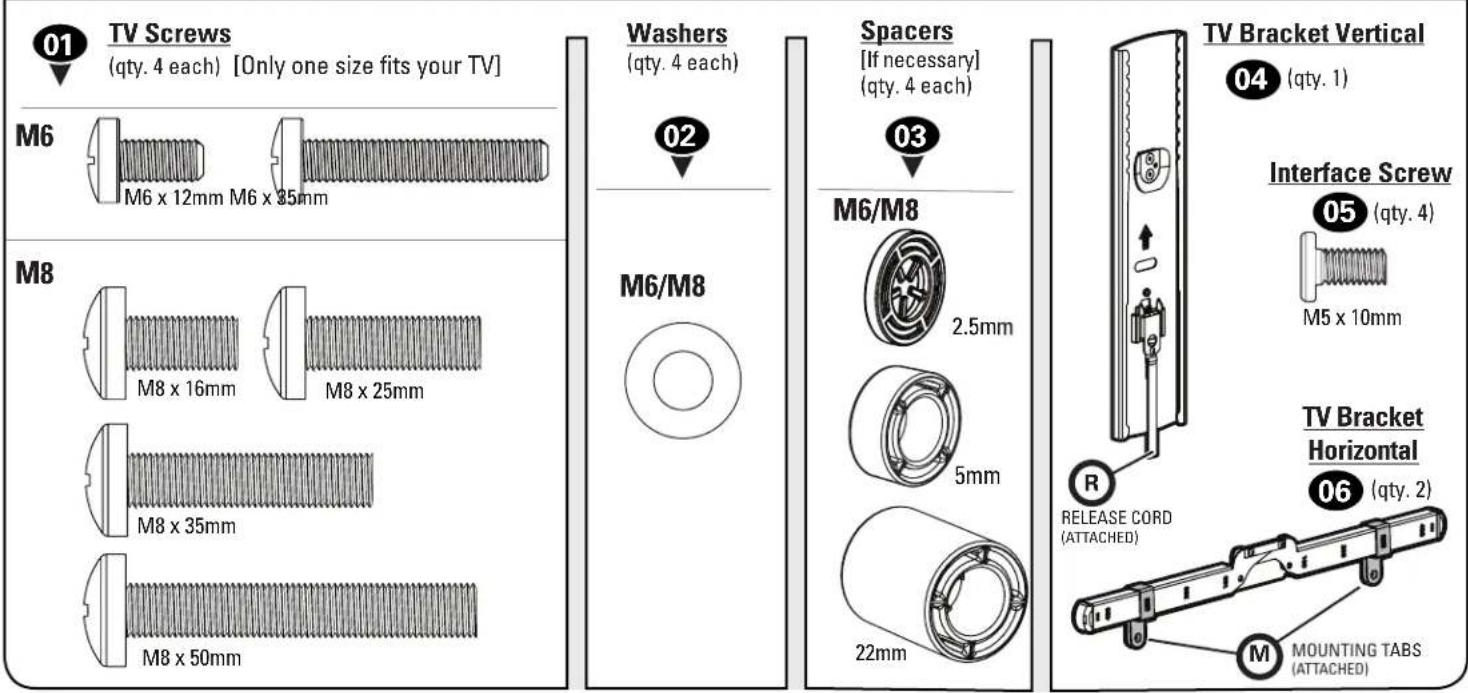

STEP 1 Parts and Hardware

(qty. 4 each) [Only one size fits your TV]

M6×12mm M6×35mm

(qty. 4 each)

[If necessary] (qty. 4 each)

2.5mm

04 (qty. 1)

06 (qty. 2)

Only one screw size fits your TV.

01

If your TV included inset spacers or wall mount adapters, see Troubleshooting on PAG

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

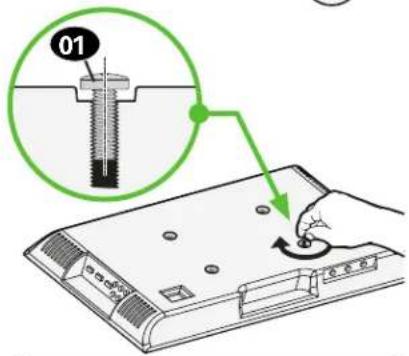

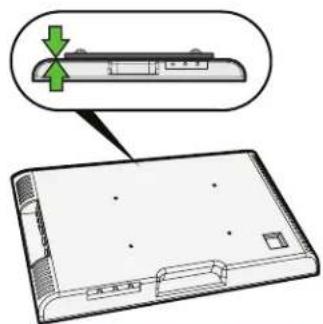

A NO SPACER

- Flat Back TV

[TV brackets lay flat on your TV]

Use short TV screws 01. Spacers 03 not needed.

Diagram showing a device with a green arrow pointing to a component, labeled '未命名' (Rename) in Chinese.

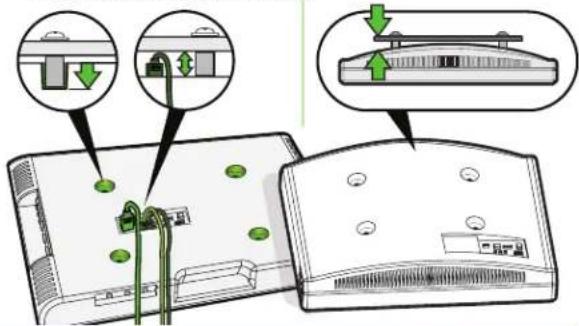

B SPACER NEEDED

- Flat Back TV with Extra Space Needed [for deep inset holes or cable interference]

• Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]

Use long TV screws 01 and spacers 03 to create extra space between the TV and TV bracket.

Inset Holes Cables Rounded Back

Diagram illustrating cable installation steps with labeled components and directional arrows indicating movement

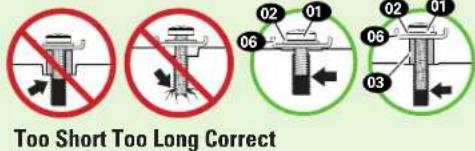

CAUTION: Verify adequate thread engagement with your screw 01, washer 02, spacer 03 combination AND TV bracket 06. — Too short will not hold your TV. — Too long will damage your TV.

Too Short Too Long Correct

1.3 Attach TV Brackets to Your TV

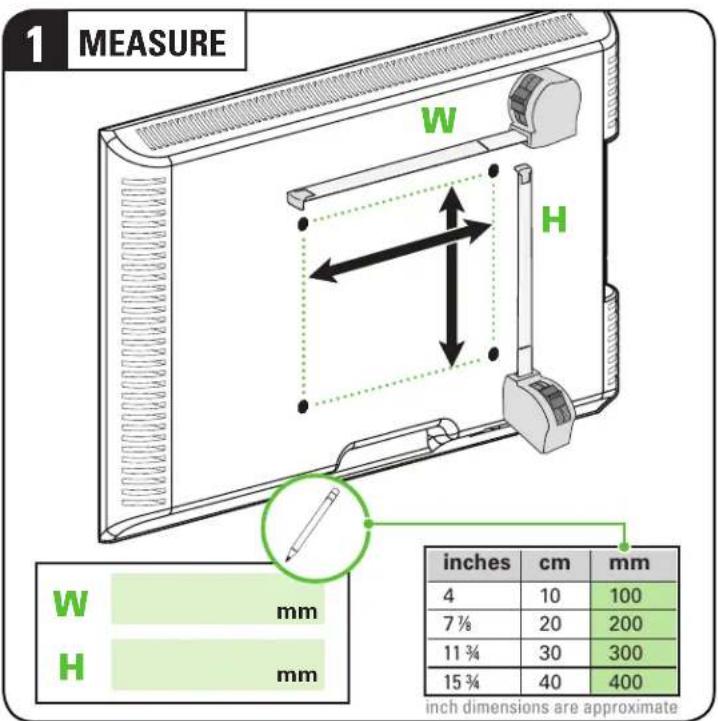

1 MEASURE W H W mm H mm inches cm mm 4 10 100 7 ½ 20 200 11 ¾ 30 300 15 ¾ 40 400 inch dimensions are approximate

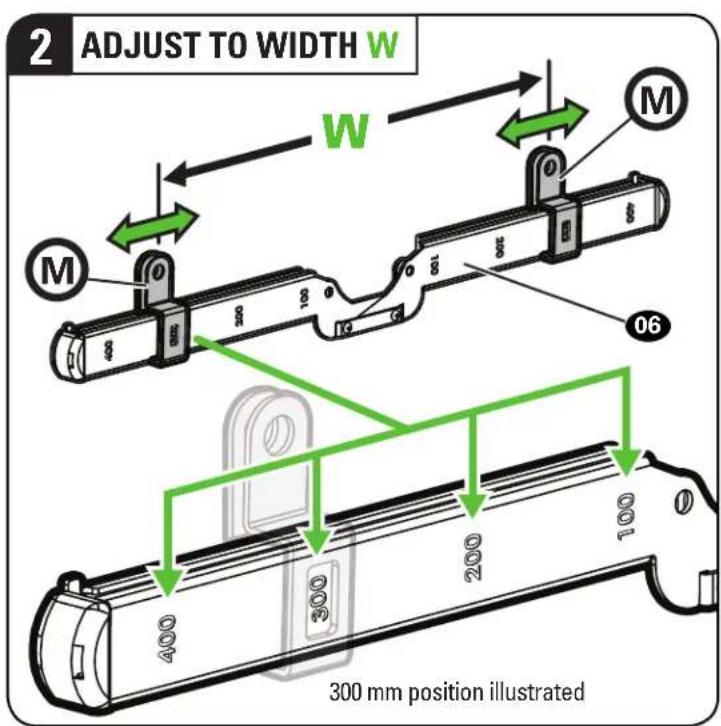

2 ADJUST TO WIDTH W W M M 06 400 300 200 100 300 mm position illustrated

1.3 (continued)

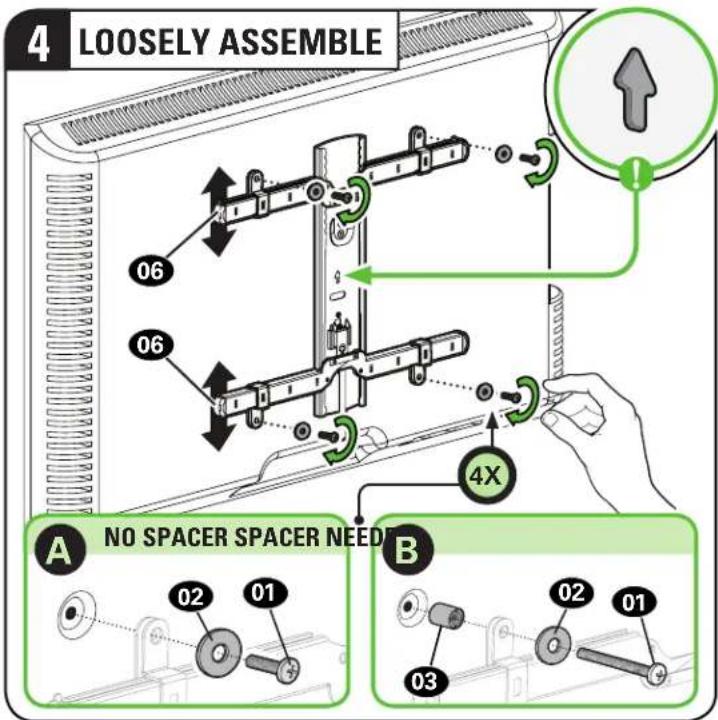

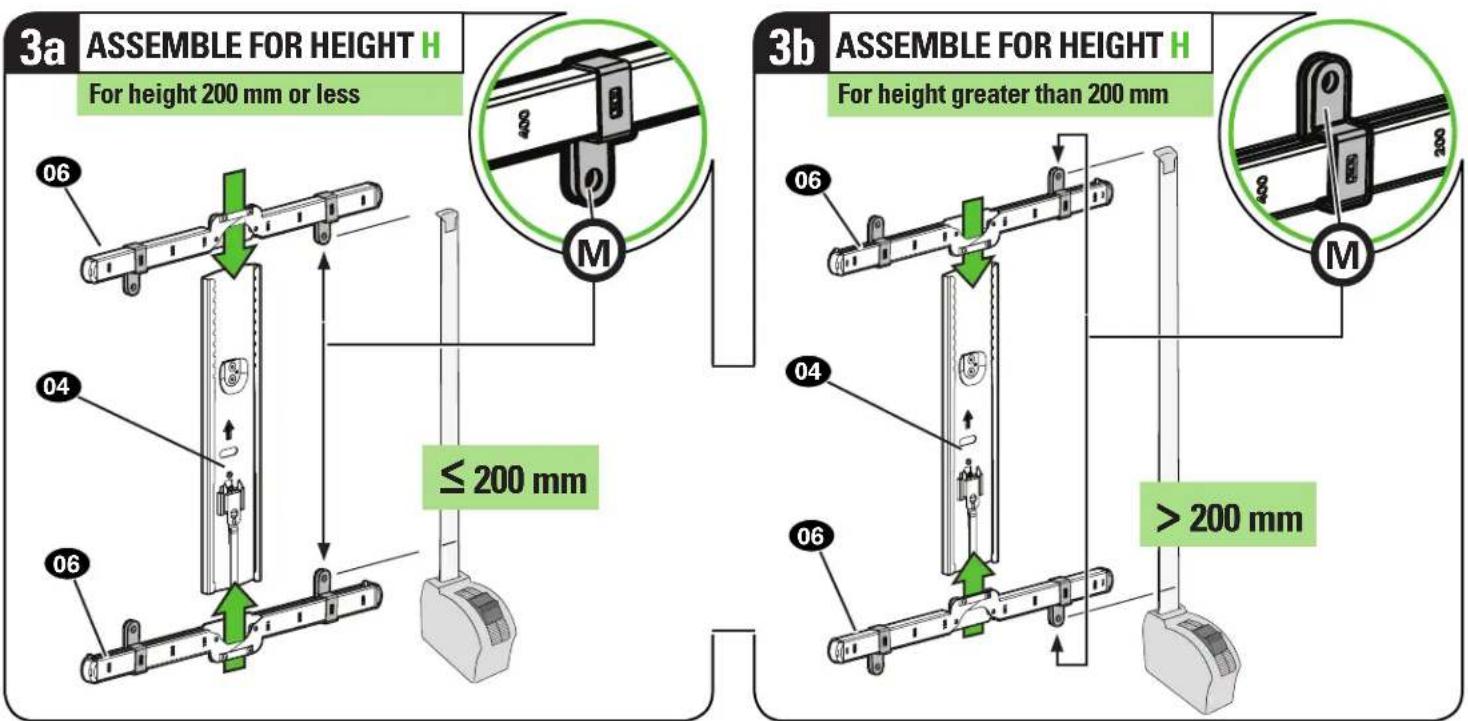

4 LOOSELY ASSEMBLE 06 06 4X A NO SPACER SPACER NEED B 02 01 03 02 01

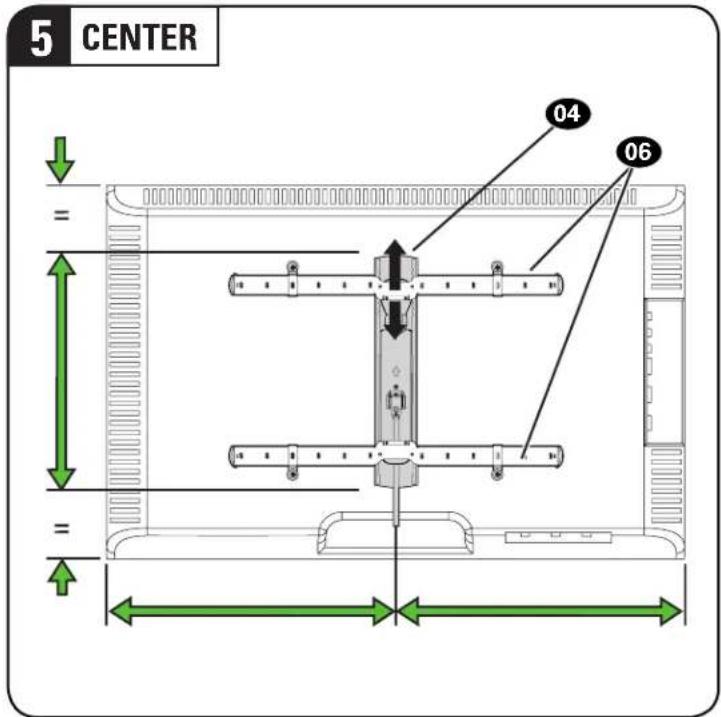

5 CENTER 04 06 =

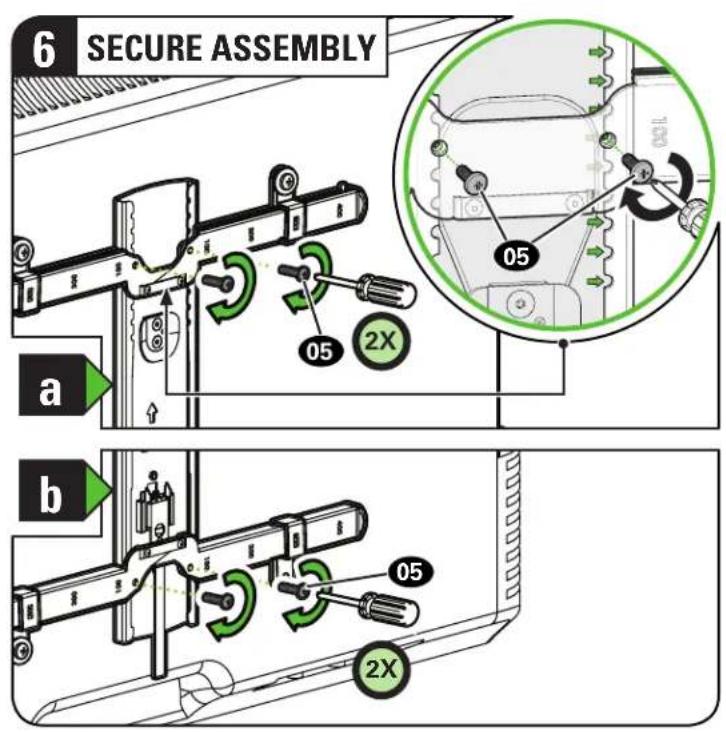

6 SECURE ASSEMBLY a b 05 2X 05

7 TIGHTEN ALL SCREWS 05 01 8X

STEP 2

Attach Wall Plate to Wall

WARNING:

This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE:

Not all hardware included will be used.

Parts and Hardware for STEP 2

Simple 3D illustration of a rectangular panel with two circular holes, no text or symbols present.

Wall Plate Template

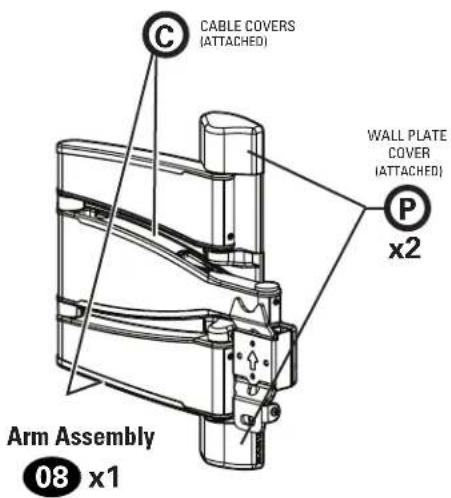

CABLE COVERS (ATTACHED) WALL PLATE COVER (ATTACHED) P x2 Arm Assembly 08 x1

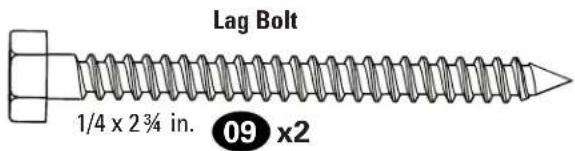

Lag Bolt 1/4 x 2 ¾ in. ⑩ x2

Washer

1/4 in.

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

Concrete Anchor

Pure mechanical component diagram without any text, numbers, or symbols

Fischer UX10 x 60R

STEP 2A Attach Wall Plate

ood Stud Installation

CAUTION: Avoid potential personal injury or property damage!

• Drywall covering the wall must not exceed 5/8 in. (1.5 cm)
• Minimum wood stud size: nominal 2 x 4 in. (5.1 x 10.2 cm) actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
  • Stud center must be verified

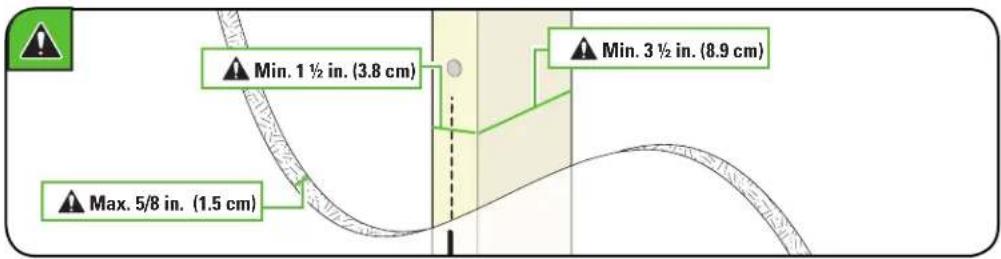

Min. 1 ½ in. (3.8 cm) Max. 5/8 in. (1.5 cm) Min. 3 ½ in. (8.9 cm)

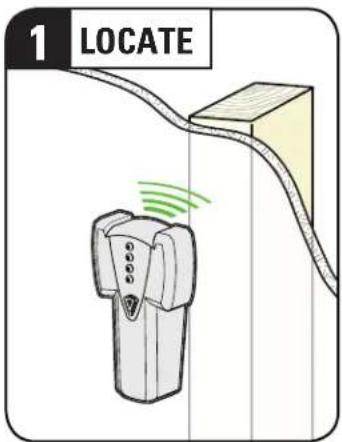

1 LOCATE

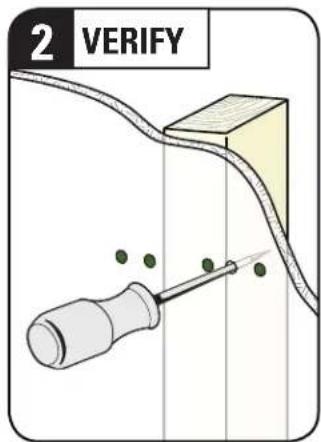

2 VERIFY

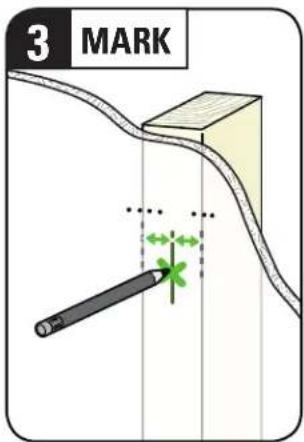

3 MARK

STEP 2A (continued)

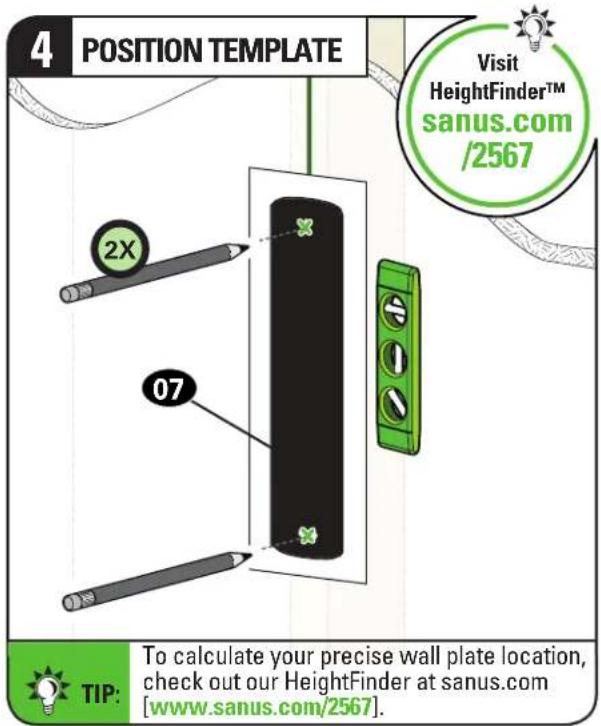

4 POSITION TEMPLATE Visit HeightFinder™ sanus.com /2567 2X 07 TIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/2567].

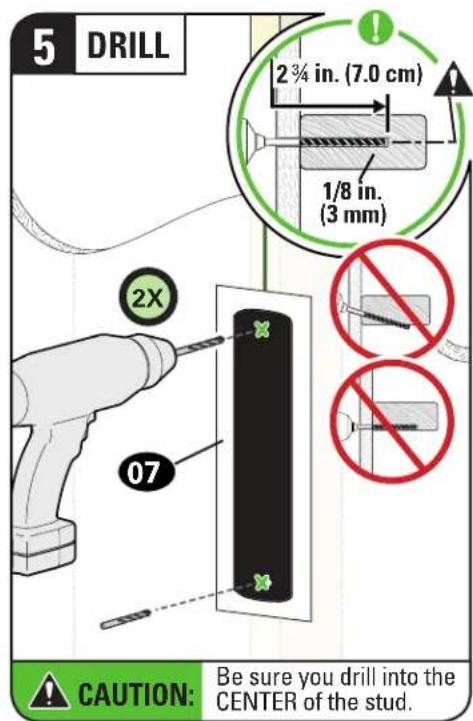

5 DRILL 2¾ in. (7.0 cm) 1/8 in. (3 mm) 2X 07 CAUTION: Be sure you drill into the CENTER of the stud.

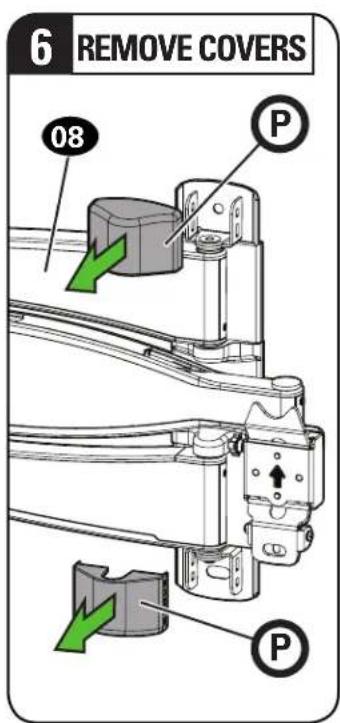

6 REMOVE COVERS 08 P P

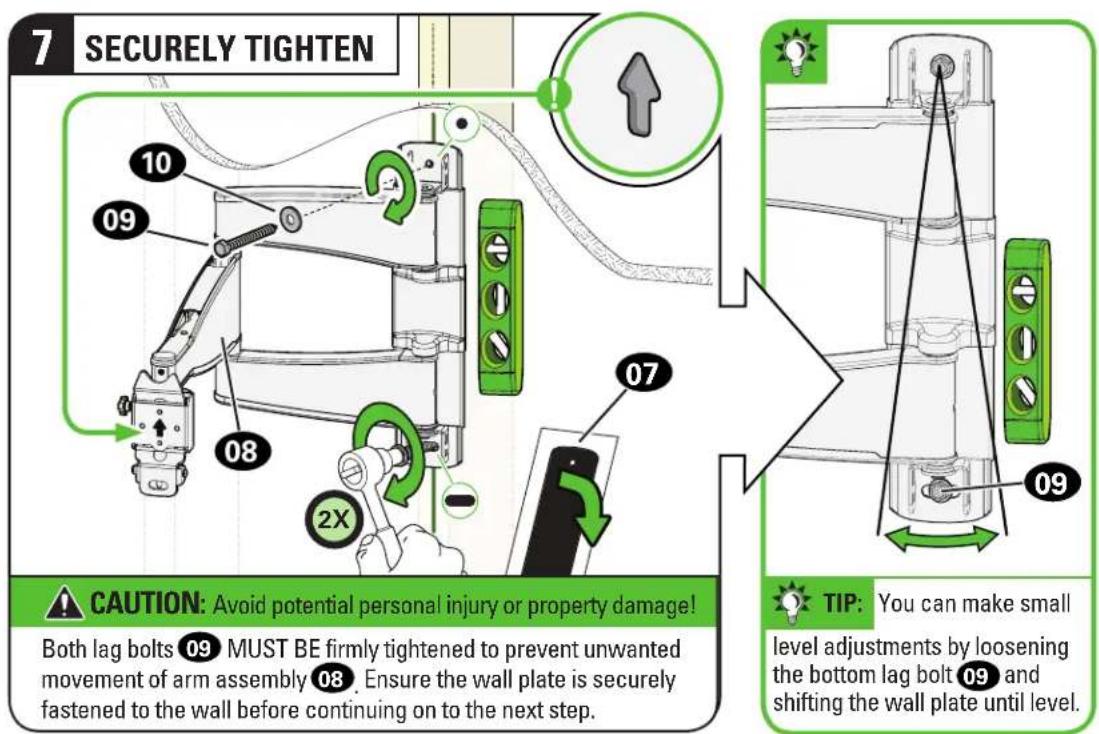

7 SECURELY TIGHTEN 10 09 08 2X 07 CAUTION: Avoid potential personal injury or property damage! Both lag bolts 09 MUST BE firmly tightened to prevent unwanted movement of arm assembly 08. Ensure the wall plate is securely fastened to the wall before continuing on to the next step. TIP: You can make small level adjustments by loosening the bottom lag bolt 09 and shifting the wall plate until level.

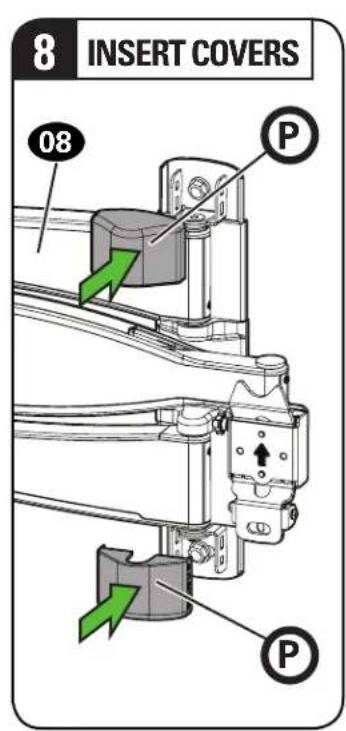

8 INSERT COVERS 08 P P

Go to STEP 3 on PAGE 19.

STEP 2B Attach Wall Plate

Solid Concrete or Concrete Block Installation

CAUTION: Avoid potential personal injury or property damage!

• Mount the wall plat 08 directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (20.3 cm)
  • Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)

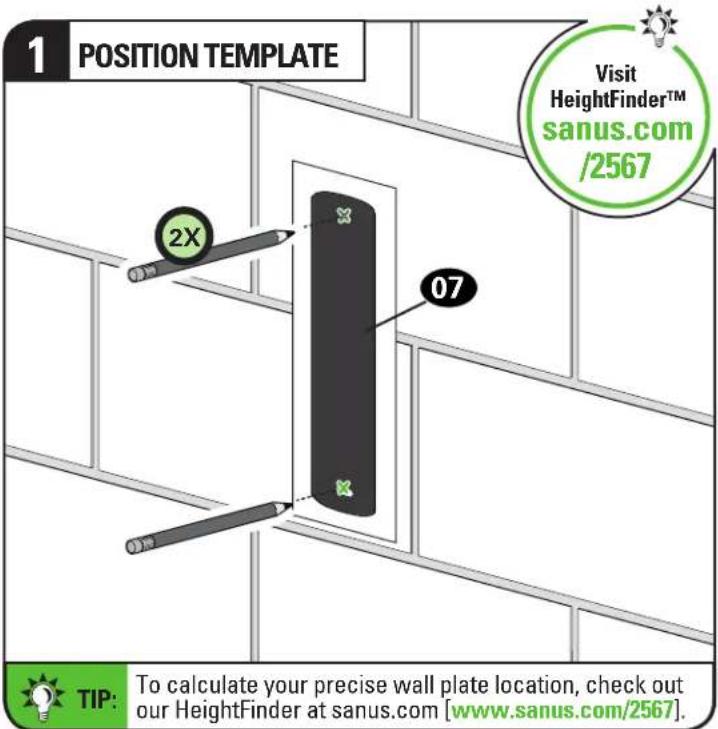

1 POSITION TEMPLATE Visit HeightFinder™ sanus.com /2567 2X 07 TIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/2567].

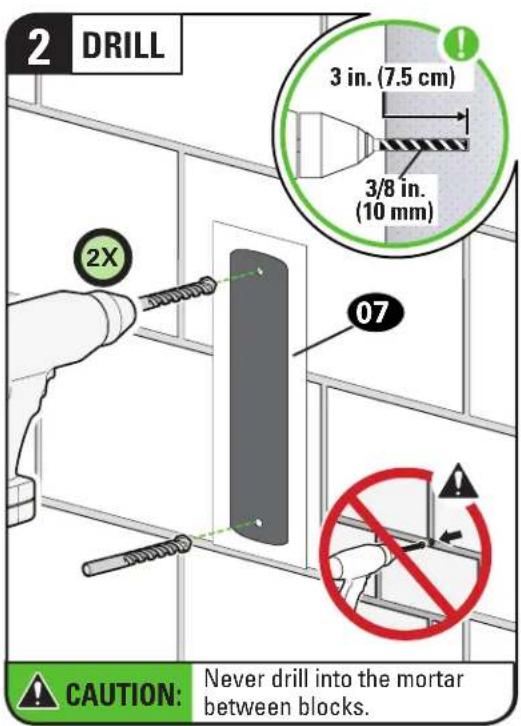

2 DRILL 3 in. (7.5 cm) 3/8 in. (10 mm) 2X 07 CAUTION: Never drill into the mortar between blocks.

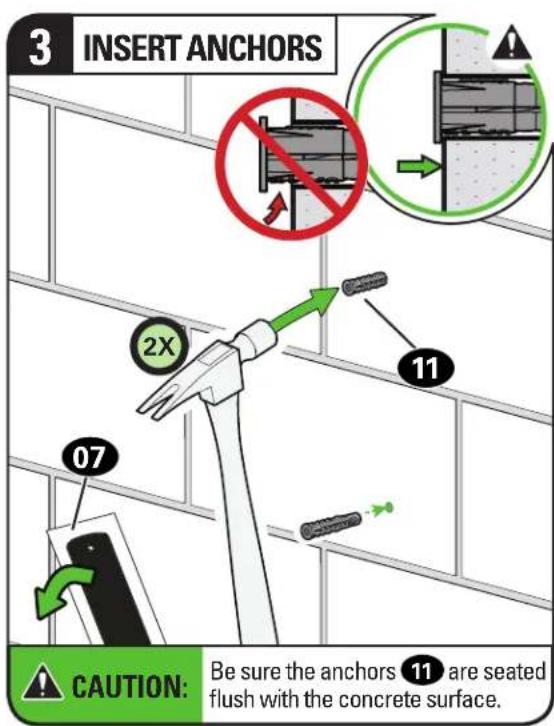

3 INSERT ANCHORS 2X 11 07 CAUTION: Be sure the anchors 11 are seated flush with the concrete surface.

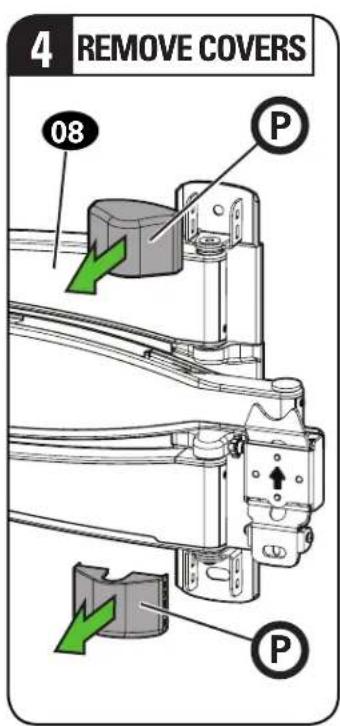

4 REMOVE COVERS 08 P P

STEP 2B (continued)

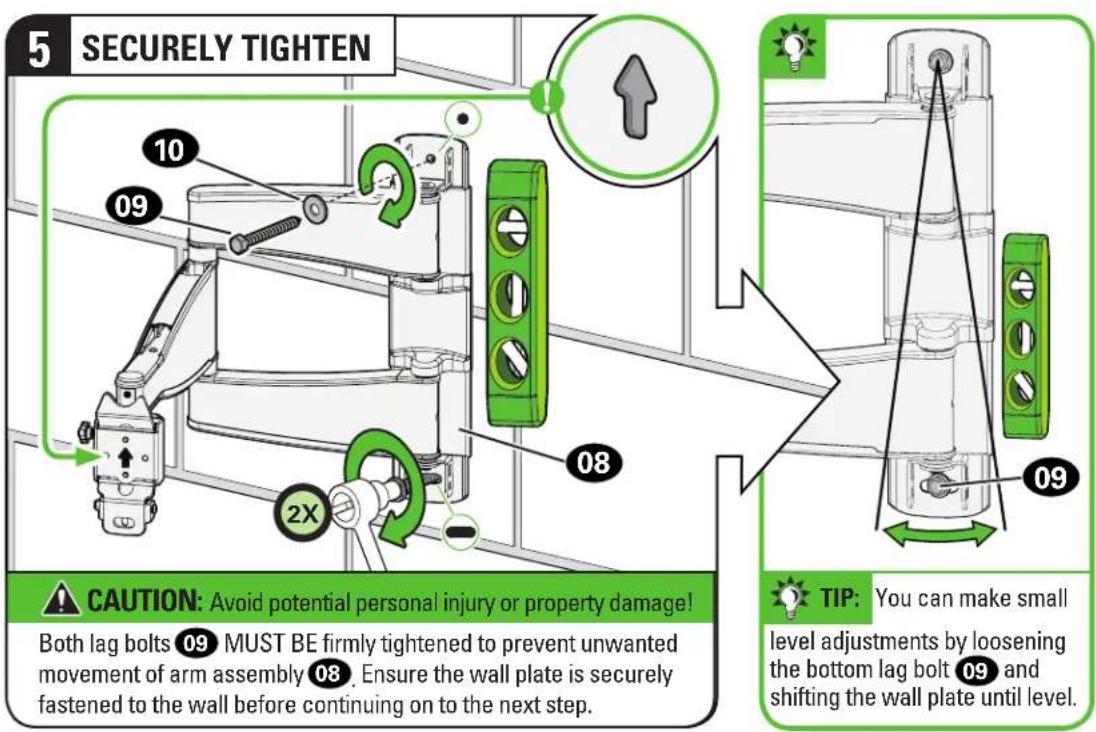

5 SECURELY TIGHTEN 10 09 2X 08 CAUTION: Avoid potential personal injury or property damage! Both lag bolts 09 MUST BE firmly tightened to prevent unwanted movement of arm assembly 08. Ensure the wall plate is securely fastened to the wall before continuing on to the next step. TIP: You can make small level adjustments by loosening the bottom lag bolt 09 and shifting the wall plate until level.

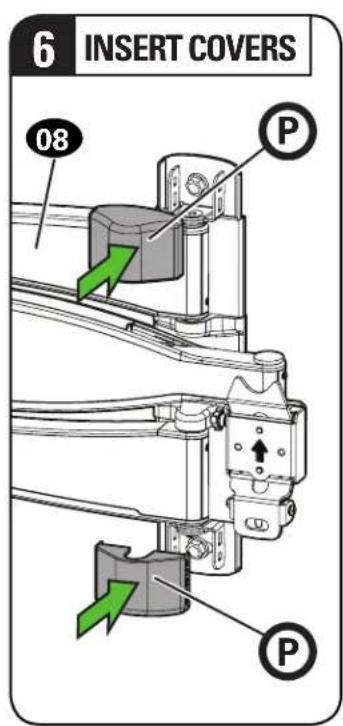

6 INSERT COVERS 08 P P

STEP 3

Attach TV to Wall Plate

WARNING:

Before starting assembly, verify this part is

undamaged. If damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 3

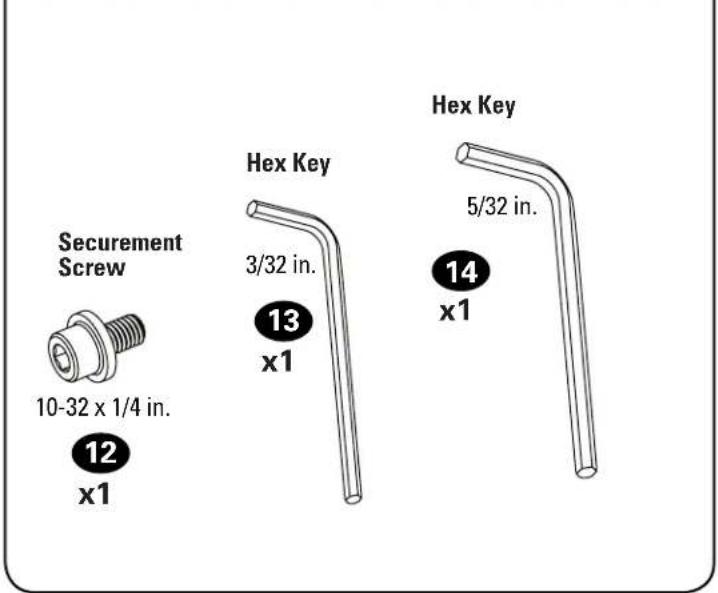

Securement Screw 10-32 x 1/4 in. 12 x1 Hex Key 3/32 in. 13 x1 Hex Key 5/32 in. 14 x1

1

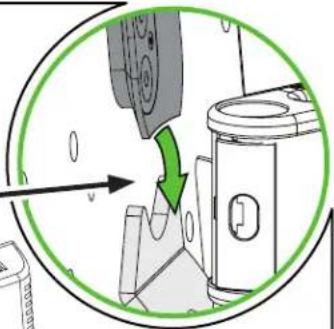

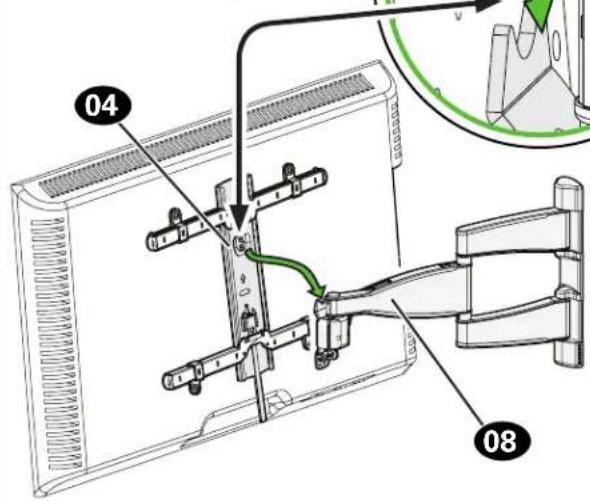

HANG YOUR TV

HEAVY! You may need assistance with this step.

Diagram showing a mechanical component being cut with a green arrow indicating direction (no text or symbols present)

04 08

STEP 3 (continued)

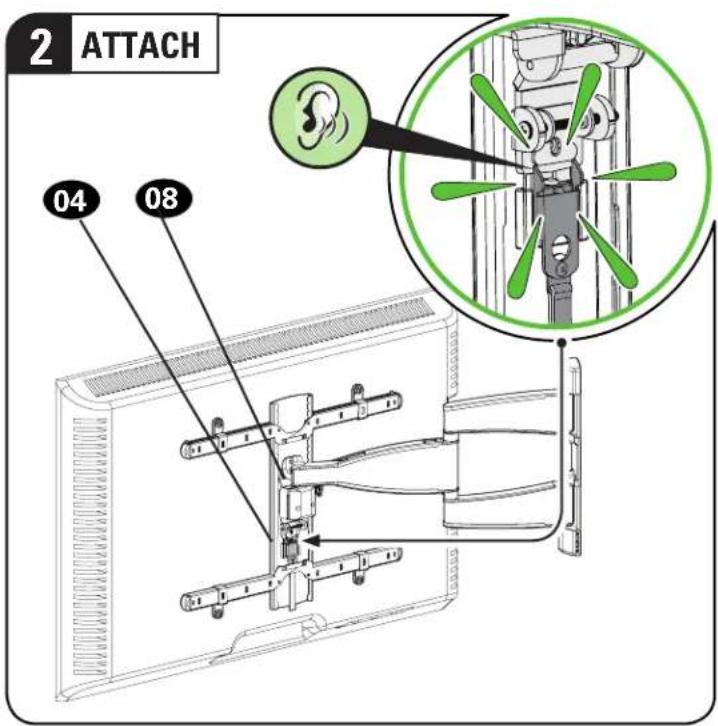

2 ATTACH 04 08

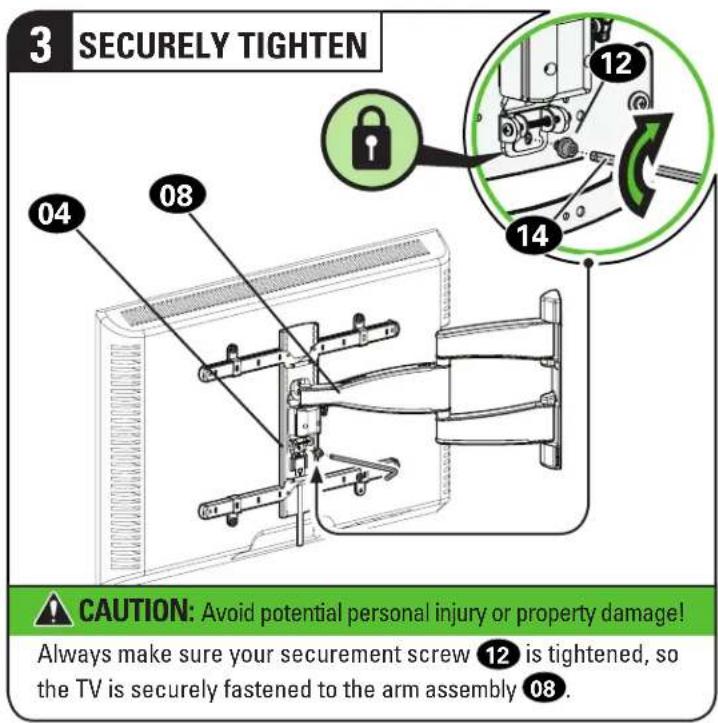

3 SECURELY TIGHTEN 04 08 12 14 CAUTION: Avoid potential personal injury or property damage! Always make sure your securement screw 12 is tightened, so the TV is securely fastened to the arm assembly 08.

Manage Cables

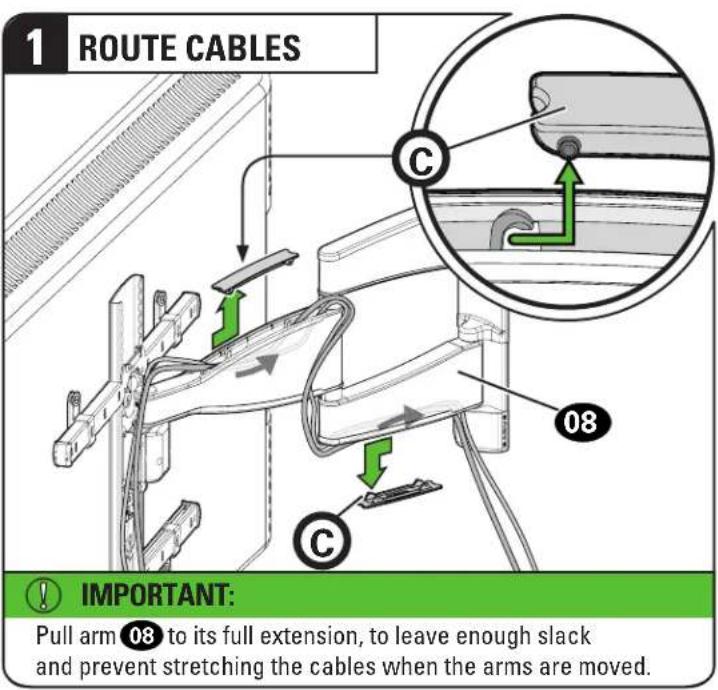

1 ROUTE CABLES C 08 C IMPORTANT: Pull arm 08 to its full extension, to leave enough slack and prevent stretching the cables when the arms are moved.

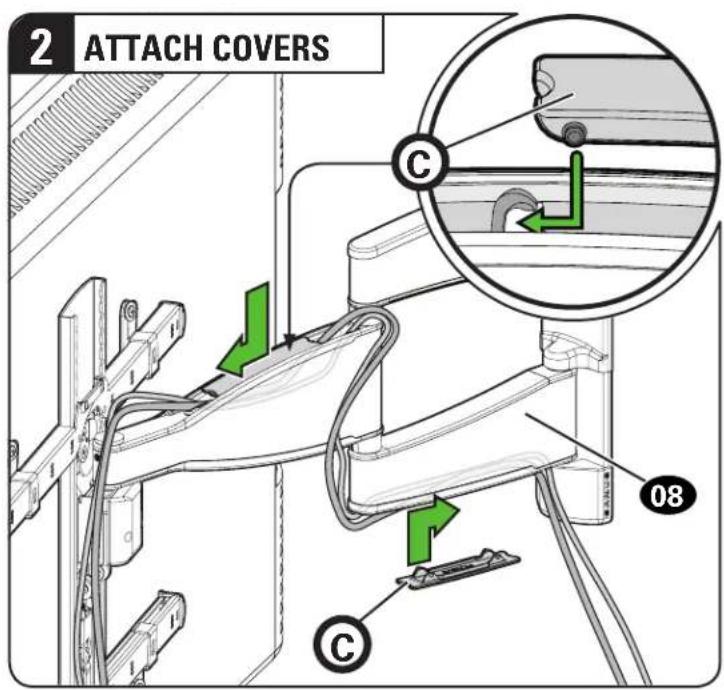

2 ATTACH COVERS C 08 C

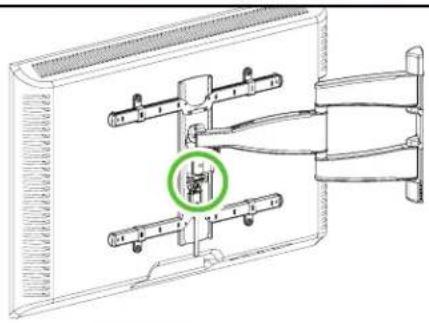

Adjustments

LEVEL ADJUSTMENT TILT ADJUSTMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

1 2 14 12

L 100 100 90

Diagram of a mechanical device with numbered components and a green directional arrow indicating motion or movement.

CAUTION:

Screw 12 MUST be loosened before turning screw L.

AUTION: Injury or pro

Avoid potential personal damage!

Always make sure your securement screw 12 is tightened, so the TV is securely fastened to the arm assembly 08.

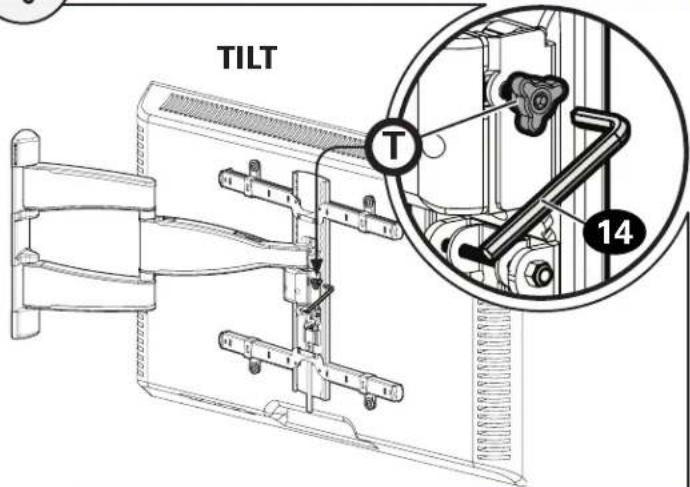

TILT T 14

NOTE:

If you do not intend to adjust the tilt for different viewing locations, you can tighten the tilt tension knobs ①, to prevent unwanted movement. If needed, use hex key ⑭ to tighten more firmly.

Your TV should adjust easily when moved, then stay in place.

Adjust the tilt tension knobs Ⓣ if your TV naturally tilts up or down.

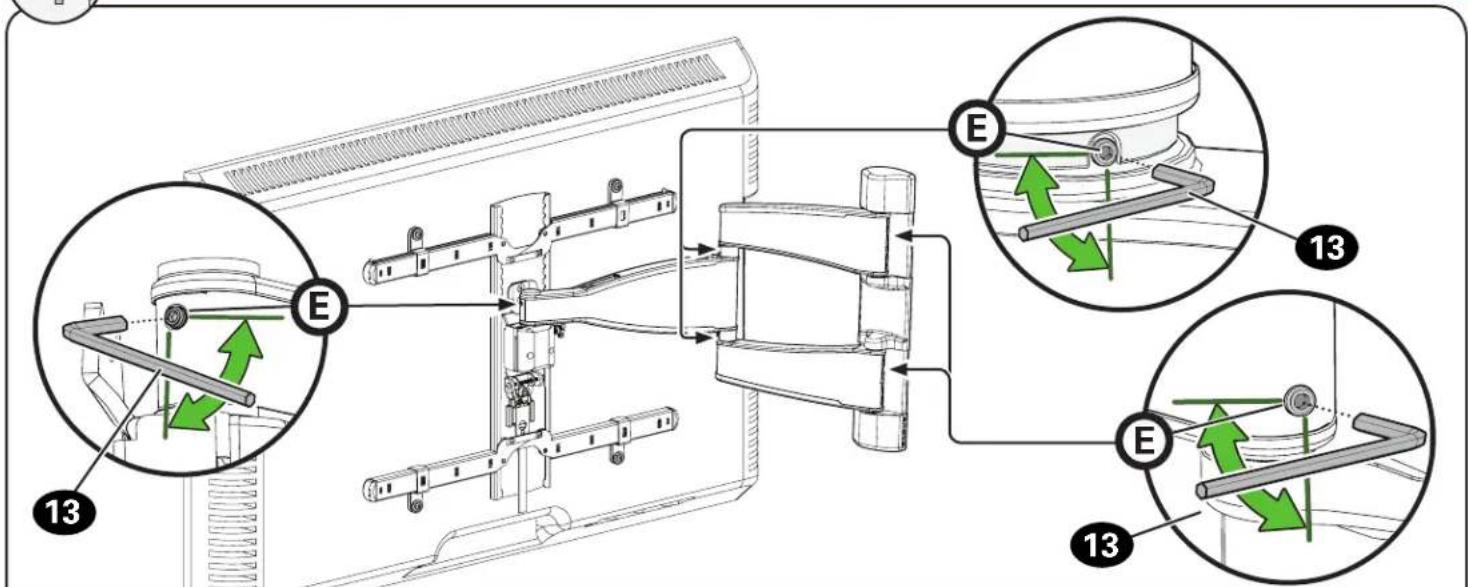

EXTEND / RETRACT -- ONLY IF NECESSARY

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force directions.

CAUTION:

Avoid potential personal injury or property damage! DO NOT remove screws Ⓔ, only turn enough for slight adjustment.

ONLY If needed, adjust the arm tension when you extend or retract your TV, with screw Ⓔ using hex key 13.

REMOVE THE TV

HEAVY! You may need assistance with this step.

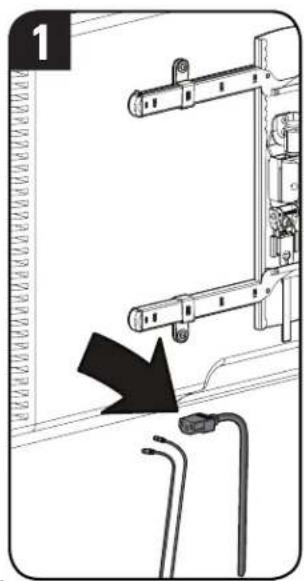

1. Disconnect all cables from the TV.

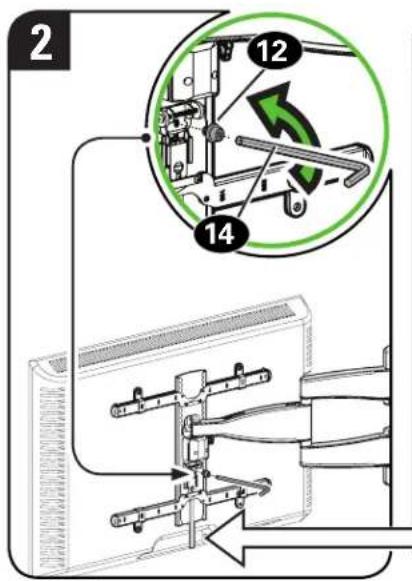

2. Remove securement screw 12

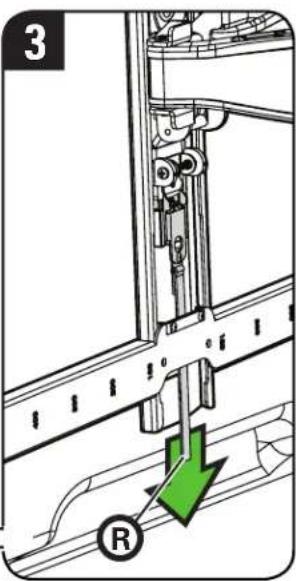

3. Pull down on the release cord R to release the TV.

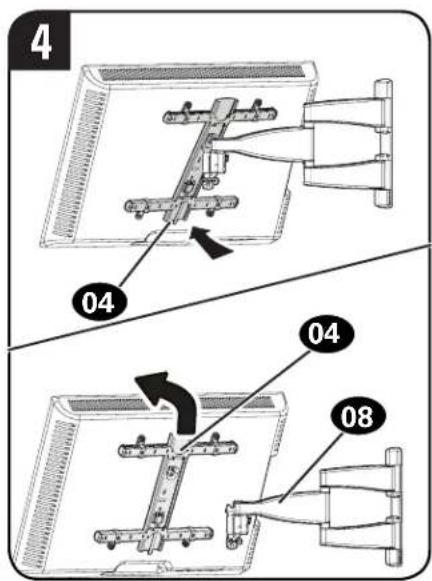

4. Carefully lift the TV from arm assembly 08.

1

2 12 14

3 R

4 04 04 08

Troubleshooting

TV SUPPLIED SPACERS

Use your TV supplied spacer for:

- Flat Back TV [TV brackets lay flat on your TV]

NOTE: M8 screws can be used without the washer for extra thread engagement.

FLAT BACK

Diagram of a device with a green arrow pointing to a component, showing no text or symbols.

TV Supplied Spacer

Supplied cer

CAUTION: Avoid potential injury or property damage!

Use the correct screw length for adequate thread engagement.

• Too short will not hold the TV.
• Too long will damage the TV.

If you are uncertain about your hardware selection, contact Customer Service

Use your TV supplied spacer and spacer 03 for:

• Flat Back TV with Extra Space Needed

[for deep inset holes or cable interference]

• Rounded or Irregular Back TV

[TV brackets NOT resting flat on your TV]

NOTE: M8 screws can be used without the washer for extra thread engagement.

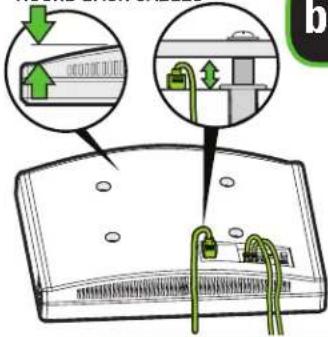

ROUND BACK CABLES

Diagram showing cable installation process with labeled components and directional arrows indicating movement

Illustration of three mechanical components: a cylindrical part, two circular parts with holes, and a threaded bolt (no text or symbols)

TV Supplied Spacer

Supplied laser 03

CAUTION: Avoid potential injury or property damage! Use the correct screw length for adequate thread engagement.

• Too short will not hold the TV.
• Too long will damage the TV.

▲ Too Short

▲ Too Long

Correct

Diagram showing five different types of tools or devices with labels: a remote control, screwdriver, plus sign, and 11 mm (7/16")

Massif betong

Osäker?

Ring kundtjänst:

US: 800-359-5520 [EMEA]: [phone] [UK]: 0800 056 2853 [AUS]: [phone]

Måttband

Penna

Vattenpass

Skruvmejsel

Elborr

Hylsnyckel

Regelsökare

Pryl

Träborrbit

Betongborrbit

Hammare

FULLY ASSEMBLED MOUNT

15.03 (404.6)

TOP VIEW - EXTENDED

60.00° SIMULATED 45° FIAT SCREEN TV 20.00 [508.1]

TOP VIEW - RETRACTED

3-D

Technical line drawing of a mechanical support structure (no text or symbols)

SIDE VIEW - EXTENDED

5° 15°

SIDE VIEW - RETRACTED

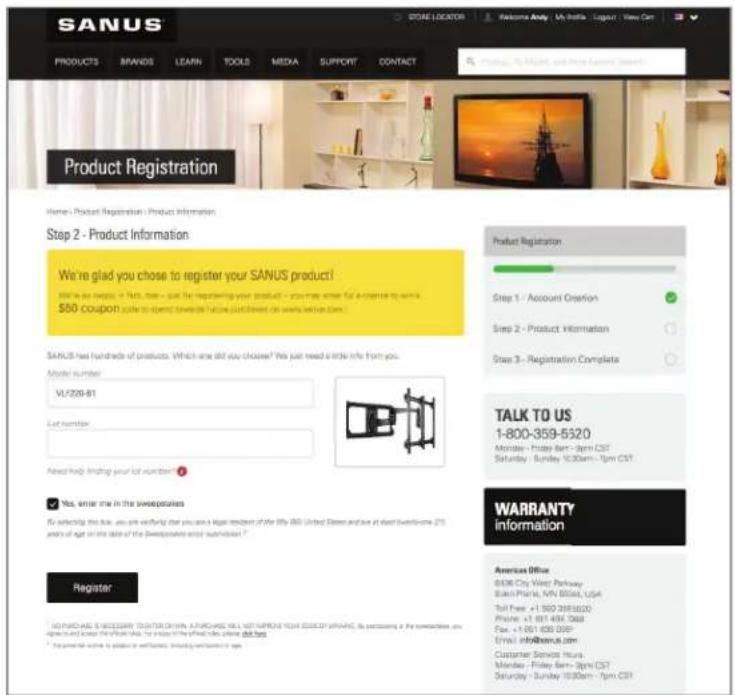

ONE MORE THING: BE A WINNER!
