USER MANUAL VMCA9 SANUS
CAUTION
Do not use this product for any purpose not explicitly specified by Sanus Systems. Improper assembly may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the assembly, contact Sanus Systems Customer Service or call a qualified contractor. Sanus Systems is not liable for damage or injury caused by incorrect assembly or use.
CAUTION
Improper installation may result in serious injury! The ceiling structure and mounting hardware (not included) must be capable of supporting up to five times the weight of the A/V equipment and mount combined. If you have any doubts about the ability of the ceiling to support the installation, contact Sanus Systems Customer Service, or a qualified contractor.
WARNING
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!


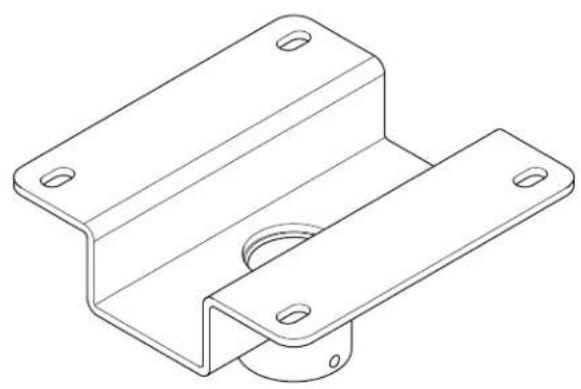

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the item to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!
5/16-18 x 0.25 in.
x1


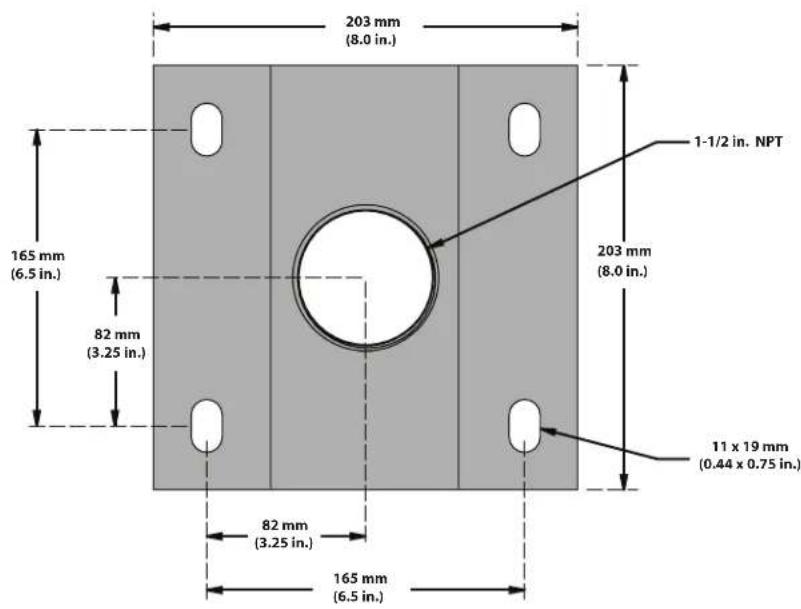

203 mm (8.0 in.) 165 mm (6.5 in.) 82 mm (3.25 in.) 82 mm (3.25 in.) 165 mm (6.5 in.) 1-1/2 in. NPT 203 mm (8.0 in.) 11 x 19 mm (0.44 x 0.75 in.)
CauTION

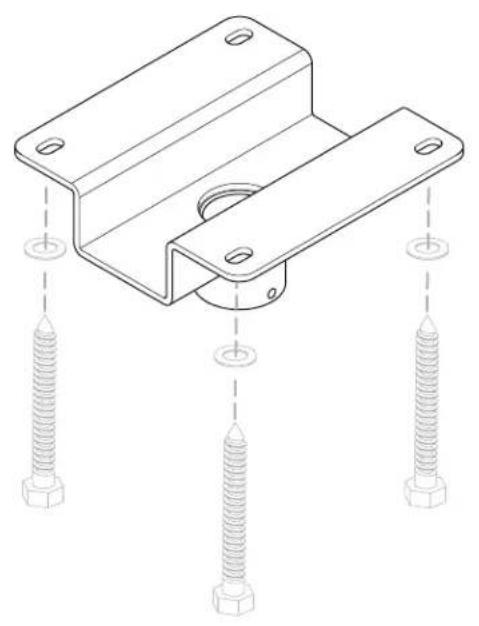

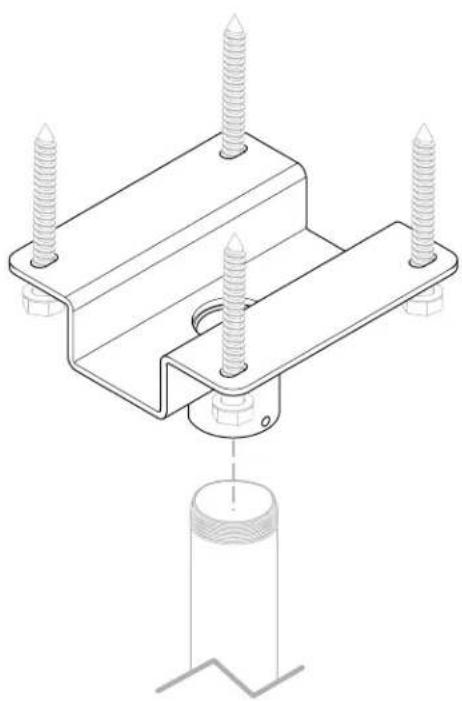

Avoid potential injuries and / or property damage! Be sure to use the correct mounting hardware (not included) for your ceiling structure.
3

