USER MANUAL VLC1 SANUS

Technical line drawing of a mechanical assembly with mounting brackets and a central vertical component (no text or symbols)

VLC1 INSTRUCTION MANUAL

We'll Make It Stress-Free

If you have any questions along the way, just give us a call. 1-800-359-5520 (UK: 0800-056-2853). We're ready to help!

Scan for easy install video

http://san.us/1082

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

1 Does your TV (including accessories) weigh MORE than?	For walls with wood studs, solid concrete or concrete block.	For walls with steel studs.	No — Perfect!Yes — This mount is NOT compatible. Visit Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
2 What is your wall made of?CAUTION:DO NOT install into drywall alone			oncrete crete	Drywall with steel studs?Steel stud kit required (not included)	Unsure?Call Customer Service: 1-800-359-5520 (UK: 0800-056-2853)
3 Do you have all the tools needed?
	Tape Measure Pencil	Screwdriver	Electric Drill Socket Wrench
4 Ready to begin?	Please read through these instructions completely to be sure you're comfortable with this easy install process. Also check your TV owner's manual to see if there are any special requirements for mounting your TV.If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).CAUTION: Avoid potential personal injuries and property damage!This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls—DO NOT install into drywall alone.The wall must be capable of supporting five times the weight of the TV and mount combined.Do not use this product for any purpose not explicitly specified by manufacturer.Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Dimensions (in. [mm])

TV INTERFACE

16.97 [431.0] 15.75 [400.0] 15.75 [400.0] 25.37 [644.5] 23.62 [600.0]

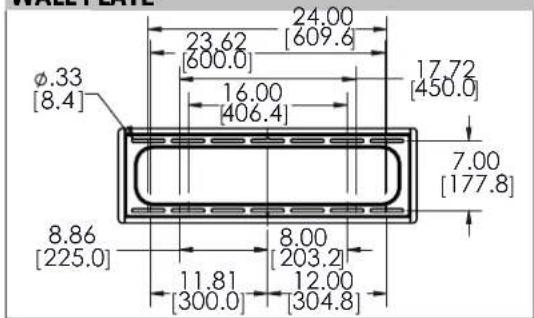

WALL PLATE

φ.33 [8.4] 23.62 [600.0] 16.00 [406.4] 24.00 [609.6] 17.72 [450.0] 7.00 [177.8] 8.86 [225.0] 8.00 [203.2] 11.81 [300.0] 12.00 [304.8]

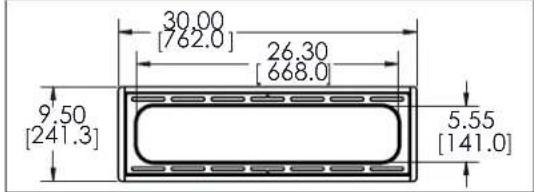

WALL PLATE OPENING

30.00 [762.0] 26.30 [668.0] 9.50 [241.3] 5.55 [141.0]

TOP VIEW - DEPTH

2.68 [68.0] 2.31 [58.8]

SIDE VIEW - HEIGHT ADJUSTMENT

1" POST INSTALLATION HEIGHT ADJUSTMENT

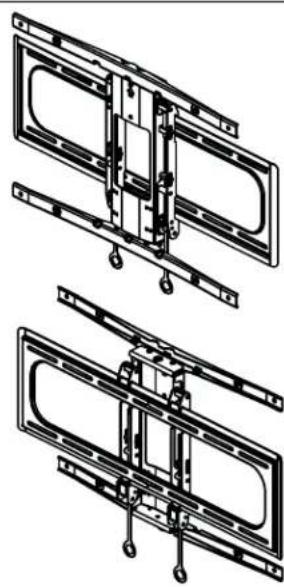

3-D

Technical line drawing of two mechanical frame assemblies with mounting brackets and hanging weights (no text or symbols)

SWIVEL RANGE

10° 10°

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1 Parts and Hardware

Parts and Hardware for STEP 2

Wall Plate 09 x1 Sanus Stud Finder *

10 x1

WARNING: This product contains a magnet. See PAGE 8 for details.

Lag Bolt 5/16 in. x 2 3/4 in.

11 x4
For concrete installations ONLY
CAUTION: Do not use in drywall or wood

Anchors (Concrete) UX10x60R

12 x4

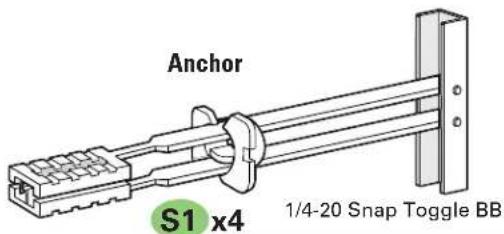

Hardware for STEP 2C Steel Stud Installation [Steel Stud Anchor Kit is NOT INCLUDED]

Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.

Anchor S1 x4 1/4-20 Snap Toggle BB

Screw 1/4-20 x 1.75

S2 x4

.734 x .312 x .065 in.

S3 x4
Cable Management

Cable Ties 13 x4

Adjustments

Hex Key 3/16 in. 14 x1

STEP 1 Attach TV Bracket to TV

1.1 TV Screw Length

a: Use the shorter screws if you want your TV closer to the wall, AND TV bracket 01 sits flat onto the back of your TV.

b: Spacers and longer screws are supplied to accommodate:

• Extra space needed for cables
- Irregular back TVs

a 01 b 08 01 TV

If your TV included inset spacers or wall mount adapters, see Troubleshooting on PAGE 21.

CAUTION: Verify adequate thread engagement with your screw/washer/spacer combination AND TV bracket (STEP 1.2).

• Too short will not hold the TV.
• Too long will damage the TV.

▲ Too Short

▲ Too Long

1.2 Attach TV Bracket

Position your TV bracket 01 onto your TV and secure using your selection: (a) screw/washer or (b) screw/washer/spacer.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws.

IMPORTANT: Ensure TV bracket is securely fastened before moving on to the next step.

Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service at 1-800-359-5520. a Flat Back 02 03 07 b Irregular Back / Extra Space 04 05 06 08 Adjust the straps to the bottom of the TV.

SANUS MAGNETIC STUD FINDER

Designed to find your studs and make life easier—included in hardware kit.

magnet locates screws in drywall to show exactly where your studs are probing pin helps find the edges of your stud within the wall level attaches to your wall plate for hands free leveling SAN US 10

TWO SIMPLE STEPS TO FINDING YOUR STUDS:
        direction LR
        A -->|Upward Arrow| B
        B -->|Downward Arrow| C
        C -->|Leftward Arrow| D["Section 2"]
        D -->|Rightward Arrow| E["Section 3"]
    end

Holding it vertically, lightly move the SANUS Magnetic Stud Finder up and down while sliding across your wall. The magnet within will be attracted to the screws in the stud.

Once the magnet has landed on a screw, place a pencil mark on the wall directly below the magnet.

You can verify this is a stud by moving the Magnetic Stud Finder up or down to find a second or third screw within the wall.

Step 2 10.50 30.50 30.50

Pull apart the SANUS Magnetic Stud Finder to expose the probing pin within. Starting about y_2 inch away from the first pencil mark insert the probing pin into the wall every 1/8 inch until it inserts completely into the wall. Once that happens, you know you've found one edge of your stud. Repeat this process till you have found the stud edges and center of the stud.

WARNING: This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may affect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.

STEP 2A Attach Wall Plate

Wood Stud Installation

CAUTION: Avoid potential personal injuries and property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1 ½ x 3 ½ in. (38 x 89 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)
- Stud centers must be verified – not all walls have conventional 16 in. (406 mm) stud spacing

1. Locate a nail/screw in the studs using the Sanus magnetic stud finder finder 10. Mark the centers of the studs with a pencil.

10 provided. Find the edges of the studs using the probe of the stud

1. Level the wall plate 09 and mark the hole locations in the center of the studs.

1 Min. 16 in. (406 mm) Max. 5/8 in. (16 mm) 10 10

2 10 09

1. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 2 3/4 in. (70 mm). Be sure to drill into the center of the stud.

1. Install the wall plate 09 using four lag bolts 11. Tighten all lag bolts only until they are pulled firmly against the wall plate.

CAUTION: Avoid potential personal injury or property damage! All four lag bolts 11 MUST BE firmly tightened to prevent unwanted movement of the wall plate 09. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

Go to STEP 3 on PAGE 16.

3 2 3/4 in. (70 mm) 7/32 in. (5.5 mm)

4 11 09

STEP 2B Attach Wall Plate

Solid Concrete or Concrete Block Installation

CAUTION: Avoid potential personal injuries and property damage!

• Mount the wall plat 09 directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (203 mm)
  • Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
  • Minimum horizontal space between fasteners: 24 in. (610 mm)

• For concrete applications, TV bracket 01 (STEP 3) must remain centered in wall plate 09. Keep this in mind when selecting the wall plate location.

• Level the wall plate 09 and mark the hole locations.

• Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit. Never drill into the mortar between blocks.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).

1 10 09 Min. 24 in. (610 mm)

2 3 in. (75 mm) 3/8 in. (10 mm)

1. Insert four concrete anchors 12.

CAUTION: Be sure the anchors 12 are seated flush with the concrete surface.

1. Install the wall plate 09 using four lag bolts 11. Tighten all lag bolts only until they are pulled firmly against the wall plate 09.

CAUTION: Avoid potential personal injury or property damage! All four lag bolts 11 MUST BE firmly tightened to prevent unwanted movement of the wall plate 09. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

Go to STEP 3 on PAGE 16.

4 11 09

STEP 2C Attach Wall Plate

Steel Stud Installation

Min. 1/2 in. (13 mm) Min. 16 in. (406 mm)

CAUTION: Avoid potential personal injuries and property damage!

• Studs must be at least 2x4 in. / 25 ga.
- Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members [362 S 125 18, C-Shape, S - Stud Section].
- If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount.
- Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 7/8 in. (48 mm) behind the wall is required.
- Drywall must be secured to studs with screws 12 in. (304.8 mm) on center.
• Stud centers must be verified.

Steel Stud Anchor Kit is NOT INCLUDED

Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.

1. Locate the studs using the Sanus magnetic stud finder 10 provided. Find the edges of the studs using the probe of the stud finder 10. Mark the centers of the studs with a pencil.

2. Place wall plate 09 at your desired height and position over your studs. Level wall plate 09 and tape in place.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use the three middle slots in the wall plate for mounting.

1

2 09 CAUTION: DO NOT use the three middle slots in the wall plate for mounting.

1. Drill the four pilot holes using a 1/2 in. (13 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (25 mm). Be sure you drill into the center of the stud.

1. Insert the four anchors S1 * into the drilled holes.
2. Pull to rotate the anchor S1 * inside the wall.

3 1 in. (25 mm) 1/2 in. (13 mm)

S1

S1

1. Hold the end of the anchor S1 *, while sliding the cap P against the drywall.
2. Snap off the ends of the anchor S1 * to lock in place.

CAUTION: Be sure the cap P is seated against the drywall surface and the ends of the anchor do not extend beyond the cap P - cut if necessary.

1. Install the four screws S2 and washers S3 and firmly tighten until the washers are pulled flush against the wall plate 09.

CAUTION: Avoid potential personal injury or property damage! All four screws S2 * MUST BE firmly tightened to prevent unwanted movement of the wall plate 09. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

* Steel Stud Anchor Kit is NOT INCLUDED Contact Customer Service at 1-800-359-5520 to have the additional hardware shipped directly to you.

6 S1 P

7 S1 P

8 S1 S2 S3 09

STEP 3 Attach TV to Wall Plate

HEAVY! You may need assistance with this step.

1. Hook the TV/bracket 01 onto the wall plate 09.
2. Rest the TV into place against the wall plate 09. You will hear an audible click when the TV is securely fastened to the wall plate.

CAUTION: Avoid potential personal injury or property damage! Always make sure your TV bracket 01 is in the locked position so the TV is securely fastened to the wall plate 09.

CAUTION: Avoid potential personal injury or property damage!

For CONCRETE applications,

TV bracket 01 MUST remain centered in wall plate 09.

01 C_L 09

For WOOD STUD and STEEL STUD applications,

TV bracket 01 MUST be positioned BETWEEN or OVER the lagbolts 11 on wall plate 09. (NOT beyond the four lagbolts 11).

09 Lag bolt 11 01 09 Lag bolt 11 01

UP ARROW 01 09

1 01 09 2

Cable Management

Use the supplied cable ties 13 to secure your cables in the holes of the TV bracket 01.

01 13 Cables

TV Adjustments

LEVEL HEIGHT

To level your TV, turn the level adjustment screw L on the top of either side of TV bracket 01 to raise or lower that respective side of the TV.

at respective side of the TV. 14 L 01

To adjust the height of your TV, turn the level adjustment screw L on the top of BOTH sides of TV bracket 01 to raise or lower the TV.

14 L 14 L 01

To adjust the swivel tension of your TV, turn the swivel adjustment screw Ⓢ on the top of TV bracket 01.

TOP VIEW 14 S 01

TV LATERAL SHIFTSWIVEL

CAUTION: Avoid potential personal injury or property damage!

For all concrete applications, TV bracket 01 MUST remain centered in wall plate 09!

For Wood Stud and Steel Stud Applications:

Slowly slide TV bracket 01 along the wall plate 09 to reposition. The wall plate has built-in stops to limit lateral movement.

CAUTION: Avoid potential personal injury or property damage!

TV bracket 01 MUST be positioned BETWEEN or OVER the lagbolts 11 on wall plate 09 (NOT BEYOND the four lagbolts 11). See CAUTION on PAGE 16.

01 Lag bolts 11

REMOVING THE TV

HEAVY! You may need assistance with this step.

1. Disconnect all cables from the TV.

2. To unlock the TV from the wall plate: Pull down and hold both release cords ☑ while gently pulling the bottom of the TV away from the wall.

CAUTION: Avoid potential personal injury or property damage! To prevent breaking the locking latch: always pull and hold the release cords down while pulling the TV away from the wall.

1. Lift the TV up and off of wall plate 09.

NOTE: To rehang the TV, follow the procedures in STEP 3 on PAGE 16.

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

01 R

09

Troubleshooting

TV supplied spacers

TV Supplied Spacers

a: Use your TV supplied spacer for flat back TVs (AND you want your TV closer to the wall).

NOTE: M8 screws can be used without the washer for extra thread engagement.

FLAT BACK

a TV Supplied Spacer

CAUTION: Avoid potential injury or property damage! the correct screw length for adequate thread engagement.

• Too short will not hold the TV.
• Too long will damage the TV.

▲ Too Short

▲ Too Long

Correct

If you are uncertain about your hardware selection, contact Customer Service at 1-800-359-5520.

b: Use your TV supplied spacer and spacer 08 for:

- Round (irregular) back TVs - Extra space needed for cables

NOTE: M8 screws can be used without the washer for extra thread engagement.

ROUND BACK CABLES

Diagram showing cable installation process with arrows indicating direction of connection and cable attachment

Three mechanical components shown in line drawings: a circular component, a cylindrical part, and a threaded bolt (no text or symbols)

TV Supplied Spacer

upplied cer 08

CAUTION: Avoid potential injury or property damage! Use the correct screw length for adequate thread engagement.

• Too short will not hold the TV.
• Too long will damage the TV.
