USER MANUAL XR-55A83K SONY

Illustration of a remote control with a house icon and a question mark on a grid screen (no text or symbols)

BRAVIA XR

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guia de referência	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční příručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referință	RO
Информация за продукта	BG
Обдньóс αναφοράς	GR
Başvuru Kılavuzu	TR

About Manuals

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/jaep1/h_aep/

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types XR-77A84K, XR-77A83K, XR-77A80K, XR-65A84K, XR-65A83K, XR-65A80K, XR-65A75K, XR-55A84K, XR-55A83K, XR-55A80K, XR-55A75K are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types XR-77A84K, XR-77A80K, XR-65A84K, XR-65A80K, XR-65A75K, XR-55A84K, XR-55A80K, XR-55A75K are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more persons are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen

Two people handling a large rectangular object with a checkmark above (no text or symbols)

∅/X

- When handling or mounting the TV set, do not lay down the TV (except XR-55A8xK / 55A7xK).

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change or absence (no text or labels present)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

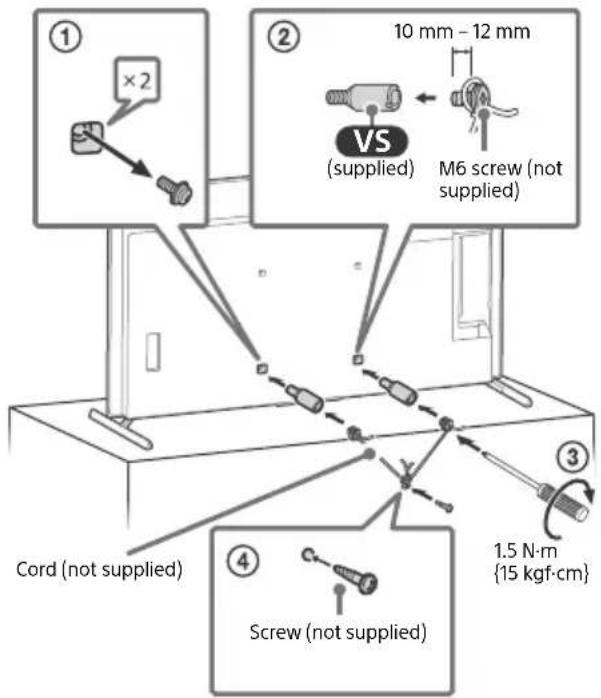

Topple prevention

① ×2 ② 10 mm - 12 mm VS (supplied) M6 screw (not supplied) Cord (not supplied) ③ 1.5 N·m {15 kgf·cm} ④ Screw (not supplied)

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV's are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
  • Static images such as photos.
• On-screen menus, programme guides, channel logos etc.
  • Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing 12 control menu) button and select [Info], and turn off the menus from connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.

Caution:

• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about ten minutes to complete.
• The effectiveness of a panel refresh may vary depending on the image retention condition.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

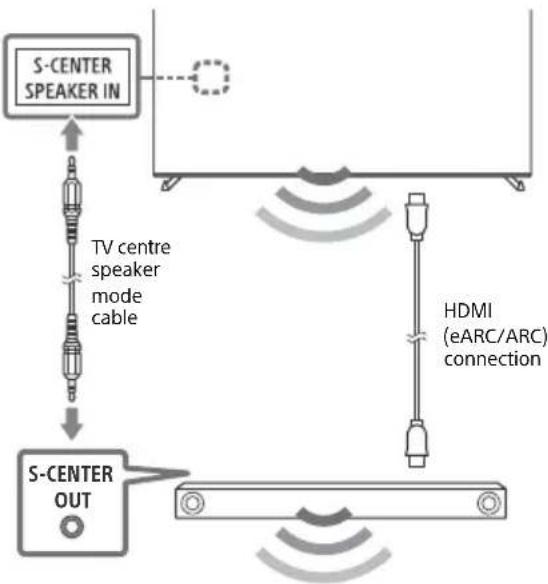

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.


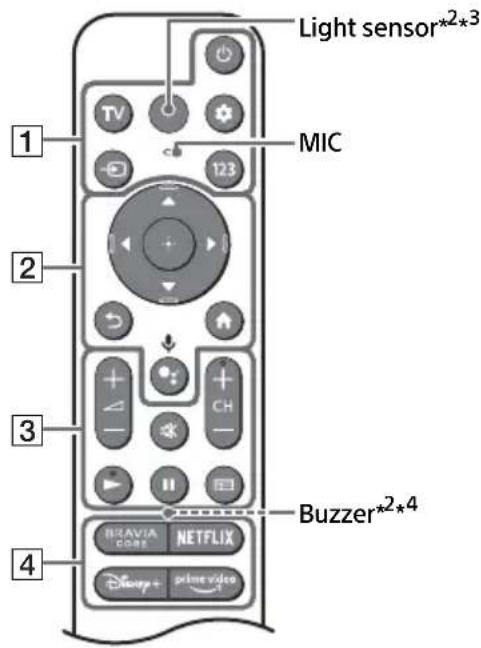

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings ^*1 .

Light sensor*2*3 MIC 1 2 3 4 Buzzer*2*4 BRAVIA CORE NETFLIX Disney+ prime video

1 ⏻(Power)

TV: Display TV channel list or switch to input.

(Qquick settings): Display Quick Settings.

→ (Input select): Display and select the input source, etc.

123 (Control menu): Display the Control menu.

2 ▲ / ▼ / ◀ / ▶ / ⊕: On screen menu navigation and selection.

(Back)

Home

•: (Google Assistant) / (Microphone): Use Google Assistant ^5*6 or voice search ^6 .

3 +1 - (Volume)

Mute^*7

CH + / - (Channel)

/

(Guide): Display the digital programme guide of TV or TV box*8.

4 App buttons

5 BUILT-IN MIC SWITCH: Turn on/off the built-in MIC.
6 ⏻(Power)
7 Remote Control sensor / Light sensor / LED
Built-in MIC ^569 : To enable the built-in MIC, press the Google Assistant/microphone button on the remote control and follow the on-screen instructions.
*1 For other remote control models, refer to the online Help Guide for details.
*2 RMF-TX900U only. To see the model name of the remote control, open the remote control cover and see the label on the remote control.
*3 The remote control backlight will illuminate when the light sensor detects the ambient light is low. Automatic illumination of the backlight can be turned off.
*4 The buzzer will emit a sound when you use the remote finder function. Refer to the online Help Guide for details.
*5 Only for limited region/country/model/language.
*6 Google Assistant or voice search requires an Internet connection.
*7 Accessibility shortcut is available by pressing and holding ⚙ (Mute).
*8 [TV box setup] setting is required.
*9 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Optional Camera and Microphone Unit (not supplied) Cable Management

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Table-Top Stand position

Pure electrical circuit lines without any symbols

Wall-mount position

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

The screen becomes darker while watching TV.

- If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh only when image retention is particularly noticeable. Avoid performing Panel refresh more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

The message [Panel refresh did not finish...] is displayed.

When i) the TV is turned on or ii) the mains lead is unplugged during the Panel refresh, the Panel refresh is not completed. Please avoid the above two conditions during the Panel refresh.

For more information on troubleshooting, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Specifications

System

Panel system: OLED (Organic Light Emitting Diode) Panel

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: Intermediate Frequency

950-2150 MHz

Sound output

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(TV)
2400-2483.5 MHz < 10 0 dBm
Bluetooth®(RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483.5 MHz < 10 0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

/ AV IN / S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)^12, 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats ^*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return Channel) mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (HDMI IN 3 only)*5

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

1,2 (HDD ^6 REC)*

USB device port (2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2 Gen 1)

CAM (Conditional Access Module) slot

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

XR-77A8xK: 194.7 cm / 77 inches

XR-65A8xK / 65A7xK: 163.9 cm / 65 inches

XR-55A8xK / 55A7xK: 138.8 cm / 55 inches

Standby power consumption ^7*8 0.50 W

Display resolution (horizontal × vertical) (pixels)

3840 × 2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand

Standard position:

XR-77A8xK: 172.2 × 102.4 × 38.9

XR-65A8xK: 144.8 × 86.2 × 33.0

XR-65A7xK: 144.8 × 91.0 × 33.8

XR-55A8xK: 122.7 × 73.8 × 33.0

XR-55A7xK: 122.7 × 78.5 × 33.8

Narrow position:

XR-77A8xK: 172.2 × 102.4 × 38.9

XR-65A8xK: 144.8 × 86.2 × 33.0

XR-55A8xK: 122.7 × 73.8 × 33.0

Soundbar position:

XR-77A8xK: 172.2 × 106.6 × 38.9

XR-65A8xK: 144.8 × 90.4 × 33.0

XR-55A8xK: 122.7 × 78.0 × 33.0

without Table-Top Stand

XR-77A8xK: 172.2 × 99.8 × 5.4

XR-65A8xK / 65A7xK: 144.8 × 83.6 × 5.3

XR-55A8xK / 55A7xK: 122.7 × 71.2 × 5.3

Stand width (Approx.) (cm)

Standard position:

XR-77A8xK: 140.9

XR-65A8xK / 55A8xK: 118.4

XR-65A7xK / 55A7xK: 105.2

Narrow position:

XR-77A8xK: 61.9

XR-65A8xK / 55A8xK: 84.7

Soundbar position:

XR-77A8xK: 140.9

XR-65A8xK / 55A8xK: 118.4

Mass (Approx.) (kg)

with Table-Top Stand

XR-77A8xK: 37

XR-65A8xK: 24.6

XR-65A7xK: 24.2

XR-55A8xK: 19.5

XR-55A7xK: 19.1

without Table-Top Stand

XR-77A8xK: 34.8

XR-65A8xK: 23

XR-65A7xK: 22.9

XR-55A8xK: 17.9

XR-55A7xK: 17.8

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 / SU-WL450 Screw diameter and length:

10 mm - 12 mm Screw (M6) Wall-Mount Bracket VS

Camera and Microphone Unit: CMU-BC1

Operating temperature: 0 °C – 40 °C

Operating humidity: 10 % – 80 % RH (non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Function not available in Italy.

*7 Specified standby power is reached after the TV finishes necessary internal processes.

*8 Standby power consumption will increase when your TV is connected to the network.

Note

- Optional accessories availability depends on countries/region/TV model/stock.

- Design and specifications are subject to change without notice.

- Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.

- Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Product registration number (COMMISSION DELEGATED REGULATION (EU) 2019/2013)

XR-77A84K (1034885), XR-77A83K (1034883), XR-77A80K (1034880), XR-65A84K (1034878),

XR-65A83K (1034876), XR-65A80K (1034875),

XR-65A75K (1034895), XR-55A84K (1034874),

XR-55A83K (1034872), XR-55A80K (1034871), XR-55A75K (1034894).

https://rd1.sony.net/help/tv/jaep1/h_aep/

Remarque

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular frame with a small rectangular object on the right side and a curved line extending upward (no text or symbols)

Position support de table

Pure electrical circuit lines without any symbols

Position fixation murale

Dépannage

XR-65A8xK / 55A8xK : 10 W + 10 W + 10 W + 10 W + 10 W

XR-65A7xK / 55A7xK : 10 W + 10 W + 10 W + 10 W

Technologie sans fil

Protocole IEEE 802.11a/b/g/n/ac Bluetooth® Version 4.2

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating removal or disassembly.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change or prohibition (no text or labels present)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

Posición de pared

Digital: UHF/VHF/Cable

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC ^4

3840 × 2160p (100, 120 Hz)*2*4

Audio:

En el modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*5

En el modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos

canales: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2 (HDD^6 REC)^*

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Opmerkingen

Diagram showing two steps of installing a device, with checkmark and prohibition symbols indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

Simple line drawing of a rectangular frame with a small rectangular object on the side and a curved line extending from its top (no text or symbols)

Simple line drawing of a rectangular frame with a diagonal line and a small rectangle inside, no text or symbols present.

Wandmontagepositie

Problemen oplossen

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Draadloze technologie

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth ^® versie 4.2

Frequentiebereik Uitgangsvermogen
Draadloos LAN (tv)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(tv)
2400-2483,5 MHz < 10,0 dBm
Bluetooth®(RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return

Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*5

In eARC-modus

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

met tafelstandaard

Standaardpositie:

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Hinweis

Diagram showing two steps of installing a device, with checkmark and prohibition symbols indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

Simple line drawing of a rectangular frame with a small box and connected lines, no text or symbols present.

Simple line drawing of a rectangular frame with an internal electrical outlet and wires (no text or symbols)

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W + 10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Wireless-Technologie

Protokoll IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequenzbereich Ausgangsleistung
WLAN (Fernseher)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(Fernseher)
2400-2483,5 MHz < 10,0 dBm
Bluetooth®(RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate ^4

3840 × 2160p (100, 120 Hz)*2*4

Audio:

Im eARC (Enhanced Audio Return

Channel)-Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*5

Im eARC-Modus

DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.2 Gen 1)

XR-55A8xK: 122,7 × 78,0 × 33,0

ohne Tischständer

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Diagram showing two steps of installing a device, with checkmark and prohibition symbols indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Tecnologia sem fios

Protocolo IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC ^4

3840 × 2160p (100, 120 Hz)*2*4

Áudio:

No modo eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Apenas HDMI IN 3) ^5

No modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

sem suporte de mesa

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Two people handling a large rectangular object with a checkmark above (no text or symbols)

∅/X

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Tecnologia wireless

Protocollo IEEE 802.11a/b/g/n/ac

Bluetooth® Versione 4.2

Gamma di frequenza Potenza in uscita
LAN wireless (TV)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth® (TV)
2400-2483,5 MHz < 10,0 dBm
Bluetooth® (RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formati PC*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*5

In modalità eARC

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Obs!

Two people handling a large rectangular object with a checkmark indicating direction (no text or symbols present)

Simple line drawing of a rectangular device with no text or symbols, including a prohibition symbol above (no readable text or labels)

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

Simple line drawing of a rectangular frame with a small rectangular object on the right side and a curved line extending upward (no text or symbols)

Bordsplacering

Pure electrical circuit lines without any symbols

Väggmontering

Felsökning

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Trådlös teknik

Protokoll IEEE 802.11a/b/g/n/ac

Bluetooth ^® version 4.2

Frekvensområde Utgångseffekt
Trådlöst LAN (TV)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth® (TV)
2400-2483,5 MHz < 10,0 dBm
Bluetooth® (RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format ^*3

3840 × 2160p (100, 120 Hz)*2*4

Ljud:

I eARC (Enhanced Audio Return

Channel)-läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*5

I eARC-läge

DIGITAL AUDIO OUT (OPTICAL)

Soundbar-enhetens position:

XR-55A8xK: 122,7 × 78,0 × 33,0

utan bordsstativ

Soundbar-enhetens position:

XR-77A8xK: 140,9

XR-65A8xK / 55A8xK: 118,4

Vikt (Ca.) (kg)

med bordsstativ

XR-77A8xK: 37

XR-65A8xK: 24,6

XR-65A7xK: 24,2

XR-55A8xK: 19,5

XR-55A7xK: 19,1

utan bordsstativ

XR-77A8xK: 34,8

XR-65A8xK: 23

XR-65A7xK: 22,9

XR-55A8xK: 17,9

XR-55A7xK: 17,8

Övrigt

Valfritt tillbehör

https://rd1.sony.net/help/tv/jaep1/h_aep/

Bemærk

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change or prohibition (no text or labels present)

Simple line drawing of a rectangular frame with a horizontal line and a small rectangular object on the right side (no text or symbols)

Bordstandsposition

Simple line drawing of a rectangular frame with an internal electrical outlet and three wires (no text or symbols)

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W +

10 W

Trådløs teknologi

Protokol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frekvensområde Udgangseffekt
Trådløst LAN (TV)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(TV)
2400-2483,5 MHz < 10,0 dBm
Bluetooth®(RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater ^*3

3840 × 2160p (100, 120 Hz)*2*4

Lyd:

I eARC (Enhanced Audio Return

Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3) ^5

I eARC-tilstand

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

1, 2 (HDD ^6 REC)*

USB-port (2 USB HDD-enhed for

REC-funktion)

AM (Conditional Access Module)-holder

LAN

10BASE-T/100BASE-TX-stik

(Forbindelseshastigheden kan variere,

500 mA (for USB 1), 900 mA (for USB 2)

Mål (Ca.) (b × h × d) (cm)

Inkl. TV-fod

Standardposition:

XR-55A8xK: 122,7 × 78,0 × 33,0

Uden TV-fod

https://rd1.sony.net/help/tv/jaep1/h_aep/

Huomautus

https://compliance.sony.eu

Two people handling a large rectangular object with a checkmark indicating direction (no text or symbols present)

∅/X

Isometric diagram of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

Simple line drawing of a rectangular frame with a small box and connected lines, no text or symbols present.

Pöytäjalustan asento

Simple line drawing of a rectangular frame with an internal electrical outlet and wires (no text or symbols)

Seinäasennusasento

Vianmääritys

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Langaton teknologia

Protokolla IEEE 802.11a/b/g/n/ac

Bluetooth ^® versio 4.2

Taajuusalue Lähtöteho
Langaton LAN (TV)
2400-2483,5 MHz	< 20,0 dBm
5150-5250 MHz	< 23,0 dBm
5250-5350 MHz	< 20,0 dBm
5470-5725 MHz	< 20,0 dBm
5725-5850 MHz	< 13,9 dBm
Bluetooth®(TV)
2400-2483,5 MHz < 10,0 dBm
Bluetooth®(RMF-TX900U / RMF-TX800U / RMF-TX520E)
2400-2483,5 MHz < 10,0 dBm

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot ^*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC (Enhanced Audio Return

Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3) ^5

eARC-tilassa

DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

ilman pöytäjalustaa

https://rd1.sony.net/help/tv/jaep1/h_aep/

Merknader

Two people handling a large rectangular object with a checkmark indicating direction (no text or symbols present)

Simple line drawing of a rectangular device with no text or symbols, including a prohibition symbol above (no readable text or labels)

- Ikke legg ned TV-apparatet når du håndterer eller monterer det (gjelder ikke XR-55A8xK / 55A7xK).

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change or absence (no text or labels present)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Trådløs teknologi

Protokoll IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-formater ^4

3840 × 2160p (100, 120 Hz)*2*4

Lyd:

I eARC (Enhanced Audio Return

Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3) ^5

I eARC-modus

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

1, 2 (HDD ^6 REC)*

500 mA (for USB 1), 900 mA (for USB 2)

Mål (ca.) (b × h × d) (cm)

med bordstativ

Standardplassering:

XR-55A8xK: 122,7 × 78,0 × 33,0

uten bordstativ

https://rd1.sony.net/help/tv/jaep1/h_aep/

Uwaga

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change or prohibition (no text or labels present)

Simple line drawing of a rectangular frame with a horizontal line and a small rectangular object on the right side (no text or symbols)

Simple line drawing of a rectangular frame with an internal electrical outlet and wires (no text or symbols)

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty komputerowe ^3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

W trybie eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*5

W trybie eARC

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

bez podstawy

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formáty ^3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

V režimu eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (pouze HDMI IN 3)*5

V režimu eARC

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pozícia so stojanom na stôl

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formáty PC ^4

3840 × 2160p (100, 120 Hz)*2*4

Audio:

V režime eARC (Enhanced Audio Return

Channel)

Podrobnosti nájdete v online Príručke.

Okrem režimu eARC

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Len model HDMI IN 3)*5

V režime eARC

Podrobnosti nájdete v online Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

bez stolového stojana

https://rd1.sony.net/help/tv/jaep1/h_aep/

Two people carrying a large rectangular object with a checkmark above them (no text or symbols present)

∅/X

Isometric diagram of a rectangular electronic component with mounting holes and internal circuitry (no text or symbols)

Simple line drawing of a rectangular frame with a small rectangular object on the right side and a curved line extending upward (no text or symbols)

Pure electrical circuit lines without any symbols

Fali pozíció

Hibaelhárítás

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W +

10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formátumok ^*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC (Enhanced Audio Return Channel)

üzemmódban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (csak HDMI IN 3)*5

eARC üzemmódban

→ DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Notă

INFORMATIE IMPORTANTĂ

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation status.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no change (no text or labels present)

Simple line drawing of a rectangular panel with a curved pipe and a hanging component (no text or symbols)

Pure electrical circuit lines without any symbols

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Tehnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)*5

În modul eARC

DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

fără suport de masă

https://rd1.sony.net/help/tv/jaep1/h_aep/

Забележка

Diagram showing two steps of installing a device, with checkmark and prohibition symbol indicating installation or disassembly.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

Simple line drawing of a rectangular frame with a curved pipe and a small inset diagram (no text or symbols)

Pure electrical circuit lines without any symbols

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W + 10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Безжична технология

IEEE 802.11a/b/g/n/ac протокол

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC формати*³

3840 × 2160p (100, 120 Hz)*2*4

Аудио:

В режим eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel) (camo HDMI IN 3)*5

В режим eARC

DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS)

1, 2(HDD REC)\* 6

XR-55A8xK: 122,7 × 78,0 × 33,0

без поставка за маса

https://rd1.sony.net/help/tv/jaep1/h_aep/

Σημείωση

Diagram showing two steps of installing a device: one with checkmark and no X symbol, the other with hand-drawn outline.

Technical diagram of a rectangular electronic component with mounting holes and a symbol indicating no text or symbols (no readable text or labels)

Simple line drawing of a room layout with furniture and fixtures (no text or symbols)

Pure electrical circuit lines without any symbols

Επιτοίχια θέση

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W + 10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W + 10 W

Ασύρματη τεχνολογία

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Μορφές υπολογιστή*³

3840 × 2160p (100, 120 Hz)*2*4

'Ηχος:

eARC/ARC (Enhanced Audio Return Channel/

DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://rd1.sony.net/help/tv/jaep1/h_aep/

Güvenlik Bilgileri

Nakliye

Two people carrying a large rectangular object, one pointing at it with a checkmark (no text or symbols present)

Ø/×

Technical diagram of a rectangular electronic component with mounting holes and a prohibition symbol (no text or labels)

Simple line drawing of a rectangular frame with a small rectangular object on the right side and a curved line extending upward (no text or symbols)

Pure electrical circuit lines without any symbols

Duvara askı konumu

Sorun Giderme

Dijital: UHF/VHF/Kablolu

Uydu: Ara Frekans 950-2150 MHz

Ses çıkışı

XR-77A8xK: 20 W + 10 W + 10 W + 10 W + 10 W

XR-65A8xK / 55A8xK: 10 W + 10 W + 10 W +

10 W + 10 W

XR-65A7xK / 55A7xK: 10 W + 10 W + 10 W +

10 W

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formatlari*3

3840 × 2160p (100, 120 Hz)*2*4

Ses:

eARC (Enhanced Audio Return Channel)

modunda

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3)*5

eARC modunda

DIGITAL AUDIO OUT (OPTICAL)

XR-55A8xK: 122,7 × 78,0 × 33,0

https://www.sony.eu/support
