USER MANUAL KDL-40X1 SONY

Flat Wide Display Monitor

取扱説明書	JP
Operating Instructions	GB
Mode d'emploi	FR
Bedienungsanleitung	DE
Manual de instrucciones	ES
Istruzioni per l'uso	IT
使用说明书	CS

© 2008 Sony Corporation

お製い合わせは

Sony Corporation Printed in China

SRS(○)® WOW BBE® DIGITAL

安全のために

②/ (+) (→ I N P U T )

Diagram showing connection points of a computer monitor and its rear panel with labeled ports and connectors

JP

端子 說明

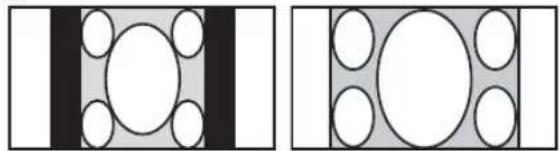

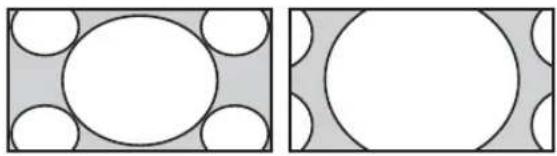

Diagram showing two rectangular blocks with circles inside, one black and one gray, both rotated by a downward arrow (no text or symbols)

ワイドズーム

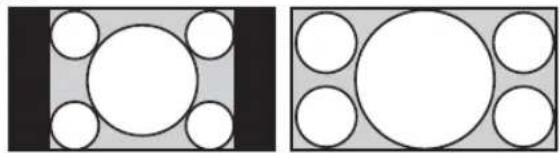

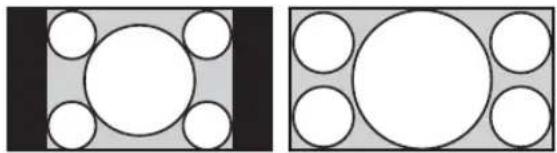

Two geometric diagrams showing circles within rectangles, no text or symbols present

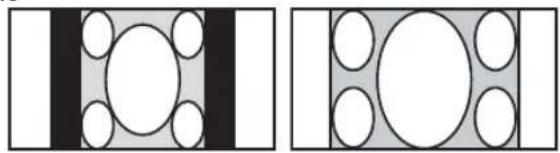

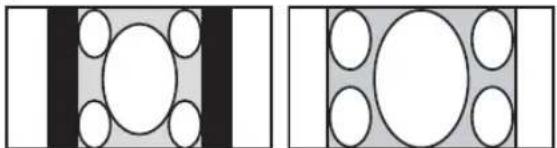

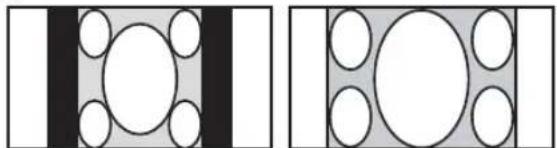

4:3

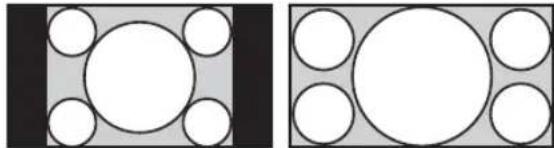

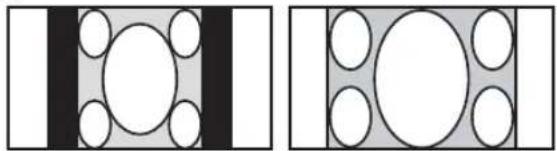

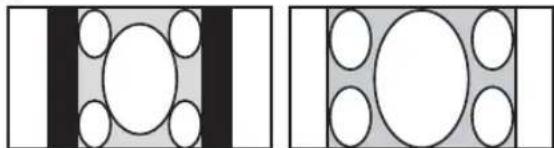

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

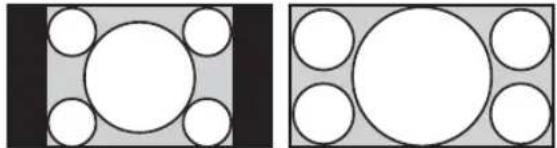

フル

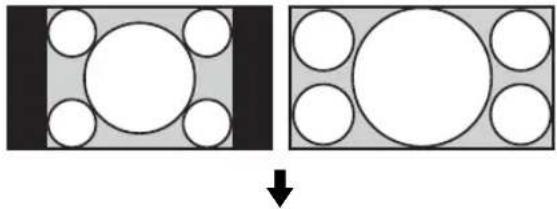

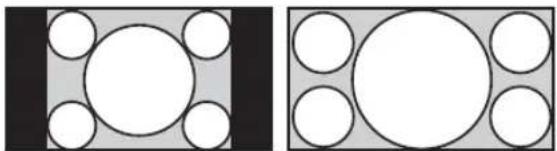

Two geometric diagrams showing circles arranged in a grid, one with black borders and the other with white circles (no text or symbols)

ズーム

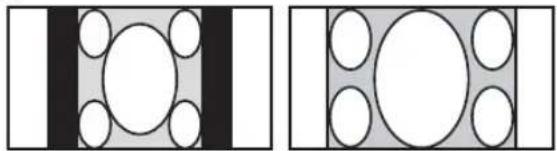

Two abstract geometric patterns: one with white circles and black outlines, the other with gray circles and black outlines (no text or symbols)

ご注意

Simple geometric diagram with a square containing a central circle and four surrounding circles (no text or symbols)

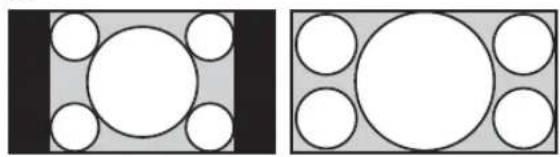

フル1

Simple geometric diagram with a central circle surrounded by six smaller circles, no text or symbols present.

フル2

Simple geometric diagram with a central oval and four surrounding circles (no text or symbols)

2 画面設定を使う

True Color Control 19, 22

V

VIDEO IN 端子 12

WARNING

Owner's Record

The model and serial numbers are located on the rear. Record the model and serial numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. ____ Serial No. ____

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

THIS APPARATUS MUST BE EARTHED.

For customers in the U.S.A.

If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY

Model: KLH-40X1

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo, San

Diego, CA 92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.

If used in USA, use the UL LISTED power cord specified below.

DO NOT USE ANY OTHER POWER CORD.

Plug Cap Parallel blade with ground pin

(NEMA

5-15P

Configuration)

Cord Type SVT, three 18 AWG wires

Length Minimum 1.5m, Less than 4.5 m

Rating Minimum 10A, 125V

Using this unit at a voltage other than 120V may require the use of a different line cord or attachment plug, or both.

To reduce the risk of fire or electric shock, refer servicing to qualified service personnel.

For customers in Canada

This class B digital apparatus complies with Canadian ICES-003.

The socket-outlet should be installed near the equipment and be easily accessible.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE LOCAL RULES.

For the customers in Europe

This product with the CE marking complies with both the EMC Directive and the Low Voltage Directive issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European standards:

• EN60950-1: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following Electromagnetic Environments:
E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio)

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1. Use the approved Power Cord (3-core mains lead) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country if applicable.
2. Use the Power Cord (3-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

Peak inrush current

(1) Power ON, current probe method: 17 A (100 V), 50 A (240V)
(2) Hot switching inrush current, measured in accordance with European standard EN55103-1: 25 A (230 V)

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Trademark Information

WOW, SRS and (● symbol are trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

Table of Contents

Introduction

Precautions....6

Recommendations on Installation....8

Location and Function of Parts and Controls

Front Panel....9

Rear Panel 10

Remote Control....12

Button Description....12

Special Buttons on the Remote Control ....14

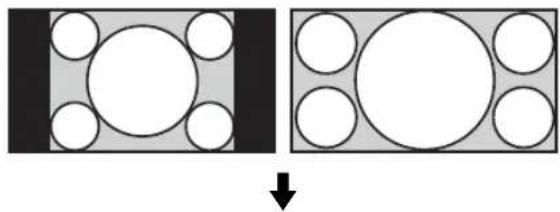

Using the Wide Mode....14

Using the PAP Setting 15

Using the ID MODE button 16

Using the ECO Mode function 16

Connections

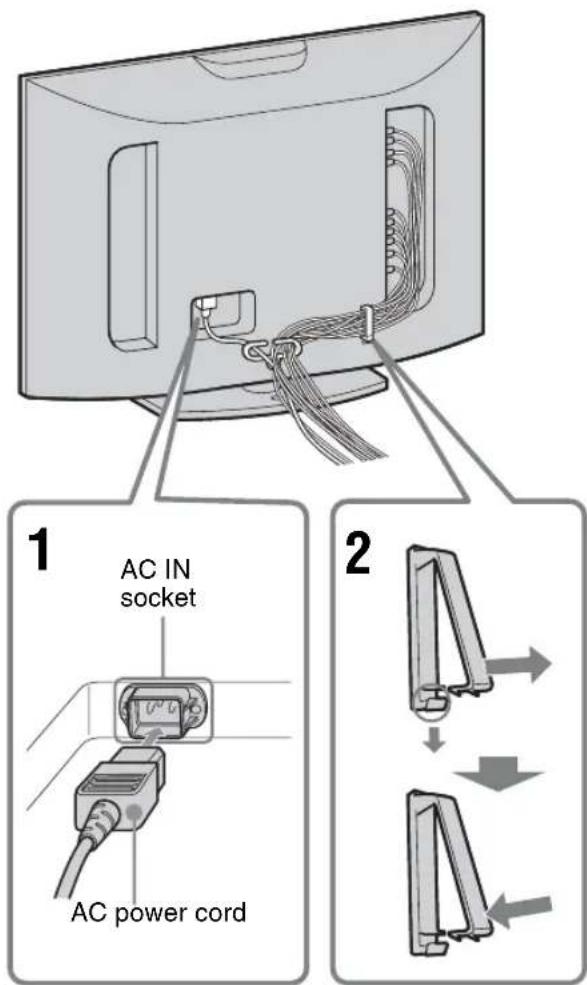

Connecting the AC Power Cord and Arranging the Input Cables ....17

Using the Settings

Overview of the Menus 18

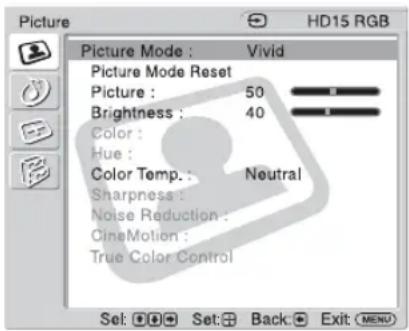

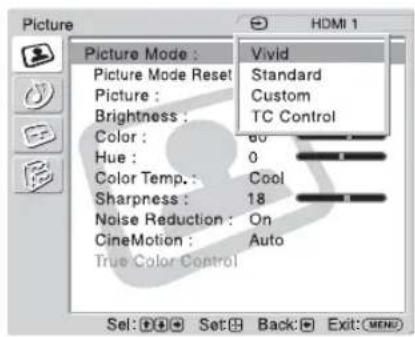

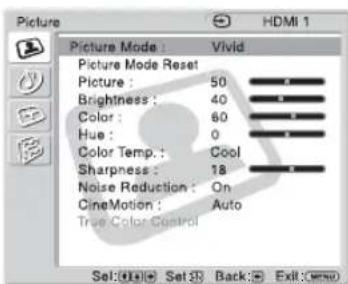

Picture Settings....20

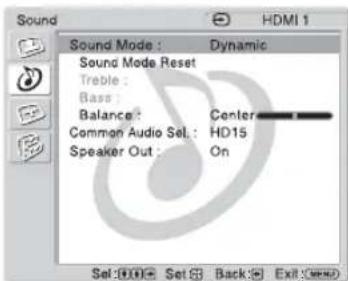

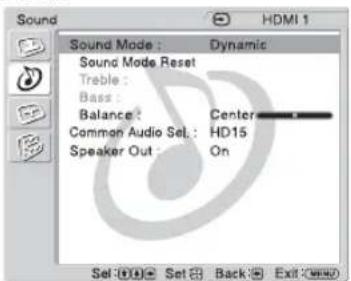

Sound Settings....22

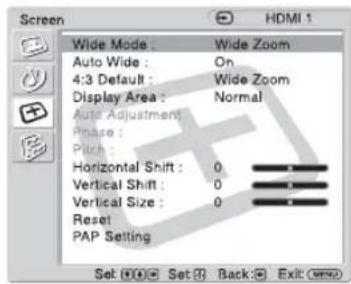

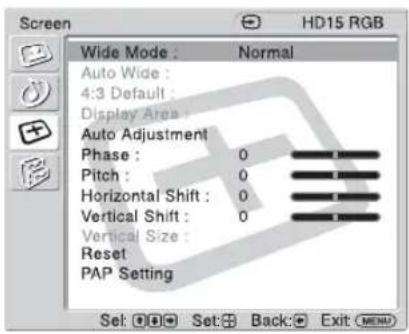

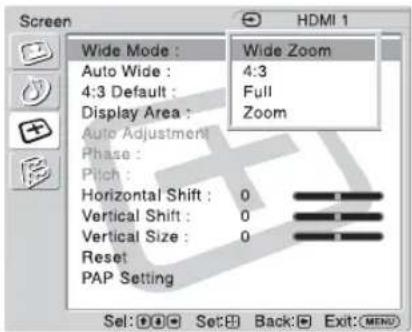

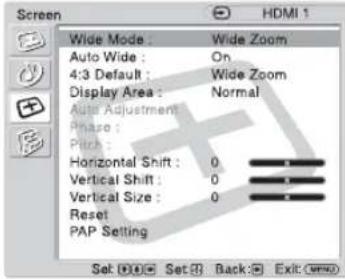

Screen Settings....23

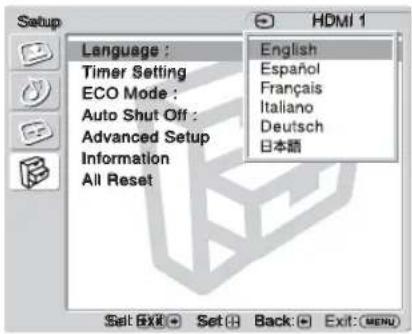

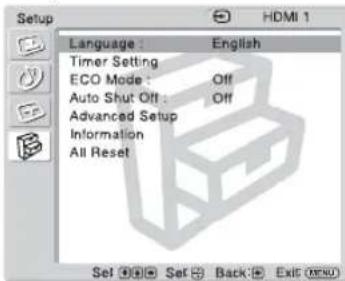

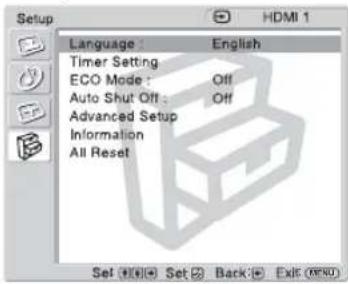

Setup Settings....26

Other Information

Troubleshooting 28

Input Signal Reference Chart....29

Specifications....30

Index 32

Introduction

Precautions

On safety

• A nameplate indicating operating voltage, power consumption, etc. is located on the rear of the unit.
• Should any solid object or liquid fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
• Unplug the unit from the wall outlet if it is not to be used for several days or more.
• To disconnect the AC power cord, pull it out by grasping the plug. Never pull the cord itself.
• When you install the unit on the floor, be sure to use the optional display stand.

On installation

• Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation holes.
• Do not install the unit in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• When you install multiple equipment with the unit, the following problems, such as malfunction of the remote control, noisy picture, noisy sound, may occur depending on the position of the unit and other equipment.

On the LCD panel

• You may see some bright spots of red, blue or green, or dark spots appearing on the screen. These do not indicate a malfunction. Although the LCD panel is manufactured with extremely high precision technology, it can generate a few dark or bright pixels.
• Keeping the LCD panel facing toward the sun for a long time will damage the panel. Take this into account when you install the unit outdoor or by a window.
• Do not push, scratch or put a heavy weight on the panel. These can cause irregularities in the screen or a malfunction of the LCD panel.
• You may find the screen looks darker or an afterimage occurs when using the unit in a colder environment. These do not indicate a malfunction. The screen will return to normal operation as the temperature rises.
• If you display a still image continuously, a ghosting may occur. This symptom will be gradually resolved by changing the image or making the whole screen display in white. In addition, if you display the same still image for a long period of time, the ghosting may not be resolved.
• The panel surface or the cabinet may warm up during use. This does not indicate a malfunction.

On cleaning the display

The panel surface

• Be sure to unplug the power cord before cleaning the display.
• The LCD panel surface has been given a special finish. Avoid touching the LCD screen. When cleaning the panel face, wipe off stains using a dry, soft cloth.
• Never use rubbing alcohol, benzine or thinner for cleaning. They may damage the finish of the panel face.
• When using a chemically treated cloth for cleaning, follow the directions.
• Spraying the unit with volatile solvents (such as an insecticide) or allowing the unit come into prolonged contact with rubber or plastic products may remove the coating or spoil the unit.

The cabinet

• Gently wipe off stains using a dry, soft cloth. Wipe off grimy stains using a cloth slightly moistened with a mild detergent, then wipe the area again using a dry, soft cloth.
• Never use rubbing alcohol, benzine or thinner for cleaning. They may damage the finish of the cabinet or can remove the markings on it.

Notes on handling and cleaning the display panel

The display panel's special surface finish should be treated with care when cleaning or handling the display. When cleaning it, use a soft cleaning cloth to avoid touching the panel directly.

On repacking

Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit, repack it as illustrated on the carton.

If you have any questions on this unit, contact your authorized Sony dealers.

Disposal of Waste Electrical and Electronic Equipment for business use (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Sony office or visit Sony Europe's web site for business customers: http://www.sonybiz.net/environment

For the State of California, USA only

Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material : Lithium battery contains perchlorate.

For Customers in the USA

Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org).

For the customers in Taiwan only

廢電池請回收

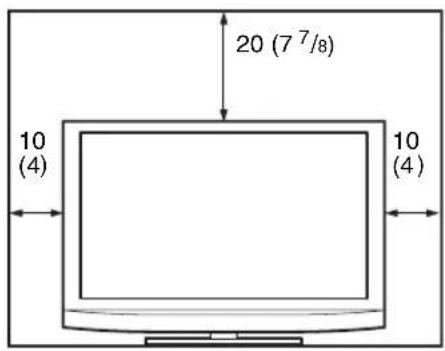

Recommendations on Installation

Provide an ample amount of space around the display

• To prevent internal heat buildup from sealing off the display, make sure to ensure proper ventilation by leaving open the minimum amount of space around the display, as illustrated below.
• The ambient temperature must be 0 °C to 35 °C (32 °F to 95 °F).
• Regarding the installation of hardware such as brackets, screws, or bolts, we cannot specify the products. Actual installation is up to the authorized local dealers. Consult with qualified Sony personnel for installation.
• While the display is on, a certain amount of heat builds up inside. This can cause burns. Avoid touching the top or rear of the display when it is powered on or just after it has entered standby mode.

Front

20 (7 7/8) 10 (4) 10 (4)

Side

10 (4)

Units: cm (inches)

Location and Function of Parts and Controls

Front Panel

MENU PIC OFF STANDBY POWER R 6 7 8 9

GB

①MENU (page 18)

②/ → (INPUT)

• In the menu screen, this button works as the "Set" button.
• This button works to switch the input signal when it is not in the menu screen.

Selects an input signal from among the HD15/HDMI 1/HDMI 2/VIDEO connectors.

③/ ← →

In the menu screen, these buttons work as left/right buttons (←/→)

4/↑/↓

• Increases (+) or decreases (−) the volume.
• In the menu screen, these buttons work as up/down buttons (↗) ↓

5

Switches the display on/off (standby).

Note

To protect the panel, a certain amount of time is required to turn the display to on/off (standby). When you turn the display on again, soon after turning it off, wait about 5 seconds before you turn it on again.

⑥ PIC OFF indicator

Lights up in green when "Picture Off" function of "ECO Mode" is selected.

⑦ STANDBY indicator

Lights up in red when the display is in standby mode.

8 POWER indicator

Lights up in green when the display is switched on.

9 Remote control sensor

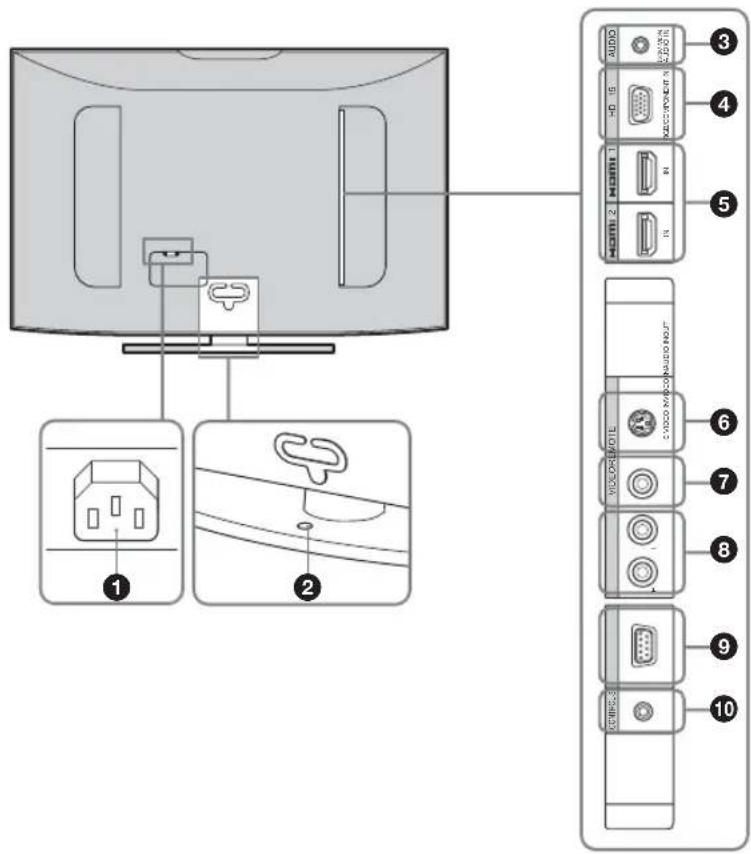

Rear Panel

Diagram showing computer monitor and audio output ports with labeled connectors and components

Connector Description

1 AC IN socket	Connect the supplied AC power cord to this socket and to a wall outlet. Once you connect the AC power cord, the STANDBY indicator lights up in red and the display goes into the standby mode. See page 17.
2 Stand attachment hole	Use this hole to secure the display on a table, etc. using an M6 screw.
3 AUDIO (COMMON AUDIO IN) (Stereo mini jack)	Inputs an audio signal. Connects to the audio signal output of a piece of video equipment or PC. Supports audio signals corresponding to 4 and 5.
4 HD15 (RGB/ COMPONENT IN) (D-sub 15-pin)	Connects to the analog RGB signal or component signal output of a piece of video equipment or PC. See page 31.NoteWhen inputting a component signal, be sure not to input sync signals to pins 13 and 14. If you do so, the picture may not be displayed properly.
5 HDMI 1/HDMI 2 IN	HDMI (High-Definition Multimedia Interface) provides an interface between the display and any HDMI-equipped audio/video equipment, as well as PC. You can enjoy enhanced or high-definition video, and two-channel digital audio. You can also connect a piece of DVI-equipped equipment to your display by using an HDMI-to-DVI cable (not supplied). The appropriate mode for a piece of audio/video equipment or PC is automatically selected in accordance with the connected equipment.NoteBe sure to use only an HDMI cable that bears the HDMI logo.
6 S VIDEO IN (Mini DIN 4-pin)	Connects to the S Video output of a piece of video equipment.*

Connector Description

7VIDEO IN(Pin jack)	Connects to the video output of a piece of video equipment.*
8AUDIO IN L/R(Pin jack)	Connects to the audio output of a piece of video equipment.
9REMOTE(D-sub 9-pin)	This connector allows remote control of the display using the RS-232C protocol. For details, contact your authorized Sony dealers.
10CONTROL S OUT(Mini jack)	You can control pieces of multiple equipment with a single remote control when the display is connected to the CONTROL S IN connector of the video equipment or another display.

* The video signal or the S Video signal is automatically selected. Connect the cable (not supplied) to the video connector or the S Video connector. When connecting a piece of video equipment equipped with the S Video output connector, you can enjoy better video performance by connecting it to the S Video connector.

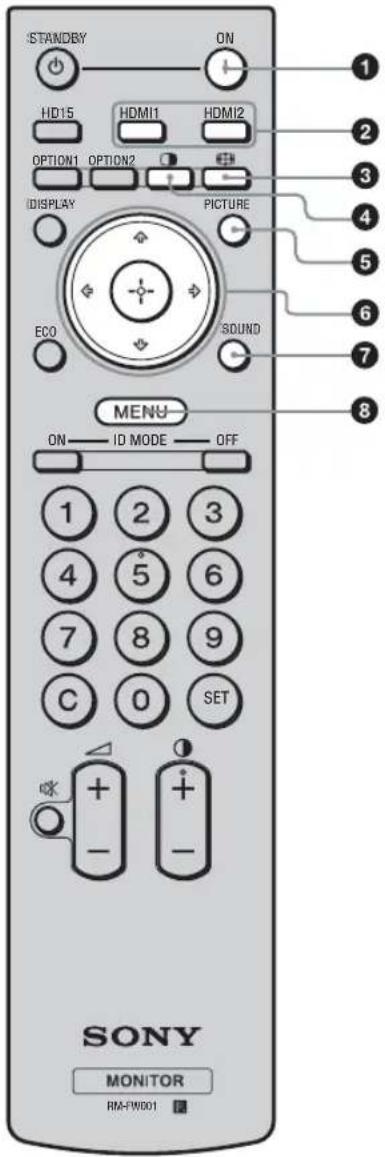

Remote Control

Button Description

STANDBY ON HD15 HDMI1 HDMI2 OPTION1 OPTION2 IDISPLAY PICTURE ECO SOUND MENU ON ID MODE OFF 1 2 3 4 5 6 7 8 9 C 0 SET + - + - SONY MONITOR RM-FW001

① POWER ON switch

Press to turn the display on.

②HDMI 1/ HDMI 2 button

Press to select the signal input to the HDMI 1 or HDMI 2 connectors.

③ button

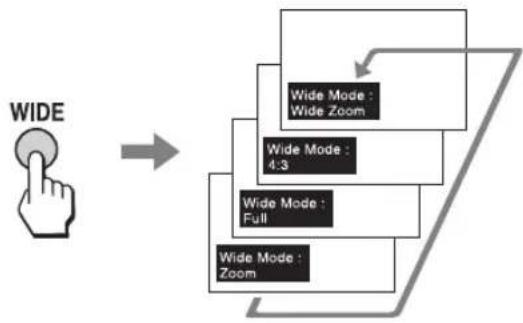

Press to change the aspect ratio in "Wide Mode". See page 14.

4 button

Selects the "PAP" (Picture And Picture) mode. Each press toggles between the two-picture screen and the single-picture screen. See page 15.

⑤PICTURE button

Selects "Picture Mode". Each press toggles between "Vivid", "Standard", "Custom", and "TC Control".

6 ↗/▽/◇/⇨/⊕ buttons

The // buttons move the menu cursor (yellow) and set values, etc. Pressing ① sets the selected menu or setting items. In the "PAP" mode, you can switch the active picture with / .

⑦ SOUND button

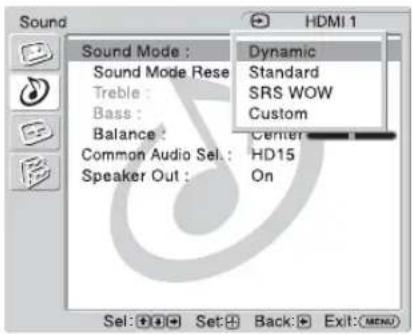

Selects "Sound Mode". Each press toggles between "Dynamic", "Standard", "SRS WOW", and "Custom".

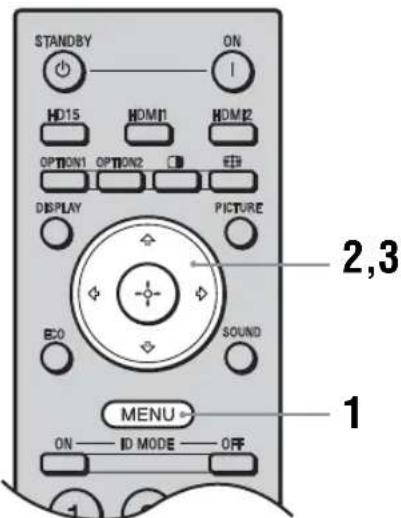

⑧MENU button

Press to show menus. Press again to hide them. See page 18.

Notes

• The 5 button and button have a tactile dot. Use the tactile dot as a reference when operating the display.

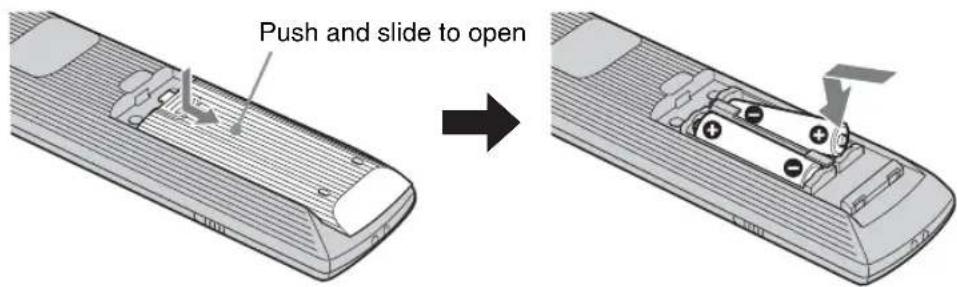

- Insert two size AA (R6) batteries (supplied) by matching the and on the batteries to the diagram inside the remote control's battery compartment.

Push and slide to open

STANDBY ON HD15 HDMI1 HDMI2 OPTION1 OPTION2 DISPLAY PICTURE ECO SOUND MENU ON ID MODE OFF 1 2 3 4 5 6 7 8 9 C 0 SET SONY MONITOR RM-FW001

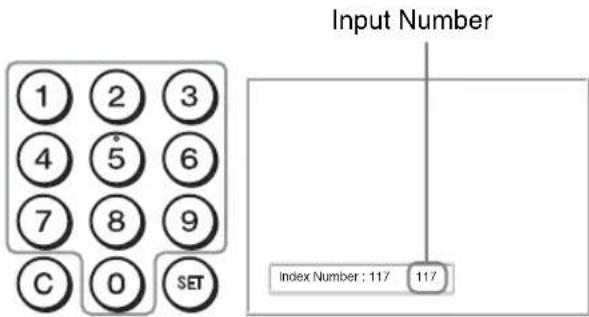

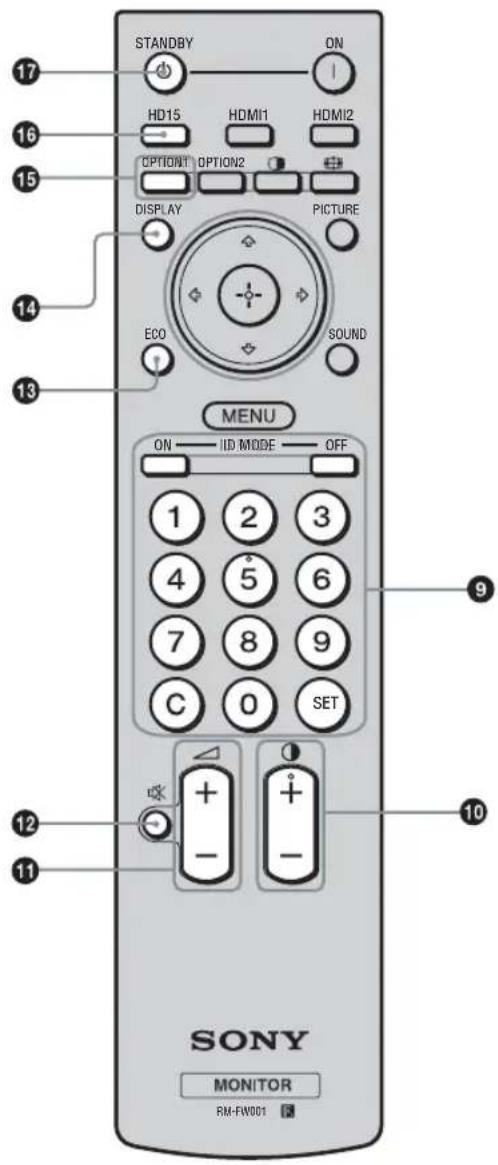

⑨ID MODE (ON/0-9/SET/C/OFF) buttons

You can operate a specific display without affecting other displays installed at the same time.

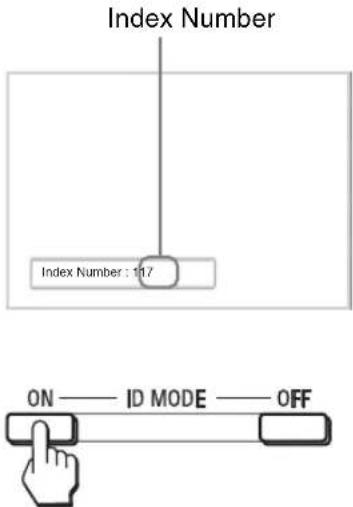

• ON button: Press to show the "Index Number" on the screen.
• 0-9 button: Press to enter the "Index Number" of the display you want to operate.
• SET button: Press to set the input "Index Number".
• C button: Press to clear the input "Index Number".
• OFF button: Press to return to the normal mode.

See page 16.

10 +/- button

Adjusts the picture (contrast) level.

⑪ +/- button

Press to adjust the volume.

⑫ button

Press to mute the sound. Press again to restore sound.

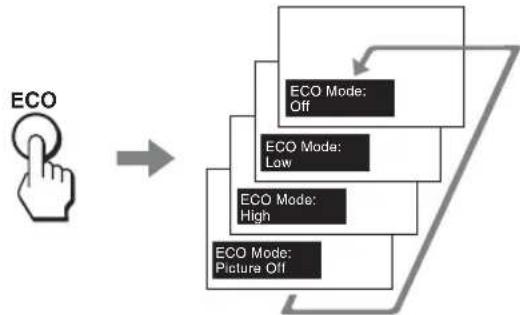

⑬ ECO button

Press to reduce the power consumption by adjusting the backlight brightness. This also enhances the black level. Select from "Off", "Low", "High" or "Picture Off". See page 16.

⑭DISPLAY button

Press to display the currently selected input, the type of the input signal and the "Wide Mode" setting on the screen. Press again to hide them. If this displayed information is left undisturbed for a short time, it will disappear automatically.

⑮OPTION 1 button

Press to select the input signal of the VIDEO connector.

16HD15 button

Press to select the input signal of the HD15 connector. The RGB signal or component signal is selected automatically in accordance with the connected equipment.

⑰ STANDBY button

Press to change the display to the standby mode.

Note

You cannot use the OPTION 2 button on this display.

Special Buttons on the Remote Control

Using the Wide Mode

You can change the aspect ratio of the screen by using the “Wide Mode”.

Tip

You can also access the "Wide Mode" settings in the "Screen" settings. See page 23, 25.

For Video, DVD or HDMI Input (other than PC input)

4:3 Original Source

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

↓

Wide Zoom

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

4:3

Geometric diagram with a central circle surrounded by four smaller circles, enclosed in a rectangle (no text or symbols)

Full

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Zoom

Geometric diagram with a central circle surrounded by four smaller semicircles on a gray background (no text or symbols)

16:9 Original Source

Diagram showing two rectangular blocks with circles inside, one larger and one smaller, both under a downward arrow (no text or symbols)

Wide Zoom

Two geometric diagrams showing circles inscribed within rectangles, no text or symbols present

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Full

Two geometric diagrams showing circles inside rectangles, no text or symbols present

Zoom

Two abstract geometric patterns: one with white circles on a gray background, the other with white circles on a gray background (no text or symbols)

Note

When the input signal is 1080i, 720p, or 1080p, "Wide Zoom" and "4:3" cannot be selected. See page 23.

For PC Input

Normal

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a square frame (no text or symbols)

Full 1

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Full 2

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

Using the PAP Setting

You can show two pictures from different signal sources, such as a PC and a video, side by side. You can also swap the left/right pictures, or change the balance of left/right picture sizes.

Tip

You can also access the "PAP Setting" in the "Screen" settings. See page 24.

Cursor showing active picture

A B

The width of A and B is the same. The height will be set to match each picture's aspect ratio.

Press button.

The width of A is larger than that of B. If A's aspect ratio is 4:3, its height will be equal to the panel size.

Press button.

B on the right side becomes the active picture.

Press button.

The width of A and B is the same. The height will be set to match each picture's aspect ratio.

Press button.

The width of B is larger than that of A. If B's aspect ratio is 4:3, its height will be equal to the panel size.

Available combination of two pictures

You can operate a specific display without affecting other displays installed at the same time.

1 Press ON button.

Display's "Index Number" appears in black characters on the lower left menu on the screen. (Every display is allocated an individual preset "Index Number" from 1 to 255.)

Index Number Index Number : 1/7 ON —— ID MODE —— OFF

2 Input the "Index Number" of the display you want to operate using the 0 - 9 buttons on the remote control.

The input number appears right next to the “Index Number” of each display.

Input Number 1 2 3 4 5 6 7 8 9 C 0 SET Index Number : 117 117

3 Press SET button.

The characters on the selected display change to green while the others change to red.

You can operate the specified display indicated with green characters only.

Only the operation of POWER ON switch and STANDBY/ID MODE-OFF button is effective to other displays, as well.

4 When all of the setting changes have been completed, press OFF button.

The display returns to the normal screen.

ON — ID MODE — OFF

To correct the Index Number

Press the C button to clear the current input "Index Number". Return to Step 2, and input a new "Index Number".

Tip

To change the "Index Number" of the display, see "Remote Index" in "Control Setting" on See page 27.

Using the ECO Mode function

You can reduce the power consumption of the display.

To cancel the ECO Mode

Press ECO button repeatedly until “ECO Mode : Off” appears.

Tips

- If you turn off the display when the "ECO Mode" is activated, the mode stays on next time you turn on the display except "Picture Off".

- You can set the "ECO Mode" using the "Setup" settings. Select "ECO Mode" in the "Setup" settings, then set it to "Off", "Low", "High", or "Picture Off".

Connections

Before you start

• First make sure that the power of each piece of equipment is turned off.
• Use cables suitable for the equipment to be connected.
• Connect the cables, fully inserting them into the connectors or jacks. A loose connection may cause hum and other noise.
• To disconnect the cable, pull it out by grasping the plug. Never pull the cable itself.
  • See the instruction manual of the equipment to be connected, too.
• Insert the plug securely into the AC IN socket.

Connecting the AC Power Cord and Arranging the Input Cables

1 AC IN socket AC power cord 2

1 Insert the AC power cord into the AC IN socket on the bottom.
2 Use the cable holder to arrange the connected cables, as shown in the figure.

Using the Settings

Overview of the Menus

STANDBY ON HD15 HDMI1 HDMI2 OPTION1 OPTION2 EEH DISPLAY PICTURE ECO SOUND MENU ON ID MODE OFF 1 2,3

The settings provide you access to the following features:

1 Press MENU button.
2 Press ↗/▽ to highlight the desired menu icon.
3 Press ⊕ or ➔.

To exit the menu, press MENU button.

To change the on-screen language

Select the desired language for on-screen settings and messages from "English", "Español", "Français", "Italiano", "Deutsch" or "日本語

"English" (English) is set for the default setting.

See page 26.

Settings Allows you to set/change


Picture HDMI 1 Picture Mode : Vivid Picture Mode Reset Picture : 50 Brightness : 40 Color : 60 Hue : 0 Color Temp. : Cool Sharpness : 18 Noise Reduction : On CineMotion : Auto True Color Control Set: Set Back: Exit (menu)

Picture Mode (page 20, 21)

Picture Mode Reset (page 20, 21)

Picture (page 20, 21)

Brightness (page 20, 21)

Color (page 20)

Hue (page 20)

Color Temp. (page 20, 21)

Sharpness (page 20)

Noise Reduction (page 20)

CineMotion (page 20)

True Color Control (page 21)

Sound

Sound Sound Mode : Dynamic Sound Mode Reset Treble : Base : Balance : Center Common Audio Sel. : HD15 Speaker Out : On Set: 0.0 Set Back Exit (Enter)

Sound Mode (page 22)

Sound Mode Reset (page 22)

Treble (page 22)

Bass (page 22)

Balance (page 22)

Common Audio Sel. (page 22)

Speaker Out (page 22)

Settings Allows you to set/change

Screen

Screen Wide Mode : Wide Zoom Auto Wide : On 4:3 Default : Wide Zoom Display Area : Normal Auto Adjustment Phase : Pitch : Horizontal Shift : 0 Vertical Shift : 0 Vertical Size : 0 Reset PAP Setting Set (HDD) Set (B) Back (A) Exit (VWO)

Wide Mode (page 23, 25)

Auto Wide (page 23)

4:3 Default (page 24)

Display Area (page 24)

Auto Adjustment (page 25)

Phase (page 25)

Pitch (page 25)

Horizontal Shift (page 24, 25)

Vertical Shift (page 24, 25)

Vertical Size (page 24)

Reset (page 24, 25)

PAP Setting (page 24, 25)

Setup

Setup Language : English Timer Setting ECO Mode : Off Auto Shut Off : Off Advanced Setup Information All Reset Set ⌘① Set □ Back □ Exit (MMS)

Language (page 26)

Timer Setting (page 26)

ECO Mode (page 26)

Auto Shut Off (page 26)

Advanced Setup (page 27)

Information (page 27)

All Reset (page 27)

Picture Settings

For Video Input

Picture Picture Mode : Vivid Picture Mode Reset Standard Picture : Custom Brightness : TC Control Color : 60 Hue : 0 Color Temp. : Cool Sharpness : 18 Noise Reduction : On CineMotion : Auto True Color Control Sel: Set: Back: Exit: HDMI 1

To highlight an option and to change settings, press /// .

Press to confirm the selection.

The "Picture" settings include the following options:

Picture Mode	“Vivid”: Select for enhanced picture contrast and sharpness.“Standard”: Select for standard picture settings.“Custom”: Allows you to store preferred settings.“TC Control”: The setting is common with “Vivid”. In addition, you can use the “True Color Control” function (after-mentioned).TipsTo change from one “Picture Mode” option to another, you can also use PICTURE on the remote control instead.You can alter the “Picture Mode” options for each input.
Picture Mode Reset	Resets all settings and adjustments currently selected in “Picture Mode” (“Vivid”, “Standard”, “Custom”, “TC Control”) to the default setting (except for the options grayed out).
Picture	Adjust to increase or decrease picture contrast.
Brightness	Adjust to brighten or darken the picture.
Color	Adjust to increase or decrease color intensity.
Hue	Adjusts the color tones of the picture.Note“Hue” is not available when the input is Video or S Video and the color system of video signal is not NTSC.
Color Temp.	“Cool”: Select to give the white colors a blue tint.“Neutral”: Select to give the white colors a neutral tint.“Warm”: Select to give the white colors a red tint.
Sharpness	Adjust to sharpen or soften the picture.
Noise Reduction	Select to reduce the noise level of connected equipment. Select from “On” or “Off”.
CineMotion	Select “Auto” to optimize the screen display automatically detecting film content and applying a reverse 3-2 pull down or 2-2 pull down process. Moving picture will appear clearer and more natural looking. Select “Off” to disable the detection.

True Color Control

You can adjust the details of hue and saturation for each of 4 colors: red, green, yellow, blue, and you can highlight specific colors in the image. Select the color which you want to adjust, and you can check and see which part of current image will be adjusted. Then you can adjust it using the matrix dialog.

Notes

• This option can be adjusted when “Picture Mode” is set to “TC Control”.
• In “PAP” mode, you cannot select this option. Even if you select this option in the single-picture screen, the setting of this option may not be applied in the “PAP” mode.

Tip

You can alter the “Picture” settings (“Picture”, “Brightness”, “Color”, etc.) for each “Picture Mode”.

Notes

• In the “PAP” mode, none of the options of the “Picture” settings can be selected.
• If there is no signal currently being input, none of the options of the “Picture” setting can be selected.

For PC Input

Picture HD15 RGB Picture Mode : Vivid Picture Mode Reset Picture : 50 Brightness : 40 Color : Hue : Color Temp. : Neutral Sharpness : Noise Reduction : CineMolien : True Color Control Sel: Set: Back Exit (MENU)

When input is switched to a PC input source, the “Picture” settings specific to PC input are applied. The PC “Picture” settings include the following options:

Picture Mode

“Vivid”: Select for enhanced picture contrast and sharpness.
"Standard": Select for standard picture settings.
“Custom”: Allows you to store preferred settings.
“TC Control”: The setting is common with “Vivid”. In addition, you can use the
"True Color Control" function (after-mentioned).

Picture Mode Reset

Resets all settings and adjustments currently selected in “Picture Mode” (“Vivid”, “Standard”, “Custom”, “TC Control”) to the default setting (except for the options grayed out).


Adjust to increase or decrease picture contrast.

Brightness

Adjust to brighten or darken the picture.

Color Temp.

"Cool": Select to give the white colors a blue tint.

“Neutral”: Select to give the white colors a neutral tint.

"Warm": Select to give the white colors a red tint.

True Color Control

See “True Color Control” for video input (page 21).

Notes

• “Color”, “Hue”, “Sharpness”, “Noise Reduction” and “CineMotion” are not available for PC input.
• In the “PAP” mode, none of the “Picture” settings options can be selected.
• If there is no signal currently being input, none of the options of the “Picture” setting can be selected.

Sound Settings

Sound Mode : Sound Mode Rese Treble : Bass : Balance : Common Audio Sel : Speaker Out : Dynamic Standard SRS WOW Custom Center HD15 On Sel: + + + Set: + Back: - Exit: (MEN)

To highlight an option and to change settings, press /// .

Press ⓣ to confirm the selection.

The "Sound" settings include the following options:

Sound Mode	“Dynamic”: Select to enhance treble and bass.“Standard”: Flat setting.“SRS WOW”: Provides a panoramic stereo audio image by producing deep and rich bass tones and clear treble tones, enabling you to enjoy powerful sound effects like those in a movie theater.“Custom”: Allows you to store preferred settings.TipsTo change from one “Sound Mode” option to another, you can also use SOUND on the remote control instead.The proprietary technologies of BBE Sound, Inc. are applied for “Dynamic” and “Standard”.
Sound Mode Reset	Resets the following settings; “Treble”, “Bass” and “Balance” to the default settings.
Treble	Adjust to increase or decrease higher-pitched sounds.
Bass	Adjust to increase or decrease lower-pitched sounds.
Balance	Adjust to emphasize left or right speaker balance.
Common Audio Sel.	“HD15”: Outputs audio from a piece of video equipment or PC connected to the HD15 (RGB/COMPONENT IN) connector and the AUDIO (COMMON AUDIO IN) connector.“HDMI 1”/ “HDMI 2”: Select to connect a piece of equipment using an HDMI cable (not supplied) or an HDMI-to-DVI cable (not supplied), and the corresponding audio cable at the same time.See page 10.NotesWhen using an HDMI-to-DVI cable, connect the audio cable to the AUDIO (COMMON AUDIO IN) connector.When “HDMI 1”/ “HDMI 2” is selected, digital audio is not output from the HDMI connectors. When a piece of video equipment equipped with an HDMI connector is connected to the HDMI 1/HDMI 2 connectors, set “Common Audio Sel.” to “HD15”. (The default setting is “HD15”).)
Speaker Out	“On”: Enables sound to be emitted from the display speaker.“Off”: Disables sound to be emitted from the display speaker.NoteWhen “Speaker Out” is set to “Off”, “Sound Mode”, “Sound Mode Reset”, “Treble”, “Bass”, and “Balance” cannot be selected.

Tip

You can adjust the "Sound" settings ("Treble" and "Bass") when the "Sound Mode" is set to "Custom".

Screen Settings

For Video Input

Screen HDMI 1 Wide Mode : Wide Zoom Auto Wide : 4:3 Default : Full Display Area : Zoom Auto Adjustment Phase : Pitch : Horizontal Shift : 0 Vertical Shift : 0 Vertical Size : 0 Reset PAP Setting Sel: Set Back Exit: MEND

To highlight an option and to change settings, press /// .

Press ⓣ to confirm the selection.

The "Screen" settings include the following options:

Wide Mode

"Wide Zoom": Select to enlarge to fill screen with minimum distortion.

“4:3”: Select to display 4:3 picture in original size when the original source is 4:3 (Standard definition source).

"Full": Select to enlarge the original picture horizontally to fill the screen when the original source is 4:3 (Standard definition source). When the original source is 16:9 (High definition source), select this mode to display 16:9 picture in original size.

"Zoom": Select to enlarge the original picture without distorting the aspect ratio. See page 14.

Tips

- To change from one "Wide Mode" option to another, you can also use on the remote control instead.

- Select "Zoom" to display movies and other DVD content with black bands, using the entire viewable area of the screen.

- For "Wide Zoom" and "Zoom" modes, you can adjust "Horizontal Shift", "Vertical Shift", and "Vertical Size" of the picture. See page 24.

Notes

- You cannot set the "Wide Mode" while using the "PAP" function.

- “Wide Zoom” and “4:3” cannot be selected for 1080i, 720p, or 1080p signals input to the component or HDMI connectors.

Auto Wide

"On": Select to detect the image and change it automatically to the appropriate screen mode.

"Off": The screen mode does not change automatically.

Notes

- While inputting digital and analog RGB signals, you cannot set the "Auto Wide" because the "Auto Wide" function does not work.

- You cannot set the "Auto Wide" while using the "PAP" function.

4:3 Default	“Wide Zoom”: Select to enlarge the 4:3 picture to fill the 16:9 screen, keeping the original image as much as possible.“4:3”: Select to display the 4:3 picture without changing its aspect ratio.“Full”: Select to enlarge the 4:3 picture horizontally only, to fill the 16:9 screen.“Zoom”: Select to enlarge the 4:3 picture to fill the screen while keeping its aspect ratio.“Off”: Select to continue using the current “Wide Mode” setting when the input is changed.Tips• You can select “4:3 Default” only when “Auto Wide” is set to “On”.• “4:3 Default” functions only when the display receives NTSC, PAL, SECAM, 480i, 480p, 575i or 576p signals.• If “Wide Mode” setting is changed after “4:3 Default” is set, the “Wide Mode” setting will become effective and the aspect ratio of the screen will change. This setting change that was made afterward by “Wide Mode” will be effective only when each signal is input. Therefore, when the input signal is changed, the screen will return to the original “4:3 Default” setting. To keep the current aspect ratio even after the input signal is changed, set “4:3 Default” to “Off”.
Display Area	“Normal”: Displays a standard size picture.“-1”/“-2”: Allows you to adjust the viewable picture area size. When noises appear around the picture, select this to hide the noises.
Horizontal Shift	Allows you to move the position of the picture left and right in the window.Available only in “Wide Zoom” and “Zoom” modes. Press ⇔/⇔ and press ⊕ to choose a correction.
Vertical Shift	Allows you to move the position of the picture up and down in the window.Available only in “Wide Zoom” and “Zoom” modes. Press ⇔/⇔ and press ⊕ to choose a correction.
Vertical Size	Allows you to adjust the vertical size of the picture. Available only in “Wide Zoom” and “Zoom” modes. Press ⇔/⇔ and press ⊕ to choose a correction.
Reset	Resets the following settings; “Horizontal Shift”, “Vertical Shift” and “Vertical Size” to the default settings.
PAP Setting	Allows you to show two pictures from different signal sources, such as a PC and a video, side by side. Only the combination of an analog signal and a digital signal is available.“PAP”: “On” shows two pictures side by side at the same time, and “Off” disables “PAP” function.“Swap”: “OK” swaps the position of the two pictures, and “Cancel” aborts the execution.“PAP Size”:“Large Left”: The left picture’s width is larger than the right picture.If the left picture’s aspect is 4:3, the left picture’s height will be equal to the panel size.“Even”: The left picture and the right picture width is the same (half & half). The height will be set to match each picture’s aspect ratio.“Large Right”: The right picture’s width is larger than the left picture.If right picture’s aspect is 4:3, the right picture’s height will be equal to the panel size.Notes• When two pictures are displayed, the “Picture” settings set when a single picture is displayed are applied.• For details on the available combination of two pictures, see page 15.

For PC Input

Screen HD15 RGB Wide Mode : Normal Auto Wide : 4:3 Default : Display Area : Auto Adjustment Phase : 0 Pitch : 0 Horizontal Shift : 0 Vertical Shift : 0 Vertical Size : Reset PAP Setting Set: Set: Back: Exit MENU

When input is switched to PC input source, the "Screen" settings specific for PC input are applied. The PC "Screen" settings include the following options:

Wide Mode	“Normal”: Select to display the picture in its original size.“Full 1”: Select to enlarge the picture to fill the display area in the vertical direction while keeping its original aspect ratio. A black frame will appear on the surrounding of the picture.“Full 2”: Select to enlarge the picture to fill the display area.NoteYou cannot set the “Wide Mode” while using the “PAP” function.
Auto Adjustment	Select to automatically adjust the display position and phase of the picture when the display receives an input signal from the connected PC.Note that “Auto Adjustment” may not work well with certain input signals. In such cases, manually adjust the options below.
Phase	Select to adjust the phase when the screen flickers.
Pitch	Select to adjust the pitch when the picture has unwanted vertical stripes.
Horizontal Shift	Allows you to move the position of the picture left and right in the window. Press ⇔/⇨ and press ⓣto choose a correction.
Vertical Shift	Allows you to move the position of the picture up and down in the window. Press ⇔/⇨ and press ⓣto choose a correction.
Reset	Resets the following settings; “Phase”, “Pitch”, “Horizontal Shift” and “Vertical Shift” to the default settings.
PAP Setting	See “PAP Setting” for video input (page 24).

Notes

- "Auto Wide", "4:3 Default", "Display Area" and "Vertical Size" are not available for PC input.

- When the input is digital signal via HDMI 1/HDMI 2, "Auto Adjustment", "Phase" and "Pitch" are not available for PC input.

- If there is no signal currently being input, none of the "Screen" settings options, except for "PAP Setting" can be selected.

Setup Settings

Setup Language : Timer Setting ECO Mode : Auto Shut Off : Advanced Setup Information All Reset English Español Français Italiano Deutsch 日本語 Set: Exit: Set: Back: Exit: Menu

To highlight an option and to change settings, press /// .

Press ⓣ to confirm the selection.

The "Setup" settings include the following options:

Language	Select to display all on-screen settings in your language of choice: “English”, “Español”, “Français”, “Italiano”, “Deutsch” or “日本語
Timer Setting	You can adjust time, display the built-in clock, or make the power go off automatically.“Clock Set”: Sets the day of the week and the hour of the day.“Clock Display”: Displays the currently set time on the screen when set to “On”.“On/Off Timer”: Sets the time at which the power is automatically turned on or off.NoteIf the built-in clock tends to lose time, the internal battery may be exhausted. Please contact your authorized Sony dealer to have the battery replaced.
ECO Mode	“Off”: Select to view picture without the benefit of power saving.“Low”/“High”: Select to change brightness and reduce power consumption.“Picture Off”: Select to turn off the picture. Audio stays on with your selected volume setting.
Auto Shut Off	“On”: The display automatically enters the standby mode when a signal is not input to the video input connectors for more than about 5 minutes. The display automatically enters the power saving mode when a signal is not input to the other input connectors for more than about 30 seconds.“Off”: The display is not turned off automatically even when no signal is input to any connector.TipWhile in the standby mode, press the ⏻ (POWER) button on the display or the POWER ON Switch on the remote control to turn the display on. In the power saving mode, the display is turned on automatically when a signal is input.
Advanced Setup	“Color System”: Select the “Color System” of video signals from “NTSC”, “PAL”, “SECAM”, “NTSC4.43”, “PAL-M”, “PAL-N”, “PAL60”, or select “Auto” to set the “Color System” automatically.“Status Display”: “On” makes input signal and “Wide Mode” information appear on the screen for about 20 seconds when the display is turned on, and for about 5 seconds when the input signal is switched, while “Off” disables display of status information.TipYou can display the input signal and “Wide Mode” information by using DISPLAY on the remote control regardless of the “Status Display” setting.“Control Setting”: This menu is used for settings of operation of the display and the remote control.“Remote Index”: You can change the “Index Number” of the display if necessary. Select to set the “Index Number” of the display with ↗/▽ and press ⊕ to confirm the setting.NoteWhen you set the “Index Number”, use the buttons on the display. The “Index Number” cannot be set with the remote control.“Control Mode”“Display+Remote”: You can operate the display with the control buttons on the display and the remote control.“Display Only”: Disables the remote control function. You can make settings for the display only using the control buttons on the display.“Remote Only”: Disables the controls on the display. You can make settings for the display only using the remote control.“All Off”: Disables the operation of both the remote control and the control buttons on the display. You can operate the display via the REMOTE connector on the display.NotesWhen operating this item, the modes you can select differ depending on the button you are using. When setting this item with ☑ the remote control, you can select only “Display+Remote” or “Remote Only”. When setting this item with ☑ on the display, you can select only “Display+Remote” or “Display Only”.When this option is set to “All Off”, you cannot operate the display using the remote control and the control buttons on the display. You can return the setting to “Display+Remote” by pressing MENU and ▶ on the display at the same time for more than 5 seconds.
Information	Displays the “Model Name”, “Serial Number”, “Operation Time” and “Software Version” of your display.
All Reset	Resets all the “Setup” settings to the default settings.NoteThe items included in the “Information” option will not be reset.

Other Information

Troubleshooting

Check whether the STANDBY indicator is flashing red.

When it is flashing

The self-diagnosis function is activated.

1 Check how many times the STANDBY indicator flashes and how long it stops flashing.

For example, the indicator flashes 3 times, stops flashing for 3 seconds, and flashes 3 times.

2 Switch the display off, and disconnect the power cord.

Inform your dealer or Sony service center of how the indicator flashes (the number of flashes and the duration of light out).

When it is not flashing

1 Check the items in the table below.

2 If the problem still persists, have your display serviced by qualified personnel.

Problem Possible Remedies

No picture.
No picture.	·Check “ECO Mode” options (page 26).
The display turns off automatically.	·Check if “Timer Setting” is activated (page 26).
No picture from some video sources.	·Check the connection between the video equipment and the display.·Try switching input using the INPUT button of the display, or the remote control (page 9, 12).
Poor picture.
No color/Dark picture/The picture is too bright/Color is not correct	·Press PICTURE to select the desired “Picture Mode” (page 12).·Adjust the “Picture Mode” options in the “Picture” settings (page 20).·Check the condition of the signal cable.
No sound/Noisy sound.
Good picture, no sound.	·Check the volume control.·Press + on the remote control so that “Muting” disappears from the screen (page 13).·Check “Common Audio Sel.” settings (page 22).·Check “Speaker Out” settings (page 22).
“Wide Mode” setting changes automatically.	·The current “Wide Mode” setting automatically changes to the appropriate setting for the current input if “Auto Wide” in the “Screen” settings is set to “On”. If you want to retain the current “Wide Mode” setting as inputs are changed, set “Auto Wide” to “Off” in the “Screen” settings (page 23).
Remote control does not operate.	·Check the polarity of the batteries or replace the batteries.·Point the remote control at the remote control sensor of the display.·Keep the remote control sensor area clear from obstacles.·Check “Control Setting” (page 27).·Fluorescent lamps can interfere with remote control operation; try turning off the fluorescent lamps.

Input Signal Reference Chart

PC signals

	Resolution	horizontal frequency (kHz)	vertical frequency (Hz)
1	VGA^a) -1 (VGA 350) 31.5 70
2	640 × 480@60 Hz(VESA ^b) STD)	31.5	60
3	Mac^c) 13" 35.0 67
4	VGA (VGA TEXT) 31.5 70
5	800 × 600@60 Hz (VESA STD)	37.9	60
6	Mac 16" 49.7 75
7	1024 × 768@60 Hz(VESA STD)	48.4	60
8	1024 × 768@75 Hz(VESA STD)	60.0	75
9	1024 × 768@85 Hz(VESA STD)	68.7	85
10	1280 × 1024@60 Hz(VESA STD)	64.0	60
11	848 × 480@60 Hz (VESA STD)	29.8	60
12	848 × 480@60 Hz (VESA STD)	29.5	60
13	848 × 480@75 Hz 37.7 75
14	1280 × 768@60 Hz 47.8 60
15	1280 × 768@60 Hz 47.4 60
16	1360 × 768@60 Hz 47.7 60
17	1360 × 768@60 Hz 47.4 60

TV/Video signals

a) VGA is a registered trademark of International Business Machines Corporation, U.S.A.
b) VESA is a registered trademark of the Video Electronics Standards Association.
c) Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.

Notes

• For HDTV signals, input the tri-level sync signal to the 2nd pin of RGB/COMPONENT (D-sub 15 pin) on the HD15 connector.
• If colors appear too light after input of a DVD signal to the display, adjust "Color" in the "Picture" settings.
• When the phase is readjusted, the resolution will be reduced.

Actual on-screen display of the input signal and the display's status

On-screen display	Significance
640×480/60 (c.g.)	The selected input signal is a PC signal.
480/60I (c.g.) The selected input signal is component video.
NTSC (e.g.)	The selected input signal is NTSC.
Not Supported Signal	The selected input signal is non-supported signal.
No Signal There is no input signal.
HD15	The selected input signal is HD15.
HDMI 1	The selected input signal is HDMI 1.
HDMI 2	The selected input signal is HDMI 2.
Option	The selected input signal is VIDEO.

Specifications

Video processing

Panel system a-Si TFT Active Matrix LCD Panel

Display resolution 1,366 dots (horizontal) × 768 lines (vertical)

Sampling rate 13.5 MHz to 140 MHz

Color system NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Input signal See page 29.

Pixel pitch 0.648 (horizontal) × 0.648 (vertical) mm (^1/32×^1/32 inches)

Picture size 885 (horizontal) × 498 (vertical) mm

$$ (3 4 ^ {7} / _ {8} \times 1 9 ^ {5} / _ {8} \text { inches }) $$

Panel size 40-inch (diagonal 1,016 mm)

Inputs and Outputs

HD15 (RGB/COMPONENT IN)

D-sub 15-pin (female) (× 1) (See page 31.)

AUDIO (COMMON AUDIO IN)

Mini DIN 4-pin (× 1)

Y (luminance): 1 Vp-p ± 2 dB sync negative, 75 ohms terminated

C (chrominance): Burst

0.286 Vp-p ± 2 dB (NTSC),

75 ohms terminated

Burst 0.3 Vp-p ± 2 dB (PAL),

75 ohms terminated

VIDEO IN Pin jack (× 1)

1 Vp-p, 75 ohms unbalanced, sync negative

AUDIO IN Pin jack (× 2)

500 mVrms, high impedance

REMOTE (RS-232C)

D-sub 9-pin (× 1)

CONTROL S OUT

Mini jack (× 1)

General

Power requirements

90 V to 264 V AC, 50/60 Hz, 2.3 A

Power consumption

220 W

Speaker output

10 W + 10 W (8 ohms)

Adequate load impedance, 8 to 16 ohms

Operating conditions

Temperature: 0 °C to 35 °C (32 °F to 95 °F)

Humidity: 20% to 90%

(no condensation)

Storing/transporting conditions

Temperature: -20^ to +60^

(-4 °F to 140 °F)

Humidity: 5% to 95%

(no condensation)

Dimensions

989 × 685 × 270 mm

(39 × 27 × 10 ^5 /8 inches)

(w/h/d, excluding projections)

Mass 28.0 kg (61.7 lb)

Supplied accessories

AC power cord (1)

Remote Control RM-FW001 (1)

Size AA (R6) batteries (2)

Cable holder (1)

HD15-Component Cable (1)

Operating instructions (1)

Safety regulations

UL 60950-1, CSA No. 60950-1-03 (c-UL),

FCC Class B, IC Class B,

EN 60950-1 (NEMKO), CE, C-Tick

Design and specifications are subject to change without notice.

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Pin assignment

HD15 (RGB/COMPONENT) connector (D-sub 15-pin)

Pin No. Signal
1 Red video or C	_R/P_R
2 Green video or Y
3 Blue video or C	_B/P_B
4 Ground
5 Ground
6 Red ground
7 Green ground
8 Blue ground
9 Not used
10 Ground
11 Ground
12 SDA
13 H sync or Composite Video
14 V sync
15 SCL

Note

When inputting a component signal, be sure not to input sync signals to pins 13 and 14. If you do so, the picture may not be displayed properly.

Index

Numerics

4:3 14, 23

4:3 Default 19, 24

A

AC IN socket 10, 17

Advanced Setup 27

All Reset 27

AUDIO (COMMON AUDIO IN) connector 10

AUDIO IN L/R connector 11

Auto Adjustment 25

Auto Shut Off 26

Auto Wide 23

B

Balance 22

Bass 22

Brightness 20, 21

C

Cable holder 17

CineMotion 20

Clock Display 26

Clock Set 26

Color 20

Color System 27

Color Temp. 20, 21

Common Audio Sel. 22

Contrast button 13

Control Mode 27

CONTROL S OUT connector 11

Control Setting 27

Custom 20, 21, 22

D

Display Area 24

DISPLAY button 13

Dynamic 22

E

ECO button 13, 16

ECO Mode 16, 26

F

Full 14, 23

Full 1/Full 2 14, 25

H

HD15 (RGB/COMPONENT IN)

connector 10

HD15 button 13

HDMI 1/HDMI 2 button 12

HDMI 1/HDMI 2 IN connector 10

Horizontal Shift 24, 25

Hue 20

|

ID MODE buttons 13, 16

Index Number 13, 16, 27

Information 27

INPUT button 9

Input signal 29

L

Language 26

M

MENU button 9, 12

Muting button 13

N

Noise Reduction 20

Normal 14, 24, 25

0

On/Off Timer 26

OPTION 1 button 13

P

PAP button 12, 15

PAP Setting 15, 19, 24, 25

PAP Size 24

Phase 25

PIC OFF indicator 9

Picture 20, 21

PICTURE button 12

Picture Mode 20, 21

Picture Mode Reset 20, 21

Picture Settings 18, 20

Pitch 25

POWER indicator 9

POWER ON switch 9, 12

R

REMOTE connector 11

Remote control sensor 9

Remote Index 27

Reset 24, 25

s

S VIDEO IN connector 10

Screen Settings 19, 23

Setup Settings 19, 26

Sharpness 20

SOUND button 12

Sound Mode 22

Sound Mode Reset 22

Sound Settings 18, 22

Speaker Out 22

SRS WOW 22

Stand attachment hole 10

Standard 20, 21, 22

STANDBY button 13

STANDBY indicator 9

Status Display 27

Swap 24

T

TC Control 20, 21

Timer Setting 26

Treble 22

True Color Control 18, 21

V

Vertical Shift 24, 25

Vertical Size 24

VIDEO IN connector 11

Vivid 20, 21

Volume button 9, 13

W

Wide Mode 14

Wide Mode button 12, 14

Wide Mode 23, 25

Wide Zoom 14, 23

Z

Zoom 14, 23

AVERTISSEMENT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Diagram showing device panel layout with labeled ports and connectors, including a monitor, cable, and display unit.

⑨Touches ID MODE (OUI/0-9/SET/C/NON)

Diagram showing a rectangular block with six circular holes and a central circle, with a downward arrow indicating direction (no text or symbols)

Grand zoom

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

4:3

Geometric diagram with a central circle surrounded by five smaller circles, enclosed in a rectangle (no text or symbols)

Plein écran

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Zoom

Geometric diagram with a central circle surrounded by four semicircles on a gray background (no text or symbols)

Two diagrams showing a square with circles inside and a rectangle with circles inside, both before and after a downward arrow (no text or symbols)

Grand zoom

Two geometric diagrams showing circles within rectangles, one with a white circle and the other with a large circle (no text or symbols)

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Plein écran

Two geometric diagrams showing circles inside rectangles, one with a central circle and the other with an oval (no text or symbols)

Zoom

Two geometric diagrams showing circles within rectangles, one with shaded background and the other with gray shading (no text or symbols)

Remarque

Simple geometric diagram with a central circle surrounded by six smaller circles, no text or symbols present.

Plein

écran 1

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Plein

écran 2

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

10 W + 10 W (8 ohms)

Poids 28,0 kg (61,7 lb)

Accessoires fournis

FCC Class B, IC Class B,

EN 60950-1 (NEMKO), CE, C-Tick

Réglage PAP 13, 17, 24, 25

Réglages avancés 27

Réglages Image 16, 18

True Color Control 16, 19, 20

Z

Zone d'affichage 23

Zoom 12, 22

ACHTUNG

Symbol of a trash bin crossed with no visible text or labels

Diagram showing device panel layout with labeled ports and connectors, including a monitor, cable, and connector details.

⑨Tasten ID MODE (ON/0-9/SET/C/OFF)

Diagram showing a rectangular block with six circular holes and a downward arrow, no text or symbols present.

Breitbild-Zoom

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

4:3

Simple geometric diagram with a central circle surrounded by six smaller circles, no text or symbols present.

Voll

Simple geometric diagram with a central oval and four surrounding circles, no text or symbols present.

Zoom

Geometric diagram with a central circle surrounded by four semicircles on a gray background (no text or symbols)

Two diagrams showing a square with circles and a rectangle with circles, both before and after a downward arrow (no text or symbols)

Breitbild-Zoom

Two geometric diagrams showing circles inside rectangles, one with a white circle and the other with a large circle (no text or symbols)

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Voll

Two geometric diagrams showing circles inside rectangles, no text or symbols present

Zoom

Two geometric diagrams showing circles within rectangles, one with shaded regions and the other with curved lines (no text or symbols)

Hinweis

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a square frame (no text or symbols)

Voll 1

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Voll 2

Simple diagram with a central oval and four surrounding circles, no text or symbols present.

Einstellen von PAP

Mini-DIN, 4-polig (× 1)

Y-Signal (Luminanz): 1 Vp-p ± 2 dB, sync-negativ, 75-Ohm-Abschlusswiderstand

C-Signal (Chrominanz): Burst,

0,286 Vp-p ± 2 dB (NTSC),

True Color Control 16, 19, 20

U

Uhr einstellen 26

Uhrzeitanzeige 26

V

V. Größe 23

V. Position 23, 25

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

Diagram showing device panel layout with labeled ports and connectors, including a monitor, cable, and connector details.

⑨ID MODE (ON/0-9/Botones SET/C/OFF

Diagram showing a rectangular block with five circular holes and a downward arrow, no text or symbols present.

Acerc. Panorám.

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

4:3

Simple geometric diagram with a central circle surrounded by five smaller circles, no text or symbols present.

Completa

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

Acercamiento

Geometric diagram with a central circle surrounded by smaller semicircles and arcs, no text or symbols present.

Fuente original 16:9

Diagram showing two panels of circles arranged in a grid, one with a black border and the other with a gray border, both pointing downward (no text or symbols)

Acerc. Panorám.

Two geometric diagrams showing circles inscribed within rectangles, no text or symbols present

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Completa

Two geometric diagrams showing circles inside squares, one with a central circle and the other with a large circle (no text or symbols)

Acercamiento

Two abstract geometric patterns: one with white circles on a gray background, the other with white circles on a gray background (no text or symbols)

Nota

Simple geometric diagram with a central circle surrounded by five smaller circles, enclosed in a square frame (no text or symbols)

Completa 1

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Completa 2

Simple geometric diagram with five white circles arranged around a central oval (no text or symbols)

10 W + 10 W (8 ohms)

Ajuste de PAP 13, 17, 23, 24

Ajustes de Ajustes 17, 25

Conector AUDIO IN L/R 9

Conector CONTROL S OUT 9

Conector HD15 (RGB/

COMPONENT IN) 8

Conector HDMI 1/HDMI 2 IN 8

Conector REMOTE (a distancia) 9

Conector S VIDEO IN 9

Conector VIDEO IN 9

Config. avanzada 26

Config. reloj 25

D

Dinâmico 20

E

Estândar 18, 19, 20

F

Fase 24

G

Graves 20

|

Idioma 25

Imagen 18, 19

Inclinación 24

Indicador PIC OFF 7

True Color Control 16, 19

V

Vívido 18, 19

Z

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Diagram showing device panel layout with labeled ports and connectors, including a monitor, cable, and connector details.

⑨Tasti ID MODE (ON/0-9/SET/C/OFF)

Diagram showing a rectangular block with six circular holes and a downward arrow, no text or symbols present.

Zoom ampio

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

4:3

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Pieno

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

Zoom

Geometric diagram with a central circle surrounded by smaller semicircles and rectangles (no text or symbols)

Diagram showing two panels of circles arranged in a grid, one with a black border and the other with a gray border, both pointing downward (no text or symbols)

Zoom ampio

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Pieno

Two geometric diagrams showing circles inside squares, one with a central circle and the other with a large circle (no text or symbols)

Zoom

Two abstract geometric patterns: one with white circles on a gray background, the other with white circles on a gray background (no text or symbols)

Nota

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a square frame (no text or symbols)

Pieno 1

Geometric diagram with a central circle surrounded by four smaller circles, enclosed in a rectangle (no text or symbols)

Pieno 2

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

FCC Class B, IC Class B,

EN 60950-1 (NEMKO), CE, C-Tick

Riprist. Modo imm. 18, 19

Ripristina 24, 26

Ripristina tutto 28

s

True Color Control 16, 19

U

Uscita diffusori 21

V

Vivido 18, 19

Z

Zoom ampio 12, 23

Zoom 12, 23

平板宽屏监视器

警告

Diagram showing computer monitor setup with labeled ports and connectors, including a plug-in socket and cable connector.

⑨ ID MODE (ON/0-9/SET/C/OFF) 按钮

Diagram showing a rectangular block with six circular holes and a downward arrow, no text or symbols present.

Wide Zoom

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

4:3

Simple geometric diagram with a central circle surrounded by four smaller circles, enclosed in a rectangle (no text or symbols)

Full

Simple diagram with a central oval and four surrounding circles, no text or symbols present.

Zoom

Geometric diagram with a central circle surrounded by smaller semicircles and rectangles (no text or symbols)

16:9 原始源

Diagram showing two states of a geometric arrangement: left panel with black rectangles and white circles, right panel with white circles arranged in a grid (no text or symbols)

Wide Zoom

Two geometric diagrams showing circles within rectangles, one with a white circle and the other with a large circle (no text or symbols)

4:3

Two abstract geometric diagrams with circles and rectangles, no text or symbols present

Full

Two geometric diagrams showing circles inside rectangles, one with a large circle and the other a large circle (no text or symbols)

Zoom

Two abstract geometric patterns: one with white circles on a gray background, the other with white circles on a gray background (no text or symbols)

注

Simple geometric diagram with a central circle surrounded by four smaller circles, no text or symbols present.

Full 1

Geometric diagram with a central circle surrounded by six smaller circles, no text or symbols present.

Full 2

Simple diagram with five white circles arranged around a central oval, no text or symbols present.

使用 PAP 设定

若要取消 ECO Mode

Brightness (第 18, 19 页)

Color (第 18 页)

Hue (第18页)

Color Temp. (第 18, 19 页)

Sharpness (第18页)

Noise Reduction (第 18 页)

CineMotion (第 18 页)

True Color Control (第 19 页)

Sound

Sound Sound Mode : Dynamic Sound Mode Reset Treble : Bass : Balance : Center Common Audio Set : HD15 Speaker Out On Set: 0.00 Set Back Exit: www

Sound Mode (第 20 页)

Sound Mode Reset (第 20 页)

Treble (第 20 页)

Bass (第 20 页)

Balance (第 20 页)

Common Audio Sel. (第 20 页)

Speaker Out (第20页)

设定 使您可以设定 / 更改

Screen

Screen Wide Mode : Wide Zoom Auto Wide : On 4:3 Default : Wide Zoom Display Area : Normal Auto Adjustment Phase : Pitch : Horizontal Shift : 0 Vertical Shift : 0 Vertical Size : 0 Reset PAP Setting Set OK Set Back Exit(WMO)

Wide Mode (第 21, 23 页)

Auto Wide (第21页)

4:3 Default (第22页)

Display Area (第 22 页)

Auto Adjustment (第 23 页)

Phase (第 23 页)

Pitch (第 23 页)

Horizontal Shift (第 22, 23 页)

Vertical Shift (第 22, 23 页)

Vertical Size (第 22 页)

Reset (第 22, 23 页)

PAP Setting (第 22, 23 页)

Setup

Setup Language : English Timer Setting ECO Mode : Off Auto Shut Off : Off Advanced Setup Information All Reset Set ⬆️ Set ➕ Back ➕ Exit (Menu)

Language (第 24 页)

Timer Setting (第 24 页)

ECO Mode (第 24 页)

Auto Shut Off (第 24 页)

Advanced Setup (第 25 页)

Information (第25页)

All Reset (第25页)

FCC Class B, IC Class B,

EN 60950-1 (NEMKO), CE, C-Tick

设计和规格若有变更，恕不另行通知。

Common Audio Sel. 20

Control Mode 25

CONTROL S OUT 连接器9

Control Setting 25

Custom 18, 19, 20

D

Display Area 22

DISPLAY 按钮 11

Dynamic 20

电缆夹 15

对比度按钮 11

E

ECO Mode 14, 24

ECO 按钮 11, 14

F

Full 12, 21

Full 1/Full 2 12, 23

H

HD15 按钮 11

Horizontal Shift 22, 23

Hue 18

|

ID MODE 按钮 11, 14

Index Number 11, 14, 25

Information 25

J

静音按钮 11

L

Language 24

M

MENU 按钮 7,10

N

Noise Reduction 18

Normal 12, 22, 23

0

On/Off Timer 24

OPTION 1 按钮 11

P

PAP Setting 13, 17, 22, 23

PAP Size 22

PAP 按钮10, 13

Phase 23

PIC OFF 指示灯7

Picture 18, 19

Picture Mode 18, 19

Picture Mode Reset 18, 19

Picture Settings 16, 18

PICTURE 按钮10

Pitch 23

POWER ON 开关7,10

POWER 指示灯 7

R

Remote Index 25

REMOTE 连接器 9

Reset 22, 23

S

S VIDEO IN 连接器 8

Screen 设定 17, 21

Setup 设定 17, 24

Sharpness 18

Sound Mode 20

Sound Mode Reset 20

SOUND 按钮 10

Sound 设定 16, 20

Speaker Out 20

SRS WOW 20

Standard 18, 19, 20

STANDBY 按钮 11

STANDBY 指示灯 7

Status Display 25

Swap 22

输入按钮 7

输入信号 27

T

TC Control 18, 19

Timer Setting 24

Treble 20

True Color Control 16, 19

V

Vertical Shift 22, 23

Vertical Size 22

VIDEO IN 连接器 8

Vivid 18, 19

W

Wide Mode 12, 21, 23

Wide Mode 按钮 10, 12

Wide Zoom 12, 21

Y

遥控传感器 7

音量按钮 7,11

Z

Zoom 12, 21

支架安装孔 8
