USER MANUAL DB3DL2 HiKOKI

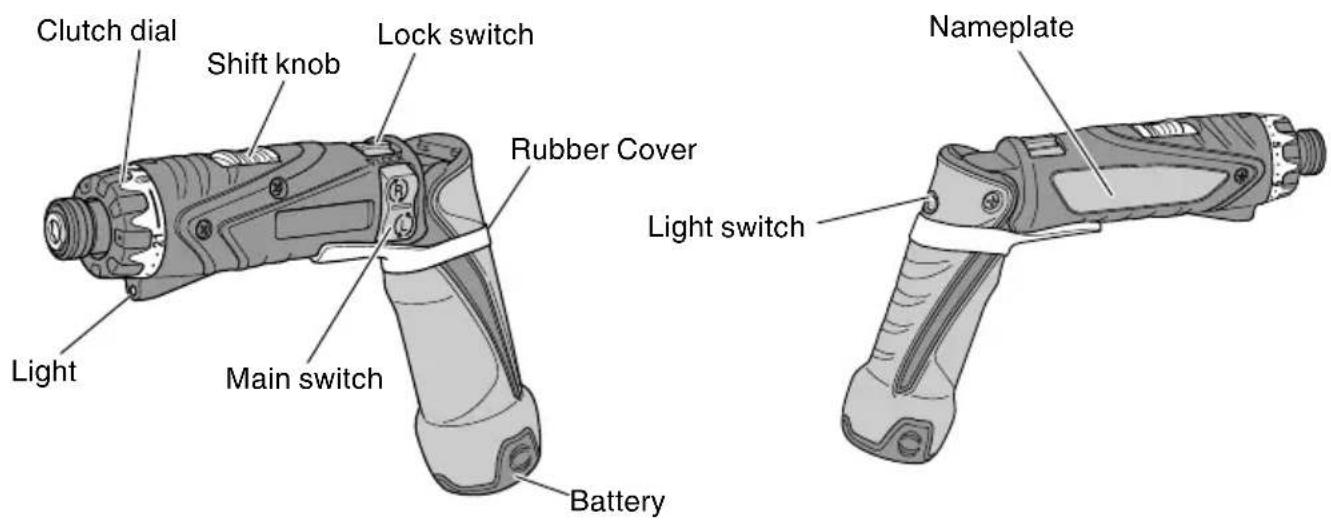

Cordless Driver Drill

Technical line drawing of a handheld electric drill (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the instruction manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this instruction manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this instruction manual.

Never use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

d u s Power stools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) o Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tools qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

1. Hold power tools by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.

Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

1. Always wear ear protectors when using the tool for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. Never place hands or other body parts near the drill bit or chuck during operation. Hold the drill by its handle only.

2. Because the cordless driver drill operates by battery power, be aware of the fact that it can begin to operate at any time.

3. When working at elevated locations, clear the area of all other people and be aware of conditions below you.

4. Never touch moving parts.

Never place your hands, fingers or other body parts near the tool's moving parts.

1. Never operate without all guards in place.

Never operate this tool without all guards or es, safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

s1@ Useiriglet doob y a

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. Never use a power tool for applications other than those specified.

Never use a power tool for applications other than those specified in the instruction manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. Never allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. Never use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

17. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

18. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

19. Always wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

20. Definitions for symbols used on this tool

V.....volts

== ....direct current

No ...... no load speed

---/min ... revolutions or reciprocation per minute

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC3SFL.

2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge me rechargeable battery type EBM315. Other type of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

5. To reduce risk of damage to electric plu cord, pull by plug when disconnecting battery charger.

6. Make sure cord is located so that be stepped on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.

If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:

b. That extension cord is properly wired and in good electrical condition; and

c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input rating amperes*		AWG size of cord
Equal to or greater than	but less than	Length of cord, feet (meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating —for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.

2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; t qualified serviceman.

3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC3SFL battery charger, instructions and cautionary statements on it, the battery and in this manual.

CAUTION

Use only metabo HPT battery type EBM315.

Other types of batteries may burst and cause injury!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. Never disassemble the battery.
2. Never incinerate the damaged or is completely worn out. The battery can explode in a fire.
3. Never short-circuit the battery.
4. Never insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. Never charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. Never charge when the temperature is below 50^ F ( 10^ C) or above 104^ F ( 40^ C).
7. Never connect two battery chargers together.
8. Never insert foreign objects into the hole for the battery or the battery charger.
9. Never use a booster transformer when charging.

10. Never use an engine generator or DC power to charge.

11. Never store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.

12. Never expose the battery or battery charger to rain or wet conditions.
13. Always operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
14. Always wait at least 15 minutes between charges to avoid overheating the charger.
15. Always disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION

BATTERY

be sure to read all

This battery is exclusively for the driver drill. Never use with any other heavy-duty power tools (i.e. Circular saw, Reciprocating saw, Disc grinder and Blower etc.). To extend the lifetime, the lithium-ion battery is equipped with the protection function to stop the output. In the cases of 1 and 2 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

Furthermore, please heed the following warning because, even if it is and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical or car cigarette lighter sockets.

6. Do not use the battery for a purpose other than those specified.

7. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or high pressure a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul odor are detected.

10. Do not use in a location where strong static electricity generates.

11. If any foul odor, overheating, discolor, deformation, and/or other irregularities are detected during use, charging and storage of the battery charger, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

outlet left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, e discolor, as deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

- Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

SAVE THESE INSTRUCTIONS

AND

MAKE THEM AVAILABLE TO

OTHER USERS

AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this instruction manual is designed to assist you in the safe operation and maintenance of the power tool.

Never operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this instruction manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

1. Cordless driver drill (DB3DL2)

Clutch dial Shift knob Lock switch Rubber Cover Light switch Main switch Battery Nameplate

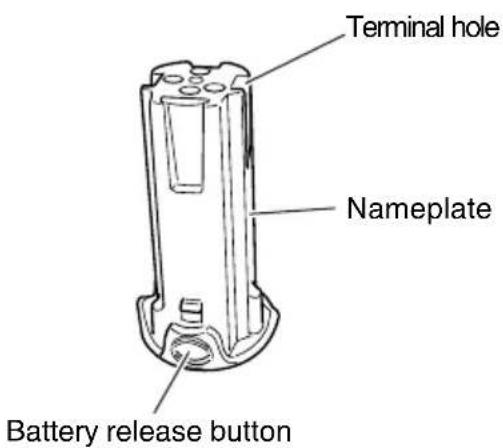

○ Battery (EBM315)

Terminal hole Nameplate Battery release button

Fig. 1

2. Battery charger (UC3SFL)

Battery installation hole

Cord

Pilot lamp

Nameplate

Plug

Fig. 2

SPECIFICATIONS

1. Cordless driver drill (DB3DL2)

Motor DC motor

Low 260 / min

No-load speed High 780 / min

Drilling Metal (Thickness 13/64" (5 mm)

Drilling 1/32" (1.0 mm) (Mild steel or aluminum)

Capacity Screw Wood screw #8 × 1-1/2" (3.8 mm × 38 mm)

Driver Small screw 3/16" (5 mm)

Bit shank size 1/4" (6.35 mm) Hex.

Model EBM315

Battery Type Lithium - ion battery

Voltage DC 3.6 V

Charging & discharging frequency About 500 times

Weight 1.0 lbs (0.45 kg)

2. Battery charger (UC3SFL)

Input power source Single phase: AC 120 V 60 Hz

Charging time Approx. 30 min. (At a temperature of 68°F (20°C))

Charging voltage DC 3.6 V

Charging current DC 3.0 A

Weight 0.7 lbs. (0.3 kg)

NOTE: The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○ Use as a drill

Drilling of soft steel, plastic and aluminum materials

○ Use as a screwdriver

Tightening and loosening of machine screws, wood screws and tapping screws

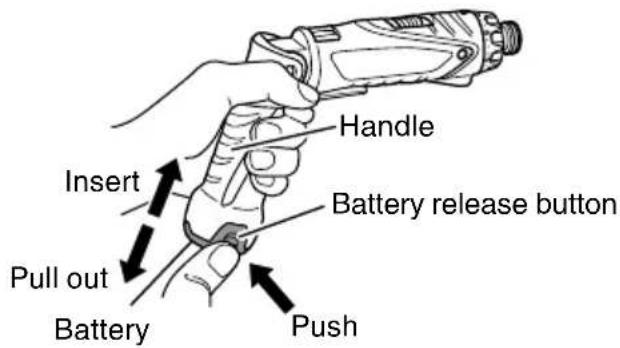

REMOVAL AND INSTALLATION METHOD OF BATTERY

○ How to install the battery

Align the battery with the groove in tool handle and slip it into place.

Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. (Fig. 3)

○ How to remove the battery

Withdraw battery from the tool handle while pressing the battery release buttons (2 pcs.) on the sides of the battery. (Fig. 3)

Handle Battery release button Insert Pull out Battery Push

Fig. 3

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the plug of battery charger into the receptacle.

WARNING

Do not use the electrical cord if damaged. Have it repaired immediately.

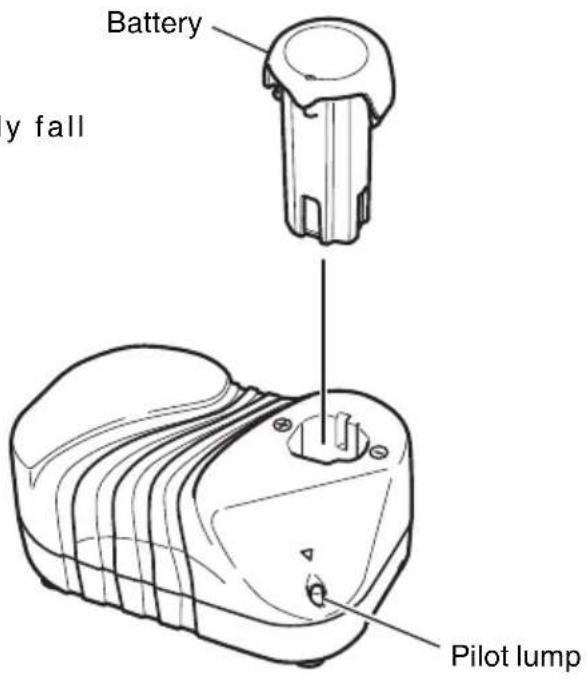

1. Insert the battery to the battery charger. Insert the battery into the battery charger as shown in Fig. 4.

Battery y fall Pilot lump

Fig. 4

1. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light on.

NOTE

If the pilot lamp does not light, pull out the plug from the receptacle and check if the battery is properly mounted.

○ When the battery is fully charged, the pilot lamp will go out.

NOTE

The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low. When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your metabo HPT AUTHORIZED SERVICE CENTER.

○ Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be coo while before being recharged.

Table 2

Rechargeable batteries	Temperature at which the battery can be recharged
EBM315	32°F — 122°F(0°C — 50°C)

○ Regarding recharging time

Table 3 shows the recharging time required according to the type of battery.

Table 3 Recharging time (approx. min.) at 68°F (20°C)

Battery voltage (V)	Battery capacity (Ah)
	1.5 Ah
3.6 EBM	315 30 min.

NOTE

The recharging time may vary according to the ambient temperature and the power supply voltage.

1. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger. Supporting the battery charger with hand, pull out the battery from the battery charger.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substances of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them for the first and second times. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○ Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery for a while and recharge it after it has cooled.

CAUTION

• When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of failures. Once the charging has been completed, give 15 minutes rest until the next charging.
• If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light.
  The battery will not be recharged. In such a case, let the battery cool before charging.
• If the battery charger does not work while the battery is mounted correctly, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

OPERATION

How to make the batteries perform longer.

○ Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

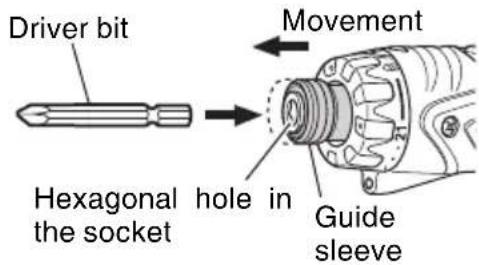

1. Installing the bit

Always follow the following procedure to install driver bit. (Fig. 5)

Driver bit Hexagonal hole in the socket Movement Guide sleeve

Fig. 5

(1) Pull the guide sleeve forward.
(2) Insert the bit into the hexagonal hole in the socket.
(3) Release the guide sleeve and it returns to its original position.

CAUTION

If the guide sleeve does not return to its original position, then the bit is not installed properly.

1. Removing the bit

Please do the opposite point on the method of installing bit.

1. Automatic spindle-lock mechanism

When the main switch is off, the bit is locked in place, and the tool can be used as a manual screwdriver.

1. Confi rm that the battery is mounted correctly

2. Change rotation speed

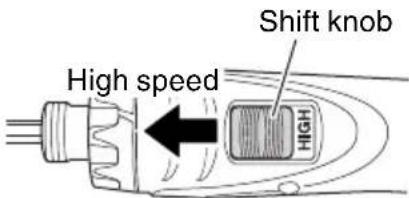

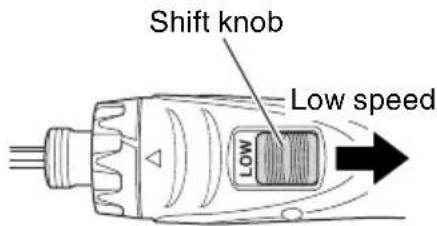

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow. (See Fig. 6 and 7)

When the shift knob is set to "LOW", the drill rotates at a low speed. When set to "HIGH", the drill rotates at a high speed.

Shift knob Low speed LOW

Fig. 6

Shift knob High speed

Fig. 7

CAUTION

- When changing the rotational speed with the shift knob, confirm that the switch is off.

Changing the speed while the motor is rotating will damage the gears.

- When a large force is required for operation, set the shift knob to "LOW". If "HIGH" is set and the unit is used, it may cause the motor to burn out or malfunction prematurely.

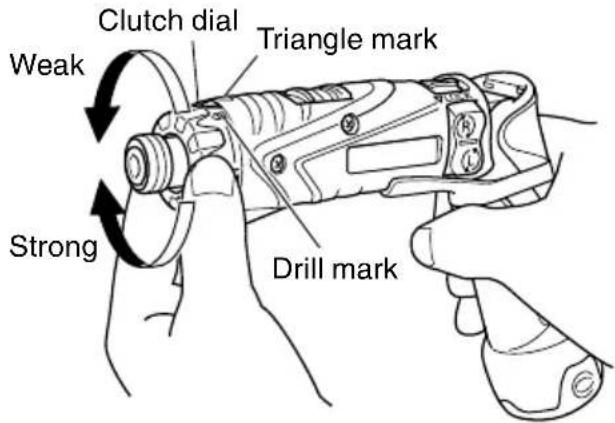

1. Confir rm the clutch dial position (see Fig. 8).

Clutch dial Weak Triangle mark Strong Drill mark

Fig. 8

The tightening torque of this unit can be adjusted according to the clutch dial position, at which the clutch dial is set.

(1) When using this unit as a screwdriver, line up the one of the numbers "1, 5, 9 ... 21" on the clutch dial, or the black dot, with the triangle mark on the outer body.

(2) When using this unit as a drill, line up the clutch dial drill mark "☐☐☐" with the triangle mark on the outer body.

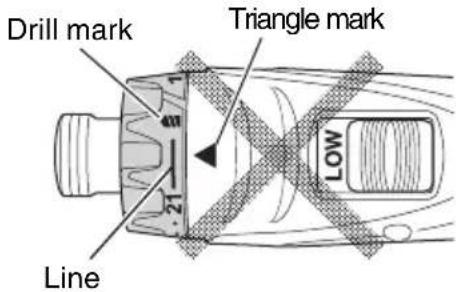

CAUTION

● The clutch dial cannot be set between the numbers “1, 5, 9 ... 21” or the black dot.
- Do not use with the clutch dial set at the line between the number "21" and the drill mark "◇◇◇". Doing so may cause damage (See Fig. 9).

Drill mark Line Triangle mark 21 3 LOW

Fig. 9

1. Tightening torque adjustment.
   (1) Tightening torque

Tightening torque should intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured.

Be sure to adjust the clu according to the screw diameter.

(2) Tightening torque indication (See Fig. 8)

The tightening torque differs depending on the type of screw and the material being tightened.

The unit indicates the tightening torque with the numbers “1, 5, 9 ... 21” and black dots on the clutch dial. The tightening torque at position “1” is the weakest and the torque is strongest at the highest number.

(3) Adjusting the tightening torque (See Fig. 8)

Rotate the clutch dial and line up the numbers "1, 5, 9 ... 21" or the dots on the clutch dial, with the triangle mark on the outer body. Adjust the clutch dial in the weak or the strong torque direction according to the torque you need.

CAUTION

● The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.
- When setting the shift knob to "HIGH" (high speed) and the position of the clutch dial is between "9" and "21", it may happen that the clutch does not engaged and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).

• If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.
  ● Too long hammering may cause the screw broken due to excessive tightening.

• Switch operation

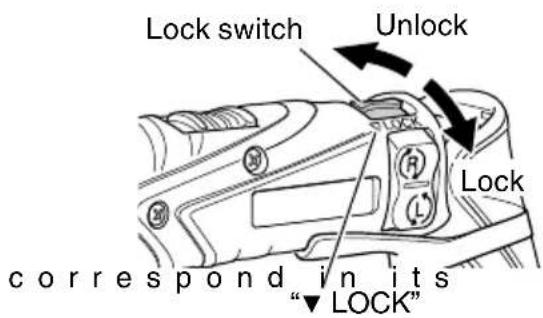

(1) Lock switch

The tool is equipped with a lock switch. To activate the main switch lock, move the lock switch to the “▼ LOCK” position. Move the lock switch to the opposite position to operate the tool. (Fig. 10)

Lock switch Unlock Lock correspond in its "LOCK"

Fig. 10

tch dial position CAUTION

Always set the lock switch to the “▼ LOCK” position when carrying or storing the tool eliminate unintentional starting.

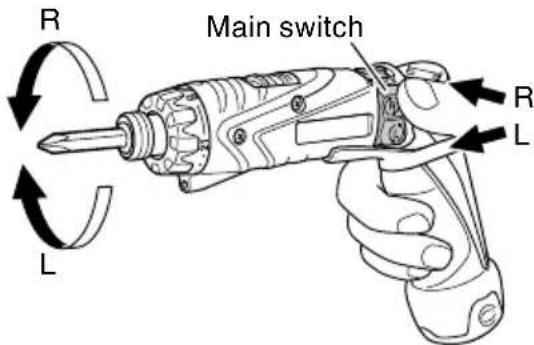

(2) Main switch

The main switch functions as a motor switch and rotational direction selector switch. When the main switch is pushed to "R" indicated on the main switch, the bit rotates clockwise. When the main switch is pushed to "L" indicated on the main switch, the bit rotates counterclockwise. When the main switch is released, the tool stops. (Fig. 11)

R Main switch L R L

Fig. 11

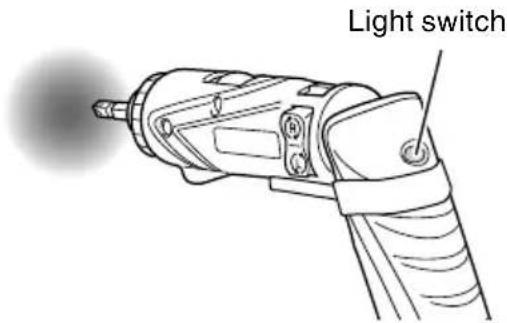

9. Using the light

The light lights when the light switch is pushed. When the light switch is pushed again, the light is turned off. (Fig. 12)

Light switch

Fig. 12

CAUTION

Do not look directly into the light. Such actions could result in eye injury.

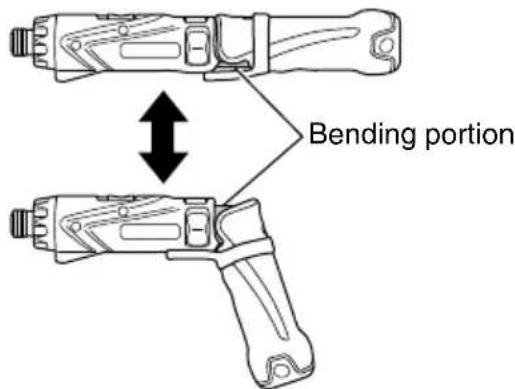

10. Using in the straight or pistol grip

Select the grip type that best matches the tool application. When changing the grip type, the tool will make a clicking sound when it snaps into position. Bend (or extend) the tool until the clicking sound is heard.

CAUTION

• Do not place your fingers or any portion of your body in or near portion of the tool while operating the tool or while bending and straightening the tool because you may be pinched in the bending portion resulting in possible injury.
• Do not remove the rubber cover around the bending portion.
• If the rubber cover becomes loose, damaged or lost, contact your metabo HPT AUTHORIZED SERVICE CENTER. (Fig. 13)

Bending portion

Fig. 13

THE SCOPE AND SUGGESTIONS FOR USES

Table 6

Work		Cap position	Suggestions
Drilling	Steel		Use for drilling purpose.
	Aluminum
Screw tightening	Small screw	1 – 21	Use the bit and socket matching the screw diameter.
	Wood screw	1 –	Use after drilling a pilot hole.

CAUTION

● While operating the cordless driver drill, take care not to lock the motor.
If the motor is locked, immediately turn the power off.
If the motor is locked for a while, the motor or battery will be burnt.

- Do not tighten too strongly as the screw heads will be damaged.

MAINTENANCE AND INSPECTION

CAUTION

Pull out battery before doing any inspection or maintenance.

1. Checking the condition of the bit

The bits should be checked regularly. If worn or broken bits can slip or decrease the effi of the motor and burn it out.

Replace worn bits with new ones.

CAUTION

If you use a driver bit of which point is worn or broken, it will be dangerous since it slips. So replace it with a new one.

1. Check the screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION

Using this power tool with loosened screws is extremely dangerous.

1. Check for dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

cient make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

ACCESSORIES

WARNING

Always use only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

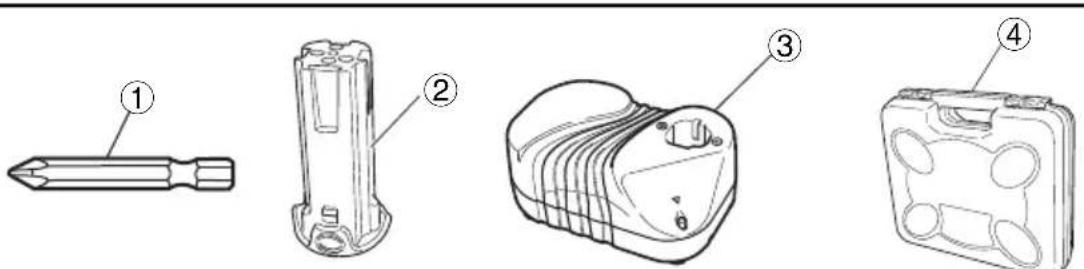

STANDARD ACCESSORIES

DB3DL2(2LCSK)

Fig. 141 Phillips bit (No. 2 × 50L) (Code No. 992671)....12 Battery (EBM315)....23 Battery charger (UC3SFL)....14 Plastic case....1

OPTIONAL ACCESSORIES.....sold separately

1. Battery (EBM315)

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 15

NOTE

Specifications are subject to change without any obligation on the part of the metabo HPT.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Technical line drawing of a mechanical component with labeled part (2), no readable text or symbols present.

Line drawing of a mechanical component with numbered label (3), no readable text or symbols present

Technical line drawing of a mechanical component with four circular cutouts and a labeled part (4), no text or symbols present.

Fig. 14

Technical line drawing of a mechanical component with no visible text or symbols

Fig. 15

REMARQUE

(2) Interruptor principal

R L Interruptor principal R L

Fig. 11

Line drawing of a cylindrical device with internal components and a small bottle (no text or symbols)

Fig. 15

NOTA

Line drawing of a quill pen in an inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
