USER MANUAL One+ RY18PW22A RYOBI

Ryor Li water spray gun with long black hose and attached base (no visible text or symbols)

EN

FR

DE

ES

IT

NL

PT

DA

SV

FI

NO

RU

PL

CS

HU

RO

LV

LT

ET

HR

SL

SK

BG

UK

TR

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeženiem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradenė | Подлежи на технически модификации | Є ob'єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless power washer.

INTENDED USE

The cordless power washer is intended for outdoor use only.

The product is designed for home or domestic use. It is intended to clean patio furniture, windows, automobiles, boats by removal of stubborn dirt using clean water with or without cleaning detergent.

The product should be used in well-illuminated conditions.

Do not use the product for any other purpose.

WARNING

The product is designed for use with a neutral cleaning agent supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the product.

GENERAL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re, and/or serious injury.

CAUTION

The product must not be used on the drinking water supply without a backflow preventer being installed that corresponds to EN 12729 Type BA. Water flowing through a backflow preventer is considered non-drinkable. Do not connect the product to the water mains.

■ The product is not intended for use by children or persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Children should be adequately supervised to ensure they do not play with the product.

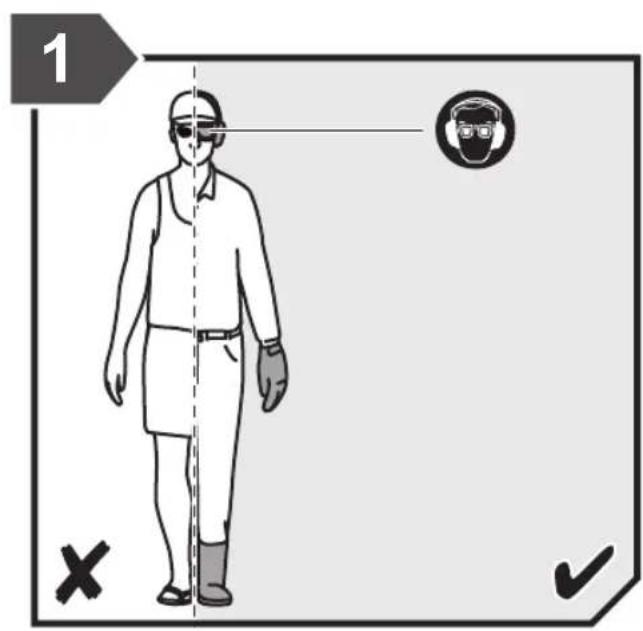

■ Wear personal protective equipment when operating the product, such as safety goggles, and hearing protection.

■ To reduce the risk of injury, keep children and bystanders away. All bystanders should wear safety glasses and be kept at a safe distance from the work area.

■ Inspect the safety devices to check they are in good working condition. Make sure that all safety devices are operating properly before each use:

• Handle grip
• The handle grip has a gripping surface that provides added control of the spray wand and helps reduce fatigue.

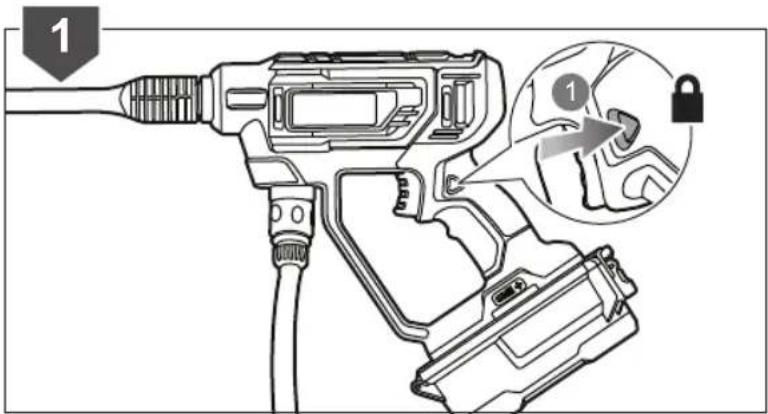

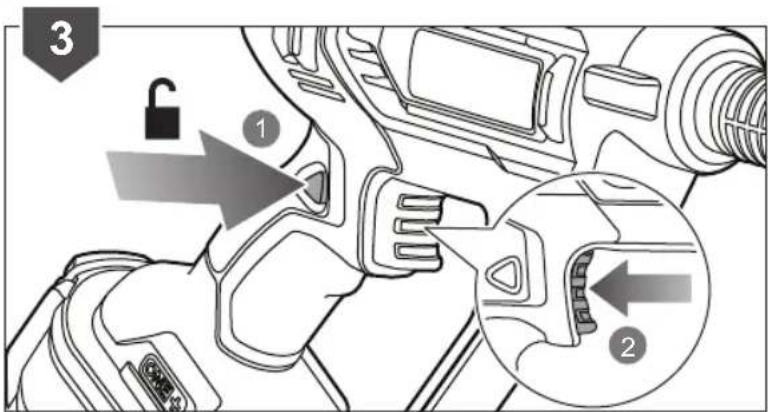

• Lock-out button
• The lock-out button locks the switch trigger and prevents unintentional opening of the high-pressure jet.

■ Do not use the product if the important part are damaged, such as safety devices, or spray wand.

WARNING

During use of power washers, aerosols may be formed. Inhalation of aerosols can be hazardous to health.

WARNING

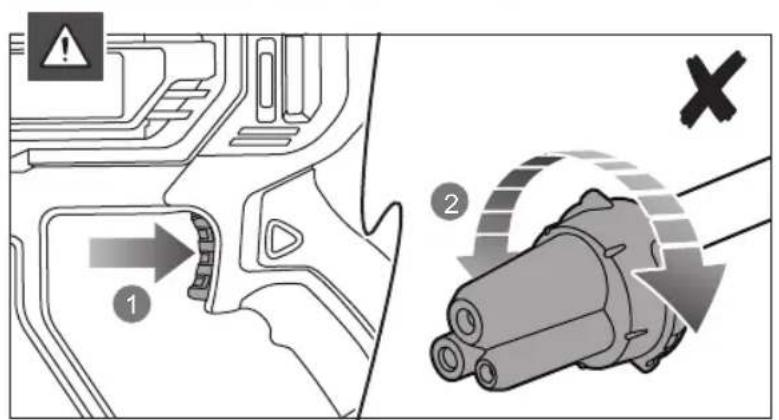

Do not turn the nozzle while pulling the trigger. If the water is flowing while nozzle is turned, the relief channel will release the water. This is not a leak, but allows the water to escape without damaging the tool

■ High-pressure jet is dangerous if misused. Do not direct the jet to people, live electronics, or the product itself.
■ To avoid a risk of explosion, do not spray flammable liquids.
■ Do not direct the jet against yourself or others in order to clean clothes or footwear.
■ Hoses, fittings, and couplings are important for the safety of the product. Use only hoses, fittings, and couplings recommended by the manufacturer.
■ Some regions have regulations that restrict the use of the product in some operations. Check with your local authority for advice.
■ Before each use, check for damage. Damaged hoses must be replaced immediately. Ensure that all connections, such as spray wand and nozzle, are secure. Unwind the hose properly so they may not get twisted or kinked.

■ Before starting any cleaning operation, close doors and windows. Clear the area to be cleaned of debris, toys, outdoor furniture, or other objects that could create a hazard.
■ Do not use the product in temperatures below 0^ C.
- Do not use acids, alkaline, solvents, flammable material, bleaches, or industrial grade solutions in the product. These products can cause physical injuries to the operator and irreversible damage to the product.

WARNING

High-pressure jet can be dangerous if subject to misuse. The jet must not be directed to people, animals, electrical devices, or the product itself.

• Hold the handle securely with both hands. Expect the handle to move when the trigger is pulled due to reaction forces. Failure to do so could cause loss of control and injury to yourself and others.
  ■ Exercise caution to avoid slipping or falling.

• Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.
  ■ Never leave the product unattended while it is connected to the battery pack. Turn off the product, and only leave when it comes to a complete stop. Keep the product out of reach of children when it is energized.
  ■ Be familiar with the controls. Know how to stop the product and bleed the pressure quickly.
  ■ Stay alert, and exercise control. Watch what you are doing, and use common sense.
  ■ Do not use the product while tired, ill, or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the product may result in serious personal injury.
  ■ Do not use the product if the switch does not turn it on and off. Any product that cannot be controlled with a switch is dangerous and must be repaired.

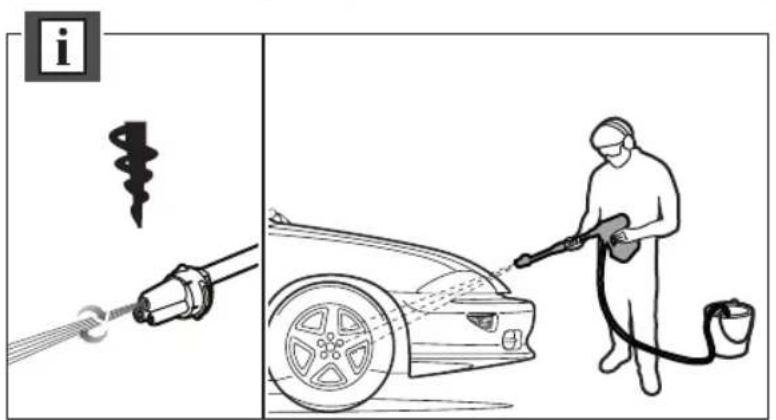

• Keep a minimum distance of 30 cm when cleaning vehicles. The high-pressure jet may damage or burst vehicle tires and/or tire valves.
  ■ The product is not to be used if it has been dropped, if there are visible signs of damage, or if it is leaking.

BATTERY PACK SAFETY WARNINGS

■Recharge the battery pack only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- When battery pack is not in use, keep it away from other metal objects, such as paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause burns or a fire.
- Keep the battery pack and the charger away from wet and damp conditions.
■ Use the product only with battery packs specified in this manual. Use of any other battery packs may create a risk of injury and fire.
■ Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery pack may cause irritation or burns.
■ The battery pack has overheat protection. Excessive temperatures will cause the battery to stop powering the product. Feel the battery pack; if it is too warm, allow it to cool down before resuming operation. If the product still does not work, recharge the battery.

NOTE: The battery pack LED indicator will not work if the battery protection feature has caused the battery pack to stop powering the product. Release the on-off button or remove the battery pack from the product and the battery pack LED indicator will resume normal function.

WARNING

Do not splash water to the product. It may damage the battery pack.

WARNING

To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise during use and the operator should pay special attention to avoid the following:

■ injury caused by vibration
- Hold the product by the designated handles and restrict working time and exposure.
■ injury caused by flying debris
– Wear eye protection at all times.
■ injury caused by exposure to noise
– Wear hearing protection and limit exposure.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome. Symptoms may include tingling, numbness, and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking, and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather.
  When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your physician.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

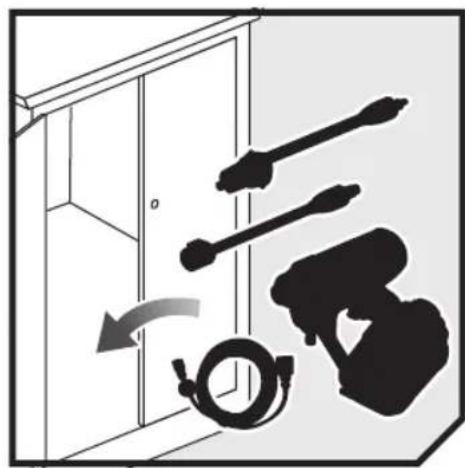

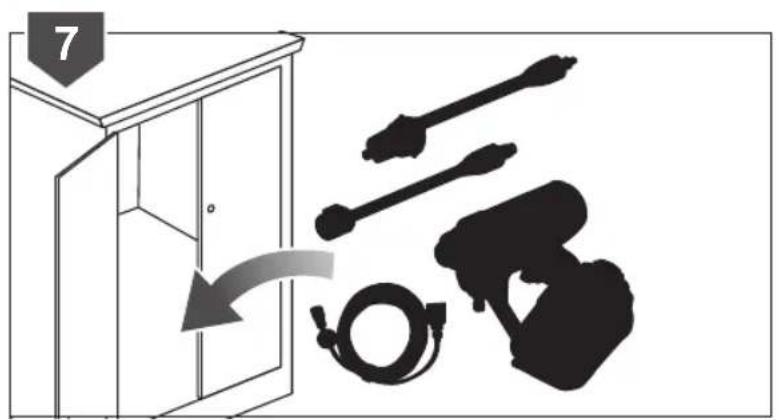

TRANSPORTATION AND STORAGE

■Stop the product, remove the battery pack, and allow the product to cool down. Disconnect the product from the water supply before storing or transporting.
■ Remove water from all hoses and the pump, and empty the detergent tank before storing the product.
■ Neatly coil the siphon hose and store with the power washer.
■ Clean all foreign materials from the product. Store it in a cool, frost-free, dry, and well-ventilated place that is inaccessible to children. Do not store the product near the furnace or other sources of heat that could dry out the pump seals. Keep the product away from corrosive agents such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in a vehicle, secure the product against movement or falling to prevent injury to persons or damage to the product.

WARNING

Store the product indoors only. Storing in an area with temperature below 0^ will damage the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery pack in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

WARNING

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.

WARNING

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only. When servicing, use only original replacement parts.

■ Stop the product, remove the battery pack, and allow the product to cool down. Disconnect the product from the water supply:

• before cleaning the product
• before maintaining the product
• before replacing spare parts

■ You may make adjustments or repairs described in this manual. For other repairs, contact an authorised service centre.
■ Regularly inspect and maintain the product for safe operation. Ensure that the battery compartment is properly assembled, tightly closed, and frequently check for damages. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
If the product is to be stored unused for a long period, the batteries should be removed.

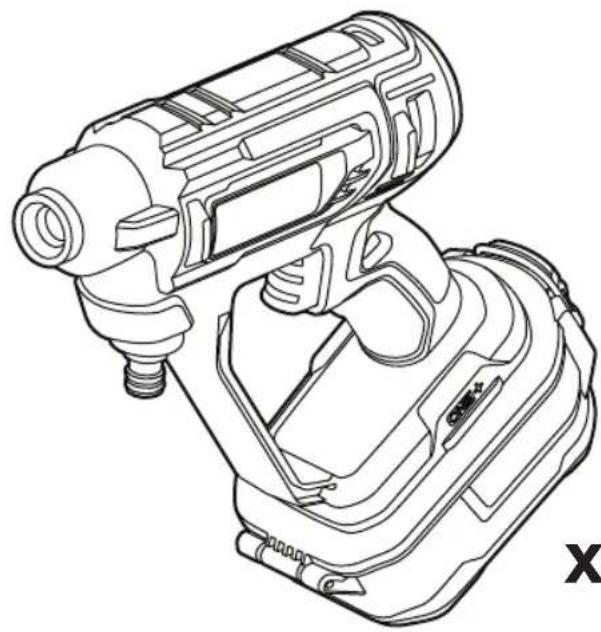

KNOW YOUR PRODUCT

See page 131.

1. 3-in-1 Nozzle
2. Release Button
3. Spray Wand
4. Lock-out Button
5. Latch

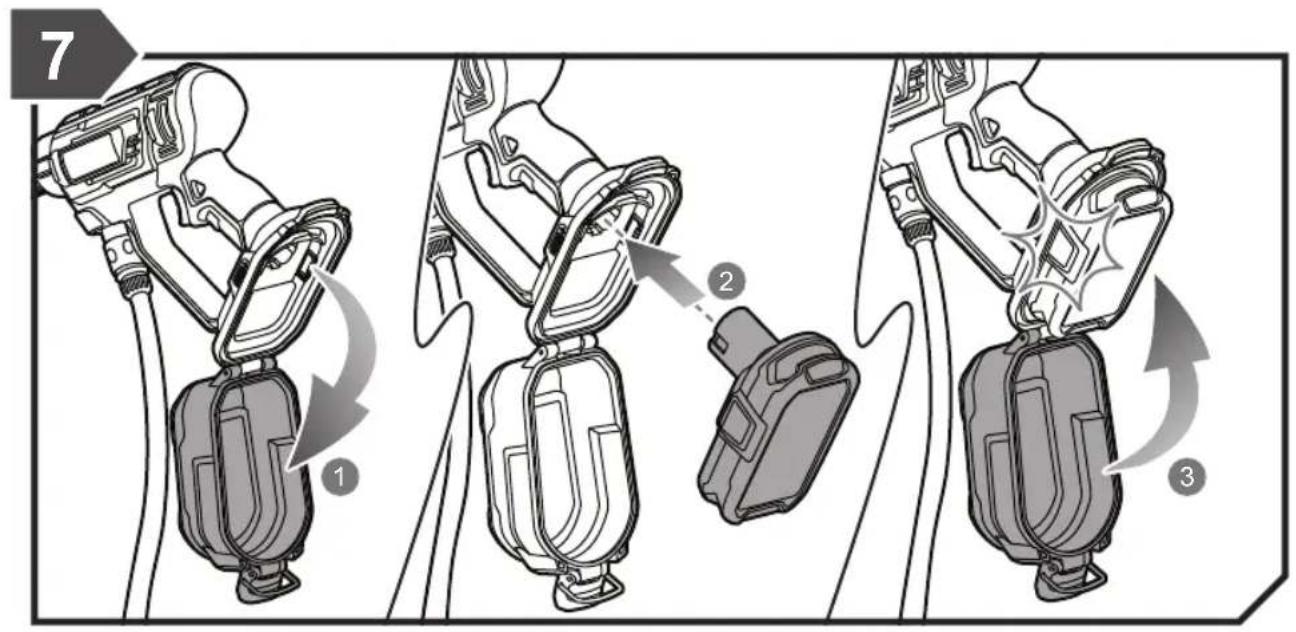

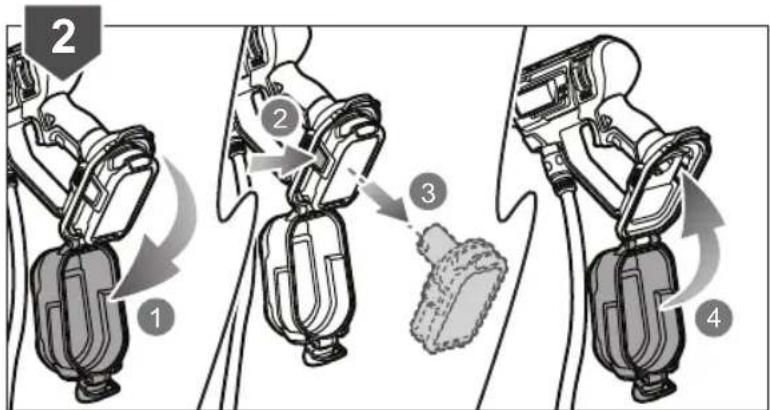

6. Battery Compartment
7. Handle Grip
8. Switch Trigger

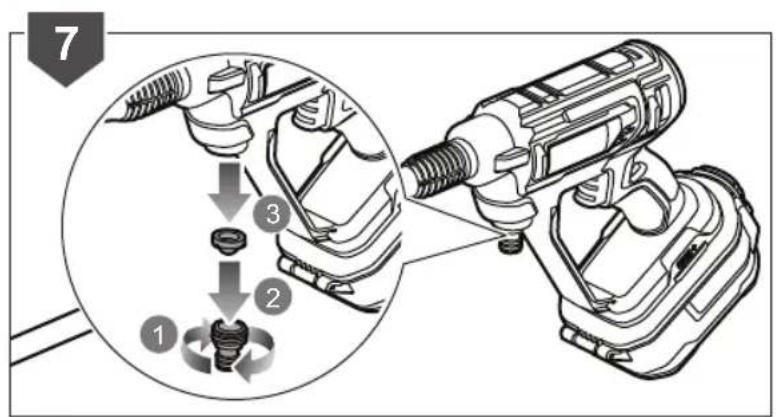

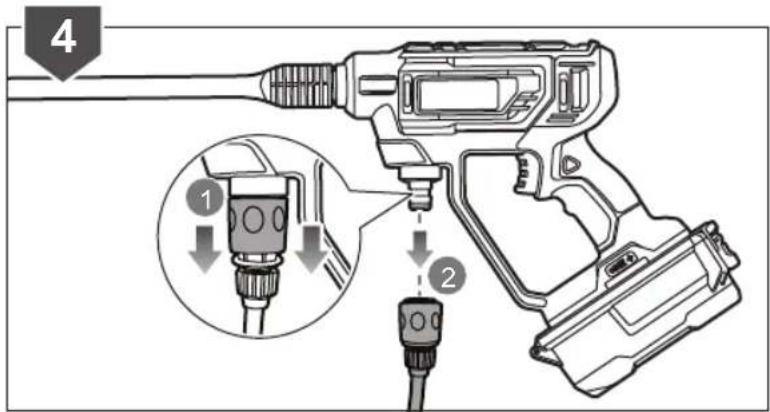

9. Water Inlet

10. Floater

11. Filter
12. Siphon Hose
13. Quick Connector

SYMBOLS ON THE PRODUCT

Warning

To reduce the risk of injury, read and understand the operator's manual before using the product.

Wear eye and hearing protection.

To reduce the risk of injury from high-pressure injection, do not direct spray at persons or animals.

Kickback. To reduce the risk of injury from kickback, hold the trigger handle securely with both hands when the product is on.

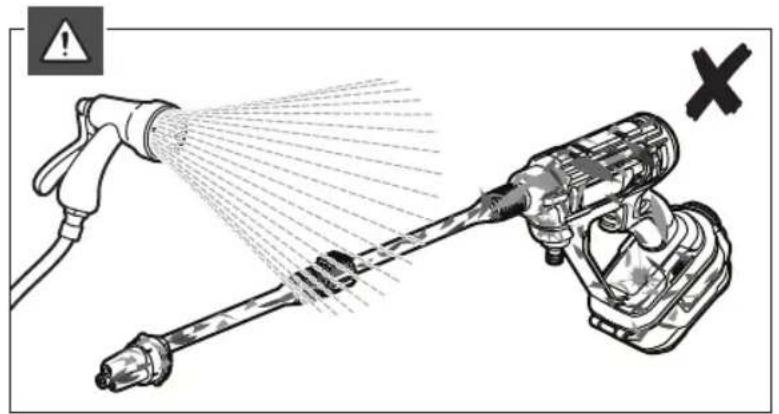

The product is not suitable for connection to the drinking water supply without backflow preventer.

Never point the spray wand to human, animals, the body of the product, power supply, or any electrical appliances.

Burst hazard

Conforms to all regulatory standards in the country in the EU where the product is purchased.

EurAsian Conformity Mark

Ukrainian mark of conformity

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

The following signal words and meanings are intended to explain the levels of risk associated with this product.

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

Without safety alert symbol

Indicates a situation that may result in property damage.

SYMBOLES APPLIQUES SUR LE PRODUIT

Avertissement

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 131.

SYMBOLE AUF DEM PRODUKT

WARNUNG

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

WAARSCHUWING

VEILIGHEIDSWAARSCHUWINGEN VOOR ACCUPAKKET

SYMBOLER PÅ PRODUKTET

Advarsel

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

Varning

KJENN PRODUKTET DITT

Se side 131.

1. 3-in-1 Dyse
2. Slipp knapp
3. Spraystang
4. Låseknapp
5. Lås
6. Batterihus
7. Håndtak
8. Bryterens på-knapp
9. Vanninntak

10. Flottør

11. Filter

12. Hevertslange
13. Hurtigkobling

SYMBOLER PÅ PRODUKTET

Advarsel

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 131.

Line drawing of a coiled hose with connectors and a valve (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

x 1x 1

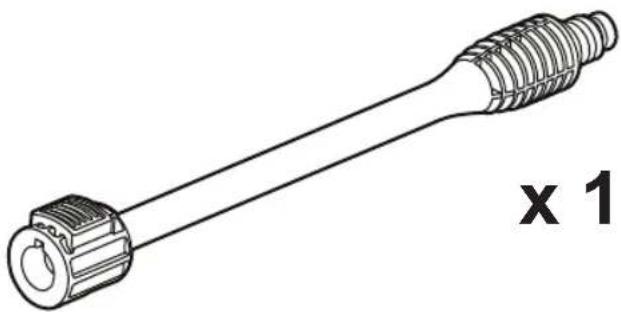

Line drawing of a mechanical tool with threaded end and flanged shaft (no text or symbols)

x 1

Line drawing of a mechanical tool with threaded end and cylindrical body (no text or symbols)

Stacked document icon with no text or symbols

x 1x 1

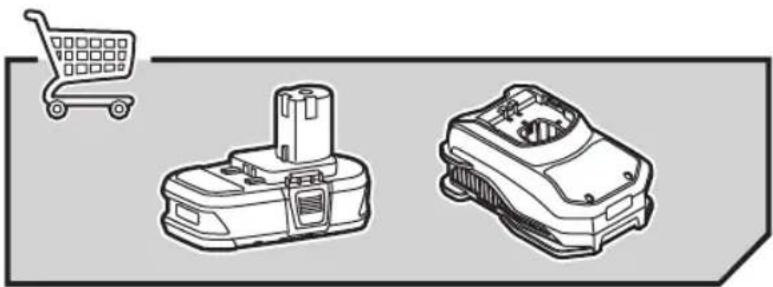

Line drawings of two electronic devices with a shopping cart icon nearby (no text or symbols)

12354

678911121310

1 X ✓

2 1 2

3

Two identical illustrations of a handheld device with a handle, shown in two different states (no text or symbols present)

4

5 B B

6 ① ②

8

9

Technical illustration of a mechanical assembly with an arrow pointing to a component (no text or symbols present)

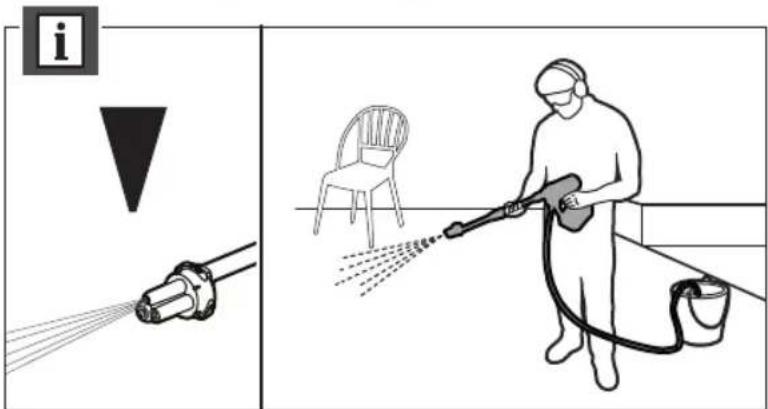

Illustration of a person spraying water with a hose and bucket (no text or symbols)

Diagram illustrating the installation of a hairdryer with labeled parts and directional arrows indicating assembly steps.

Mechanical component diagram showing a cylindrical shaft with two flanges and a gear-like ring, no text or symbols present.

Diagram of a handheld electric shock absorber with labeled parts and an inset showing the internal mechanism.

2

Diagram illustrating a mechanical device with labeled parts and lock mechanism, showing step 1 and step 2 of the process.

Diagram illustrating a spray gun cleaning operation with labeled components and a person spraying water.

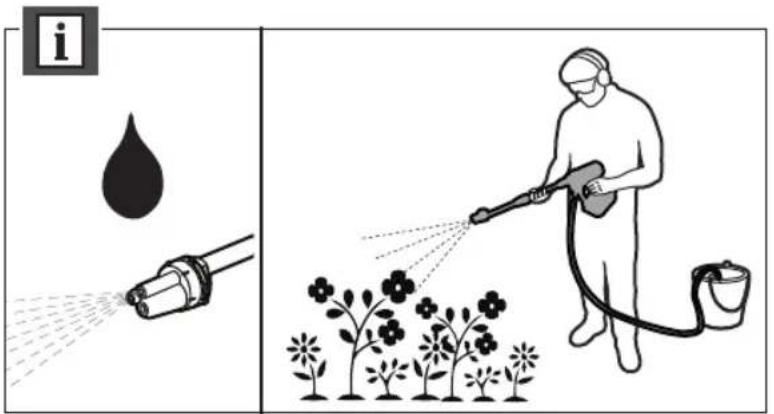

Diagram illustrating a spray gun spraying water onto flowers, with a droplet and spray bottle labeled 'i'.

Diagram illustrating a car power station operation with labeled components and a person spraying water.

Technical diagram showing a mechanical component with labeled parts and warning indicators

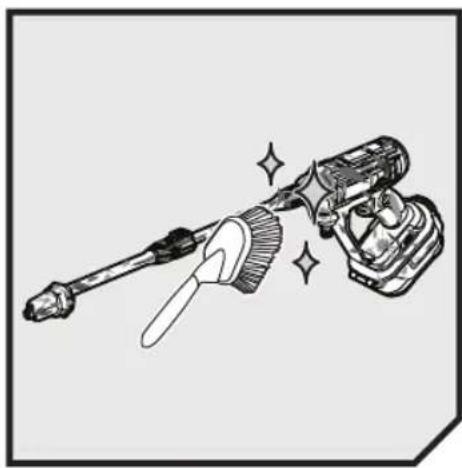

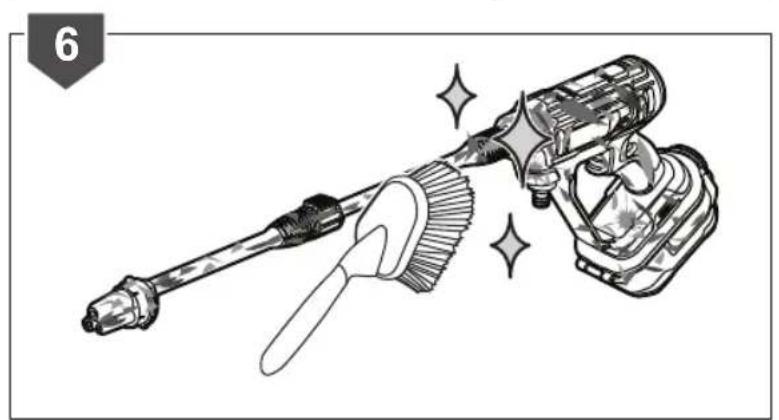

Illustration of a power tool with a brush and sparkles, no text or symbols present

Diagram showing a device's seatbelt mechanism with labeled steps 1 and 2, illustrating the process of fastening or locking.

3 ① ②

4 1 2

5 1 2 1 2 1 2

Illustration of a power tool and a brush applying paint, with sparkles indicating texture (no text or symbols)

7 1 2 3

8 1 2 3

Illustration of a spray gun spraying water onto a power tool, with no text or symbols present.

Diagram showing a door with attached tools and a mechanical device, no text or symbols present

Diagram showing a device with two views of a mechanical component, labeled with numbers 1 and 2 indicating different states or states.

3 ① ②

4 1 2

5 1 2

6 1 2

7

English Français Deutsch Español Italiano Nederlands
Product specifications Caractéristiques produit Produkt-Spezifikationen Características del producto				Caratteristiche del prodotto	Productgegevens
Cordless Power Washer Nettoyeur haute-pression sans fil		Akku-Mitteldruckreiniger Limpiador eléctrico inalámbrico		Pulitore a batteria Snoerloze elektrische reiniger
Model Modèle Modell	Modelo Modello	Model
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale	Toegekende spanning
Weight	Poids	Gewicht	Peso	Peso	Peso
Maximum pressure	Pression maximale	Maximaler Druck	Presión máxima	Pressione massima	Maximale druk
Rated pressure	Pression nominale	Nenndruck	Presión nominal	Pressione nominale	Beoordeelde druk
Dilution ratio	Taux de dilution	Verdünnungsverhältnis	Proporción de disolución	Rapporto di diluizione	Verhouding voor verdunning
Rated flow	Flux nominal	Nennfluss	Flujo nominal	Portata nominale	Beoordeeld debiet
Max. flow	Flux max.	Max. Fluss	Flujo máx.	Portata massima	Max. debiet
Max. inlet water pressure	Pression d'entrée d'eau (maximum)	Einlasswasserdruck (maximal)	Presión de entrada de agua (máxima)	Pressione d'ingresso dell'acqua (massima)	Druk van watertoevoer (maximum)
Maximum garden hose length	Longueur maximale: Tuyau de jardin	Maximale Länge: Gartenschlauch	Longitud máxima: Manguera de jardín	Lunghezza massima: tubo da giardino	Maximale lengte: Tuinslang
Minimum garden hose diameter	Diamètre minimum: Tuyau de jardin	Minimaler Durchmesser: Gartenschlauch	Diámetro mínimo: Manguera de jardín	Diametro mínimo: tubo da giardino	Minimale diameter: Tuinslang

Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en oplader
Model Modèle Modell	Modelo Modello	Model
Compatible battery packs	Packs batterie compatibles	Kompatible Akkus	Paquetes de bateria compatibles	Gruppo batterie compatibili	Compatibele accupacks
Compatible chargers	Chargeur compatible	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader

accessories	Accessoires	Zubehör	Accesorios	Accessori	Accessoires
20L Water Bag	Poche d'eau de 20 litres	20l-Wasserbeutel	Bolsa de agua de 20 litros	Sacca dell'acqua da 20 L	20 l Waterzak
Stone Detergent	Détergent pour pierres	Steinreiniger	Detergente para piedra	Detergente per la pietra	Reinigingsmiddel voor steen
Foam Detergent	Détergent moussant	Schaumreiniger	Detergente de espuma	Detergente schiuma	Schuimvormend reinigingsmiddel
Universal Detergent	Détergent universel	Universalreinigungsmittel	Detergente universal	Detergente universale	Universeel reinigingsmiddel
Wood Detergent	Détergent pour bois	Holzreiniger	Detergente para madera	Detergente per il legno	Reinigingsmiddel voor hout
Syphoning Kit	Kit de syphonage	Absaugungsset	Kit de sifón	Kit sifone	Afzuigset
Detergent Bottle	Bouteille de détergent	Reinigungsmittelflasche	Botella para detergente	Flacone di detergente	Reinigingsmiddelfles
Wheel Brush	Roue de brosse	Radbürste	Cepillo para llantas	Spazzola a ruote	Borstelschijf
Fixed Brush	Brosse fixe	Feststehende Bürste	Cepillo fijo	Spazzola fissa	Vaste borstel
2L Bottle Adapter	Adaptateur de bouteille	Adapter für 2l-Flaschen	Adaptador para botella de 2 litros	Adattatore flacone da 2L	2 l Flesadapter

Português Dansk Svenska Suomi Norsk Русский

Características do aparelho	Produktspecifikationer	Produktspecifikationer	Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия
Máquina de lavar sem fios	Batteridreven højtryksrenser	Sladdlöshögtryckstvätt	kkukäyttöinen painepesuri	Kabelfri høytrykksspyler	Беспроводная мойка высокого давления
Modelo	Model	Modell	Malli	Modell	Модель	RY18PW22A
Tensão nominal	Mærkespænding	Spänning	Nimellisjännite	Nominell spenning	Номинальное напряжение	18 V DC
Peso	Vikt	Vægt	Vekt	Paino	Вес	2 kg
Pressão máxima	Maksimaltryk	Maximalt tryck	Maksimipaine	Maksimalt trykk	Максимальное давление	24.8 bar
Pressão nominal	Dimensioneringstryk	Nominellt tryck	Nimellispaine	Nominelt trykk	Номинальное давление	22 bar
Proporção de diluição	Fortyndingsforhold	Utspädningsfaktor	Laimennussuhde	Fortynningsforhold	Степень разбавления	1:20
Caudal nominal	Specificeret gennemströmning	Nominellt flöde	Nimellisvirtaus	Nominell vannström	Номинальная пропускная способность	182 L/hr
Caudal máx. Maks.	gennemströmning	Max. flöde	Maksimivirtaus	Maks vannström	Максимальная пропускная способность	270 L/hr
Pressão de água à entrada (máximo)	Vandindløbstryk (max)	Inloppsvattentryck (max)	Tuloveden paine (max.)	Inntakstrykk (maksimalt)	Давление воды на впуске (максимум)	7 bar
Comprimento máximo: Mangueira de jardim	Maks. længde: Haveslange	Maximal längd: Trädgårdsslang	Maksimipituus: Puutarhaletku	Maks lengde: Hageslange	Максимальная длина: Садовый шланг	6 m
Diâmetro mínimo: Mangueira de jardim	Min. diameter: Haveslange	Minsta diameter: Trädgårdsslang	Minimihalkaisija: Puutarhaletku	Minste diameter: Hageslange	Минимальный диаметр: Садовый шланг	8 mm

Bateria e carregador	Batteri og oplader	Batteri och batteriladdare	Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство
Modelo	Model	Modell	Malli	Modell	Модель	RY18PW22A-0
Baterias compatíveis	Kompatible batterier Kompatibla batteripaket	Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	RB18L13, RB18L26, RB18L15, RB18L15A, RB18L15B, RB18L25, RB18L25A, RB18L25B, RB18L40, RB18L40A, RB18L50, RB18L50A, RB18L20, RB18L20A, RB18L30, RB18L30A, RB18L60, RB18L60A, RB18L90, RB18L90A
Carregador compatível	Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	BCS618G, BCL14181H, BCL14183H, BCL14181V, RC18150U, RC18627U, RC18120, RC18115

Acessórios	Tilbehör	Tillbehör	Lisälaitteet	Tilbehör	Prinadлежности
Saco de água de 20 L	20 L vandpose	20 liters vattenpåse	20 litran vesisäiliö	20 l vannpose	Резервуар для воды 20 л	RAC717
Detergente para pedra	Stenrensemiddel	Rengöringsmedel för sten	Kivipesuaine	Steinrengjøringsmiddel	Средство для очистки каменных поверхностей	RAC731
Detergente em espuma	Skumrensemiddel	Skumrengöringsmedel	Vaahtopesuaine	Skumrengjøringsmiddel	Пенный очиститель	RAC732
Detergente universal	Universalrensemiddel	Universalrengöringsmedel	Yleispesuaine	Universalt rengjøringsmiddel	Универсальное чистящее средство	RAC733
Detergente para madeira	Trærensemiddel	Rengöringsmedel för trä	Puupesuaine	Trerengjøringsmiddel	Средство для очистки деревянных поверхностей	RAC734
Kit para sifões	Hævertsæt	Uppsugningssats	Sifonisarja	Sifongsett	Комплект сифона	RAC747
Garrafa de detergente	Flaske med rengöringsmiddel	Rengöringsmedelsflaska	Pesuainepullo	Rengjøringsmiddelflaske	Бутыль для моющего средства	RAC748
Disco de escova de arame	Hjulbørste	Hjulborste	Vanneharja	Hjulbørste	Круглая щетка	RAC749
Escova fixa	Fast børste	Fast borste	Kiinteä harja	Fast børste	Неподвижная щетка	RAC750
Adaptador para garrafa de 2 L	2 L flaskeadapter	2 liters flaskadapter	2 litran pullosovitin	2 l flaskeadapter	Адаптер для бутыли 2 л	RAC751

Polski	Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti
Parametry techniczne	Technické údaje produktu	Termék műszaki adatai	Specificațiile produsului	Produkta specifikacijas	Gaminio techninės savybės	Toote tehnilised andmed
Myjka bezprzewodowa	Akumulátorový vysokotlaký čistič	Akkumulátoros magasnyomású mosó	Aparat electric de spălat, fără fir	Akumulatora augstspiediena mazgătăjs	Akumuliatorinis aukšto slėgio plovimo jrenginys	Juhtmeta survepesur
Model Model Típus Model	Model Modelis Modelis Mudel
Napięcie znamionowe	Jmenovité napětí	Névleges feszültség	Tensiunea nominală	Nominălais spriegums	Nominali įtampa	Nimipinge
Greutate	Waga	Bec	Tömeg	Teža	Težina	Mass
Ciśnienie maksymalne	Maximální tlak	Legnagyobb nyomás	Presiune maximă	Maksimălais spiediens	Maksimalus slėgis	Maksimaalne surve
Ciśnienie znamionowe	Jmenovity tlak	Névleges nyomás	Presiune nominală	Nominălais spiediens	Nominalusis slėgis	Nimirôhk
Współczynnik rozcieńczania detergentu	Poměr ředění Híglítási arány Raport de diluare		Atškaidišanas	proporcija	Skiedimo santykis	Lahjendusaste
Znamionowe natężenie przepływu	Jmenovity průtok	Névleges áramlás	Debit nominal	Nominălă plūsma	Vardinis srautas	Nominaalne vooluhulk
Maksymalne natężenie przepływu	Maximální průtok	Max. áramlás	Debit maxim	Maksimălă plūsma	Maks. srautas	Max vooluhulk
Wlotowe ciśnienie wody (maks.)	Tlak přívodní vody (maximální)	Bemeneti víznyomás (maximális)	Presiune de alimentare (maximum)	Údens spiediens ieplůdě (maksimălais)	Tiekiamo vandens slėgis (maksimali)	Sisendvee rôhk (maksimum)
Długość maksymalna: Wąż ogrodowy	Maximální délka: Zahradní hadice	Maximális hossz: Locsolótömlő	Lungime maximă: Furtun de grădină	Maksimălais garums: Dârza šljutene	Maksimalus ilgis: Sodo žarna	Maksimaalne pikkus: Aiavoolik
Średnica minimalna: Wąż ogrodowy	Minimální průměr: Zahradní hadice	Minimális átmérő: Locsolótömlő	Diametru minim: Furtun de grădină	Minimălais diametr: Dârza šljutene	Minimalus skersmuo: Sodo žarna	Minimaalne lăbimõõt: Aiavoolik

Akumulator i ładowarka	Nabiječka a baterie	Akkumulátor és töltő	Bateria și încărcătorul	Akumulators un lădėtăjs	Akumuliatorius ir jkroviklis	Aku ja laadija
Model Model Típus Model	Model Modelis Modelis Mudel
Pasujące akumulatory	Kompatibilní akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid
Zgodna ładowarka	Kompatibilní nabiječka	Kompatibilis töltő	Încărcător compatibil	Saderīgs lădētājs	Suderinamas jkroviklis	Ühilduv laadija

Akcesoria	Příslušenství	Kiegészítők	Accesorii	Piederumi	Priedai	Tarvikud
Buklak na wodę 20 l	20l vak na vodu	20 l-es víztartály	Recipient de apă de 20L	20L ūdens maiss	20 l talpos vandens maišas	20 l veekott
Detergent do kamienia	Čistici prostředek na kámen	Kövezet-tisztítószer	Detergent pentru suprafețe de piatră	Mazgăšanas līdzeklis akmenim	Akmens ploviklis	Kivipuhastusvahend
Detergent pieniący się	Pénivý čistici prostředek	Habos tisztítószer	Detergent cu spumare	Putojošs mazgăšanas līdzeklis	Putojantis ploviklis Vahutav puhastusvahend
Detergent uniwersalny	Univerzální čistici prostředek	Univerzális tisztítószer	Detergent universal	Universálais mazgăšanas līdzeklis	Universalusis ploviklis	Universaalne puhastusvahend
Detergent do drewna	Čistici prostředek na dřevo	Fatisztítószer Detergent	pentru lemn Mazgăšanas līdzeklis kokam	Medienos ploviklis	Puidupuhastusvahend
Zestaw do syfonowania	Sada trysek	Szívócső készlet	Kit de sifonare	Sifona komplekts	Sifonų valymo komplektas	Imikomplekt
Butelka na detergent	Lahev na saponát	Tisztítószeres palack	Sticlă de detergent	Mazgăšanas škīduma pudele	Ploviklio indas	Puhastusvahendi pudel
Szczotka obrotowa	Kartáč na kola	Kefehenger	Perie rotativă	Riteņu birste	Sukamasis šepetys	Ketashari
Szczotka nieruchomości	Pevný kartáč	Rögzített kefe	Perie fixă	Nekustīgā birste	Fiksuotasis šepetys	Pesuhari
Adapter butli 2 l	Adaptér na 2l lahev	2 l-es palackadapter	Adaptor sticlă de 2L	2L pudeles adapteris	2 l talpos indo adapteris	2 l pudeli adapter
Hrvatski Slovensko Slovenčina България Українська Türkçe
Specifikacije proizvoda	Specifikacije izdelka špecifikácie produktu		Технически характеристики	Технічні характеристики пристрою	Ürün teknik özellikleri
Akumulatorski električni perač	Brezžični visokotlačni čistilec	Elektrická akumulátorová umývačka	Безжична електрическа водоструйка	Акумуляторна мийка	Kablosuz Yıkama Makinesi
Model	Model	Modelis	Модел	Модель	Model	RY18PW22A
Nazivni napon	Nazivna napetost	Menovité napätie	Номинален волтаж	Номінальна напруга	Nominal voltaj	18 V DC
Masé	Svars	Hmotnosť	Тегло	Вага	Ağırlık	2 kg
Maksimalni tlak	Najvišji tlak	Maximálny tlak	Максимально налягане	Максимальний тиск	Maksimum basınç	24.8 bar
Nazivni tlak	Nazivni tlak	Menovitý tlak	Номинално налягане	Номінальний тиск	Ölçülmüş basınç	22 bar
Omjer razrjeđivanja	Razmerje redčenja	Pomer riedenia	Коефициент на разреждане	Коефіцієнт розведення	Sulandırma oranı	1:20
Nazivni protok	Nazivni pretok	Menovitý prietok	Номинален разход	Номінальний потік	Ölçülmüş akış	182 L/hr
Maks. protok	Največji pretok	Max. prietok	Макс. разход	Максимальний потік	Maks. akış	270 L/hr
Tlak vode na ulazu (maksimalno)	Dovodni vodni tlak (največ)	Tlak vody na privode (maximálne)	Налягане на входа на входа (максимална)	Макс. Впускний тиск води	Maks. Giriş su basıncı	7 bar
Maksimalna duljina: Vrtno crijevo	Največja dolžina: Vrtna cev za zalivanje	Maximálna dĺžka: Záhradná hadica	Максimalна дължина: Градински маркуч	Максимальна довжина: Садовий шланг	Maksimum uzunluk: Bahçe hortumu	6 m
Minimalni promjer: Vrtno crijevo	Najmanjši premer: Vrtna cev za zalivanje	Minimálny priemer: Záhradná hadica	Минимален диаметър: Градински маркуч	Мінімальний диаметр: Садовий шланг	Minimum çap: Bahçe hortumu	8 mm

Baterija i punjač	Baterija in polnilnik	Akumulátor a nabijačka	Батерия и зарядно устройство	Акумулятор і зарядний пристрій	Pil ve șarj cihazi
Model	Model	Modelis	Модел	Модель	Model	RY18PW22A-0
Kompatibilna pakiranja baterija	Združljive baterije	Kompatibilné jednotky akumulátorov	Съвместими батерии	Сумісні акумуляторні блоки	Uyumlu pil takımları	RB18L13, RB18L26, RB18L15, RB18L15A, RB18L15B, RB18L25, RB18L25A, RB18L25B, RB18L40, RB18L40A, RB18L50, RB18L50A, RB18L20, RB18L20A, RB18L30, RB18L30A, RB18L60, RB18L60A, RB18L90, RB18L90A
Kompatibilni punjači	Združljiv polnilec	Kompatibilná nabijačka	Съвместимо зарядно устройство	Сумісний зарядний пристрій	Uyumlu șarj cihazi	BCS618G, BCL14181H, BCL14183H, BCL14181V, RC18150U, RC18627U, RC18120, RC18115

Pribor	Dodatki	Príslušenstvo	Приспособления	Приладдя	Aksesuarlar
Vreća za vodu od 20 l	Vodna vrečka 20 L	20-litrový vak na vodu	Контейнер за вода 20 L	Бак для води ємністю 20 л	20L Su Torbası	RAC717
Deterdžent za čišćenje kamena	Detergent za kamen	Detergent na čistenie kameňa	Препарат за камък	Миючий засіб для каміння	Taş Deterjanı	RAC731
Deterdžent s pjenom	Peneči se detergent	Penový detergent	Препарат за пяна	Миючий засіб	Köpüklü Deterjan	RAC732
Univerzalni deterdžent	Univerzalni detergent	Univerzálny detergent	Универсален препарат	Універсальний миючий засіб	Universal Deterjan	RAC733
Deterdžent za čišćenje drvenih površina	Detergent za les	Detergent na čistenie dreva	Препарат за дърво	Миючий засіб для деревини	Ahşap Deterjanı	RAC734
Komplet za sífoniranje	Komplet za odsesavanje	Súprava na čistenie odsávanie	Набор за сифони Набр для сифону Çekme Kiti			RAC747
Boca za deterdžent	Posoda z detergentom	Flaša na detergent	Бутилка за препарат	Бачок для миючого засобу	Deterjan Šișesi	RAC748
Rotirajuća četka	Krtača za kolesa	Kotúčová kefa	Четка за почистване на джанти	Дискова щітка	Tekerlek Fırçası	RAC749
Fiksna četka Fiksna krtača	Pevne namontovaná kefa	Фиксирана четка	Нерухома щітка	Sabit Fırça	RAC750
Adapter za boce od 2 l	Adapter za posodo 2 L	Adaptér na 2-litrovů flašu	Адаптер за бутилка 2 L	Адаптер для бачка ємністю 2 л	2L Šiše Adaptörü	RAC751

EN RYOBI® WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

–any product that has been altered or modified

– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed

–any damage caused by non-observance of the instruction manual

–any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

-normal wear and tear spare parts

-inappropriate use,overloading of the tool

-use of non-approved accessories or parts

- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.

—Any periodic adjustments to or maintenance cleaning of carburettors

- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.

2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.

3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/service-agents.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

DECLARATION OF CONFORMITY

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

Cordless Power Washer

Brand: RYOBI

Model number: RY18PW22A

Serial number range: 47529500000000 - 47529500999999

is in conformity with the following European Directives and harmonised standards 2014/35/EU, 2014/30/EU, 2011/65/EU, EN 55014-1:2017, EN 55014-2:2015, EN 60335-1:2012+A11+A13, EN 60335-2-54:2008+A11+A1, EN 62233:2008, EN50581:2012

Sven Eschrich

VP of Engineering - TTI Outdoor Power Division

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

DÉCLARATION DE CONFORMITÉ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CE

KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SAMSVARSERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DEKLARACJA ZGODNOŚCI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

MEGFELELŐSÉGI NYILATKOZAT

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PROHLÁŠENÍ O SHODĚ

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DECLARATIE DE CONFORMITATE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATBILSTĪBAS DEKLARĀCIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Juhtmeta survepesur

Mark: RYOBI

Mudeli number: RY18PW22A

Seerianumbri vahemik: 47529500000000 - 47529500999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ATITIKTIES DEKLARACIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SL IZJAVA O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SK PREHLÁSENIE O ZHODE

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

UYGUNLUK BEYANI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EN RYOBI is a trade mark of Ryobi Limited, and is used under license. © 2020 Techtronic Cordless GP.

71364 Winnenden, Germany

961001674-01
