USER MANUAL FX-E2RM51 Fuxtec

Line drawing of a lawn mower with glowing gold outline against black background (no text or symbols)

Orange icon of a person reading a book (no text or symbols)

Inhalt

DEUTSCHE VERSION 9

ENGLISH VERSION....30

VERSION FRANCAISE 49

1. Introduction and safety 30

2. Use and treatment of the power tool 31

3. Use and handling of the cordless tool.... 32

4. Safety Instructions for Lawn Mowers.... 32

5. Safety instructions for the charger 34

6. Safety Instructions for Li-Ion Batteries.... 35

7. Presentation 36

8. Handle assembly.... 37

9. Assembly grass catcher 38

10. Assembly side discharge....40

11. Assembly mulching kit....41

12. Assembly batteries 41

13. Lawn care tips.... 42

14. Starting and stopping the mower.... 43

15. Setting the cutting height....43
16. Using the Self-Propelled system.... 44
17. Disposal 46
18. Technical Data 47
19. Declaration of Conformity.... 48

VERSION FRANCAISE 49

POLSKA WERSJA JEZYKOWA....173

Technical diagram of a lawn mower with numbered parts and exploded view of internal components

Line drawing of a lawn mower with a lift and load, showing mechanical components and motion direction (no text or symbols)

Recycling raw materials instead of waste disposal.

1. Technische Daten

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

Intended use

This device is intended exclusively for mowing lawns in private areas.

The device must be used following the descriptions

and safety instructions are given in this user manual. Any other use is not intended. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools

WARNING!

Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.

Keep all safety notes and instructions for future reference.

The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).

Workplace Safety

- Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.

- Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.

- Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.

Electrical Safety

- The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce

the risk of electric shock.

- Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators.

There is an increased risk of electric shock if your body is grounded.

- Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock.

- Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the risk of electric shock.

- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

- If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

Safety of Persons

- Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.

- Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the power tool reduces the risk of injury.

- Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool or if you connect the device to the power supply while it is switched on, this can lead to accidents.

- Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury.

- Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the power tool in unexpected situations.

- Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.

22. Use and treatment of the power tool

- Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.

• Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.
• Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read
  these instructions. Power tools are dangerous if they are used by inexperienced persons.

- Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function

of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide.

- Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can

lead to dangerous situations.

23. Use and handling of the cordless tool

- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

- Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.

- Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.

- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin

irritation or burns.

24. Safety Instructions for Lawn Mowers

- For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and

its safety instructions in a safe place for future reference and

keep them handy for any use.

- Pass on the operating instructions with the device if there is a change of ownership.

- Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).

- Operate the device only in the condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

- Only use the device in daylight or under good artificial lighting.

- Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.

- Switch off the device and remove the battery in the following conditions:

♦ if the device is left unattended;
- before checking, cleaning or other work on the device;
♦ if the device starts to vibrate excessively.

Before Use

• Familiarize yourself with the device and its functions and controls before starting work.
• Check the device for signs of wear or damage before starting up and after a collision.
• Do not use a device whose switch is defective and can no longer be switched on or off.
• Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.
• When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury.

During Operation

Do not switch on the device if persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.

Interrupt work if you notice that people (especially children) or pets are nearby.

Working on steep slopes can be dangerous. Make sure that you have a firm stand and mow slowly. Always mow across the slope and not up and down. Be especially careful when changing directions. There is a danger of tipping over!

Do not mow on steep slopes. Be especially careful if you move backward when mowing and pull the mower onto yourself.

Do not tilt the mower when starting the motor.

Keep a safe distance, as indicated by the handle frame.

Do not start the motor until your feet are at a safe distance from the cutter bar. Be careful not to reach into the rotating cutter bar. Switch off the mower before tipping or transporting it, e.g., from/to lawn or over paths. Never drive over gravel while the motor is running. There is the danger of being hit by stones!

Before lifting or transporting the mower, turn off the motor, remove the safety key and service until the cutting bar has come to a standstill. Do not adjust the cutting height until the motor is switched off, and the cutter bar has come to a standstill. Never open the discharge hatch while the motor is running. Before removing the grass catcher, switch off the motor and wait until the cutter bar has come to a standstill. After emptying the grass catcher, carefully re-attach it and ensure that the grass catcher is securely attached to the mower. If possible, do not mow wet grass. Do not work with the garden device in a potentially explosive environment where there are flammable liquids, gases, or dust. If you interrupt work, never leave the device unattended and store it in a safe place.

After use

Switch off the device and remove the battery from the mower. Then place the unit in a safe place. Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.

Keep all nuts, bolts, and screws tightened to ensure that the mower is in safe working condition. Check the grass catcher frequently for wear or damage.

Only use the cutter bar designed for this mower.

Please follow the provided installation instructions and remove the battery before.

Have repairs carried out only by a qualified technician or service center.

25. Safety instructions for the charger

- Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.

- Keep the charger clean. There is a risk of electric shock from soiling.

- Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.

Damaged chargers, cables, and connectors increase the risk of electric shock.

- Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.

- Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.

- Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.

- Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.

26. Safety Instructions for Li-Ion Batteries

- Do not open the battery. There is a danger of a short circuit.

- Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.

- Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract.

- The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

- Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation reconditioned batteries or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.

- The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.

- Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

- The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.

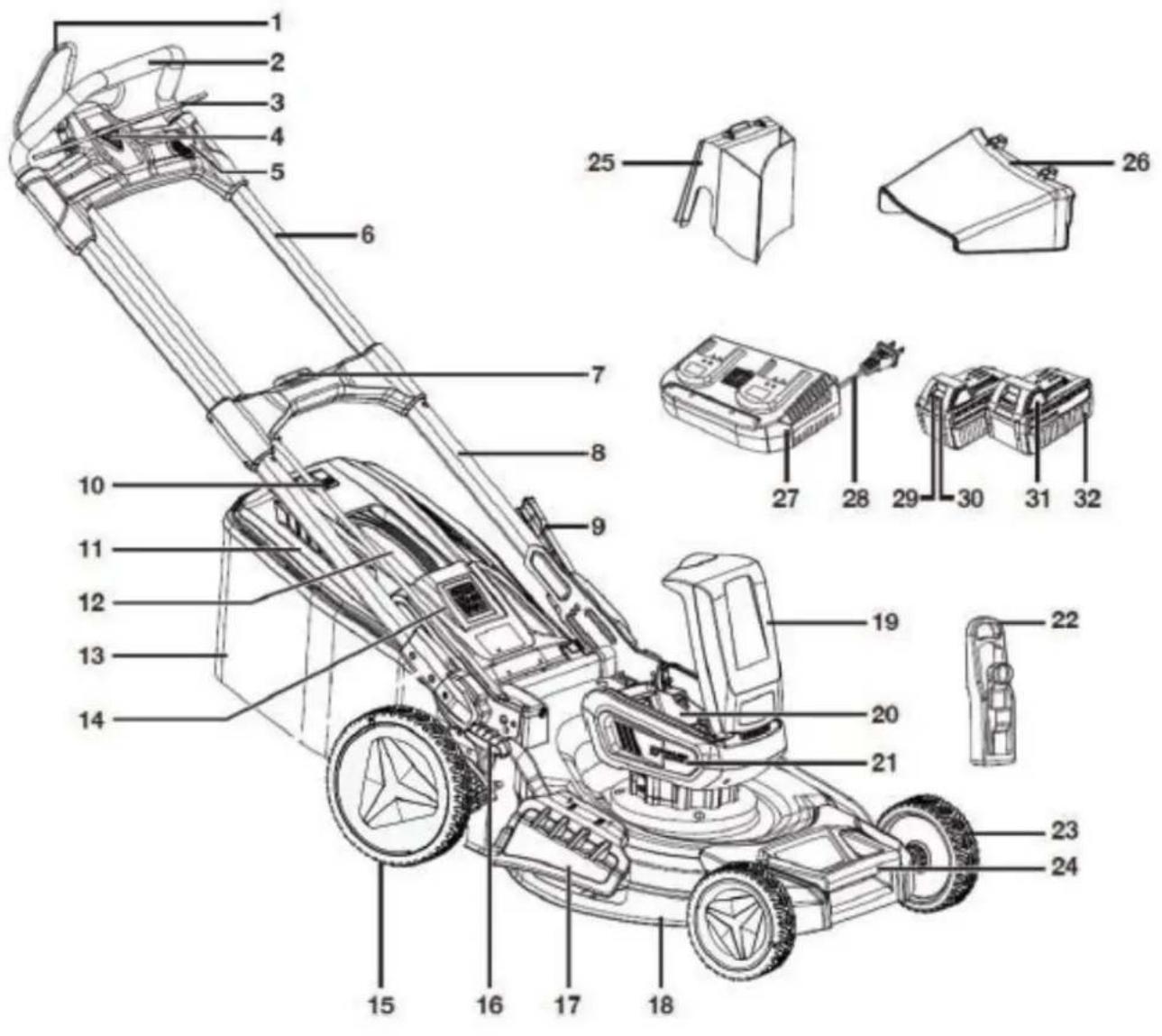

27. Presentation

Technical diagram of a lawn mower with numbered parts and exploded view views

1. Self-propel lever 9. Handle latch
2. Upper handle 10. Grass indicator window
3. Switch lever 11. Grass collecting bag cover
4. Safety button 12. Grass collecting bag handle
5. Self-propel speed control dial 13. Grass collecting bag
6. Upper handle frame 14. Ejector flap
7. Handel releasing button 15. Rear wheel

8. Lower handle frame 16. Height adjustment lever

9. Side discharge door 25. Mulching kit

10. Mower deck 26. Side discharge chute
11. Battery compartment cover 27. Dual charger*
12. Battery compartment 28. Charger plug
13. Motor housing 29. Battery indicator
14. Safety key 30. Push button for battery indicator
15. Front wheel 31. Push lock button
16. Transport handle 32. Battery*

*Only included as a SET.

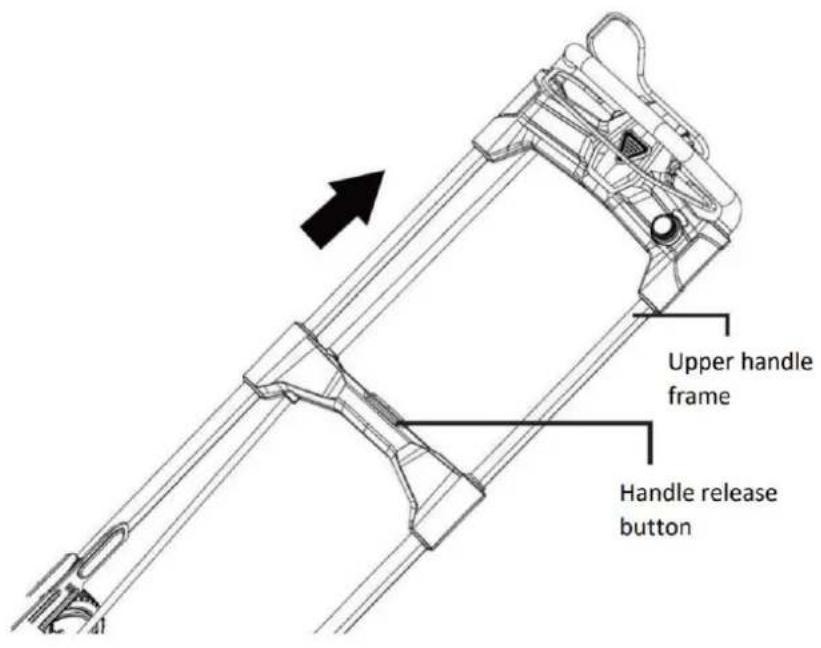

28. Handle assembly

Line drawing of a lawn mower with attached lift and blade assembly, showing motion direction (no text or symbols)

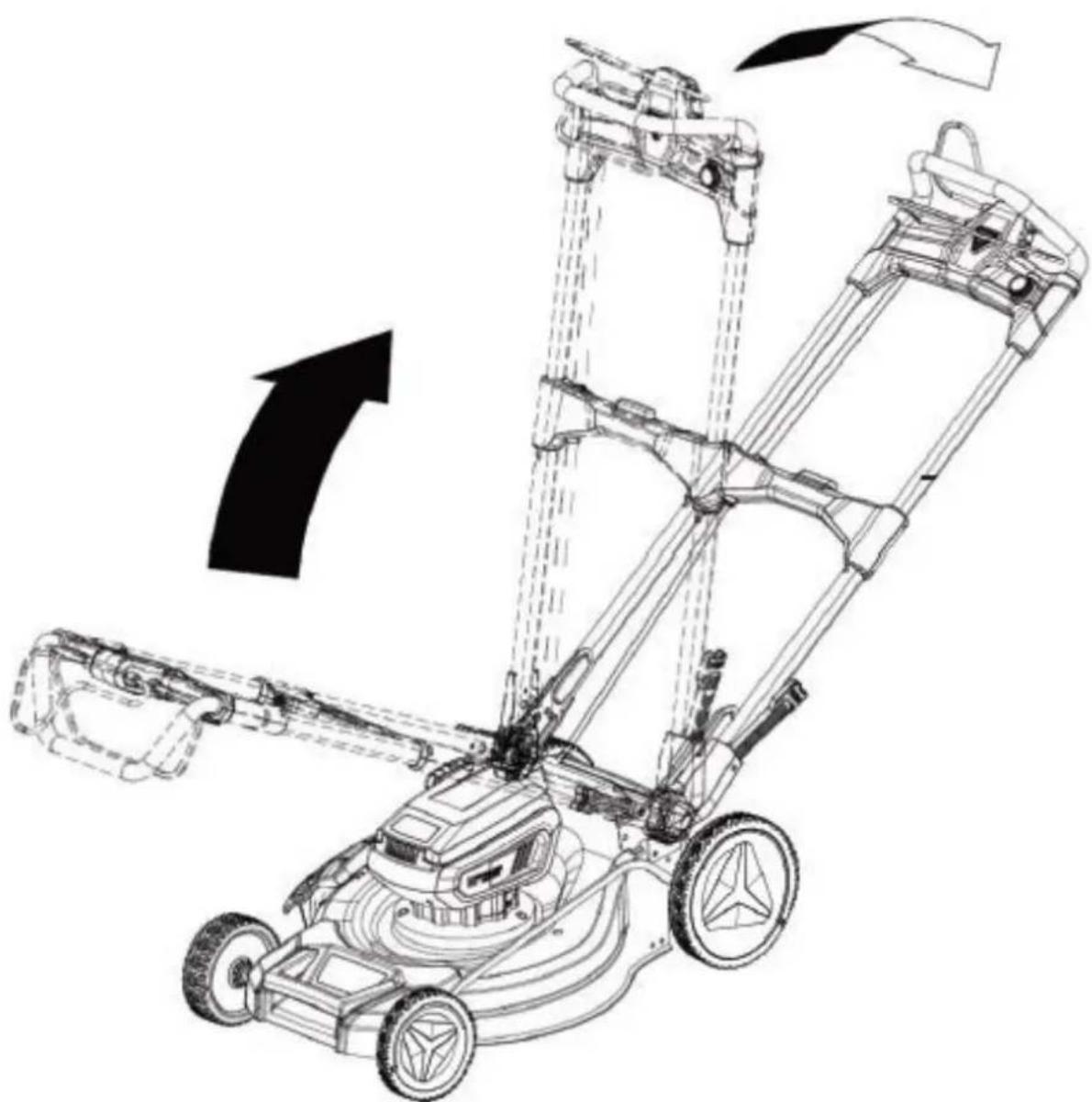

The unit arrives with the handle frame folded down in storage position. To unfold the handle, press down the handle latch (9) and flip up the handle frame until the handle frame clicks into working position (see previous picture).

Press down the handle releasing button located on the middle bar of the handle frame, meanwhile pull the upper handle frame to extend it to full length (see following picture).

Upper handle frame Handle release button

Assembling grass catcher

To attach the grass catcher to the lawn mower, lift it using the handle provided and attach it to the rear of the lawn mower by lifting the rear cover. The pins of the grass catcher must fit into the designated places on the mower so that they are optimally secured. You can then release the rear cover (see illustration below)

29. Assembly grass catcher

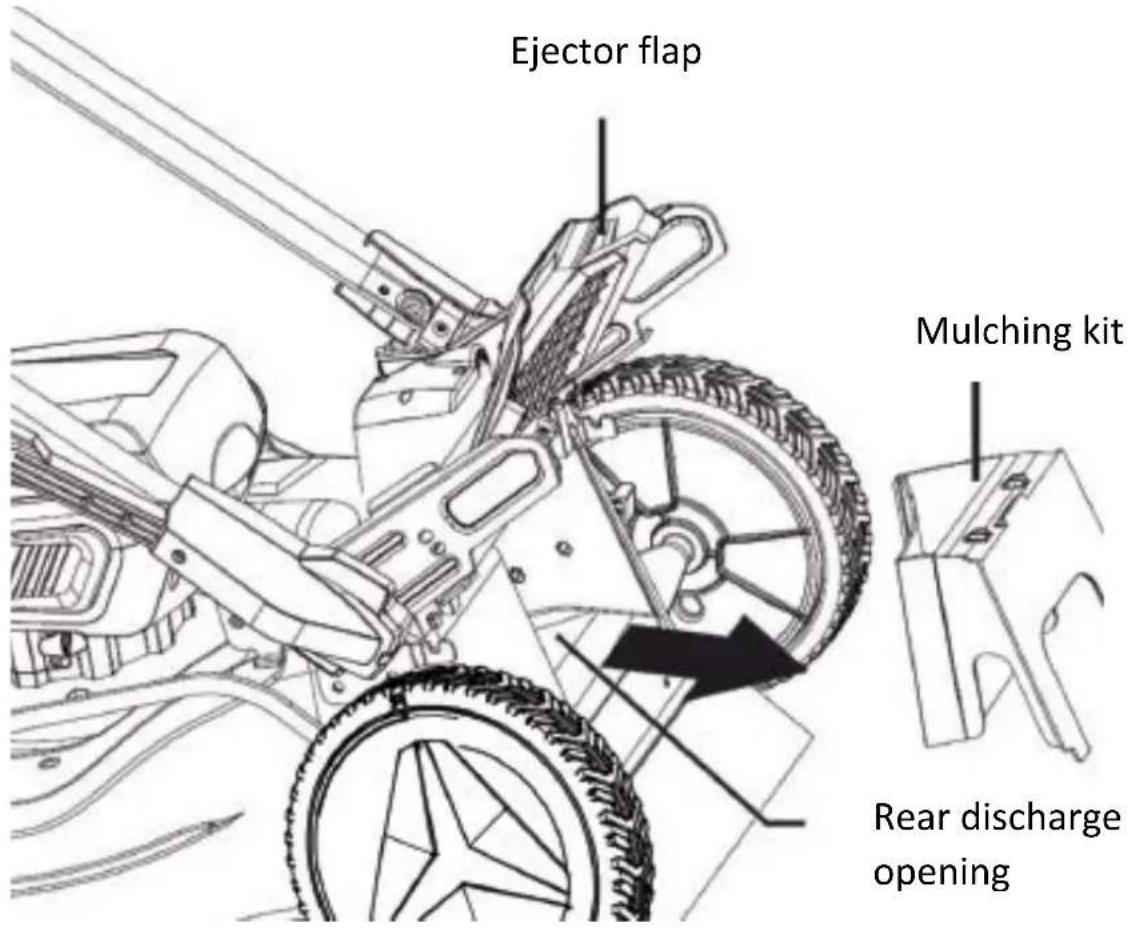

Lift the ejector flap up, and remove the mulching kit inserted in the rear discharge opening.

Ejector flap Mulching kit Rear discharge opening

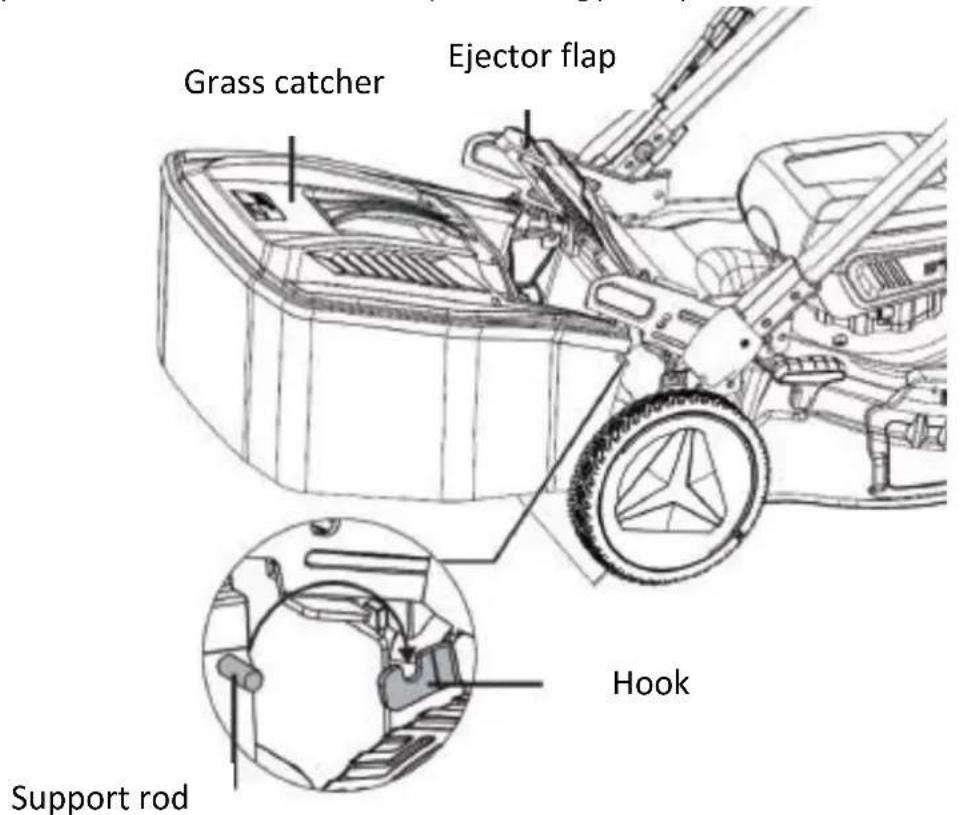

With the ejector flap lifted up, hold the grass collection bag by the handle and hook the ends of the support rod on the hooks on both sides (see following picture).

Grass catcher Ejector flap Hook Support rod

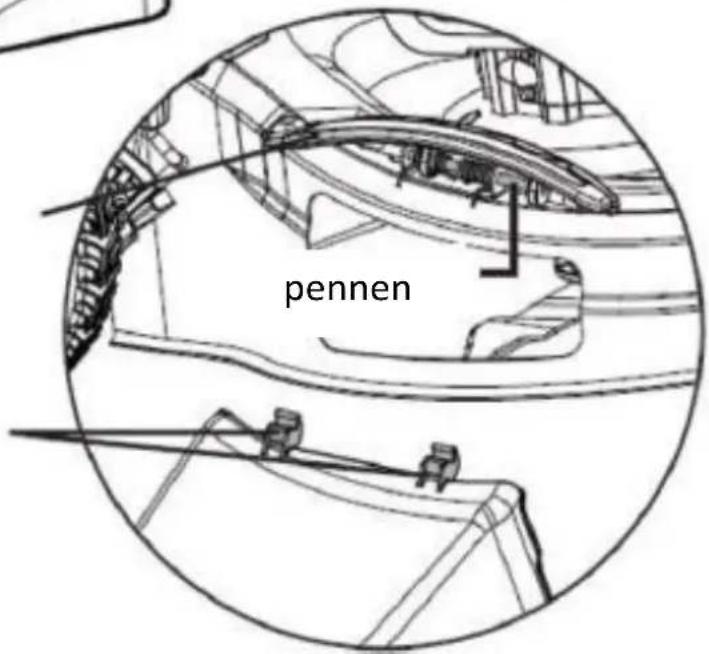

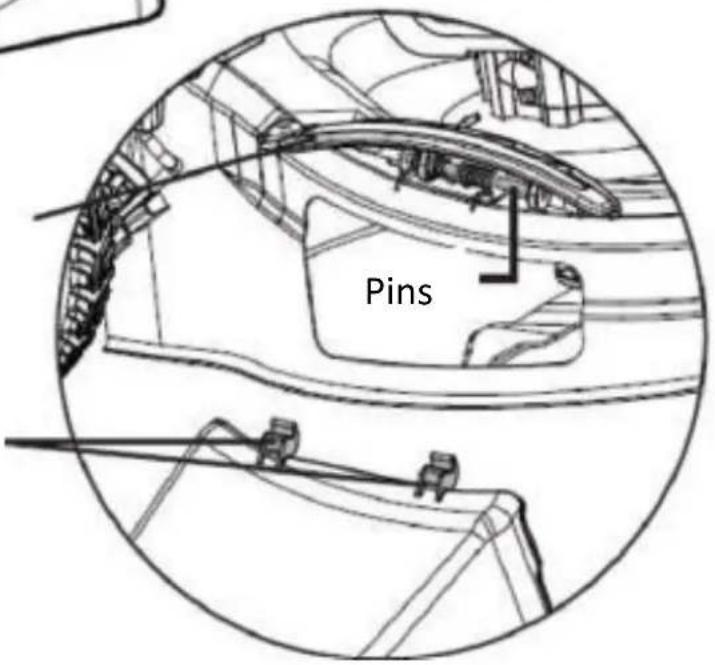

30. Assembly side discharge

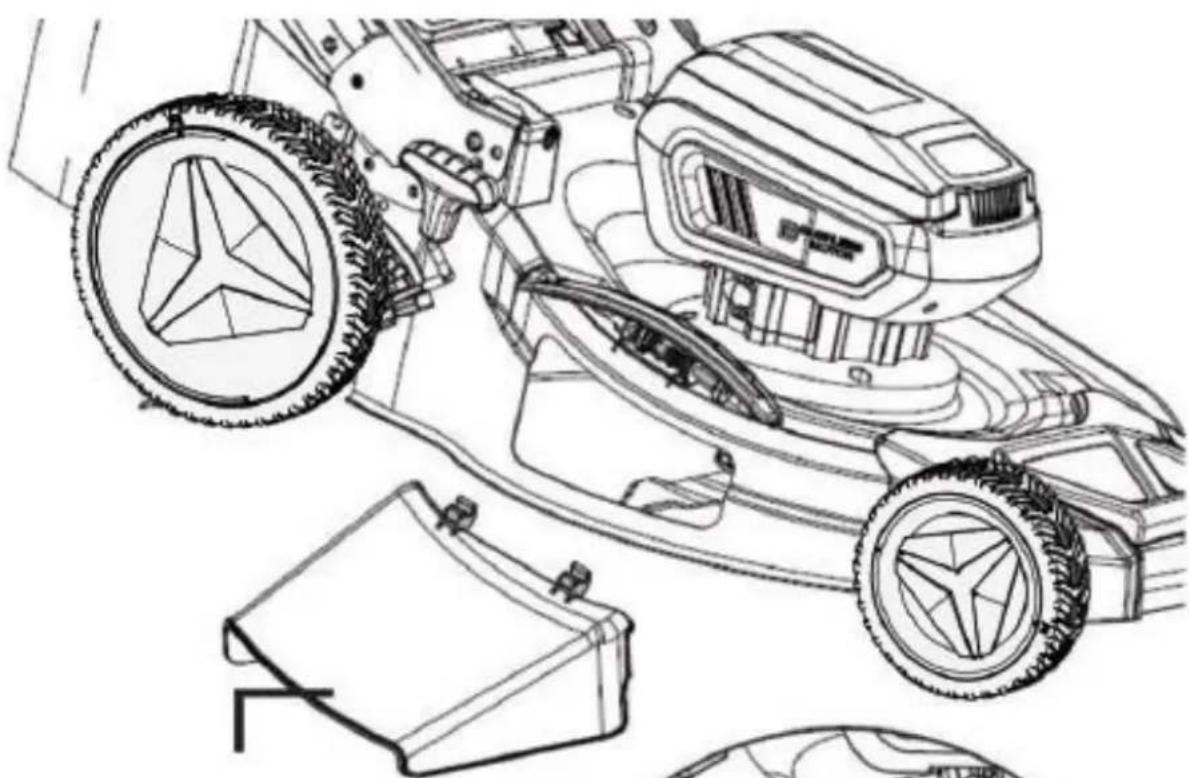

Lift the side discharge flap. Align the hooks on the side ejection flap with the pins on the underside of the flap and hook the ejection chute onto the pins (see illustration below).

Technical line drawing of a motorcycle with visible tire, wheels, and base components (no text or symbols)

Ejection chute

Side discharge flap

Hooks

Pins

31. Assembly mulching kit

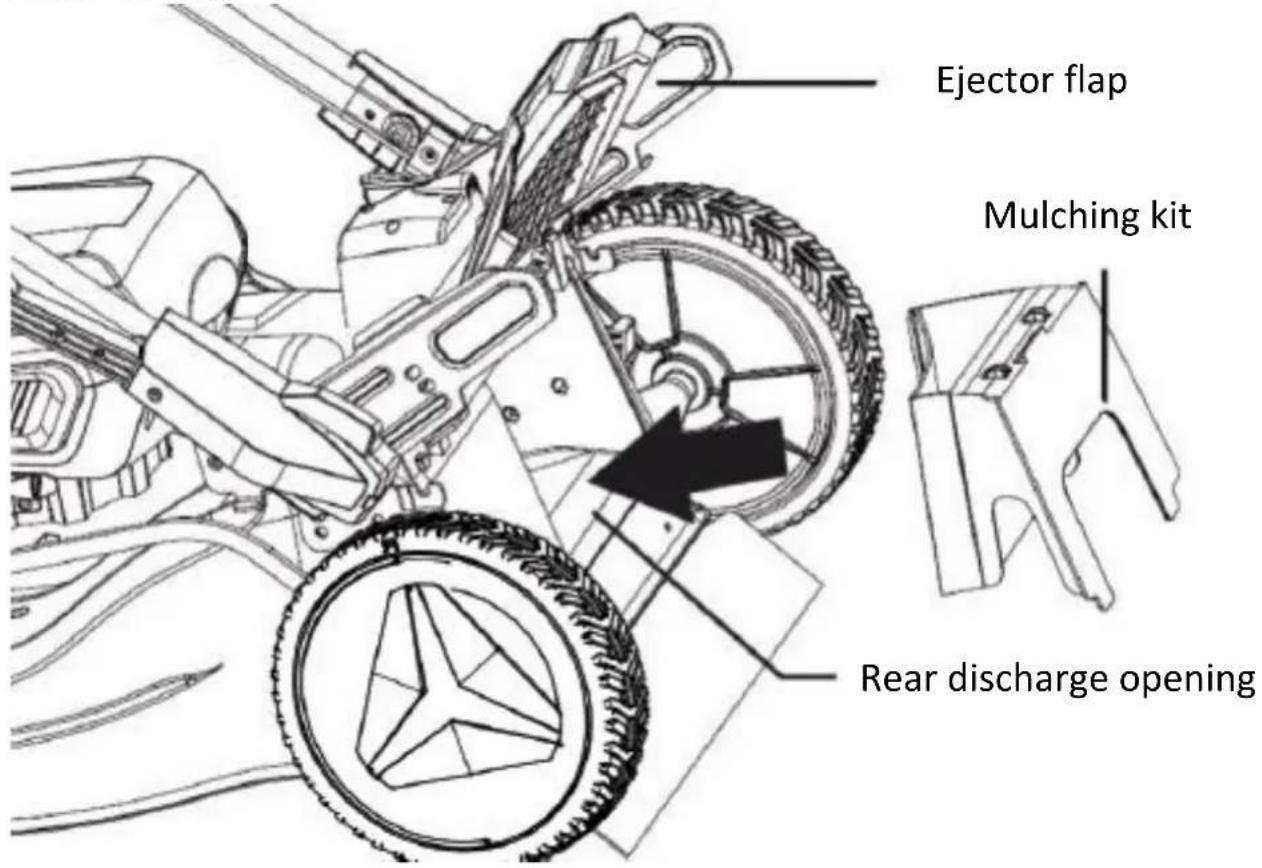

Your mower is equipped with a mulching kit that allows the blade to cut and shred the grass for finer clippings.

When using the mulching kit, the grass cathcr or side discharge chute should not be fitted (see illustration below).

Ejector flap Mulching kit Rear discharge opening

Note:

For good mulching results, the grass should not be cut too high before mowing, otherwise the clippings will take longer to decompose.

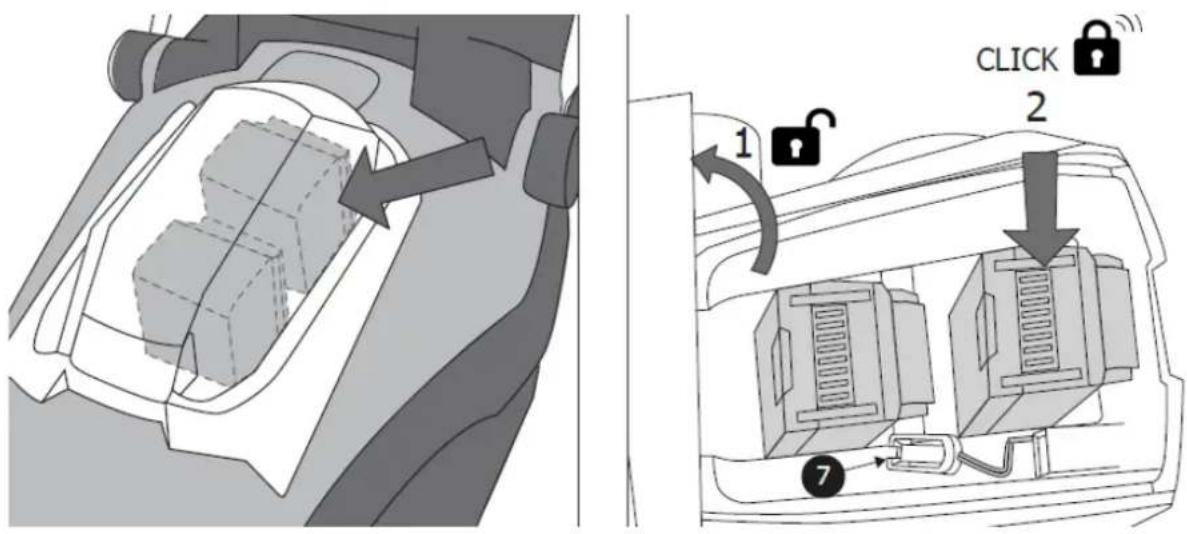

32. Assembly batteries

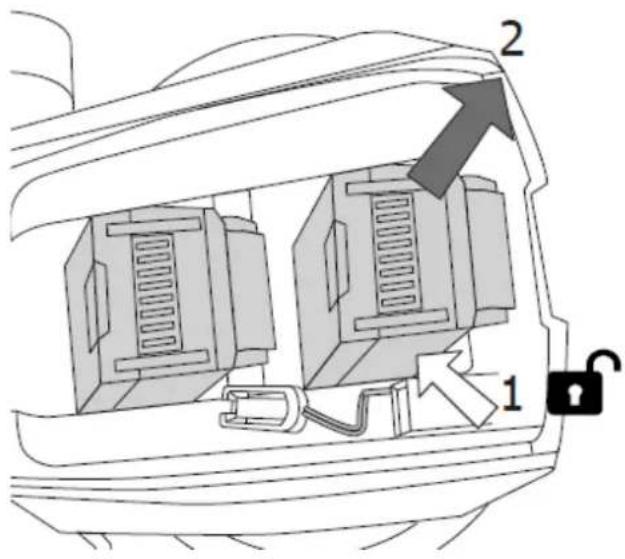

Insert the batteries into the rails provided. Then insert the safety key (marked with the number 7 in the picture). Only then can you operate the switch-on button and the throttle handle to switch on the mower. When you release the handle, the appliance stops working. Caution: The cutting tool may still run slightly.

CLICK 1 2 7

Diagram of a car door panel with labeled components and directional arrow indicating movement or force

33. Lawn care tips

Here are some tips to help you keep your lawn healthy and ensure even growth:

A lawn consists of different types of grass. Frequent mowing promotes the growth of grass, this leads to strong roots and a firm grass leaf. If you rarely cut the grass, strongly growing grass species and other weeds (such as clover, daisies) will develop.

The average height of a lawn is about 4-5 cm. Only a third of the total height should be mowed; therefore, cut 7-8 cm of grass to the average height.

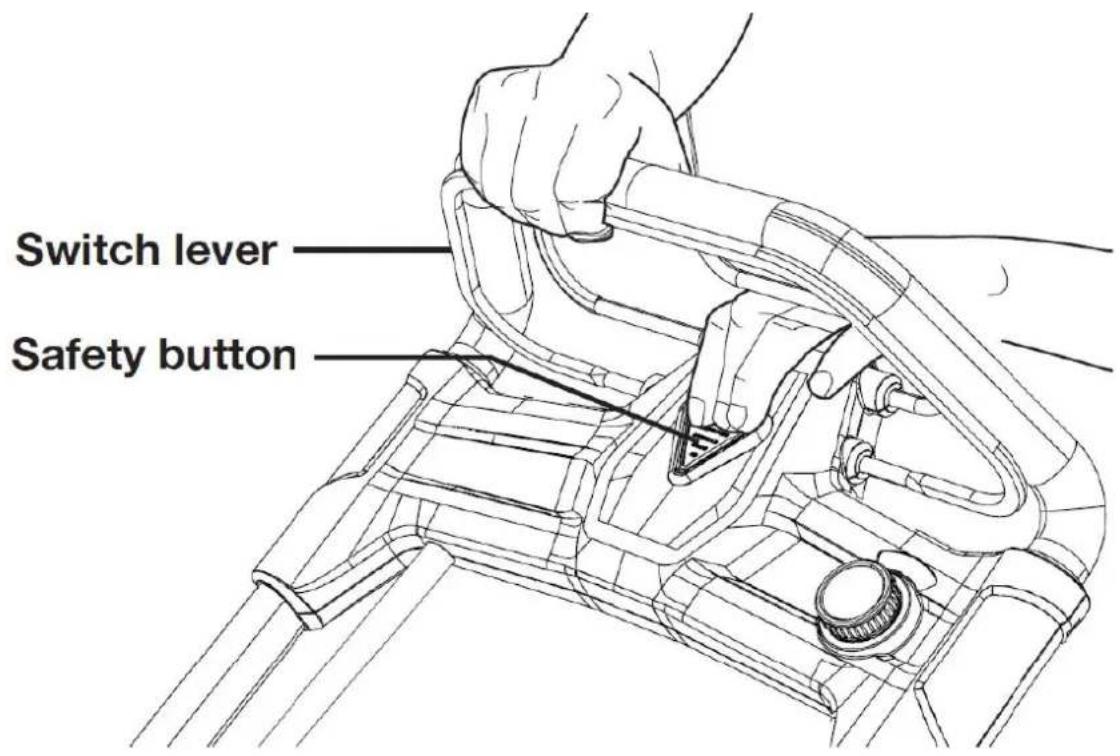

34. Starting and stopping the mower

Once you have properly installed the charged batteries and the safety key, you can now start the mower by pressing and holding the safety button with your left hand while pulling the switch lever to the handle with your right hand. The engine will now start (see illustration below). You must keep the switch lever constantly pulled to mow.

Switch lever Safety button

To stop the mower, release the switch lever again. Caution, the blade may continue to run for a few laps until it has come to a complete stop.

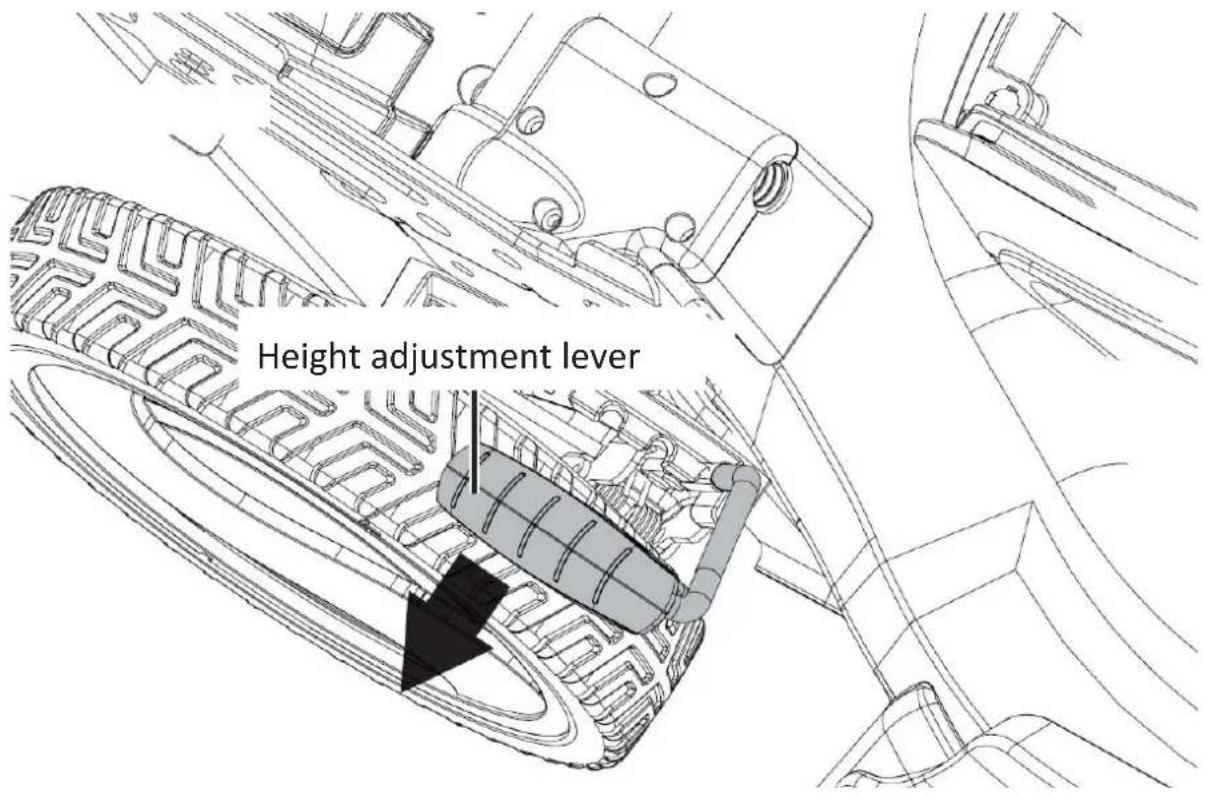

35. Setting the cutting height

You can choose between 7 different cutting heights (from 30mm to 90mm). Simply move the lever to the position for the desired cutting height as shown.

Manual_FX-E2RM51_Int24_rev04

Height adjustment lever

36. Using the Self-Propelled system

The mower is equipped with a rear-wheel drive to make it easier for you to move the mower.

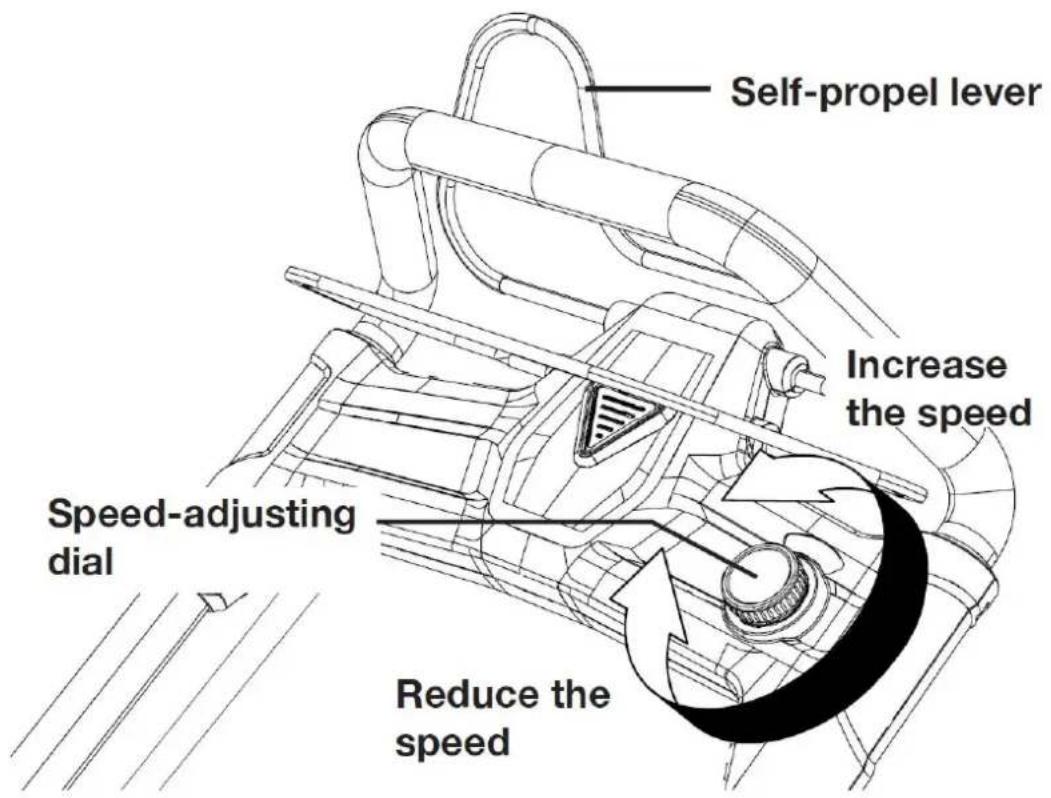

When the mower is switched on, all you have to do is press the Self-propel lever on the top bar against the handle and the two rear wheels will start moving. If you do not use the rear-wheel drive on flat or sloping surfaces, you will increase the battery life.

When using the rear wheel drive, you can use the speed adjusting dial to set the speed to your requirements (see illustration below).

Self-propel lever Increase the speed Speed-adjusting dial Reduce the speed

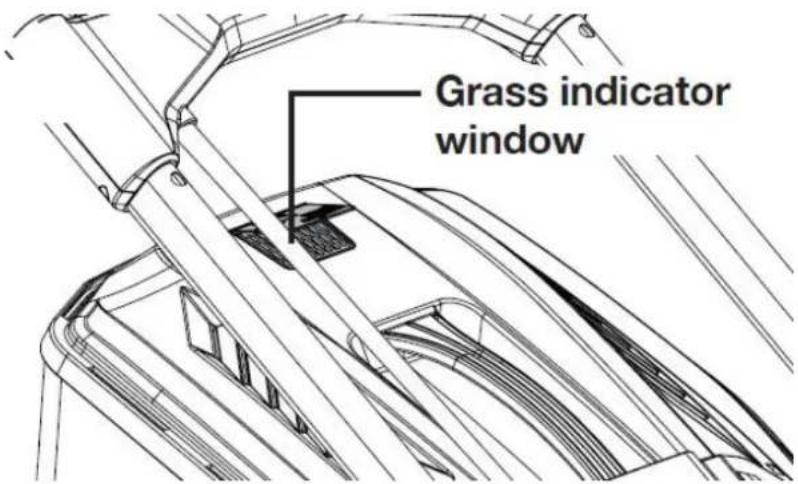

Grass bag filling level indicator

There is a flap at the rear end of the grass catcher to indicate the fill level of the grass catcher. During the mowing process, the grass is thrown into the grass catcher and the air escapes through this small opening. As long as the flap is moving, there is still room in the grass catcher for more grass. When the flap closes and stops moving, no more air can pass through this device and it indicates that the grass catcher should be emptied (see illustration below).

Grass indicator window

37. Disposal

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug,
  • cordless power tools by removing the battery.

For EU countries only

Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should be recycled in an environmentally friendly manner. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries.

Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.

For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.

NOTE:

Please contact your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

38. Technical Data

Lawn Mower
Idling speed	2500 min-1
Nominal voltage	2× 20 V = 40V
Working width	510 mm
Cutting heights	30–90 mm
Setting options	7
Grass catcher box volume	50l
Measured sound power level (LWA)	91 dB(A)(K = 3,0 dB(A))
Measured sound pressure (LPA)	79 dB(A)(K = 3,0 dB(A))
Granted sound power level (LWA)	96 dB(A)
Vibration	2,5 m/s2(K = 1,5 m/s2)
Charger
Nominal voltage	230 V~, 50 Hz
Nominal power	140W
Charging voltage	20,9 V
Charging current	2.4A
Protection class	II
Battery Pack
Battery type	Li-Ion
Nominal voltage	20 V
Capacity	4Ah
Charging time	120min

39. Declaration of Conformity

Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany

Email: [e-mail] Web: www.fuxtec.com

Name 40V Cordless Lawn Mower

Model FX-E2RM51

EC directive MD Directive: 2006 / 42 / EC, 2014/30/EU 2000/14/EC, 2005/88/EC, 2011/30/EU

Applicable standards

EN 60335-1

EN 60335-2-77

EN 62233

EN 55014-1

EN 55014-2

We hereby declare that the device mentioned above, due to its design, in the version marketed by us, complies with the necessary safety and health requirements of the listed EC directive.

Any manipulation or change of the device not being explicitly authorized by us in advance renders this document null and void.

Storage of the technical documentation: FUXTEC GmbH • Kappstraße 69 • 71083 Herrenberg • Germany, L. Zirkler, Management

Herrenberg, January 17th, 2024

Technical diagram of a lawn mower with numbered parts and exploded view views for each component

Line drawing of a lawn mower with motion arrows indicating clockwise motion (no text or symbols)

Technical line drawing of a vehicle with visible tire, wheels, and battery components (no text or symbols)

Normes applicables / applicable standards

EN 60335-1

EN 60335-2-77

EN 62233

EN 55014-1

EN 55014-2

Line drawing of a lawn mower with water spray system, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a vehicle with tire, wheels, and a battery (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and components, no visible text or symbols

Technical line drawing of a mechanical bracket or bracket (no text or symbols)

Line drawing of a lawn mower with motion arrows indicating movement (no text or symbols)

Technical line drawing of a vehicle with visible tire, wheels, and battery components (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Line drawing of a lawn mower with water spray system, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a vehicle with visible tire, wheels, and battery components (no text or symbols)

Line drawing of a lawn mower with water spray and mechanical components, showing motion direction (no text or symbols)

Technical line drawing of a vehicle with visible tire, wheels, and battery components (no text or symbols)

Zij-uitworpopening

Zijuitwerpklap

Haak

pennen

130. Montage Mulchkit

Diagram of a car interior showing two internal compartments with labeled parts and an arrow indicating direction, including a lock icon.

Line drawing of a lawn mower with motion arrows indicating movement (no text or symbols)

E-post: [e-mail] Web: www.fuxtec.de

Beteckning / namn

POLSKA WERSJA JEZYKOWA

Line drawing of a lawn mower with attached suspension system and directional arrow (no text or symbols)

Diagram of a car door panel with labeled parts and directional arrows indicating movement or assembly.
