USER MANUAL Caleo 2 Turbo OLIMPIA SPLENDID

Exterior view of a modern electric heating fan with perforated grille and brand logo (no readable text or symbols beyond branding)

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE EN

THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED

SPACES OR OCCASIONAL USE

INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN FR

CE PRODUIT NE PEUT ÊTRE UTILISÉ QUE DANS DES LOCAUX

BIEN ISOLÉS OU DE MANIÈRE OCCASIONNELLE

Close-up of a black plastic mechanical component with arrows indicating features (no text or symbols)

5 400 min 600 min 330

Close-up of a black metal key inserted into a grid-patterned surface, no visible text or symbols

3D rendering of a perforated cylindrical object with arrows indicating rotation or movement (no text or symbols)

3D rendering of a metallic cylindrical device with a perforated grille (no text or symbols visible)

ILLUSTRAZIONI

1.1 - ACCESSORI A CORREDO....11

1.1 - ACCESSORI A CORREDO

Close-up of a metallic mechanical component with a circular hole and a small protrusion, no visible text or symbols.

Close-up of a white circular dial with adjustment knobs and sun icons, no readable text or symbols

11a A1 0 A

12 L (W) A (H) P (D)

ILLUSTRATIONS

The pictures are grouped in the second page of the manual

MAIN INDEX

0 - WARNINGS....2

0.1 - GENERAL INFORMATION ...... 2
0.2 - SYMBOLS 2
0.3 - EDITORIAL PICTOGRAMS 2
0.4 - GENERAL WARNINGS.... 4
0.5 - PROPER USE....10
0.6 - UNINTENDED AND POTENTIALLY DANGEROUS USE....10

1 -IDENTIFICATION OF MAIN PARTS......11

1.1 - SUPPLIED ACCESSORIES....11

2 - INSTALLATION ....11

2.1 - MOUNTING SUPPORT FEET TO THE FLOOR....11
2.2 - WALL-MOUNTING THE APPLIANCE....11

3 - INSTRUCTIONS FOR USE ..... 12

3.1 - VENTILATION 13
3.2 - ANTIFREEZE FUNCTION 13

4 - CLEANING....14

5 - TECHNICAL DATA 14

DISPOSAL

symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances.

Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal.

Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

0 - WARNINGS

0.1 - General information

First of all, we would like to thank you for choosing our appliance.

0.2 - SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.3 - Editorial pictograms

Service

Refers to situations in which you should inform the SERVICE department in the company:

CUSTOMER TECHNICAL SERVICE.

Index

Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety.

Failure to comply with them may result in:

• danger of injury to the operators
• loss of the warranty
• refusal of liability by the manufacturer.

Raised hand

Refers to actions that absolutely must not be performed.

HAZARD

cates that the appliance uses inflammable refrigerant. the refrigerant escapes and is exposed to a source of external ignition, there is a fire risk.

Is to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER

forms the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

DANGER DUE TO HEAT

Forms the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

DO NOT COVER

ates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating.

ATTENTION

icates that this document must be read carefully before installing and/or using the appliance.

- Indicates that the assistance personnel must handle the appliance following the installation manual.

ATTENTION

cates that there may be additional information in attached manuals.

- Indicates that information is available in the user manual or in the installation manual.

ATTENTION

indicates that the assistance personnel must handle the appliance following the installation manual.

0.4 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.

Our appliances are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

1. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.

2. Keep the manual carefully for future reference.

3. After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.

4. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

5. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.

Before connecting, make sure that the plate data corresponds with the mains electrical supply.

The data plate is located on the appliance.

1. Install it according to the manufacturer's instructions An incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

2. Always and only use it in a vertical position.

3. Always unreel the cable completely during use.
4. The appliance is equipped with a power cord with plug (Y-type connection). If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualified person in order to eliminate all possible risks.

1. Install it in such a way that the switches and other controls cannot be reached by persons using the bath or shower.

2. Do not use extensions, if not with particular care.

3. Keep the appliance at a distance of at least 50cm from other objects.

14a. To avoid the risk of fire, keep the air outlets of the appliance at a distance of at least 1 m from any object, fabric or flammable materials.

1. Do not place appliance close to a radiant heat source.
2. Do not use the appliance to dry clothes.

1. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.

2. Do not allow cord to come in contact with heated surfaces during operation.

3. Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from traffic areas so that it will not be tripped over.

4. Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split.

5. Do not store appliance while it is still hot.

1. Do not use this appliance outdoors, or on wet surfaces. Avoid spilling liquid on the appliance.

2. Do not use this heater with programmer, timer or any other device that switches the heater on automatically since a fire risk exists if the heater is covered or positioned incorrectly.

3. This heater is intended for floor use only. Do not mount on ceiling or walls.

4. Do not operate the heater near curtains, as the material could be sucked into the air vents.

1. It is forbidden to dispose of or leave in the reach of children the packaging materials which could become a source of danger.

1. It is forbidden for the appliance to be used by children or unassisted disabled persons.

1. The appliance may be used by children over 8 years of age and by persons with reduced physical, sensorial or mental capacities, or without the required experience or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

1). Children must not play with equipment. Children must not be allowed to clean the appliance or perform user maintenance without proper supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.

1. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

1. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

1. Some parts of this product may become very hot and could cause burns. Be very careful when children or vulnerable adults are nearby.

2. WARNING: in order to avoid overheating, do not cover the heater.

1. For correct use of the appliance NEVER:

a. Place it immediately underneath a mains wall socket.

b. Pull the power cable or the appliance itself to remove the plug from the mains socket.

c. Leave it expose to atmospheric agents (rain, sun, etc.).

d. Leave it plugged in when not in use.

e. Touch it with wet or damp hands.

1. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.

1. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.

2. Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

3. Do not connect the appliance to the mains voltage until completely assembled and adjusted.

4. Switch off and use handles where provided when moving.

5. Do not immerse the appliance in water or in other liquids. Short circuits or fires may occur.

Do not let the appliance work in enclosed areas such as a cabinet since it could cause a fire.

1. If the appliance's plug is incompatible with the socket, have the socket replaced with a suitable one by a qualified technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.

2. Do not use the appliance in case of malfunctioning or faults, if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off, disconnect the plug from the socket and let it be checked by professionally qualified personnel.

3. Disassembly, repair or reconversion performed by an unauthorized person could cause heavy damages and will cancel the manufacturer warranty.

4. Neither disassemble nor modify the appliance.

5. Repairing the appliance by yourself is extremely dangerous.

1. In the presence of gas leaks from other equipment, ventilate the room well before activating the appliance.

2. Do not remove plug from power socket until the appliance has been switched off.

3. After removing the packing, make sure that the appliance is complete, without visible damage that could have been caused during transport. In case of doubt, do not use the appliance and contact the authorised Technical Assistance centres.

4. When left unattended, always disconnect from the power supply.

5. If you no longer wish to use this appliance, it must be made inoperative by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.

6. At first use and after a long period of inactivity of the appliance, a slight noise may be heard and a slight odour may be smelled. It is a normal phenomenon which will disappear after a few minutes of operation.

0.5 - PROPER USE

1. The appliance must be used exclusively as an electrical thermal convector with the only purpose of making the room where you are staying comfortable.

2. This appliance is only designed for domestic use or similar, not for commercial or industrial use.

3. An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

0.6 - UNINTENDED AND POTENTIALLY DANGEROUS USE

1. Do not use the appliance in areas in which are used or stored petrol, varnishes or other flammable liquids or in environments with the presence of flammable or explosive gases.
2. Do not use the appliance if insecticide gas has just been sprayed in the room or in the presence of burning incenses, chemical vapours or oily residues.
3. Do not use this appliance in small rooms occupied by persons which are not able to leave it autonomously unless constant supervision is supplied.

This product must be used exclusively according to the specifications indicated in this manual. Use different to that specified, could cause serious injuries.

THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

1 - IDENTIFICATION OF MAIN PARTS (fig. 1)

1. Hot air outlet
2. Thermostat knob

3. Power switch/power selector

4. Feet

5. Fan
6. Air inlet

1.1 - SUPPLIED ACCESSORIES

• n° 2 support feet
• n° 3 brackets for wall-mounting
• n° 3 wall plugs

• n° 7 screws for fixing the feet and handle

• use and maintenance manual + warrant module

• handle for moving (fig. 2)

2 - INSTALLATION

2.1 - MOUNTING SUPPORT FEET TO THE FLOOR

• Position the 2 teeth of the support feet in the 2 respective slots on the bottom of the appliance.
• Push the feet towards the inside of the appliance so that their teeth are blocked to the frame of the product (fig. 3).
• Make sure each foot is blocked with the 2 supplied screws (fig.4).

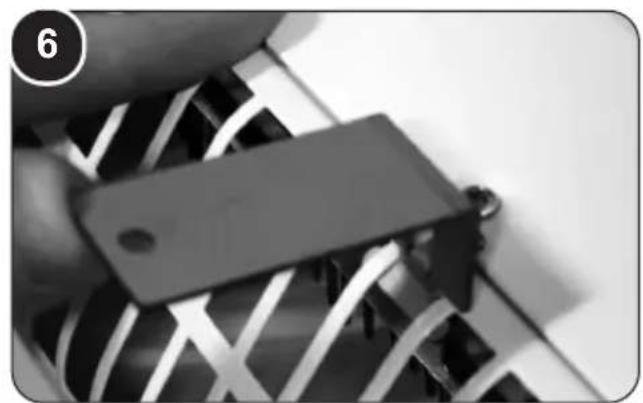

2.2 - WALL-MOUNTING THE APPLIANCE

When wall-mounting, the wall to which the appliance is fixed must be in masonry or heat resistant material (not in wood or easily heated synthetic material):

The installation must be done as follows:

• At a distance of at least 60 cm from baths, washbasins or sinks
• At a distance of at least 20 cm walls.

- At a distance of at least 100 cm from flammable materials (curtains, textiles etc.)

• Not below a mains socket.
• Install a mains socket nearby for the power supply to the appliance.

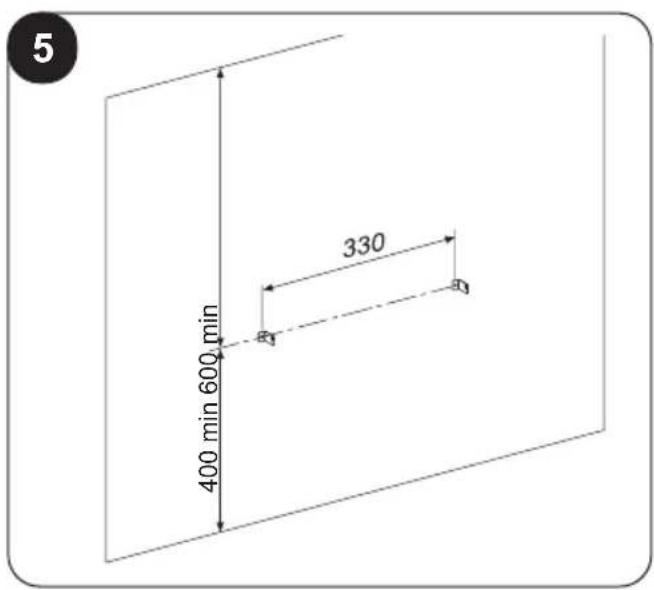

• Make 2 holes in the wall for the 2 supplied wall plugs. The centredistance between the 2 holes must be 330 mm. Both holes must be at least 400 mm from the floor and 600 mm from the ceiling.

- Insert the plugs in the holes in the wall and then fix the 2 upper mounting brackets (the smaller ones) to the plugs, using the screws supplied with them. Make sure that the slot on the 2 mounting brackets are facing upwards. (fig. 5).

- Rest the appliance on a at surface and insert the lower wall mounting bracket (larger one) in one of the central slots of the grill on the bottom of the appli The hole of the bracket must face the wall (g. 6).

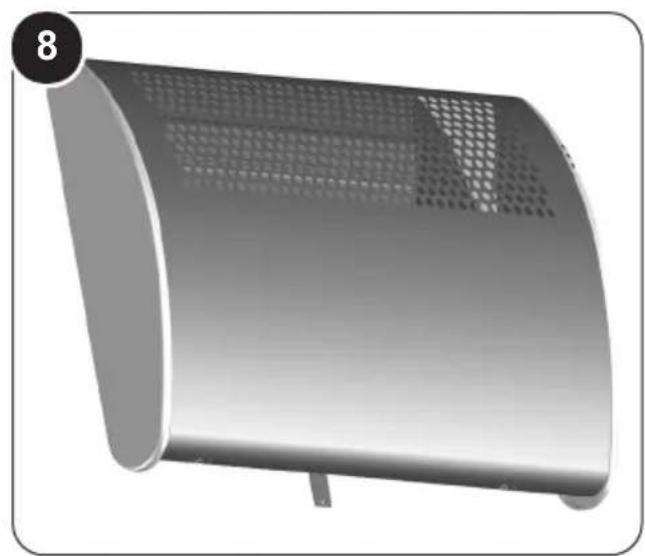

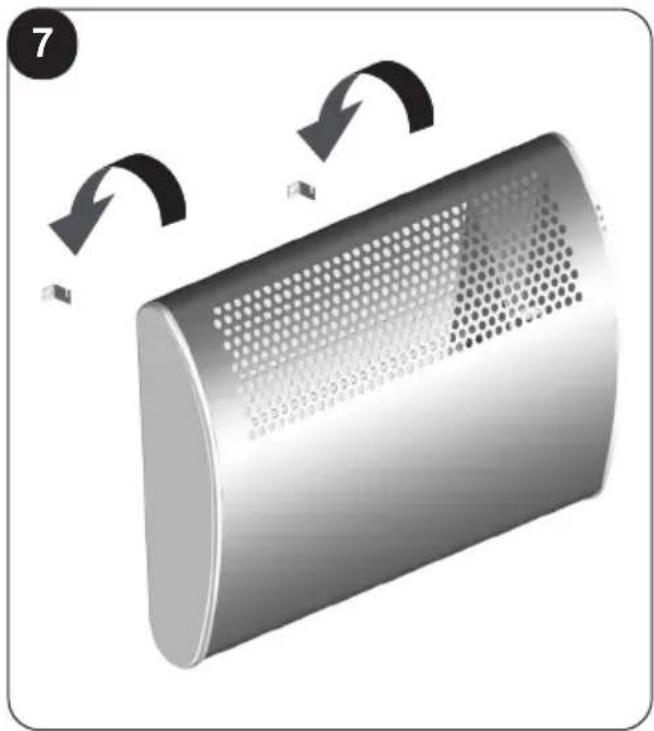

- Hang the appliance onto the 2 brackets previously xed to the wall and mark on the wall the exact position of the hole on the lower wall-mounting bracket (larger one) ( g. 7).

- Drill the wall, insert the plug and x the lower bracket to the plug with the suppli screw ( g. 8).

3 - INSTRUCTIONS FOR USE

- Make sure that the plug is inserted in the mains socket.

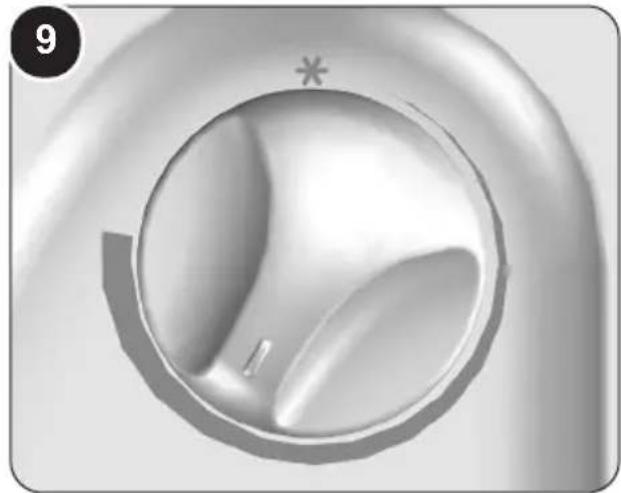

- Turn the thermostat knob clockwise so that the reference marker on the knob corresponds with the desired temperature ( g. 9).

Close-up of a metallic mechanical knob or dial with a small hole and a star symbol, no readable text or labels.

Close-up of a white circular dial with adjustment knobs and sun icons, no readable text or symbols

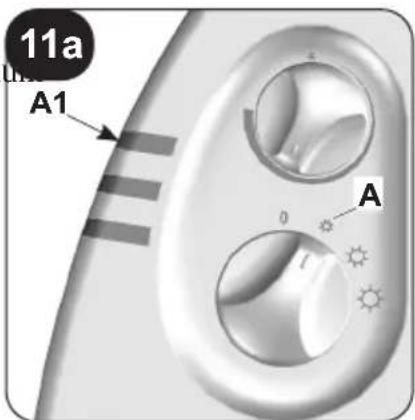

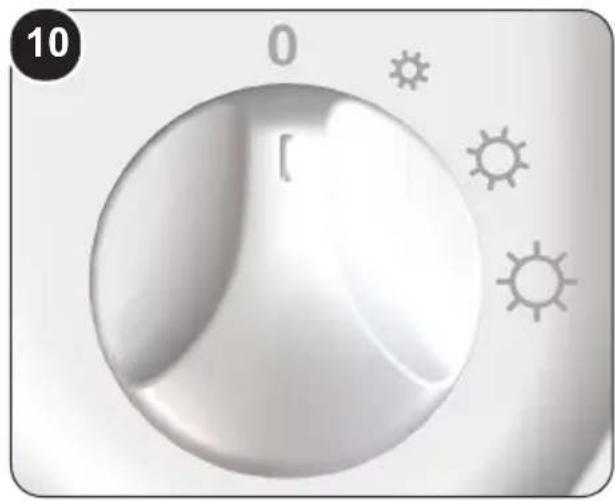

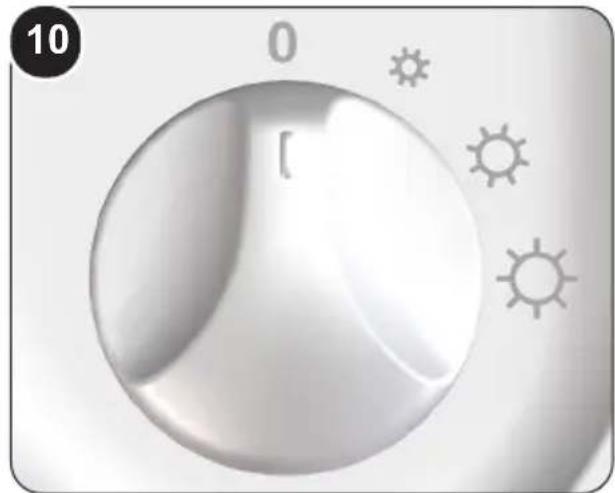

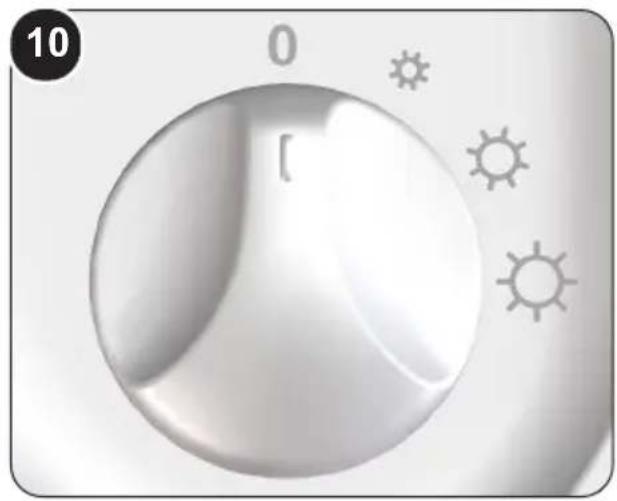

- To switch on the appliance, turn the power selector to “A” (g. 11/A) to run it on minimum power.

The activation of the selected mode is con rmed when the LED “A1” ( g. 11/A).

11a A1 0 A i

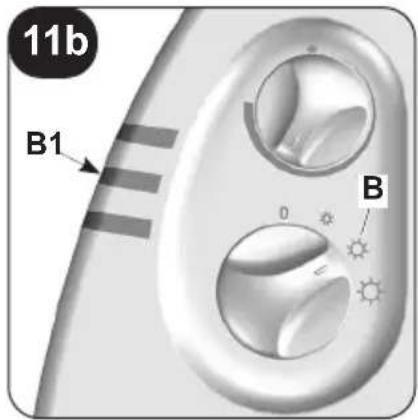

• Turn the power selector to "B" (fig.11/B) to run the appliance at medium power.
  The activation of the selected mode is confirmed by the lighting up of the LED "B1" (fig.11/B).

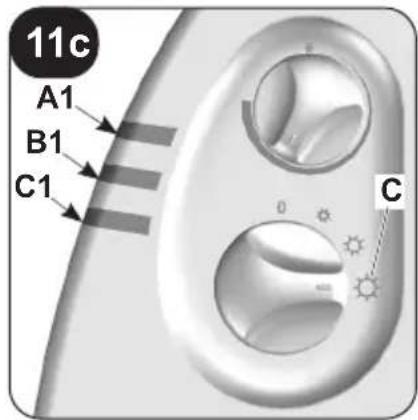

- Turn the power selector all the way to "C" (fig. 11/C) to run the appliance on maximum power. The activation of the selected mode is confirmed by the lighting up of all three LEDs "A1-B1-C1" (fig. 11/C).

- To switch the appliance "0", turn the selector to the initial position (fig. 10).

11b B1 0 B

11c A1 B1 C1 0 C

3.1 - VENTILATION

- Turning the power selector to positions B and C (medium and maximum power) automatically switches on the fan as well, to heat up the room faster.

3.2 - ANTIFREEZE FUNCTION

• Make sure the appliance is switched on.
• Fully turn the power selector until it reaches the 3 position.
• Turn the thermostat knob fully anticlockwise so that the reference mark on the knob corresponds to the lowest part of the graduated scale.

4 - CLEANING

• Make sure that the product is properly switched off and the plug is pulled out of the socket.
• Let the product cool down completely before cleaning.
• Clean the outside surfaces with a damp cloth.

Don't let liquid get into the heater. Don't put the heater in water or any other liquid.

5 - TECHNICAL DATA

For the technical data listed below, consult the characteristic data plate applied to the product:

• Max thermal power
• Power supply
• Isolation class

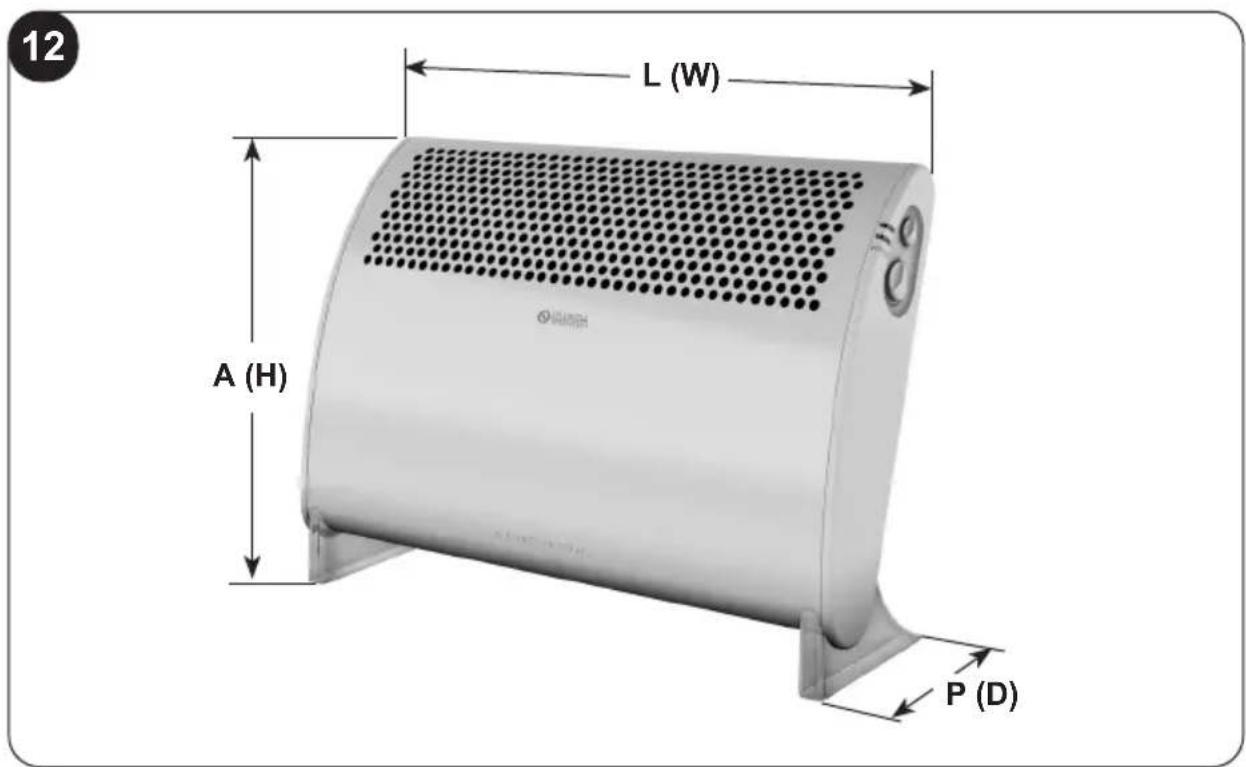

• Dimensions (W x H x D): 620x460x228 mm
• Weight CALEO 2 TURBO (without packing): 4 kg

12 L (W) A (H) P (D)

ILLUSTRATIONS

1.1 - ACCESSOIRES FOURNIS....11

2 - INSTALLATION ..... 11

2.1 - MONTAGE DES PIEDS D'APPUI AU SOL 11
2.2 - MONTAGE MURAL DE L'APPAREIL 11

3 - INSTRUCTIONS POUR L'UTILISATION.... 12

3.1 - VENTILATION 13
3.2 - SERVICE ANTIGEL....13

4 - NETTOYAGE 14

5 - DONNEES TECHNIQUES....14

ELIMINATION

1.1 - ACCESSOIRES FOURNIS

Close-up of a metallic mechanical component with a circular hole and a small protrusion, no visible text or symbols.

Close-up of a white circular dial with adjustment knobs and sun icons, no readable text or symbols

11a A1 0 A

12 L (W) A (H) P (D)

ILLUSTRATIONEN

Close-up of a metallic mechanical component with a circular hole and a small protrusion, no visible text or symbols.

Close-up of a white circular dial with adjustment knobs and sun icons, no readable text or symbols

11a A1 0 A i

12 L (W) A (H) P (D)

ILUSTRACIONES

Close-up of a metallic mechanical component with a circular hole and a small protrusion, no visible text or symbols.

Close-up of a white circular dial with adjustment knobs and sun icons, no readable text or symbols

11a A1 0 A i

12 L (W) A (H) P (D)

ΑΠΕΙΚΟΝΙΣΕΙΣ

Close-up of a metallic mechanical component with a circular hole and a small protrusion, no visible text or symbols.

Close-up of a white industrial rotary knob with sun icons and a '0' mark, no text or symbols present.

11a TOV A1 "A1" 0 A

11b B1 "B1" 0 B

12 L (W) A (H) P (D)
