Product Type	Gigabit PoE+ Media Converter
Brand	Intellinet
Model	508209
Connectors	1 x SC (fiber, pre-installed non-removable), 1 x RJ45 (UTP), 1 x power input
Power Supply	Power adapter included (47-57 V DC)
PoE Standard	IEEE 802.3at/af (PoE+), up to 30 W
Max Fiber Distance	20 km (12.4 mi)
Max Copper Distance	100 m (300 ft) with Cat5e cable or higher
Diagnostic Functions	LFP (Link Fault Pass-Through), LLCF, LLR
DIP Switch	LFP ON/OFF
Indicator LEDs	PWR, 1000M, FP Link/ACT, TP Link/ACT, PoE, SD
Operating Temperature	0 °C to 50 °C (estimation)
Operating Humidity	10% to 90% RH (estimation)
Compliance	CE (2014/30/EU, 2014/35/EU)
Recycling	WEEE Directive 2012/19/EU
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Installation	Connect the fiber to the SC port, the RJ45 cable to the UTP port, then the power adapter.

Frequently Asked Questions - 508209 Intellinet

What is the LFP (Link Fault Pass-Through) function?

The LFP function detects link errors on a cable (fiber or copper) and transmits them to the other side to signal the fault. Set the LFP DIP switch to ON to enable it.

How to activate the LFP function?

Locate the LFP DIP switch on the device and set it to the ON position. Make sure that both converters at the ends of the link support this function.

What power does the converter deliver in PoE+ mode?

The converter can provide up to 30 watts on the RJ45 port to a compatible PoE+ device (IEEE 802.3at). It is also backward compatible with PoE (802.3af) devices, which then receive up to 15.4 W.

What are the maximum connection distances for fiber and copper?

The maximum distance for fiber optic is 20 km (12.4 mi). For copper (RJ45), it is 100 m (300 ft) with a Cat5e cable or higher.

What do the different LEDs on the device mean?

PWR: on if the device is powered. 1000M: on for a Gigabit link. FP Link/ACT: fiber link active. TP Link/ACT: copper link active. PoE: on if PoE is being delivered. SD: on if the fiber port receives a signal.

How to install the converter?

1. Connect the fiber optic cable to the SC connector. 2. Plug an RJ45 cable (Cat5e or better) from the UTP port to a network device. 3. Connect the supplied power adapter to the power input of the converter and then to a power outlet.

What type of fiber cable is required?

The converter comes with a pre-installed non-removable SC connector. Use a suitable fiber optic cable (single-mode or multi-mode depending on distance). The maximum supported length is 20 km.

What to do if the PWR LED is off?

Check that the power adapter is properly connected to the converter and to a working power outlet. If the problem persists, try another adapter compliant with specifications (47-57 V DC).

Is the converter compatible with classic PoE devices (802.3af)?

Yes, it is compatible with IEEE 802.3at (PoE+) and 802.3af (PoE) standards. It automatically detects the standard used by the powered device and supplies the appropriate power.

How to register the product?

You can register your product on the website register.intellinet-network.com/r/508209 or by scanning the QR code on the cover of the manual. This allows you to obtain support and additional information.

USER MANUAL 508209 Intellinet

Exterior view of a INTELLMET wireless network device with USB port and external ports (no signage or text in focus)

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/508209

Connections

This product features a pre-installed SC connector that is not removable.

1 Connect the fiber optic cable to the pre-installed SC connector.
2 Install the other end of the fiber optic cable into an
appropriate port in your fiber network.

Maximum length and fiber cable specification depend on the model.

RJ45

Connect the UTP port of the media converter to powered RJ45 device; e.g., to a network camera. Cat5e or better cabling is recommended.

Power

Plug the power adapter into the input jack on the media converter.

Then connect it to a regular power outlet. Only use the included power adapter or one with matching specifications.

Setup

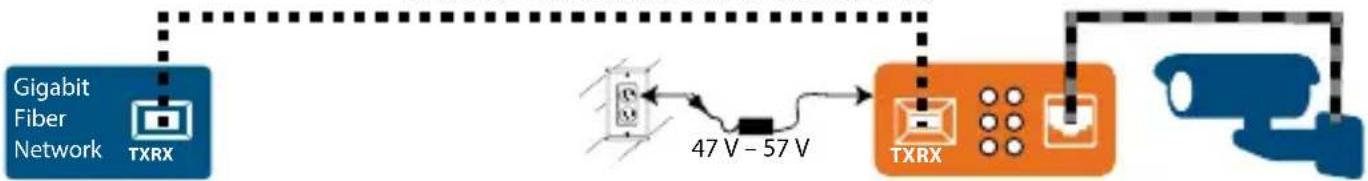

Gb Fiber (20 km/12.4 mi.) Gb RJ45 (100 m/300 ft.)

Features

The DIP switches on the Intellinet Gigabit PoE+ Media Converter present helpful options for easily detecting link faults when they occur.

Enabling Link Fault Pass-through (LFP) by switching the LFP DIP switch to "ON" forces the devices on a link to acknowledge that they are online before data can be transmitted. When one of the devices doesn't respond, data cannot be sent.

If a copper connection breaks when the LFP function is enabled, the converter's Link Loss Carry Forward (LLCF) feature stops data transmission and generates a trap to a management station. Likewise, if a fiber connection breaks when

the LFP function is enabled, the converter's Link Loss Return (LLR) function will return a no-link condition to its link partner and cease data transmission.

Power over Ethernet+

The Intellinet Gigabit PoE+ Media Converter complies with IEEE 802.3at / 802.3af standards. When the included power adapter is connected to the converter, the device can supply up to 30 watts of power to a PoE-compliant powered device.

LED Status

LED STATUS STATUS DESCRIPTION
PWR	Off Power	Off
	On Power	On
1000M	On Gigabit connection
	Off Less than Gigabit connection
FP Link/ACT	On Active fiber connection
	Flashing Fiber data transfer
	Off Port link is down.
TP Link/ACT	On Active copper connection
	Flashing Copper data transfer
	Off Port link is down.
PoE	On PoE is being supplied to a connected PD.
	Off No power is being supplied to a connected PD.
SD	On Valid optical signal
	Off No valid optical signal

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/508209 or scan the QR code on the cover.

Anschlüsse

Power over Ethernet+

Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)

ENGLISH: This symbol on the product or its packaging

means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and/or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/508209
