USER MANUAL 508216 Intellinet

Exterior view of a black IntelNet network device with ports and connectors, set against a blue grid background (no readable text or symbols on the device itself)

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/508216

Connections

This product requires an SFP transceiver module that provides fiber optic connections.

1 Insert the transceiver into the media converter and route the fiber optic cable into the transceiver.
2 Route the other end of the fiber optic cable into a suitable port in your fiber optic network.

Maximum length and fiber cable specification depend on the model.

RJ45

Connect the UTP port of the media converter to powered RJ45 device; e.g., to a network camera. Cat5e or better cabling is recommended.

Power

Plug the power adapter into the input jack on the media converter. Then connect it to a regular power outlet. Only use the included power adapter or one with matching specifications.

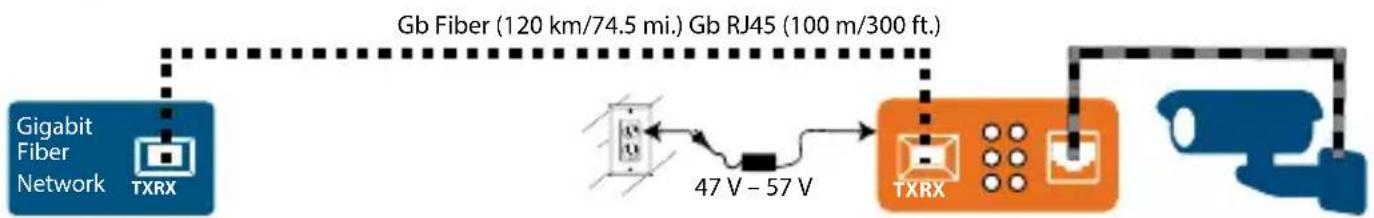

Setup

Features

The DIP switches on the Intellinet Gigabit PoE+ Media Converter present helpful options for easily detecting link faults when they occur.

Enabling Link Fault Pass-through (LFP) by switching the LFP DIP switch to "ON" forces the devices on a link to acknowledge that they are online before data can be transmitted. When one of the devices doesn't respond, data cannot be sent.

If a copper connection breaks when the LFP function is enabled, the converter's Link Loss Carry Forward (LLCF) feature stops data transmission and generates

a trap to a management station. Likewise, if a fiber connection breaks when the LFP function is enabled, the converter's Link Loss Return (LLR) function will return a no-link condition to its link partner and cease data transmission.

Power over Ethernet+

The Intellinet Gigabit PoE+ Media Converter complies with IEEE 802.3at / 802.3af standards. When the included power adapter is connected to the converter, the device can supply up to 30 watts of power to a PoE-compliant powered device.

LED Status

LED Status	Status Description
PWR	Off Power	Off
	On Power	On
1000M	On Gigabit connection
	Off Less than Gigabit connection
FP Link/ACT	On Active fiber connection
	Flashing Fiber data transfer
	Off Port link is down.
TP Link/ACT	On Active copper connection
	Flashing Copper data transfer
	Off Port link is down.
PoE	On PoE is being supplied to a connected PD.
	Off No power is being supplied to a connected PD.
SD	On Valid optical signal
	Off No valid optical signal

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/508216 or scan the QR code on the cover.

Anschlüsse

Power over Ethernet+

Caratteristiche

Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)

ENGLISH: This symbol on the product or its packaging

means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and/or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/508216

North & South America

IC Intracom Americas

550 Commerce Blvd.

Oldsmar, FL 34677 USA

Asia & Africa

IC Intracom Asia

4-F, No. 77, Sec. 1, Xintai 5th Rd.

Xizhi Dist., New Taipei City 221, Taiwan

Europe

IC Intracom Europe

Löhbacher Str. 7

D-58553 Halver, Germany

All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.

INTELLINET® NETWORK SOLUTIONS

intellinetnetwork.com
