USER MANUAL FÖRNEBO 705.377.57 IKEA

Please refer to www.IKEA.com and select your local store for local store phone numbers and opening times.

ENGLISH 4

FRANÇAIS 25

ESPAÑOL 49

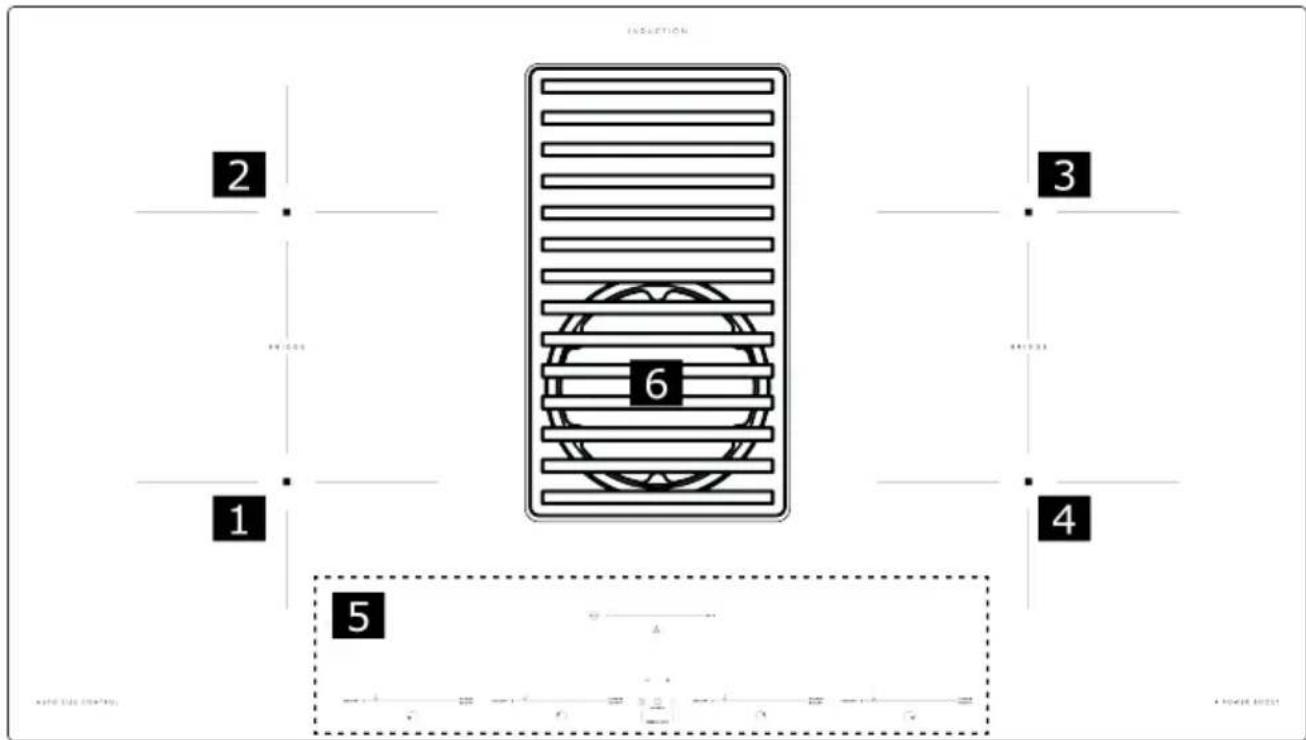

Product Description 12

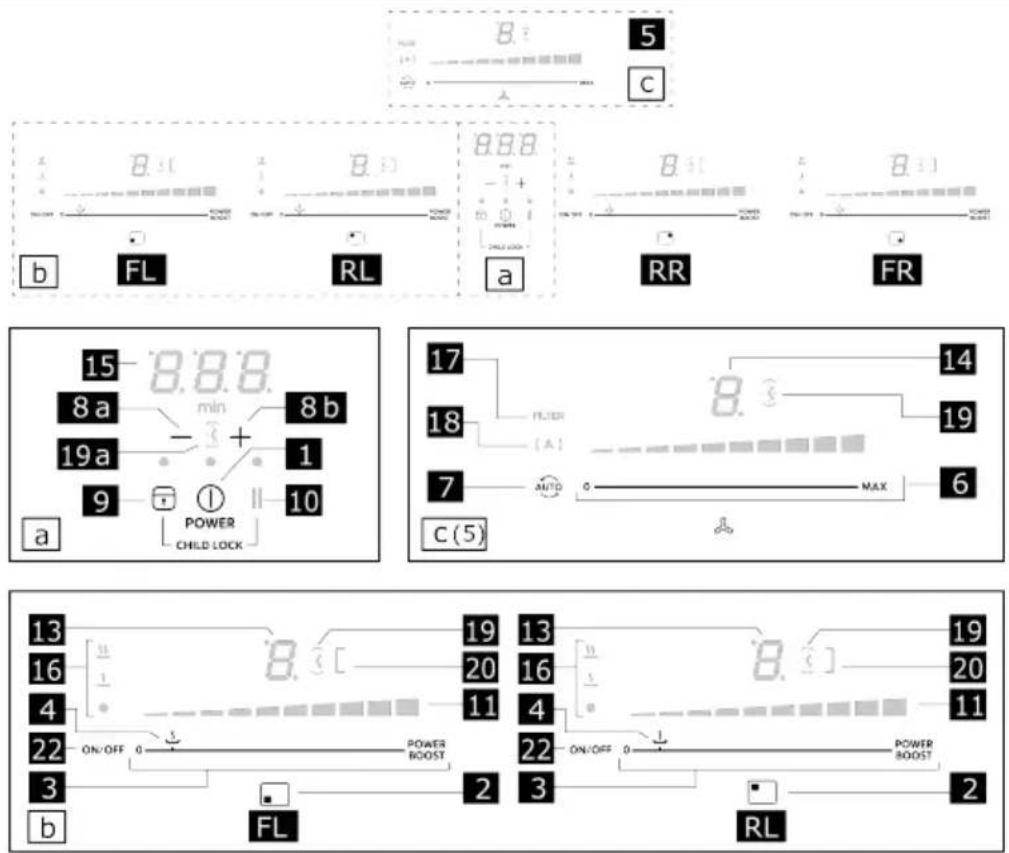

Control Panel 13

Cleaning and maintenance 18

Technical data 20

What to do if ... 21

Environmental concerns 22

IKEA Limited guarantee 22

How to reach us if you need our se24 vice

Safety Information\_prova

Before first use

Your safety and that of others is paramount. Remove cardboard protection pieces, protective film and adhesive labels from accessories. Check the appliance for any transport damage. To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents. This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the attention symbol and the following terms:

⚠️DANGER: indicates a hazardous situation which, if not avoided, will cause serious injury.

⚠ WARNING: Indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings give specific details of the potential danger/warning present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions.

Electrical Requirements

- Disconnect the device from the electrical network

• The installation must be performed by professionally qualified personnel familiar with the applicable installation and safety standards.
• The manufacturer declines any liability to people, animals or things in the case of failure to follow the guidelines provided in this chapter.

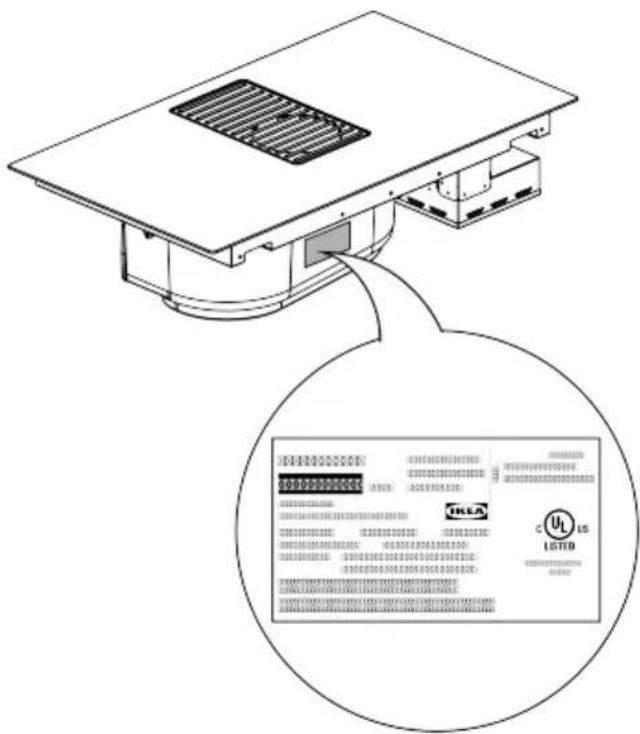

• Make sure that the voltage on the rating plate on the bottom of the device corresponds to that of the house where it will be installed.
• Do not use extension cords.
• Earthing is required by law

IMPORTANT

Observe all governing codes and ordinances. It is the customer's responsibility:

To contact a qualified electrical installer.

To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

IMPORTANT

Save Installation Instructions for electrical inspector's use.

The appliance should be connected directly to the fused disconnect (Or circuit breaker) box through metal electrical conduit.

Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and ordinances.

A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (at the appliance and at the junction box).

Copies of the standards listed may be obtained from:

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

Preparation of the device/cooktop for installation:

⚠ WARNING: This is a heavy product; the device should only be lifted and installed by two or more people.

• The exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
  • After unpacking the product, check that it has not been damaged during transport and in the event of problem, please contact the reseller or the Customer support service before installing it.

- Check that the product is the right size for the installation area.

- Check for accessories (e.g. bags containing screws, warranty certificates, etc.) inside the packaging (placed there for transport reasons). Remove and keep them safe, if present.

- The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers.

Installation and connection Important – Save for the local electrical inspector's use.

• In the event of problems, contact the Authorized Service Center. To prevent any damage, only remove the appliance from its packaging at the time of installation.
• Both electric and mechanical installation must be carried out by specialised personnel.
• The minimum installation distance: 30" (76.2 cm) minimum clearance between top of cooktop platform and bottom of uncovered wood or metal cabinet (24" [61 cm] minimum clearance if bottom of wood or metal cabinet is covered by not less than 1/4" [0.6 cm] flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" [0.04 cm] stainless steel, or 0.024" [0.06 cm] aluminum or 0.020" [0.05 cm] copper)
• The minimum distances above specified shall be respected, in case the kitchen manufacturer should indicate larger distances these shall be observed.
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.

Installation induction cooktop

• Create the cut-outs in the cabinet before inserting the cooktop and carefully remove any shavings or sawdust.
  • to ensure the correct installation of the product, it is recommended to tape the pipes using an adhesive with the following

characteristics: duct tape in accordance with local codes and ordinances; flame retardant; excellent resistance to wear; resistant to temperature fluctuations can be used at low temperatures

⚠ WARNING: Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards

Electrical connect

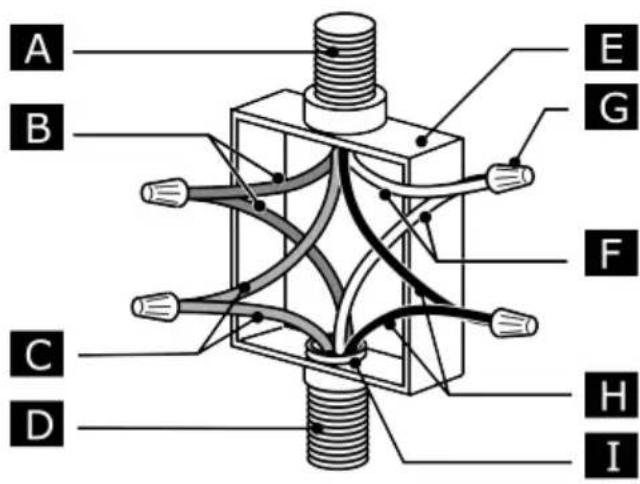

• 4-Wire Cable from Home Power Supply to 4-Wire Cable from Cooktop

IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local codes do not allow grounding through the neutral conductor, such as in: homes and recreational vehicles, new construction, and in Canada

A B C D E G F H I

A Cable from home power supply

B Red wires

C Green or yellow-green ground wires

D 4-wire cable from cooktop

E Junction box

F White wires

G UL listed wire connector

H Black wires

I UL listed or CSA approved conduit connector

1. Connect the 2 black wires together using the UL listed wire connectors

2. Connect the 2 red wires together using the UL listed wire connectors

3. Connect the 2 white wires together using the UL listed wire connectors
4. Connect the green (or yellow-green) ground from the cooktop cable to the green (or yellow-green) ground wire (in the junction box) using the UL listed wire connectors
5. Install junction box cover.

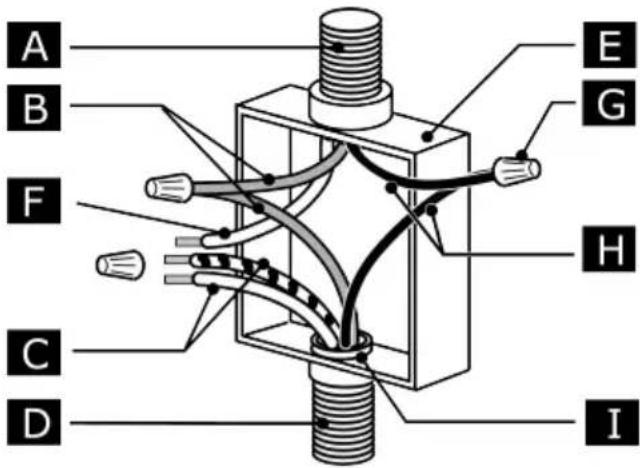

• 3-Wire Cable from Home Power Supply to 4-Wire Cable from Cooktop - U.S. Only

IMPORTANT: Use the 3-wire cable from home power supply where local codes permit connecting the frame-ground conductor to the neutral (white) junction box wire.

A B F C D E G H I

A Cable from home power supply

B Red wires

C White wire and green (or yellow-green) wire (from cooktop)

D 4-wire cable from cooktop

E Junction box

F White wires

G UL listed wire connector

H Black wires

I UL listed or CSA approved conduit connector

1. Connect the 2 black wires together using the UL listed wire connectors

2. Connect the 2 red wires together using the UL listed wire connectors

3. Connect the green (or yellow-green) and white cooktop cable to the white (neutral) wire in the junction box using the UL listed wire connectors
4. Install junction box cover.

IMPORTANT SAFETY INSTRUCTION

READ AND SAVE THESE INSTRUCTIONS

⚠ WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, DO NOT USE REPLACEMENT PARTS THAT HAVE NOT BEEN RECOMMENDED BY THE MANUFACTURER (E.G. PARTS MADE AT HOME USING A 3D PRINTER).

⚠ WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the cooktop, follow basic precautions, including the following:

CAUTION!: Do not store items of interest to children in cabinets above a cooktop – Children climbing on the cooktop to reach items could be seriously injured.

Proper Installation – Be sure your cooktop is properly installed and grounded by a qualified technician.

Never Use Your Cooktop for Warming or Heating the Room.

• Do Not Leave Children Alone – Children should not be left alone or unattended in area where cooktop is in use. They should never be allowed to sit or stand on any part of the cooktop.
• Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the cooktop.
• User Servicing – Do not repair or replace any part of the cooktop unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.
• Storage on Cooktop – Flammable materials should not be stored near surface units.
• Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical or foam-type extinguisher.
• Use Only Dry Potholders – Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cooktop and surfaces facing the cooktop.

• Use Proper Pan Size – This cooktop is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. Proper relationship of utensil to burner will also improve efficiency.

• Never Leave Surface Units Unattended at High Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.

• Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop service without breaking due to the sudden change in temperature.
• Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.
• Do Not Cook on Broken Cooktop – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.
• Clean Cooktop With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
• Do not place metal objects such as knives, forks, spoons and lids on the cooktop surface as they may overheat.

For units with ventilating hood -

• Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
• Ducted fans used to exhaust contaminants must always be vented to the outdoors.

For units with coil elements -

- Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

- Protective Liners – Do not use aluminum foil to line surface unit drip bowls, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire. Do Not Soak Removable Heating Elements - Heating elements should never be immersed in water.

This induction cooktop generates and uses ISM frequency energy that heats cookware by using an electromagnetic field. It has been tested and complies with Part 18 of the FCC Rules for ISM equipment. This induction cooktop meets the FCC requirements to minimize interference with other devices in residential installation.

This induction cooktop may cause interference with television or radio reception. If interference occurs, the user should try to correct the interference by: Relocating the receiving antenna of the radio or television;

Increasing the distance between the cooktop and the receiver;

Connecting the receiver into a different outlet.

It is the user's responsibility to correct any interference.

⚠ WARNING: People with a pacemaker or similar medical device should use care when standing near this induction cooktop while it is on. The electromagnetic field may affect the pacemaker or similar device. Consult your doctor or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction cooktop

Caution! Strictly observe the following instructions:

The device must be disconnected from the electrical network before performing any installation work.

• Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and with local safety regulations. Do not repair or replace any part of the device unless specifically stated in the operating manual.
• Earthing the device is compulsory.
• Do not use multiple sockets or extension cords.
• Once installation is complete, the electrical components must no longer be accessible by the user.
• The device and its accessible parts heat up during use. Be careful not to touch the heating elements.
• Ensure that children do not play with the device; keep children away and supervise them, as the accessible parts may become very hot during use.
• For people with pacemakers and active implants it is important to check, prior to using the induction cooktop, that their pacemaker is compatible with the device.
• During and after use, do not touch the heating elements of the device.
• Avoid contact with cloths or other flammable materials until all the device components have sufficiently cooled.
• Do not place flammable materials on or near the device.
  • Overheated fats and oils easily catch fire. Supervise the cooking of foods rich in fat and oil.
• If the surface is cracked, switch off the device to avoid the possibility of an electric shock.
• The device is not intended to be run with an external timer or a separate remote control system.

• Unattended cooking on a cooktop with oil or fat may be dangerous and may cause a fire.

• The cooking process must be supervised. A short-term cooking process must be constantly monitored.

• NEVER attempt to put fires out using water. Instead, turn off the device and smother the flames, for example with a lid or a fire blanket. Fire hazard: do not rest objects on the cooking surfaces.
• Do not use steam cleaners.
• Before connecting the device to the electrical network: check the data plate (on the bottom of the device) to ensure that the voltage and power correspond to the network values and that the connection socket is suitable. If in doubt, consult a qualified electrician.
  • After use, turn off the cooktop at the switch and do not rely on the pan detector.
• Prevent liquids from boiling over, so turn the heat down when boiling or heating liquids.
• Do not leave the heating elements turned on with empty pots and pans or with no pans.
• Switch off the relevant hot plate when you have finished cooking.
• Never use aluminium foil for cooking and never place products packaged in aluminium on the cooktop. The aluminium would melt and irreparably damage your device.
• Never heat a tin or can containing foods without opening it first: it might explode!
• This warning also applies to all other types of cooktops.
• High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level.

• Containers must be placed directly on the cooktop and in the center. Under no circumstances may any other objects be placed between the pan and the cooktop.

• If the temperature becomes high, the device automatically decreases the power level of the cooking zones.

• Before doing any cleaning or maintenance work, disconnect the device from the mains power supply by removing the plug or turning off the mains switch.
• Wear protective gloves for all installation and maintenance operations.
• The device can be used by children over the age of eight and by people with impaired physical, sensory or mental abilities or lacking in experience or the necessary knowledge provided that they are supervised or after they have received instruction about how to safely use the device and understand the inherent dangers.
  • Children must be supervised to ensure they do not play with the device.
• Cleaning and maintenance must never be performed by children unless they are properly supervised.
• The room must be properly ventilated when the device is used at the same time as other gas-powered devices, or powered by other fuel.

• The device must be regularly cleaned both internally and externally (AT LEAST ONCE A MONTH), in strict accordance with the maintenance instructions.

• Failure to follow the rules for device cleaning and filter replacement and cleaning may result in a fire hazard.

• Food must never be cooked flambè. Using a naked flame may damage the filters and cause a fire hazard; it must, therefore, be avoided under all circumstances. Extra care must be taken when frying to prevent the oil from overheating and catching fire.
• The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction.
• The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion devices. Never use the device without the grille properly installed!
• Only use the fastening screws supplied with the device for installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide.
• When the device is used together with other devices powered with non-electrical energy, the negative pressure of the room must not exceed 4 Pa (4 x 10^5 bar).
• This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the device.

Use

The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot.

IMPORTANT:

When compared to electric cooktops, your induction cooktop is:

• Safer: lower temperature on the glass surface.

• Faster: shorter food heating times.

• More accurate: the cooktop immediately reacts to your commands

• More efficient: 90% of the absorbed energy is transformed into heat. Moreover, once the pot is removed from the cooktop, heat transmission is immediately interrupted, avoiding unnecessary heat losses.

Use only pots bearing the symbol 📄

IMPORTANT:

to avoid permanent damage to the cooktop surface, do not use:

• containers with a base that is not perfectly flat;
  • metal containers with an enamelled base;
• containers with a rough base, to avoid scratching the cooktop surface;
• never place hot pots and pans on the surface of the cooktop's control panel.

Not all pans suitable for induction work in an efficient manner due to the base only partially consisting of ferromagnetic material! When purchasing pots or pans ensure that:

- that the base is made entirely from ferromagnetic material. If this is not the case, the efficacy of the transmission of heat is lessened and the uniformity of heat and the temperature of the pot/pan may not be suitable for cooking.

Illustration of cooking utensils including a pan, lid, and pot with a cross symbol (no text or labels)

- The base does not contain aluminium: the crockery does not heat and may not be recognised by the inductors.

Two cooking panes with handles and a crossed-out mark symbol (no text or labels)

- Bases that are not flat or that have rough surfaces.

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

These lower the contact surface area between the inductor and the pan, lowering efficiency and harming the cooking experience.

IMPORTANT:

Never put hot pots or pans on the cooktop control panel surface.

You can check if the pot material is magnetic simply by using a magnet. Pots are not suitable if they are not magnetically detectable. The indications from the previous paragraph also apply here.

IMPORTANT:

If the pots are not of the correct size, the cooking zones will not switch on.

To see the minimum pot diameters for each individual zone, consult the illustrated section of this manual.

To obtain the best results we recommend:

• Using pots and pans with a bottom diameter equal to that of the cooking zone.
- Where possible, keep the cover on the pan during cooking and in particular on pans with height greater than 22 cm.
- Position the pan in the center of the cooking zone indicated on the cooktop.

Product Description

INSUCTION 2 3 6 4 1 5 A PULSE SWITCH A PULSE SWITCH

1 Single cooking zone; cooking pan min. 4^23/32 (120mm) 2100W, with Booster 3700W
2 Single cooking zone; cooking pan min. 4^23/32 (120mm) 2100W, with Booster 3700W
3 Single cooking zone; cooking pan min. ∅4 23/32" (120mm) 2100W, with Booster 3700W
4 Single cooking zone; cooking pan min. ∅4 ^23/32 " (120mm) 2100W, with Booster 3700W
5 Control Panel
6 Extractor
1+2 Bridge cooking area area 8 21/32" x 4 23/32" (220 x 120mm) 3700W
3+4 Bridge cooking area area 8 21/32" x 4 23/32" (220 x 120mm) 3700W

Control Panel

Keys

1	ON/OFF of the cooktop / extractor fan for cooktop
2	Cooking zone position indicator
3	Cooking zone selectionIncrease/Decrease Power Level
4	Temperature Manager activation
5	Keys fan
6	Extractor fan selectionIncrease/Decrease extraction speed (power)
7	Activation of automatic functionsReset filter saturation
8a 8b	Activate Timer / Increase / Decrease Timer value
9	Key Lock
9+10	Child Lock
10	Pause / Recall
22	ON/OFF Cooking zone

Display / LED

11 View Power Level
12 View extraction speed (power)
13 Cooking zone display
14 Extractor fan display
15 Timer display
16 Temperature Manager display
17 Filter assistance indicator
18 Automatic extraction function indicator
19 19a	Timer indicator active
20 Bridge indicator active

USING THE COOKTOP

Before you begin, it is important to know:

All functions of this cooktop are designed to comply with the most stringent safety regulations.

For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.
• In other cases the activated functions will be automatically deactivated after a few seconds, if the specific function requires a further setting that has not been selected (e.g.: "Turn the cooktop on" without "Selecting the cooking zone" and the "Operating temperature", or the "Lock Function" or the "Timer" function).

⚠ WARNING: Please note! In the case (for example) of prolonged use, the cooking zone may not immediately shut down because it is in the cooling phase; the "H" symbol will appear on the cooking zone display, to indicate the execution of this phase. Wait for the display to turn off before approaching the cooking zone.

Cooking zone display

The following is shown on the cooking zone displays:

Cooking zone on	0
Power Level	1...9-P
Residual Heat Indicator	H
Pot Detector	Y
Temperature Manager Function active	H
Child Lock Function active	L
Pause function	II
Automatic Heat UP function	A

CHARACTERISTICS OF THE COOKTOP

- Safe Activation

The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed.

- Pot Detector

The product automatically detects the presence of pots on the cooking zones.

- Safety Shut Down

For safety reasons, each cooking zone has a maximum operating time, which depends on the power level set.

• Residual Heat Indicator

When switching off one or more cooking zones, the residual heat is indicated with a specific visual signal on the display of the corresponding zone by the "H" symbol.

COOKTOP OPERATION

Note: Before activating any functions, the desired zone must be activated

- Power-on

Press (touch) ON/OFF(1) cooktop/extractor. The indicator light will turn on to indicate that the cooktop/extractor is ready for use Press again to turn off Note: This function has priority over the others.

- Selecting the cooking zone

Touch (press) the ON/OFF symbol (22) corresponding to the cooking zone you intend to use, then press the Selection bar (3).

• 9 Power Levels

The cooktop features 9 power levels

Touch and slide your fingers along the

Selection bar (3):

to the right to increase the power level; to the left to decrease the power level.

- Power Booster

The product features a supplementary power level (after level 2) which remains active for 10 minutes, after which the temperature returns to the previously set value.

Touch and slide with your fingers along the

Selection bar (3) (above the level) and activate the Power Booster

The Power Booster level is shown on the display of the selected zone with the symbol „P”

- Bridge Zones

Thanks to the Bridge function, the cooking zones can operate in a combined way, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans. It is possible to combine the left cooking zone (FL+RL) and/or the right cooking zone (RR+FR),

Bridge Function activation:

• simultaneously select the two cooking zones you want to use (FL+RL) or (RR+FR)
• the Bridge indicators (20) of the two cooking zones will light up at the same time.
• Manage the power level of the left bridge using the Selection bar (3-RL); Manage the power level of the right bridge using the

Selection bar (3-FR)

Bridge Function deactivation:

repeat the same activation procedure.

• Temperature Manager

Temperature Manager is a function that allows you to set the most suitable pre-set temperature to achieve the desired result. There are two levels.

"Melting" level: Identifies a suitable cooking level to slowly melt delicate products without compromising their sensory characteristics (chocolate, butter, etc.).

"Warming" level: Identifies a suitable cooking level to allow the food to be delicately maintained at the same temperature, without letting it boil.

Temperature Manager activation:

• Select the desired cooking zone.
• Press the symbol (4) once to activate the

"Melting" level from the "Melting" level, press the symbol (4) again and hold for a few seconds to switch to the

"Warming" level

Melting: It identifies a suitable cooking level to slowly melt delicate products without compromising their sensory characteristics (chocolate, butter, etc.).

Warming: It identifies a suitable cooking level to allow to delicately keep the food at the same temperature, without letting it boil.

Temperature Manager deactivation:

Press the symbol (4) again

The following symbol appears on the display of the zone working in Temperature

Manager mode 0

• Key Lock

The Key Lock allows you to lock the settings of the cooktop to prevent accidental tampering with the same, while leaving the set functions enabled.

Key Lock activation:

- press (9)

- the LED over the button will turn on, to indicate that it has been activated

Key Lock deactivation:

- Repeat the activation operation.

- Child Lock

The Child Lock makes it possible to prevent children from accidentally accessing the cooking zone and extraction zone, preventing the activation of any functions. The Child Lock can only be activated when the product is on, but with the cooking zones (and extraction zone) off.

Child Lock activation:

- remove any pots from the cooktop

- simultaneously press and hold (9)+(10): an acoustic signal will indicate that the function is active and a L will be displayed in (13)

and (14).

Child Lock deactivation:

Repeat the activation operation.

- Timer

The Timer function is a countdown, which can be set for each cooking zone (and suction zone), even simultaneously.

Note: the timer is a simple warning buzzer, which at the end of the set minutes DOES NOT turn off the cooking zone

Activation/Regulation of cooktop Timer function

- Select the cooking zone (Power other than 0)

- Simultaneously press (8a) and (8b) to access the Timer function

- Set the duration of the Timer:

press the selector (8b), to increase the automatic switch-off time; press the selector (8a), to decrease the automatic switch-off time.

If desired, repeat the operation for the other cooking zones.

Note: each time you press the two keys simultaneously, you will move on to the next active time.

Note: Each cooking zone can have a different Timer set; on the display, (15), the countdown of the last selected cooktop will be shown for 10 seconds, after which the countdown with the least remaining time will be shown.

When the timer has completed the countdown an acoustic signal sounds for 2 minutes, while the display (15) flashes with the symbol 0.00

Note: It is possible to switch off the acoustic signal by pressing the selector (8b) or the selector (8a),

Note: at the side of the cooking zone display, when the Timer is in use, the symbol (19) is displayed

Switching off the Timer:

- select the cooking zone

- set the Timer using (8a)

Note: the function remains active if no other key is pressed in the meantime.

- Egg Timer

The Egg Timer function (19a) is a countdown independent of the cooking zones (and of the extraction zone). The Egg Timer is activated by pressing (8a) and (8b).

Note: to adjust the Egg Timer function, follow the same procedure as for the Timer function.

When the timer has completed the countdown an acoustic signal sounds for 2 minutes, while the display (15) flashes with the symbol 0.00

Note: It is possible to switch off the acoustic signal by pressing the selector (8b) or the selector (8a),

- Pause

The Pause function allows active functions on the cooktop to be suspended, bringing the cooking power to zero.

Pause activation:

- press (10)

- a will be displayed in (13) and (14).

Pause deactivation:

Note: this operation restores the cooktop conditions prior to the pause

- press (10)

- within 10 seconds scroll to the right with your fingers along the Selection bar (3) which will light up.

Note: if the operation is not performed within this time, the pause function will remain active.

Note: if after 10 minutes, the Pause Function is not deactivated, the cooktop will turn off automatically.

- Recall

The Recall function allows the cooktop settings to be recovered in the case of accidental shut-down.

Recall activation:

- switch the cooktop back on (1) within 6 seconds after shut-down

- press (10) within the next 6 seconds

• Automatic Heat UP

The Automatic Heat UP function allows the set power to be reached more quickly; with this function it is possible to cook food faster without the risk of burning it, insofar as the temperature does not exceed the set level. This function is available for the levels of power 1 -8 .

Activation:

- on the Selection bar (3), press and hold the desired power

- a will be displayed in (13).

USING THE EXTRACTOR FAN

- Turning on the extractor

- Press (touch) ON/OFF(1) cooktop/extractor. The indicator light will turn on to indicate that the cooktop/extractor is ready for use

Note: This function has priority over the others.

Touch (press) the Selection bar (6) to activate the extractor fan.

• Extraction speed (power):

- Touch and slide your fingers along the Selection bar (6):

to the right to increase the extraction speed (power) (0-4);

to the left to decrease the extraction speed (power) (4-0);

Activation/Regulation of the extractor fan Timer function

- Select the extractor (speed other than 0).

- Press (8a) and (8b) to access the Timer function (from any speed)

- Set the duration of the Timer:

press the selector (8b) to increase the automatic switch-off time; press the selector (8a) to decrease the automatic switch-off time; the display (15) will show the countdown,

Note: on the side of the extractor fan display, when the Timer is in use, the symbol (19) is displayed

When the timer has completed the countdown an acoustic signal sounds (for 2 minutes, or stops by pressing any cooktop key), while the display (15) flashes with the symbol 0.00

Switching off the Timer:

- select the cooking zone

- set the Timer to using (8a)

Note: the function remains active if no other key is pressed in the meantime.

- Filter saturation indicator

The hood indicates when filter maintenance is needed:

- Grease filter: the LED (17) lights up

- Activated carbon odour filter: the LED (17) flashes

Reset filter saturation

After filter maintenance (grease and/or activated carbon), press and hold the key (18): the LED (17) will turn off, resetting the indicator.

Activation of activated carbon odour filter saturation indicator

Note: This indicator is normally deactivated.

- switch on the extractor by pressing ON/OFF(1)

- with the extraction motor and the cooking zones off, press and hold (18)

- the LED (17) over the button will turn on, then turn off, to indicate that it has been activated.

Deactivation of activated carbon odour filter saturation indicator

- repeat the operation described above for activation;

- the LED (17) will flash, then turn off, to indicate that it has been deactivated.

- Automatic mode

The hood will turn on at the most suitable speed, adapting the extraction capacity to the maximum cooking level used in the cooking zone.

When the cooktop is switched off, the hood adapts its extraction speed, gradually decreasing it, in order to eliminate any residual steam and odours.

Automatic mode activation:

Press (7) briefly: the LED (18) will light up to indicate that the hood is working in this mode.

Cleaning and maintenance

COOKTOP MANITENANCE

⚠ WARNING: Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

- Cleaning

The cooktop must be cleaned after each use.

IMPORTANT: Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass. Do not use chemical irritants, such as oven sprays or stain removers.

After each use, leave the cooktop to cool and clean it to remove deposits and stains caused by food residue.

Sugar or food with a high sugar content damages the cooktop and must be immediately removed.

Salt, sugar and sand may scratch the glass surface.

Use a soft cloth, paper towel or specific products to clean the cooktop (follow the Manufacturer's instructions).

DO NOT USE STEAM JET CLEANERS!

IMPORTANT: If liquids accidentally or excessively leak out of the pots, the drain valve (red plug) located on the lower part of the product can be opened so as to remove any residue and be able to clean in conditions of maximum hygiene.

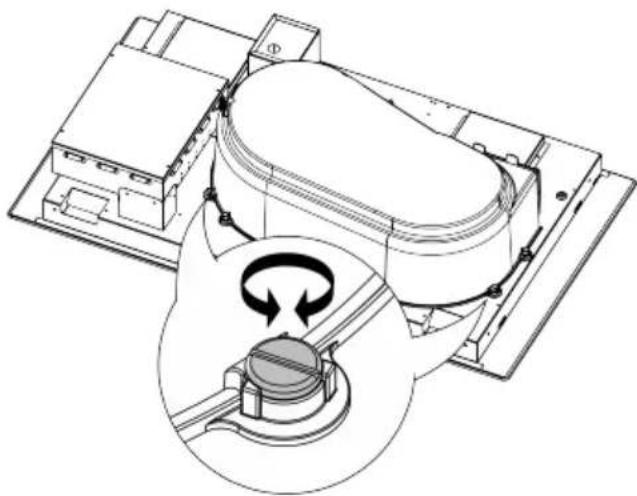

For a more complete and thorough cleaning, the lower tray can be completely removed by unscrewing the two pins with a tool. see figure.

Technical diagram of a mechanical assembly with a circular component and rotating motion arrows (no text or symbols)

For cleaning, use ONLY a cloth moistened with neutral liquid detergents.

DO NOT USE CLEANING UTENSILS OR TOOLS!

Avoid the use of products containing abrasives.

DO NOT USE ALCOHOL!

- Grease Filter

Traps grease particles generated by cooking. Must be cleaned once per month (or when the filter saturation indication system indicates this need), with non-aggressive detergents, either manually or in the dishwasher at a low temperature and in a short cycle.

When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

Technical data

Type of product Downdraft cooktop
Model FÖRNEBO
Dimensions	Width in (mm) 36		^1/32 " (915mm)
	Depth in (mm) 20		^9/32 " (515mm)
	Height in (mm) 8		^15/32 " (215mm)
Tension V			120/240 - 3 Wires120/208 - 3 Wires
Frequency Hz 60 | 60
Power W 7400 | 420
Current A 32
Energy Consumption	On Hold Wh -
	In Operation	Wh	ECTE = 529.6
Product Weight		lb(Kg)	64,1 (29,1kg)

The technical information is situated in the rating plate on the internal side of the appliance.

Technical diagram of a microwave oven with labeled certification and product information panel

What to do if ...

INFORMATION CODE	DESCRIPTION POSSIBLE	CAUSES SOLUTION
E2	The command zone switches off due to an excessively high temperature	The temperature inside the electronic parts is too high	Wait for the cooktop to cool before reusing it
ERR03+acoustic signal	Continuous (permanent) key activation is detected. The interface switches off after 10 seconds.	Water, pots or kitchen tools are on top of the user interface.	Clean the surface, remove any objects from the surface.
For all other error signals(E ... U ...)	Call customer service and report the error code

Before contacting the Authorized Service Center, switch the appliance on again to see if the problem has disappeared. If not, switch it off again and repeat the operation after an hour.

- If your appliance still does not work properly after carrying out the checks listed in the What to do if... guide and switching the

appliance on again, contact the Authorized Service Center, clearly explaining the problem and specifying:

• the type of fault;
• the model;
• the type and serial number of the appliance (given on the rating plate)

Environmental concerns

Disposal of packing

The various parts of the packing must be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could other-wise be caused by inappropriate waste handling of this product. His product should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment. Scrapping of household appliances.

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.
• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

Energy saving tips

• Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

IKEA Limited guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN or TILLREDA in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA "Service Provider" will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date

of purchase from IKEA. This guarantee applies to domestic use only. Some exceptions not guaranteed are specified under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault (e.g., repairs, parts, labour and travel) will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole

discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnor-mal environmental conditions.

- Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

• Repairs not carried out by our appointed service providers and or an authorized service contractual partner or where non original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

How country law applies

IKEA guarantee gives you specific legal rights, and you may also have other rights which vary from state to state or jurisdiction to jurisdiction. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in United States or Canada, or moved to one of the mentioned countries, the services will be provided in the framework of the guarantee conditions normal in the specified country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

the technical specifications of the country in which the guarantee claim is made; the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;
• ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;

- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service

The IKEA after sales customer service center will assist you on the phone with basic trouble-shooting for your appliances at the time of service call request.

Please refer to www.IKEA.com and select your local store for local store phone numbers and opening times.

i Please also always refer to the IKEA article number (8 digit code) placed on the rating plate of your appliance.

i SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store.

We recommend you read the appliance documentation carefully before contacting us.

Index

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

Installation et raccordement

A B C D E G F H I

A B E G F H C D I

Illustration of cooking pots including a pan, lid, and pan with a crossed-out X symbol (no text or labels)

Two cooking panes with handles and a crossed-out mark symbol (no text or labels)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Technical diagram of a mechanical assembly with a circular component and rotating mechanism (no text or symbols)

ENTRETIEN DU VENTILATEUR EXTRACTEUR

- Nettoyage

Technical diagram of a microwave oven with labeled certification and product information panel

Que faire si ...

* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575

A B C D E G F H I

A B E G F H C D I

Illustration of cooking utensils including a pan, lid, and pan with a crossed-out X symbol (no text or labels)

Two cooking panes with handles and a crossed-out mark symbol (no text or labels)

Illustration of a frying pan and a cooking pan with a checkmark (no text or symbols)

Technical diagram of a mechanical assembly with a circular component and rotating mechanism (no text or symbols)

MANTENIMIENTO DEL EXTRACTOR

- Limpieza

Technical diagram of a microwave oven with labeled certification and product information panel

Qué hacer si...
