Product Type	Built-in induction hob
Brand	IKEA
Model	GRUNDAD
Number of Cooking Zones	4 induction zones
Zone Diameters	Left front: 18.0 cm, Left rear: 14.5 cm, Right front: 14.5 cm, Right rear: 18.0 cm
Power per Zone	Left front: 1800 W, Left rear: 1200 W, Right front: 1800 W, Right rear: 1200 W
Total Power	6.0 kW
Electrical Connection	220-240 V, 50-60 Hz; single-phase or two-phase; requires appropriate mains cable
Dimensions (W x D x H)	590 mm x 520 mm x 55 mm (nominal height)

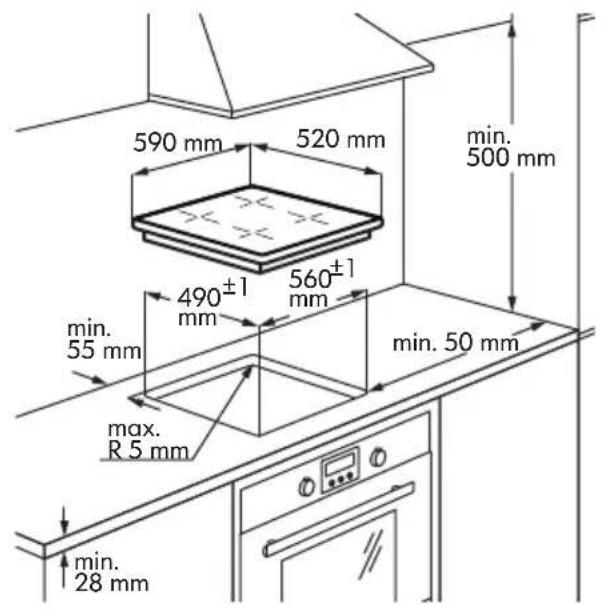

Cutout Dimensions (W x D)	560 mm x 490 mm (with tolerance ±1 mm)
Weight	Approx. 10 kg
Control Type	Touch sensor with digital display
Key Functions	Automatic switch-off, lock/cleaning mode, child lock, residual heat indicator, OffSound control
Safety Features	Child lock, automatic shut-off, residual heat indicator, pan detection
Suitable Cookware	Ferromagnetic materials (cast iron, enamelled steel, carbon steel, stainless steel, aluminium with ferromagnetic coating)
Minimum Cookware Diameter	Left front: 145-180 mm, Left rear: 125-145 mm, Right front: 145-180 mm, Right rear: 125-145 mm
Cleaning Instructions	Use damp cloth with neutral detergent; avoid abrasive, steam cleaners, or high-pressure cleaners
Guarantee	5 years from purchase date for domestic use

Frequently Asked Questions - GRUNDAD IKEA

How do I switch the hob on and off?

Touch the On/Off sensor for 1 second to switch on or off. If no zone is used within 10 seconds, it switches off automatically.

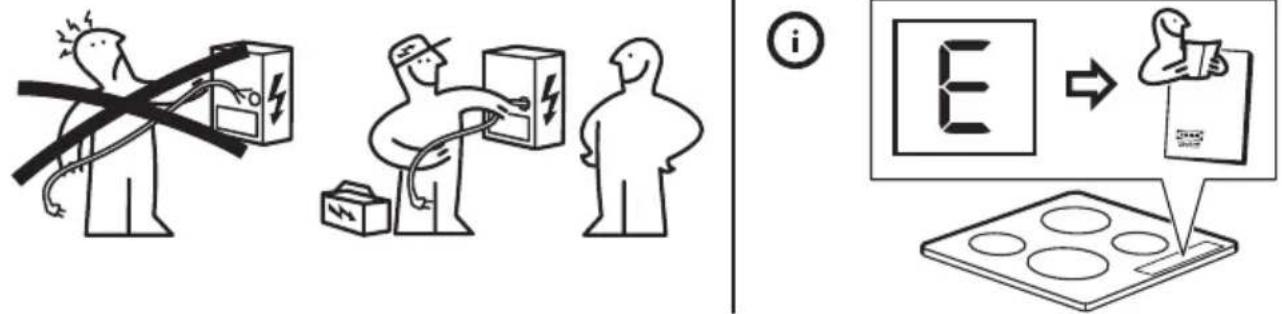

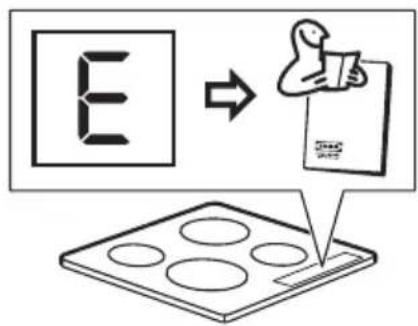

What should I do if the display shows 'E' and a number?

This indicates an error. Disconnect the hob from the electrical supply for a short time (e.g., via the fuse). Reconnect. If the error persists, contact an authorized installer or IKEA After Sales Service.

How do I activate the Child Lock?

Switch the hob on (but do not set a power level). Touch the Lock/Child Lock sensor for 4 seconds until the symbol appears. Switch off with the On/Off sensor. To deactivate, repeat the process.

Can I use aluminium cookware on the induction hob?

Only if it has a ferromagnetic coating or a ferromagnetic plate on the bottom. Standard aluminium may not work. Check for the induction symbol or use a magnet to test.

Why is the residual heat indicator not showing?

The cooking zone may have been on for only a short time and is not hot. If you believe it is hot and the indicator is off, stop using the hob and contact an authorized service provider.

How do I clean the glass surface?

Allow the hob to cool completely. Use a damp cloth with mild dish soap. For stubborn residues (sugar, plastic), use a dedicated glass ceramic scraper. Avoid abrasive cleaners and steam cleaners.

What does the 'L' symbol mean?

'L' indicates that the Lock or Child Lock function is active. The control panel is locked except for the On/Off button. To unlock, touch the Lock sensor for 4 seconds.

Why does the hob make a humming noise during use?

This is normal for induction hobs due to electromagnetic fields. The noise can vary with cookware. Using thicker-bottomed pots may reduce it. It does not affect performance or lifespan.

How can I save energy while cooking?

Use lids on pots, choose the correct zone size for your cookware, and use the residual heat to keep food warm or melt butter. Only heat the amount of water you need.

What is covered under the IKEA guarantee?

The 5-year guarantee covers faults due to faulty construction or materials for domestic use. It includes repair or replacement by IKEA service providers. Normal wear, accidental damage, and incorrect installation are not covered.

USER MANUAL GRUNDAD IKEA

Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.

DEUTSCH

Safety information 4	Care and cleaning 15
Safety instructions 6	Troubleshooting 16
Installation 8	Technical data 17
Electrical connection 9	Energy efficiency 17
Product description 11	Environmental concerns	18
Daily use 12	IKEA guarantee	18
Cooking table 14
Cookware guidance 14

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts may become hot during use.

• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the electrical supply before maintenance.
• Do not use a steam cleaner to clean the appliance.

• After use, switch off the hob element by its control and do not rely on the pan detector.

• If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.

• If the supply cord is damaged, it must be replaced by the manufacturer, the Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Safety instructions

Installation

Warning! The appliance must be installed by the authorised installer.

Follow the Assembly instructions supplied with the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Keep the minimum distance from other appliances and units.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware falling from the appliance when the door or the window is opened.

• Make sure that the space underneath the hob is sufficient for air circulation.

• The bottom of the appliance can get hot. If the appliance is installed above the drawers, make sure to install a non-combustible separation panel under the appliances to prevent access to the bottom.

Electrical Connection

Warning! Risk of fire and electric shock.

• All electrical connections should be made by the authorised installer.
  • The appliance must be earthed.
• Before carrying out any operation make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity

mains cable or plug (if applicable) can make the terminal become too hot.

• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns and electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use.

• This appliance is for household use only.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• Users with a pacemaker must keep a distance of minimum 30 cm from the induction cooking zones when the appliance is in operation.
• When you place food into hot oil, it may splash.

Warning! Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
  • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

ENGLISH 8

• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Care and cleaning

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Switch off the appliance and let it cool down before cleaning.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not

use abrasive products, abrasive cleaning pads, solvents or metal objects.

Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

Installation

Warning! Refer to Safety chapters.

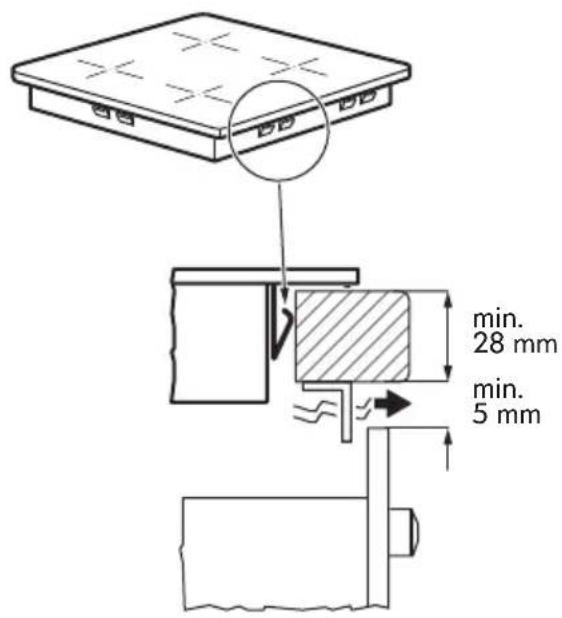

General information

i Installation process must follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!

- For further information on the installation refer to the Assembly Instruction.

• If there is no oven beneath the hob, install a separation panel under the appliance according to the Assembly Instruction.
• Do not use silicon sealant between the appliance and the worktop.

Electrical connection

Warning! Refer to Safety chapters.

Warning! All electrical connections must be made by an authorised installer.

Electrical connection

- Before connecting, check if the nominal voltage of the appliance, provided on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob.

• Follow the connection diagram (it is located on the underneath surface of the casing of the hob).
• Use only original spare parts provided by spare parts service.
• The appliance is not provided with a mains cable. Buy the right one from a specialized dealer. Single phase or two-phase connection requires a mains cable of minimum 70°C temperature stability. Cable needs mandatory end sleeves. According to IEC regulations use for one-phase connection: mains cable 3 x 4mm ^2 and for two-phase connection: mains

cable 4 x 2.5mm ^2 . Please respect specific national regulations in the first priority.

• You must have the means for disconnection incorporated in the fixed wiring.
• You must have the connection and the connecting links carried out as shown in the connection diagram.

• The earth lead is connected to terminal and must be longer than leads carrying electric current.
- Secure the connecting cable with cable clips or clamps.

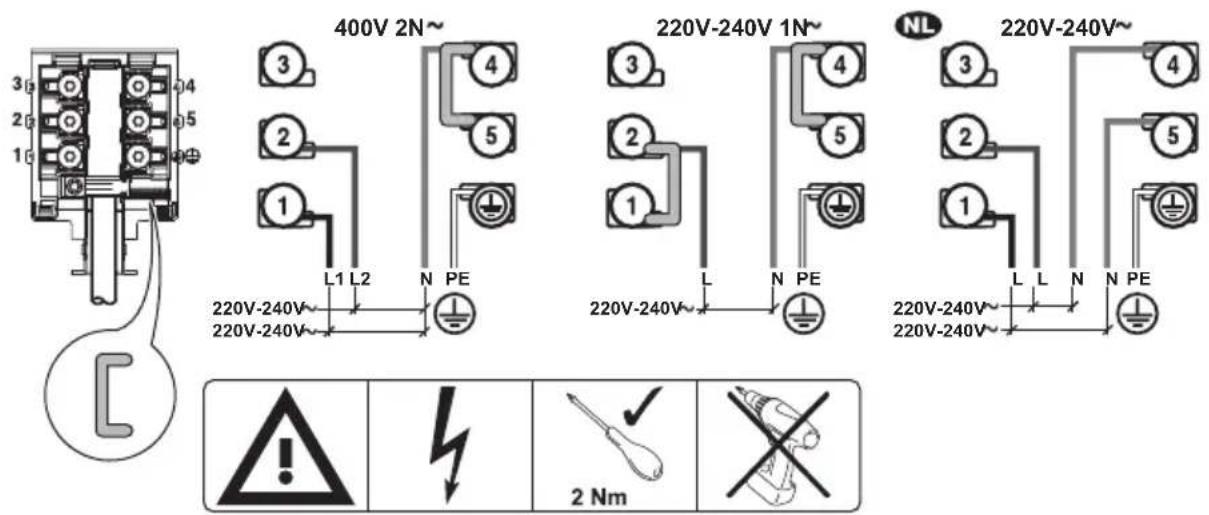

Connection diagram

Insert the shunts between the screws as shown.

Main power connection 1-phase

Main power connection 2-phase

NL Main power connection 2-phase

Wiring colours: Wiring colours: Wiring colours:

N Blue

L

Yellow / green Yellow / green Yellow / green

N Blue

Black or brown

L1

L2

N

Black

Brown

Blue

N

L

L

Blue

Black

Brown

Tighten the terminal screws securely!

Once you connect the hob to the mains, check if all the cooking zones are ready to use. Place a pot with some water on a

ENGLISH 11

cooking zone and set the power setting for each zone to the maximum level for a short time.

If for symbol comes on the display after you switch on the hob for the first time, refer to "Troubleshooting".

Product description

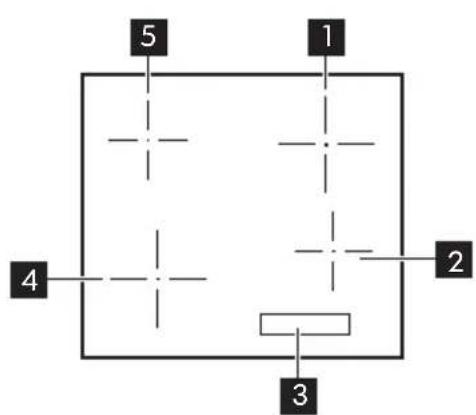

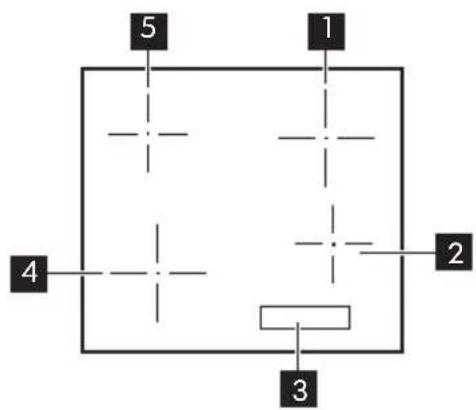

Cooking surface layout

1 Single cooking zone (180 mm) 1800 W
2 Single cooking zone (145 mm) 1200 W
3 Control panel
4 Single cooking zone (180 mm) 1800 W
5 Single cooking zone (145 mm) 1200 W

Control panel layout

1 ① To switch the appliance on / off.
2 To activate and deactivate Lock / Child Lock / Cleaning mode.
3 To select the cooking zone.

1. Power setting display: 0-1 9
   5 + /To increase or decrease the power setting.

Power setting displays

Display Description
0	The cooking zone is deactivated.
1 - 9	The cooking zone operates.
E + digit	There is a malfunction. Refer to "Troubleshooting".
H	A cooking zone is still hot (residual heat).
L	Lock / Child Lock / Cleaning mode operates.
F	Incorrect or too small cookware or no cookware on the cooking zone.
-	Automatic Switch Off operates.

Residual heat indicator

Warning! There is a risk of burns from residual heat.

The indicators show the level of the residual heat for the cooking zones you are currently using. The indicators may also come on for

the neighbouring cooking zones even if you are not using them.

The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware. The glass ceramic is heated by the heat of the cookware.

Daily use

① Switching on / off

Touch for 1 second to switch the appliance on / off.

Automatic Switch Off

The function switches off the appliance automatically if:

• all cooking zones are deactivated.
• you do not set the power setting after switching on the appliance.
• you cover any symbol with an object (a pan, a cloth, etc.) for longer than approx. 10 seconds.
• you do not deactivate a cooking zone after a certain time, or you do not modify the power setting, or if overheating occurs (e.g. when a pan boils dry). The

symbol lights up. Before using again, you must set the cooking zone to

Power setting Automatic switch off after
1 - 2	6 hours
3 - 4	5 hours
5	4 hours
6 - 9	1.5 hours

If cookware that is not suitable is used, lights up on the display and after 2 minutes the indicator for the cooking zone deactivates.

Adjusting the power setting

To set the cooking zone touch the sensor field □related to this zone. The display highlights the heat setting indication (☐)

Touch to increase the heat setting.

Touch to decrease the heat setting.

Touch and at the same time to deactivate the cooking zone.

Lock / Cleaning mode

You can lock the control panel and keep the cooking zones operating. It prevents an accidental change of the power setting.

Use the function to clean the surface of the hob during the cooking session, if needed.

First set the power setting.

To start the function touch ☐. The symbol ⏻ comes on for 4 seconds.

To stop the function touch ☐The power setting that you set before comes on.

When you switch off the appliance, you also stop this function.

Child Lock

This function prevents an accidental operation of the appliance.

To activate the function:

• Switch on the appliance with . Do not set the power settings.
• Touch 📋 for 4 seconds. The symbol 📁 comes on.
• Switch off the appliance with . ①

To deactivate the function:

- Switch on the appliance with . Do not set the power settings. Touch for 4 seconds. The symbol 📄 comes on.

- Switch off the appliance with ①

To override the function for only one cooking time:

• Switch on the appliance with . The symbol comes on.
• Touch for 4 seconds. Set the power setting in 10 seconds. You can operate the appliance.
• When you switch off the appliance with ①, the function operates again.

OffSound Control (Deactivation and activation of the sounds)

Originally the sounds of the appliance are activated.

Activating and deactivating the sounds:

1. Switch off the appliance.
2. Touch ① for 3 seconds. The display comes on and goes out.

3. Touch ☐ for 3 seconds. On the left front zone display ⓑ comes on and on the right front zone display or comes on.

4. Touch of the rear right zone to choose one of the following:

5. on the right front zone display - the sounds are off.

6. on the right front zone display - the sounds are on.

To confirm your selection wait for 10 seconds until the appliance switches off automatically.

When the function is set to ☐ you can hear the sounds only when:

• you touch . ①
• you put something on the control panel.

If there is a problem with electrical supply and the appliance switches off it does not keep previous settings.

Cooking table

Heat setting Use to: Time		(min)	Hints
1 Keep cooked food warm. as necessary		essary	Put a lid on the cookware.
1 - 2 Hollandaise	sauce, melt: butter, chocolate, gelatine.	5 - 25 Mix	from time to time.
1 - 2 Solidify: fluffy omelettes, baked eggs.		10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes, heat up ready-cooked meals.		25 - 50 A	d at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
3 - 4 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. ¼ l of water for 750 g			of potatoes.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150 U	p to 3 l of liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cor-don bleu, cutlets, rissoles, saus-ages, liver, roux, eggs, pan-cakes, doughnuts.		as necessary	Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks, steaks.		5 - 15 Turn	halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.

The data in the table is for guidance only.

Cookware guidance

Warning! Refer to Safety chapters.

What pots to use

Only use cookware which is suitable for induction hobs. The cookware must be made of a ferromagnetic material, such as:

• cast iron;

• enamelled steel;

• carbon steel;

• stainless steel (most types);
• aluminium with ferromagnetic coating or a ferromagnetic plate.
  To determine if a pot or pan is suitable, check for the symbol 📄 (usually stamped on the bottom of the cookware). You can also hold a magnet to the bottom. If it clings to the underside, the cookware will work on the induction hob.

To ensure optimum efficiency, always use pots and pans with a flat bottom that distributes the heat evenly. If the bottom is uneven, this will affect power and heat conduction.

How to use

Minimum diameter of pot / pan base for the different cooking areas

To ensure that the hob operates properly, the cookware must have a suitable minimum diameter as well as cover one or more of the reference points indicated on the surface of the hob.

Always use the cooking zone that best corresponds to the diameter of the bottom of the cookware.

Cooking zone

Cookware diameter [mm]

Left rear 125 - 145

Left front 145 - 180

Right rear 145 - 180

Right front 125 - 145

Empty or thin-based pots / pans

Do not use empty pots / pans or cookware with thin bases on the hob as it will not be able to monitor the temperature, or will turn off automatically if the temperature is too high. This may result in the damage of the cookware or the hob surface. If such a situation occurs, do not touch anything and wait for all components to cool down.

If an error message appears, refer to "Troubleshooting".

Hints / tips

Noises during cooking

When a cooking zone is active, it may hum briefly. This is characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance. The noise depends on the cookware used. If it causes considerable disturbance, it might help to change the cookware.

Care and cleaning

General information

Warning! Switch off the appliance and let it cool down before you clean it.
Warning! For safety reasons, do not clean the appliance with steam blasters or high-pressure cleaners.

Warning! Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and dish soap after each use. Remove also the remnants of the cleaning agents.
i Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance.

Removing the residues and stubborn residues

Food containing sugar, plastics, or tin foil residues should be removed at once. A scraper is the best tool for cleaning the glass surface. It is not supplied with the appliance. Place a scraper on the hob surface at an angle and remove residues by sliding the blade over the surface. Clean the appliance

using a damp cloth and some dish soap. Finally, wipe the glass surface dry with a clean cloth.

Limescale rings, water rings, fat splashes, or shiny metallic discolourations should be removed after the appliance has cooled down. Use only a specialised cleaner for glass ceramic or stainless steel.

Troubleshooting

Warning! Refer to Safety chapters.

What to do if...

Problem Possible cause Remedy
You cannot switch on the appliance or operate it.	The appliance is not connected to an electrical supply or it is connected incorrectly.	Check if the appliance is correctly connected to the electrical supply. Ensure a correct installation by calling an authorised installer.
	More than 10 seconds passed since you switched on the appliance.	Switch on the appliance again.
	Child Lock or Lock is on [L]	Deactivate Child Lock. Refer to "Child Lock" or "Lock".
	Several symbols on the control panel were touched at the same time.	Touch only one symbol at a time.
	There is water or fat stains on the control panel.	Clean the control panel and wait for a few seconds before switching on again.
Residual heat indicator is not displaying anything.	The cooking zone was only on for a short time and is therefore not hot.	If the cooking zone is supposed to be hot, call the After Sales Service.
There is no signal when you touch panel symbols.	The signals are deactivated.	Activate the signals. Refer to "OffSound Control".
E and a number come on.	There is an error in the hob.	Disconnect the hob from the electrical supply for some time.Disconnect the fuse from the electrical system of the house.Connect it again. If E comes on again, speak to an authorised installer.

If there is a fault, try to resolve it by following the troubleshooting guidelines.

If the problem cannot be resolved, contact your IKEA store or the After Sales Service. You can find a full list of IKEA appointed contacts at the end of this user manual.

If you operated the appliance wrongly, or the installation was not carried out by an authorised installer, the visit from the After Sales Service technician or dealer may not take place free of charge, even during the warranty period.

Technical data

Rating Plate

Country of origin

© Inter IKEA Systems B.V. 1999

21552

IKEA of Sweden AB SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

Model 00000000

Typ 60 GAD DC AU 6.0kW

PNC 000 000 000 00 S No .... 220V-240V AC 50-60 Hz

230 V DGT

The graphic above serves to represent the rating plate of the appliance. The actual rating plate is located on the bottom of the casing. The serial number is specific to each product.

Dear Customer, keep the additional rating plate with the user manual. This will allow us

to assist you better by identifying precisely your hob, in case you need our assistance in the future. Thank you for your help!

Energy efficiency

Product information according to EU 66/2014 valid for EU market only

Model identification GRUNDAD	404-670-82
Type of hob Built-In Hob
Number of cooking zones 4

Heating technology Induction
Diameter of circular cooking zones (∅)	Left frontLeft rearRight frontRight rear	18.0 cm14.5 cm14.5 cm18.0 cm
Energy consumption per cooking zone (EC electric cooking)	Left frontLeft rearRight frontRight rear	183.8 Wh / kg180.1 Wh / kg181.0 Wh / kg183.8 Wh / kg
Energy consumption of the hob (EC electric hob)	182.2 Wh / kg

EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

Energy saving

You can save energy during everyday cooking if you follow below hints.

- When you heat up water, use only the amount you need.

• If it is possible, always put the lids on the cookware.
• Before you activate the cooking zone put the cookware on it.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

Environmental concerns

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

IKEA guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for 5 years from the original date of purchase of your appliance at IKEA. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not

covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

- Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician's visit.
• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
  • Repairs caused by installation which is faulty or not according to specification.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.
• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the

guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
  • the Assembly Instructions and User Manual Safety Information;

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guarantee;
2. ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:
   • the overall IKEA kitchen installation;

3. connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

4. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if you need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

In order to provide you with a quicker service, we recommend that you use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Before calling us, assure that you have to hand the IKEA article number (8 digit code) and the Serial Number (8 digit code that can be found on the rating plate) for the appliance of which you need our assistance.

i SAVE THE SALES RECEIPT! It is your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhaltsverzeichnis

Simple line drawing of a person with a lightning bolt symbol crossed by two crossed lines (no text or labels)

Illustration of two figures, one holding a battery and the other standing beside it (no text or symbols present)

Gerätebeschreibung

Kochfeldanordnung

© Inter IKEA Systems B.V. 1999

000.000.00

21552

IKEA of Sweden AB SE - 343 81 Älmhult

Design and Quality IKEA of Sweden

POM

Model 00000000

Typ 60 GAD DC AU 6.0kW

PNC 000 000 000 00 S No 220V-240V AC 50-60 Hz

230 V DGT

Abstract pattern of black horizontal lines on white background (no text or symbols)
