302616 - Interface CSL - Free user manual and instructions

Product Type	ExpressCard USB 3.0 Interface
Brand	CSL
Model	302616
Connectivity	3x USB 3.0 Type-A Female, 1x ExpressCard 54 mm
Chipset	FRESCO Logic FL1100
Installation Width	54 mm
Power Supply	Powered via ExpressCard bus
Package Contents	ExpressCard USB 3.0, Driver CD, User Manual
Supported Operating Systems	Windows (drivers included)
Main Features	Adds 3 USB 3.0 ports via an ExpressCard slot
Installation	Insert into ExpressCard slot, correct orientation required
Driver Installation	Run FLUSB3.0-3.5.18.0.exe from the CD
Maintenance and Cleaning	Protect from moisture, water, snow, and high temperatures
Safety	Do not open, do not short-circuit, use in dry indoor environment
Recycling	Do not dispose of with household waste, follow the WEEE directive
Certification	Compliant with directive 1999/5/EC (Declaration available upon request)

Frequently Asked Questions - 302616 CSL

How to install the ExpressCard USB 3.0 interface?

Turn off the computer and unplug it. Insert the card into the ExpressCard slot, respecting the orientation. The slot may have a lock, make sure it is unlocked. Plug the computer back in and turn it on.

How to install the drivers for the interface?

Insert the driver CD into the drive. Run the file FLUSB3.0-3.5.18.0.exe by double-clicking. Follow the on-screen instructions: click 'Continue', accept the license, choose the installation path, then 'Install'. Finish by clicking 'Finish'.

Which operating systems are compatible?

The provided drivers are designed for Windows. Installation is done via an executable file. For other systems, please check the manufacturer's website.

Can I use this card on a desktop computer?

Yes, if your desktop computer has an ExpressCard slot (often available on towers). Otherwise, check for an adapter.

How many USB 3.0 ports are added?

The interface adds 3 USB 3.0 Type-A female ports to your computer.

What is the maximum speed of the USB 3.0 ports?

The FRESCO Logic FL1100 chipset supports USB 3.0 standard with a theoretical throughput of up to 5 Gbps (SuperSpeed). Actual performance depends on connected devices.

Does the interface require an external power supply?

No, it is powered directly by the ExpressCard bus. No external power supply is needed.

What to do if the computer does not detect the card?

Check that the card is correctly inserted and that the slot is not locked. Restart the computer. If the issue persists, reinstall the drivers by running the installation file again.

Can I use this card with USB 2.0 devices?

Yes, the USB 3.0 ports are backward compatible with USB 2.0 and USB 1.1 devices. They will operate at the lower speed.

How to recycle this product at end of life?

Do not dispose of it with household waste. In accordance with the WEEE directive, take it free of charge to a collection point, the seller, or the manufacturer. The WEEE registration number is 94495668.

USER MANUAL 302616 CSL

USB 3.0 Express Card, 3 Port, Type A, 54mm

Please read the following license agreement carefully.

These license terms are an agreement between Fresco Logic and you. Please read them. They apply to the software named above, which includes the media on which you received it, if any, and to any automatic updates to the software.

By using the software, you accept these terms. If you do not accept them, do not use the software.

If you comply with these license terms, you have the rights below.

1. INSTALLATION AND USE RIGHTS.

a. Use. You may install and/or use the software on any

Fresco Logic Inc.

Thank you for choosing a CSL product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• USB 3.0 ExpressCard
• Driver CD
• User manual

2 Technical data

Ports • 3x USB 3.0 Type A female• 1x Express Card

Chipset FRESCO Logic FL1100

Installation width 54 mm

3 Installation

Please disconnect your computer or notebook completely from the power supply before starting the installation of the ExpressCard. Do not touch the sensitive components on the card and in your computer or notebook.

Insert the ExpressCard into the corresponding slot on your computer or notebook. Make sure that the card is inserted correctly to avoid damaging the slot or the ExpressCard.

The ExpressCard is now ready to be used.

Note: Some ExpressCard slots have a locking system. Ensure that the slot is not blocked when installing.

4 Driver Installation

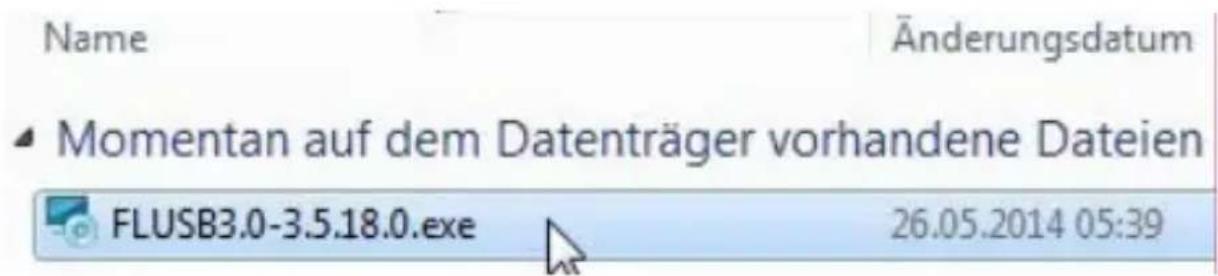

Insert the driver CD into the drive and open the contents of the driver CD. Then double-click "FLUSB3.0-3.5.18.0.exe" to start it.

Click "Next" in the following window. Then read the licence terms and press the "Yes" button once you have understood and accepted them.

FRESCO LOGIC XHCI DRIVER LICENSE TERMS

Please read the following license agreement carefully.

These license terms are an agreement between Fresco Logic and you. Please read them. They apply to the software named above, which includes the media on which you received it, if any, and to any automatic updates to the software.

By using the software, you accept these terms. If you do not accept them, do not use the software.

If you comply with these license terms, you have the rights below.

1. INSTALLATION AND USE RIGHTS.

a. Use. You may install and/or use the software on any

Fresco Logic Inc.

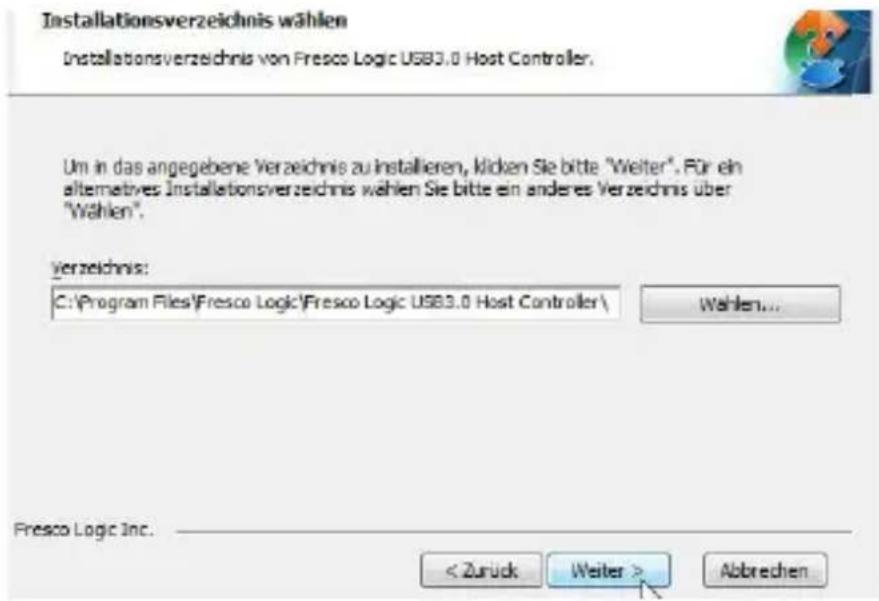

In the next window, select the desired installation path and confirm by pressing "Next".

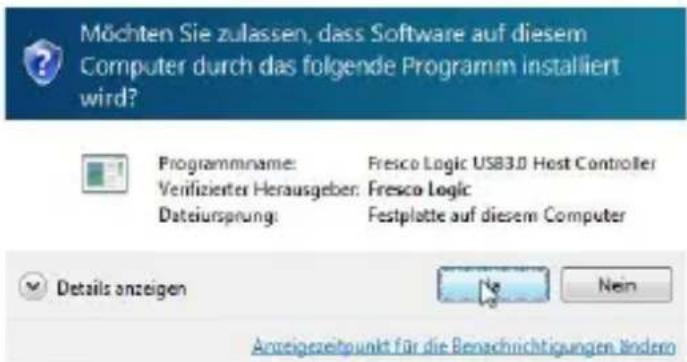

Click "Install" in the following window and confirm the security query by pressing "Yes" to proceed with the installation.

After the installation is complete, click the "Finish" button to stop the installation. The device is now ready to be used.

Please note!

5 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 302616/20161027SZ002 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co KG, Sokelantstraße 35, 30165 Hanover
