302607 - Power bank CSL - Free user manual and instructions

Product Type	Power bank with hand warmer function
Battery Capacity	2200mAh
Battery Type	1x 2200mAh type 18650
Charging Input	5V DC / 1A (microUSB)
Charging Output	5V / 1A (USB 2.0)
Heating Temperature	~50-55°C
Power Indicator	Green LED during charging; Red LED for hand warmer
Ports	1x microUSB input, 1x USB 2.0 output
Switch	ON/OFF button
Functions	Power bank for charging devices; Hand warmer
Scope of Delivery	Powerbank with hand warmer, MicroUSB cable, User manual
Safety	Do not open, short-circuit, or expose to moisture. Keep away from high temperatures.
Maintenance	Wipe with a dry cloth; do not use liquids.
Disposal	Dispose according to WEEE directive (2012/19/EU). Batteries separately.
Manufacturer	CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover, Germany
Model	302607

Frequently Asked Questions - 302607 CSL

How do I charge the power bank?

Use the microUSB input and a standard USB charger (5V/1A). The green LED lights during charging.

How do I use the hand warmer function?

Press the ON/OFF switch to turn on the power bank; the red LED indicates the hand warmer is active. The device heats up to about 55°C.

What devices can I charge with this power bank?

You can charge any device that charges via USB with up to 1A output.

How long does it take to fully charge the power bank?

With a 5V/1A charger, it takes approximately 2-3 hours.

Is the power bank waterproof?

No, it is not certified for outdoor use. Avoid high humidity, water, and snow.

Can I use the hand warmer and charge a device at the same time?

The manual does not specify simultaneous use; it is recommended to use one function at a time.

What is the battery capacity?

The battery capacity is 2200mAh.

How should I dispose of this product?

Dispose of it according to local regulations for electronic waste (WEEE). Batteries must be recycled separately.

What does the green LED mean?

The green LED indicates that the power bank is being charged.

Is the power bank safe to carry in a bag?

Yes, but ensure the switch is off and avoid contact with metal objects to prevent short-circuit.

USER MANUAL 302607 CSL

Thank you for choosing an CSL product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• Powerbank with hand warmer function
- MicroUSB cable
- User manual

2 Technical data

Charging voltage 5V DC / 1A

Output voltage 5V / 1A

Battery capacity 2200mAh

Type of battery 1x 2200mAh type 18650

Heat temperature ~50°C

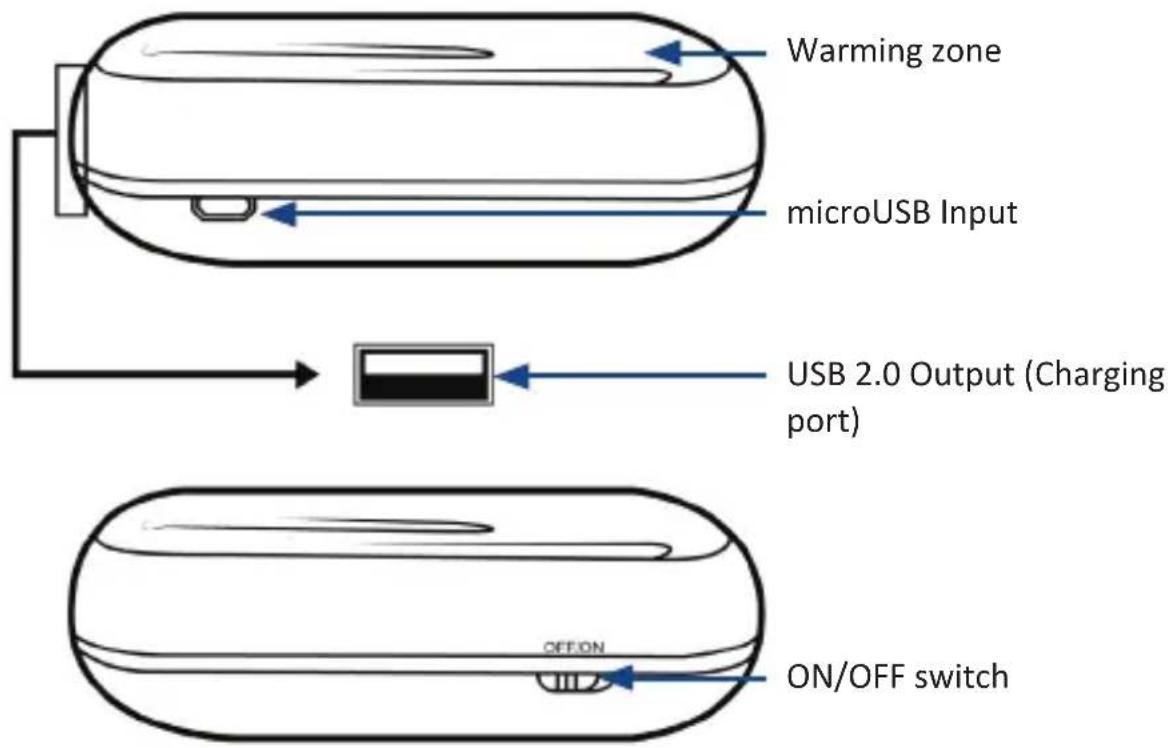

3 Product details

4 Commissioning

Take the device out of the package and remove all the packaging material. Charge the Powerbank fully before using it for the first time. Use the microUSB connection of the Powerbank (charging port) to charge it. During charging the status LED lights green.

For charging devices with the Powerbank, use the USB port (output) and connect the terminal device to be charged with the corresponding charging cable and the Powerbank. You can switch on or switch off the Powerbank by briefly pressing the "ON/OFF button".

5 Hand heater function

• To switch on the Powerbank, press the "ON/OFF button" to the position.
  On the underside, the status LED lights red. Now, the hand warmer heats up to 55^ C.
• To switch off the hand heater function, press the "ON/OFF button" to the position "OFF".

Note! Please note that the hand warmer function is used only for low ambient temperatures.

Attention!

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or

alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

8 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 302607/20161020SZ178 conforms to the principle requirements and other relevant stipulations of Directive. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover

Notes

CSL Computer GmbH & Co. KG • Sokelantstr. 35 • D 30165 Hannover
