305695 - Remote control Brandson - Free user manual and instructions

USER MANUAL 305695 Brandson

MON-FRI 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

https://downloads.ganzeinfach.de/

Garagentoröffner

Mod.-Nr.: 305695

Table of contents

1. Deutsch .... 3
2. English 8
3. Français ...... 13
4. Italiano 18
5. Español....23

Thank you for choosing an Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Garage door opener
• User manual
• 1x 12V A27 / LR27A

2. Technical data

Power supply One 12V A27
Frequency 433.92 MHz
Max. transmission power -19.51 dBm
Battery type LR27A, 12 V
Operating temperature -20°C to +60°C
Range	• about 50-80 meters in open, without obstacles• about 10-15 meters in the car
Compatible with	• EcoStar RSC 2• EcoStar RSE 2• EcoStar RSZ 1

3. Product details

Front side

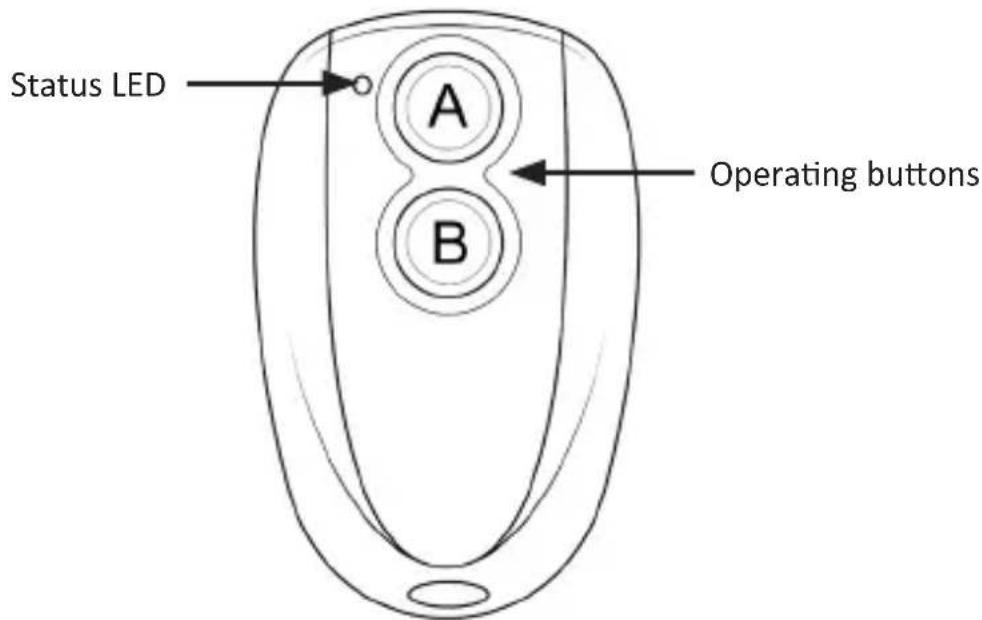

Status LED A B Operating buttons

Back side

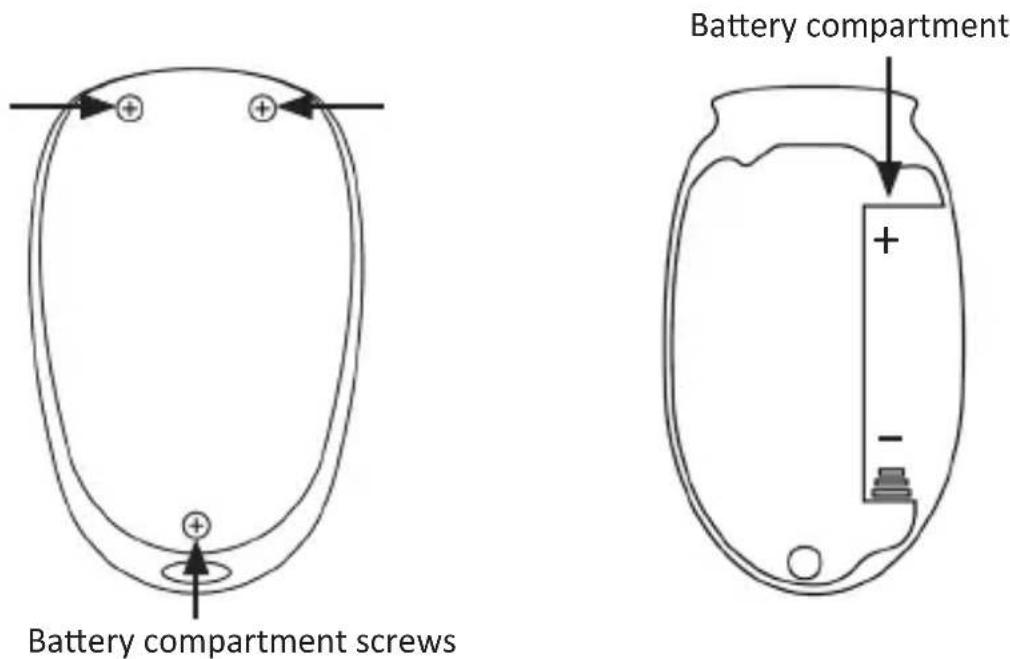

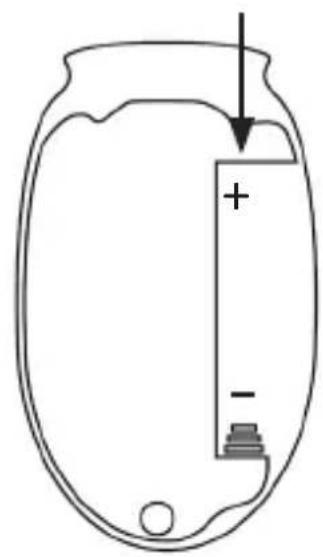

Battery compartment Battery compartment screws

4. Programming codes

1. Briefly press the "P button (program button/code button)" on the door drive. The LED on the drive starts flashing.

2. Briefly press the desired hand-held transmitter button on the Brandon remote control. Please press the button again within the next 10 seconds. Now the LED on the drive starts flashing quickly and soon goes off.

3. Then release the hand-held transmitter button. The LED on the drive glows continuously and the hand-held transmitter is programmed.

5. Replacing the battery

Unscrew the back of the device using a suitable screwdriver. Remove the empty battery and replace it with a 12V A27 battery. Always pay attention to the correct polarity of the battery.

6. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the device to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the device for damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please follow the national regulations and restrictions. Do not use the device for purposes other than those described in the manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void the warranty or warranty claims. The device should only be used by those who have read and understood this manual. The specifications of the product may be changed without any special prior notification.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

8. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305695 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; http://downloads.ganzeinfach.de/search/model/305695
