USER MANUAL Premier F 2 A DL DR L E GRAM

OPERATION, MAINTENANCE AND INSTALLATION MANUAL

	PAGES
EN: OPERATION, MAINTENANCE AND INSTALLATION MANUAL 1-26
FR: MANUEL D'UTILISATION, D'ENTRETIEN ET D'INSTALLATION	27-52
DE: BEDIENUNG-, WARTUNGS- UND MONTAGEANLEITUNG	53-78
ES: MANUAL DE OPERACIÓN, MANTENIMIENTO E INSTALACIÓN	79-104
NL: EXPLOITATIE- ONDERHOUD- EN INSTALLATIEHANDLEIDING	105-130
DA: BETJENINGS-, VEDLIGEHOLDELSES- OG INSTALLATIONS	131-156
IT: MANUALE D'USO, DI MANUTENZIONE E DI INSTALLAZIONE	157-182
SV: HANDBOK FÖR ANVÄNDNING, UNDERHÄLL OCH INSTALLATION	183-208
NO: DRIFTS-, VEDLIKEHOLDS- OG INSTALLASJONSHÄNDBOK	209-233

I. GENERAL INFORMATION	2
II. OPERATING INSTRUCTIONS	7
III. CONTROL PANEL	9
IV. MAINTENANCE INSTRUCTIONS	10
V. TECHNICAL INFORMATION	12

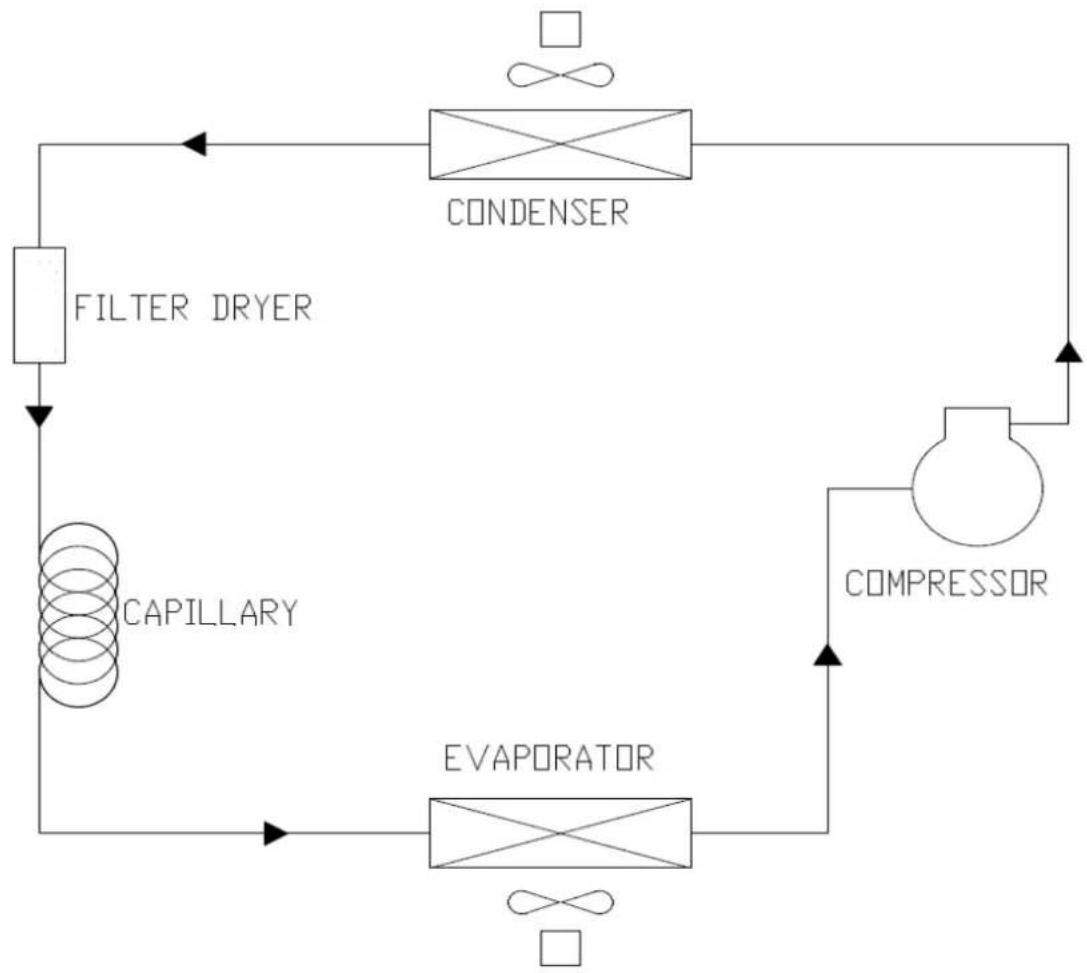

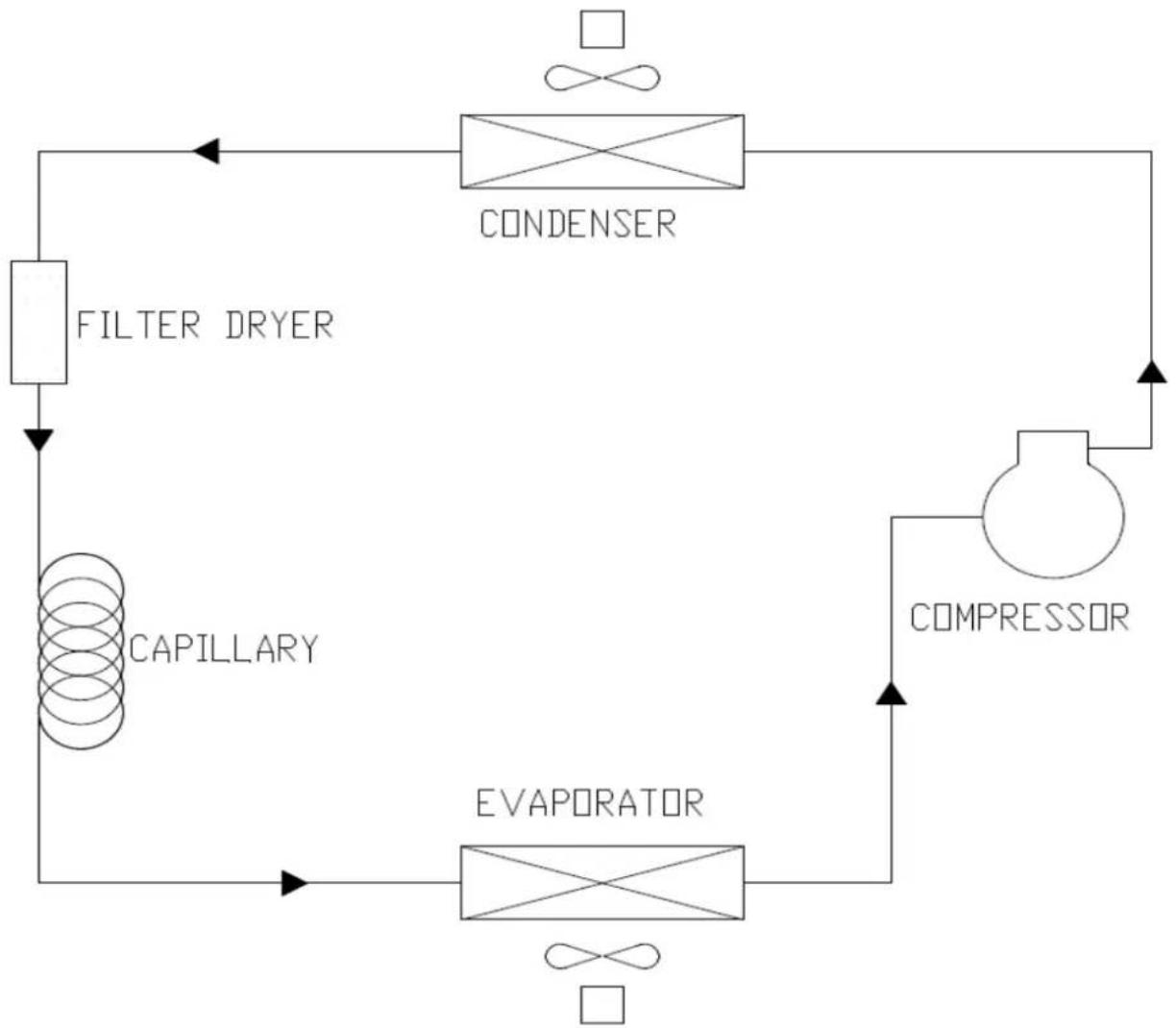

VI. COOLING DIAGRAM – ELECTRICAL WIRING DIAGRAM	21
VII. SERVICE DIAGNOSIS	23
VIII. REMOVAL AND REPLACEMENT	24

Contact Details:

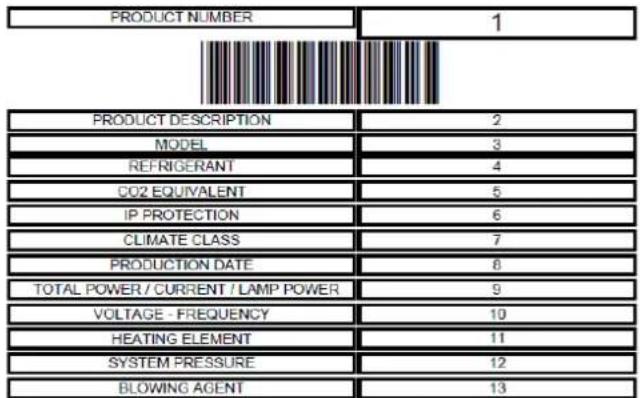

9 - Total power / Current / Lamp power

10 - Voltage - Frequency

11 - Heating Element

12 - System Pressure

13 - Blowing Agent

14 - Serial Number

PRODUCT NUMBER 1 PRODUCT DESCRIPTION 2 MODEL 3 REFRIGERANT 4 CO2 EQUIVALENT 5 IP PROTECTION 6 CLIMATE CLASS 7 PRODUCTION DATE 8 TOTAL POWER / CURRENT / LAMP POWER 9 VOLTAGE - FREQUENCY 10 HEATING ELEMENT 11 SYSTEM PRESSURE 12 BLOWING AGENT 13

S/N: 14

HOSHIZAKI EUROPE B.V. Burgemeester Stramanweg 101 1101 AA Amsterdam, The Netherlands

THE PURPOSE OF USAGE

- This product is suitable for use in indoor areas only and solely for the purpose of storing food and beverages. Storage units designed to maintain product already at refrigerator/freezer temperature.

- The manufacturer will not be held responsible for any damages arising because of usage contrary to stated guideline in this book.

- While storing food in this cabinet, it is necessary to ensure that food never meets the body of this cabinet.

- All foods must be completely covered. To avoid contamination and corrosion of internal components all products should be wrapped or stored in sealed containers.

- Do not store hot foods or liquids in this cabinet.

- Beverages stored in boxes and glass bottles should not be stored at temperatures below 0°C (freezing point). Cans and glass bottles may burst due to expansion. All containers with lids should not be filled completely: a small amount of space should be left for expansion.

- This cabinet is equipped with an automatic self-defrosting facility. It is also possible to perform manual defrosting. The manual defrosting does not involve turning the cabinet off for long periods but can be performed via the controller. Under nocircumstances should force or hand tools to be used to de-ice this cabinet, any damage arising from such action is difficult to repair.

- Do not employ any mechanical or alternative means of defrosting.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

• Children being supervised not to play with the appliance.

HOSHIZAKI PREMIER UNDERCOUNTER

• Cleaning and user maintenance shall not be made by children without supervision.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Any electrical or mechanical changes to this cabinet will void the warranty. Changes carried out by non-authorized service engineers and changes other than those described in this manual will also void the warranty. The manufacturer will not accept any responsibility for damages arising from such changes.

CLIMATE CLASS

The cabinet is designed to run within specific ambient temperature and humidity levels. These are set out in the climate class system. These levels are never to be exceeded. The climate class for this product can be found on the product description label. The refrigerator is not suitable for use in temperatures below 16 °C ambient temperature.

Climate Class	Ambient Temperatures and Humidity
4	+30°C with %55 RH
5	+40°C with %40 RH

FIRST ACCEPTANCE AND CONTROLS

This cabinet was packed in protective packaging material for shipping. On delivery, please check the cabinet for any possible transport damage and that the cabinet model is what you ordered.

IMPORTANT

All operations listed below must fully comply with all local bylaws and safety regulations. Observe all current safety rules when operating this product.

TRANSPORTING

When lifting the product using machinery, the lifting capacity of any machinery must be verified prior to undertaking any such procedures.

IMPORTANT

When using a fork truck to move the product, please ensure that the forks are inserted into the appropriate openings in the pallet.

Once moving, attention must be paid to the stability of the product. If the centre of gravity is not central to the product, which will make it prone to tip over. When lowering the product with a fork truck ensure this is done slowly and with care.

ATTENTION

Recommendations written on the outside of the transport packaging are for the user's benefit. Therefore the following recommendations should be observed:

- Carry the product carefully.

- Keep the product dry. Do not use the top of the cabinet for storage.

HOSHIZAKI

PREMIER UNDERCOUNTER

OPENING THE PACKAGING

• Remove the cardboard and any other packaging material.
• Lift the cabinet to disconnect and remove it from the pallet.
• Place the cabinet in the desired location, standing on its own base.

- Check for any visible damage. Packaging materials can be recycled according to local recycling regulations.

- Verify that the product code and serial number match the same on any shipping documents.

Trademark			HOSHIZAKI
Model name			PREMIER F 2 A DL DR	PREMIER K/M 2 A DL DR	PREMIER K/M 2 A 2D 2D	PREMIER K/M 2 A 3D 3D
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature				X	X	X
Frozen operating temperature			X
Multiuse cabinet
Vertical cabinet
Counter cabinet			X	X	X	X
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	C	A+	A	A
Energy Efficiency Index	EEI	-	40,26	13,9	17,42	17,85
24 hours Energy Consumption	E24h	kWh	3,862	0,869	1,069	1,069
Annual Energy Consumption	AEC	kWh	1410	317	390	390
Net volume for compartment 1	Vn1	litre	96	96	88	77,5
Net volume for compartment 2	Vn2	litre	96	96	88	77,5
Net volume for compartment 3	Vn3	litre	-	-	-	-
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	192	192	176	155
Climate Class	CC		5	5	5	5
Refrigerant			R290	R600a	R600a	R600a
Charge		kg	0.055	0.07	0.07	0.07
GWP			3	3	3	3
CO2 Equivalent		CO_2	0,165	0,21	0,24	0,21
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X	X	X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/

HOSHIZAKI

PREMIER UNDERCOUNTER

Trademark			HOSHIZAKI
Model name			PREMIER F 3 A DL DL DR	PREMIER K/M 3 A DL DL DR	PREMIER K/M 3 A 2D 2D 2D	PREMIER K/M 3 A 3D 3D 3D
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature				X	X	X
Frozen operating temperature			X
Multiuse cabinet
Vertical cabinet
Counter cabinet			X	X	X	X
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	C	A	A	A
Energy Efficiency Index	EEI	-	47,98	18,77	21,29	22,02
24 hours Energy Consumption	E24h	kWh	5,340	1,299	1.438	1.438
Annual Energy Consumption	AEC	kWh	1949	474	525	525
Net volume for compartment 1	Vn1	litre	96	96	88	77,5
Net volume for compartment 2	Vn2	litre	96	96	88	77,5
Net volume for compartment 3	Vn3	litre	96	96	88	77,5
Net volume for compartment 4	Vn4	litre	-	-	-	-
Total Net volume	VnT	litre	288	288	264	232
Climate Class	CC		5	5	5	5
Refrigerant			R290	R290	R600a	R290
Charge		kg	0.055	0.065	0.065	0.065
GWP			3	3	3	3
CO2 Equivalent		CO_2	0,165	0,195	0,195	0,195
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C			X	X	X	X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/

HOSHIZAKI

PREMIER UNDERCOUNTER

Trademark			HOSHIZAKI
Model name			PREMIER F 4 ADL DL DR DR	PREMIER K/M 4 ADL DL DR DR	PREMIER K/M 4 A2D 2D 2D 2D	PREMIER K/M 4 A3D 3D 3D 3D
Intended use			Storage	Storage	Storage	Storage
Chilled operating temperature				X	X	X
Frozen operating temperature			X
Multiuse cabinet
Vertical cabinet
Counter cabinet			X	X	X	X
Parameter	Symbol	Unit
Energy Efficiency Class	EEC	-	C	A	A	A
Energy Efficiency Index	EEI	-	44,77	17,37	21,87	22,79
24 hours Energy Consumption	E24h	kWh	5,67	1,319	1,612	1,612
Annual Energy Consumption	AEC	kWh	2070	481	588	588
Net volume for compartment 1	Vn1	litre	96	96	88	77,5
Net volume for compartment 2	Vn2	litre	96	96	88	77,5
Net volume for compartment 3	Vn3	litre	96	96	88	77,5
Net volume for compartment 4	Vn4	litre	96	96	88	77,5
Total Net volume	VnT	litre	384	384	352	310
Climate Class	CC		4	5	4	4
Refrigerant			R290	R290	R290	R290
Charge		kg	0.055	0.065	0.065	0.065
GWP			3	3	3	3
CO2 Equivalent		CO_2	0,165	0,195	0,195	0,195
Heavy-duty; This appliance is intended for use in ambient temperatures up to 40°C				X
Contact details:	HOSHIZAKI EUROPE B.V.Address: Burgemeester Stramanweg 101 1101 AAAmsterdam, The NetherlandsTel.: [phone] - http://hoshizaki.europe.com/

HOSHIZAKI PREMIER UNDERCOUNTER

II. OPERATING INSTRUCTIONS

ELECTRICITY

Before connecting the product to electrical power, please verify that the specified electrical power supply on the product description label corresponds with the local network electrical power supply.

The Product Description label with the specified electrical power supply can be found on the inside of the cabinet, at the top left-hand side.

Installation of the product must only be undertaken by qualified and trained service personnel as per the specifications listed in this manual.

Electrical safety of this cabinet can only be valid if it's earthed in accordance to current local laws and regulations.

Earthing of the product is always required.

The manufacturer will not accept any responsibility for any damage arising from improper grounding.

Adhere to all electricity requirements stipulated by the local electrical regulations. The product's electricity plug, and wall socket must have the correct earth connectivity reading. If necessary, employ a qualified electrician.

GENERAL PRELIMINARY CHECKS

Make sure the cabinet is standing on level ground. All legs/castors should be on the ground. This is necessary for the proper operation of the cabinet.

Do not place the cabinet next to any heat generating devices such as ovens, grills, and deep fryers. Do not expose to direct sun light. Heat that may be radiated by walls or floors must be insulated with appropriate insulating material. The cabinet should be placed as far as possible from any heat source.

If the cabinet is re-located, allow three hours before re-starting. Plastic protection or tape should be removed from the outer surfaces.

Ensure the cabinet is positioned so sufficient fresh air can flow to/from the cooling circuit and around the surfaces of the cabinet.

If two refrigerators or freezers are to be placed side by side, there should be at least 50 mm. space between them.

Do not block any vent holes.

PRELIMINARY ELECTRICAL CHECKS

• Check that the mains voltage and frequency of the socket conform to the information on the product description label.
• The cabinet is connected to a mains outlet with a 13-16 Amp fuse as a serial connection.
• Turn off the mains fuse connected to the power cable.
• Check that the plug on the cabinet is suitable for use with the available mains socket and that they fit together.

HOSHIZAKI PREMIER UNDERCOUNTER

FIRST OPERATIONS AND CONTROLS

After the above checks have been completed, the cabinet can be operated. The ON/OFF switch operates the cabinet.

After the cabinet is turned ON, the compressor will start running. The compressor will run until the factory pre-set temperature is reached. Foods should not be placed in the cabinet until the temperature setting has been adjusted to suit the foods to be cooled.

New temperature setting can be done through the controller as described in this manual.

IMPORTANT

Allow the product to cool to the set temperature before placing food items inside.
➢ Never exceed the maximum load capacity. The maximum shelf capacity is an even load of 40 kg each for shelves in upright cabinets and 20 kg for shelves and drawers in counter cabinets.
Refer to the "General Preliminary Checks" section of this manual for information on the amount of space required for good air ventilation around the product.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
In case of 1/3 drawer, Container lid with seal equipment cannot be used.

WARNING:

Do not block any ventilation openings on the appliance at any time.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the cabinet.
Do not damage powercord, wiring or any key component.

STORAGE CONDITIONS AND PERFORMANCE

Correct storage conditions are not only paramount to food hygiene and safety but improve the quality of service and reduce the energy consumption. Best performance can be achieved if the following tips and guidelines are observed. Keep all food items on shelves only and never place food items on the floor of the cabinet. Food items must be placed in the cabinet or counter in such a way as to allow good air flow all around, leaving space between items and the walls of the product. If required shelf distance can be adjusted accordingly.

HOSHIZAKI

PREMIER UNDERCOUNTER

III. CONTROL PANEL

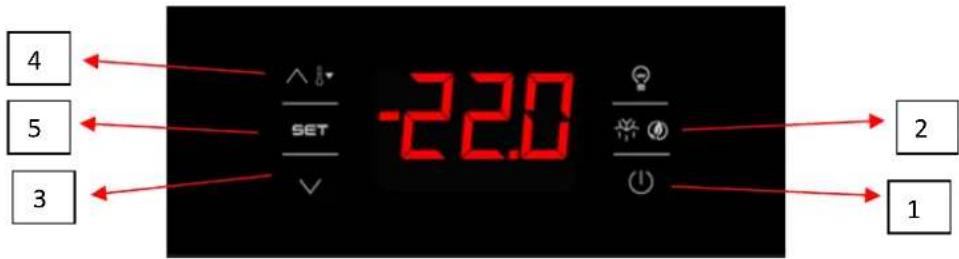

4 5 3 SET -22.0 2 1

FRONT PANEL FUNCTIONS

To lock the front panel keys, hold AUX (3) and hold On / Stand By (1) for 2 seconds: "Loc" text will be on the screen when keys are locked, if it isn't locked, "UnL" text will be on the screen.

1) When holding ON/STAND BY for 4 seconds; the device opens or closes. (On/Off)
2) MANUAL DEFROST; if the button is pressed for 4 seconds, manual defrost starts. If excessive cooling is active and evaporator temperature is not suitable, manual defrost will not start.
3) DOWN key: Scroll down the menu or reduce the value; if held down for 4 seconds super cooling becomes active. When an excessive cooling function is active, the set temperature can be reduced; the time and temperature are determined with the help of the parameters. When an excessive cooling function is activated, the device never does defrost.
4) UP Key: Scroll up the menu or increase the value; if held down for 4 seconds, the percentage of low and high relative humidity function is engaged. (For some models) “rhL” is written on the screen (A low percentage of relative humidity function is operating.) or “rhH” is written on the screen (A high percentage of relative humidity function is operating.) These functions appear on the screen for 10 seconds. If humidity control is not available, “----” appears on the screen for 1 second.
5) SET key: input and change key for adjustable values.

OPERATING

Operation cases are available below:

"On" status: The device is energized and the device operates.

"Stand-By" status: The device is switched off, but the device is still powered.

"Of" status: To turn the device off, remove the plug from the socket, or by turning the main fuse off, the device is turned off.

HOSHIZAKI

PREMIER UNDERCOUNTER IV. MAINTENANCE INSTRUCTIONS

The device must be cleaned regularly. The intervals depend on the usage and level of soiling (at least annually).

Before carrying out any cleaning or maintenance operations, unplug the unit.

Don't touch or wet the machine compartment parts. This could result in failure or breakdown.

To prevent possible damage, don't clean the plastic parts with water above 40^ or in a dishwasher.

Interior & Exterior of Cabinet and Shelves

Clean the interior and exterior at least once a week for sanitary use.

Clean off the interior and exterior of cabinet with a soft cloth soaked in cold or warm water containing the proper amount of neutral cleaner and wrung dry. Don't use a water jet to clean the machine compartment.

Chemical agents other than neutral cleaner might cause damage to the interior and exterior surfaces.

Any remaining detergent will damage metal or plastic surfaces. Use a soft cloth dampened with warm water to wipe it off.

Don't use the following items, they could damage painted or plastic surfaces:

- Polishing powder, alcohol, thinner, benzene, acidic or alkaline detergent, hot water, petroleum, soap powder, metal scourer or brush, etc. Especially detergent to clean grease on ventilator or microwave.

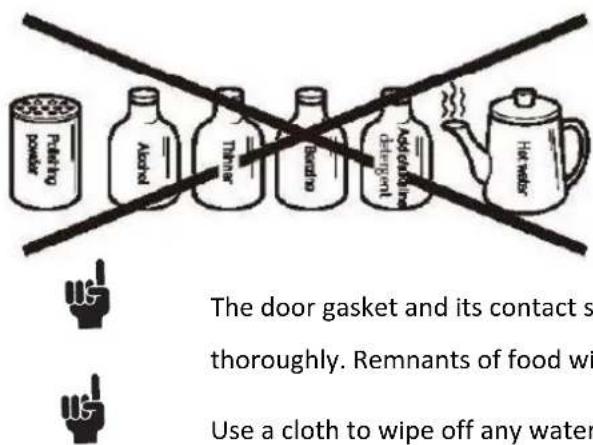

Pulsed ring powder Auction Thinner Benedo Cold oil bottle Hot water The door gasket and its contact s thoroughly. Remnants of food wi Use a cloth to wipe off any water

Note: Some solutions other than the above may also damage painted or plastic surfaces. Immediately stop using such solutions if they cause any problems!

The door gasket and its contact surface get soiled easily. Clean every surface of these parts thoroughly. Remnants of food will accelerate aging.

Use a cloth to wipe off any water staying inside the cabinet.

HOSHIZAKI

PREMIER UNDERCOUNTER

Condenser

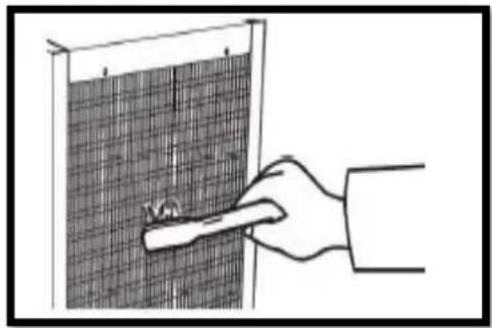

Use vacuum cleaner or a soft brush to remove dust and stains from the condenser.

Warning: If user clean the condenser with hard brush, such as dishwasher brush, the coating of condenser may peel off.

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Air Filter

To prevent deformation do not wash the air filter hot water above 40^ C.

Plastic mesh air filters remove dirt or dust from the air and keep the condenser from getting clogged. If the filters get clogged, the refrigerator/freezer's performance will be reduced.

Check the filters at least twice a month. When clogged or when the temperature controller shows "cH" use warm water and a neutral cleaner to wash the filters. Don't operate the unit with the air filters removed, or the condenser will get clogged, resulting in failure.

1) Open the front panel and remove the air filter. To prevent injury, don't touch the condenser fins directly.
2) Wash the air filter carefully with cold or warm water containing the proper amount of neutral cleaner. Rinse and dry the air filter thoroughly.
3) To refit the air filter put the two tabs into the heat exchanger or fins in a condenser and tightly attach the air filter over the condenser.

HOSHIZAKI

PREMIER UNDERCOUNTER

V. TECHNICAL INFORMATION

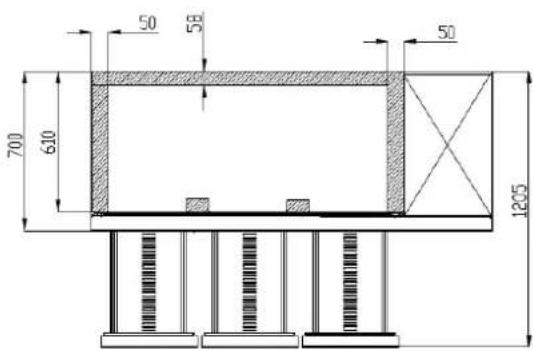

DIMENSIONS OF THE DEVICES

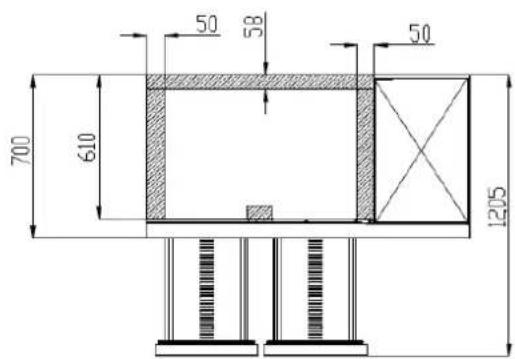

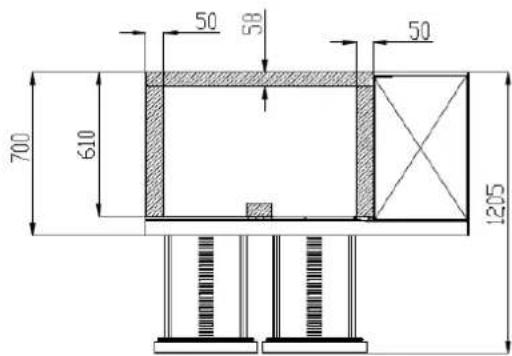

PREMIER K-M-F 2 A DL DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

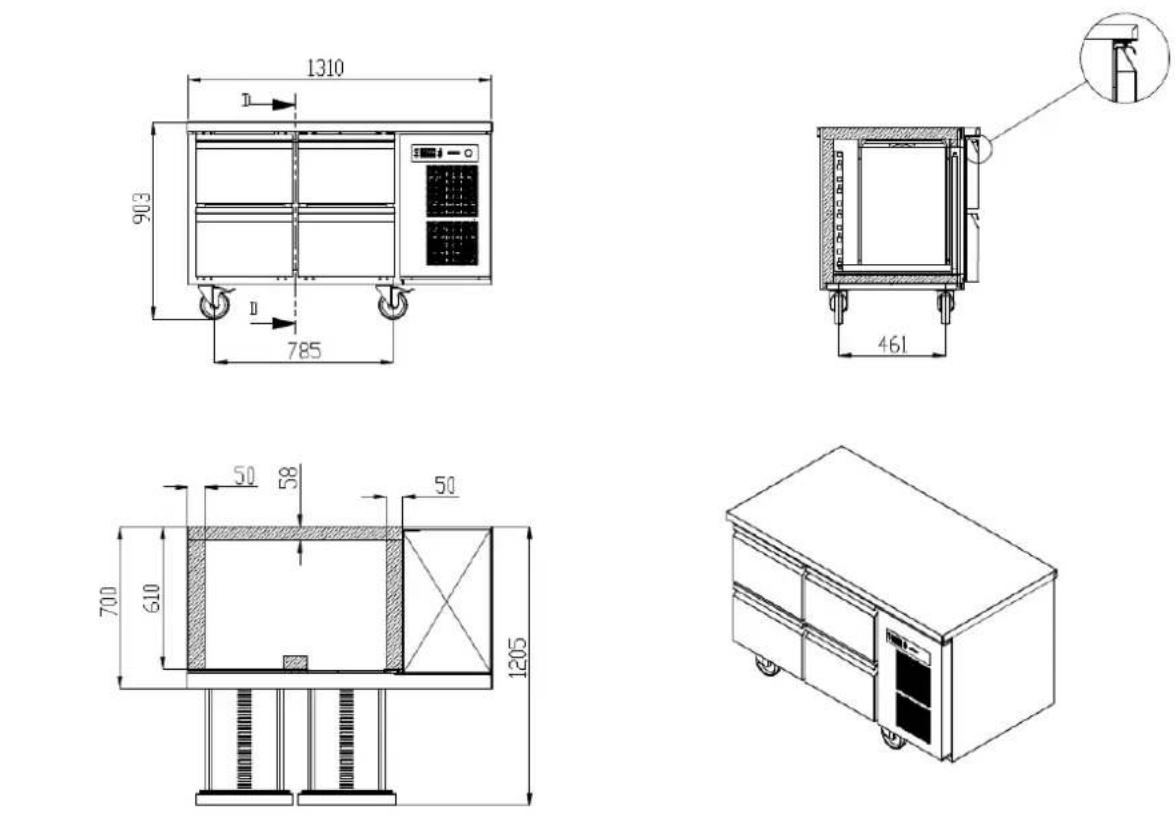

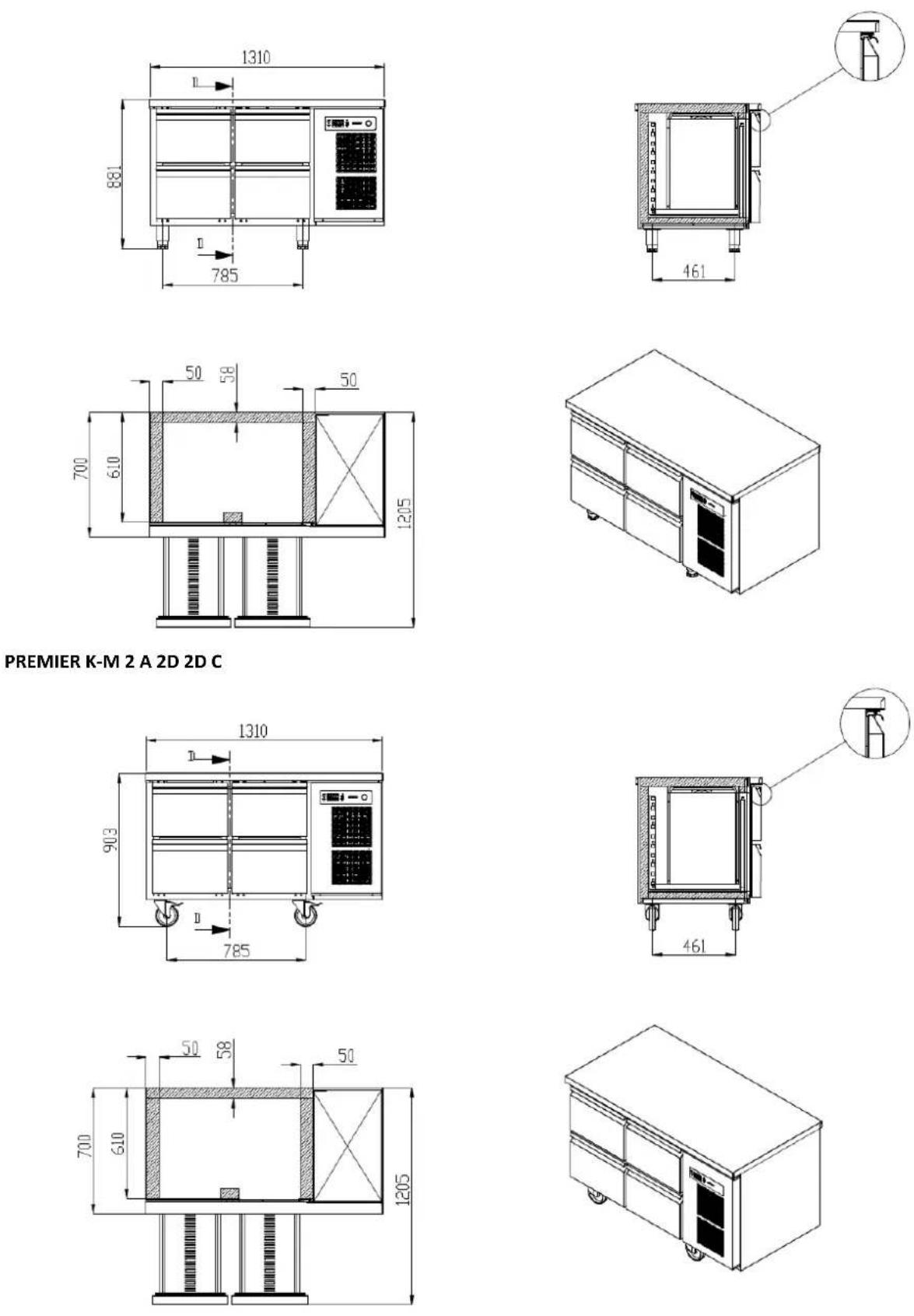

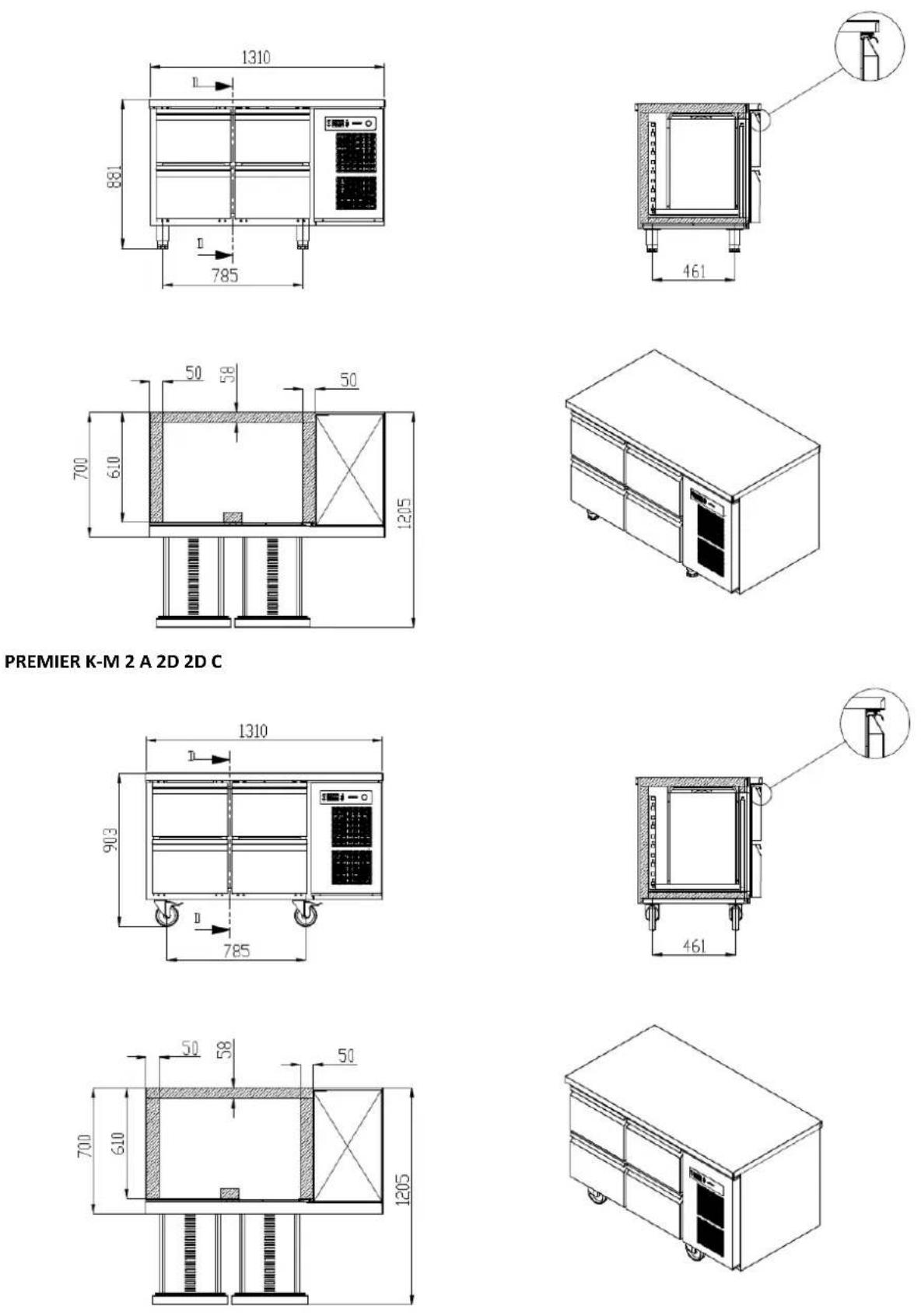

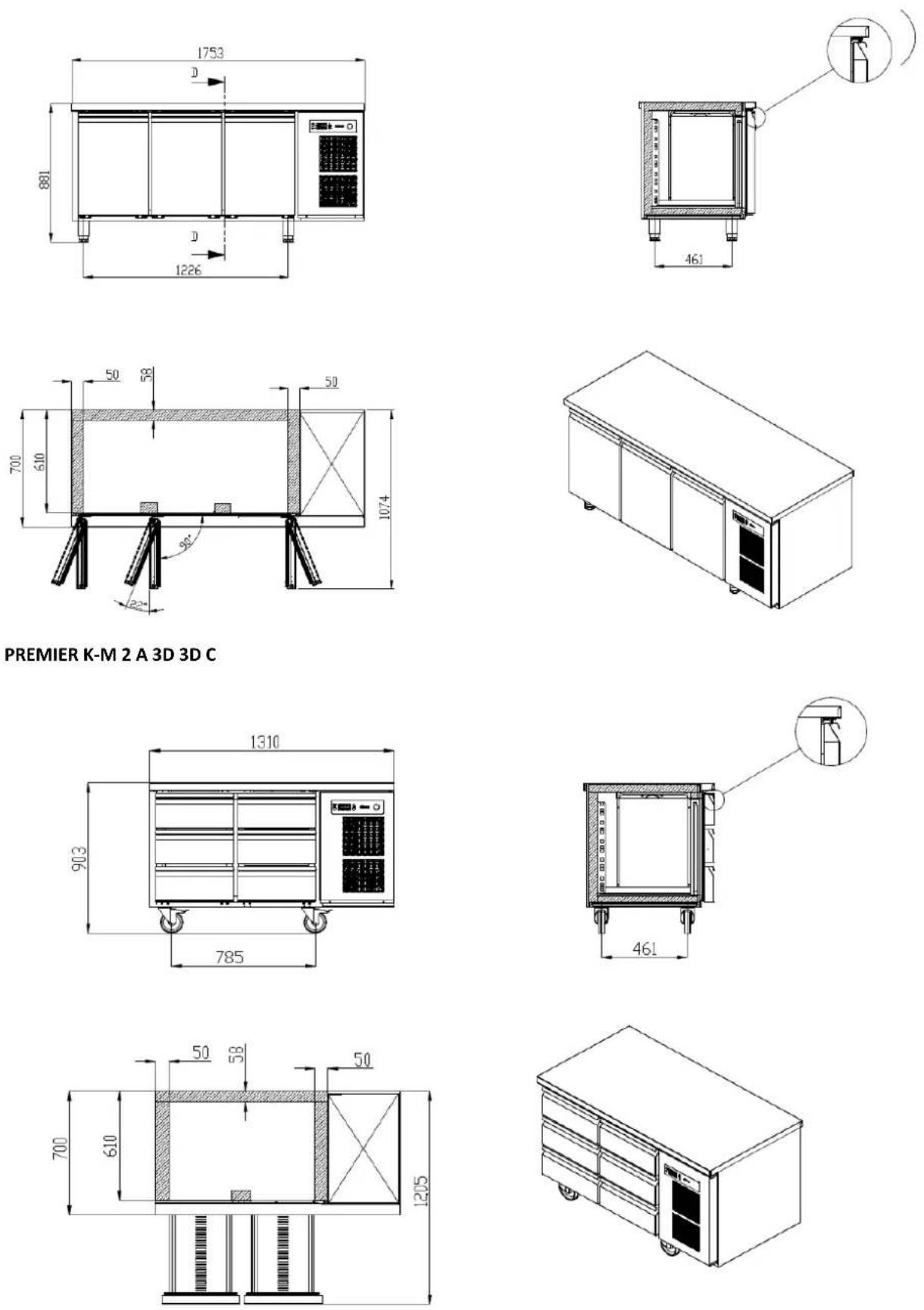

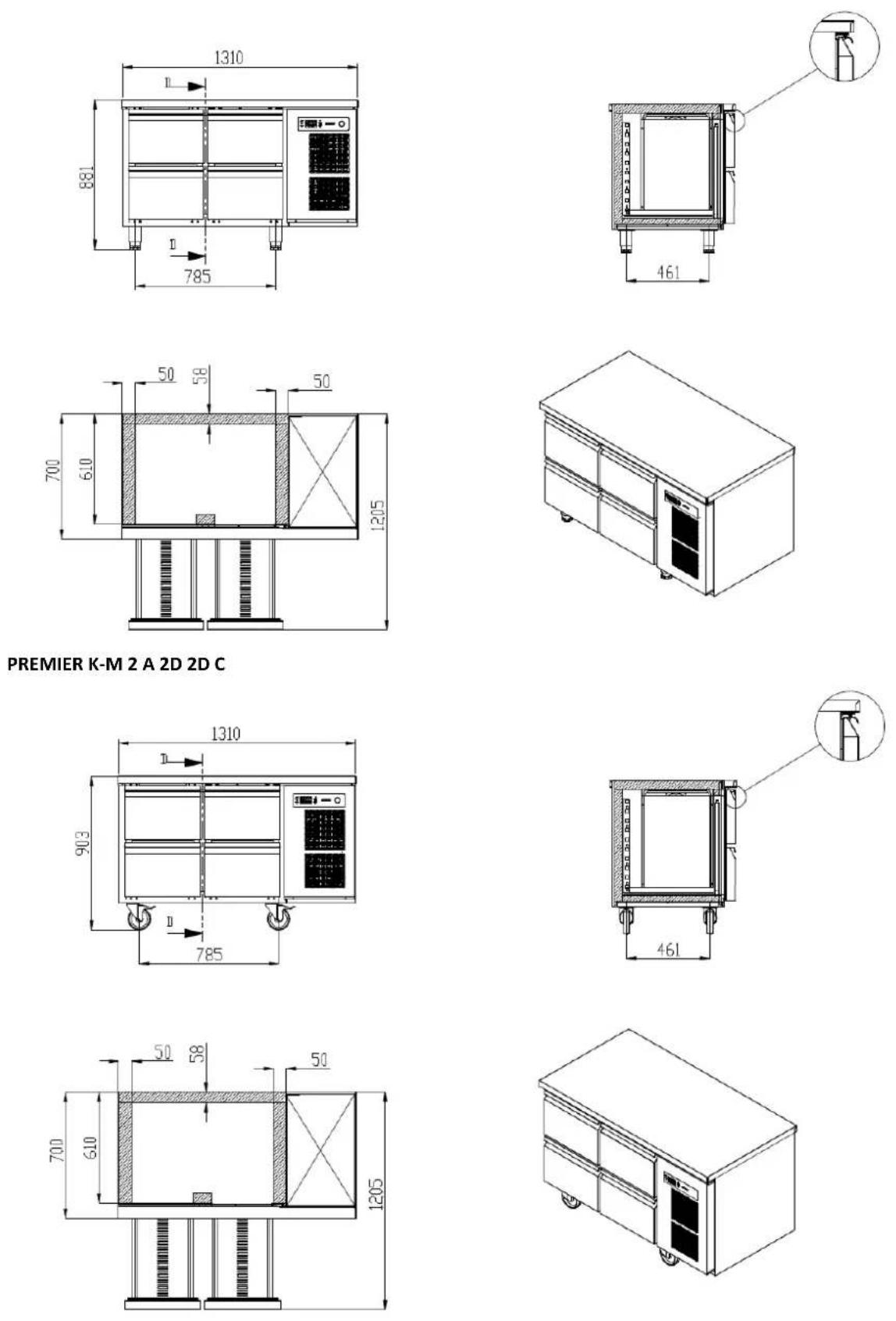

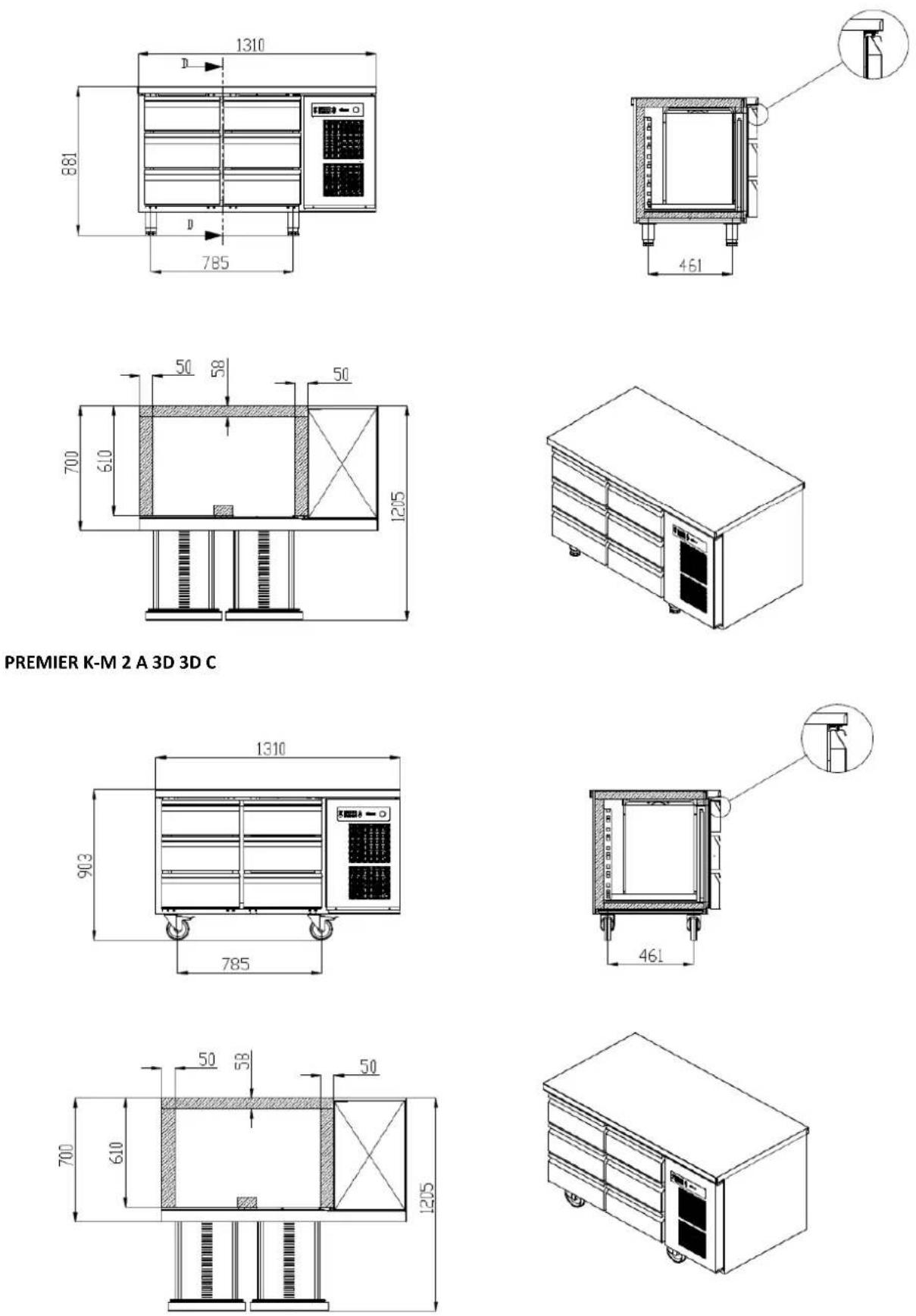

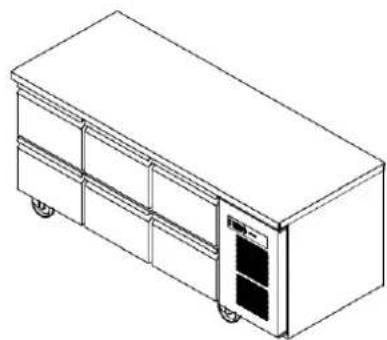

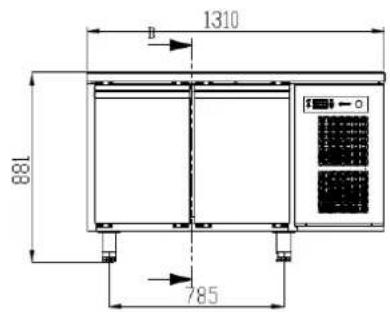

PREMIER K-M 2 A 2D 2D L

PREMIER K-M 2 A 2D 2D C

HOSHIZAKI

PREMIER UNDERCOUNTER

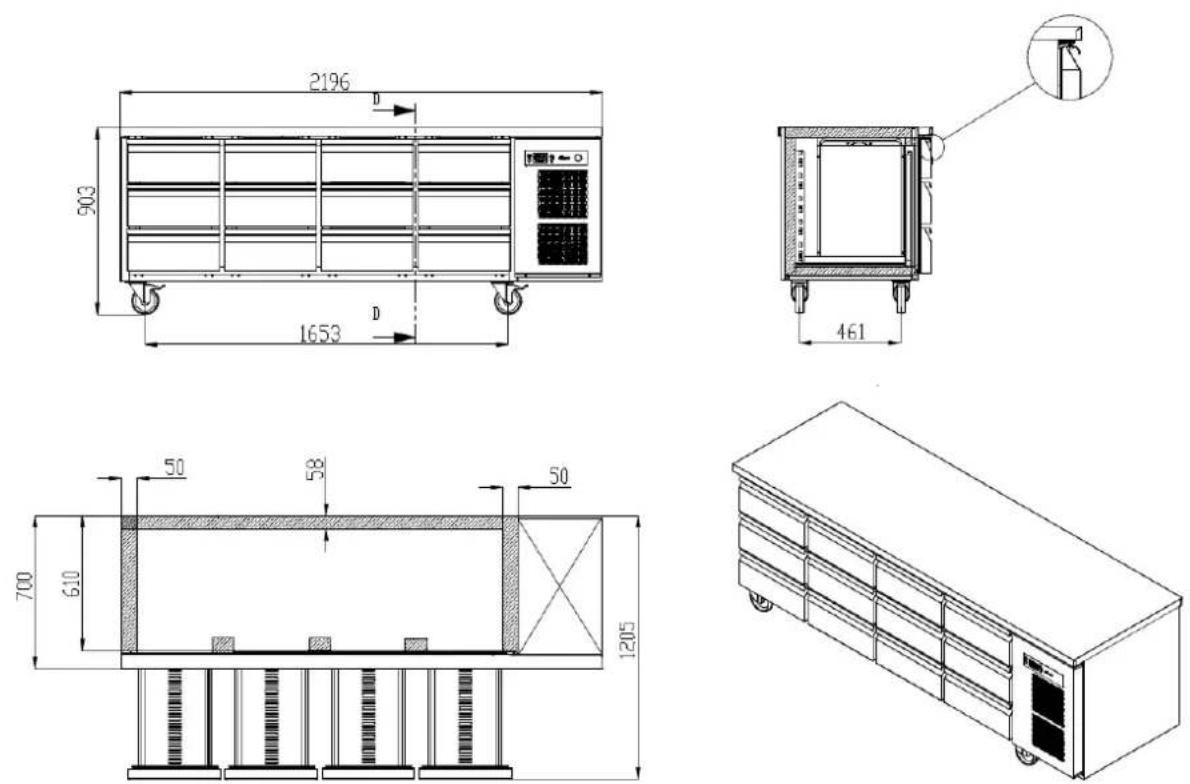

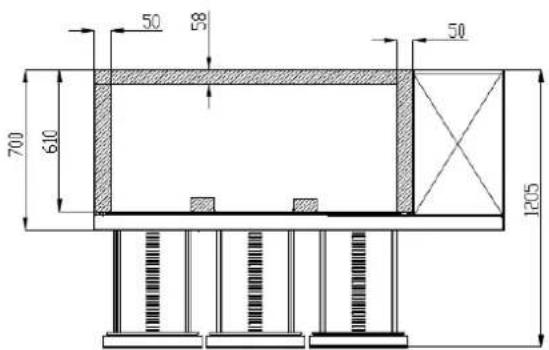

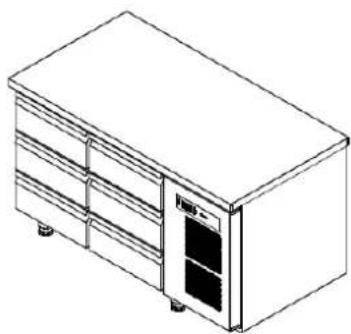

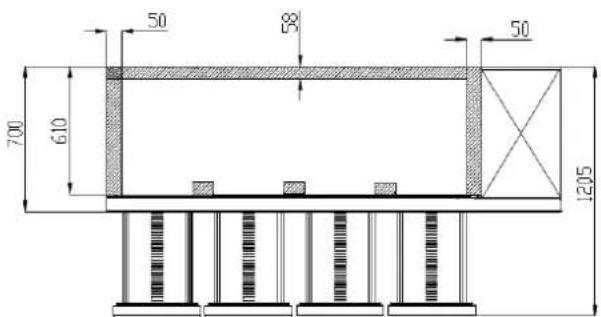

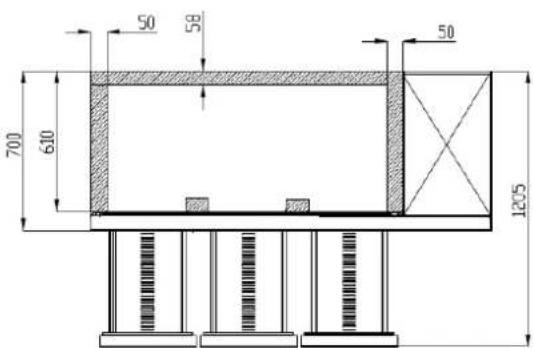

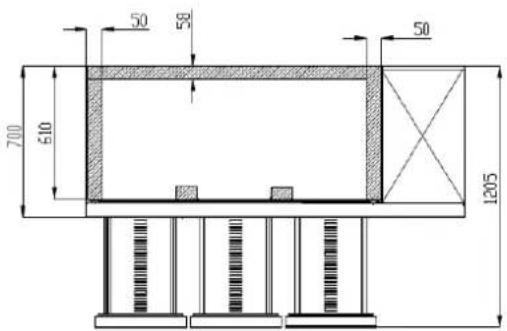

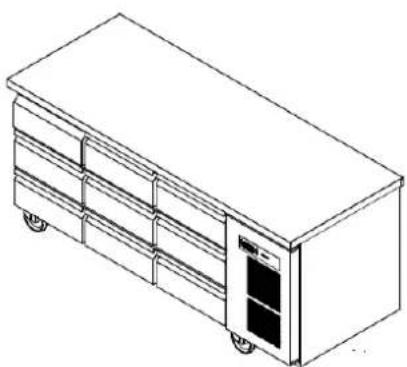

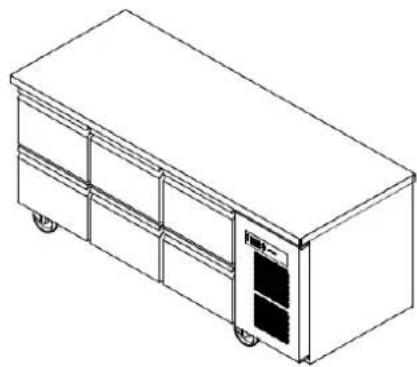

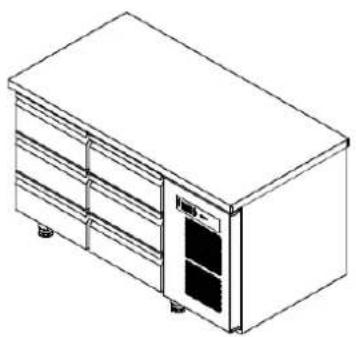

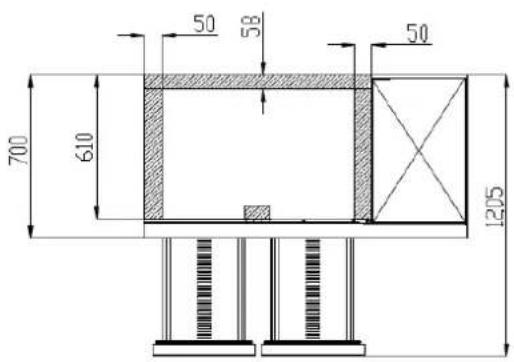

PREMIER K-M 2 A 3D 3D L

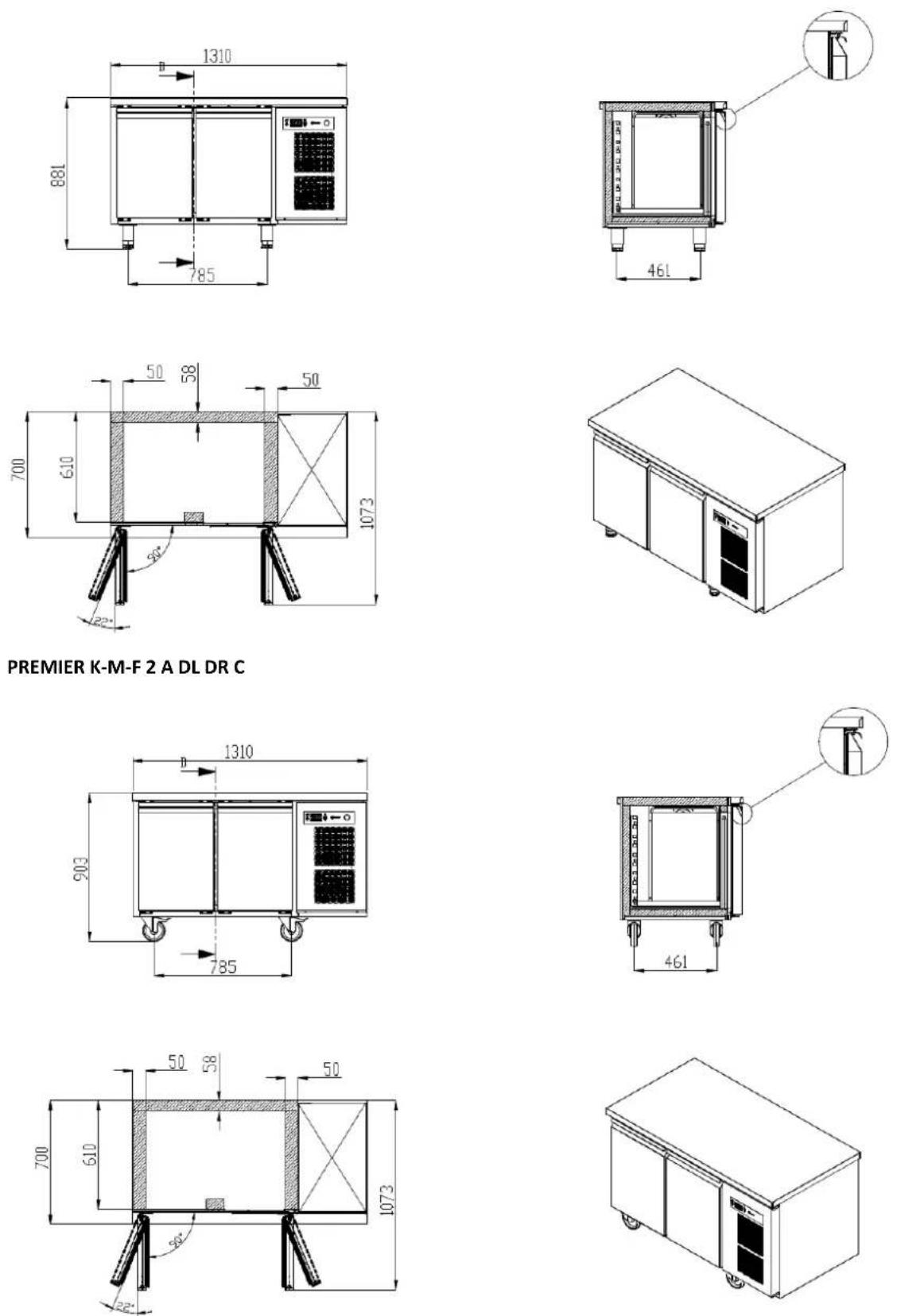

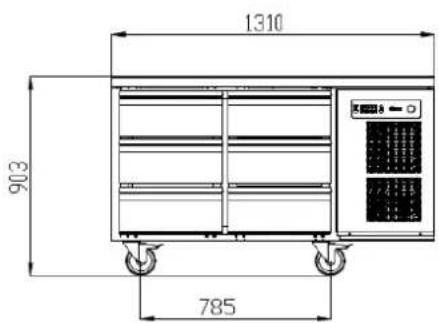

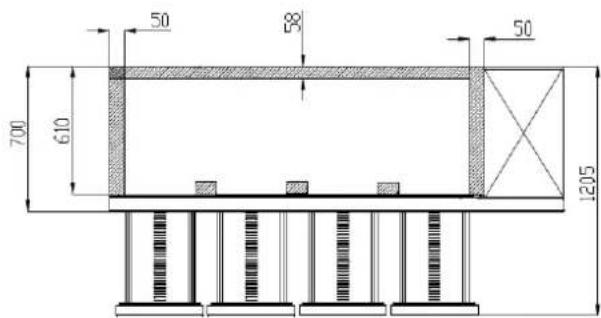

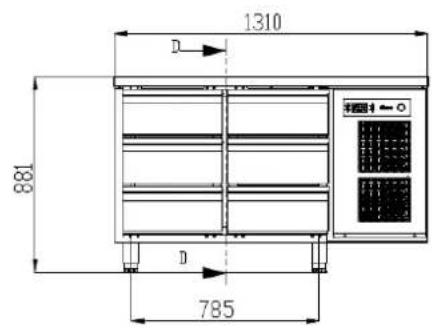

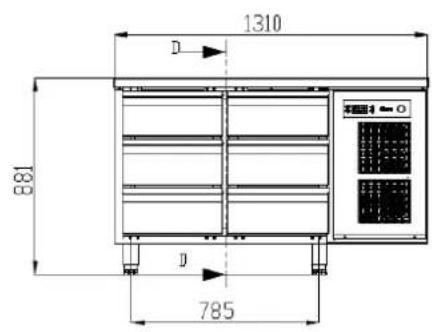

1310 881 785

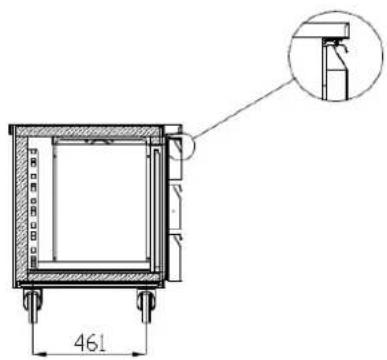

461

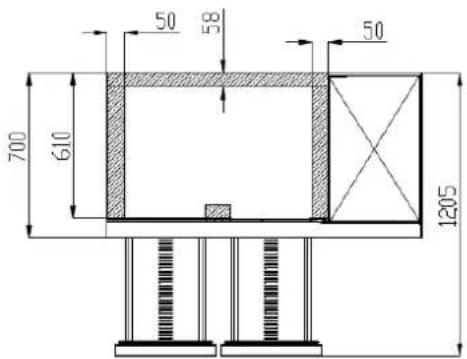

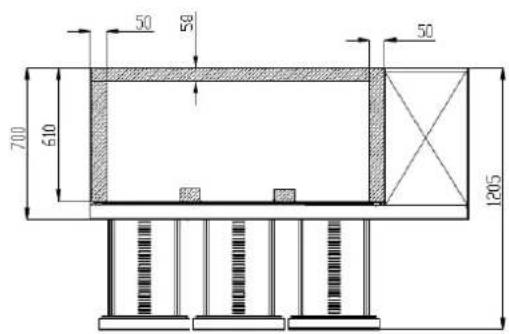

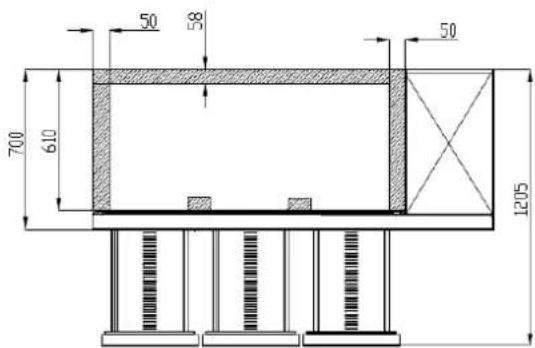

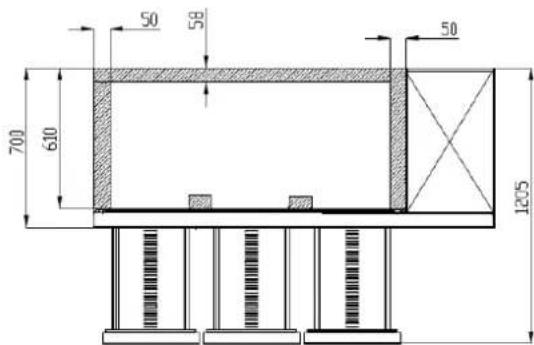

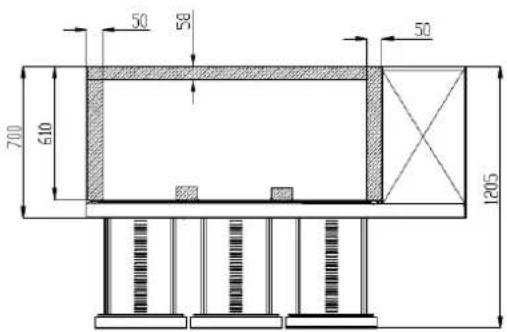

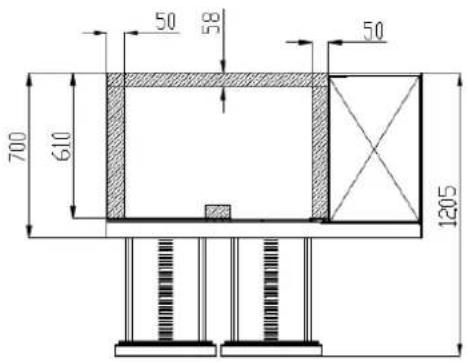

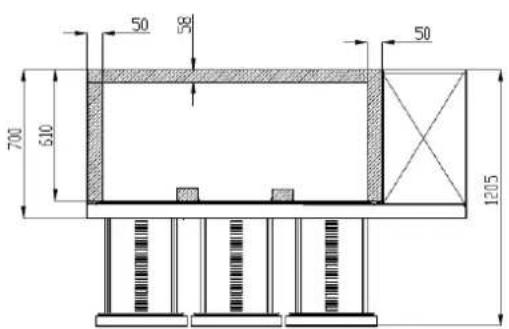

50 58 50 700 610 1205

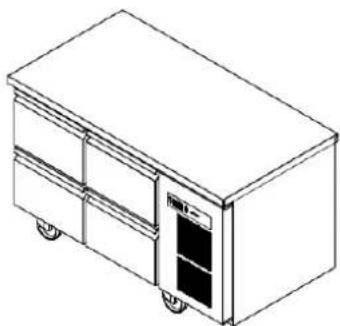

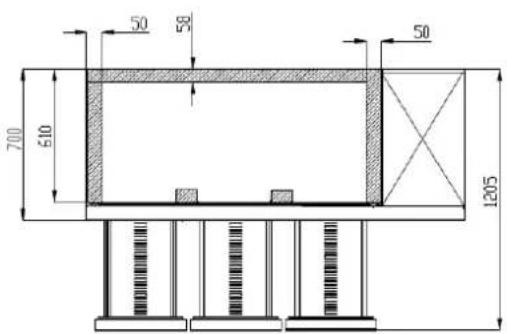

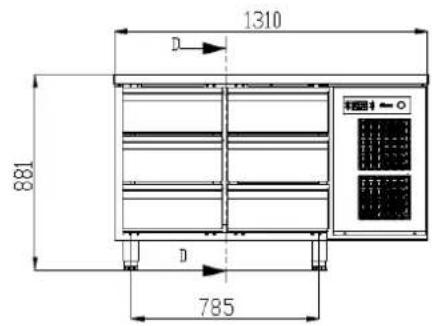

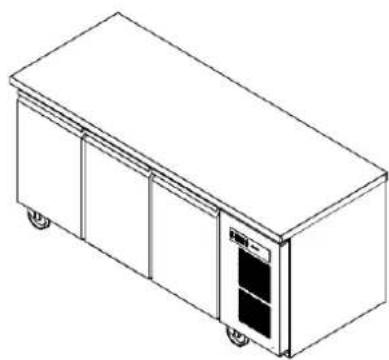

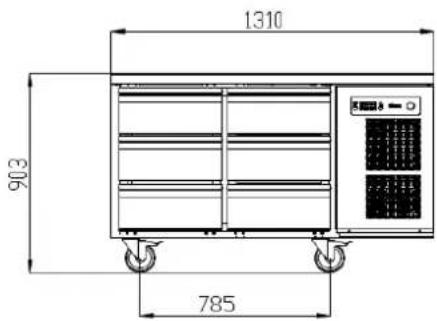

Line drawing of a multi-tiered kitchen appliance with drawers and cabinet (no text or symbols)

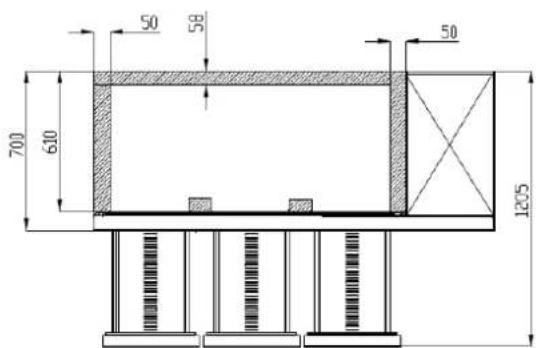

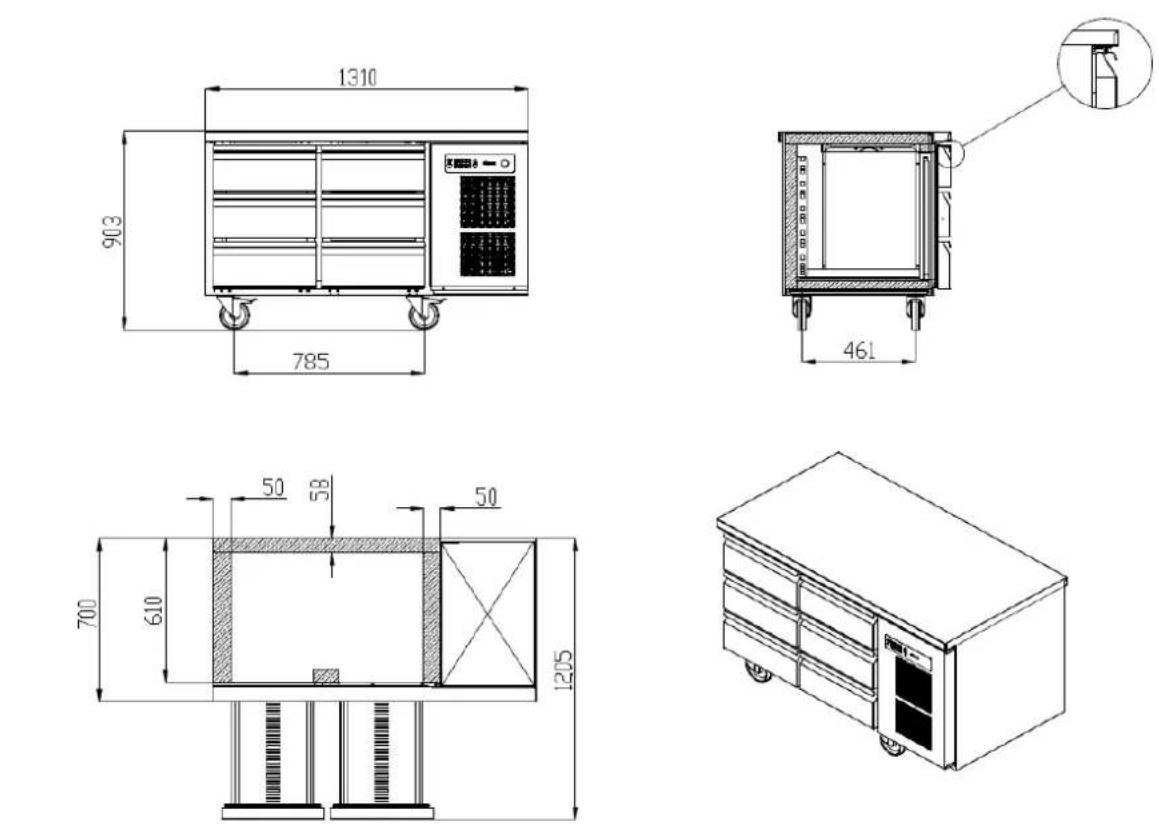

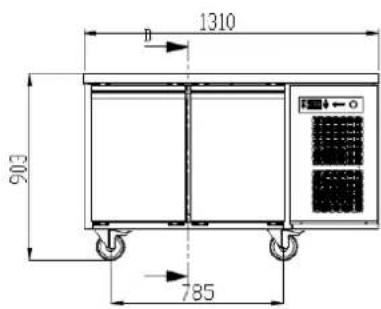

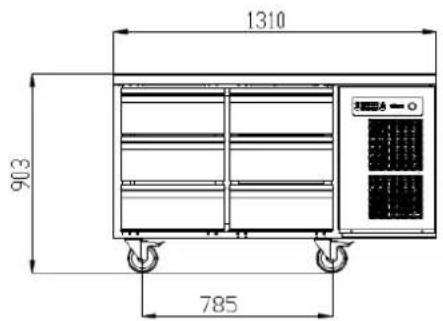

PREMIER K-M 2 A 3D 3D C

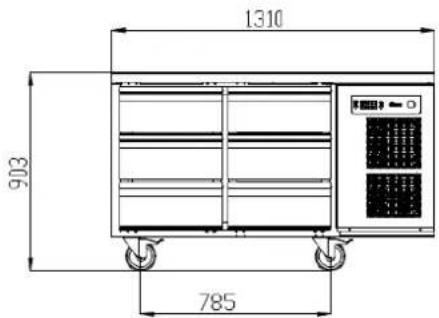

1310 903 785

461

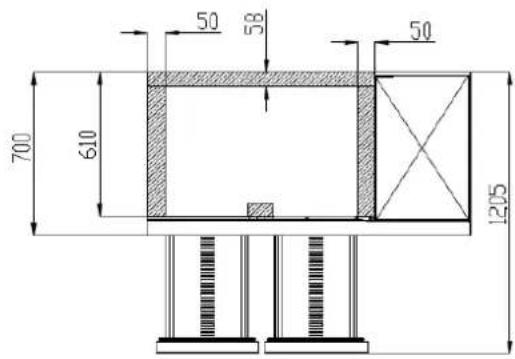

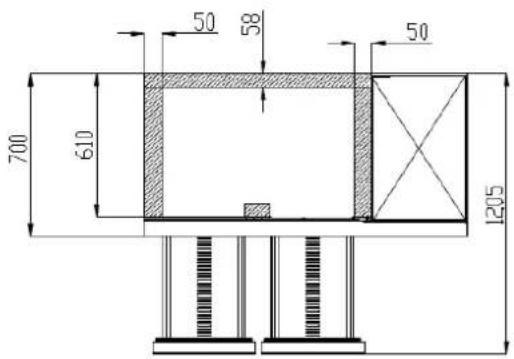

50 58 50 700 610 1205

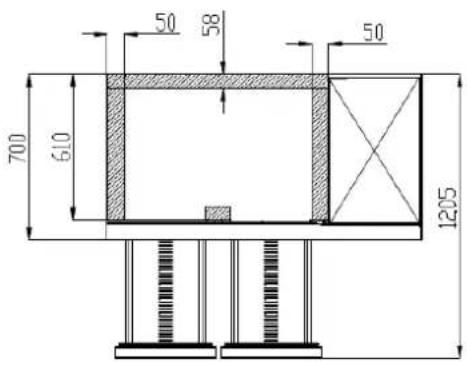

Line drawing of a multi-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

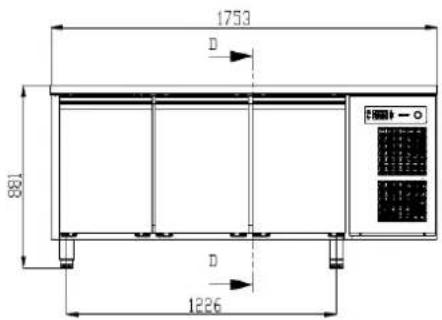

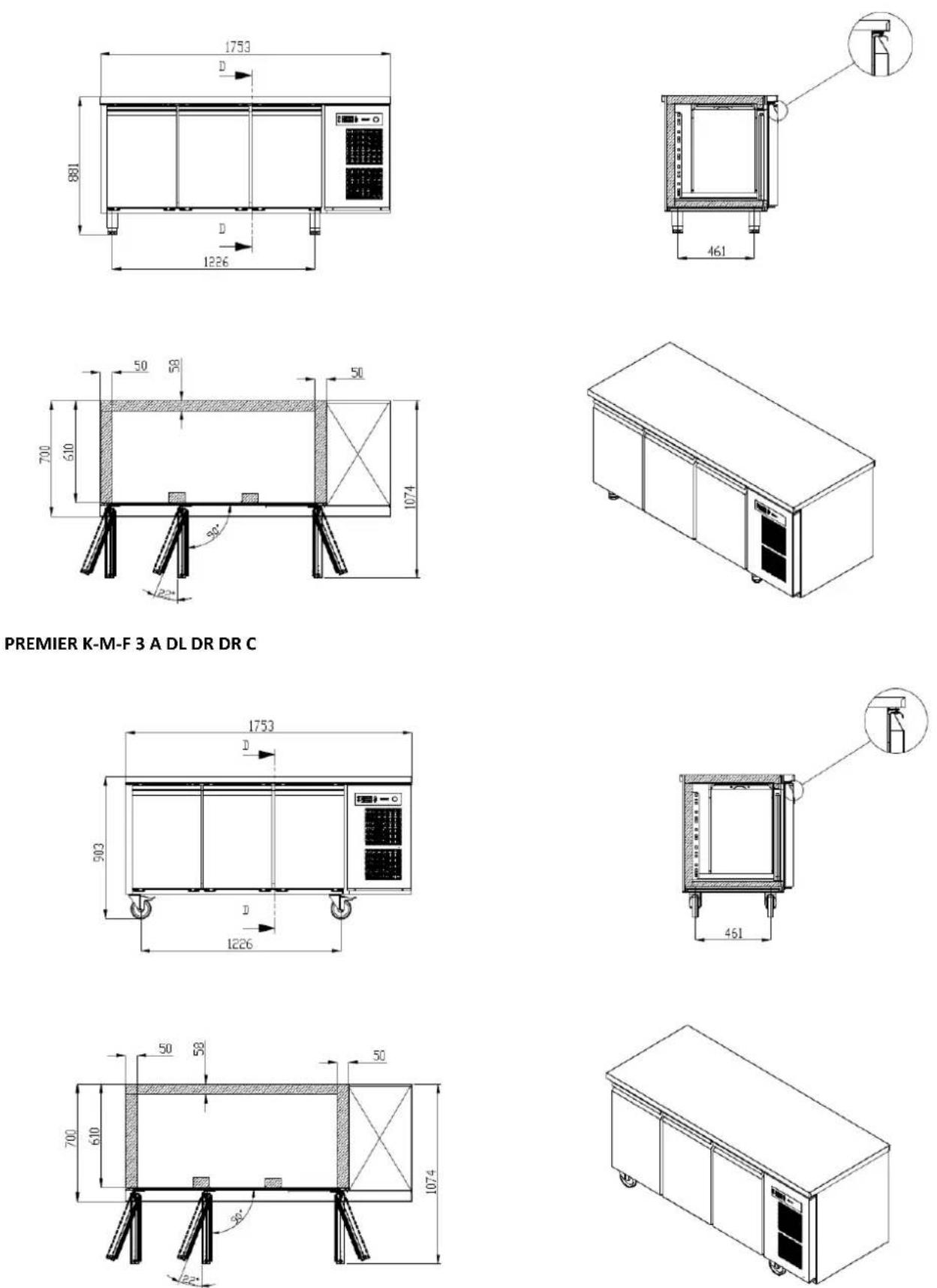

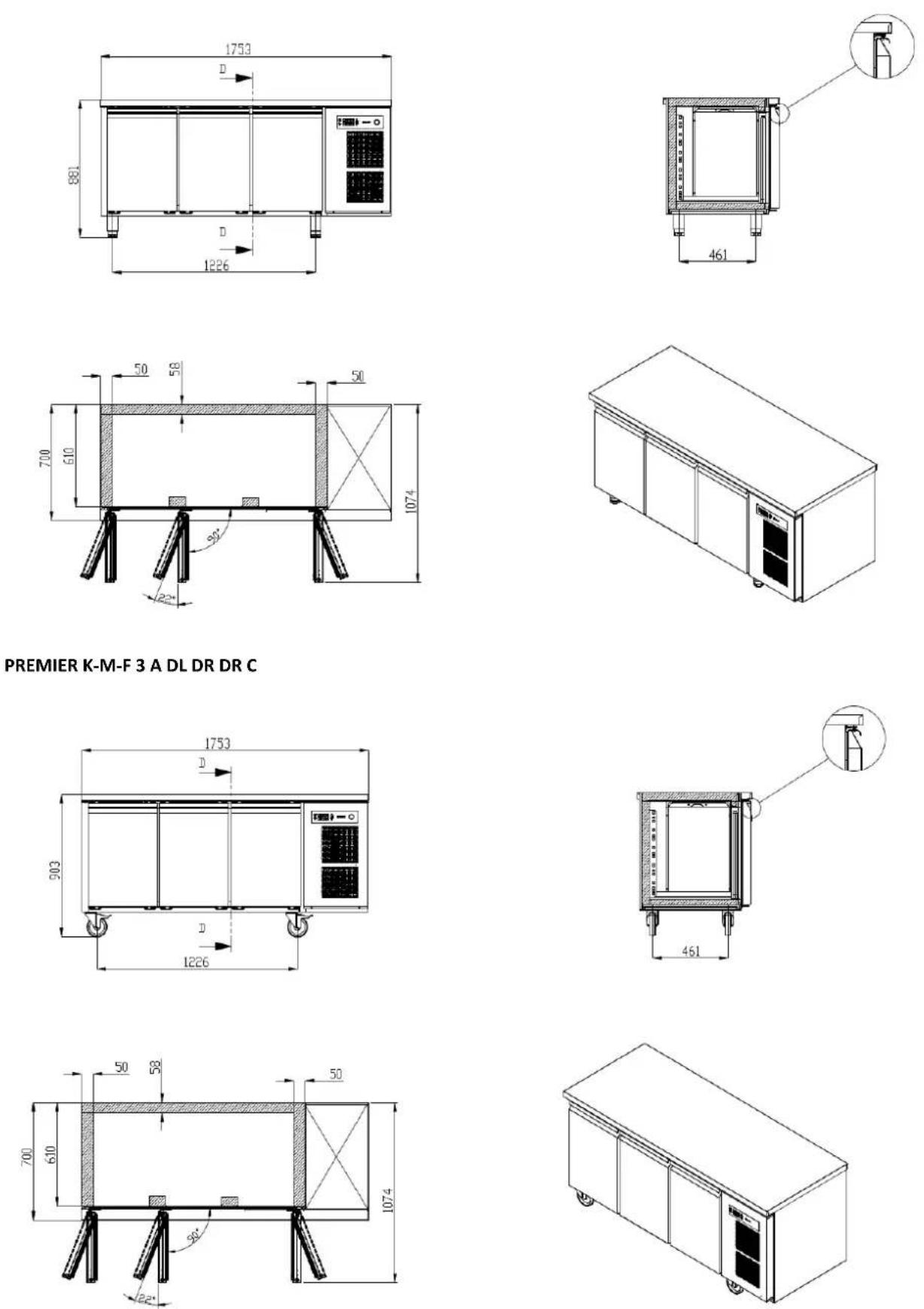

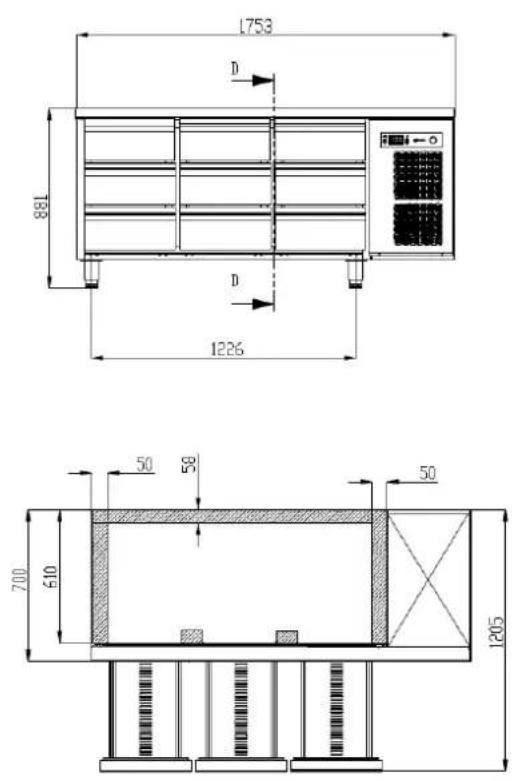

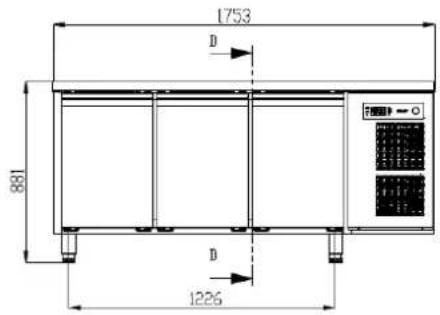

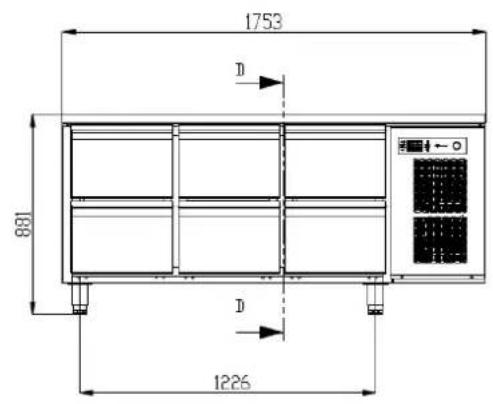

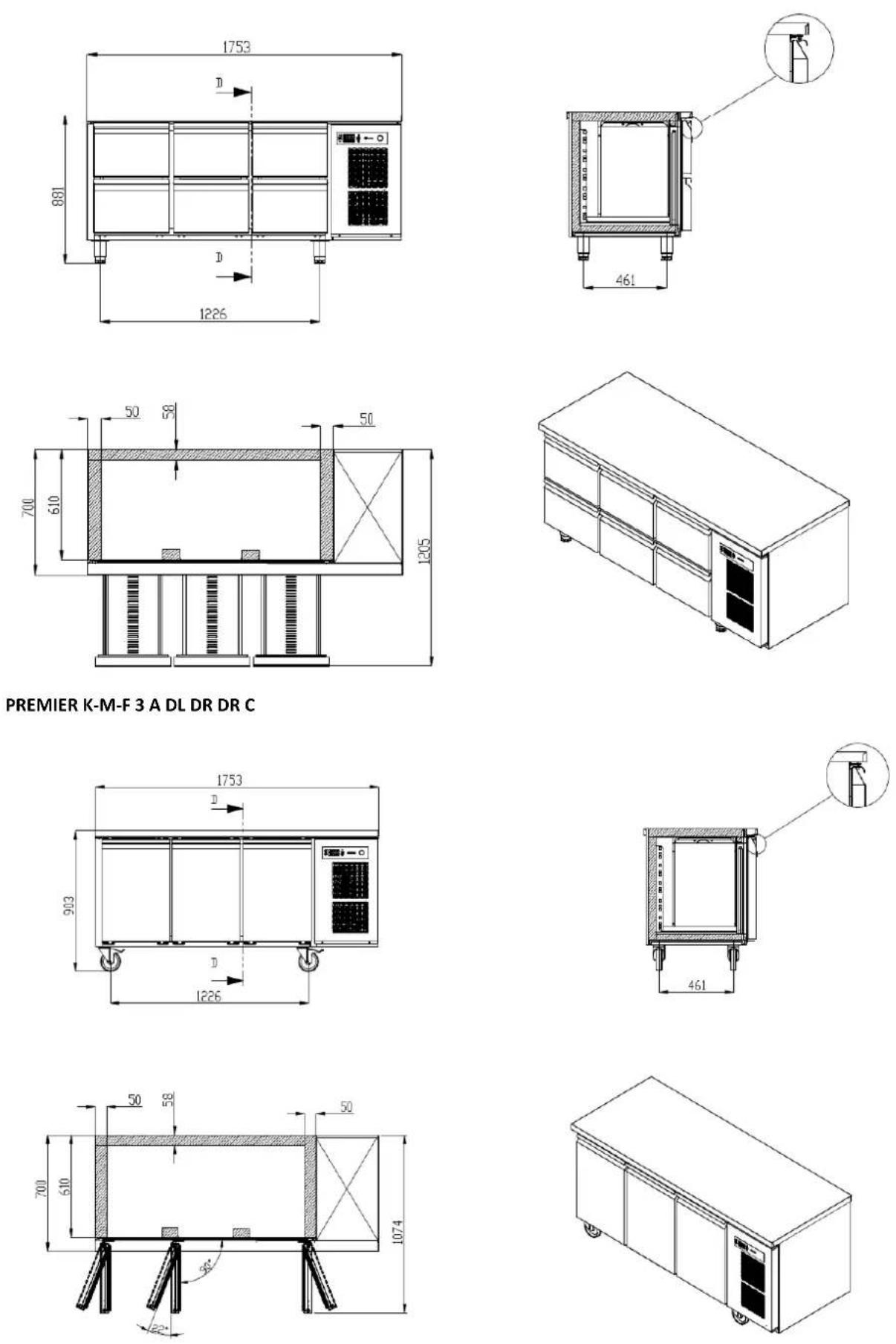

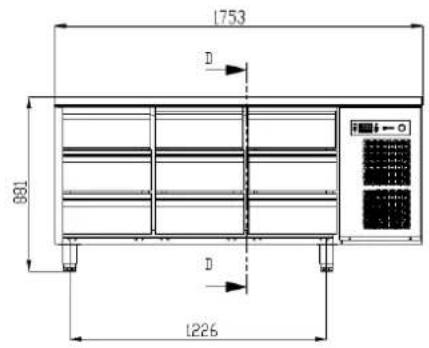

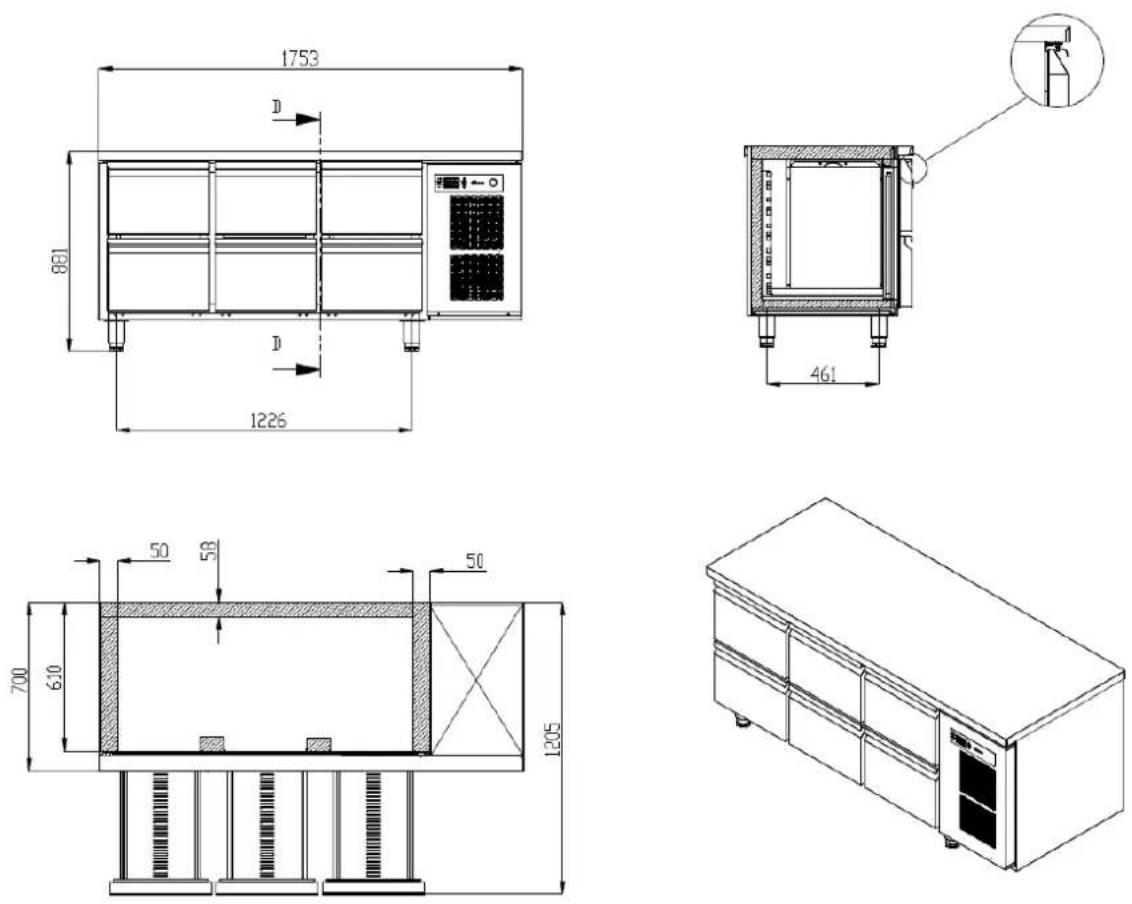

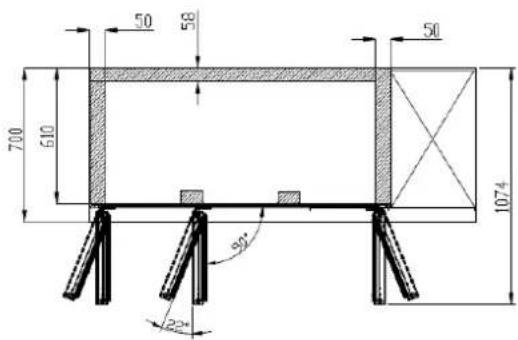

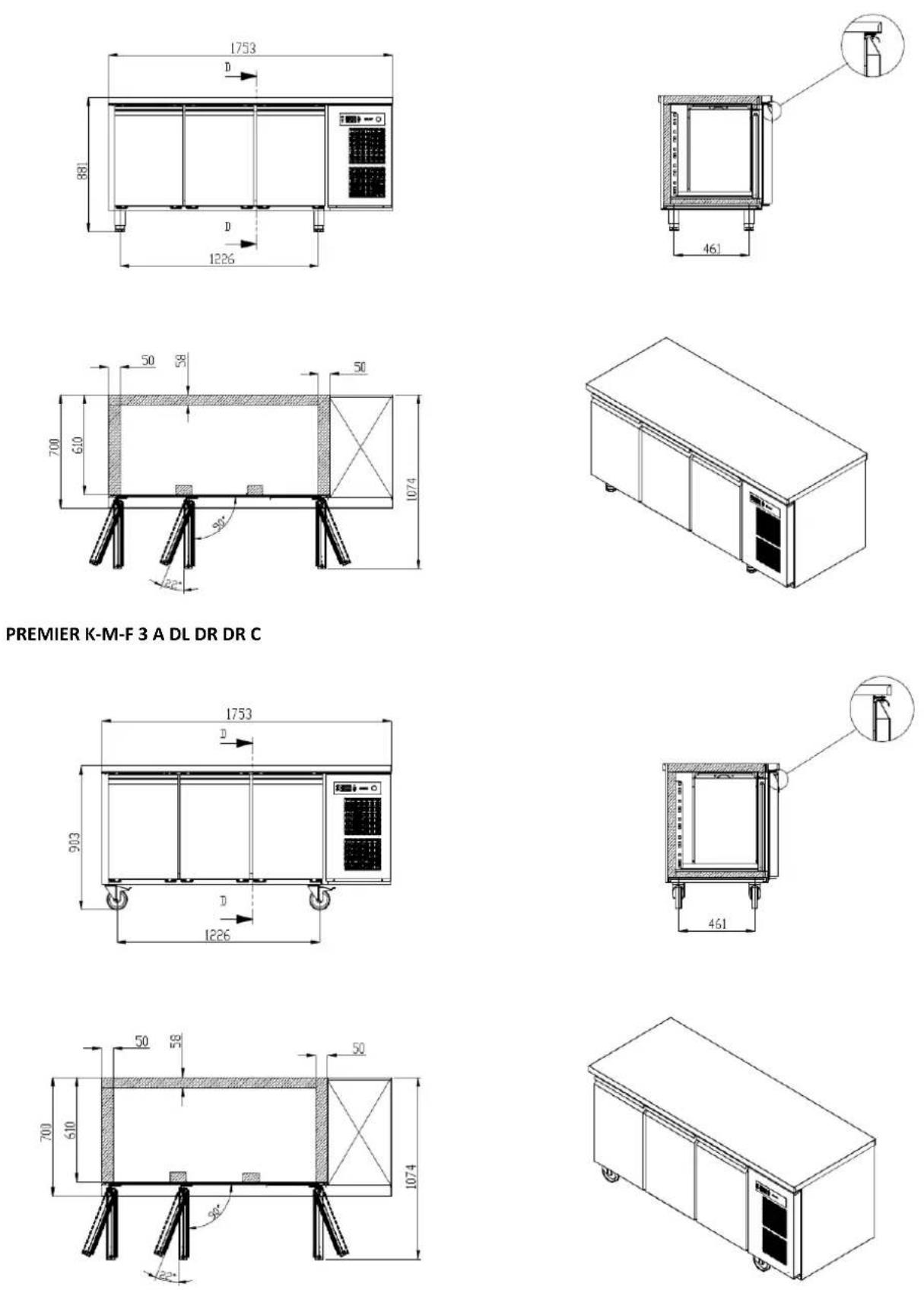

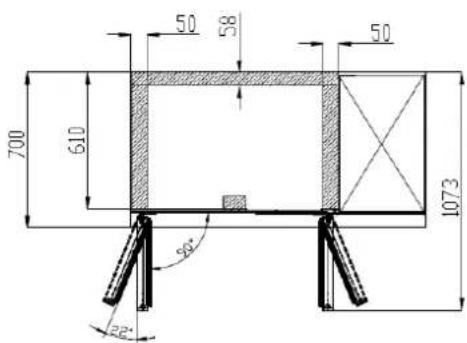

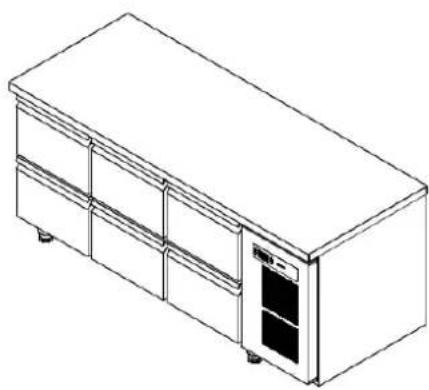

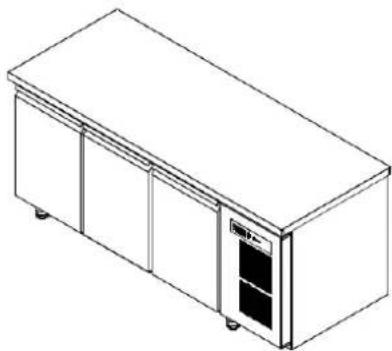

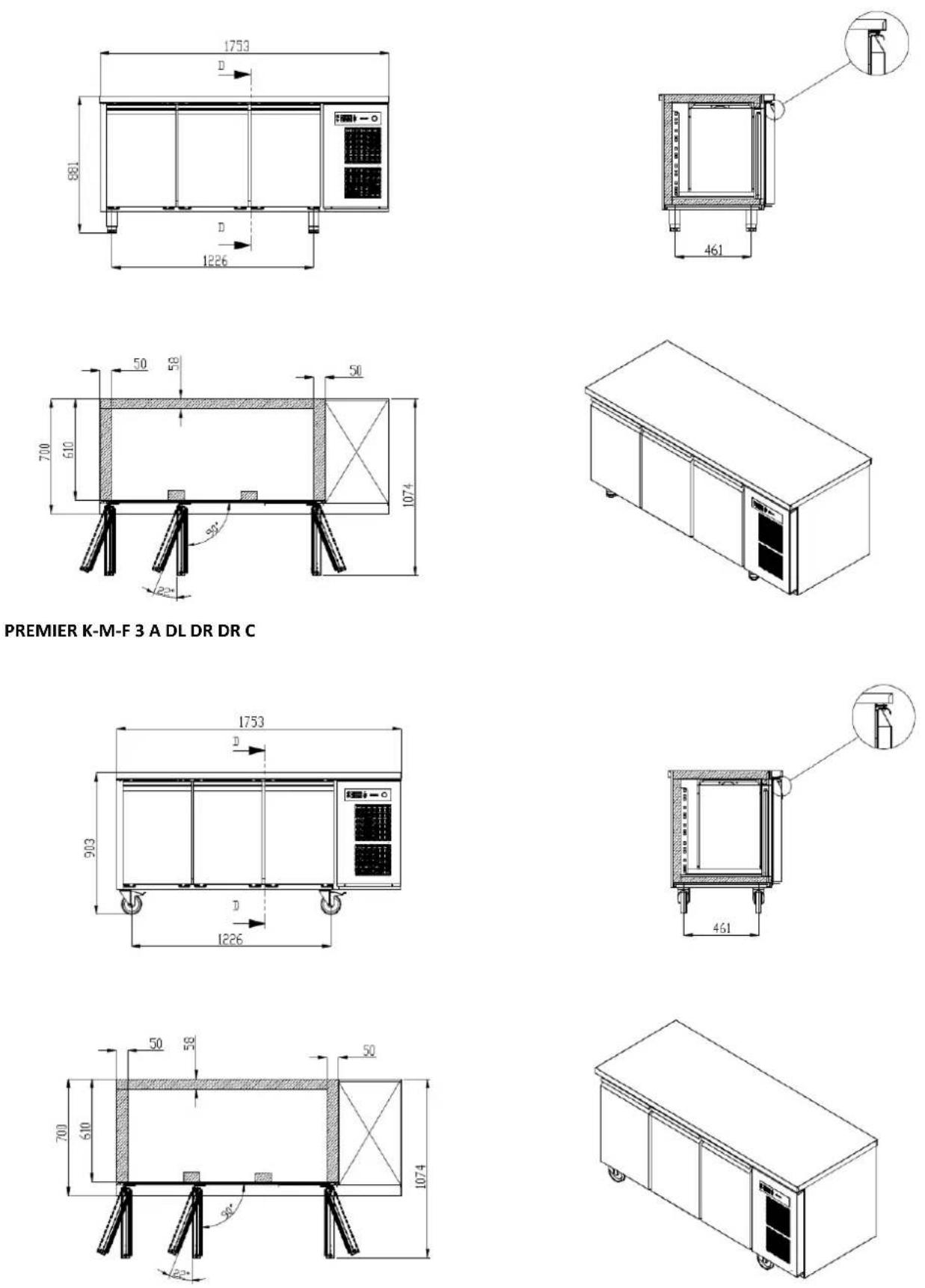

PREMIER K-M-F 3 A DL DR DR L

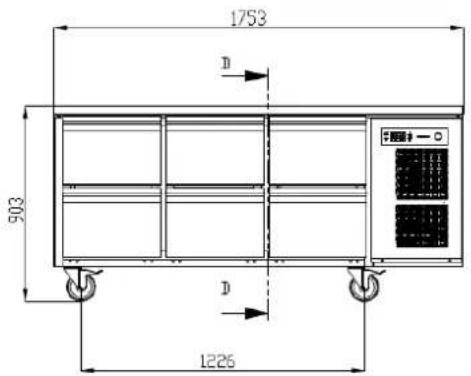

1753 D 881 D 1226

461

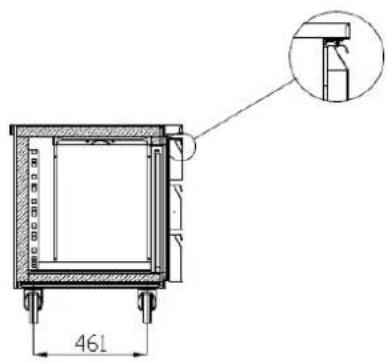

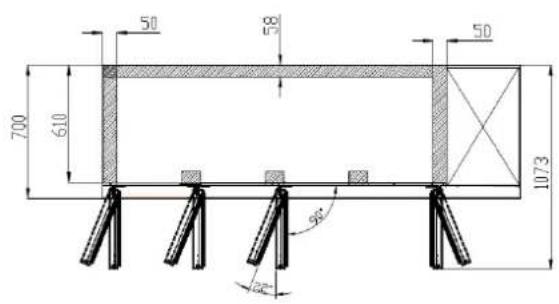

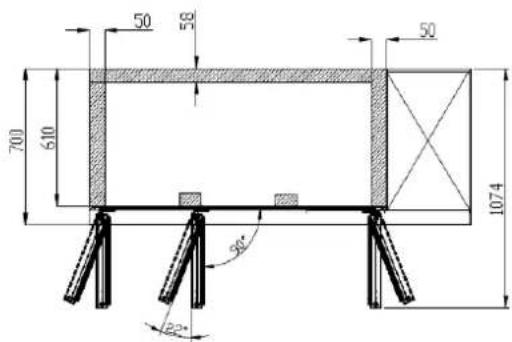

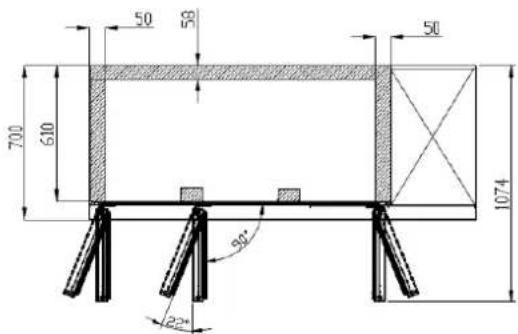

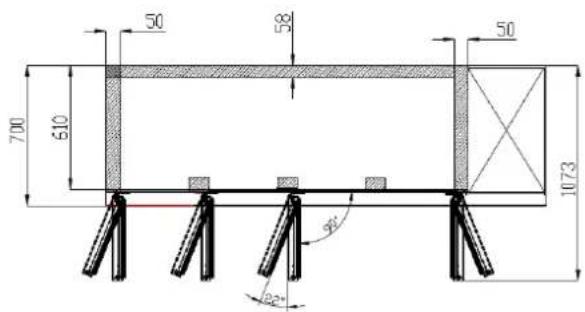

50 58 700 610 50 1074 92° 23°

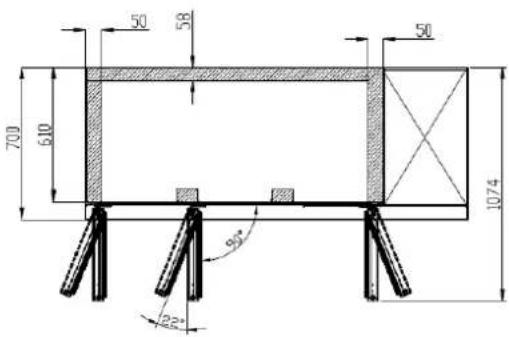

Line drawing of a three-tiered stainless steel kitchen appliance (no text or symbols)

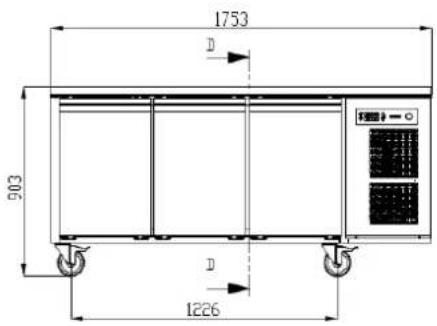

PREMIER K-M-F 3 A DL DR DR C

1753 903 1226

461

50 56 700 610 50 1074 30° 22°

Line drawing of a three-tiered stainless steel kitchen cabinet with front panel and side wheels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

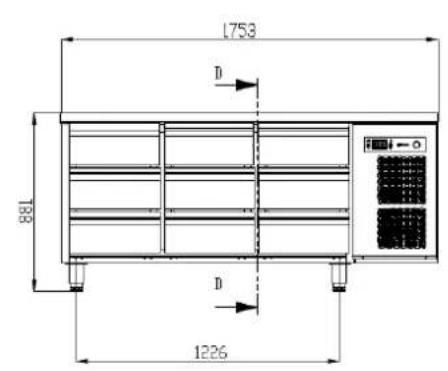

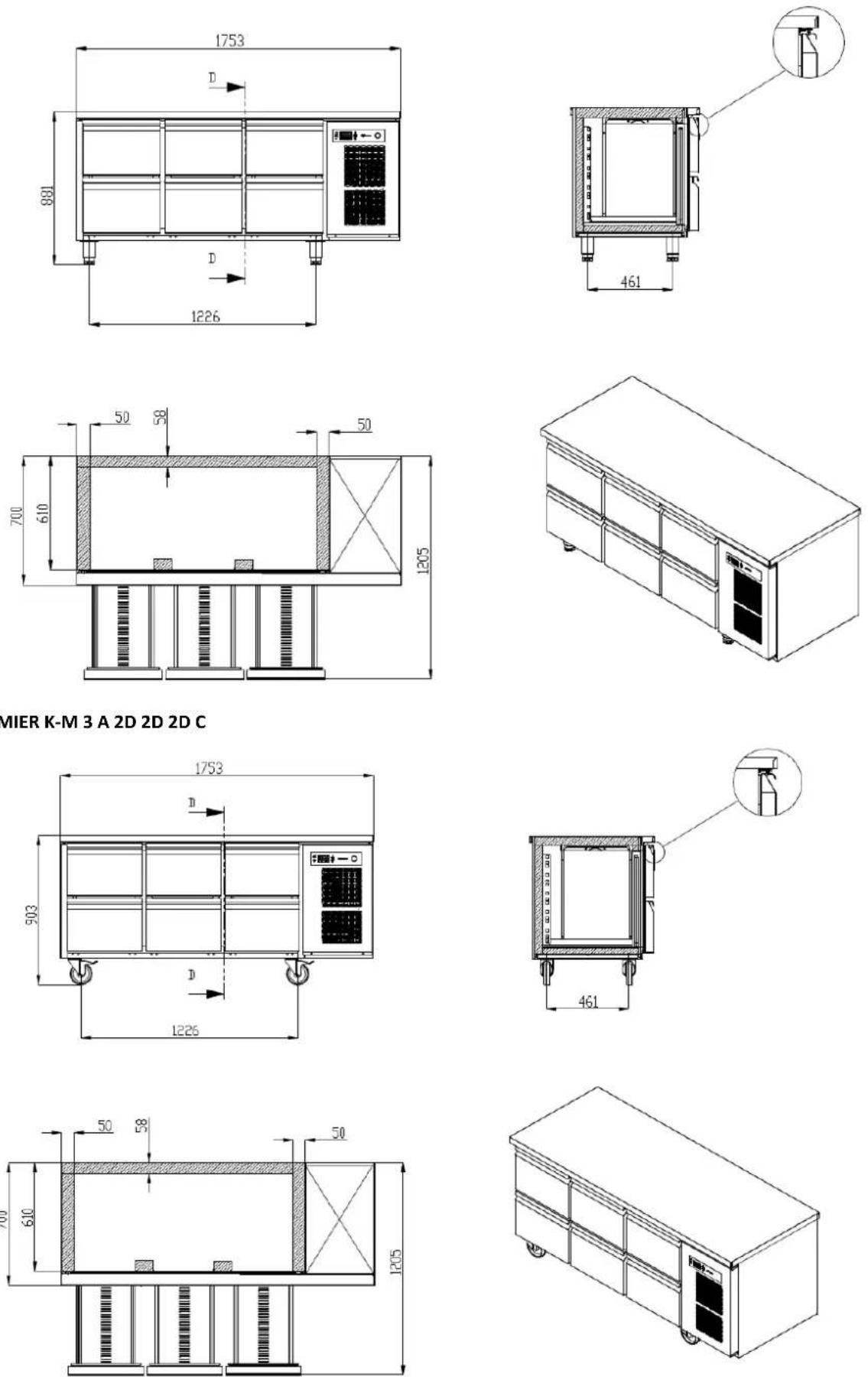

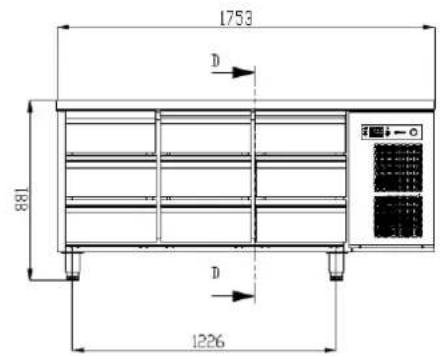

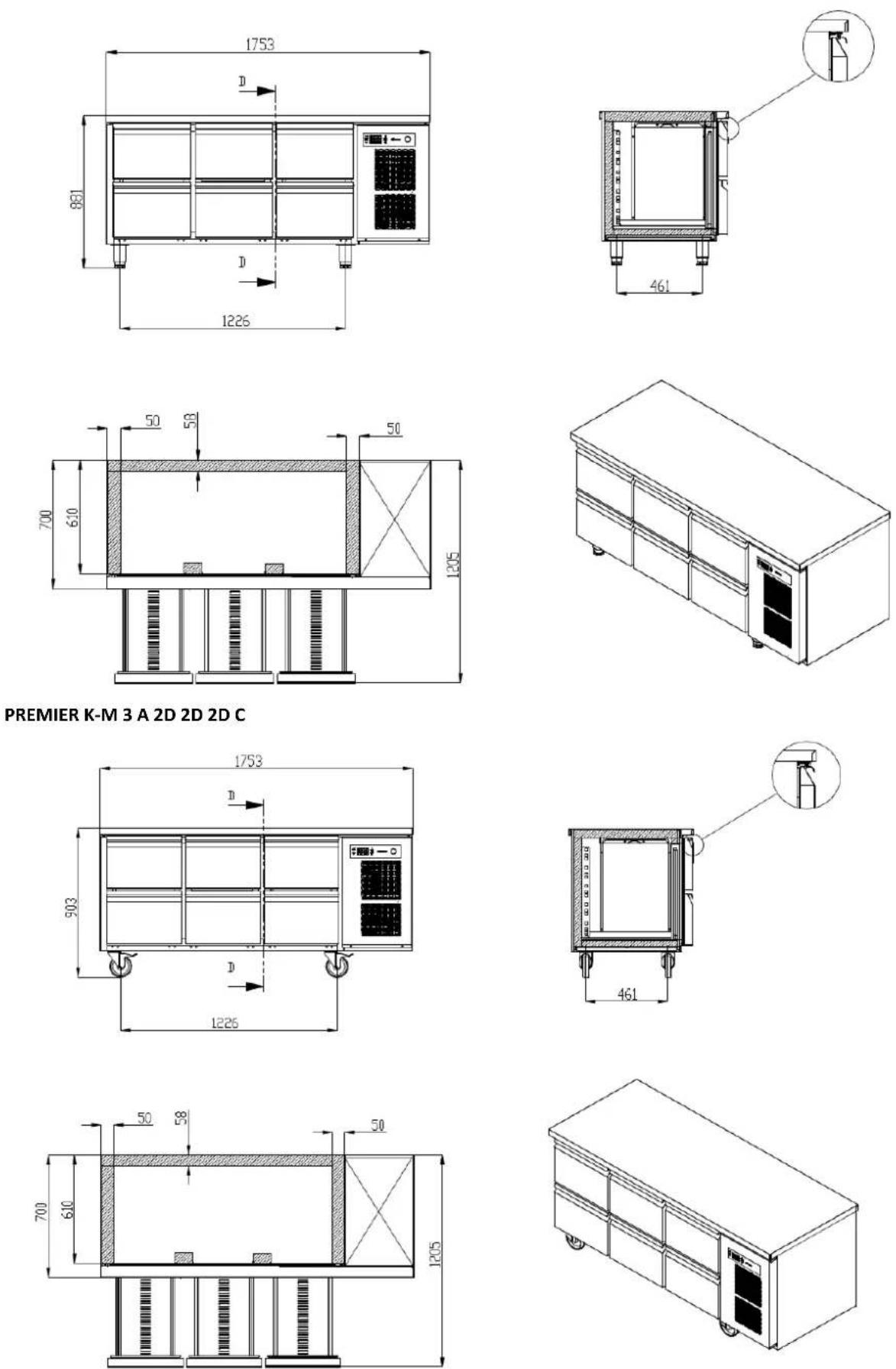

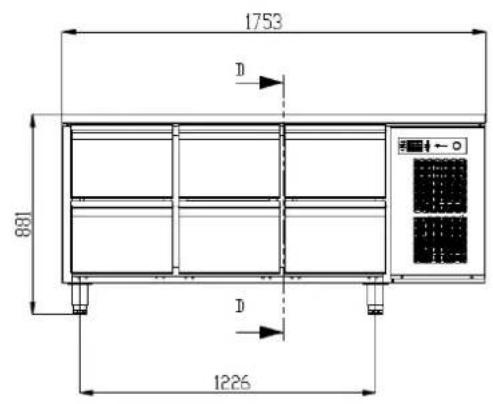

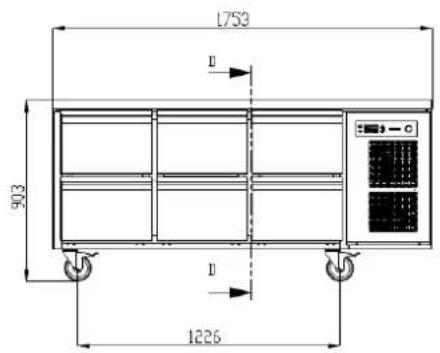

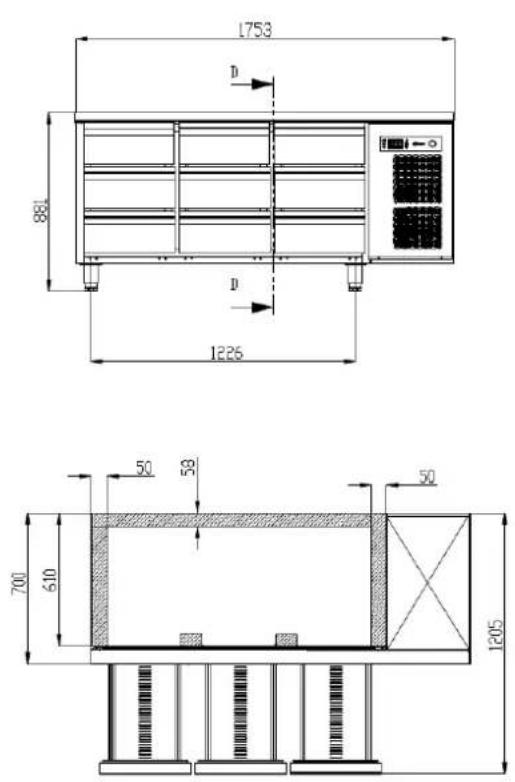

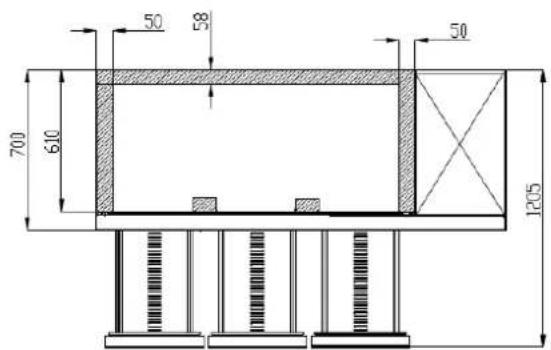

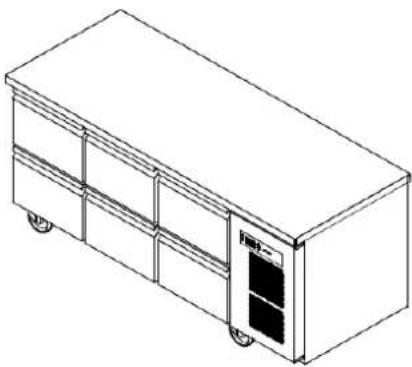

PREMIER K-M 3 A 2D 2D 2D L

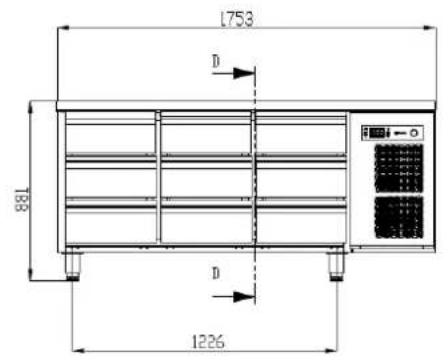

1753 881 D D 1226

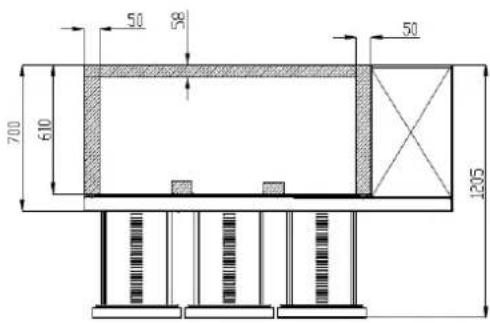

50 58 700 610 50 1205

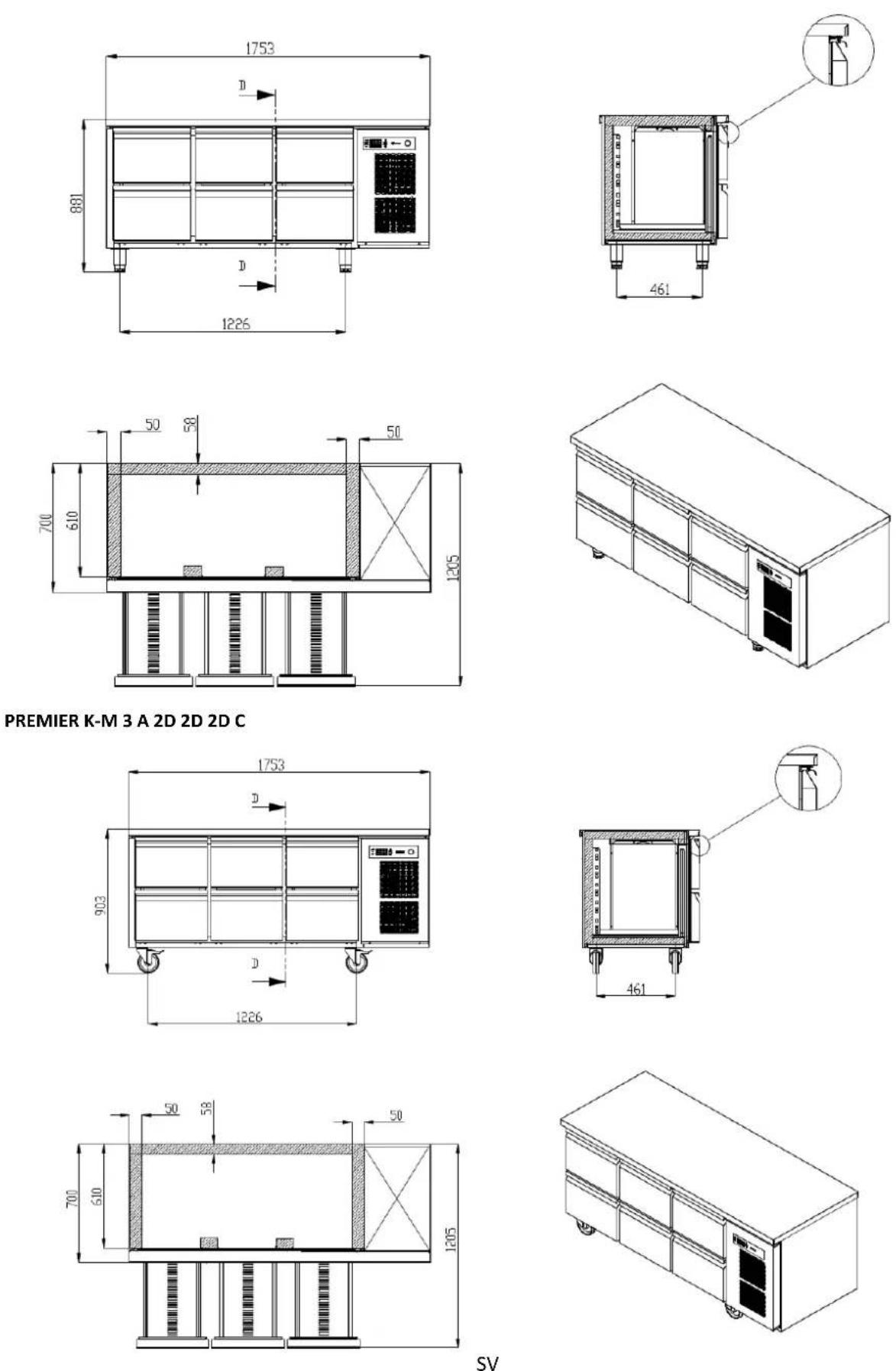

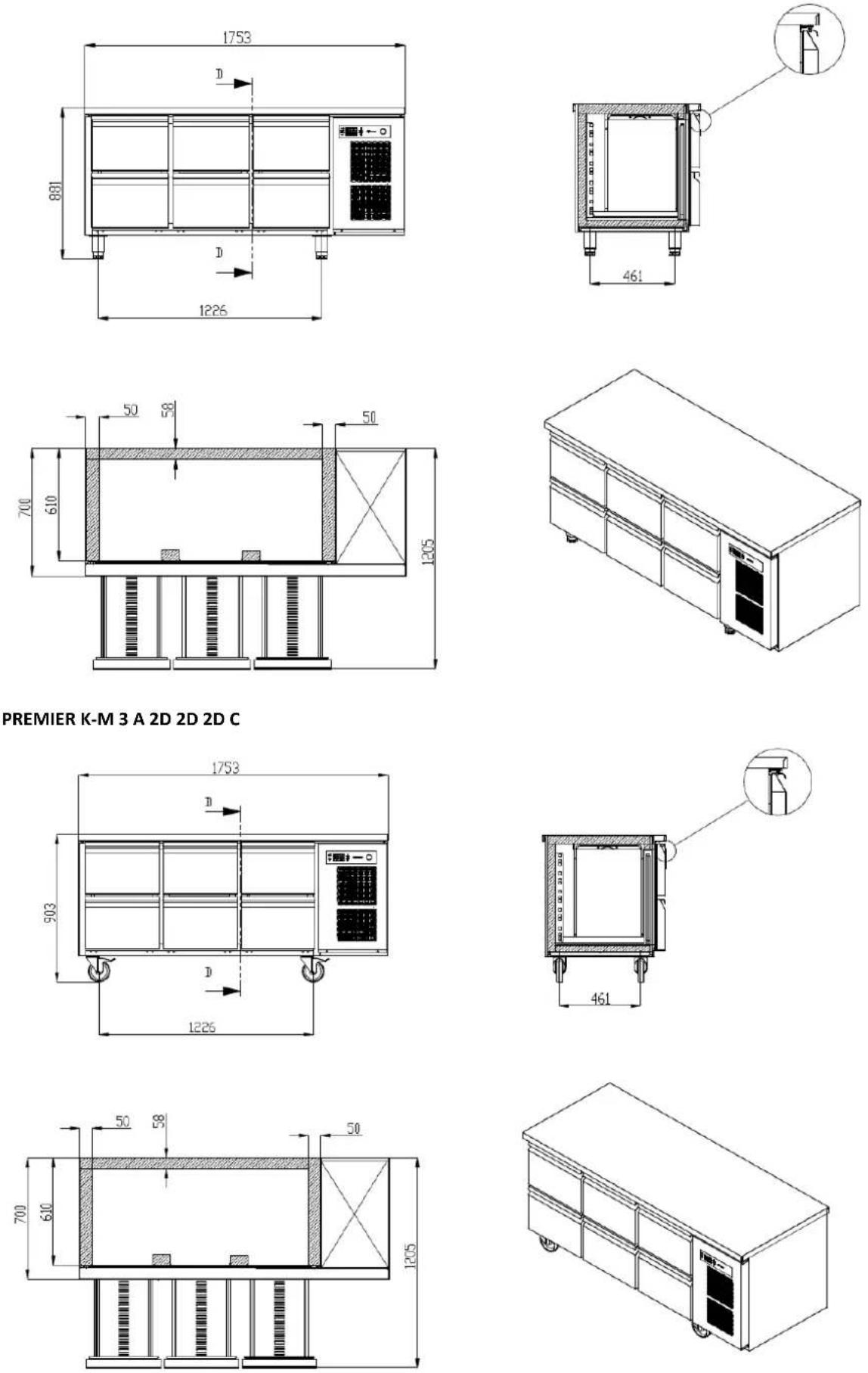

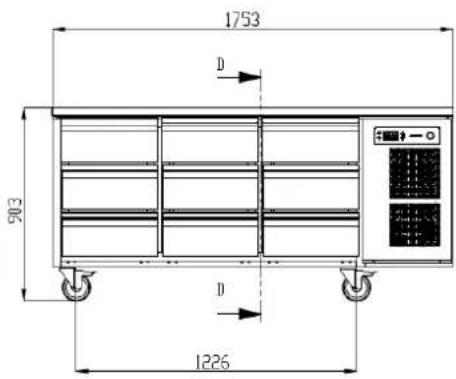

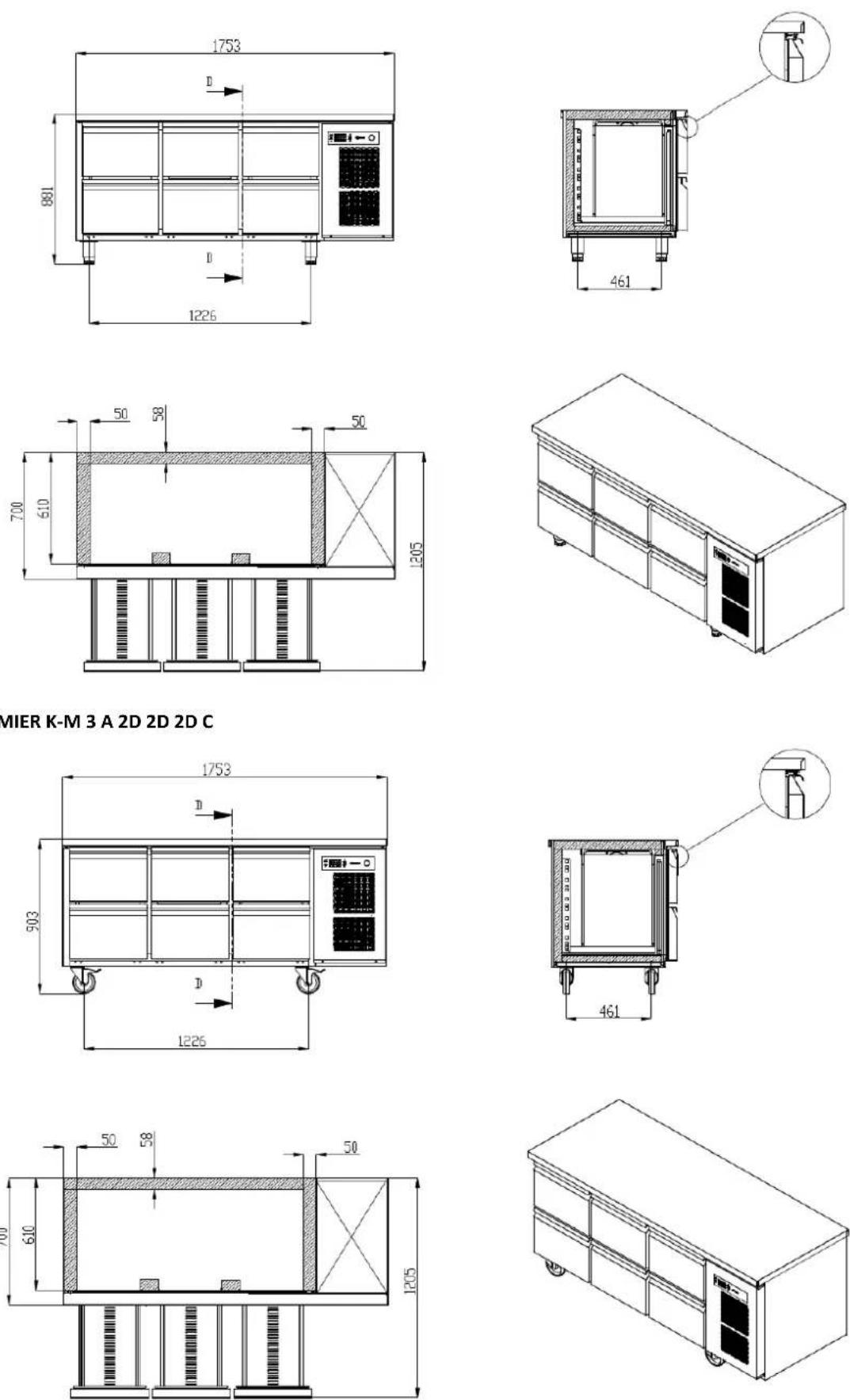

PREMIER K-M 3 A 2D 2D 2D C

1753 903 1226

50 58 700 610 50 1205

461

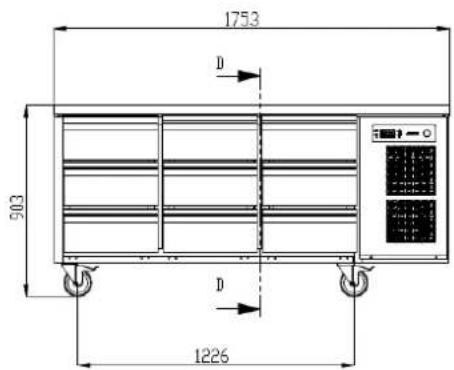

Line drawing of a three-tiered stainless steel kitchen appliance with front panel and side panels (no text or symbols)

461

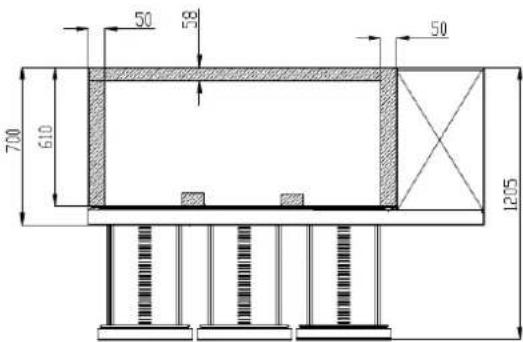

Line drawing of a three-tiered stainless steel kitchen appliance with wheels and front panel (no text or symbols)

EN

HOSHIZAKI

PREMIER UNDERCOUNTER

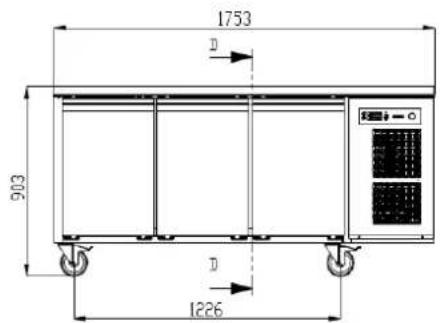

PREMIER K-M 3 A 3D 3D 3D 3 L

1753 D 188 D 1226

50 58 700 610 50 1205

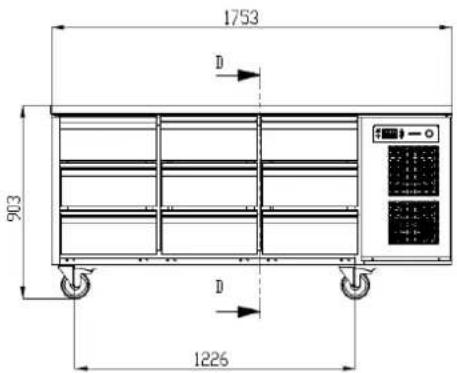

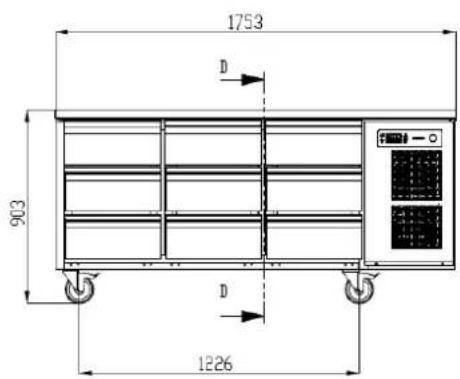

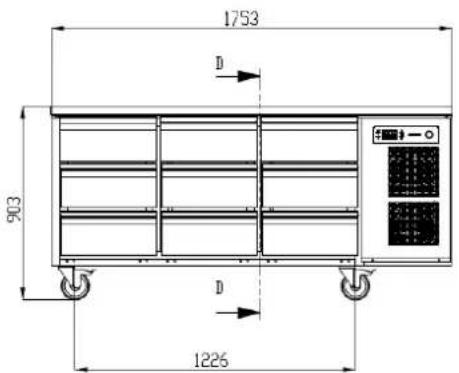

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

50 58 700 610 50 1205

461

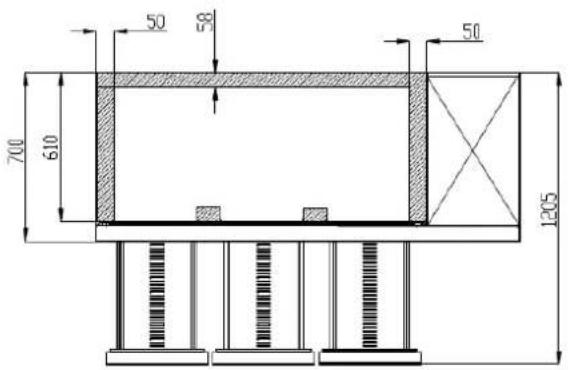

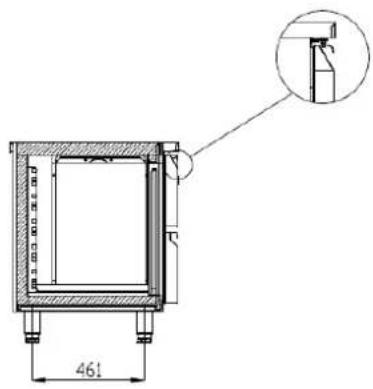

Line drawing of a multi-tiered server cabinet with front panel and side door (no text or symbols)

461

Line drawing of a multi-tiered kitchen appliance with wheels and side panels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

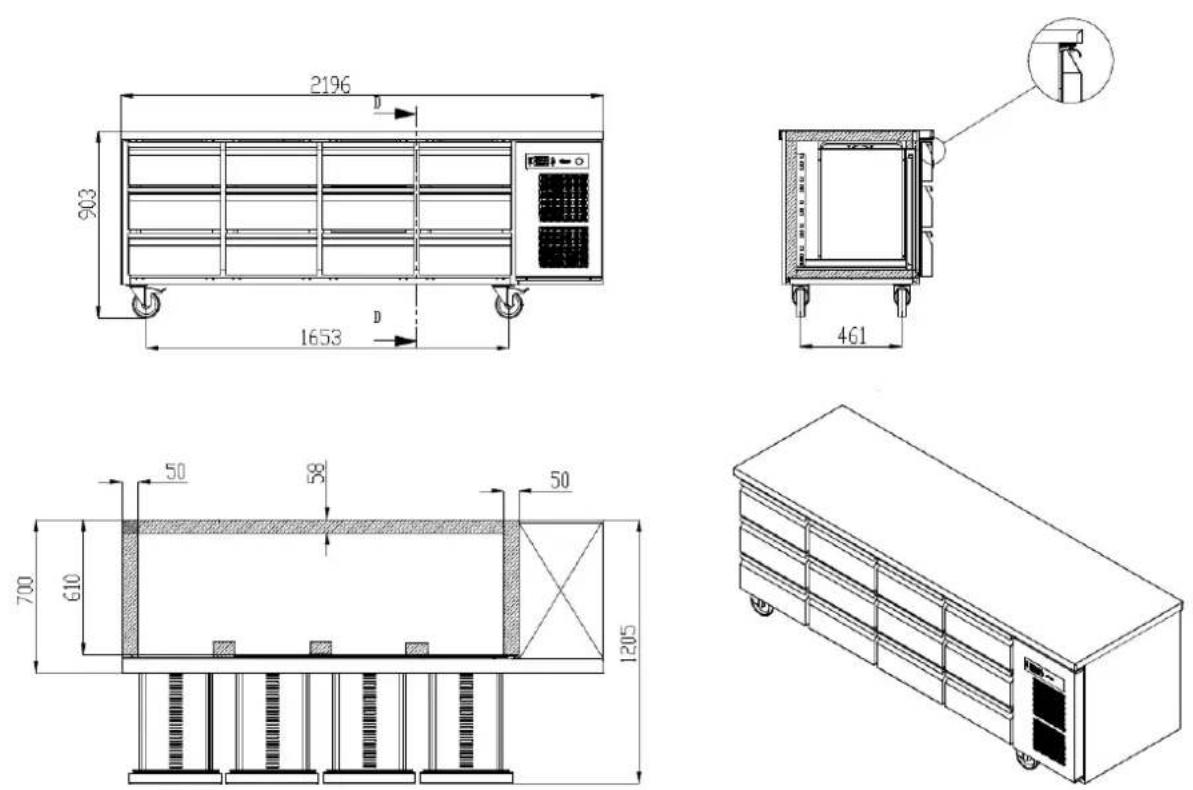

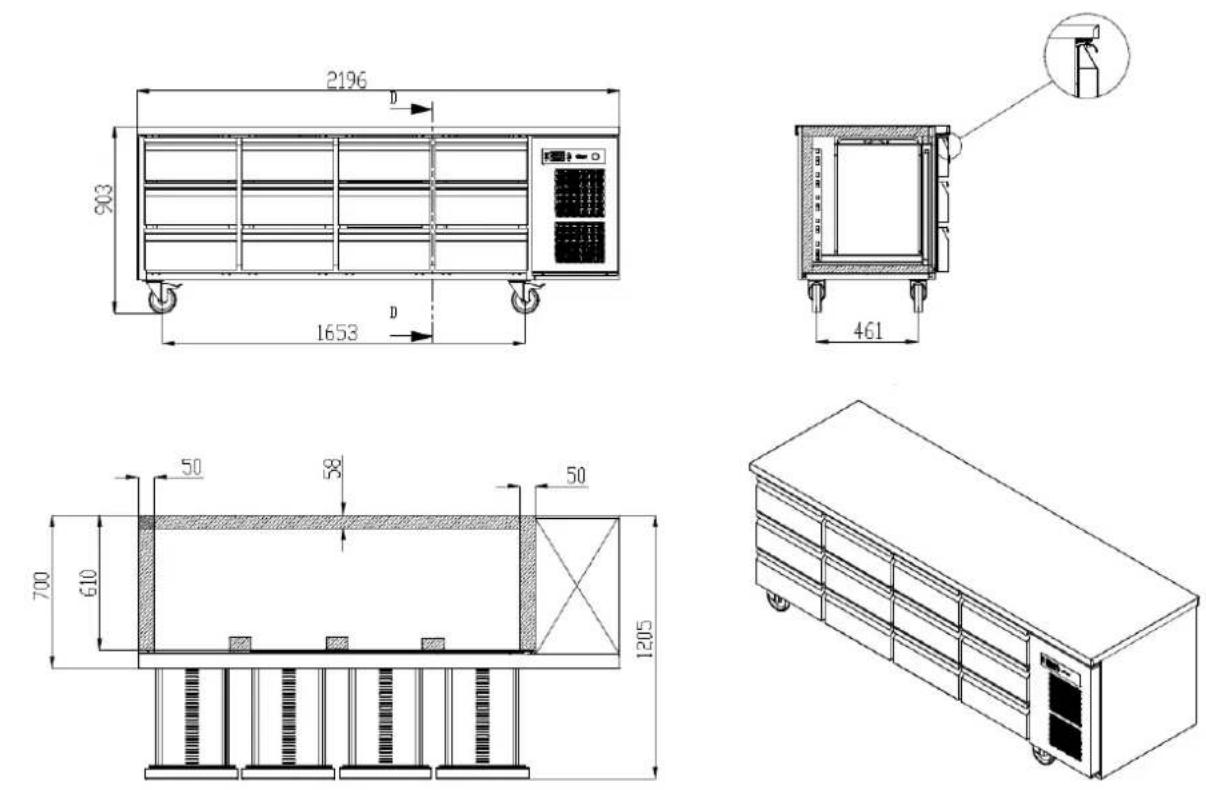

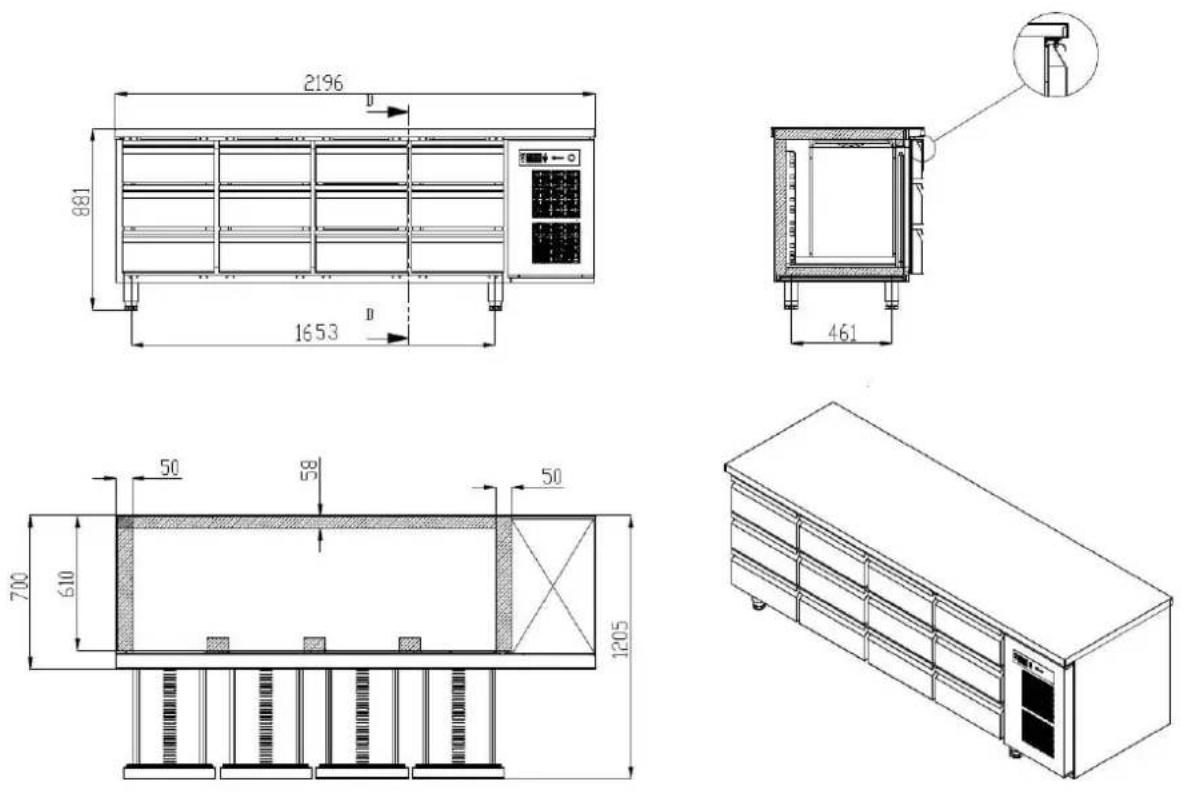

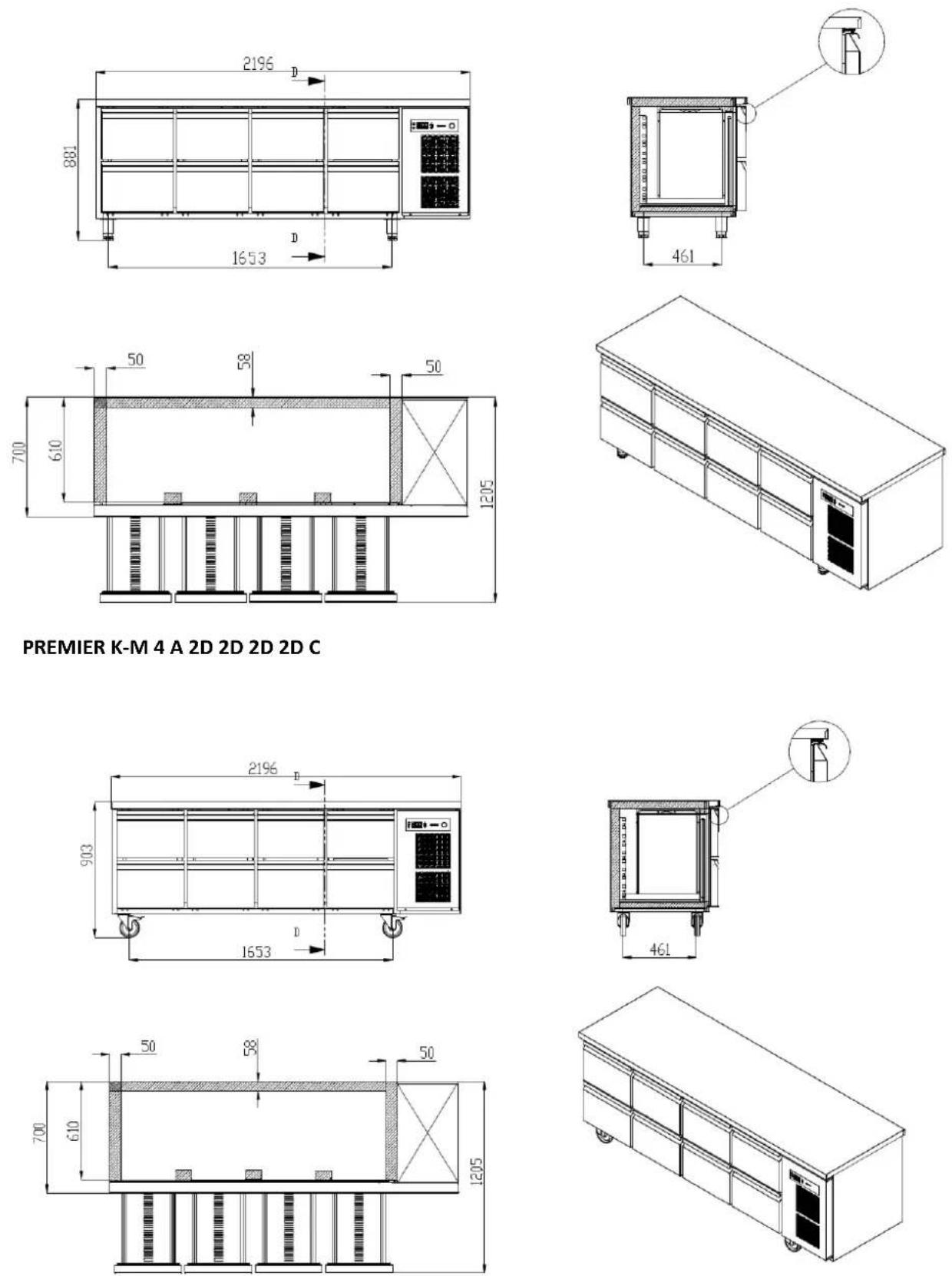

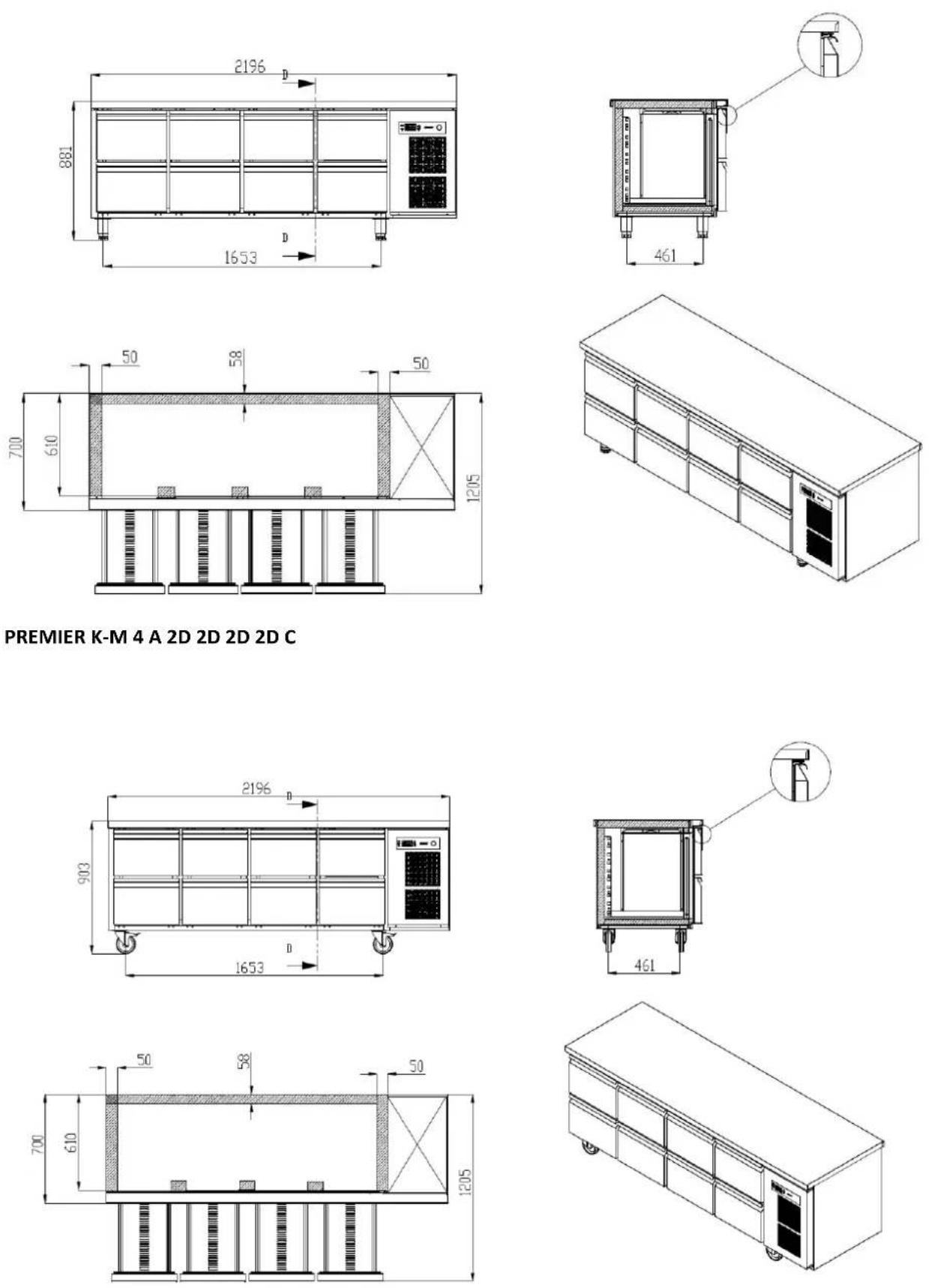

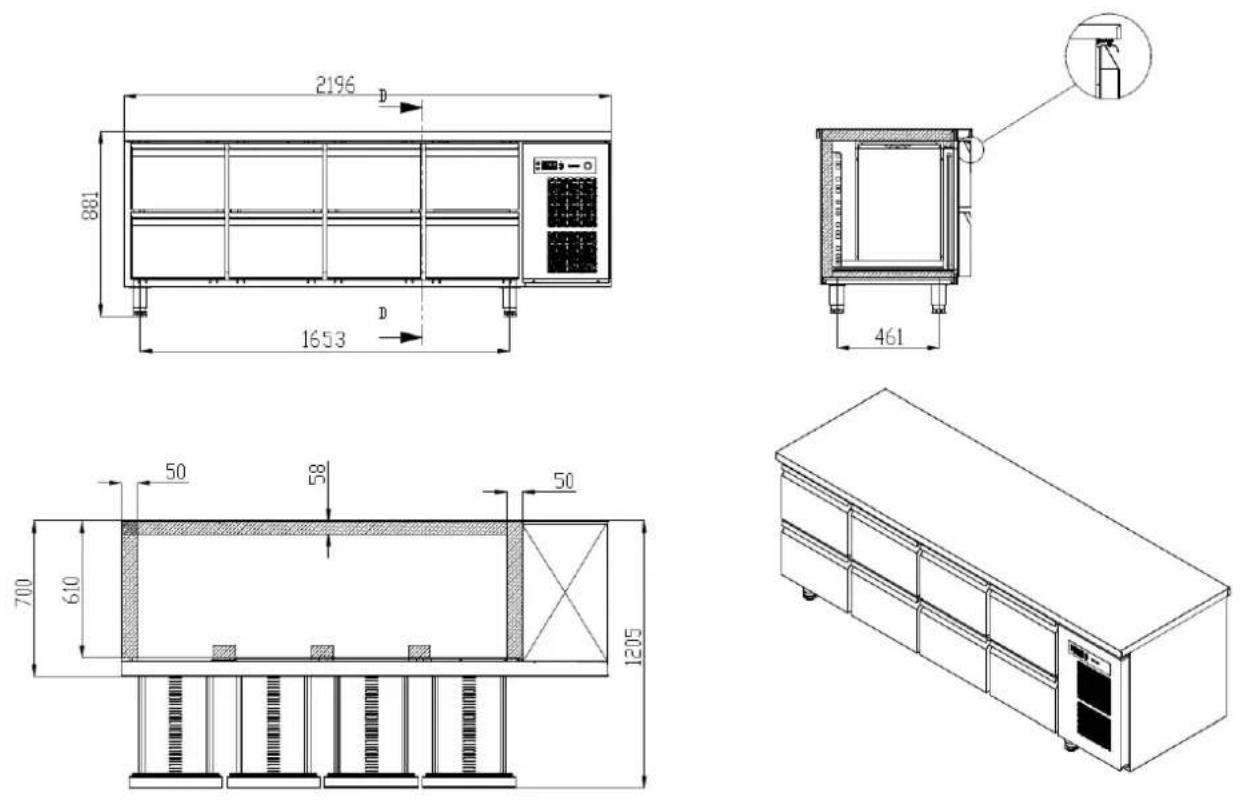

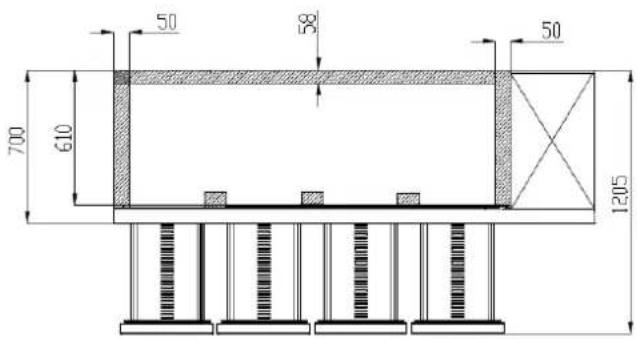

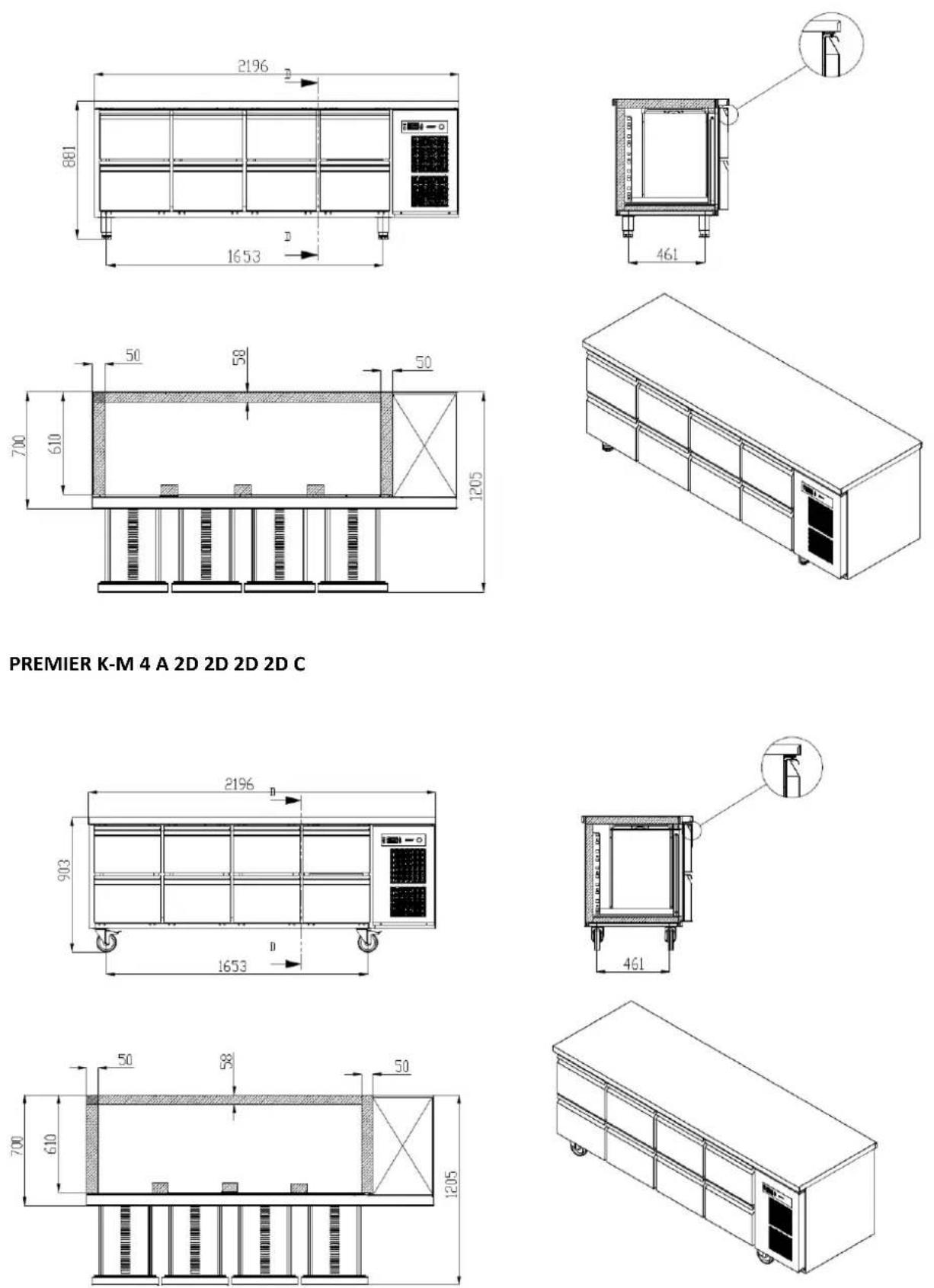

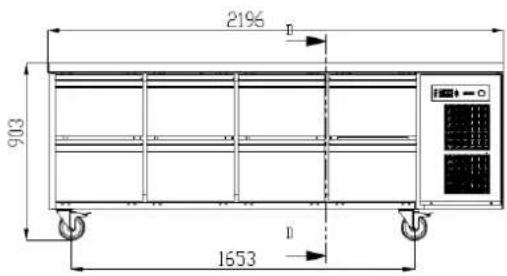

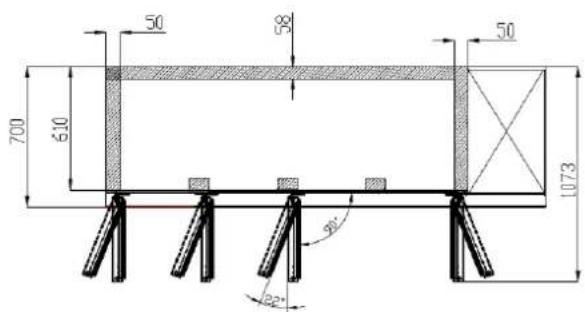

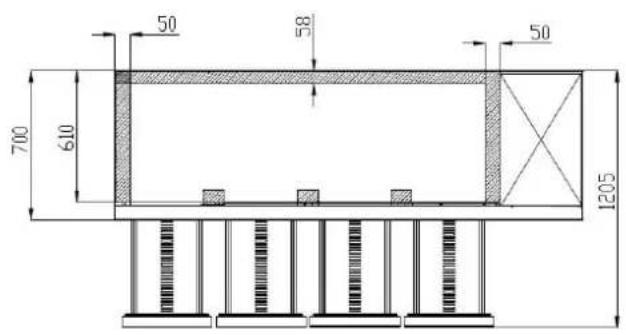

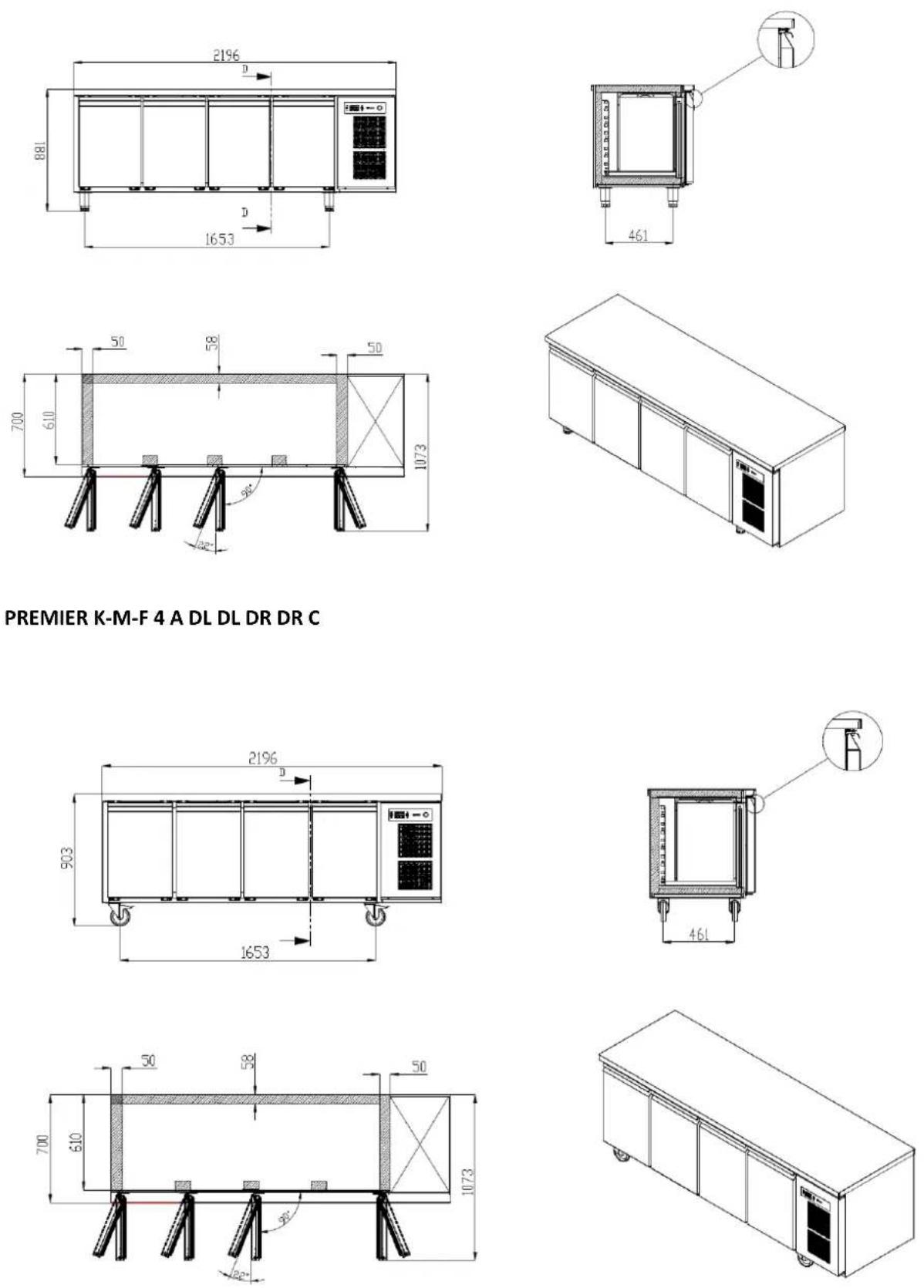

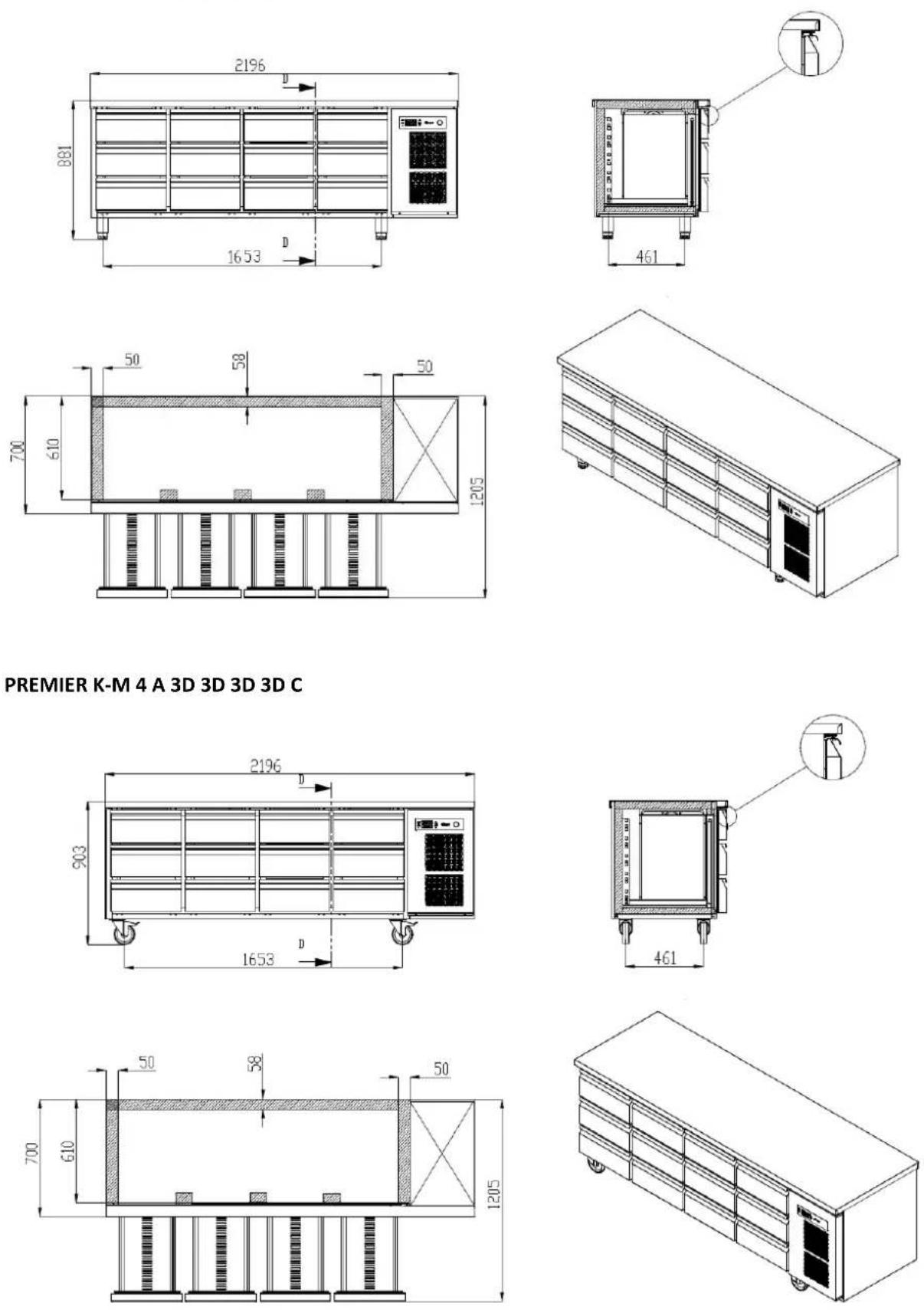

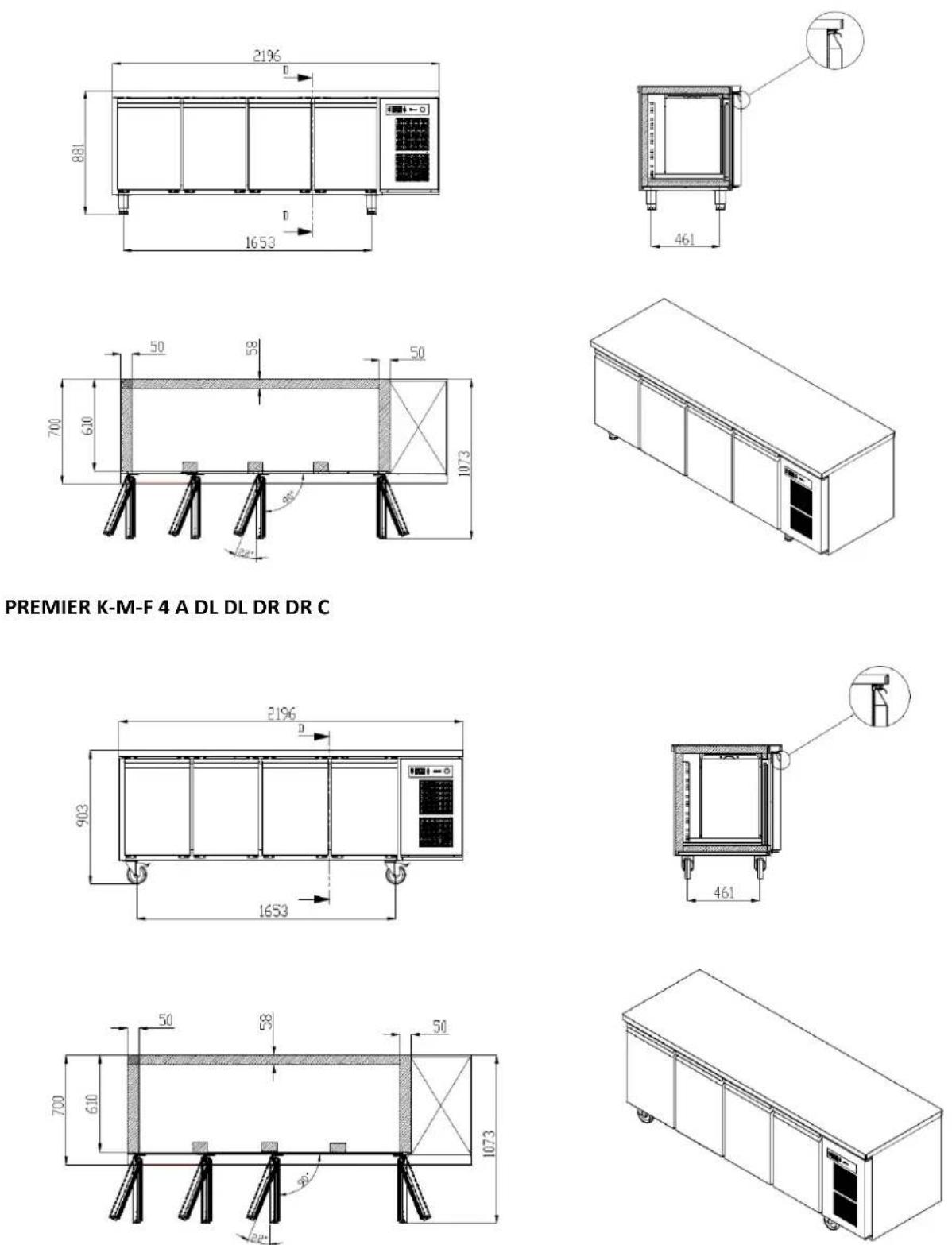

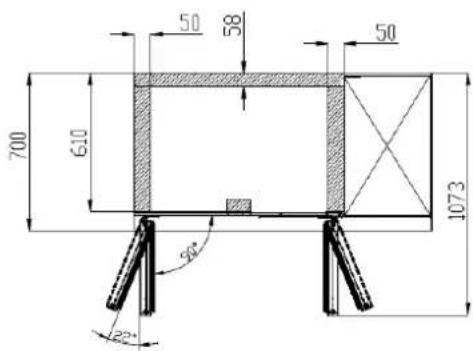

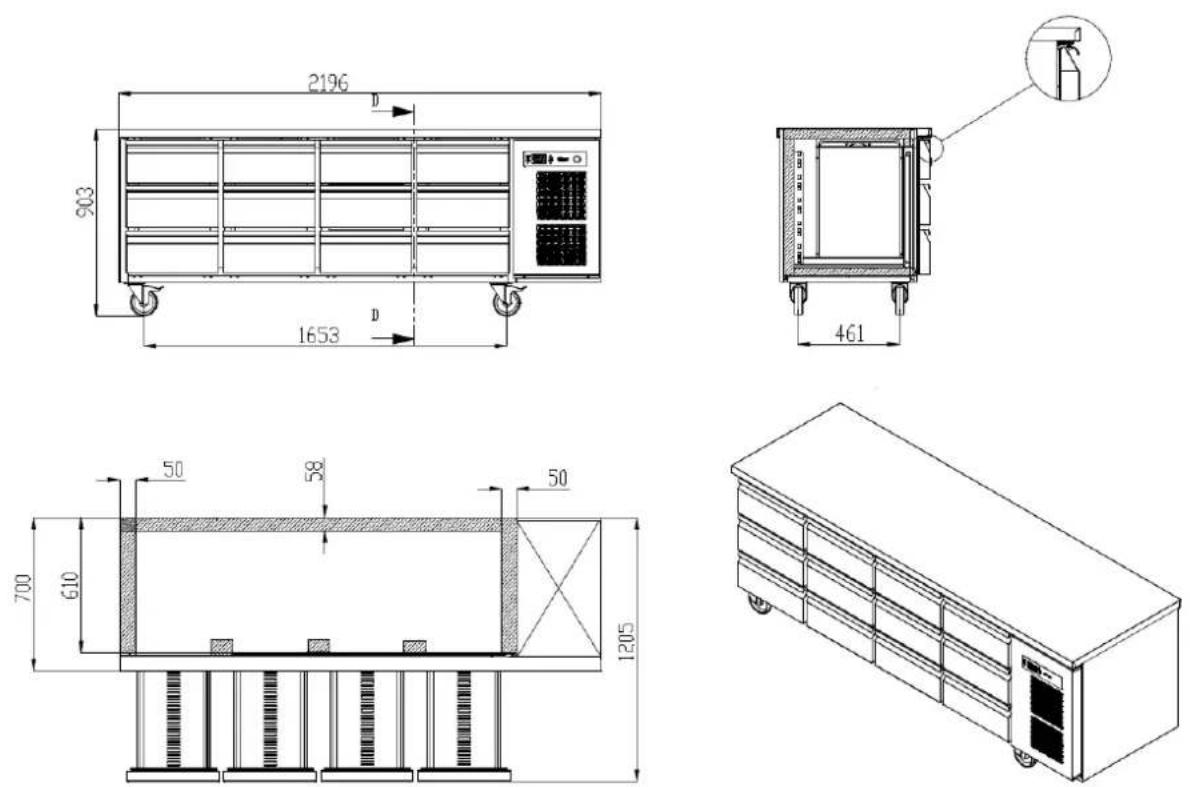

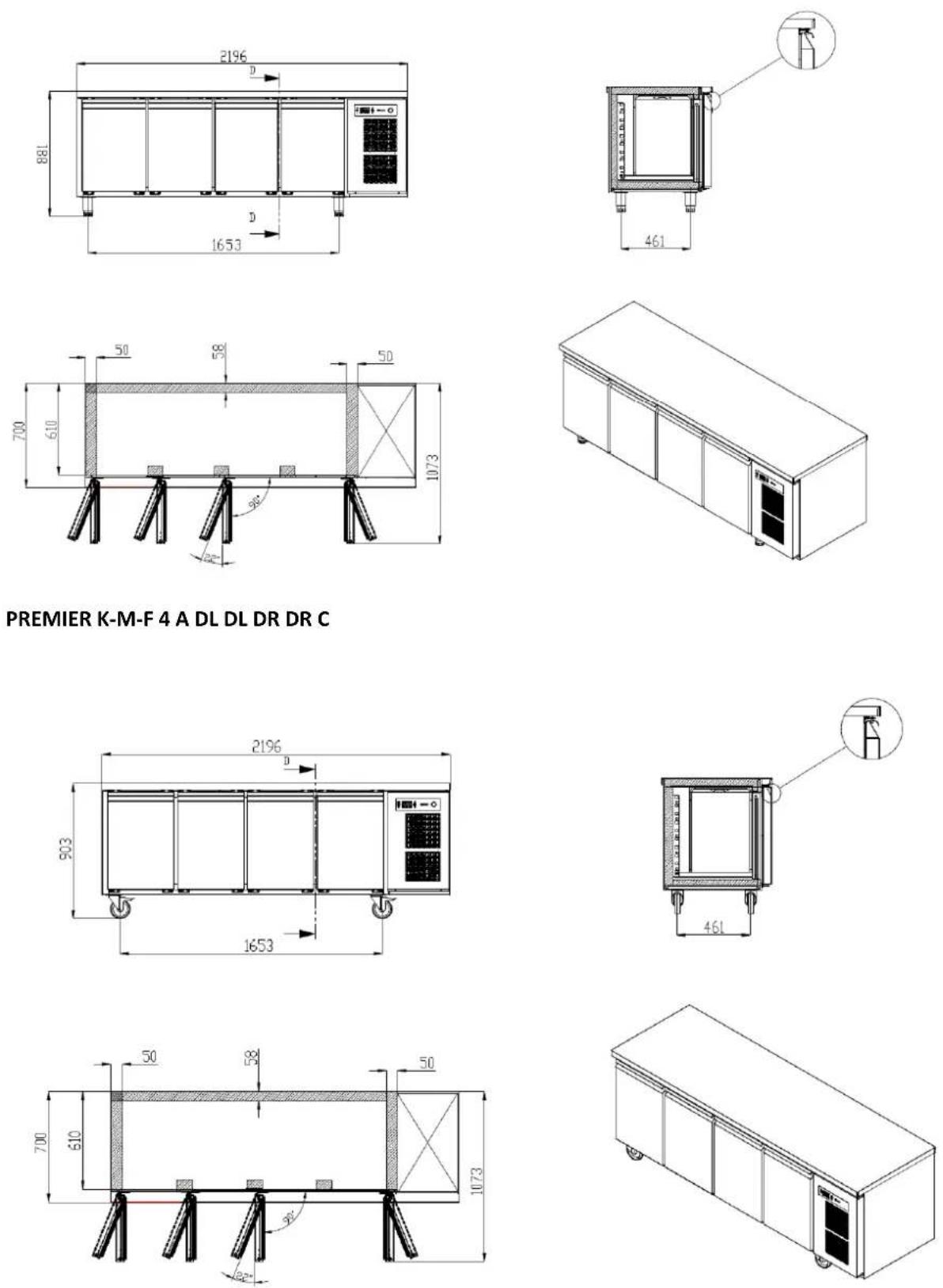

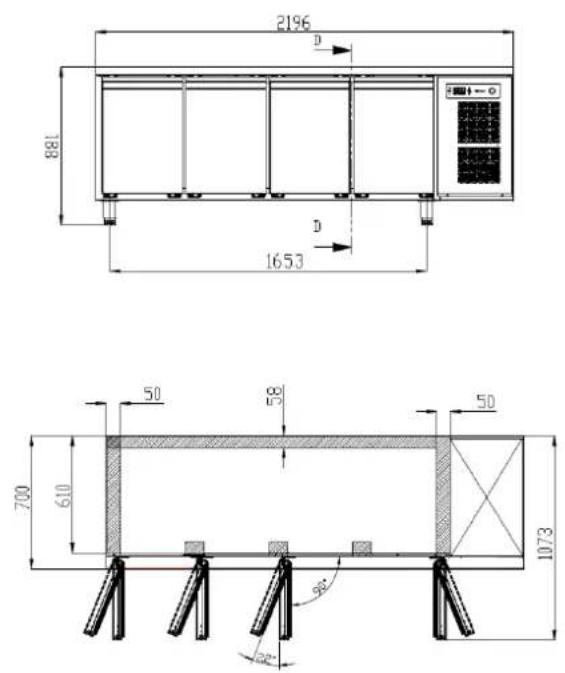

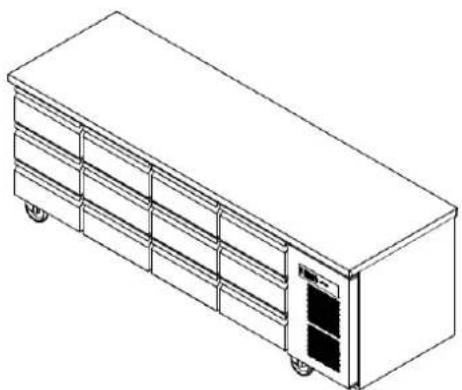

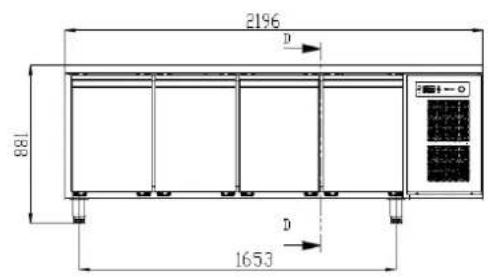

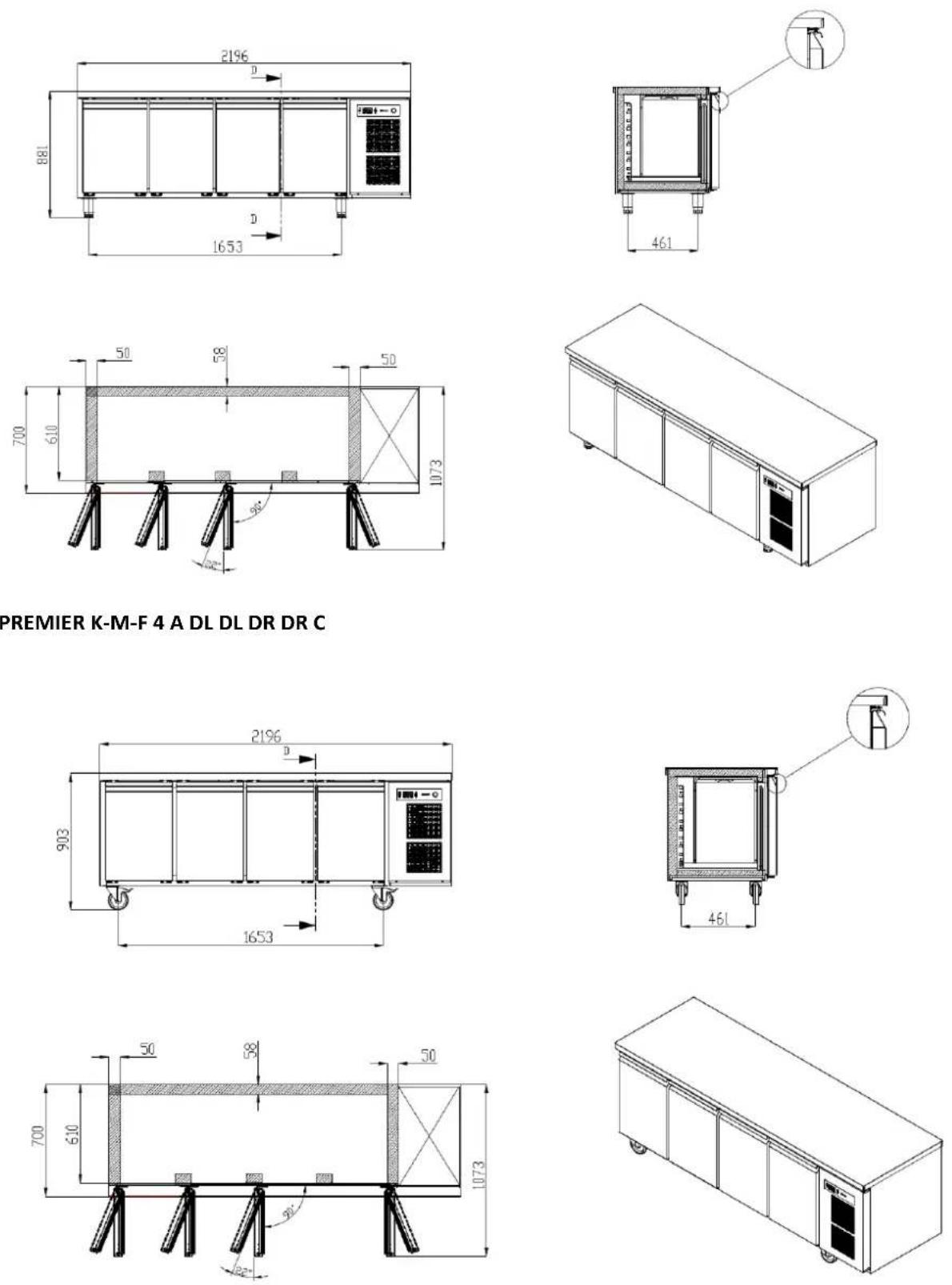

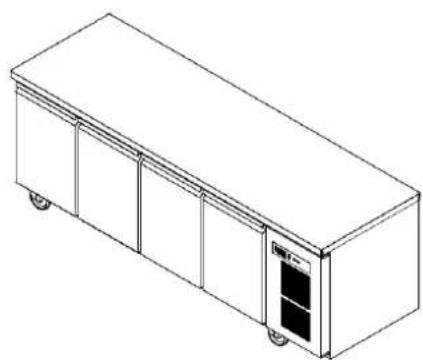

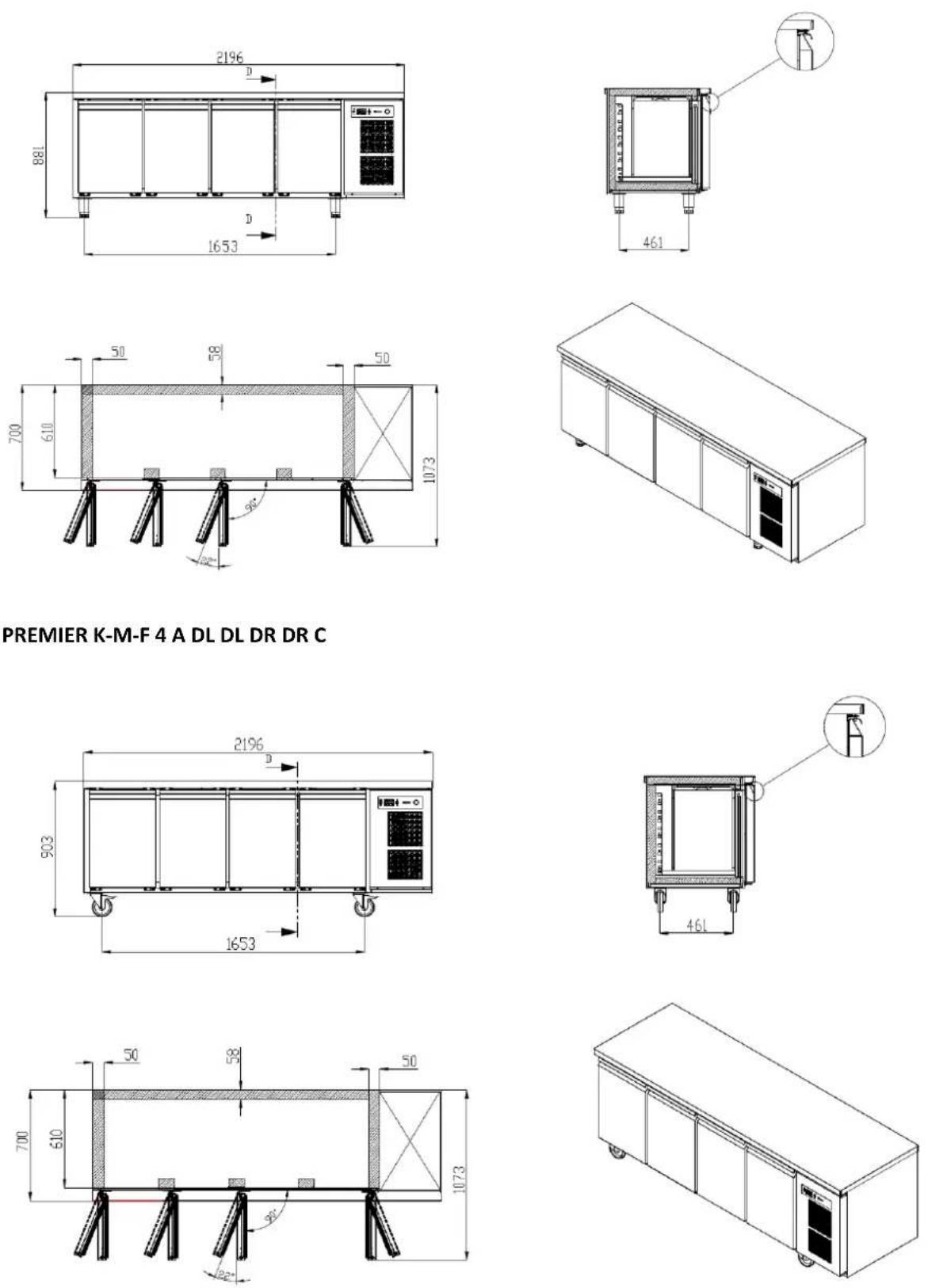

PREMIER K-M-F 4 A DL DL DR DR L

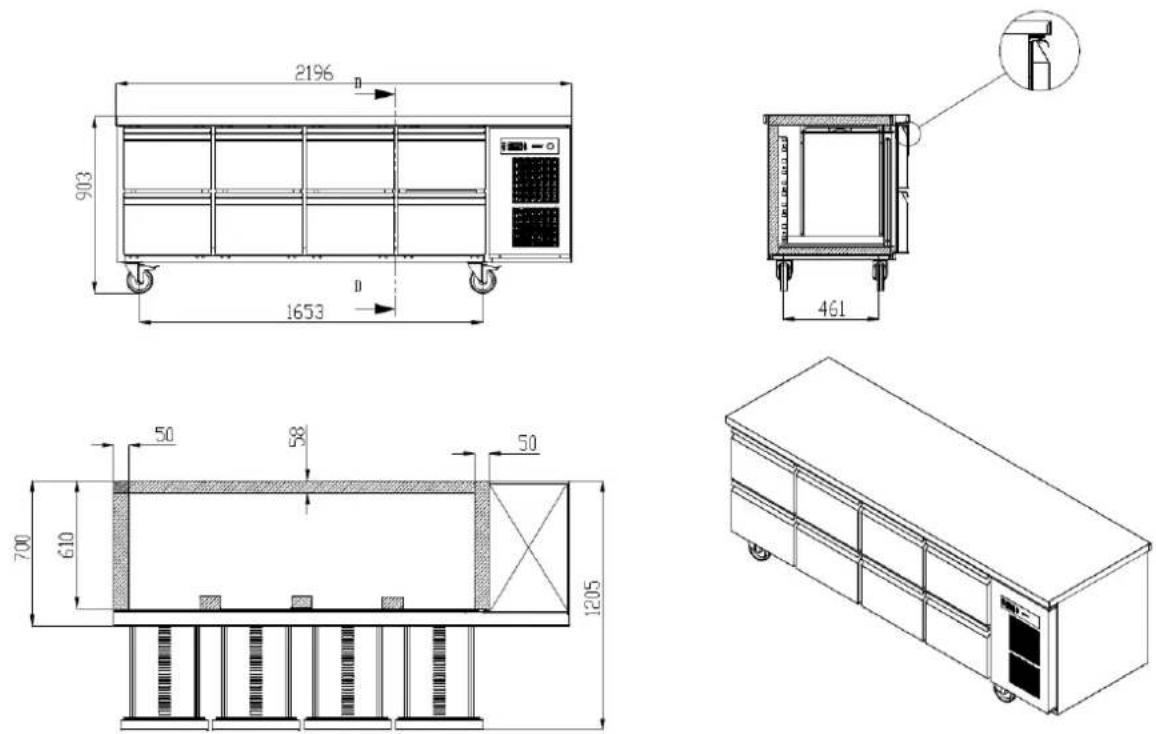

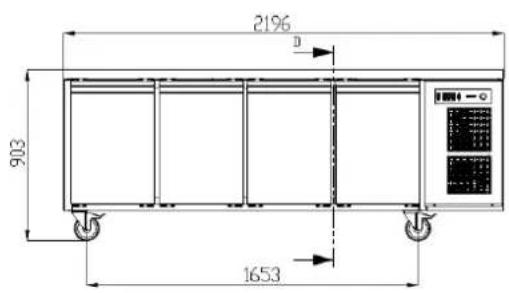

2196 D 88 D 1653

461

50 58 700 610 50 1073 90° 20°

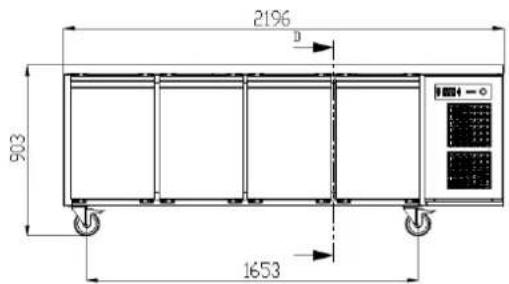

Line drawing of a modern stainless steel kitchen cabinet with front panel and side panels (no text or symbols)

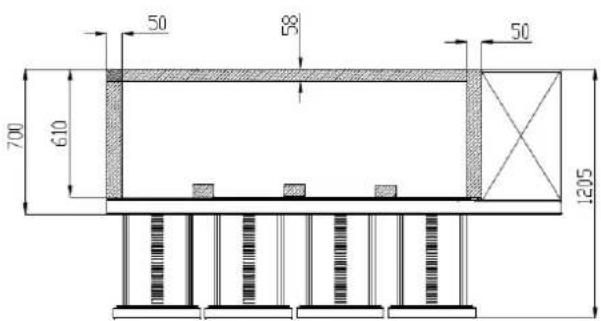

PREMIER K-M-F 4 A DL DL DR DR C

2196 903 1653

46l

50 58 700 610 50 1073 90° 22°

Line drawing of a three-tiered stainless steel kitchen cabinet with wheels and front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

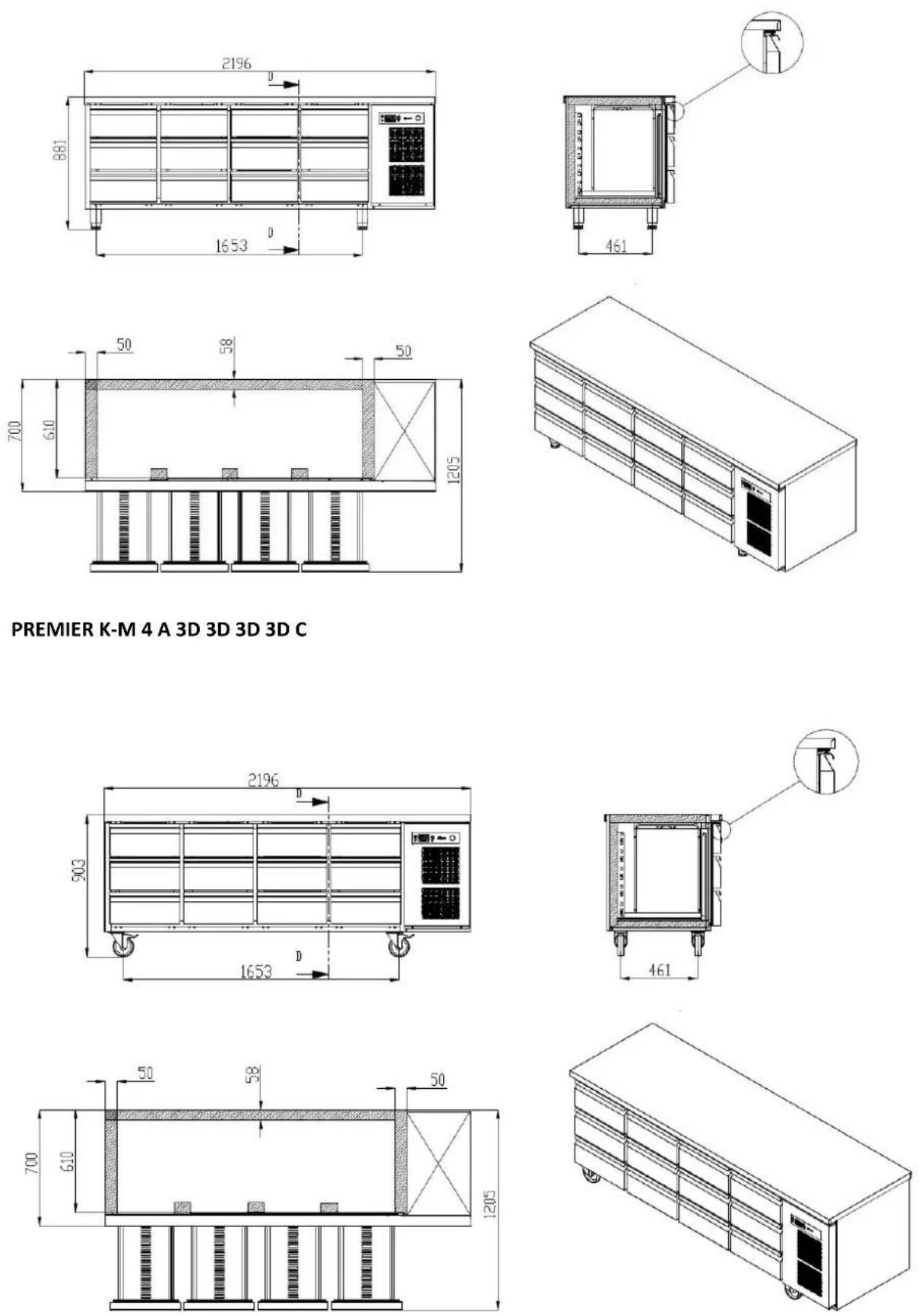

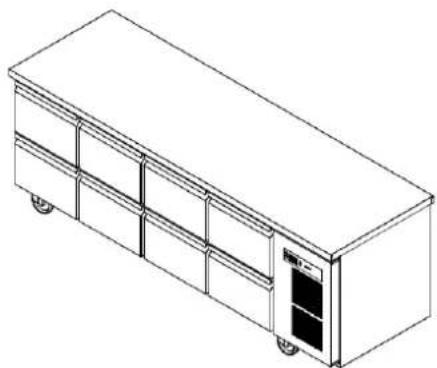

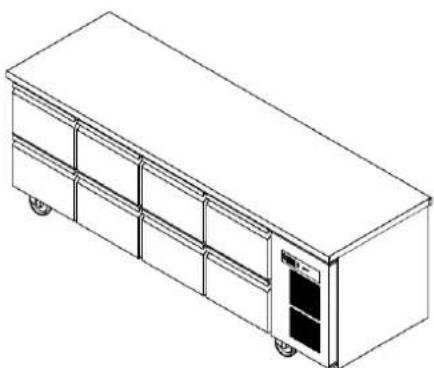

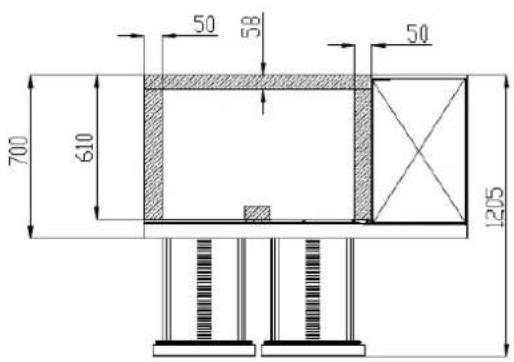

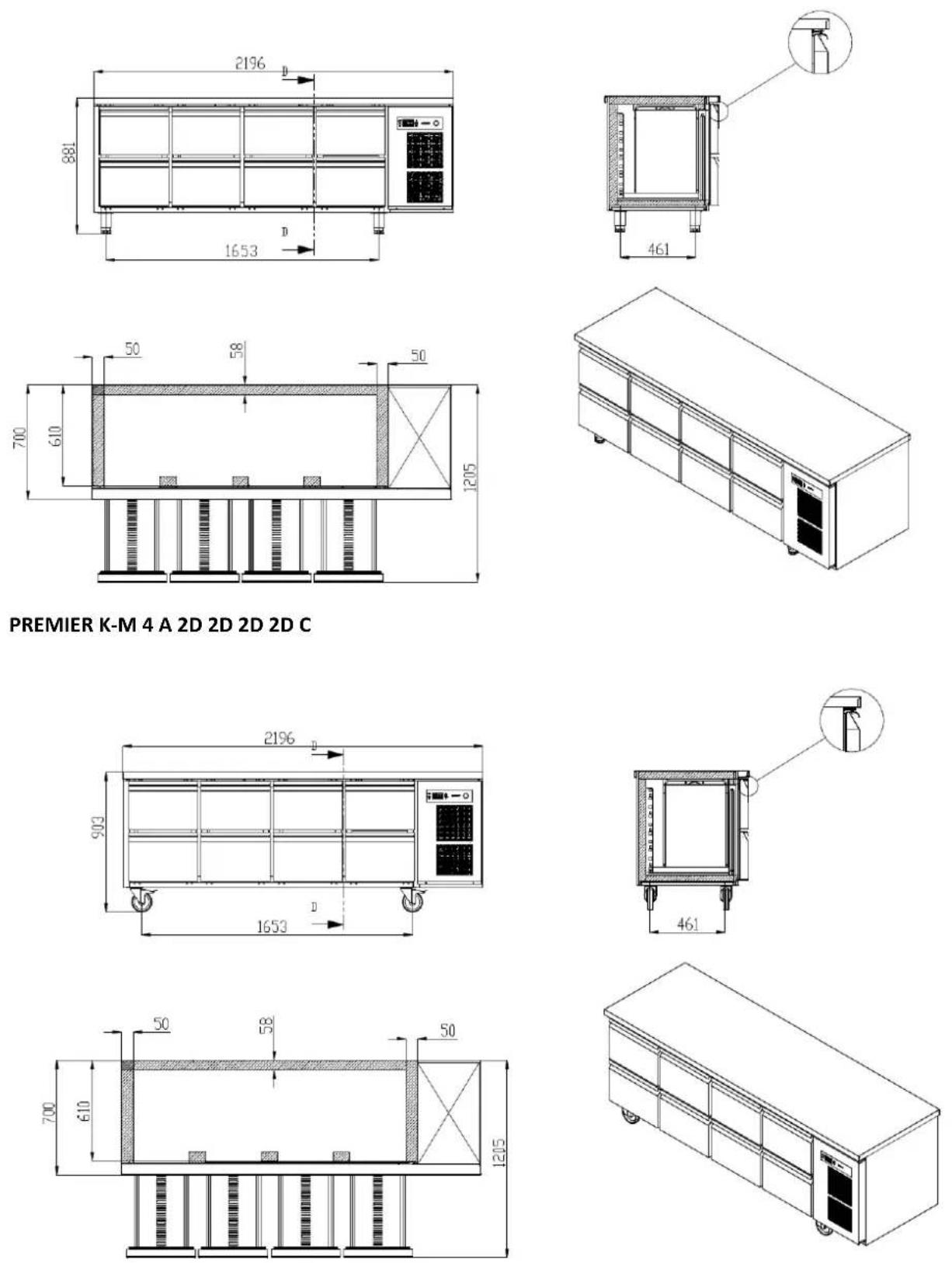

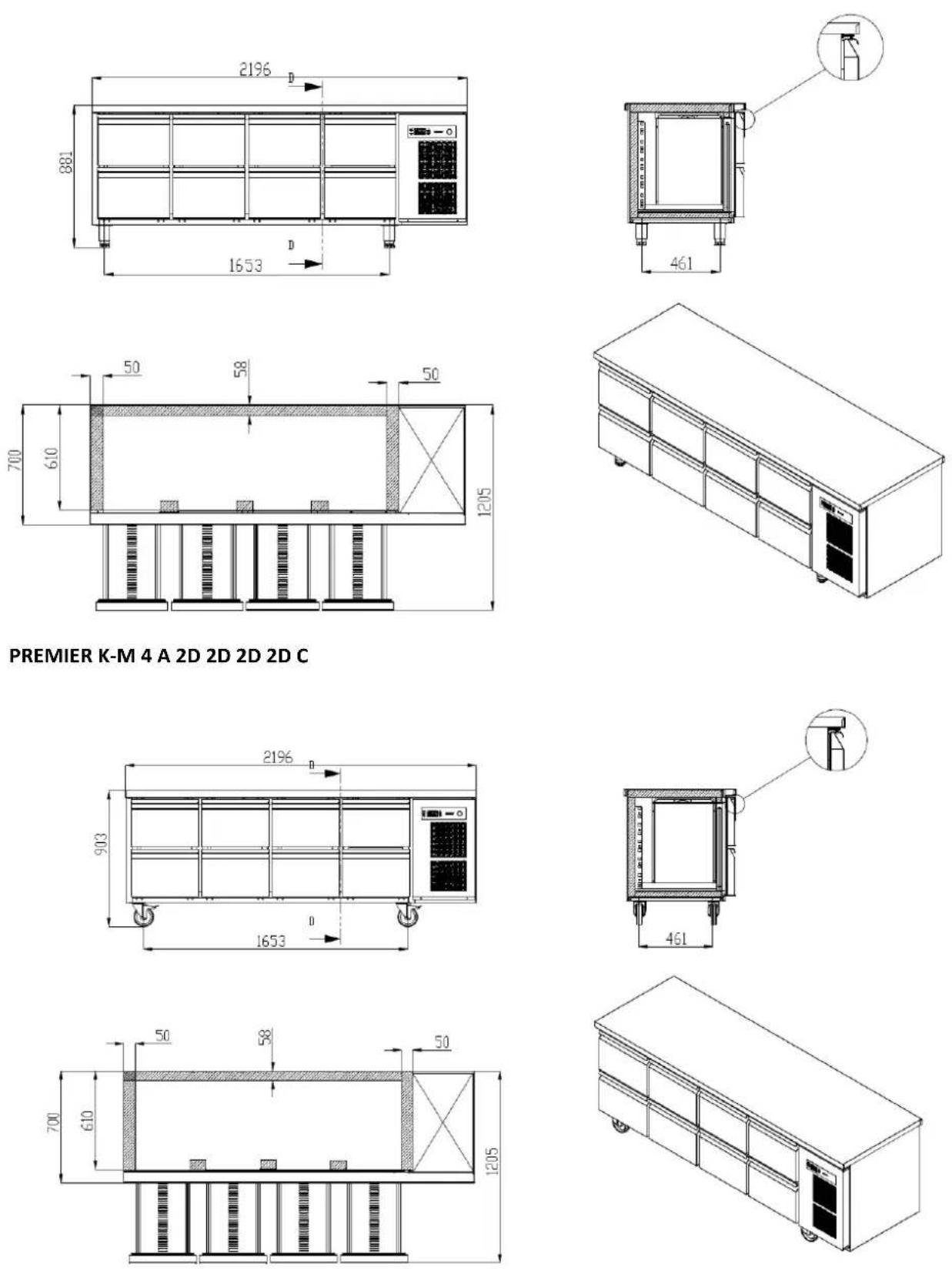

PREMIER K-M 4 A 2D 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

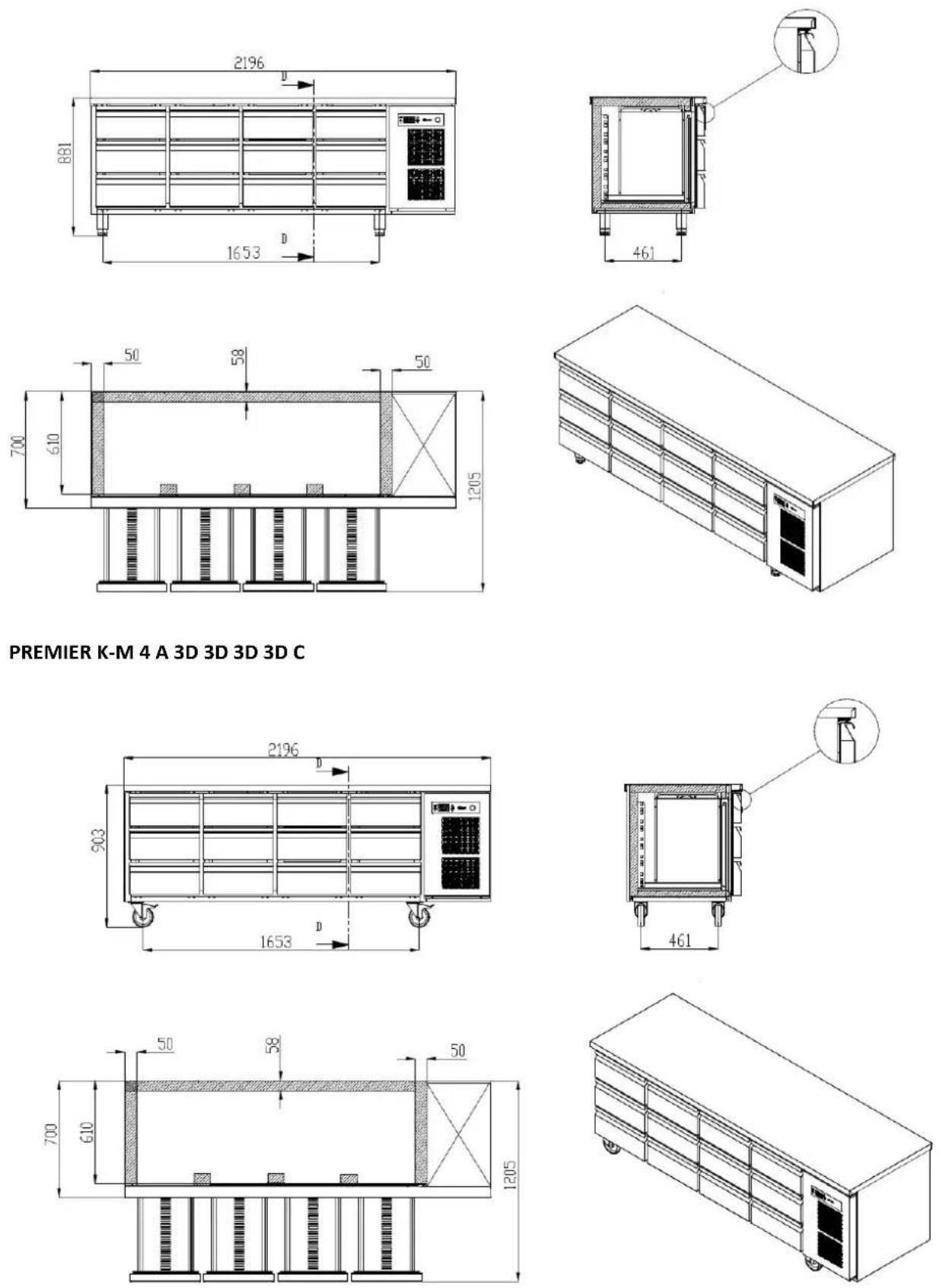

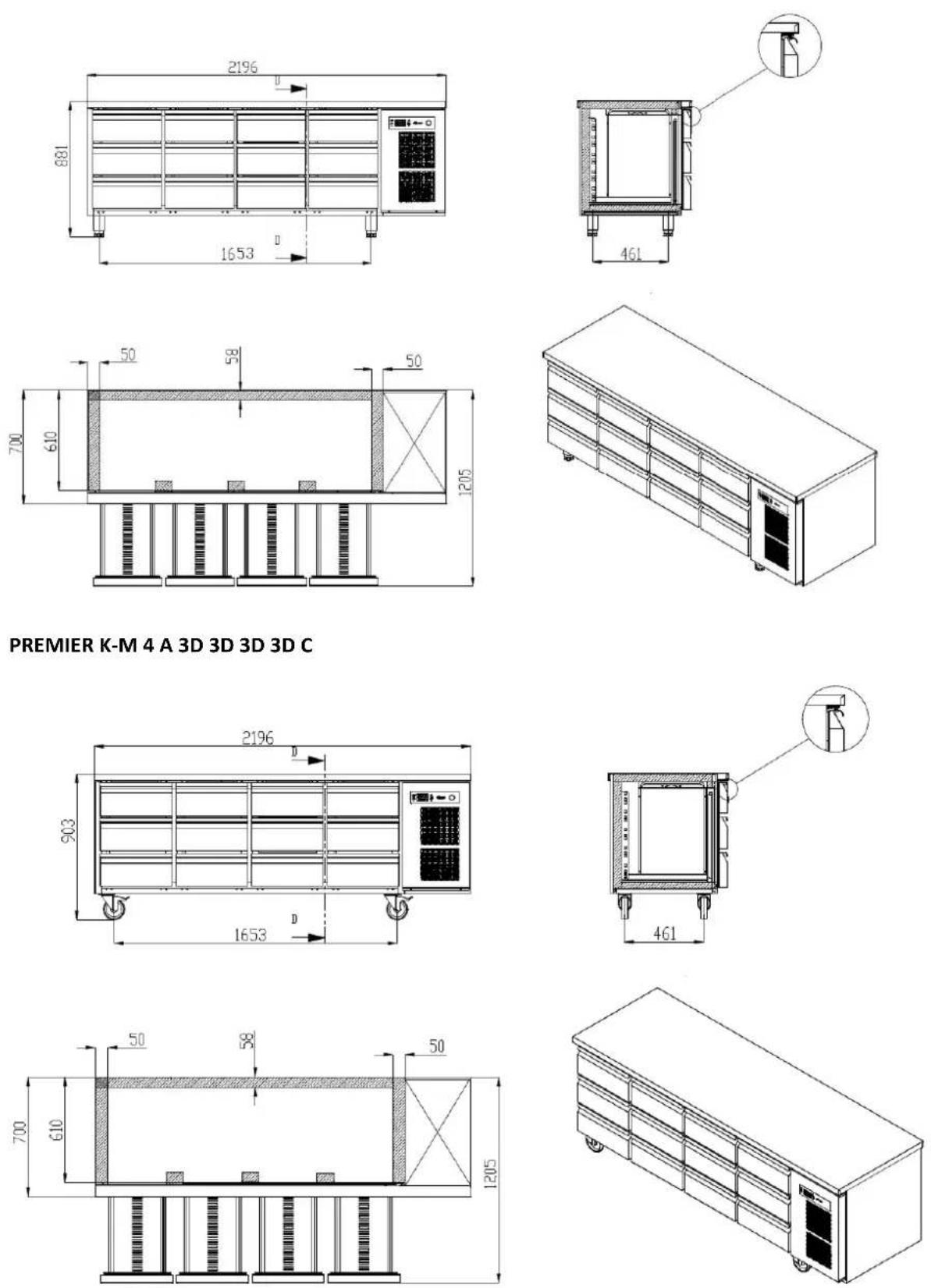

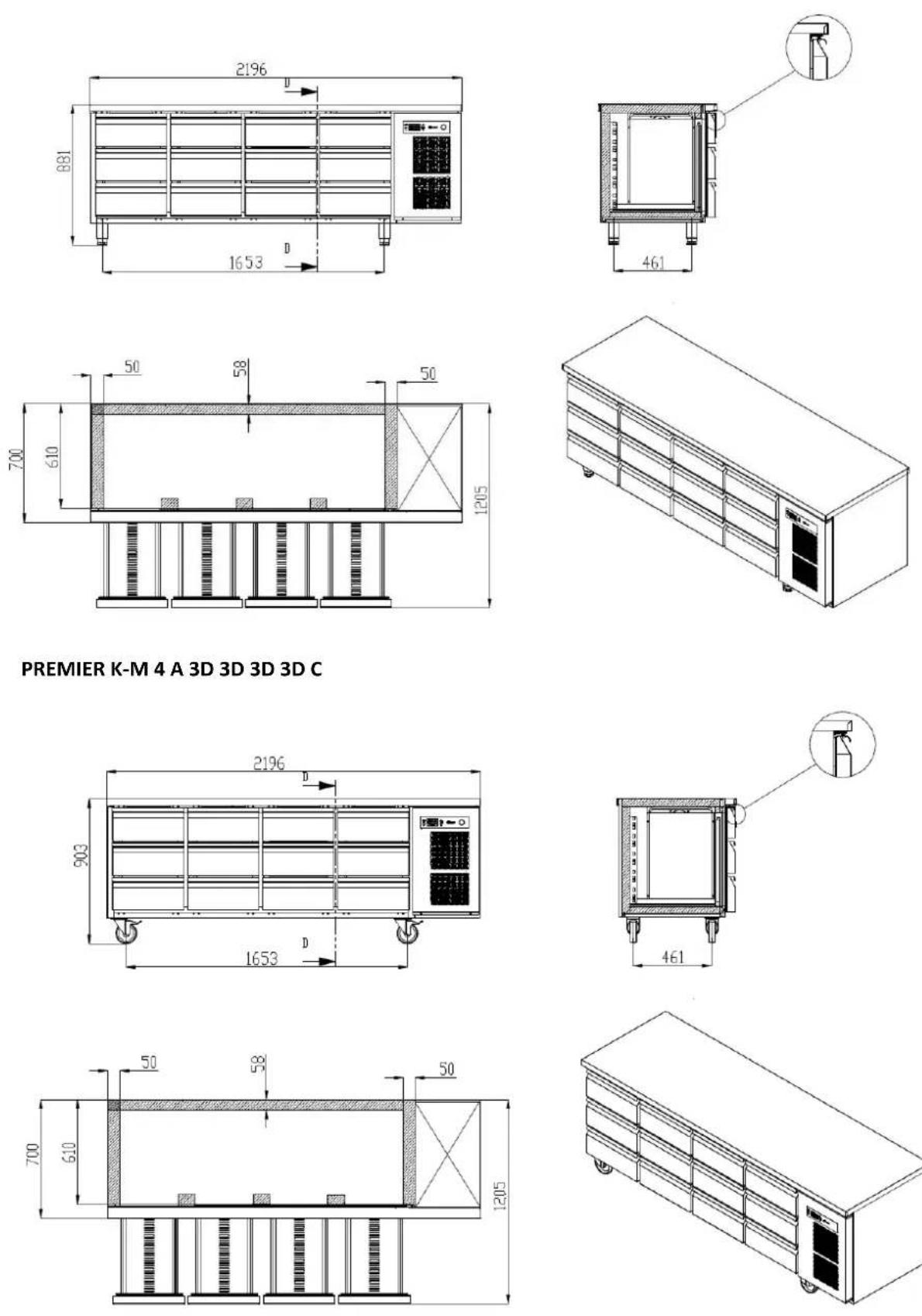

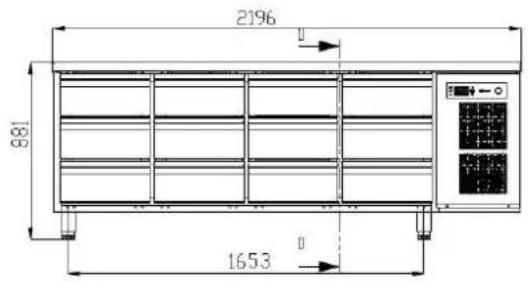

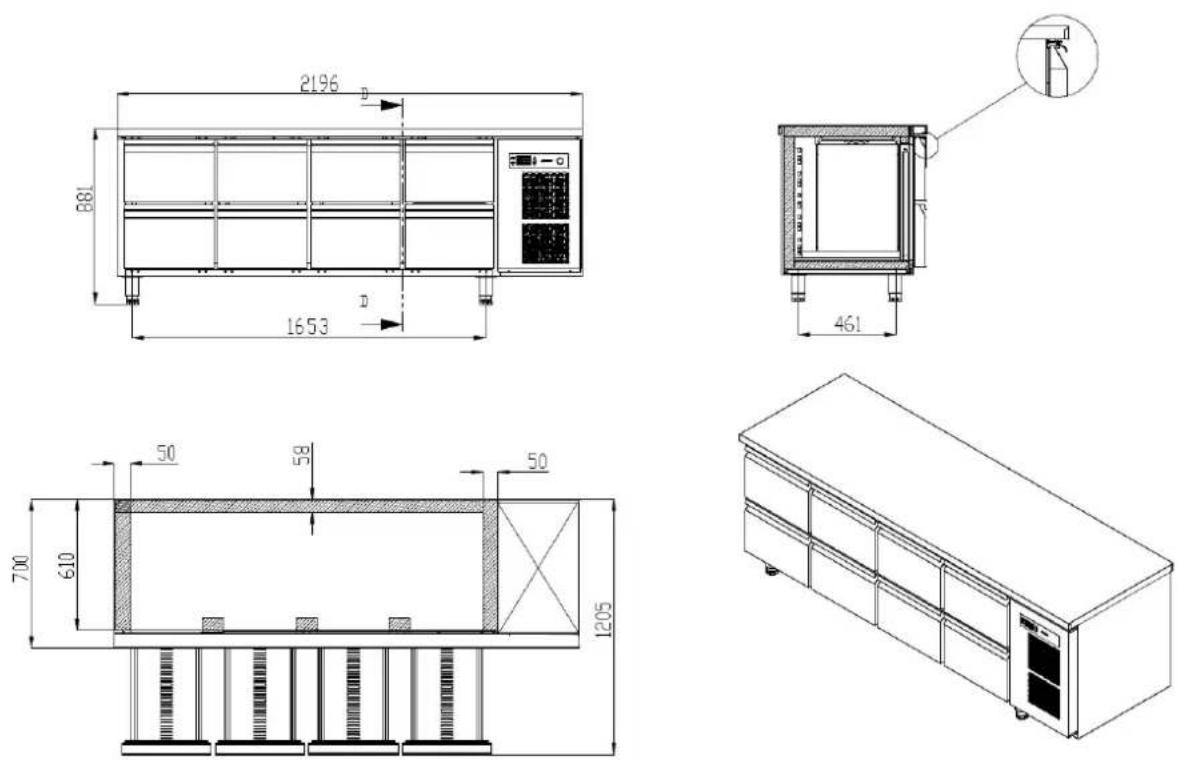

PREMIER K-M 4 A 3D 3D 3D 3D L

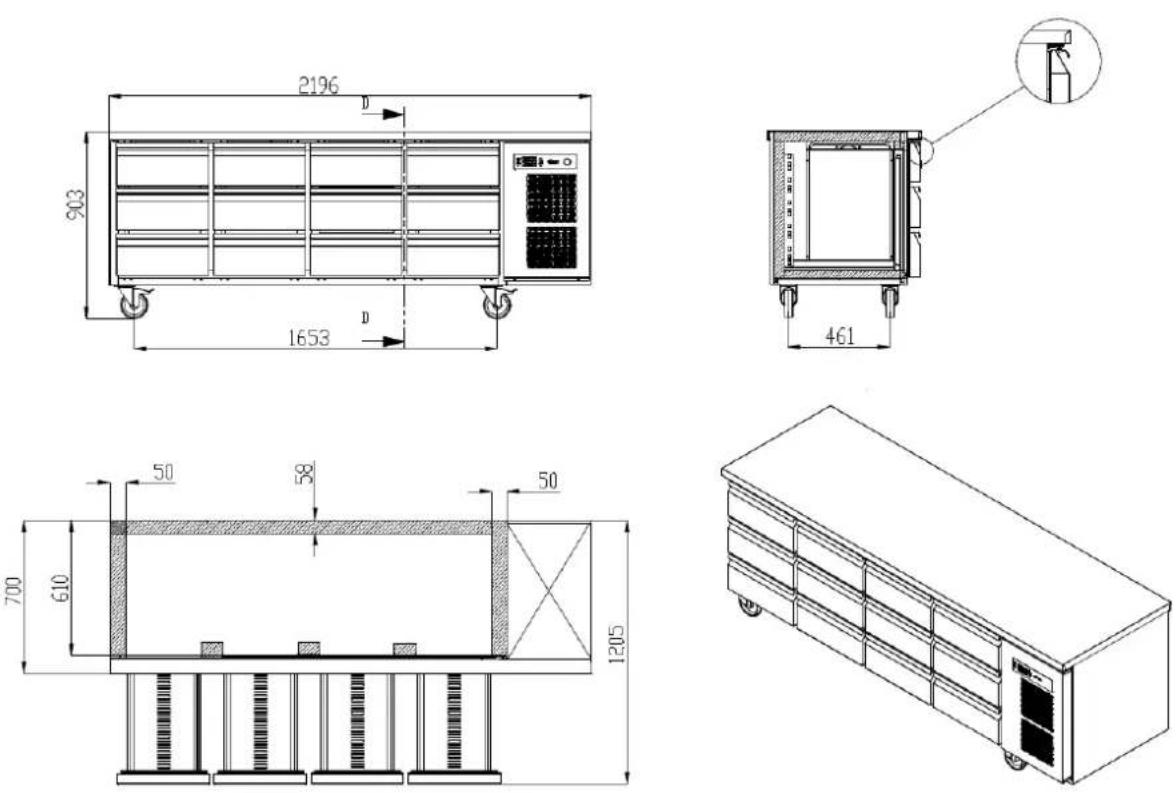

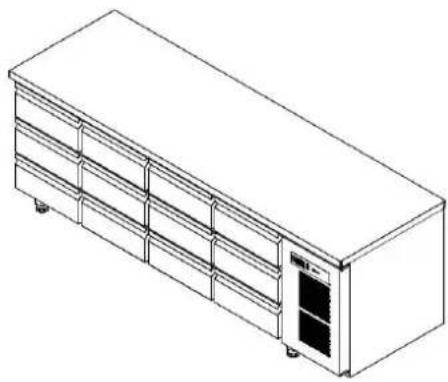

PREMIER K-M 4 A 3D 3D 3D 3D C

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. COOLING DIAGRAM – ELECTRICAL WIRING DIAGRAM

COOLING DIAGRAM

ELECTRICAL WIRING DIAGRAM (FOR CABINET REFRIGERATOR & FREEZER MODELS)

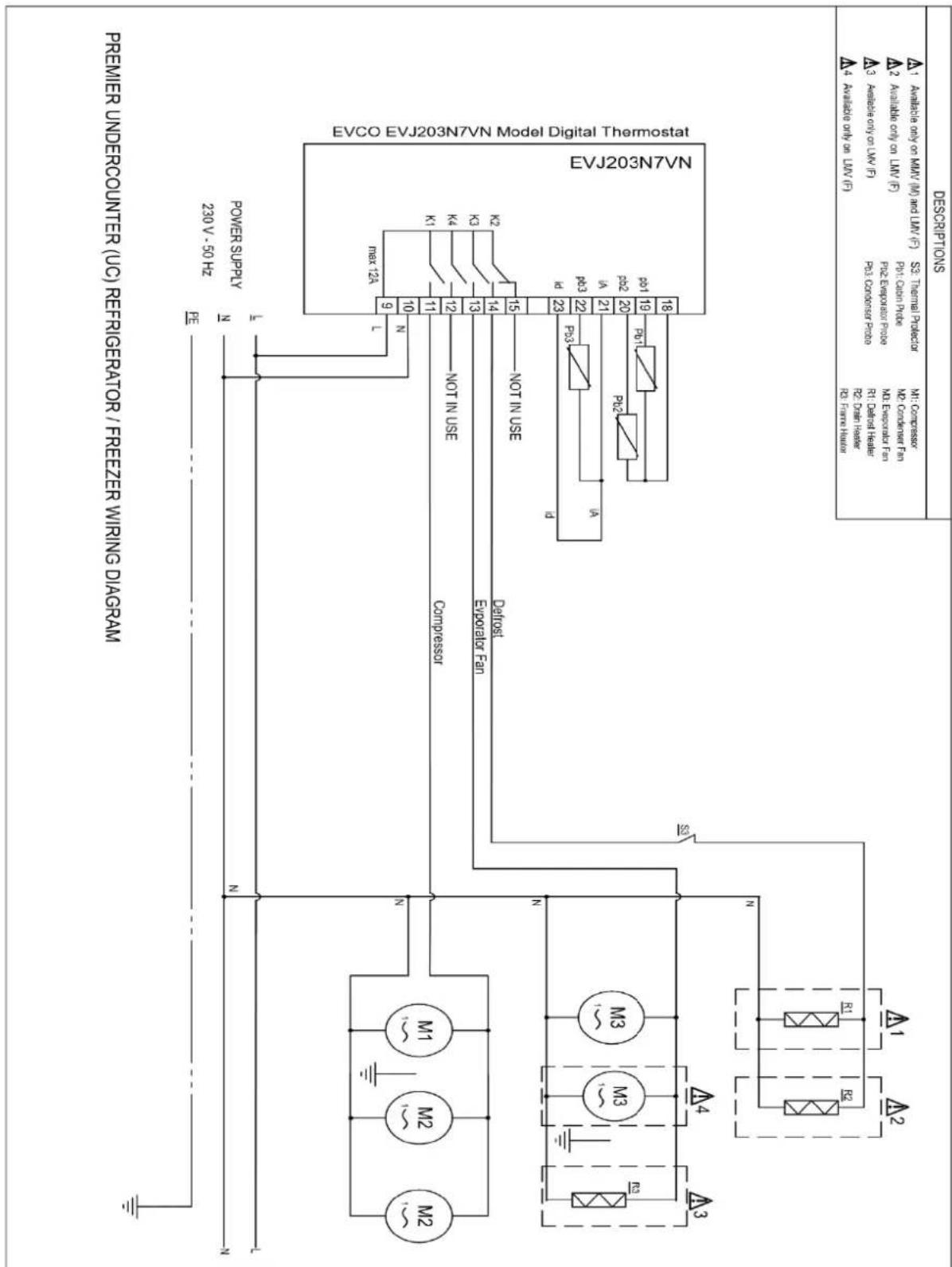

Premier UNDERCOUNTER (UC) REFIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Max 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

HOSHIZAKI

PREMIER UNDERCOUNTER

VII. SERVICE DIAGNOSIS

The table below lists several problems that you may encounter. If an alarm code is displayed, a malfunction has occurred. Please correct any possible causes before resetting the cabinet. Potential causes and remedies are listed below.

If an error code persists after you have carried out the checks below, please contact an authorized technician. The characteristics of the error message must be determined. Product details including the serial number can be found on the nameplate of the product.

PROBLEM	POSSIBLE CAUSE	REMEDY
The counter is not working	No power is supplied to cabinet	Check the power plug and cable are fault free
The compressor seldom stops running	Ambient temperature is toohigh	Ventilation needs to be improved
	Condenser are blocked	Check and clean condenser regularly
	Door gaskets are not sealing properly	Call authorized technician to replace seals
	Evaporator is iced up	Do not place hot food items in the cabinet
		Do not place food items with high water content inside cabinet unless they are stored in sealed containers
		Start a manual defrosting cycle
	Evaporator fan/fans are faulty	Call authorized technician to replace the fan/fans
Overflowing water from the condenser water tray	Frequent placement of hot food items in the cabinet	Do not place hot food items in the cabinet
		Only place food items with high water content in sealed containers in the cabinet
	Frequent opening of door or drawers	Verify whether cabinet specifications confirm it is suitable for current usage
Cabinet temperature is high	Condenser is blocked with dirt and dust	Check and clean condenser regularly
	Air flow within cabinet is blocked	Remove items of food blocking the air flow
	Ambient air is entering cabinet	Ensure door is closed
		Check for damage to the door and drawer seals
		Contact an authorized technician
	Evaporator is iced up	Start a manual defrosting cycle

HOSHIZAKI

PREMIER UNDERCOUNTER

VIII. REMOVAL AND REPLACEMENT

DISPOSING OF THE CABINET

• The cooling gas present in the cabinet can be identified from the nameplate.
- The cabinet is produced from recyclable materials in accordance with EU regulations. Therefore, at the end of its economic life, the cabinet must be passed to the appropriate recycling centre for disposal.
- Do not recycle the cabinet as metal or household waste.
- Do not compact the cooling plant refrigeration circuit.

IMPORTANT

Adhere to local by-laws and regulations during disposal of the cabinet.

HOSHIZAKI

PREMIER UNDERCOUNTER

All Rights Reserved

Hoshizaki reserves the right to change any features and the information in this manual.

Contact Details

Headquarters

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Branches

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia - Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

MANUEL D'UTILISATION, D'ENTRETIEN ETD'INSTALLATION

Exterior view of a modern stainless steel kitchen appliance with wheels and control panel (no visible text or symbols)

Exterior view of a modern stainless steel multi-pan refrigerated kitchen appliance with wheels and digital display (no visible text or symbols)

Modern stainless steel kitchen appliance with dual drawers and wheels, no visible text or symbols

I. INFORMATIONS GÉNÉRALES	28
II. CONSIGNES D’UTILISATION	33
III. PANNEAU DE CONTROLE	35
IV. INSTRUCTIONS D’ENTRETIEN	36
V. INFORMATIONS TECHNIQUES	38
VI. SCHEMA DE REFROIDISSEMENT – SCHEMA DE CABLAGE	47
VII. TABLEAU DE DIAGNOSTIC	49
VIII. DEPOSE ET REMPLACEMENT	50

Coordonnées :

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtre à air

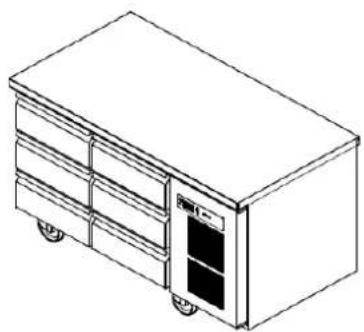

Line drawing of a multi-tiered kitchen appliance with drawers and control panel (no text or symbols)

PREMIER K-M 2 A 3D 3D C

1310 903 785

461

700 610 50 58 50 120mm

Line drawing of a multi-tiered kitchen appliance with wheels and front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

461

Line drawing of a multi-tiered rectangular kitchen appliance with drawers and control panel (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

50 58 700 610 50 1205

461

Line drawing of a multi-tiered kitchen appliance with wheels and side panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

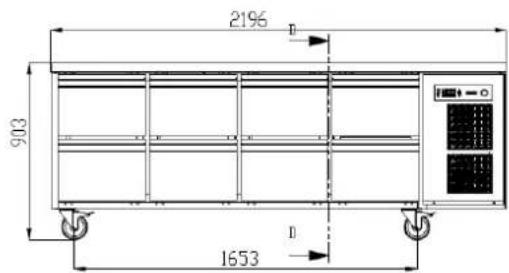

PREMIER K-M 4 A 2D 2D 2D 2D C

21% 903 1653

50 88 50 700 610 1205

461

Line drawing of a multi-level rectangular kitchen or storage unit with wheels and a door (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. SCHEMA DE REFROIDISSEMENT – SCHEMA DE CABLAGE

SCHEMA DE REFROIDISSEMENT

SCHEMA DE CABLAGE ELECTRIQUE

Premier UNDERCOUNTER (UC) REFIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Description 1 Available only on LMV (F) 2 Available only on LMV (F) 3 Available only on LMV (F) 4 Available only on LMV (F) 5 Available only on LMV (F) 6 Thermal Provider 7 Thermal Provider 8 Thermal Provider 9 Thermal Provider 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

HOSHIZAKI

PREMIER UNDERCOUNTER

VII. TABLEAU DE DIAGNOSTIC

VIII. DEPOSE ET REMPLACEMENT

MISE AU REBUT DE L'ARMOIRE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

Pulsed powder Alcohol Thinner Bread to Add-on Refrigerant Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Line drawing of a three-tiered stainless steel kitchen appliance with wheels and front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

1310 881 785

461

50 58 50 700 610 1205

Line drawing of a multi-tiered kitchen appliance with drawers and cabinet (no text or symbols)

PREMIER K-M 2 A 3D 3D C

1310 903 785

461

50 58 50 700 610 1205

Line drawing of a three-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

PREMIER K-M 3 A 2D 2D 2D C

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

461

Line drawing of a multi-tiered server cabinet with front panel and side-mounted unit (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 903 1226

50 58 700 610 50 1205

461

Line drawing of a multi-tiered kitchen appliance with wheels and side panels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

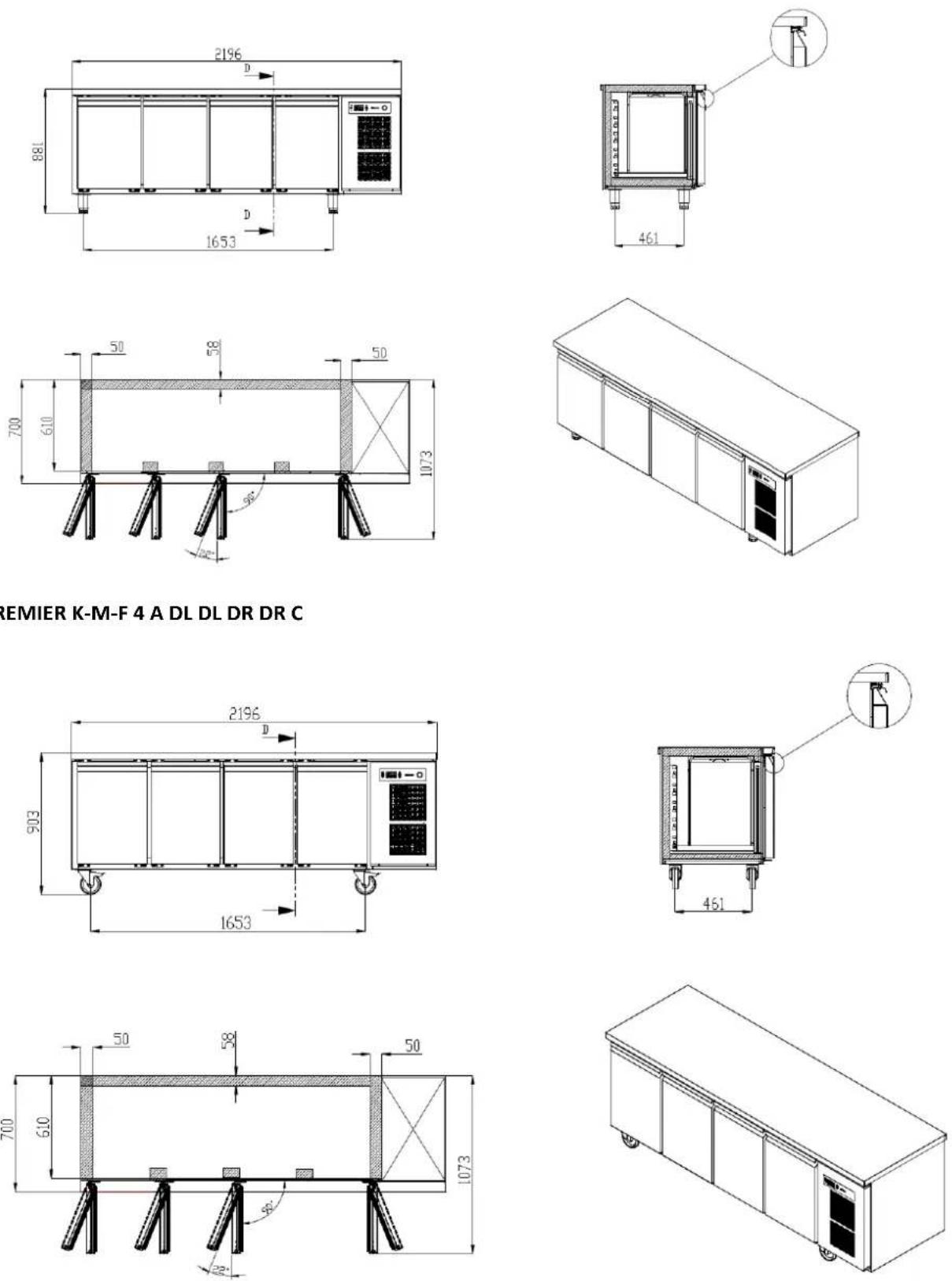

PREMIER K-M-F 4 A DL DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Niederlassungen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

Powder Alcohol Thrine Baking Litter Tgg

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro de aire

Line drawing of a two-door industrial kitchen appliance (no text or symbols)

461

Line drawing of a two-door industrial kitchen appliance with wheels and front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

PREMIER K-M 3 A 2D 2D 2D C

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

L753 D 188 D 1226

461

50 50 700 610 800 50 1205

Line drawing of a multi-tiered storage cabinet with drawers and control panel (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 903 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Sucursales

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

KOELKASTEN EN DIEPVRIEZERS HANDLEIDING VOOR BEDIENING, ONDERHOUD EN INSTALLATIE

I. ALGEMENE INFORMATIE	106
II. BEDIENINGSINSTRUCTIES	111
III. BEDIENINGSPANEEEL	113
IV. AANWIJZINGEN VOOR ONDERHOUD	114
V. TECHNISCHE INFORMATIE	116
VI. KOELSCHEMA – BEDRADINGSSCHEMA	125
VII. OPSPOREN EN VERHELPEN VAN STORINGEN	127
VIII. VERWIJDEREN EN VERVANGEN	128

Contactinformatie:

DE VERPAKKING OPENEN

Purifying powder Alcohol Thinner Banda Add-on-lining detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luchtfilter

Line drawing of a multi-level kitchen or storage unit with wheels and side panels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. KOELSCHEMA - BEDRADINGSSCHEMA

PREMIER UNDERCOUNTER (UC) REFIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Max 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150

BEDRADINGSSCHEMA

VII. OPSPOREN EN VERHELPEN VAN STORINGEN

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Vestigingen

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

K∅LESKABE OG FRYSESKABE BETJENINGS-, VEDLIGEHOLDELSES- OG INSTALLATIONSVEJLEDNING

I. GENERELLE OPLYSNINGER	132
II. BETJENINGSANVISNINGER	137
III. STYREPANEL	139
IV. VEDLIGEHOLDELSESANVISNINGER	140
V. TEKNISKE OPLYSNINGER	142
VI. K∅LEDIAGRAM – ELEKTRISK LEDNINGSDIAGRAM	151
VII. SERVICEDIAGNOSE	153
VIII. AFMONTERING OG UDSKIFTNING	154

Kontaktoplysninger:

Pulsifying powder Alcohol Thinner Burets Additives Buret Hot Water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Line drawing of a multi-tiered kitchen appliance with drawers and a double door (no text or symbols)

461

Line drawing of a three-tiered kitchen appliance with wheels and doors (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

1753 D 881 D 1226

461

50 58 700 610 50 1074 92° 22°

Line drawing of a three-tiered stainless steel kitchen cabinet with front panel and side door (no text or symbols)

PREMIER K-M 2 A 3D 3D C

1310 903 785

461

50 58 50 700 610 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

PREMIER K-M-F 3 A DL DR DR C

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

1753 881 D D 1226

50 58 700 610 50 1205

PREMIER K-M 3 A 2D 2D 2D C

1753 903 1226

50 58 700 610 50 1205

461

Line drawing of a multi-tiered kitchen appliance with front panel and side panels (no text or symbols)

461

Line drawing of a three-tiered stainless steel kitchen appliance with front panel and wheels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

1753 818 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered rectangular kitchen appliance with drawers and a side panel (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered kitchen appliance with wheels and side panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

PREMIER K-M-F 4 A DL DL DR DR C

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

PREMIER K-M 4 A 2D 2D 2D 2D C

21% 903 1653

461

50 58 50 700 610 1205

Line drawing of a multi-tiered industrial storage cabinet with wheels and doors (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. K∅LEDIAGRAM - ELEKTRISK LEDNINGSDIAGRAM

ELEKTRISK LEDNINGSDIAGRAM

PREMIER UNDERCOUNTER (UC) REFRIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Max 12A 9 L N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

HOSHIZAKI

PREMIER UNDERCOUNTER

VII. SERVICEDIAGNOSE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

FRIGORIFERI E CONGELATORI

Exterior view of a modern stainless steel kitchen appliance with dual doors and wheels (no visible text or symbols)

Exterior view of a modern stainless steel multi-story kitchen appliance with wheels and control panel (no visible text or symbols)

Exterior view of a stainless steel multi-tiered appliance with wheels and a digital display (no visible text or symbols)

I. INFORMAZIONI GENERALI	158
II. ISTRUZIONI PER L’USO	163
III. PANNELLO DI CONTROLLO	165
IV. ISTRUZIONI PER LA MANUTENZIONE	166
V. INFORMAZIONI TECNICHE	168
VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO	177
VII. RISOLUZIONE DEI PROBLEMI	179
VIII. RIMOZIONE E SOSTITUZIONE	180

Purifying powder Alcohol Thinner Bonded Adjuvant Elegant Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Filtro dell'aria

DIMENSIONI DEI DISPOSITIVI

PREMIER K-M-F 2 A DL DR L

1310 888 785

50 58 50 700 610 30° 22° 1073

PREMIER K-M-F 2 A DL DR C

1310 903 785

50 58 50 700 610 1073 50° 22°

46L

Line drawing of a two-door industrial kitchen appliance (no text or symbols)

461

Line drawing of a two-door industrial kitchen appliance with wheels and a door (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

L753 D 188 D 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered server cabinet with drawers and front panel (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a side panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

PREMIER K-M 4 A 2D 2D 2D 2D C

2196 903 1653

50 58 700 610 50 1205

461

Line drawing of a multi-tiered rectangular kitchen appliance with wheels and side panels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

PREMIER K-M 4 A 3D 3D 3D 3D C

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. SCHEMA DI RAFFREDDAMENTO - SCHEMA ELETTRICO

SCHEMA ELETTRICO

PREMIER UNDERCOUNTER (UC) REFRIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN 4. Available only on LNV (F) 3. Available only on LNV (F) 2. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 2. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 2. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 2. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 4. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 4. Available only on LNV (F) 3. Available only on LNV (F) 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 Defect Fan Not In Use Compressor Not In Use Max 12A

HOSHIZAKI

PREMIER UNDERCOUNTER

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filiali

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

KYLSKÅP OCH FRYSAR HANDBOK FÖR ANVÄNDNING, UNDERHÅLL OCH INSTALLATION

I. ALLMÄN INFORMATION	184
II. ANVÄNDNINGSINSTRUKTIONER	189
III. KONTROLLPANEL	191
IV. UNDERHÅLLSANVISNINGAR	192
V. TEKNISK INFORMATION	194
VI. KYLSCHEMA – ELEKTRISKT KOPPLINGSSCHEMA	203
VII. SERVICEDIAGNOS	205
VIII. DEMONTERING OCH BYTE	206

Kontaktuppgifter:

Pulishing powder Alcohol Thinner Banda Add Osmilk detergent Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Luftfilter

Line drawing of a two-door industrial kitchen appliance (no text or symbols)

461

Line drawing of a two-door industrial kitchen appliance with wheels and a side door (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

1310 881 785

461

50 58 50 700 610 1205

Line drawing of a multi-tiered kitchen appliance with drawers and front panel (no text or symbols)

PREMIER K-M 2 A 3D 3D C

1310 903 785

461

50 58 50 700 610 1205

Line drawing of a three-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

1753 981 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered stainless steel kitchen appliance with front panel and side door (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

461

50 58 700 610 50 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

VI. KYLSCHEMA - ELEKTRISKT KOPPLINGSSCHEMA

HOSHIZAKI

PREMIER UNDERCOUNTER

ELEKTRISKT KOPPLINGSSCHEMA

PREMIER UNDERCOUNTER (UC) REFRIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Max 12A 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

VII. SERVICEDIAGNOS

HOSHIZAKI

PREMIER UNDERCOUNTER

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Filialer

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]

HOSHIZAKI

PREMIER UNDERCOUNTER

KJ∅LESKAP OG FRYSESKAP

DRIFTS-, VEDLIKEHOLDS- OG INSTALLASJONSHÅNDBOK

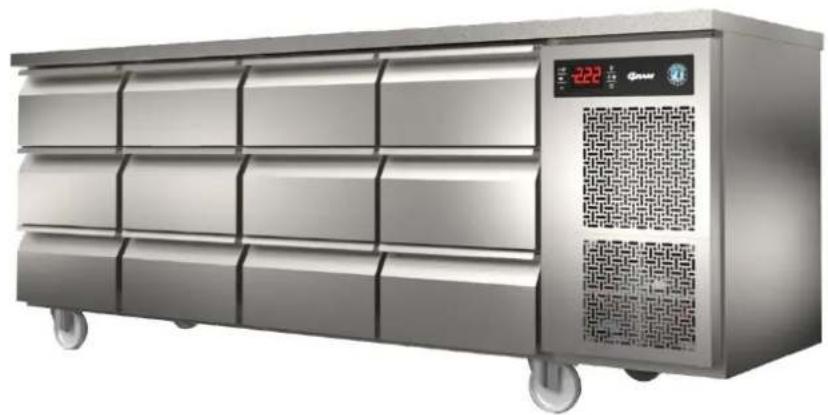

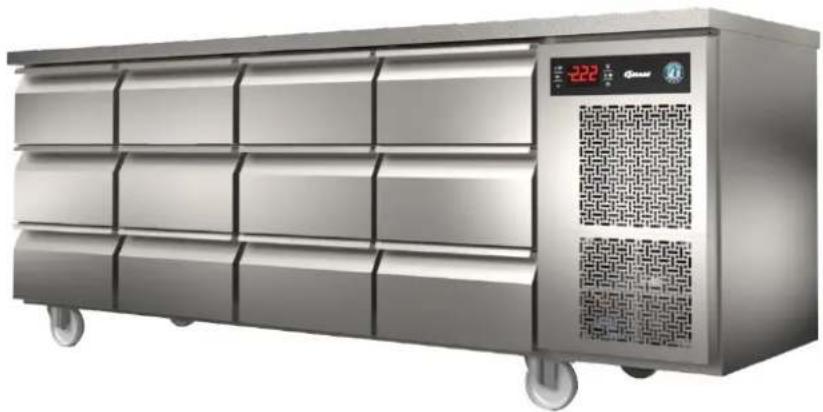

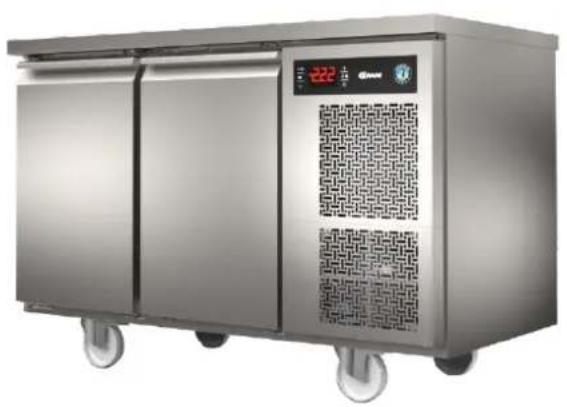

Exterior view of a modern stainless steel kitchen appliance with dual doors and wheels (no visible text or symbols)

Exterior view of a modern stainless steel kitchen appliance with dual doors and wheels (no visible text or symbols)

Exterior view of a modern stainless steel kitchen appliance with dual grilles and wheels (no visible text or symbols)

I. GENERELL INFORMASJON	210
II. BRUK	215
III. KONTROLLPANEL	217
IV. VEDLIKEHOLDSINSTRUKSJONER	218
V. TEKNISK INFORMASJON	220
VI. KJ∅LESKJEMA – ELEKTRISK KOBLINGSSKJEMA	229
VII. VEDLIKEHOLDSDIAGNOSE	231
VIII. FJERNING OG UTSKIFTING	232

Kontaktinformasjon:

Potato powder Alcohol Thinner Bayer Dietary Elegant Hot water

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

Line drawing of a two-door industrial kitchen appliance (no text or symbols)

461

Line drawing of a two-door industrial kitchen appliance with wheels and front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 2 A 3D 3D L

1310 881 785

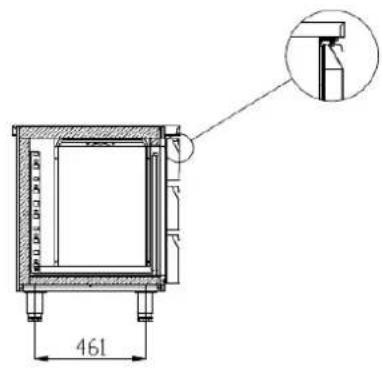

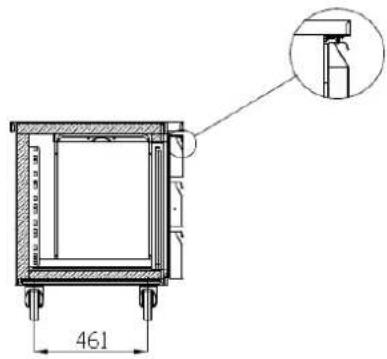

461

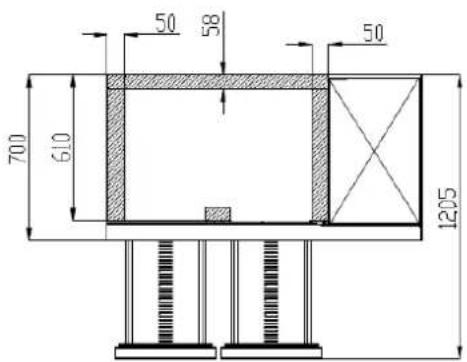

50 58 50 700 610 1205

Line drawing of a multi-tiered kitchen appliance cabinet with drawers and doors (no text or symbols)

PREMIER K-M 2 A 3D 3D C

1310 903 785

461

50 58 50 700 610 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 3 A DL DR DR L

1753 881 1226

46

50 58 709 610 50 1074 9° 22°

Line drawing of a three-tiered stainless steel kitchen appliance with front panel and side door (no text or symbols)

PREMIER K-M-F 3 A DL DR DR C

1753 903 1226

461

50 58 700 610 30° 22° 1074

Line drawing of a three-tiered stainless steel kitchen cabinet with front panel and wheels (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 2D 2D 2D L

PREMIER K-M 3 A 2D 2D 2D C

L7S3 903 1226

461

50 58 700 610 50 1205

Line drawing of a three-tiered stainless steel kitchen appliance with front panel and side wheels (no text or symbols)

NO

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 3 A 3D 3D 3D 3 L

461

Isometric line drawing of a multi-tiered rectangular kitchen appliance with side drawers and control panel (no text or symbols)

PREMIER K-M 3 A 3D 3D 3D C

1753 D 903 D 1226

46J

50 58 700 610 50 1205

Line drawing of a multi-tiered kitchen appliance with wheels and a side panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M-F 4 A DL DL DR DR L

461

Line drawing of a modern multi-level refrigerated kitchen unit with front panel and door (no text or symbols)

PREMIER K-M-F 4 A DL DL DR DR C

2196 903 1653

50 58 700 610 50 1073 9° 22°

46l

Line drawing of a three-tiered refrigerated kitchen cabinet with wheels and a door (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 2D 2D 2D 2D L

HOSHIZAKI

PREMIER UNDERCOUNTER

PREMIER K-M 4 A 3D 3D 3D 3D L

2196 881 1653

461 20 20 20

50 58 50 700 610 1205

Isometric line drawing of a multi-tiered server or rack unit with a double door and wheels (no text or symbols)

PREMIER K-M 4 A 3D 3D 3D 3D C

2196 903 1653

461

50 58 50 700 610 1205

Isometric line drawing of a multi-tiered rectangular kitchen or storage unit with wheels and a front panel (no text or symbols)

HOSHIZAKI

PREMIER UNDERCOUNTER

VI. KJ∅LESKJEMA - ELEKTRISK KOBLINGSSKJEMA

ELEKTRISK KOBLINGSSKJEMA

PREMIER UNDERCOUNTER (UC) REFIGERATOR / FREEZER WIRING DIAGRAM POWER SUPPLY 230 V - 50 Hz EVCO EVJ203N7VN Model Digital Thermostat EVJ203N7VN Max 124 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160

HOSHIZAKI

PREMIER UNDERCOUNTER

VII. VEDLIKEHOLDSDIAGNOSE

Hoshizaki Europe B.V – All other countries in Europe and Africa

TEL: [phone]

[e-mail] -- http://hoshizaki-europe.com/

Avdelinger

Hoshizaki UK - UK, Ireland

TEL: [phone]

[e-mail]

Hoshizaki Deutschland - Germany, Switzerland, Austria

TEL: [phone]

Hoshizaki Benelux - Netherlands, Belgium, Luxembourg

TEL: [phone]

[e-mail]

Hoshizaki France - France

TEL: [phone]

[e-mail]

Hoshizaki Iberia - Spain, Portugal

TEL: [phone]

[e-mail]

Hoshizaki Denmark - Denmark

TEL: [phone]

[e-mail]

Hoshizaki Norway - Norge

TEL: [phone]

[e-mail]

Hoshizaki Sweden - Sverige

TEL: [phone]

[e-mail]

Hoshizaki Italia – Italia

TEL: [phone]

[e-mail]
