Product Type	Projection Alarm Clock Radio
Brand	Bearware
Model	306638
Main Power	5V DC via USB Type-C (5V 2A AC adapter included)
Backup Battery	1x CR2032 (for time and alarm backup)
Display	12/24 hour digital LED
Projection	Yes, swiveling, adjustable brightness and 180° rotation
Alarms	2 independent alarms (beep or radio)
Snooze Function	Yes, adjustable delay from 5 to 60 minutes
Radio	FM, auto scan, 15 presets
Radio Frequency Range	87.5 – 108 MHz
Charging USB Port	1x USB-A 5V DC (smartphone charging output)
Sensors	Temperature (0°C to 50°C) and humidity (20% to 95%)
Screen Dimming Levels	4 levels + automatic mode (light sensor)
Night Mode	Yes, adjustable or preset time range (6pm-6am)
Sleep Function	Yes, adjustable duration (5 to 90 minutes)
Speaker	Built-in
Antenna	Antenna wire
Package Contents	Alarm clock radio, USB-A to USB-C cable, 5V 2A EU AC adapter, user manual
Care and Cleaning	Wipe with a soft, dry cloth. Do not use harsh detergents. Unplug before cleaning.
Safety	Do not open, do not expose to water or open flames, use only in dry indoor environments.
General Information	Compliant with Directive 2014/53/EU. Manufacturer: WD Plus GmbH, Hanover.

Frequently Asked Questions - 306638 Bearware

How to set the time on the Bearware 306638 alarm clock radio?

Press and hold the SET button for 3 seconds. The display will blink. Use UP or DOWN to select 12H or 24H format, then press SET to confirm. Then set the hours and minutes the same way. If no button is pressed for 10 seconds, the setting mode will exit automatically.

How to set the alarm?

Press the AL button briefly to select alarm 1 or 2 (symbol blinks). Press and hold AL for 3 seconds to enter setting mode. Use UP/DOWN to set the hour, minutes, snooze delay (5-60 min), and alarm mode (rd = radio, bu = beep). Confirm each step with AL.

How to use the radio function?

Press RADIO/SLEEP briefly to turn on the radio. Press SET to start auto-scan of FM frequencies. Use UP/DOWN to select stored stations. To adjust volume, press VOL then UP/DOWN (from L00 to L15). Press SNOOZE/DIMMER to turn off the radio.

How to project the time on a wall or ceiling?

In clock mode, press UP once to turn on the projection. Press again to adjust brightness (bright, medium, off). Press and hold UP to rotate the projection by 180°. Note that projection does not work on backup battery.

Can I charge my smartphone with this alarm clock?

Yes, the alarm clock radio has a USB-A port (5V DC) on the back. Simply plug in your smartphone's charging cable to charge it.

How to activate night mode?

Press SET briefly to access night mode. Use UP/DOWN to choose ON or OFF. In ON mode, the display automatically dims between 6pm and 6am. You can also customize start and end times by pressing and holding SET for 3 seconds.

How to change the display from 12h to 24h?

Press and hold the UP button for 3 seconds to toggle between 12H and 24H formats. You can also do this during time setting (see question 1).

How to stop the alarm when it goes off?

Press any button except SNOOZE/DIMMER to stop the alarm for the current day. To use snooze, press SNOOZE/DIMMER: the alarm stops and will ring again after the set delay (5 to 60 minutes).

What backup battery to use and how to install it?

Use a CR2032 lithium battery. Insert it into the battery compartment on the back of the device, respecting polarity (+ facing up). This battery saves the time and alarms during a power outage.

How to clean the alarm clock radio?

First, unplug the device. Wipe it with a soft, dry cloth. Do not use harsh chemicals, solvents, or water. Avoid getting any liquid into the openings.

USER MANUAL 306638 Bearware

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a Bearware product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Projection alarm clock
  • USB Type-A to USB Type-C cable
• 5V2A EU power adapter
• User manual

2. Technical data

Power supply	5V DC (via USB type-C)3 V DC (1x backup battery “CR2032”)5V DC USB type A socket (charging output)
Transmitting power -30 dBm
Frequency range 87.5 MHz - 108 MHz
Features	USB charging port12/24-hour displayTwo alarm settings (beep and radio)Different alarm modesSnooze function180° flip projection displayTemperature and humidity display

3. Functions

The projection alarm clock allows you to project the current time, for example, onto a wall or room ceiling. You can adjust two different alarm settings using the dual alarm.

The projection alarm clock can wake you up with a beeping sound or, optionally, with your favourite radio stations. Using the movable projector, the projection can be displayed on any desired surface.

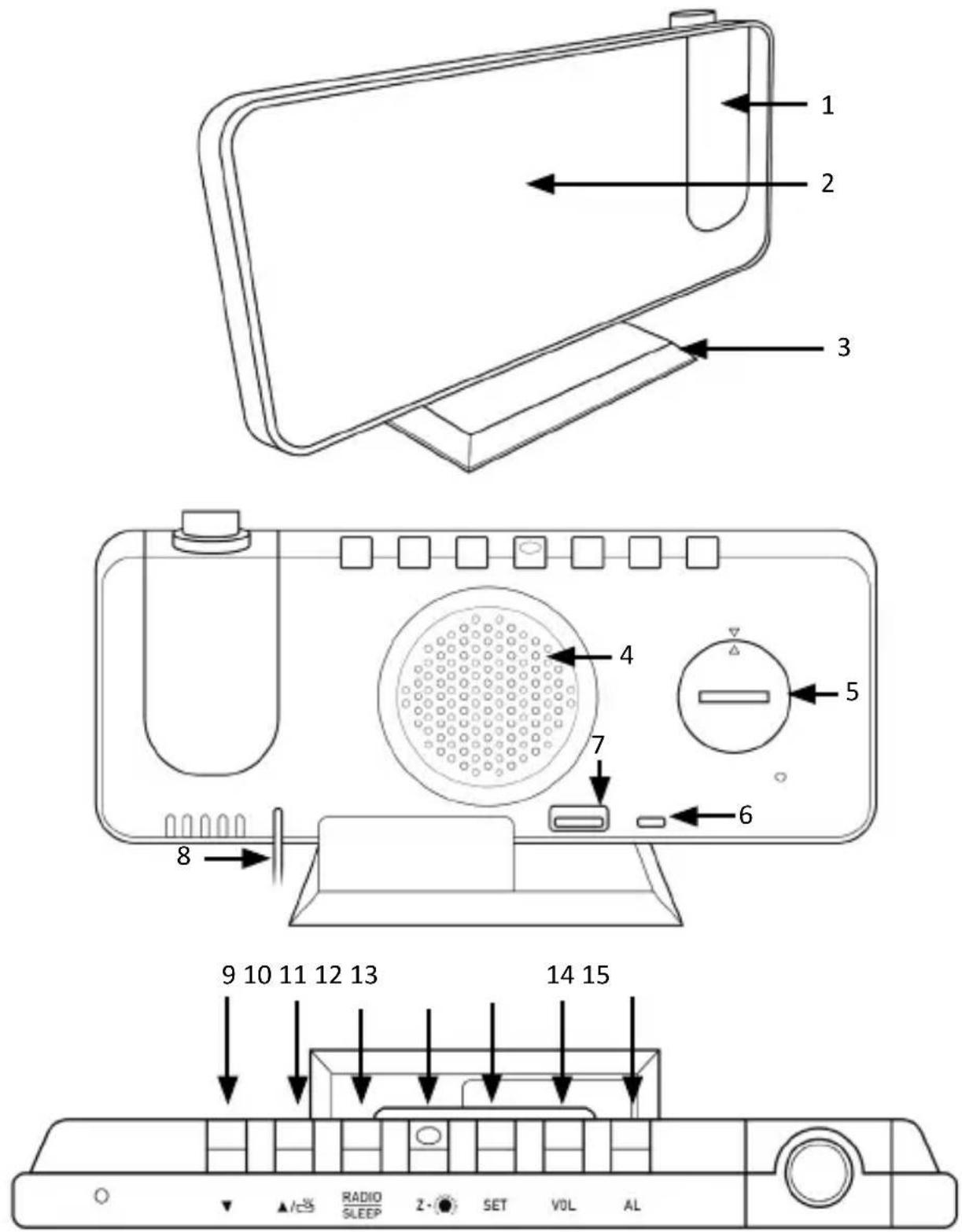

1. Product details


Number Name
1 Projector
2 Time display
3 Stand
4 Speaker
5 Battery compartment
6 Power supply (USB Type C)
7 USB port (5V DC charging socket)
8 Antenna cable
9 "DOWN" button
10 "UP" button
11 "RADIO/SLEEP" button
12 "SNOOZE/DIMMER" button
13 "SET" button
14 "VOL" button
15 "AL" button

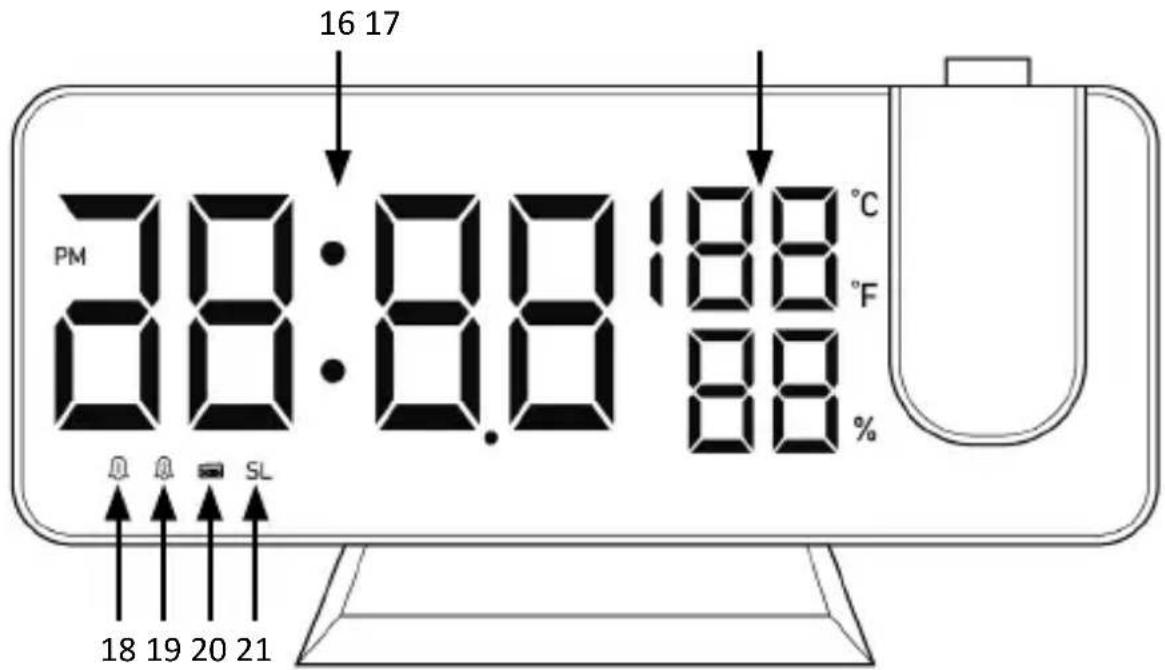

Display

Number Name
16 Time display
17 Temperature and humidity display
18 Alarm 1
19 Alarm 2
20 Radio
21 Radio Sleep

5. Initial use

Take the device out of the package and remove all the packaging material. Insert a "CR2032" battery into the battery compartment (5) which is located at the back. Pay attention to the correct polarity of the contacts. This battery is used for saving a backup of the time and alarm.

6. Setting the time

1. Press and hold the "SET" button for 3 seconds, the display screen shows "24H" and starts flashing. Press "UP" or "DOWN" to select "12H" or "24H".
2. Press "SET" again and the hour digits start flashing. Press "UP" or "DOWN" to set the hour (you can adjust it faster by pressing and holding).
3. Press "SET" again and the minute digits start flashing. Press "UP" or "DOWN" to set the minute (you can adjust it faster by pressing and holding).
4. Press "SET". The current setting mode is exited automatically after 10 seconds if you do not press the button.

Note: If you have selected the 12-hour display, the "PM" LED is displayed at the corresponding times. Press and hold the "UP" button for 3 seconds to change between "12H" and "24H" format.

7. Setting the alarm

1. Press the "DOWN" button once briefly to switch the alarm on / off. The sequence is as follows: Alarm 1 On - Alarm 2 On - Alarm 1 Off - Alarm 2 Off (circulation).
2. Press the "AL" button once briefly to select the alarm, the alarm icon (18/19) is shown at the bottom of the display. The sequence is as follows: Alarm 1 - Alarm 2, the alarm icon starts flashing.
3. After selecting the alarm (the relevant alarm icon starts flashing), press and hold the "AL" button for 3 seconds to enter the setting. The sequence is "Hours" - "Minutes" - "Snooze time" - "Alarm mode". The option to be adjusted starts flashing in the display.
4. Adjust the value using the "UP" or "DOWN" buttons. Press the "AL" button once to confirm after the adjustment.

5. The default snooze time is 5 minutes. The "05" icon starts flashing (indicates 5 minutes), press the "UP" or "DOWN" buttons to adjust the snooze time from 5 to 60 minutes. Confirm using the "AL" button.

6. Press the "UP" or "DOWN" buttons to select the alarm mode ("rd" = Radio, "bu = Summer; if "rd" or "bu" is selected, the corresponding alarm is switched on).

If you need a second alarm, repeat step 2-6 (the second clock is shown as "ALARM 2" (19) on the screen).

8. Activating the alarm

1. When an alarm is set, the "ALARM 1" (18) or "ALARM 2" (19) icon is shown at the bottom of the display. If alarm 1 or 2 goes off, the corresponding icon starts flashing. Press "SNOOZE / DIMMER" once to snooze the alarm and will go off again after the configured snooze time.

2. Press any button other than "SNOOZE/DIMMER" to stop the alarm. The alarm will go off on the next day. The corresponding icon does not disappear.

3. If your second alarm is activated while the first alarm is going off or is in snooze mode, then the second alarm disables the first alarm (the first alarm is reset to go off again on the next day). The alarm volume automatically increases gradually up to the maximum volume.

4. If you select the radio as an alarm tone, the station and the radio volume will be the same as that selected the last time. The alarm volume increases gradually up to the last set radio volume

5. The radio alarm plays until you stop it by pressing the "RADIO / SLEEP" button.

9. Snooze function

As soon as the alarm goes off, press the "SNOOZE/DIMMER" button to defer the alarm to a later time. The alarm sound or radio alarm then does off again later.

The duration of the snooze function is set using the time setting. The value can be selected between 5 and 60 minutes.

10. Radio function

Programming the radio

FM setting

1. Press the "RADIO / SLEEP" button once briefly to play the radio, the display shows "ON" and then the radio frequency in MHz.
2. Then press the "SET" button briefly. The FM radio automatically scans and saves the frequency of 01, 02, 03, etc. It returns to the first station as soon as the scanning is completed.
3. Press "UP" or "DOWN" to select the saved station.
4. Press the "VOL" button briefly to adjust the volume. "L10" is shown on the display. Press the "UP" or "DOWN" buttons to adjust the volume between L00 (minimum) to L15 (maximum).
5. Press "SNOOZE / DIMMER" to switch off the radio.

Note: Keep your radio away from other electronic devices that can interfere with the radio.

Sleep mode

1. Press the "RADIO / SLEEP" button twice to access the sleep mode, the sleep symbol "SL" (21) and the sleep time "05" (indicates 5 minutes) are shown on the display.
2. Then press the "RADIO / SLEEP" button to adjust the sleep time of 5, 15, 30, 45, 60, 75, 90 or OFF.
3. If the display changes back to time, press the "RADIO / SLEEP" button twice to display the remaining sleep time.
4. The radio will play for the programmed sleep time and then switches off automatically.

11. Projection

Press the "UP" button once in time mode to switch on the projection (light), and then press it again to adjust the brightness of the projection. The setting sequence is: light - medium - off (default setting is "off").

If the projection is switched on, press and hold the "UP" button to rotate the projection view. Press and hold the "UP" button to rotate the projection by 180 degrees.

Note: The projection function does not work in battery mode.

12. Dimming the display

Press the "SNOOZE / DIMMER" button briefly in time mode to adjust the brightness of the LED display. The adjustment options are as follows:

Light - medium - dark - off

Press and hold the "SNOOZE / DIMMER" button for about 3 seconds to switch the automatic mode on / off. If "ON" is selected, it means that the LED display automatically changes to the low brightness mode if the surrounding is dark. If "OFF" is selected, then the brightness can only be adjusted manually (default is "OFF").

Note: If you want to activate this function, then you should not be in the radio mode.

13. Night mode

The night mode means that the LED display automatically changes to low brightness mode at night or during a preset time period.

Pressing the "SET" button briefly activates the night mode (the default setting is "OFF"). You can change the value by pressing the "UP" or "DOWN" buttons. The night mode is switched on if you select the "ON" option. It automatically changes to the low brightness mode on the next day from 18:00 hrs to 6:00 hrs.

Automatic dimming

When the night mode is switched "ON", press and hold "SET" button for 3 seconds to enter the interval time setting mode. The setting sequence is "Start hour" - "Start minute" - "End hour" - "End minute".

The upper point is bright for a long time in the centre of the screen in the "Start hour" and "Start minute" setting. The lower point is bright for a long time in the centre of the screen in the "End hour" and "End minute" setting.

Note: If automatic dimming is activated, then the night mode does not work (from 18:00 hrs to 6:00 hrs).

14. Thermometer & humidity display

• The default unit of temperature is °C .
• Press and hold the "DOWN" button for 3 seconds to change the unit from °C to °F.
• The indoor temperature range is: 0°C - 50°C (32°F - 122°F).
  • The indoor humidity is: 20%-95%.

15. Charging port

A Type-A USB charging port is provided at the back of the clock.

You can use this charging port, for example, to connect the charging cable of your smartphone and charge it.

Please note that only the Type-A USB port is intended as a charging port.

16. Additional safety guidelines for this device

• Do not place any open flames such as candles on the device.
• Do not place the product in a closed bookshelf without adequate ventilation.
• The ventilation slits should not be obstructed or blocked by objects.
• The device should neither be exposed to dripping or splashing water nor to other fluids and never immersed.
• The product should not be exposed to direct sunlight.
• Do not use any aggressive cleaning agents or solvents for cleaning. Wipe the device using a clean and soft cloth.
• Please pull out the mains plug before cleaning.
• Never try to insert wires, pins or other similar objects into the venting slits or openings of the device.

17. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

18. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

19. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 306638 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; https://model.ganzeinfach.de/306638
