303131 - Clock Bearware - Free user manual and instructions

Product type	Mirror alarm clock
Brand	Bearware
Model	303131
Power supply	3 AAA 1.5 V batteries (not included) or USB power adapter 5 V DC, 150 mA (USB to DC cable included)
Display	Mirror LED screen with adjustable backlight
Main functions	Alarm with snooze, repetition (5-60 min), temperature display (°C/°F), night mode, 12/24 h display, brightness adjustment
Temperature range	0-50 °C
Maintenance and cleaning	Wipe with a soft dry cloth. Do not use harsh detergents. Remove the protective film before use.
Safety	Do not open, do not expose to moisture or direct sunlight, use only indoors. Keep out of reach of children.
Spare parts and repairability	No spare parts provided. Repairs only by the manufacturer. Warranty void if opened.
General information	Batteries not included. Power adapter not included (USB to DC cable provided). Private use only.

Frequently Asked Questions - 303131 Bearware

How to set the time on the Bearware 303131 alarm clock?

Press the MODE button for about 2 seconds when the time is displayed. Use the UP and DOWN buttons to set the hour, then the minutes, then the 12/24 h format. Confirm each step with the MODE button.

How to set the alarm?

Hold the ALARM button for about 4 seconds. Use UP and DOWN to set the alarm hour and minutes, then the snooze delay (5 to 60 minutes). Confirm with ALARM.

How to activate or deactivate the alarm?

Briefly press the ALARM button. If the AL symbol is displayed, the alarm is active. If it is absent, it is deactivated.

How to use the snooze function?

When the alarm sounds, press the SNZ/LIGHT button. The alarm stops and will ring again after the set snooze delay (default 5 to 60 minutes).

How to switch the display between °C and °F?

From the time display, press MODE once to see the temperature. Press DOWN to toggle between °C and °F.

How to activate night mode?

From the time display, press MODE twice until you see 'OFF'. Press MODE once to see 'ON', then hold MODE to set the start and end time of night mode. The brightness will automatically reduce during this period.

How to manually adjust the screen brightness?

Press UP to increase brightness or DOWN to decrease it. Hold DOWN for 3 seconds to turn off the backlight completely.

How to switch from 12h to 24h display?

During time setting, after setting the minutes, you can choose the 12h or 24h format with the UP and DOWN buttons, then confirm with MODE.

Can I use the alarm clock only with batteries?

Yes, the alarm clock works with 3 AAA 1.5 V batteries. However, the screen backlight stays on permanently only if you use the USB power adapter (4.5-5 V) provided with the USB to DC cable.

What to do if the alarm does not ring?

Check that the alarm is activated (AL symbol displayed). Make sure the volume is not at minimum and the set time is correct. If the problem persists, replace the batteries or check the power supply.

USER MANUAL 303131 Bearware

Red stylized graphic of a bear and a bull (no text or symbols)

BEARWARE

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to be able to get the most from the product you have purchased.

1. Scope of supply

• Mirror alarm clock
  • USB to DC connection cable
• User manual

2. Technical data

Power supply	Three 1.5V AAA batteries or alternatively one DC 5, 150mA USB charging adapter via USB to DC plug cable (3.5 mm/1.25 mm)/polarity: - ---(o--- +
Temperature range 0-50°C
Features	• Alarm function (alarm)• Temperature display• Snooze function• 12/24-hours display• Night mode

3. Additional pieces of information about this mirror alarm clock

Before using, make sure that the device is not damaged. If this is the case, then do not use it. The mirror alarm clock should not be exposed to moisture and direct sunlight. Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate. The product is intended only for private use and not for medical purposes or for public information.

Note concerning protective film: The display protection film serves only as protection against scratches and damage during transport of the product. You should completely remove the protective film from the display before operating the clock for the first time.

Caution!

Keep the batteries and the device out of reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into a fire and do not short-circuit them. Do not recharge the batteries and do not take them apart. There is a risk of explosion!

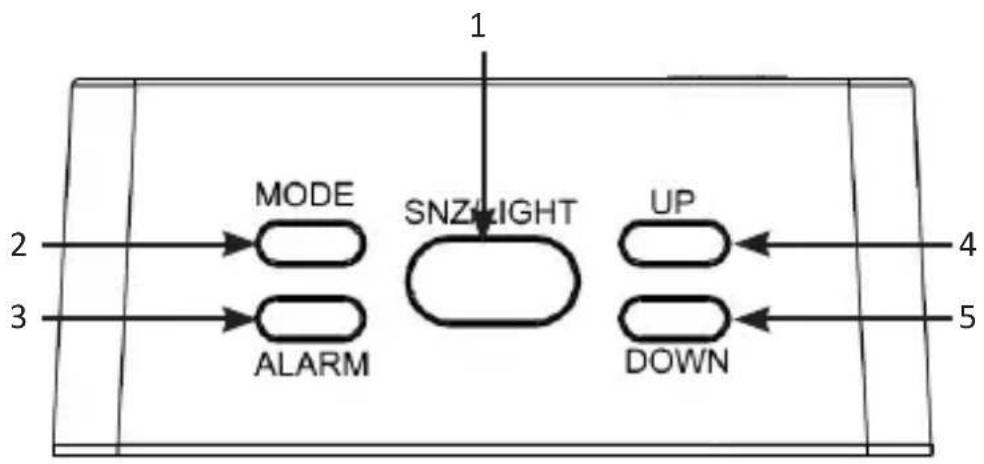

4. Product details

1 Snooze/light button

2 Mode button

3 Alarm button

4 UP button

5 Down button

5. Initial use

Take the product out of the package and remove all the packaging material. Open the battery compartment at the back of the device and insert three 1.5 v AAA batteries. Pay attention to the correct polarity of the contacts. Alternatively, you can operate the device with a 4.5V-5V DC mains adapter or with the supplied USB to DC plug cable.

Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight is permanently switched on only in combination with a USB power supply unit and the supplied USB to DC plug cable.

By repeatedly pressing the "MODE" button, you can toggle between the display, the time, the temperature and the night mode status (see Chapter 8).

6. Setting the time

When the time is shown in the display, press and hold the "MODE" button for about 2 seconds to access the time settings. The setting sequence is as follows: Hour - minute - 12/24 hour display.

You can adjust the time using the buttons "UP" and "DOWN" and confirm your input using the "MODE" button.

7. Alarm setting

7.1 Setting the alarm

Press and hold the "ALARM" button for about 4 seconds to access the alarm settings. The alarm time is now displayed instead of the time. You can make the desired settings using the "UP" and "DOWN" buttons. Confirm using the "ALARM" button. Then press the "ALARM" button again to save the alarm setting. The sequence is as follows: Hour - minute - snooze time (can be set between 5 and 60 minutes).

7.2 Enabling/disabling the alarm

Press the "ALARM" button to enable/disable the alarm. An alarm icon ("AL") is then displayed above the time. The alarm is enabled as long as the alarm icon is shown in the display. If the "AL" icon is not displayed, then the Alarm is disabled.

7.3 Snoozing the alarm

Press the "SNZ/LIGHT" button to snooze an alarm. The alarm now sounds for the snooze time previously set in the alarm settings and then sounds again.

7.4 Turning off the alarm

To turn off the alarm, press the "MODE", "ALARM", "UP" or "DOWN" button.

8. Night mode

The night mode dims the LED light during the night time. Press the "MODE" button twice in the time display. The display shows "OFF". Press the "DOWN" button once. As soon as the display shows "ON", press and hold the "MODE" button until the start time of the night mode is displayed. You can set this using the "UP" and "DOWN" buttons. Confirm using the "MODE" button and repeat the procedure for the end time. The setting sequence is as follows: Starting hour - Starting minute - Ending hour - Ending minute.

The display is automatically dimmed during the set duration.

9. Manually dimming the LED light

Press the "UP" button to dim the backlight or to make it bright once again. Press the "DOWN" button for 3 seconds to turn off the backlight

10. Temperature display

Press the "MODE" button once during the time display to display the temperature. Press the "DOWN" button to change between °C and °F.

To change between temperature and time, press and hold the "MODE" button in the temperature display until you hear a beep. The display now alternately shows the temperature for 5 seconds and the time for 10 seconds. Repeat the procedure if you want to switch off this mode.

11. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

12. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

13. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303131/20180620FZ009 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
