302658 - Clock Bearware - Free user manual and instructions

Product type	Radio-controlled clock with alarm
Brand	Bearware
Model	302658
Dimensions (L x W x H)	95 mm x 93 mm x 39 mm
Weight	100 g
Power supply	2 AAA batteries of 1.5 V
Number of buttons	6
Display	Time, date, day of week, indoor temperature
Ambient temperature	5 to 40 °C
Radio-controlled	Yes, automatic synchronization via DCF signal
Alarm	Programmable with progressive alarm and snooze function (5 min)
Backlight	Yes, activated by Snooze/Light button
Sleep mode	Yes, duration about 5 minutes
Calendar	Integrated (year, month, day, day of week)
Temperature switching	°C or °F via Down button
Time zone	Adjustable from -12 to +12 hours
Day languages	Selectable in the setup menu
Maintenance	Clean with a slightly damp cloth
Safety	Do not open, indoor use, avoid humidity and high temperatures
Recycling	Device and batteries recyclable according to WEEE directives

Frequently Asked Questions - 302658 Bearware

How to set the time manually?

Press and hold the Time button for 2 seconds. Use the UP and DOWN buttons to adjust, then confirm with Time. The setting order is: 12/24h, time zone, hours, minutes, year, month, day, language.

How to set the alarm?

Press Alarm to activate the alarm (symbol displayed). Hold Alarm for 2 seconds to set the hour and minute with UP/DOWN, confirm with Alarm.

How to stop the alarm in the morning?

Press any button except Snooze/Light to temporarily stop the alarm (it will ring again the next day if activated). To deactivate it completely, press Alarm until the symbol disappears.

How to activate the snooze function?

While the alarm is ringing, press Snooze/Light. The alarm stops and then rings again after about 5 minutes. The sleep symbol is displayed.

How to synchronize the clock with the DCF radio signal?

The clock automatically searches for the signal after inserting batteries. To activate/deactivate manual search, press Wave. The search also occurs automatically at 1:00, 2:00, 3:00, 4:00 and 5:00 AM.

What to do if the clock does not receive the radio signal?

Check that you are not in a location with interference (basement, building, near a TV). Move the clock away from sources of interference. If necessary, set the time manually.

How to change the temperature display to °F?

Press the Down button to switch between °C and °F.

How to replace the batteries?

Open the battery compartment on the back of the device. Remove the old batteries and insert two AAA 1.5 V batteries, respecting polarity (+/-). Close the compartment.

How to clean the clock?

Use a slightly damp cloth to wipe the device. Do not use chemical or abrasive products. Avoid water entering the inside.

What does the DST symbol on the screen mean?

The DST (Daylight Saving Time) symbol is displayed when daylight saving time is automatically detected via the radio signal.

USER MANUAL 302658 Bearware

Thank you for choosing a BEARWARE product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of supply

• Radio alarm clock
• User manual

2. Technical data

Power supply Two AAA 1.5V batteries
Number of buttons 6
Weight 100 g
Dimensions (HxWxD) 95 mm x 93 mm x 39 mm
Features	BacklightDCF signalSnooze functionCalendar function
Ambient temperature	5-40°C

3. Important information on this device

• Do not place the device close to sources of interference like televisions etc.
• Use the alarm clock only in places where you can be sure that there is reception. Places such as cellars, high-rise buildings, or factories may affect the reception of the alarm clock.
• Change the batteries when the display becomes weak or the alarm is no longer audible.

• Use only a slightly damp cloth to clean the alarm clock and carefully wipe the alarm clock with it.

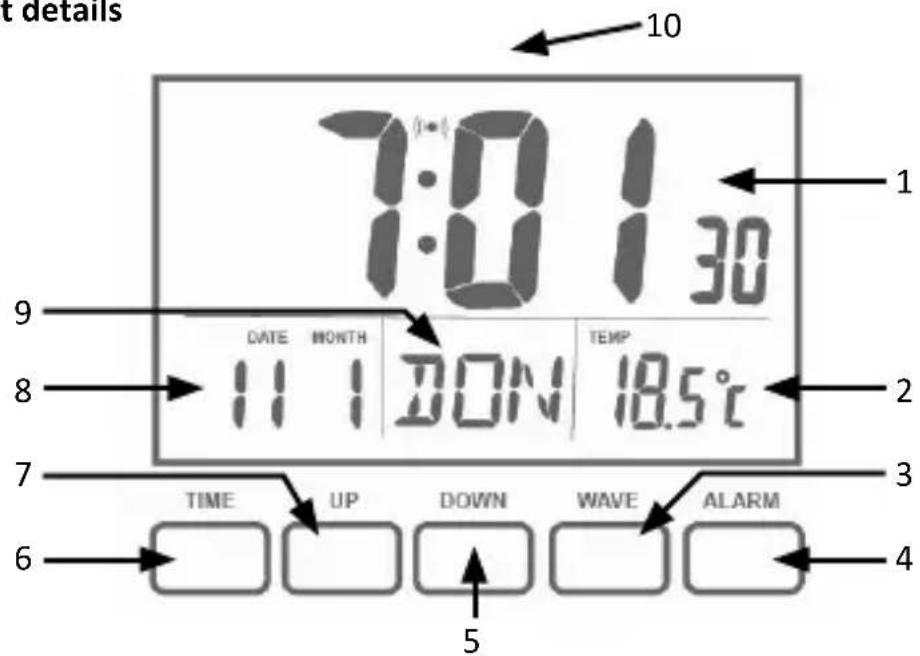

• Product details


1 Time
2 Temperature display
3 "Wave" button
4 "Alarm" button
5 "Down" button
6 "Time" button
7 "Up" button
8 Date display
9 Weekday display
10 "Snooze/light" button

5. Button functions

"Wave" button	Press to enable or disable the radio mode
"Alarm" button	Press and hold to access the alarm settingsPress to turn the alarm on or offPress once in the alarm settings to confirm the setting
"Up" button Increase the desired value (e.g. alarm time, time)
"Down" button	Decrease the desired value (e.g. alarm time, time)
"Time" button	Press and hold to access the time settings
"Snooze/ light" button	Enable the snooze functionEnable the backlight

6. Setting up

Take the device out of the package and remove all the packaging material. Open the battery compartment on the back of the device and insert two 1.5V AAA batteries. Make sure the polarity of the contacts is correct. Then close the battery compartment.

The radio alarm clock now automatically tries to receive a radio signal. Press the "WAVE" button if you want to cancel this step. The radio symbol in the display disappears.

6.1 Manual time setting

Press and hold the "Time" button for about 2 seconds in time mode. The value to be configured starts flashing. The values can be configured using the "UP" and "DOWN" buttons and confirmed with the "Time" button. The setting sequence is as follows:

12 or 24 hour - Time zone (-12 to +12 hours) - Hour - Minute - Year - Month - Day - Language (in which the day has to be displayed).

6.2 Alarm setting

Press the "alarm" button in time mode to activate the alarm. The alarm symbol appears on the display once the alarm is activated.

Press and hold the "Alarm" button for 2 seconds to access the alarm settings. The settings can be adjusted using the "UP" and "DOWN" buttons. Confirm the respective setting using the "Alarm" button. The setting sequence is as follows:

Hour - Minute

The alarm symbol on the display starts flashing once the audible alarm is heard. The audible alarm has several levels:

0-10 seconds alarm: 1 beep

10-20 seconds alarm: 2 beeps

20-30 seconds alarm: 3 beeps

30 seconds - 2 minutes alarm: continuous beep

If the alarm is not turned off within 2 minutes, it switches off automatically.

Press the "Snooze/light" button during the alarm to activate the Snooze mode and to temporarily turn off the alarm. The alarm is turned off for about 5 minutes and then goes off again. A snooze symbol appears on the display when the snooze mode is active.

Press any button (except the "Snooze/light" button) to turn off the alarm. The alarm will be enabled again on the next day at the configured time, unless you turn off the alarm using the "Alarm" button and the alarm symbol is no longer shown in the display.

6.3 Radio signal

Press the "wave" button to enable or disable the radio search mode. The radio symbol appears on the display when the search mode is enabled.

The radio alarm clock searches for a signal every day at 1:00, 2:00, 3:00, 4:00 and 5:00 a.m.

Once the daylight saving time (DST) is received, a "DST" symbol appears in the display.

Only the "Snooze/Light" and "Wave" are functional during the search process. The other buttons are disabled during this time.

7. Changing the temperature mode

Press the "Down" button to change the temperature display between ° Fahrenheit and ° Celsius.

Please note!

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection

12 English

points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

10. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302658 conforms to the principle requirements and other relevant stipulations of Directive 2014/53/EU. The complete Declaration of Conformity can be obtained from: http://www.ganzeinfach.de, WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

MO-FR 9:30am - 18pm CET
