Product Type	Cordless Hedge Trimmer
Brand	Brandson
Model	303451
Dimensions (H x W x D)	170 mm x 220 mm x 1000 mm
Power Supply	Lithium-ion battery 18 V DC / Charger 220-240 V AC 50/60 Hz
Battery Capacity	2000 mAh
Acoustic Power Level (LWA)	90 dB(A), K=3 dB(A)
Sound Pressure Level (LpA)	80 dB(A), K=3 dB(A)
Vibration Level	3.5 m/s², K=1.5 m/s²
Maximum Cutting Diameter	19 mm
Main Functions	Cutting and trimming hedges and bushes
Safety Devices	Two-hand safety switch, blade guard, protective cover
Handle	Ergonomic handle for a secure grip
Blade Type	Double-action sharpenable blade
Delivery Contents	Hedge trimmer, 18 V battery, charger, blade protective cover
Maintenance and Cleaning	Clean with a soft dry cloth; lubricate the blade unit after each use
Battery Charging	Recharge with the provided charger; red light = charging, green light = fully charged
Battery Runtime	Varies according to use; let cool for 15 min after continuous use
Charging Temperature	10 °C to 40 °C
Storage	In a dry, ventilated place, out of reach of children; remove the battery
Operating Conditions	In dry weather, never in rain; wear PPE

Frequently Asked Questions - 303451 Brandson

How to start the hedge trimmer?

To start, press the safety switch and the On/Off button simultaneously. Both buttons must be activated for the device to start.

What safety precautions should be taken?

Always wear safety goggles, ear protectors, gloves, and a helmet. Hold the device with both hands, keep people and animals away. Never use it in the rain.

How to charge the battery?

Insert the battery into the provided charger. The red LED indicates charging, the green LED indicates it is fully charged. Charge only between 10 °C and 40 °C.

What to do if the battery does not hold a charge?

If the runtime decreases significantly, stop using the device and contact customer service. Do not attempt to disassemble the battery.

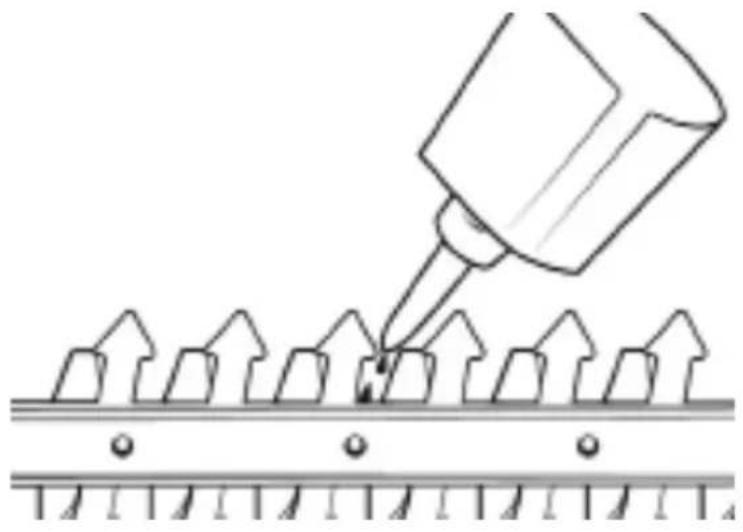

How to lubricate the blade unit?

Stop the device and remove the battery. Clean the blades with a brush, then spray a resin-dissolving spray and apply an appropriate lubricating oil.

How to store the hedge trimmer?

Clean the device, remove the battery, place the protective cover on the blades, and store it in a dry, ventilated place, out of reach of children.

What is the maximum cutting diameter?

The hedge trimmer can cut branches with a maximum diameter of 19 mm.

What to do if the device does not start?

Check that the battery is charged and properly inserted. If the problem persists, the internal wiring or switch may be defective. Contact customer service.

Can I use the hedge trimmer in the rain?

No, never expose the device to rain or moisture. This poses a risk of electric shock.

How to clean the hedge trimmer?

After each use, clean the blades with a brush to remove residues. Wipe the device with a soft dry cloth. Do not use aggressive chemicals.

USER MANUAL 303451 Brandson

Warning symbol with exclamation mark inside a triangle

Line drawing of a car rear bumper with a black arrow pointing to the button (no text or symbols)

Illustration of hands operating a mechanical device with a tool, showing the process (no text or symbols present)

Gerät abschalten

Illustration of two hands performing a seatbelting operation on a metal beam (no text or symbols present)

Illustration of a person using a tool to cut or mark a surface, with no visible text or symbols

Horizontales Trimmen

Diagram showing a dropper injecting particles into a grid of upward-pointing arrows (no text or symbols)

Warning symbol with exclamation mark inside triangle

Warning! This device can be dangerous! Careless or improper use may result in injuries to yourself and others.

Please read all instructions carefully so that you understand how to operate the device and always know what you're doing.

Do not allow pedestrians or un-qualified persons to come close to the device.

Always wear ear protection, protective glasses and gloves.

Switch the device off! Always disconnect the plug from the outlet before adjusting or cleaning or if the device or mains cable is faulty.

Do not expose the device to rain. Do not keep it in the open and do not leave it in the rain.

IMPORTANT SAFETY GUIDELINES FOR THIS DE- VICE

Read all the safety guidelines and instructions carefully!

Not following the safety guidelines and instructions may result in electric shock, fire and/or serious injuries.

Retain all the safety guidelines and instructions for future reference. The term "Power tool" used in the following safety instructions refers to power tools with a mains cable or to cordless power tools without a mains cable.

Workplace safety

• Keep the workplace organised and well lit. Dirty or dark workplaces result in accidents.
• Do not operate power tools in potentially explosive surroundings, e.g., near flammable liquids, gases, etc.
  Power tools may generate sparks, which can ignite flammable materials!
• Keep bystanders and children away when using the power tool. You could lose control of the tool if you get distracted.

Electrical safety

• The power tool plug has to fit into a properly installed socket. The plug should not be changed or modified.
  Never use adapters with earthed power tools. Proper plugs and sockets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as heaters, refrigerators or pipes. There is a risk of electric shock.
• Keep power tools away from moisture and rain. The risk of electric shock increases if water gets into power tools!
• Do not misuse the cable under any circumstances! Never carry the power tool by its cable. Do not hang it by the cable or do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat, oil, sharp edges or moving parts! Damaged or entangled cable increases the risk of electric shock!
• If you operate the power tool outdoors, make certain to use an extension cable suitable for outdoor use. Using a cable suitable for outdoors reduces the risk of electrical shock.

Personal safety

- Ensure that you are always alert. Be aware of what you are doing and use common sense when working. Do not use a power tool if you are under the influence of alcohol, drugs or medication, or are tired! Carelessness while using power tools may result in serious physical injuries.

- Always wear personal protective equipment and safety glasses when using the power tool. Wearing appropriate protective clothing, such as ear protection, safety glasses, safety shoes and helmet can reduce the risk of injuries, depending on the type and use of the power tool.

- Prevent the power tool from starting unintentionally. Always check whether the device is switched off before connecting it to the battery or the power supply, picking it up or carrying it. Accidents may occur if you keep your finger on the switch while carrying the tool or if you connect the power tool to the power supply when the tool is switched on.

- Remove any setting tools or wrench before switching on the power tool. Any tool or object left in a rotating part of the device may result in injuries.

• Always maintain a normal posture when using power tools and ensure that your footing is secure at all times and that you maintain your balance. This allows you to control the power tool better in unexpected situations.
• Always wear suitable clothing when using a power tool. Never wear loose clothing or jewellery. Keep your hair, clothing and gloves always away from moving parts.
  This type of clothing or hair can get caught in moving parts!

- If connecting attachments for dust extractors and collectors are available, they should be properly mounted and used. The use of dust extractors can reduce risks caused by dust.

Use and handling of power tools

- Never overload the power tool under any circumstances. Always use the appropriate power tool for your work. Working with the incorrect power tool reduces the safety considerably.

- Never use a power tool if the switch is faulty. A device that cannot be switched on or off has to be immediately repaired and should not be used.

• Before changing the settings or the accessories on the power tool, or storing the device, it must be disconnected from the mains supply and/or the battery. These measures reduce the risk of the device switching on accidentally.
• Keep the unused power tool out of reach of children. Do not allow those who are not familiar with the usage instructions of the device to use it. Power tools are dangerous in the hands of inexperienced users.
• Maintain your power tools properly. Check your tool for misalignment, damage and other conditions that may affect the operation. In case it is damaged, have the power tool repaired by a specialist before using it again.
• Keep the cutting tools clean and sharp. Well maintained tools with sharp blades are less prone to damage, and are better to handle.
• Use the power tool, accessories and tool inserts in accordance with these instructions. Take the conditions and the work to be carried out into account.

Use and handling of cordless tools

• Charge the battery using only the charger specified by the manufacturer. A charger that is suitable for a certain type of battery can be a fire hazard if used with a different battery.
• Use power tools only with the explicitly specified batteries. There is a risk of fire and injury if other batteries are used!
• Never store the battery when it is not being used along with other metal objects, such as paper clips, coins and screws. The battery terminals may be shorted under certain circumstances and cause a fire.
• In the event of misuse, fluid may start leaking from the battery. Avoid contact with the fluid. In the event of accidental contact, rinse the affected area immediately with water. If the fluid gets into the eye, obtain medical treatment in addition. The fluid from the battery may cause burns and skin irritation.

Maintenance

• Have the device serviced by a qualified technician and use only identical spare parts.
• Keep the handles free of oil, grease and other liquids to ensure a firm grip.

Safety warnings for hedge trimmers

• When using the hedge trimmer, always wear protective glasses, protective mask, gloves and appropriate headgear.

• Keep all body parts away from the blade unit. Do not try to remove the material or to hold the material being cut when the blade is running. Remove any jammed material only after switching off the device. Carelessness when using the device can lead to serious injuries!

• Hold the device firmly and securely.

• Do not use the product during rain. Make sure you keep it in a dry condition indoors. There is a risk of electric shock when using on wet surfaces!
• Do not insert your hands, fingers, hair or other body parts and objects into the device.
• Never block the blade.
• Carry the hedge trimmer using the handle after the blade stops completely. Always use the protective cover when transporting or storing the hedge trimmer. Handling the device carefully reduces the risk of injury!
• Hold the power tool using the insulated handles, because the blade may come into contact with concealed power cables or its own power cord.

- High motor speed may result in severe damages and cause injuries. Overheating of the motor or the control circuit can result in a fire.

- When the tool is being operated, make sure that people or animals are not within a radius of 3 meters. The user is responsible for the safety of others in the work area.

- Wait until the power tool has come to a stop before placing it down.

- Never touch the blade of the hedge trimmer.

- Do not use the device during rest periods or very early in the morning or late at night. Make sure that you do not disturb other people nearby.

- This device is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have been instructed on how to use the device by any such authorised person. Children should be supervised to ensure that they do not play with the device.

- Small children should be supervised to ensure that they do not play with the device.

- Keep body parts and objects away from rotating parts.

• Do not trim the hedge especially if there are children or pets nearby.
• Never allow children or those who are not familiar with these instructions to use the device. National regulations may restrict the age of the user.
• The user is responsible for accidents or damage to others or their property.
• Always wear sturdy shoes and long pants. Do not use the device barefoot or when wearing open sandals.
  Wearing tight-fitting gloves, non-slip footwear and protective glasses is recommended. Do not wear loose clothing or jewellery that could get caught in moving parts.
• Inspect the hedge to be trimmed carefully and remove any wires and other foreign objects.
• Before use, always check if the blade unit is worn out or damaged. Never work with a damaged or excessively worn out blade.
• Use the device only in daylight or good artificial light. Never use the hedge trimmer with faulty guards or the guards removed. Make sure that all the supplied handles and guards are mounted when operating the hedge trimmer. Never use a hedge trimmer that has been impermissibly modified.
• When operating the hedge trimmer, always ensure a firm footing and maintain your balance, especially when using the tool on steps or ladders. Always be aware of your surroundings and be prepared for any dangerous

situations that you may not hear while trimming the hedge.

• Check the hedge trimmer for damage and get it repaired if the trimmer has come into contact with a foreign object.
• Store the hedge trimmer in a dry, safe place out of the reach of children.
• Do not try to repair the device unless you have the necessary training.
• The device is provided a safety switch in the handle as contact protection for the moving blade unit. Both switches have to be pressed simultaneously to operate the hedge trimmer.
• Do not use the device if you can operate it with only one switch or entirely without the switch.
• Caution! Turn off the garden tool before maintenance or cleaning and remove the battery.
• After switching off the hedge trimmer, the blade continues to run for a few more seconds. Caution! Do not touch the moving blade!

Ensure that you keep all the safety instructions carefully!

Caution!: Always follow these safety guidelines! Familiarise yourself with the corresponding product! Not following and misusing the safety guidelines given in this manual may cause serious injuries!

Important safety instructions for batteries

- Please note all the safety instructions and warnings given in this manual and the warnings related to the battery, charger and power tool before using the battery.

- Do not disassemble the battery!

- If the operating time of the battery is significantly lower than usual, then stop using the device immediately. There is a risk of overheating or explosion.

- If battery fluid gets into your eyes, wash it out immediately! Obtain medical treatment immediately! There is a risk of losing your eyesight.

- Do not short-circuit the battery. Do not touch the contacts using conductive materials. Do not store the device along with conductive materials.

- Do not allow any liquid to come into contact with the battery. A short circuit generates a very high flow of current and can result in overheating or burns.

• Do not store the power tool or the battery in places where the temperature exceeds 50°C!
• Never try to burn the battery even if it is damaged. The battery may explode in the fire!
• Ensure that the battery is never dropped or exposed to any impact. Do not use the battery if it has been dropped or has been shaken.

Notes on battery service life

- Charge the battery only when it is completely empty. Switch off the power tool if you notice a reduction in its capacity. Charge the battery subsequently.

• Overcharging the batteries reduces its service life. Avoid charging a fully charged battery.

- Allow the battery to cool down before charging it. Charge the battery at a room temperature between 10^ and 40^ .

Intended use

The hedge trimmer is designed for cutting and trimming hedges and bushes in gardens.

Ensure that you keep the safety instructions carefully!

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Hedge trimmer
• Battery
• Battery charger

2. Technical data

Power supply	• 18V DC 2Ah battery• 220-240V AC 50/60Hz (charger)
Dimensions (HxWxL) 170mm x 220mm x 1000mm
Battery 18V 2000mAh
Sound power level (Lwa) 90 dB(A), K=3dB (A)
Sound level (Lpa) 80 dB(A), K=3dB (A)
Vibration level 3.5 m/s2, K=1.5m/s2
Maximum diameter 19mm

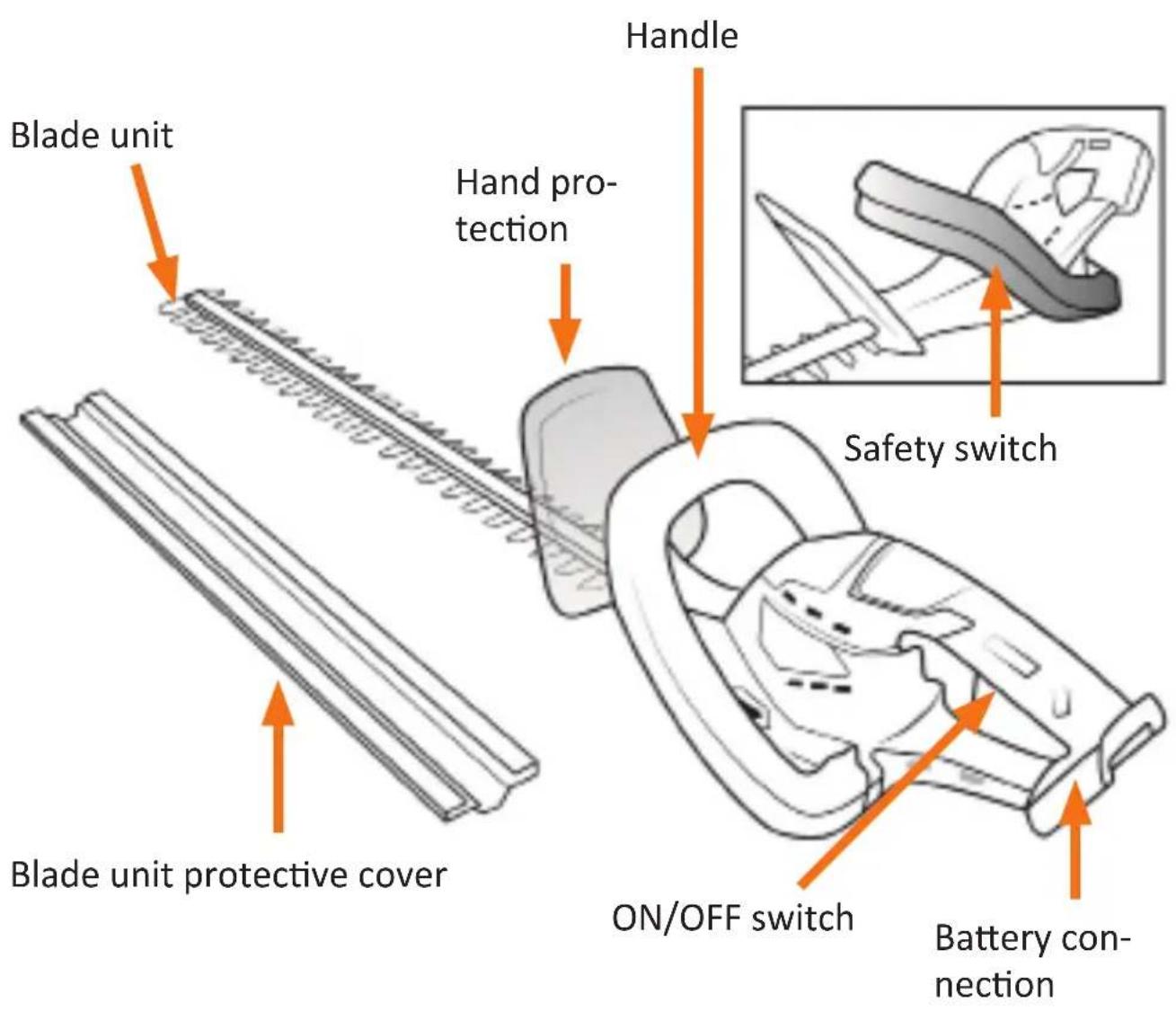

3. Product details

Handle Blade unit Hand protection Safety switch ON/OFF switch Battery connection Blade unit protective cover

4. Initial use

Take the device out of the package and remove all the packaging material. Check that the product and the components are intact and that the device is working properly when using it for the first time Charge the battery before initial use with the provided charger. Insert the charged battery at the bottom of the device into the port and make sure that it

locks into place. Remove the protective cover from the blade unit. Make sure that the blade unit does not touch any object. Ensure that the safety switch is not pressed. When using the hedge trimmer, hold the handle firmly to operate the tool properly. The device is now ready for use.

To start the device, press the "safety switch" and "ON/OFF switch" of the device at the same time. Both the buttons have to be pressed, otherwise the device does not switch on.

CAUTION!

• Always switch off the device before inserting or removing the battery. Hold the device firmly while doing so!
- Please do not cover the air vents or the intake opening!
- Always slide the battery onto the device until it clicks into place. If the battery does not slide without any resistance on the battery guide bar, then it is not properly aligned.
- Before inserting the new battery, allow the device to rest for at least 15 minutes after using it continuously and discharging the battery.
• Always grip the device firmly! Always ensure secure footing when using the device!

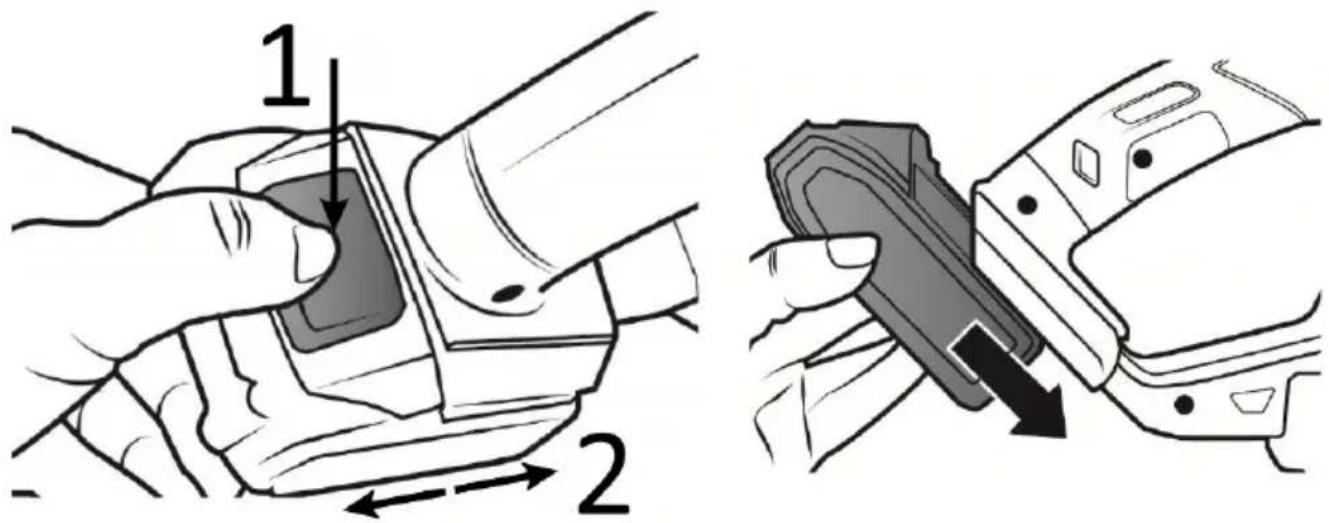

5. Inserting / replacing the battery

To replace the battery, slide it over the guide rail (2) until it clicks into place. Unlock the battery by pressing the "Battery unlocking" button (1) and then slide the battery out of the device (2) for removing the battery.

1 2

6. Charging the battery

Charge the battery using the charging station provided. A status LED is located on the charging station. As long as the LED is red, then charging is in progress. When the LED turns green, the battery is then fully charged and can be reused.

There is a charging level indicator on the battery itself. Press the button shown in the figure below.

Line drawing of a car rear bumper with a black arrow pointing to the nose area (no text or symbols)

The table below shows the charging level indication and its meaning

Charging level indication Approximate charging level
	0-10%
	10-25%
	25-50%
	50-75%
	75-100%

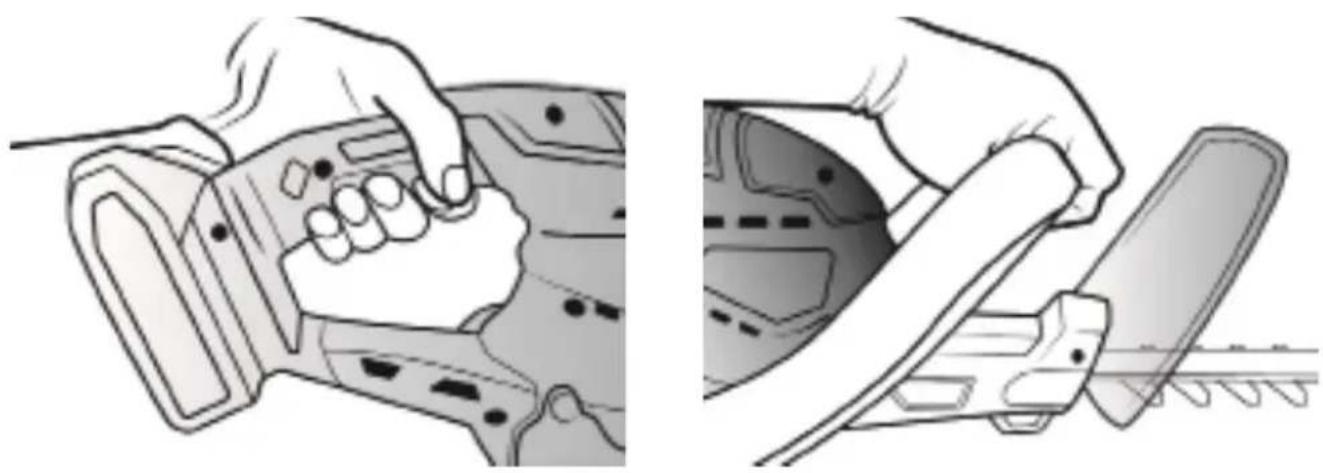

7. Usage

Hold the device firmly with both hands. Use the device only if you have completely read and understood the user manual and all the relevant safety instructions. Use the product only for the intended purpose. Press the "safety switch" and the "ON/OFF" switch simultaneously to start the device.

Illustration of two hands operating a mechanical device, one holding a tool and the other handling a blade (no text or symbols present)

Switch off the device.

To switch off the device, release the "ON/OFF" switch and the "safety switch". Remove the battery of the device after use.

Illustration of two hands performing a seatbelting operation on a track (no text or symbols present)

Note: When the motor is switched off, the blade unit continues to run for a while. Spark may also be formed in the ventilation slots depending on the operating conditions. However, this does not imply a defect!

8. Trimming

Vertical trimming

It is advisable to trim the two vertical sides of a hedge first before trimming the top. Trim by moving the blade unit of the hedge trimmer in a circular motion from bottom to top.

Horizontal trimming

Diagram illustrating a hand tool interacting with a meshed surface, showing a directional arrow labeled 'Remove the ring of material'

Good results are achieved by tilting the blade slightly (about 5^ - 10^ ) in the direction of cutting. Move the blade unit in a circular motion without pausing in between.

Note: Make sure that the blade unit is always away from the body (as far as possible) to prevent injury!

9. Lubricating the blade unit

If the device becomes very hot when trimming, then it is necessary to lubricate the blade unit.

Caution! This activity has to be carried out only after stopping the device and removing the battery.

Allow the motor to cool down before lubricating. To reduce the risk of fire, you need to clean the device once before. Make sure that any grass, leaves and plant residues are removed from the blade unit. Use a soft cloth and possibly a brush for removing the residues.

Diagram of a dropper dispensing particles into a grid-like structure (no text or symbols)

Lubricate the blade unit using a suitable oil and resin-removing spray. Oil and resin remover are combined in many special products and are commercially available.

10. Cleaning and Care

Before cleaning and servicing, ensure that the device has been switched off and the battery has been removed. Do not use alcohol, thinners or other chemical and aggressive cleaning agents for cleaning purposes. Use only a dry, soft cloth. Clean the device if necessary with a brush to remove grass, twigs or leaf residues. Spray the blade unit with a resin removing spray and wipe it with a cloth dipped in a bit of oil. Oil and resin remover are combined in many special products and are commercially available.

Do not immerse the device in water and ensure that liquids do not get into the device!

Note: To increase the efficiency of the hedge trimmer and the life of the blade unit, clean and lubricate the device carefully after each use! The blade unit can not be replaced but only sharpened.

11. Condition of the blade unit

Inspect the blade unit for wear or bends and damage at regular intervals. If you detect irregularities, you should not continue to use the device in this condition. In such cases, contact our customer service department or a qualified technician. If the blade unit is used correctly, then it should not need any repairs.

12. Storage

Before storing the hedge trimmer, make sure the unit has been cleaned. Store the device in a dry, well-ventilated place out of reach of children. Keep the device away from corrosive substances such as garden chemicals and salts.

When storing, do not forget to mount the protective cover of the blade unit.

Store and charge the batteries in a cool room. The battery life can be significantly reduced if the surrounding is too cold or too hot.

13. Troubleshooting

If you notice any defects, please do not hesitate to get in touch with our customer service department.

CAUTION!

Error Troubleshooting / cause
Hedge trimmer does not start	Charging the batteryBattery faulty / not inserted properly
Tool runs intermittently	Internal wiring of the tool is faultySwitch is not workingBattery level is too low / charge the battery
Blade unit becomes hot	Blade unit is bluntExcessive friction due to lack of lubrication
Excessive noise / vibrations	Device is defective

14. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mental-

ly disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation.

15. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

16. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303451/20181029CZ009 complies with the fundamental requirements and all other relevant stipulations of the guideline 2006/42/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de

Line drawing of a car rear door with a black arrow pointing to the side panel (no text or symbols)

Illustration of two hands operating a mechanical device, one holding a tool and the other handling a blade (no text or symbols present)

Éteindre l'appareil

Illustration of two hands performing a seatbelt work on a track (no text or symbols present)

Diagram illustrating a tool interacting with a surface, showing an arrow indicating the process to remove or retain a material.

Coupe horizontale

Diagram of a dropper dispensing liquid onto a surface with arrow-like structures (no text or symbols)

Warning symbol with exclamation mark inside a triangle

Two black circular icons: one showing a hand gesture, the other showing a helmet and mask (no text or symbols)

Line drawing of a car rear bumper with a black arrow pointing to the side panel (no text or symbols)

Illustration of two hand tools: one applying a tool to a device, the other adjusting a device with a cable (no text or symbols present)

Illustration of two hands performing a physical exercise on a shoe, showing foot positioning and grip mechanism (no text or symbols)

Diagram illustrating a tool interacting with a surface, showing a tool and directional arrow indicating movement or force.

Diagram of a dropper dispensing liquid onto a surface with upward arrows (no text or symbols)

Warning symbol with exclamation mark inside a triangle

Line drawing of a car rear bumper with a black arrow pointing to the nose area (no text or symbols)

Illustration of two hands operating a mechanical device, one holding a tool and the other handling a blade (no text or symbols present)

Illustration of two hands performing a seatbelt work on a track (no text or symbols present)

Diagram illustrating a tool interacting with a surface, showing a tool interacting with a shaded area and an arrow indicating the process.

Recorte horizontal

Diagram of a dropper dispensing liquid onto a surface with arrow-like structures (no text or symbols)

Only for European countries

EC Declaration of compliance

WD-Plus GmbH declares that the following device:

Description of the device: Hedge trimmer

Model number / Type: 303451

of the European directive corresponds to: 2006/42/EC

To ensure compliance, the applicable versions of the following standards /

specifications were used at the time of issue: EN60745

The technical documentation in accordance with 2006/42/EC is available

at:

WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany

Hanover, 29/11/2018

We hope you enjoy your new product in every way!

If there is still something you're concerned about

please feel free to let us know.

You're welcome to contact our service team at any time.
