USER MANUAL 303503 Brandson

Warning symbol with exclamation mark inside a triangle

Line drawing of a mechanical tool or tool with an arrow indicating motion direction (no text or symbols present)

Line drawing of a handheld electric shock absorber with labeled parts (no text or symbols)

Line drawing of a hairdryer with two arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with gear-like teeth and internal cavity (no text or symbols)

Technical line drawing of a mechanical tool with gear-like structure and internal components, showing an arrow indicating direction (no text or symbols)

Technical line drawings of two mechanical components: a saw blade and a multi-pronged tool (no text or symbols)

Diagram showing a dropper injecting particles into a grid of upward-pointing arrows (no text or symbols)

Warning symbol with exclamation mark inside triangle

Warning! This device can be dangerous! Careless or improper use may result in injuries to yourself and others.

Please read all instructions carefully so that you understand how to operate the device and always know what you're doing.

Do not allow pedestrians or un-qualified persons to come close to the device.

Always wear ear protection, protective glasses and gloves.

Switch off the device! Always disconnect the plug from the socket before adjusting or cleaning or if the device or mains cable is faulty.

Do not expose the device to rain. Do not keep it in the open and do not leave it in the rain.

Caution! The cutter may continue running for some time after being switched off! Be careful not to cut yourself!

IMPORTANT SAFETY GUIDELINES FOR THIS DE- VICE

Read all the safety guidelines and instructons carefully! Not following the safety guidelines and instructions may result in electric shock, fire and/or serious injuries.

Retain all the safety guidelines and instructions for future reference. The term "Power tool" used in the following safety instructions refers to power tools with a mains cable or to cordless power tools without a mains cable.

Workplace safety

• Keep the workplace organised and well lit. Dirty or dark workplaces result in accidents.
• Do not operate power tools in poten ally explosive surroundings, e.g., near ammable liquids, gases, etc. Power tools may generate sparks, which can ignite flammable materials!
• Keep bystanders and children away when using the power tool. You could lose control of the tool if you get distracted.

Electrical safety

• The power tool plug has to fit into a properly installed socket. The plug should not be changed or modified.
  Never use adapters with earthed power tools. Proper plugs and sockets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as heaters, refrigerators or pipes. There is a risk of electric shock.
• Keep power tools away from moisture and rain. The risk of electric shock increases if water gets into power tools!
• Do not misuse the cable under any circumstances! Never carry the power tool by its cable. Do not hang it by the cable or do not pull the cable to disconnect the plug from the socket. Keep the cable away from heat, oil, sharp edges or moving parts! Damaged or entangled cable increases the risk of electric shock!
• If you operate the power tool outdoors, make certain to use an extension cable suitable for outdoor use. Using a cable suitable for outdoors reduces the risk of electrical shock.

Personal safety

• Ensure that you are always alert. Be aware of what you are doing and use common sense when working. Do not use a power tool if you are under the influence of alcohol, drugs or medication, or are tired! Carelessness while using power tools may result in serious physical injuries.
• Always wear personal protective equipment and safety glasses when using the power tool. Wearing appropriate protective clothing, such as ear protection, safety glasses, safety shoes and helmet can reduce the risk of injuries, depending on the type and use of the power tool.
• Prevent the power tool from starting unintentionally. Always check whether the device is switched off before connecting it to the battery or the power supply, picking it up or carrying it. Accidents may occur if you keep your finger on the switch while carrying the tool or if you connect the power tool to the power supply when the tool is switched on.

• Remove any setting tools or wrench before switching on the power tool. Any tool or object left in a rotating part of the device may result in injuries.

• Always maintain a normal posture when using power tools and ensure that your footing is secure at all times and that you maintain your balance. This allows you to control the power tool better in unexpected situations.

• Always wear suitable clothing when using a power tool. Never wear loose clothing or jewellery. Keep your hair, clothing and gloves always away from moving parts.
  This type of clothing or hair can get caught in moving parts!

- If connecting attachments for dust extractors and collectors are available, they should be properly mounted and used. The use of dust extractors can reduce risks caused by dust.

Use and handling of power tools

- Never overload the power tool under any circumstances. Always use the appropriate power tool for your work. Working with the incorrect power tool reduces the safety considerably.

- Never use a power tool if the switch is faulty. A device that cannot be switched on or off has to be immediately repaired and should not be used.

• Before changing the settings or the accessories on the power tool, or storing the device, it must be disconnected from the mains supply and/or the battery. These measures reduce the risk of the device switching on accidentally.
• Keep the unused power tool out of reach of children. Do not allow those who are not familiar with the usage instructions of the device to use it. Power tools are dangerous in the hands of inexperienced users.
• Maintain your power tools properly. Check your tool for misalignment, damage and other conditions that may affect the operation. In case it is damaged, have the power tool repaired by a specialist before using it again.
• Keep the cutting tools clean and sharp. Well maintained tools with sharp blades are less prone to damage, and are better to handle.
• Use the power tool, accessories and tool inserts in accordance with these instructions. Take the conditions and the work to be carried out into account.

Use and handling of cordless tools

• Charge the battery using only the charger specified by the manufacturer. A charger that is suitable for a certain type of battery can be a fire hazard if used with a different battery.
• Use power tools only with the explicitly specified batteries. There is a risk of fire and injury if other batteries are used!
• Never store the battery when it is not being used along with other metal objects, such as paper clips, coins and screws. The battery terminals may be shorted under certain circumstances and cause a fire.
• In the event of misuse, fluid may start leaking from the battery. Avoid contact with the fluid. In the event of accidental contact, rinse the affected area immediately with water. If the fluid gets into the eye, obtain medical treatment in addition. The fluid from the battery may cause burns and skin irritation.

Maintenance

• Have the device serviced by a qualified technician and use only identical spare parts.
• Keep the handles free of oil, grease and other liquids to ensure a firm grip.

Safety warnings for grass trimmers

• When using the grass trimmer, always wear protective glasses, protective mask, gloves and appropriate headgear.

• Keep all body parts away from the blade unit. Do not try to remove the material or to hold the material being cut when the blade is running. Remove any jammed material only after switching off the device. Carelessness when using the device can lead to serious injuries!

• Hold the device firmly and securely.

• Do not use the product during rain. Make sure you keep it in a dry condition indoors. There is a risk of electric shock when using on wet surfaces!
• Do not insert your hands, fingers, hair or other body parts and objects into the device.
• Never block the blade.
• Carry the grass trimmer using the handle after the blade stops completely. Handling the device carefully reduces the risk of injury!
• Hold the power tool using the insulated handles, because the blade may come into contact with concealed power cables or its own power cord.
• High motor speed may result in severe damages and cause injuries. Overheating of the motor or the control circuit can result in a fire.

- When the tool is being operated, make sure that people or animals are not within a radius of 3 meters. The user is responsible for the safety of others in the work area.

- Wait until the power tool has come to a stop before placing it down.

- Never touch the blade of the grass trimmer.

- Do not use the device during rest periods or very early in the morning or late at night. Make sure that you do not disturb other people nearby.

- This device is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have been instructed on how to use the device by any such authorised person. Children should be supervised to ensure that they do not play with the device.

- Small children should be supervised to ensure that they do not play with the device.

- Keep body parts and objects away from rotating parts.

- Do not trim the grass especially if there are children or pets nearby.

• Never allow children or those who are not familiar with these instructions to use the device. National regulations may restrict the age of the user.
• The user is responsible for accidents or damage to others or their property.

• Always wear sturdy shoes and long pants. Do not use the device barefoot or when wearing open sandals.
  Wearing tight-fitting gloves, non-slip footwear and protective glasses is recommended. Do not wear loose clothing or jewellery that could get caught in moving parts.

• Inspect the surface to be trimmed carefully and remove any wires and other foreign objects.

• Before use, always check if the blade unit is worn out or damaged. Never work with a damaged or excessively worn out blade.
• Use the device only in daylight or good artificial light. Never use the grass trimmer with faulty guards or the guards removed. Make sure that all the supplied handles and guards are mounted when operating the grass trimmer. Never use a grass trimmer that has been impermissibly modified.

• Always ensure a secure footing when operating the grass trimmer. Always be aware of your surroundings and be prepared for any dangerous situations that you may not hear while trimming.

• Check the grass trimmer for damage and get it repaired if the trimmer has come into contact with a foreign object.

• Store the grass trimmer in a dry, safe place out of the reach of children.
• Do not try to repair the device unless you have the necessary training.
• The device is provided a safety switch in the handle as contact protection for the moving blade unit.
• Do not use the device if you can operate it with only one switch or entirely without the switch.
• Caution! Turn off the garden tool before maintenance or cleaning.
• Disconnect the device from the power supply when it is not being used.
• After switching off the grass trimmer, the blade continues to run for a few more seconds. Caution! Do not touch the moving blade!

Ensure that you keep all the safety instructions carefully!

Caution!: Always follow these safety guidelines! Familiarise yourself with the corresponding product! Not following and misusing the safety guidelines given in this manual may cause serious injuries!

Important safety instructions for batteries

• Please note all the safety instructions and warnings given in this manual and the warnings related to the battery, charger and power tool before using the battery.
• Do not disassemble the battery!
• If the operating time of the battery is significantly lower than usual, then stop using the device immediately.

There is a risk of overheating or explosion.

• If battery fluid gets into your eyes, wash it out immediately! Obtain medical treatment immediately! There is a risk of losing your eyesight.
• Do not short-circuit the battery. Do not touch the contacts using conductive materials. Do not store the device along with conductive materials.
• Do not allow any liquid to come into contact with the battery. A short circuit generates a very high flow of current and can result in overheating or burns.
• Do not store the power tool or the battery in places where the temperature exceeds 50°C!
• Never try to burn the battery even if it is damaged. The battery may explode in the fire!
• Ensure that the battery is never dropped or exposed to any impact. Do not use the battery if it has been dropped or has been shaken.

Notes on battery service life

• Charge the battery only when it is completely empty. Switch off the power tool if you notice a reduction in its capacity. Charge the battery subsequently.
  • Overcharging the batteries reduces its service life. Avoid charging a fully charged battery.
• Allow the battery to cool down before charging it. Charge the battery at a room temperature between 10^ and 40^ .

Intended use

The devices are designed for trimming lawn edges and small lawns in private and hobby gardens.

Devices for private and hobby gardens are not suitable for use in public places, parks and sports centres, along roads, on farms or in the forest. In order for the tool to be used correctly, it is essential to follow the instructions given in the manufacturer's manual.

Important! Never use the tool for shredding material for composting, as this poses a potential risk to people and property.

The tool should only be used for its specified purpose. Any other use is considered as misuse. The user/operator and not the manufacturer will be responsible for any kind of resulting damages or injuries.

Please note that our devices are not designed for commercial or industrial applications. Our warranty expires if the device is used for commercial or industrial applications or for similar purposes.

Ensure that you keep the safety instructions carefully!

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Grass trimmer
• Hedge trimming blade / grass trimming blade
• Battery charger

2. Technical data

Power supply	7.2V DC 2Ah battery220-240 V AC 50-60 Hz (charger)
Dimensions (HxWxL) 150	mm x 165 mm x 130 mm
Battery 7.2V 2000 mAh
Sound power level (Lwa) 86	dB(A), K=3 dB(A)
Sound level (Lpa) 66 dB(A), K=3 dB(A)
Vibration level 3.4 m/s2, K=1.5m/s2
Charging time approx. 3-5 hours
Protection class III

1. Product details

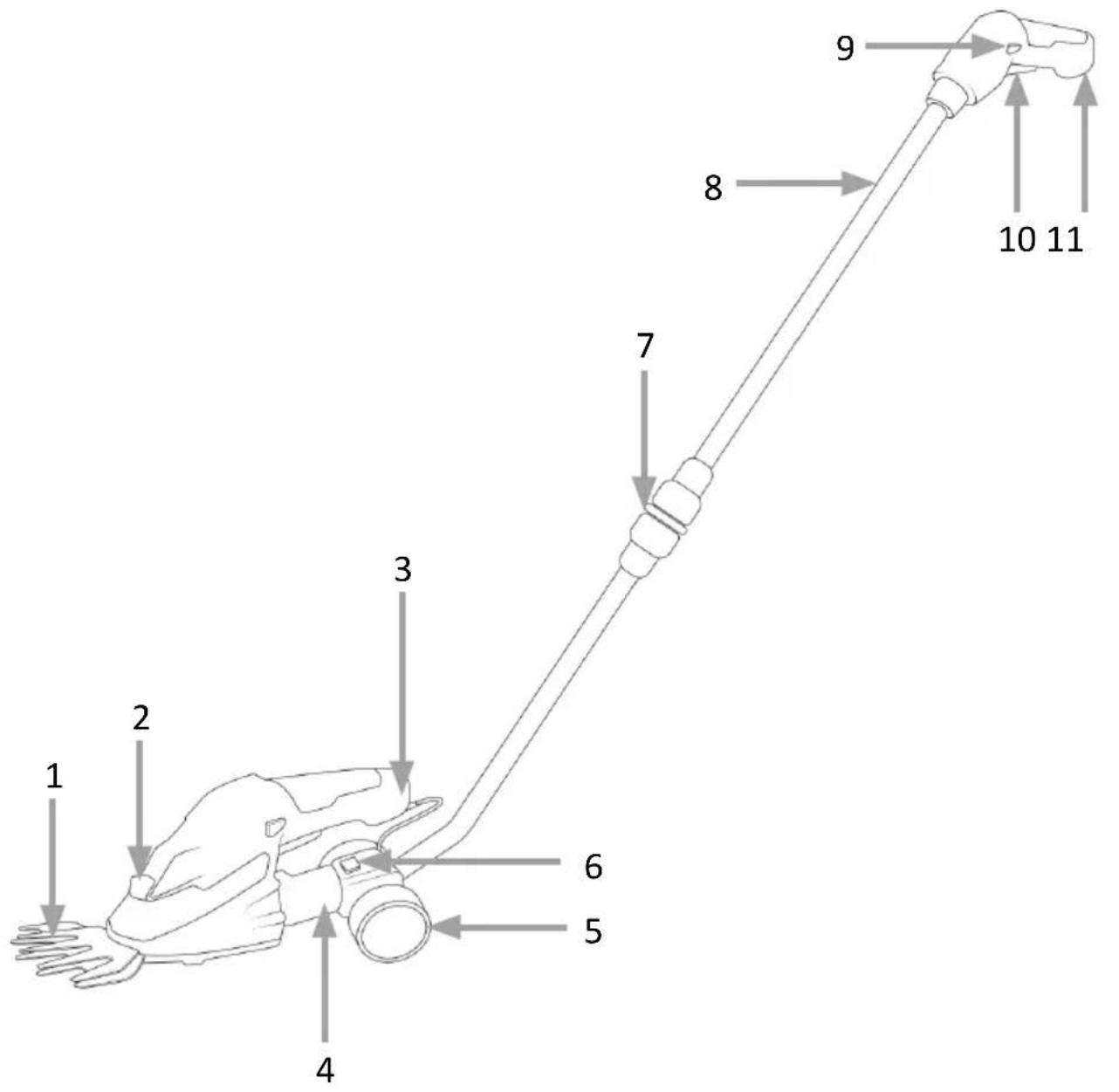

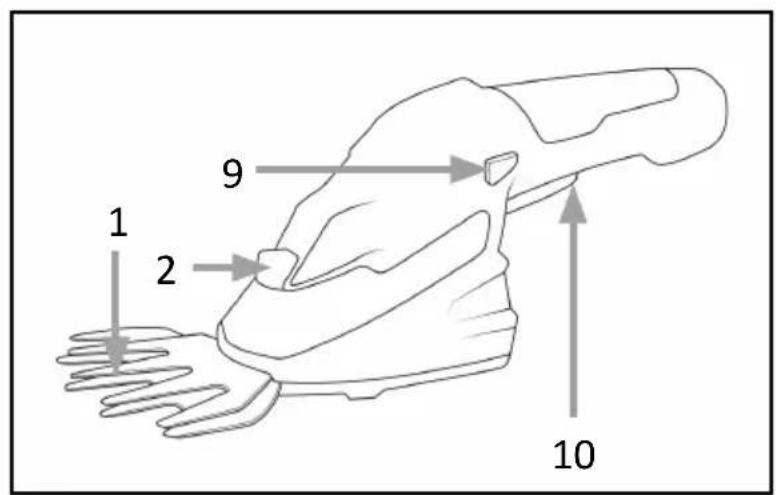

1 2 3 4 5 6 7 8 9 10 11

1 2 9 10

Number Name
1 Blade unit (grass trimmer)
2 Blade release button
3 Charging socket
4 Holder
5 Tyres
6 Holder button (locking mechanism)
7 Clamping mechanism for telescopic handle
8 Telescopic handle
9 Safety button (safety switch)
10 ON button
11 Handle

4. Initial use

Take the device out of the package and remove all the packaging material. Check that the product and the components are intact and that the device is working properly when using it for the first time Charge the battery before initial use with the provided charger.

Remove the protective cover from the blade unit. Make sure that the blade unit does not touch any object. Ensure that the safety button (safety switch) is not pressed. When using the grass trimmer, hold the handle firmly to operate the tool properly. The device is now ready for use.

To start the device, press the "Safety switch" (9) and the "ON button" (10) of the device at the same time. Both the buttons have to be pressed, otherwise the device does not switch on.

CAUTION!

• Please do not cover the air vents!
• Allow the device to rest for at least 15 minutes after using it continuously and discharging the battery.
  • Always grip the device firmly! Always ensure secure footing when using the device!

5. Charge the battery

Charge the battery using the provided charger. A status LED is provided on the device. As long as the LED is red, then charging is in progress. The device is ready for use once the battery is fully charged.

6. Assembling the telescopic handle

Using the telescopic handle (8) you can push the garden trimmer on wheels over the lawn.

The long handle is only intended for use with the grass trimming blade and should not be used with the hedge trimming blade!

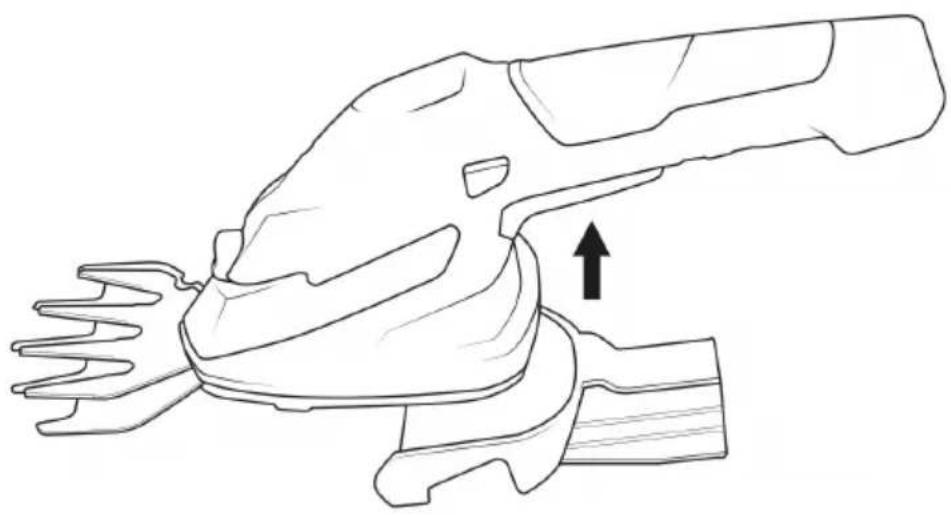

Mount the bracket to fix the handle. Slide the bracket (4) in the direction of the arrow onto the device until the lock snaps into place.

Line drawing of a hand gripping a tool, with an arrow indicating motion direction (no text or symbols)

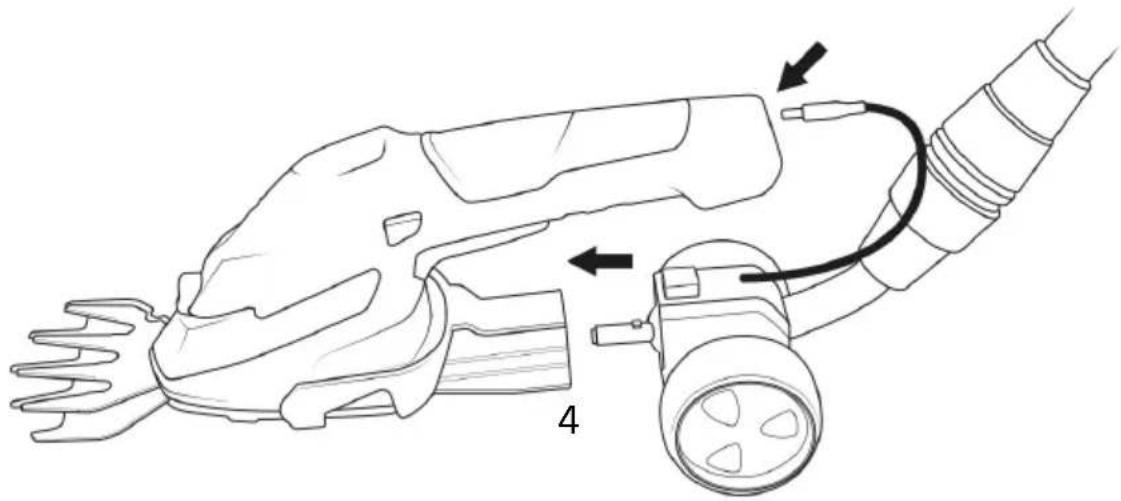

Now mount the wheels on the shaft and slide it in. Then connect the switch cable.

Line drawing of a handheld electric shock absorber with labeled parts (no text or symbols)

To adjust the length of the telescopic handle, release the clamping mechanism for the telescopic handle (7) and adjust the handle to the desired length. Then tighten the clamp again.

Press thebracket button (6) to rotate the tool to the left or right and use it as an edge trimmer. Ensure that it snaps into place!

To remove proceed in the reverse order.

To remove the bracket (4), press the bracket button and then pull the bracket.

Important! Never remove or bypass the switches mounted on the tool by the manufacturer (e.g. by attaching a button to the handle), as this would prevent the tool from switching off automatically and would pose a high risk of injury. Do not use the hedge trimming blade with the telescopic handle.

7. Usage

Hold the device firmly with both hands. Use the device only if you have completely read and understood the user manual and all the relevant safety instructions. Use the product only for the intended purpose. Press the "Safety switch" (9) and the "ON button" (10) at the same time to start the device.

Switching off the device

To switch off the device, release the "Safety switch" (9) and the "ON button" (10).

Note: When the motor is switched off, the blade unit continues to run for a while. Spark may also be formed in the ventilation slots depending on the operating conditions. However, this does not imply a defect!

8. Trimming

Trimming grass

Allow the grass trimmer to slide over the ground. The results are optimal if the lawn is dry.

If you notice a decrease in trimming performance, recharge the device immediately so that the battery does not discharge completely.

Hedge trimming

The tool can be used to trim small hedges and shrubs. Hold the tool at a slight angle with respect to the hedge being trimmed.

First trim the sides from bottom to top, and then trim the top.

Pay attention to any foreign objects in or on the hedge that could damage the blades.

• In general, hedges that shed their leaves in autumn should be trimmed in June and October.
• Hedges that do not shed their leaves should be trimmed in April and August.

9. Replacing the blades

Caution! Risk of injury! Be very careful when replacing the blades!

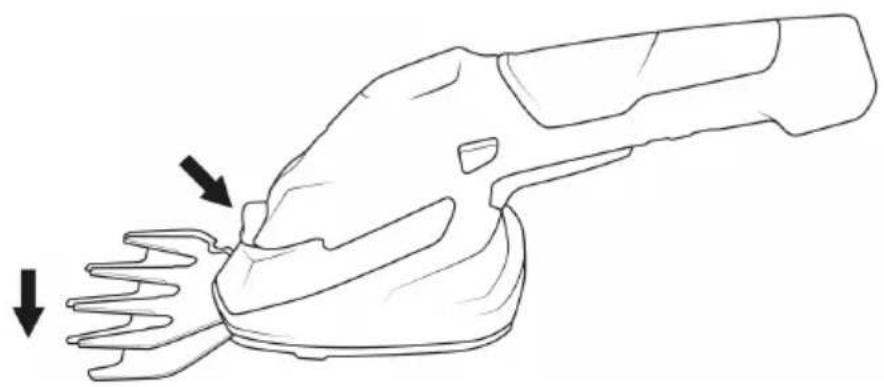

To remove the blade, please press the blade release button (2) and remove the blade as shown.

Line drawing of a hairdryer with two arrows indicating force or motion (no text or symbols)

After removing the blade, you can see the gears of the drive unit. Make sure that dirt does not enter the drive unit when replacing the blade.

Proceed in the reverse order when assembling.

Caution! The blade falls out if the release mechanism (2) is pressed!

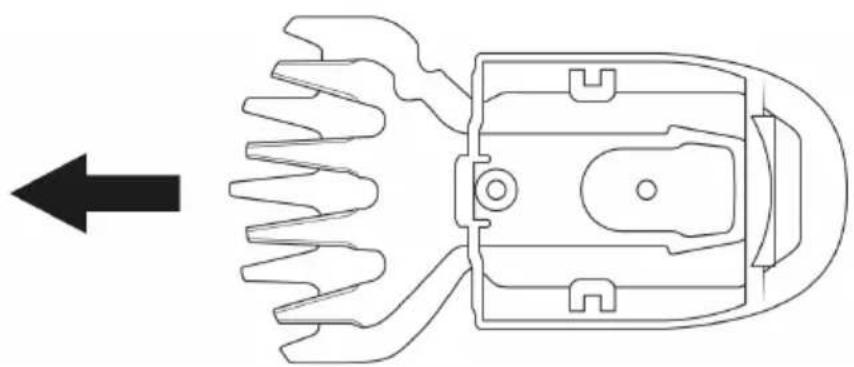

Remove the blade of the grass trimmer in the direction of the arrow.

Technical line drawing of a mechanical component with gear-like teeth and internal slots, showing an arrow pointing left (no text or symbols)

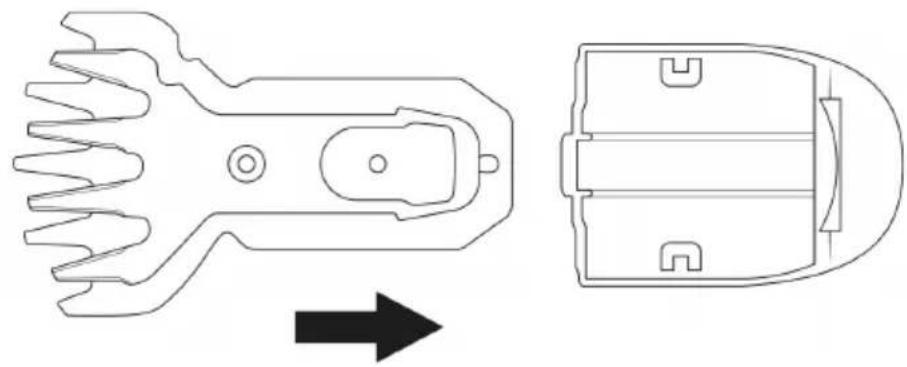

Mount the hedge trimmer blades. If you hear a distinct clack, it means that the blade is correctly mounted.

Technical line drawing of a mechanical tool with gear-like structure and internal components, showing an arrow indicating direction (no text or symbols)

Caution! Before removing the blade, please make sure that the user is wearing safety gloves.

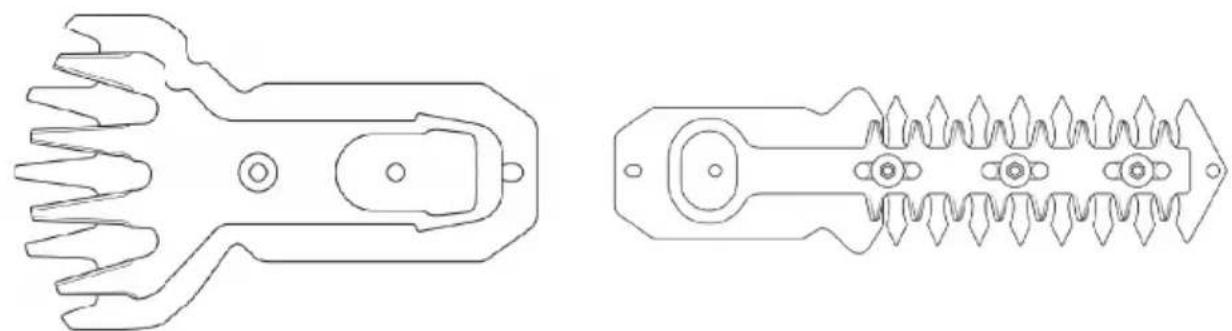

You have the option of choosing between two different blades.

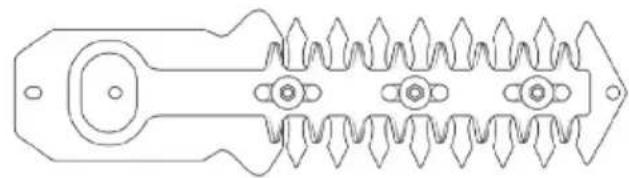

Technical line drawings of two mechanical components: a saw blade with teeth and a spring-loaded tool (no text or symbols)

If you hear a distinct clack, this means that the blade is already well mounted. If you wish to replace the hedge trimming blade with the grass trimming blade, repeat the steps.

10. Cleaning and Care

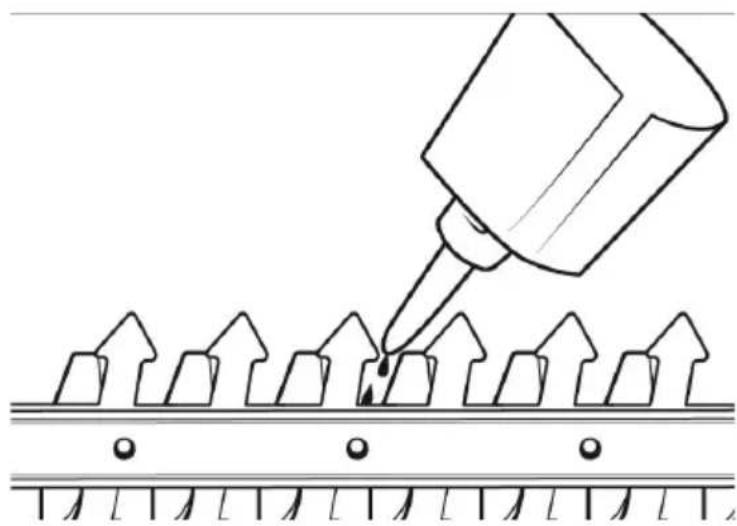

- Keep all safety guards, vents and the motor housing free from dirt and dust as far as possible. Wipe the device with a clean cloth or blow it clean using low-pressure compressed air.

- It is advisable to clean the device immediately after each use.

- Clean the device regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these could damage the plastic parts of the device. Ensure that water does not get into the device.

- A few drops of oil (e.g. sewing machine oil) improves the cutting performance of the blades, but never apply grease to the blades.

- In order to ensure that cutting is always accurate, it is also important to remove grass and dirt residues between the top and bottom blades.

Diagram showing a dropper injecting particles into a grid-like structure (no text or symbols)

Important! Never clean the tool under running water, and especially never using high pressure, because this can pose a risk to people and property. Store the device and blade units (grass trimming blades + hedge trimming blades) in a dry and frost-proof place. Choose a place that is not accessible to children.

11. Condition of the blade unit

Inspect the blade unit for wear or bends and damage at regular intervals. If you detect irregularities, you should not continue to use the device in this condition. In such cases, contact our customer service department or a qualified technician. If the blade unit is used correctly, then it should not need any repairs.

12. Storage

Before storing the grass trimmer, make sure the unit has been cleaned. Store the device in a dry, well-ventilated place out of reach of children. Keep the device away from corrosive substances such as garden chemicals and salts.

When storing, do not forget to mount the protective cover of the blade unit.

Store and charge the batteries in a cool room. The battery life can be significantly reduced if the surrounding is too cold or too hot.

13. Troubleshooting

If you notice any defects, please do not hesitate to get in touch with our customer service department.

Error Troubleshooting / cause
Grass trimmer does not start	Charge the batteryBattery is faulty
Tool runs intermittently	Internal wiring of the tool is faultySwitch is not workingBattery level is too low / charge the battery
Blade unit becomes hot	Blade unit is bluntExcessive friction due to lack of lubrication
Excessive noise / vibrations	Device is defective

CAUTION!

14. Safety instructions and disclaimer

Please do not try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is

not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

15. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent for recycling or disposal separately, as improper disposal of toxic and dangerous components could permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

16. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303503 complies with the fundamental requirements and all other relevant stipulations of the guideline 2006/42/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://www.ganzeinfach.de

Warning symbol with exclamation mark inside a triangle

Warning symbol with exclamation mark inside triangle

Line drawing of a mechanical tool or tool with an arrow indicating motion direction (no text or symbols present)

Line drawing of a robotic arm with attached device and cable, labeled '4' (no text or symbols beyond labels)

Line drawing of a hairdryer with two arrows indicating force or motion (no text or symbols)

Technical line drawing of a mechanical component with gear-like teeth and internal structure, no text or symbols present

Technical line drawing of a mechanical tool with gear-like structure and side view showing internal components (no text or symbols)

Line drawing of a mechanical tool with multiple blades and a central handle (no text or symbols)

Technical line drawing of a mechanical clamp or connector (no text or symbols)

Diagram showing a dropper injecting particles into a grid of upward arrows (no text or symbols)

Warning symbol with exclamation mark inside a triangle

Line drawing of a hand gripping a tool, with an arrow indicating motion direction (no text or symbols)

Line drawing of a robotic arm with attached device and cable, labeled '4' (no text or symbols beyond label)

Line drawing of a hairdryer with two arrows indicating force or motion (no text or symbols)

Technical line drawing of a mechanical component with gear-like teeth and internal slots, showing an arrow pointing left (no text or symbols)

Technical line drawing of a mechanical tool with gear-like structure and side view showing internal components (no text or symbols)

Line drawing of a mechanical tool with multiple blades and a central handle (no text or symbols)

Technical line drawing of a mechanical clamp or connector (no text or symbols)

Diagram of a dropper dispensing liquid onto a surface with upward arrows (no text or symbols)

Warning symbol with exclamation mark inside a triangle

Two black circular icons: one showing a hand gesture, the other showing a helmet (no text or symbols)

Line drawing of a mechanical tool or tool with an arrow indicating motion direction (no text or symbols present)

Line drawing of a robotic arm with attached device and cable, labeled '4' (no text or symbols on diagram)

Line drawing of a hairdryer with two arrows indicating force or motion (no text or symbols)

Technical line drawing of a mechanical component with gear-like teeth and internal structure, no text or symbols present

Technical line drawing of a mechanical tool component with an arrow indicating direction (no text or symbols present)

Technical line drawings of two mechanical components: a saw blade and a multi-pronged tool (no text or symbols)

Diagram showing a dropper injecting particles into a surface with upward arrows (no text or symbols)

We hope you enjoy your new product in every way!

If there is still something you're concerned about

please feel free to let us know.

You're welcome to contact our service team at any time.

These and further manuals to our products can be found here:

https://downloads.ganzeinfach.de/
