USER MANUAL MultiJet 230V GLORIA

Exterior view of a GlORIA water spray gun with attached probe (no text or symbols visible)

CE

Warning symbol image with exclamation mark inside triangle

Icon of an open book inside a black circle (no text or symbols)

ACHTUNG!

Read the instructions before using the machine

ATTENTION!

GB Instruction manual ..... 20 - 31 Translation of the German user manual

P Q S T UR O N M L K J V W I X Y H A B C D E G F

Top-down schematic of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

2 安全阀

3 klick GLORIA®

4 klick

5 1. 2. 3.

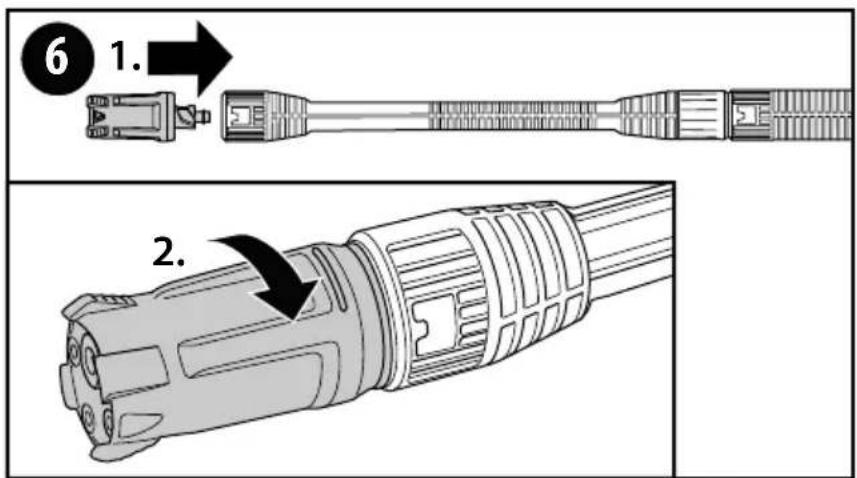

6 1. 2.

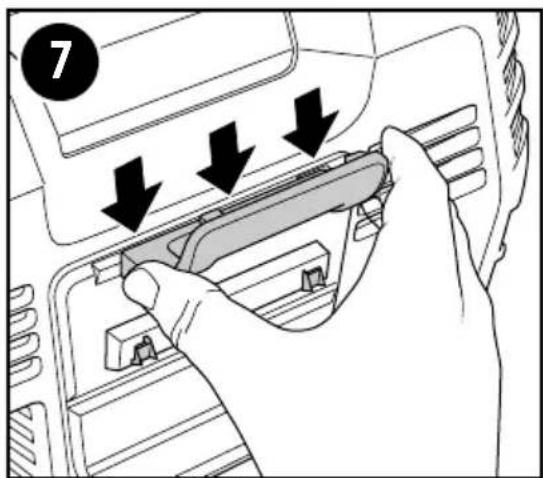

7

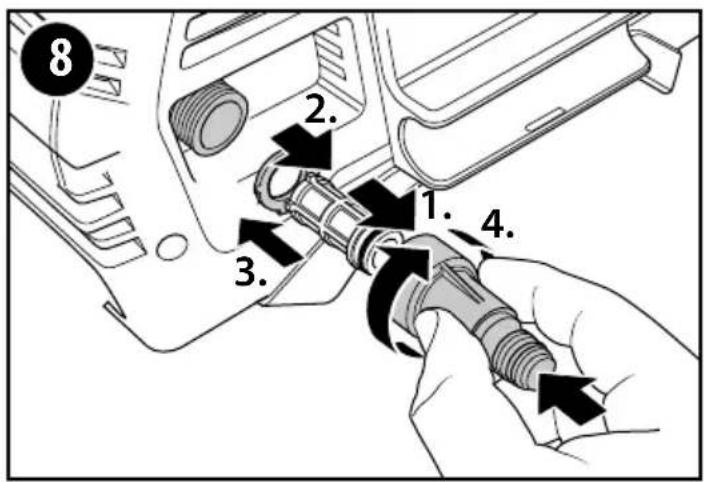

8 2. 1. 3. 4.

9 1. klick 3. klick 2.

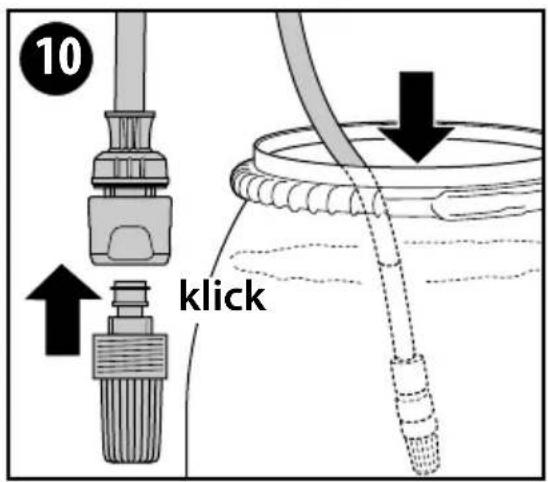

10 klick

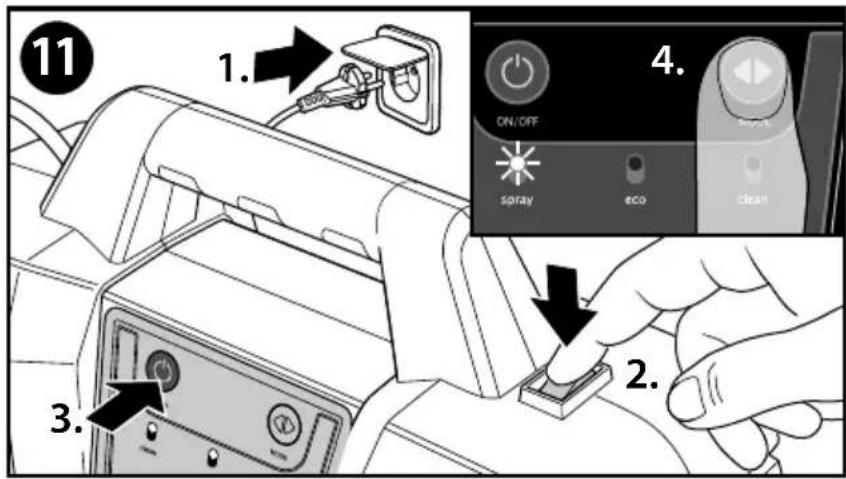

11 1. 4. ON/OFF spray eco clean 2. 3.

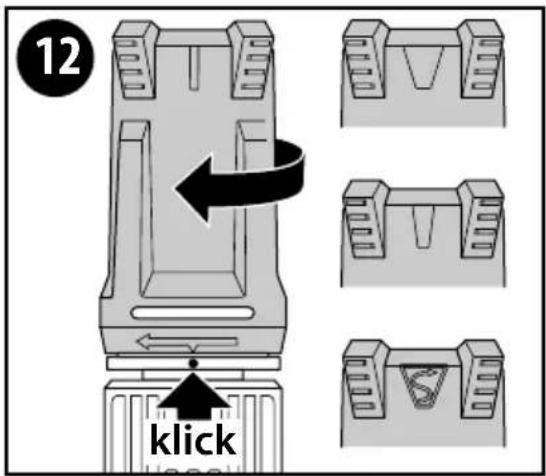

12 klick

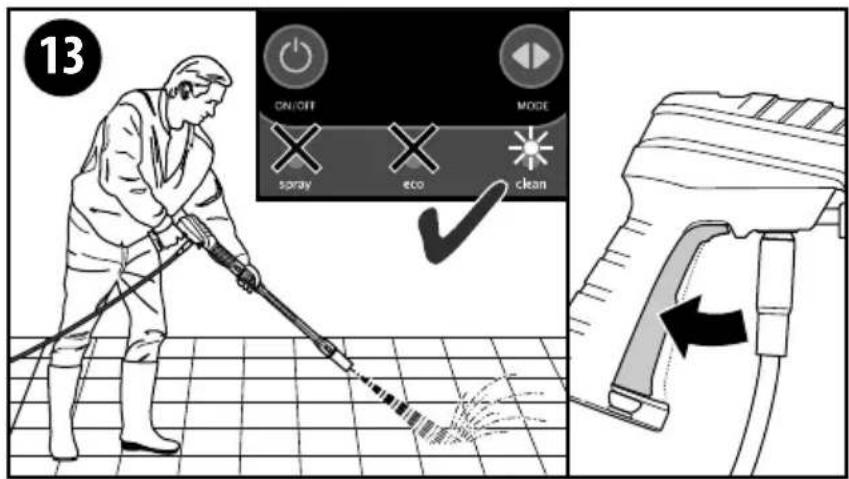

13 ON/OFF MODE spray eco clean

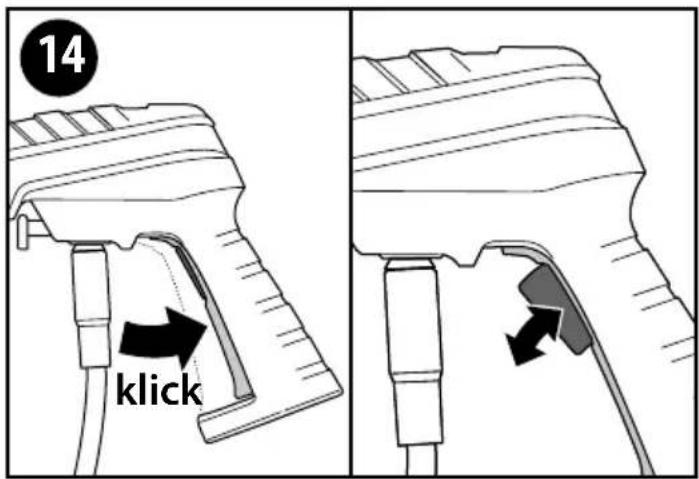

14 klick

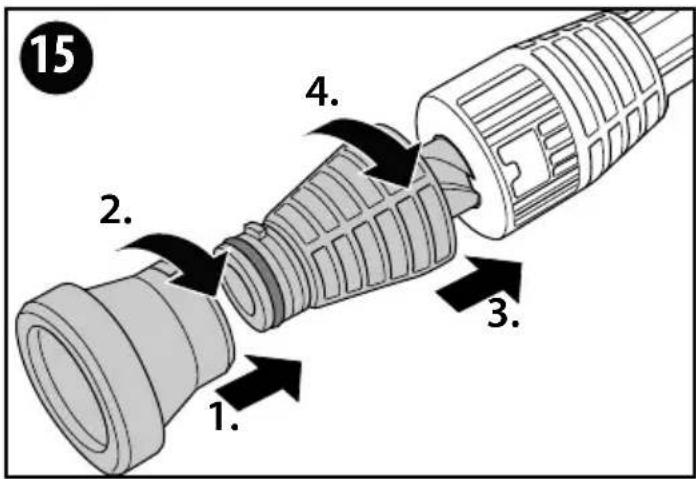

15 2. 3. 4. 1.

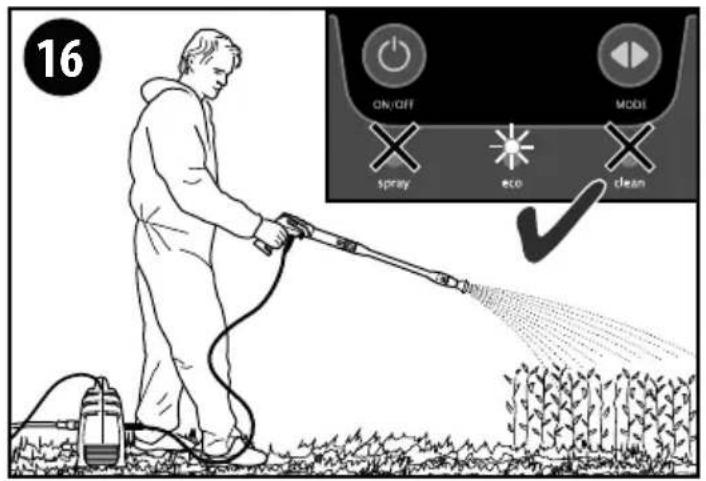

16 ON/OFF MOOI spray eco clean

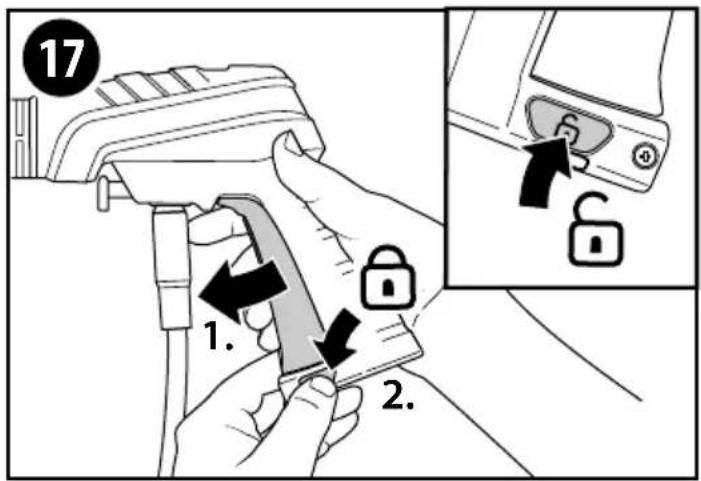

17 1. 2.

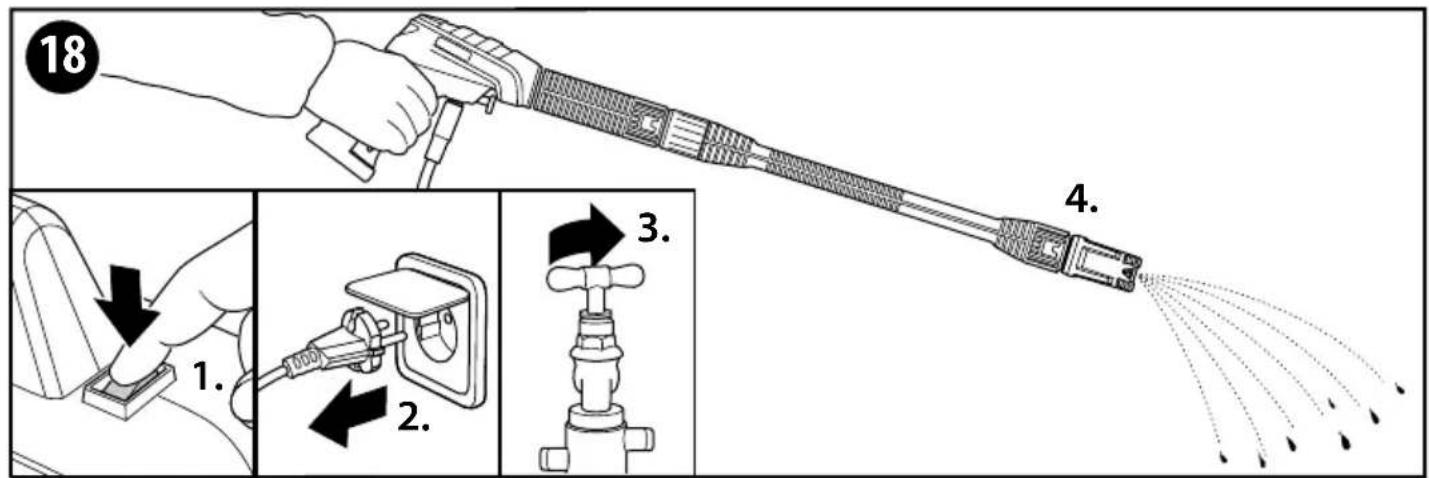

18 4. 1. 2. 3.

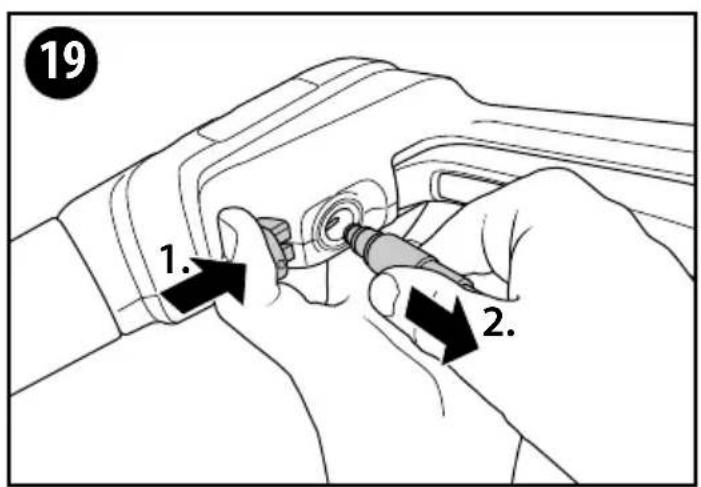

19 1. 2.

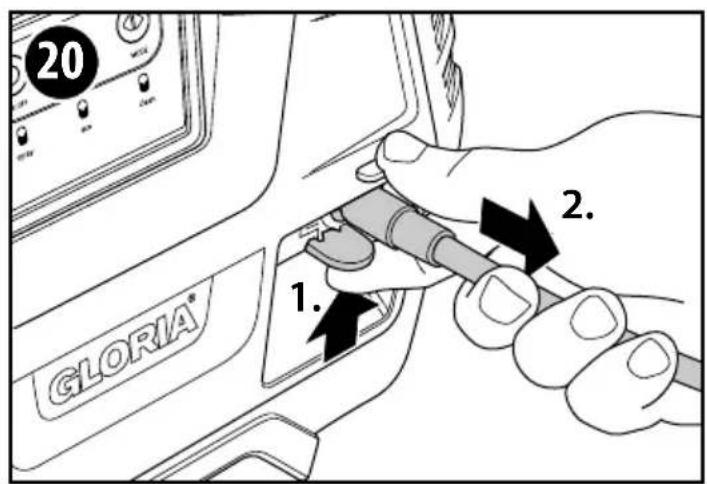

20 GLORIA® 1. 2.

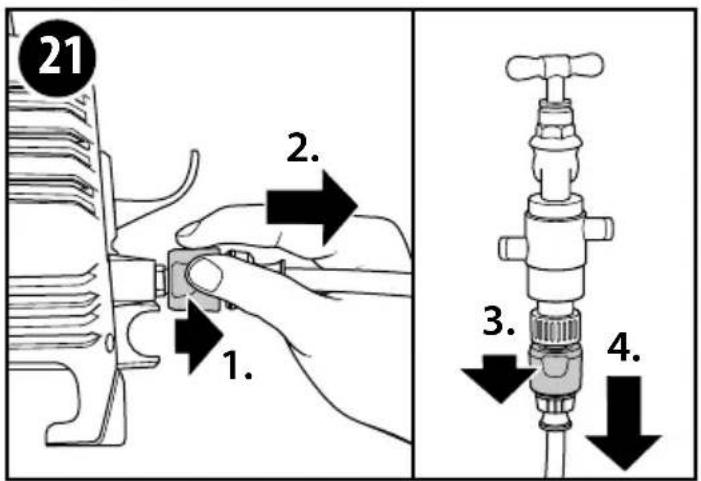

21 1. 2. 3. 4.

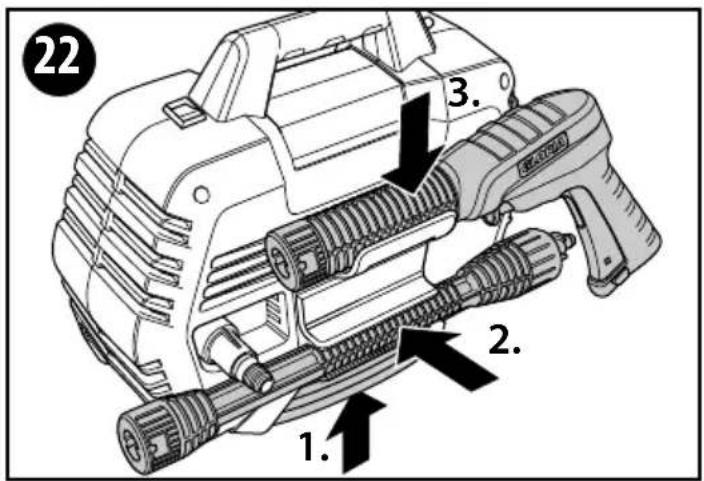

22 1. 2. 3.

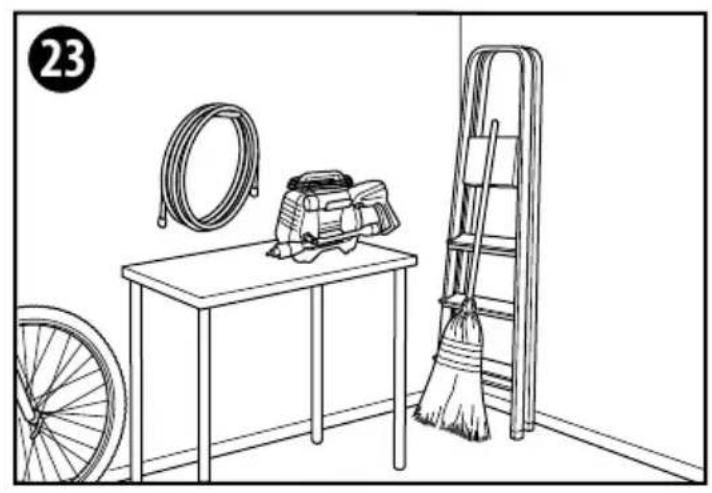

Line drawing of a cluttered room with a table, rope, and broom (no text or symbols)

24 1. 2. 3. 4. 5.

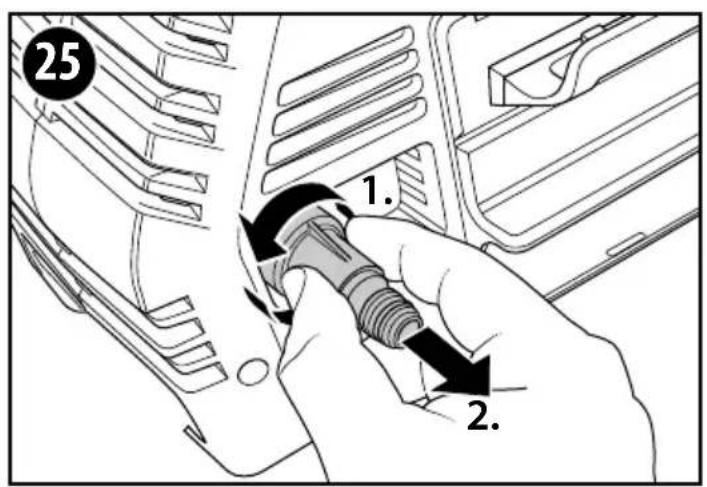

25 1. 2.

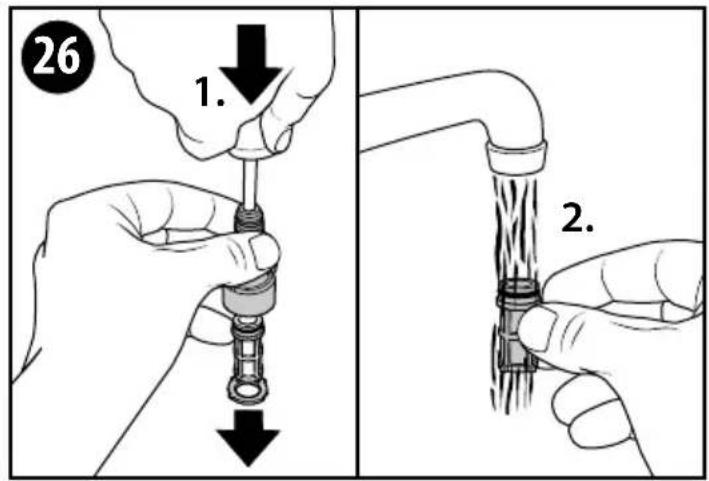

26 1. 2.

INHALTSVERZEICHNIS

0,5 MPa (5,0 bar) / 5,0 MPa

(50 bar) / 7,5 MPa (75 bar)

*P in max = 1,0 MPa (10 bar)

1 General information about this user manual .... 20
1.1 Symbols on the device 21
1.2 Symbols in the user manual 21
1.3 Warning notices 21
1.4 Intended use....21
1.5 Reasonably foreseeable misuse....22
1.6 Residual hazards 22
1.7 Limitation of liability 22
2 For your safety 22
2.1 Basic safety instructions....22
2.2 Safety instructions for connecting the device to the mains 23
2.3 Safety instructions for operating the device....23
3 Device informations 24
3.1 Delivery status 24
3.2 Elements of the device 25
4 Technical data....25
5 Unpacking 26
6 Commissioning....26
6.1 Attaching the add-on parts....26
6.2 Water supply from a water tap 26
6.3 Alternative water supply from open containers 26
6.4 Operation....27
6.4.1 Operation with the "4 in 1 nozzle"....27
6.4.2 Work instructions 27
6.4.3 Operation with the sprinkler attachment 28
6.4.4 Work interruptions....28
6.5 Working with plant protection products / cleaning agents (accessory)....28
7 Decommissioning and storage 28
7.1 Decommissioning....28
7.2 Storage....29
8 Cleaning 29
9 Problems with the device....29
9.1 Troubleshooting on the MULTIJET.230V ..... 29
10 Accessories / Spare parts ....30
11 Environmental protection....30
11.1 Disposal of the device....30
11.2 Environmentally friendly handling of wastewater and the spraying agents . 31
11.3 Disposing of the packaging 31
12 Warranty & Guarantee....31

1 General information about this user manual

This user manual is an integral part of the GLORIA device and must be continually available on or near the device.

This user manual contains important instructions and information required for ensuring the safe use of the device!

This user manual must be read in full by any person assigned with operating / using / maintaining the unit.

This user manual must be kept safe and passed on to any new owner! All warning notices are there to protect your personal safety!

1.1 Symbols on the device

Do not connect the device directly to the mains water supply! Use a system separator (see chapter 2.1)!

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

1.2 Symbols in the user manual

Protect against rain and moisture!

Read the user manual!

Wear safety goggles! Wear ear protection!

Keep your distance! Danger from flying parts!

Do NOT dispose of old electrical and electronic equipment as normal domestic waste.

Environmentally appropriate disposal!

Recyclable packaging materials!

1.3 Warning notices

! DANGER

This level of warning notice indicates a life-threatening situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death.

WARNING

This level of warning notice indicates a potentially hazardous situation. Follow the instructions accompanying this warning notice in order to avoid serious injury or death.

CAUTION

This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid serious injury.

ATTENTION

This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in material damage. Follow the instructions accompanying this warning notice in order to avoid material damage.

i NOTE!

A note indicates additional information or illustrations that help you operate and facilitate the understanding of the device.

1.4 Intended use

This GLORIA device is suitable for private use outdoors for the cleaning of, for example, vehicles, machines, outdoor areas, tools, outside façades, terraces etc. with water, for the application of plant protection products (refer to the instructions for the plant protection products set) and also for watering.

Compliance with the accompanying instructions is a prerequisite for the proper use of the device. The user manual also contains the operating, maintenance and servicing conditions.

CAUTION

DANGER CAUSED BY IMPROPER USE!

This device can be dangerous if not used for its intended purpose. You should therefore observe the following safety instructions:

■ Use the device for its intended purpose only.
- Note all instructions and information in the user manual.

1.5 Reasonably foreseeable misuse

The device is not suitable for the cleaning of objects that are not moisture-resistant or which cannot withstand a water pressure of max. 75 bar or for use in other areas of application than those specified here. Never direct the jet of water at electrical units / installations / devices. The device must not be used in wet weather conditions, rain and in/under water. The manufacturer does not accept liability for any damage or injury resulting from unauthorised modifications to the device or its improper use.

1.6 Residual hazards

This device complies with the accepted rules of technology and the relevant safetyrequirements!

However, use of the device may present:

■ Danger to life and limb of the operator or other persons.
■ Damage to the device.
■ Damage to the other items of property.

1.7 Limitation of liability

We expressly point out that according to product liability law we do not accept li ability for damage caused by our device, insofar as this has been caused by non-compliance with the operating instructions, improper use, improper repair or replacement of parts with non-genuine parts, or if repairs have not been carried out by the customer service team or an authorised expert. This also applies to accessories.

2 For your safety

This chapter contains important warning and safety instructions which must be observed when handling and using the device.

2.1 Basic safety instructions

Observe the following basic safety instructions to ensure the safe hand ling and use of the device:

• Repairs to devices for the home and garden must only to be carried out by the service centres. Spare parts should be ordered from your dealer. If the parts are not in stock, the dealer will procure them as soon as possible.
• This device complies with the accepted rules of technology and the relevant safety requirements!
• This device may be used by child ren from 16 years and above and by persons with diminished physical, sensorial or mental capacities or lack of experience and know ledge if supervised or if they have been instructed with respect to safe use of the device and understand the risks that result from using it. Children must not operate the device. Children must be supervised to prevent them from playing with the appliance.
• This device must not be used if the operator is tired, ill or under the influence of alcohol or other drugs or medicines.
• The device is not to be connected to the mains supply. Use a system separator in accordance with the legal requirements in accordance with EN 12729 type BA.
  ■ Water that has passed through a system separator may not be used any longer as drinking water.
• The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.
• Do not leave the device unatten ded while it is in operation.

■ Protect the device against long exposure to the sun and frost.
- In order to prevent damage and hazards resulting from improper use, you must observe the user manual and store it in a safe place!
- Wear suitable work clothing such as safety goggles, ear protection long trousers and, if necessary, gloves during cleaning. Do not work barefoot or in light sandals.
- If the device is passed on to other persons, they must also be given the user manual!
- Only use GLORIA original spares and accessories for the device. Never use worn, modified or defective replacement parts / accessories!

2.2 Safety instructions for connecting the device to the mains

DANGER

DANGER OF ELECTRIC SHOCK!

Contact with energised cables/wires or components may result in serious injury or death! You should therefore observe the following safety instructions:

• If the power cable is damaged, it must only be replaced by a repair shop designated by the manufacturer in order to prevent a hazard! Please contact the manufacturer or the customer service department.
• Ensure that the supply voltage corresponds with the voltage (V) of the device!
• Only connect the device to an AC grounded power outlet.
• The circuit breaker supplying mains power to the high-pressure washer should have no less than a C16 rating.
• The device should be operated using a residual-current-operated protective device (RCD) with a release current of no more than 30 mA. Ask your electrical installer!

• When using an extension lead, only use a grounded cable for outdoor use with a conductor cross-section of at least 1,5 mm ^2 /<20m; 2,5 mm ^2 /<50m!

• The mains plug and coupling of the extension cable must be water tight and may not be placed in water. The coupling may not be on the floor. Use cable drums to ensure that the sockets are at least 60 mm above the floor. All live parts in the work area must be protected against water jets.

• Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
• The mains plug must be removed:
• In the event of faults during operation
• Prior to any cleaning
• After use

2.3 Safety instructions for operating the device

ATTENTION

Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instructions:

• Do not immerse the device in water or spray or clean it with water. The device must be protec ted against moisture.
• Never use the pressure washer without the filter or with a dirty or damaged filter.
  ■ DO NOT operate the device in dry running for longer than 1 minute.
  ■ NEVER operate the device at temperatures below 0^ C.

Observe the following safety precautions to prevent injuries and material damage due to misuse and unsafe handling of the product. Misuse can result in INJURIES.

WARNING

RISK OF INJURY DURING OPERATION!

■ Use the device as intended!
■ Do not use the device with wet hands.

• Check the device and the accessories, such as the high-pressure hose, high-pressure gun and safety devices, to make sure they are in proper safe and reliable condition before each operation. Do not use the device if it is damaged. Replace damaged components immediately. Only use high-pressure hoses, control panels and couplings specified by the manufacturer.
• Do not direct the high-pressure jet at persons, animals, live electrical equipment or at the device itself.
• Do not aim the high-pressure jet at yourself, e.g. to clean clothes or shoes.
• Do not use the device if people without the proper protective clothing are in its reach.
  ■ Never try to clean any objects containing hazardous substances or materials.
• Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm in order to avoid damages by the high-pressure jet. The first indication of damage is the discolouration of the tyre. Damaged vehicle tyres/tyre valves are dangerous to life.
  ■ Never use a roto nozzle or needle jet to clean motor vehicles.
• Aerosols can be formed when using high pressure cleaners. Inhaling aerosols can be harmful for your health. Depending on the environment to be cleaned, wear a suitable respiratory protective mask of class FFP 2 or comparable to protect yourself from inhaling aerosols if the use of a fully shielded nozzle is not possible.
  ■ Never suction solvents, liquids containing solvents or undiluted acids. This includes e.g. petrol, paint thinner or heating oil. The spray mist is highly flammable, explosive and poisonous.
  ■ Never disable any safety devices.
• Check area to be cleaned beforehand to avoid damage to device / objects or injuries to living beings. Stones, pieces of wood, wires or the like, as well as other foreign objects must be removed. Objects that are caught by the water jet can be flung around

uncontrollably. Keep bystanders away from the danger zone. In order to prevent injuries, pay attention to safety in the work area.

• Do not start or operate the device if bystanders are in the danger zone.
• Start or operate the device as described in the operating instructions.
• The main switch (V) must never be fixed or short-circuited.
• Only clean during daylight or with adequate artificial lighting.
  ■ Never use the device during rain.
  ■ Never clean if others, in particular children or animals, are in the area!
  ■ During cleaning, pay attention to safe and solid position.
  ■ Operation of this machine requires both hands to be used at all times. Do not operate from a ladder. Take care when using the machine on balconies or other raised areas ensuring that you can see any edges at all times.
• In case of longer breaks in operation and after use, switch off the device at the main switch / device switch (V) and pull the mains plug.

3 Device informations

This chapter contains information about the delivery status and the elements of the device

3.1 Delivery status

The device is shipped as standard as follows:

■ eKMULTIJET230V

■ Spray gun

■ Spray pipe

■ Spray gun holder

■ "4 in 1 nozzle"

■ Sprinkler

■ Intake filter

■ Pressure hose

■ Coupling for water connection

■ Filter and seal

■ 6,0 Meter intake hose incl. 2 x coupling

■ 1 x user manual and product inform a tion Any accessory parts are individually packed.

3.2 Elements of the device

A ON/OFF motor-softkey button
B Display (spray, eco, clean)
C Operating button (MODE)
D Union ring to secure the spray pipe
E Spray pipe
F "4 in 1 nozzle" (needle/ 2 x flat jet nozzle, turbo mill)
G Intake filter for suction from open containers
H Intake hose (1/2"; 6.0 m) with connecting coupling
Pressure hose
J Power cord
K Sprinkler

L Trigger locking mechanism
M Trigger on the gun for spray jet
N PowerControl-button
- Connection for pressure hose (Spray gun)
P Spray gun
Q Release pressure hose (Spray gun)
R Water connection for intake hose
S Seal
T Filter
U Coupling for water connection
V Main switch for power supply
W Spray gun holder
X Coupling for pressure hose
Y Release pressure hose (Device)

4 Technical data

MULTIJET230V

Item number:

Input voltage:

Power:

Pressure:

Water connection:

max. inlet temperature:

max. inlet pressure:

max. suction head :

max. length suction hose:

Device weight with lance and "4 in 1 nozzle":

Hand-Arm vibration value:

Measured pressure level L_PA :

Guaranteed sound power level L_WA :

Protection class:

000330.0000

220 V - 240 V \~ / 50 Hz

1500 W

0.5 MPa (5,0 bar) / 5.0 MPa

(50 bar) / 7.5 MPa (75 bar)

1/2" waterhose / coupling

30 °C

P_in = 0.5 MPa (5.0 Bar)

*P in max = 1.0 MPa (10 Bar)

*Use pressure reducer

1.0 m, suction duration when using

1/2" hose approx. 20 seconds

6.0 m

6.42 kg

1,6m/s ^2 (+/- 0,7m/s ^2 )

81dB; k=3dB(A)

95dB(A)

□/II

5 Unpacking

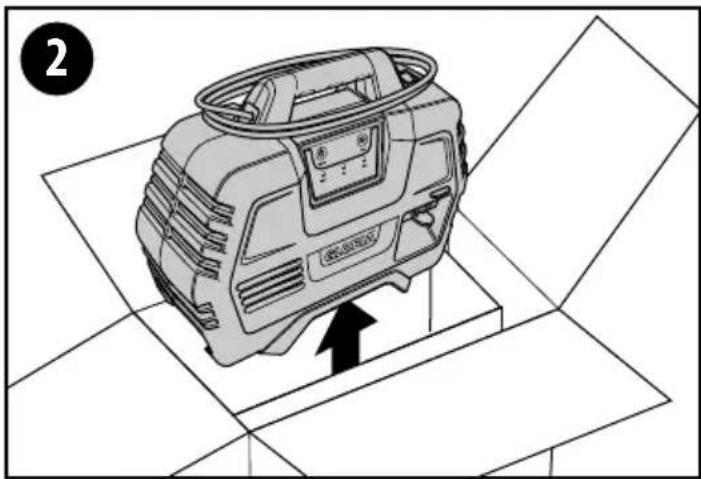

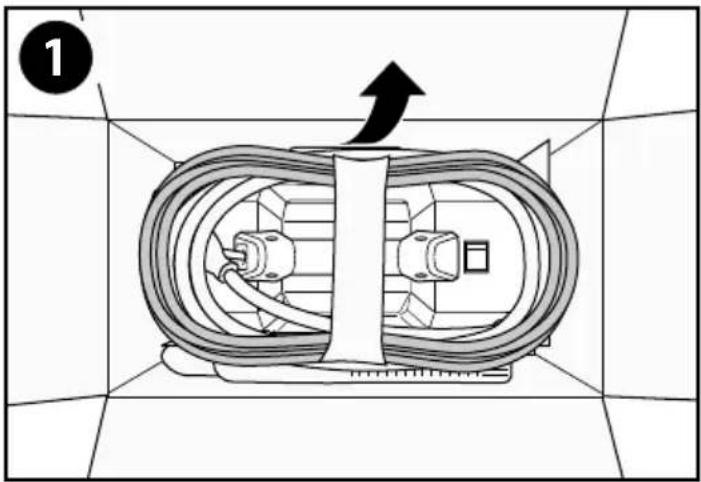

Figures 1 - 2

- Your device is supplied pre-assembled. The loose parts that are included must be installed accordingly, depending on the application.

6 Commissioning

Figures 3 - 17

! DANGER

DANGER OF ELECTRIC SHOCK! BEFORE COMMISSIONING OBSERVE CHAPTER 2 "FOR YOUR SAFETY".

The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Contact your nearest authorised specialist dealer for details.

DANGER

Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use. If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:

- 1,5 mm ^2 - max. length 20 m

- 2,5 mm ^4 - max. length 50 m

i NOTE!

If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. The mains plug and coupling of the extension cable must be water tight and may not be placed in water. The coupling may not be on the floor.

6.1 Attaching the add-on parts

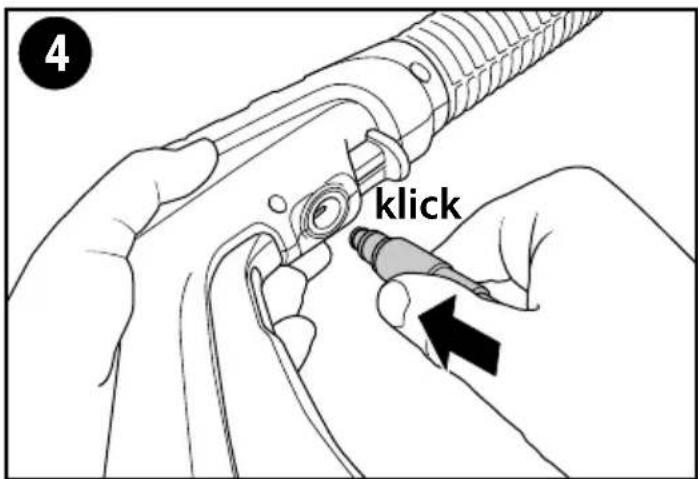

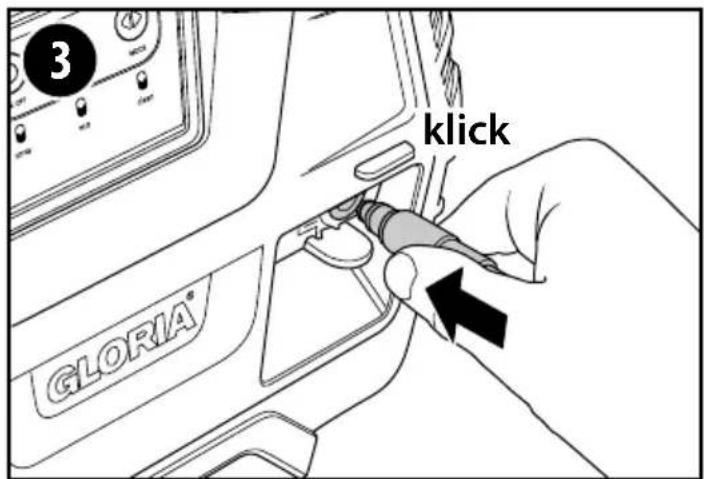

3 - 4 insert the pressure hose (I) into the connection (X) on the MULTIJET230V as shown in the illustration. Then insert the pressure hose (I) into the coupling

on the spray gun. All connections must audibly click into place.

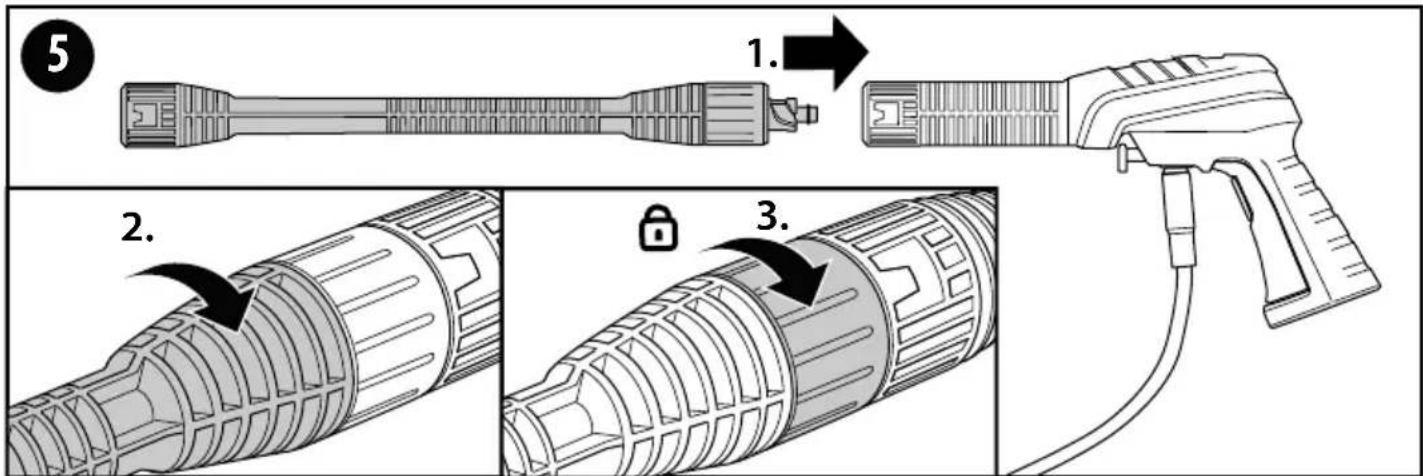

5 Now attach the spray pipe (E) to the spray gun (P) as shown in the illustration. Secure the connection with the union ring (D) so that it is finger-tight.
6 Then attach the "4 in 1 nozzle" (F) to the spray pipe (E) as shown in the illustration.
7 Mount the spray gun holder (W) on the device as shown in the illustration.
8 Insert the filter (T), the seal (S) in the coupling for the water connection (U) and screw the assembled unit onto the water connection on the device (R) as shown in the illustration.

6.2 Water supply from a water tap

Connect to the water supply as described in section 4 "Technical data". Observe the basic safety instructions in chapter 2.1.

9 Connect the coupling of the supplied intake hose (H) to the device. Now connect the intake hose (H) to the water supply and turn the tap on fully.

ATTENTION

Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instruction:

- If the pressure in the water pipe is bigger than 0.5 MPa (5 bar), please use a pressure reducer.

6.3 Alternative water supply from open containers

Instead connecting to a tap, the device can also be supplied with water from open containers such as rainwater barrels, buckets, ponds, etc. Note the maximum suction head stated in section 4 "Technical data".

The suction time increases as the suction head increases.

■ Connect the coupling of the supplied intake hose to the device.

10 Install at the other end of the hose the intake filter (G) to the coupling and hang the hose in eg. a rain barrel.

We recommend the following settings

+ Press trigger (M).

ATTENTION

Damage to the device due to dry running If the device does not produce any pressure within max. 1 minute, this may cause damage to the device. Switch the device off immediately and follow the instructions given in section 9 "Problems with the device.

6.4 Operation

CAUTION

Make sure that the main switch for the power supply (V) is in position "0" before you connect the device to the mains.

11

1. Connect ⬇MULTIJET230V with the power cord (J) to the mains.
2. For the power supply switch on the ⏻MULTIJET230V at the main switch (V).
3. Now switch the ⬇MULTIJET230V with the ON/OFF motor-softkey button (A) on
4. Set the optimum spray pressure for the application at the operating mode button (C).

= 0,5 MPa (5,0 bar)

= 5,0 MPa (50 bar)

= 7,5 MPa (75 bar)

12 At the "4 in 1 nozzle" (F), set the water spray form that is optimal for your application.

= Flat jet 15°

= Flat jet 60°

= Turbo mill

= Needle jet

We recommend the following settings, for example:

= plant protection products set (accessory, not included as standard)

NOTE!

When using the plant protection lance (part of the plant protection set) it may not be possible to suck in sufficient liquid in the "spray" mode. In this case, switch the device briefly to "eco" until the intake hose (H) has filled. As soon as sufficient liquid flows, switch the device back to "spray" mode.

6.4.1 Operation with the "4 in 1 nozzle"

Combine the set pressure with the "4 in 1 nozzle". We recommend the following settings, for example:

+ = cleaning of larger areas that are moderately dirty

• = cleaning of larger areas that are very dirty
• = pot cleaning that are very dirty

13 Switch on the spray jet by pressing the trigger (M) in the handle of the spray gun (P) and start cleaning.

NOTE!

14 Press the PowerControl button (N) for easier and less strenuous work. This significantly reduces the resistance on the trigger(M)!

6.4.2 Work instructions

ATTENTION

The high pressure can cause damage! If the water pressure is too high, it can damage the surfaces. Maintain a distance of at least 30 cm from painted surfaces. Do not clean delicate surface with the turbo mill (e.g. wood, tires, painted surfaces, etc.).

NOTE!

■ Make sure that the water tap is fully turned up!
- Ensure that you are standing firmly since the water jet can produce a greater or lesser degree of recoil force at the device (depending on the operating mode that was selected). Always hold the spray gun and spray pipe firmly with both hands.
■ Make sure that the surface to be cleaned is free from debris such as stones, screws etc., which could be flung up.
■ Ensure that the high-pressure washer is on level ground.
- Do not move the high-pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.
- Do not kink or drive a motor vehicle over the high-pressure hose. Do not expose the high pressure hose to sharp edges or corners.

6.4.3 Operation with the sprinkler attachment

15 - 16 Attach the sprinkler (K) for plant and garden irrigation and start watering.

= Sprinkler

Combine the set pressure with the sprinkler (K). We recommend the following settings, for example:

+ = Watering plants

6.4.4 Work interruptions

17 If you need to stop working, release the trigger (M) on the spray gun (P) and lock the trigger (M).

This will switch off the pump in the ⏻MULTIJET230V but the device will remain ready for operation.

- To switch on the ⬇MULTIJET230V again, unlock and then press the trigger (M) on the spray gun (P). The device will continue operating in the most recently selected setting.

6.5 Working with plant protection products / cleaning agents (accessory)

GLORIA offers various accessories for the €MULTIJET230V for plant protection and more intensive care. Information on these is given in section 10 "Accessories / spare parts".

7 Decommissioning & Storage

7.1 Decommissioning

Figures

DANGER

DANGER OF ELECTRIC SHOCK! Before decommissioning and storage, pull out the mains plug!

CAUTION

RISK OF INJURY FROM RESIDUAL PRESSURE IN THE HOSE PIPES! Disconnect the high pressure hose only from the spray gun or the device when no pressure exists in the system.

18 Decommission the ⬇MULTIJET230V by pressing the main switch for power supply (V) on the device. Once you have switched off the ⬇MULTIJET230V will still be pressure in the pressure hose. To depressurise the system, turn off the tap on the water supply line and press the trigger (M) on the spray gun (P) until no more water comes out of the sprinkler.

19 When the system is depressurized, disconnect the pressure hose (I) from the spray gun (P) by pressing the release button (Q) at the spray gun and pulling off the pressure hose.

20 To do this, disconnect the pressure hose (I) from the device by pulling up the release (Y) on the device and pulling off the pressure hose.

21 When the system is depressurized, disconnect the intake hose (H) from the device and from the water supply line.

7.2 Storage

Figures 22 - 23

CAUTION

You may be exposed to hazards that could injure you when handling the device. You must therefore store the device away from children.

• Drain the complete system and depressurise it.
  ■ Remove any dirt and debris.

22 Wind up the pressure hose under the device and place the spray gun (P) on the gun holder (W).

23 Store the device dry and protected from frost.

8 Cleaning

Figures 24 - 26

DANGER

DANGER OF ELECTRIC SHOCK! Before cleaning, pull out the mains plug!

CAUTION

RISK OF INJURY FROM RESIDUAL PRESSURE IN THE HOSE PIPES! System Depressurise the system (see chapter 7.1)!

ATTENTION

Improper use of the device poses a risk of damage to property! You should therefore observe the following safety instruction:

24 - 26 Clean the inlet filter (G) and the filter (T) behind the coupling of the water connection if it is dirty.

• Do not immerse the device in water or spray or clean it with water. The device must be protected against
• Clean the outside of the device with a damp cloth or soft brush. Do not use abrasives or harsh cleaning agents.
  ■ Ensure that the ventilation slots are free of dirt.
  ■ Only use original GLORIA spare parts (https://shop.gloriagarten.de).
  ■ Repairs must be carried out by a GLORIA service point.

9 Problems with the device

9.1 Troubleshooting on the MULTIJET230V

Faults usually occur if the device has not been handled, cared for or maintained properly. The following table contains the most common faults and remedies to eliminate these faults. If you have any other problems, please contact your nearest service centre authorised by the manufacturer, or your nearest authorised specialist dealer.

Fault Cause Remedy
Motor does not start or stops	Power supply interrupted	Connect mains plugCheck fuse
	Supply voltage does not correspond to the specifications	Check mains voltageConnect the device according to the information on the type plate
	Motor protector has activated Allow to cool down
	Frozen	Wait for device and water hose to thaw
	Extension cable damaged Check extension cables for defects
Motor does not start or stops	Device not switched on	Switch on the device at the main switch (V)Switch on the device using the ON/OFF motor-softkey button (A)
Fuses blow	Fuses incorrectly rated	Change to a mains supply higher than the high-pressure washer amp consumption
No pressure is built up, or the pressure varies	Water supply interrupted or filter blocked	Ensure a correct water supply
	Nozzle or extension blocked	Clean the filter and the nozzle. Remove any dirt in the extension.
	Inlet hose is leaking at the connection, air is being drawn in	Replace the connector if necessary
	Filter on suction hose not completely under the water surface	Completely immerse the hose end with filter into water
On initial start-up or after recommissioning after a longer downtime, the device does not pump from open containers	Completely dry the pump in the device	First connect device to the water supply (see section 6.2) and leave running for approx. one minuteYou can then proceed working with the water supply from open containers (see section 6.3)
Water in the device	Used during rain Allow the device to dry out for 24 h
	Fell into water Allow the device to dry out for 24 h
	Housing damaged	Contact GLORIA customer service team

10 Accessories / Spare parts

– Part No. 729127.0000 Intake filter
– Part No. 729120.0000 Foam set / attachment to apply cleaning foam
- Part No. 729122.0000 Brush set / attachment for the care and cleaning of various surfaces
– Part No. 729165.0000 Plant protection set / attachment to apply plant protection products
- Part No. 729164.0000

€MULTIJET230V Universal containers

Further accessories can be found at www.gloriagarten.de

11 Environmental protection

11.1 Disposal of the device

■ This symbol on the product, user manual or packaging indicates that this product must not be disposed of in regular household waste at the end of its service life.
- Do not dispose of electrical appliances through household waste! In accordance with European Directive 2012/19 / EU on old electrical and electronic appliances and its implementation in national law, electrical tools that are no longer suitable for use must be separately collected and sent for envi-

ronmentally responsible recycling. Recycling alternative for the return request: Alternatively, the owner of an electric or electronic appliance is obligated to cooperate in proper recycling in the event of a property task instead of returning. Old equipment can also be handed over to a collection facility carrying out disposal as defined on the national recycling and waste management laws. This does not apply to the accessories and auxiliaries included in old equipment, which do not contain electrical components.

11.2 Environmentally friendly handling of wastewater and the spraying agents

■ The cleaning of products where the waste water will contain oil, for example when washing vehicles, the undersides of vehicles or engines may only be done on washing areas with an oil separator.
■ Foaming agents that are hazardous for the environment should be applied as close as possible to the object in question (specific dosing), any unavoidable residues are to be collected in suitable containers for temporary storage and disposed of as designated special waste. Only clean on work surfaces that are watertight. Comply with local laws regarding water contamination when using liquids that are a hazard to the groundwater (in Germany, the Water Resources Law, or WHG). Comply with local regulations concerning the storage of liquids that are a hazard to the groundwater (in Germany, the VLwF). - the German Working Materials Regulation - Technical Instruction Air (TA-Luft).

NOTE!

■ Please check with your local government to find the appropriate disposal point.

11.3 Disposal of packaging

• The packaging materials have been selected according to environment ally-suitable and disposal-related aspects and are therefore recyclable. Returning the packaging to the material circulation saves raw materials and reduces the level of waste.
• Please dispose of unwanted pack aging materials according to applicable local regulations.

12 Warranty & Guarantee

GLORIA gives a 24 month guarantee as per of the terms and conditions of the warranty (www.gloriagarten.de).

This does not affect your legal rights to claims under warranty with regard to the seller.

Technical changes reserved!

SOMMAIRE

0,5 MPa (5,0 bar) / 5,0 MPa

(50 bar) / 7,5 MPa (75 bar)

*P in max = 1,0 MPa (10 bar)

0,5 MPa (5,0 bar) / 5,0 MPa

(50 bar) / 7,5 MPa (75 bar)

1/2" waterslang/koppeling 30 °C

P_in = 0,5 MPa (5,0 bar)

*P in max = 1,0 MPa (10 bar)

0,5 MPa (5,0 bar) / 5,0 MPa

(50 bar) / 7,5 MPa (75 bar)

*P in max = 1,0 MPa (10 bar)

0,5 MPa (5,0 bar) / 5,0 MPa

(50 bar) / 7,5 MPa (75 bar)

1/2" tommers vandslange/ kobling

30 °C

P_in = 0,5MPa (5,0 bar)

*P in maks = 1,0 MPa (10 bar)

*Brug trykformindsker
