508193 - Audio/video converter Intellinet - Free user manual and instructions

Product Type	10G Fiber Optic / Copper Media Converter
Brand	Intellinet
Model	508193
Fiber Interface	1 SFP+ slot (module not included)
Copper Interface	1 RJ45 10GBase-T port
Maximum Data Rate	10 Gbps
Power Supply	12 VDC, 1 A (adapter included)
Power Consumption	12 W maximum
LED Indicators	PWR, FX LNK/ACT, SD, 10G, TX Link, TX Act
Fiber Cable Support	Single-mode or multimode depending on SFP+
Copper Cable Support	Cat5e or higher
Fiber Distance	Up to 80 km (depending on SFP+)
Copper Distance	Up to 100 m
Dimensions	Approx. 120 x 80 x 30 mm
Weight	Approx. 200 g
Operating Temperature	0 °C to 50 °C
Humidity	10% to 90% (non-condensing)
Standards	CE, WEEE (2012/19/EU)
Package Contents	Converter, power adapter, user manual
Maintenance	Clean with a dry, lint-free cloth
Safety	CE compliant; do not open, use supplied adapter
Repairability	No user-serviceable parts

Frequently Asked Questions - 508193 Intellinet

How to install the 508193 converter?

First, insert the SFP+ module into the slot. Connect the fiber cable to the module and the RJ45 cable to the copper port. Plug in the 12 VDC power adapter, then check the LEDs: PWR should be on.

Which SFP+ module to use?

Use a SFP+ 10G module compatible with your fiber type (single-mode or multimode). The module is not included; choose based on distance and connector type (LC, SC).

Why does the PWR LED not light up?

Check that the power adapter is correctly connected to the converter and to a working outlet. Make sure to use the supplied 12 VDC 1 A adapter. If the problem persists, test with another outlet.

How to connect the fiber optic cable?

Insert the SFP+ module into the converter, then plug the fiber cable into the module. The other end of the cable should be connected to a corresponding fiber port on your network. The FX LNK/ACT LED lights up when a link is active.

What is the maximum supported distance?

The fiber distance depends on the SFP+ module: up to 80 km in single-mode. The copper distance via the RJ45 port is 100 m maximum with Cat5e or higher cable.

Can I use a Cat6 cable?

Yes, Cat6 cable is recommended for optimal performance at 10 Gbps. It supports the 100 m distance like Cat5e.

What to do if the link does not establish?

Check the LEDs: SD should be on if fiber signal is detected, 10G for data rate, and TX Link for copper link. Ensure modules and cables are properly inserted and 10G compatible.

Is the converter compatible with a 1G switch?

Yes, it is backward compatible with 1G networks. The 10G LED will be off if the link is below 10 Gbps. The data rate adapts automatically.

How to recycle the device at end of life?

In accordance with WEEE directive (2012/19/EU), do not dispose of the device with household waste. Return it to a local collection point or to the retailer for recycling.

Where to find the manual and specifications?

The full manual is available at notice-facile.com. Technical specifications are at intellinet-network.com. Register your product at register.intellinet-network.com/r/508193.

USER MANUAL 508193 Intellinet

10GBase-T to 10GBase-R Media Converter Instructions

Model 508193(IMC-SFP10G)

Important: Read before use. • Importante: Leer antes de usar.

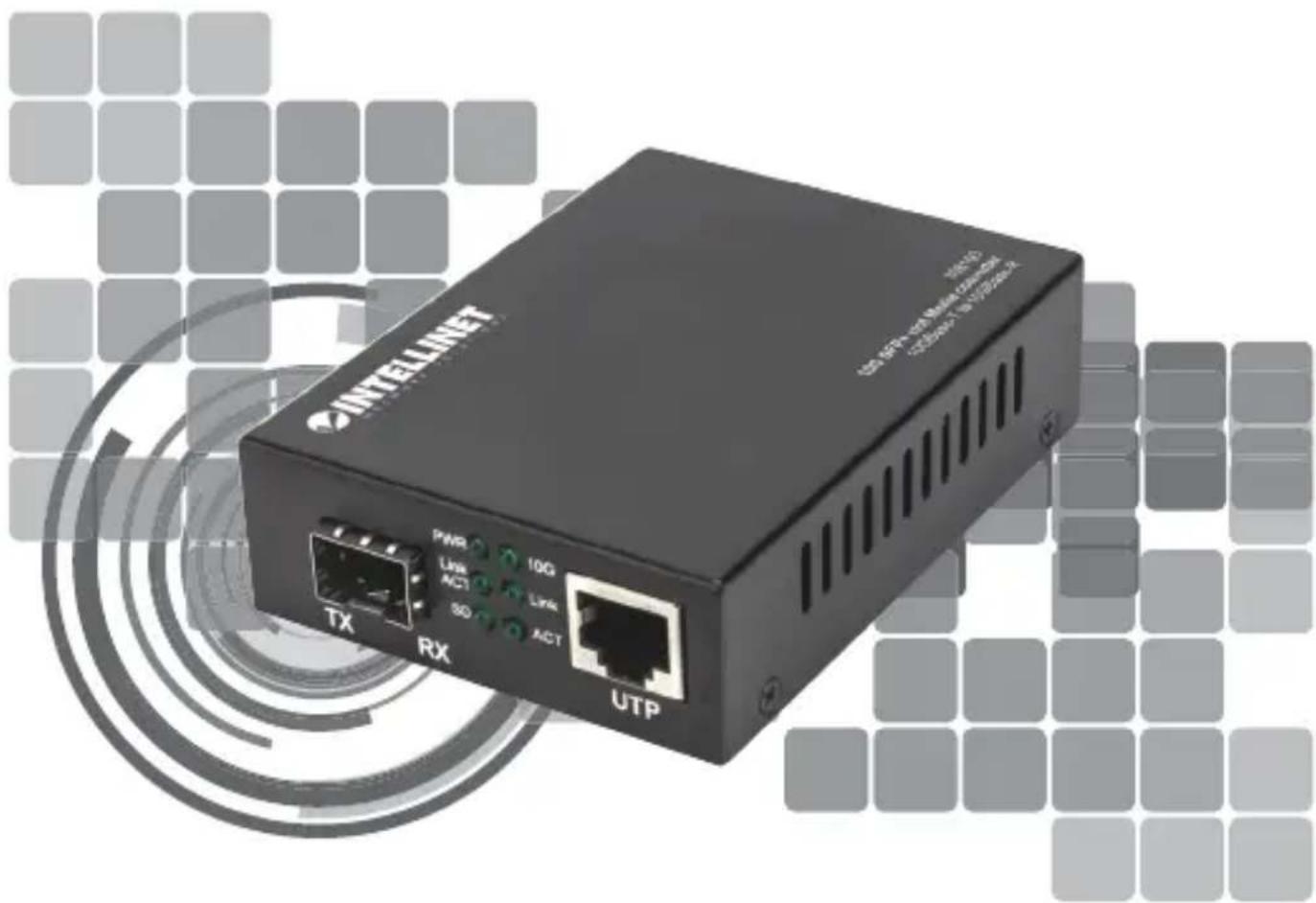

Exterior view of a black INTELLINET network device with ports and ports (no readable text or symbols beyond branding)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register yourproduct warranty

or go to: register.intellinet-network.com/r/508193

For specifications, visit intellinet-network.com. Register your product at register.intellinet-network.com/r/508193 or scan the QR code on the cover.

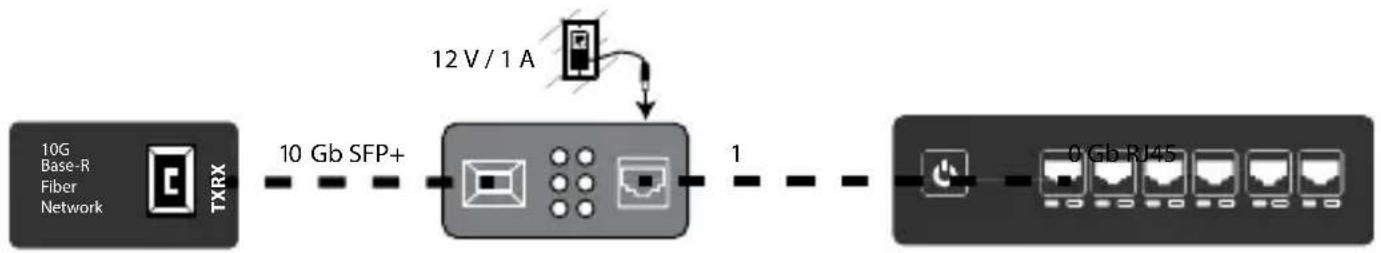

Connections

Twisted Pair - RJ45

Connect the UTP port of the media converter to an RJ45 port on the network; e.g., to an Ethernet switch. Cat5e or better cabling is recommended.

SFP+ Slot

This media converter requires an SFP+ transceiver module that provides fiber optic connections.

1 Insert the transceiver into the media converter. Next, install the fiber optic cable into the transceiver.
2 Install the other end of the fiber optic cable into an appropriate port in your fiber network.

Maximum length and fiber cable specification depend on the model.

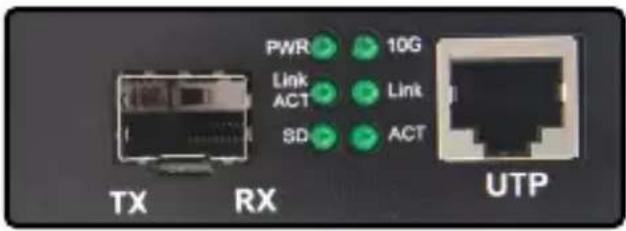

LED Status

LED STATUS STATUS DESCRIPTION
Power	Off Power Off
	On Power On
LNK/ACT	On Active fiber connection
	Flashing Fiber data transfer
SD On Fiber signal detected.
10G	On 10 Gbps connection
	Off Less than 10 Gbps connection
TX Link On Active copper connection
TX Act Flashing Copper data transfer

Power

Plug the 12 VDC power adapter into the input jack on the media converter. Then connect it to a regular power outlet. Only use the included power adapter or one with matching specifications (output of 12 VDC, 1 A).

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE/UKCA

ENGLISH : This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/508193

North America

IC Intracom America

550 Commerce Blvd.

Oldsmar, FL 34677, USA

Asia & Africa

IC Intracom Asia

4-F, No. 77, Sec. 1, Xintai 5th Rd.

Xizhi Dist., New Taipei City 221, Taiwan

Europe

IC Intracom Europe

Löhbacher Str. 7, D-58553

Halver, Germany
