Inhalt

Verwendete Symbole 3

Symbole am Gerät 3

Technische Daten 8

Auf einen Blick 9

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Spindel

2 Gewindeflansch

a Spannflansch

b Spannmutter

3 Schutzhaube

4 Handgriff

9 Stirnlochschlüssel

Close-up of a car door handle with a black arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the button, no visible text or symbols

Close-up of a car's front panel with directional arrows and a numbered badge (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Symbols used in this manual ..... 14

Symbols on the power tool....14

For your safety 14

Noise and vibration 17

Technical specifications 18

Overview 19

Operating instructions ..... 20

Maintenance and care 22

Disposal information 23

C ∈-Declaration of Conformity ..... 23

Exemption from liability 23

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Protection class II (completely insulated)

Disposal information for the old machine (see page 23)!

For your safety

WARNING!

Before using the angle grinder, please read and follow:

– these operating instructions,

- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),

– the currently valid site rules and the regulations for the prevention of accidents.

This angle grinder is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The angle grinder may be operated only if it is

- as intended,

- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

This angle grinder

– for commercial use in industry and trade,

– is designed for dry grinding and cutting metal and stone,

- a special cutting guard is required for cutting,

– is designed for use with grinding tools and accessories which are indicated in this manual or recommended by the manufacturer and which are permitted to run at a circumferential speed of 80 m/s.

Not permitted are e.g. chain cutting wheels, saw blades.

Safety instructions

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Safety Warnings Common for Grinding or Abrasive Cutting-Off Operations

■ This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operations such as sanding, wire brushing or polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
■ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
- Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the

plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
■ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
- Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

■ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
■ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

■ Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

■ Never place your hand near the rotating accessory. Accessory may kickback over your hand.

- Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

■ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations

■ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
■ The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
■ The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
■ Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
■ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
■ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting-Off Operations

• Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
  ■ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
  ■ When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
• Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
  ■ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
  ■ Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Additional safety instructions

■ The mains voltage and the voltage specifications on the rating plate must correspond.
■ Do not press the spindle lock until the grinding tool stops.

Noise and vibration

NOTE

Values for the A-weighted sound pressure level and for the total vibration values can be found in the “Technical specifications” table.

The noise and vibration values have been determined in accordance with EN 60745.

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

Technical specifications

		L 3709-115	L 3709 -125 L 801	LE 9-10 125	L 10 -10 125 L 1001
Machine type		Angle grinder
Max. grinding tool ∅	mm 115	125 125 125
Grinding tool thickness	mm 1-6
Tool hole diameter	mm 22.23
Spindle thread		M14/WAF14
Speed	r.p.m. 1	2500	12000	6000-11500	10000
Power input	W	750 (650*)	800 900	1010
Power output	W	450 (400*)	480 530	600
Weight according to “EPTA Procedure 01/2003” (without power cord)	kg 1,9	2,0 2,2
Protection class		II/☐
A-weighted sound pressure level according to EN 60745 (see “Noise and vibration”):
Sound pressure level L_pA	dB(A)	84.6 87 91
Sound power level L_WA	dB(A)	95.6 98 102
Uncertainty K	db	3
Total vibration value according to EN 60745 (see “Noise and vibration”):
Emission value a_h when grinding surfaces	m/s2	6.5 6.5 6.6
Emission value a_h when cutting-off	m/s2	6.3 8.1 6.2
Uncertainty K	m/s2	1.5

(^*) = 110 ~V

Overview

Technical diagram of a power tool with numbered parts and close-up view of the component

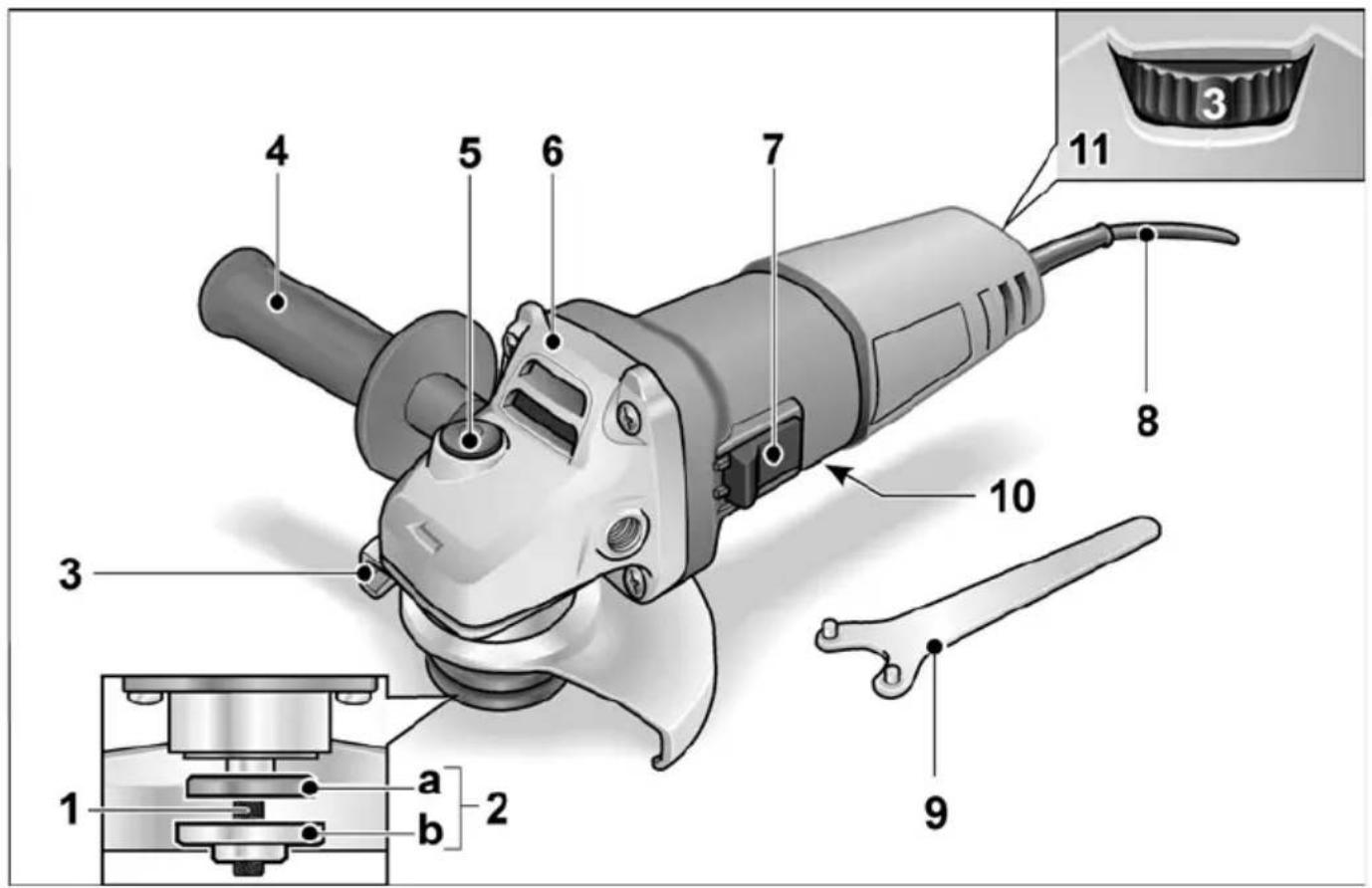

1 Spindle
2 Threaded flange

a Clamping nut

b Clamping flange

3 G u a r d

4 Handle

Handle can be fitted to the left or right.

5 Spindle lock

Secures the spindle when the tool is changed.

6 Gear head

With air outlet and direction-of-rotation arrow.

7 Switch rocker

Switches the power tool on and off.

With notched position for continuous operation.

8 4.0 m power cord with plug
9 Face spanner
10 Rating plate (not illustrated)
11 Dial for preselecting the speed (only LE 9-10 125)

Operating instructions

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug.

Before switching on the power tool Unpack the angle grinder and check that there are no missing or damaged parts.

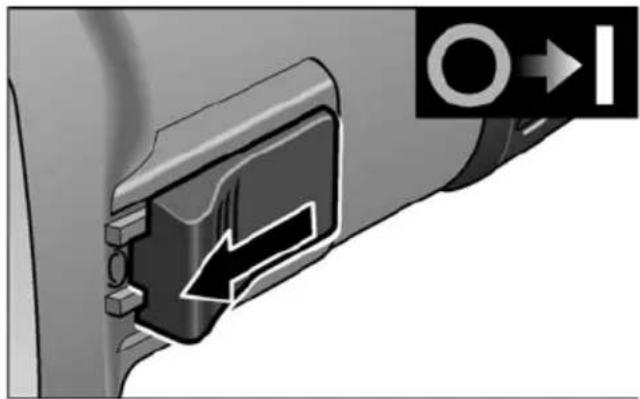

Switching on and off Brief operation without engaged switch rocker:

Close-up of a car door panel with an arrow pointing to the left side, no visible text or symbols

■ Push the switch rocker forwards and hold in position.
■ To switch off the power tool, release the switch rocker.

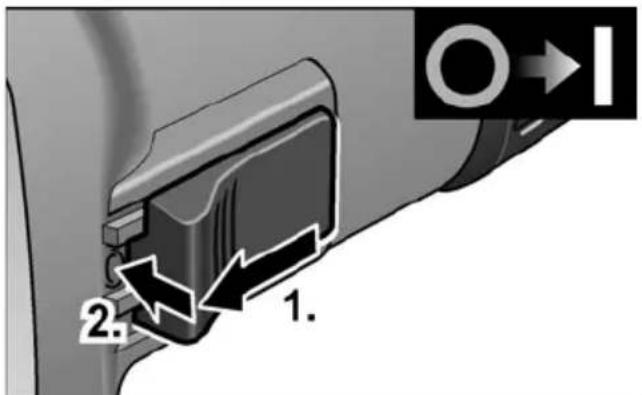

Continuous operation with engaged switch rocker:

2. 1.

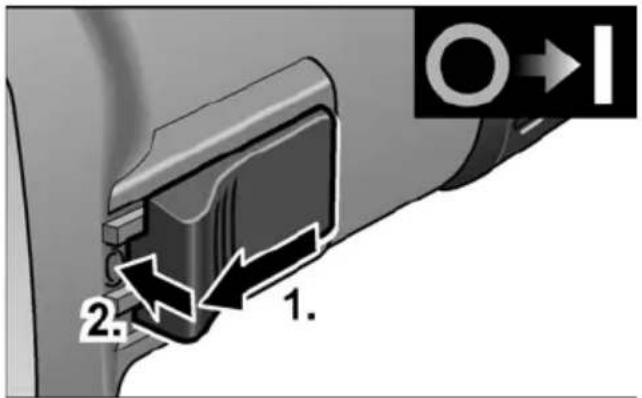

■ Push the switch rocker forwards (1.) and engage by pressing the front end (2.).

Close-up of a car door panel with an arrow pointing to the button, no visible text or symbols

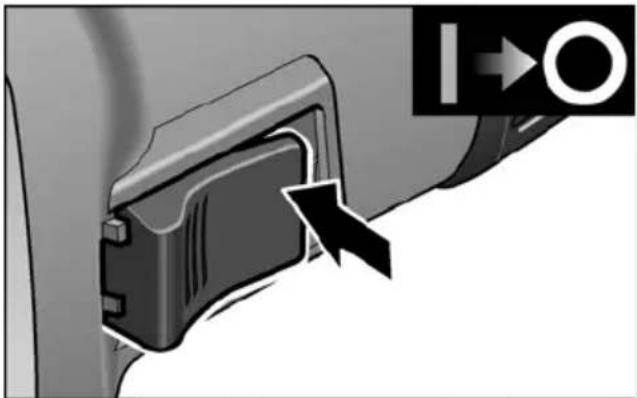

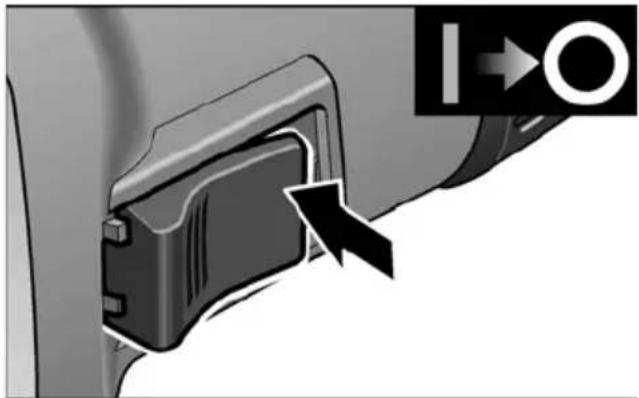

■ To switch off the power tool, release the switch rocker by pressing the rear end.

NOTE

Following a power failure, the switched on power tool does not restart.

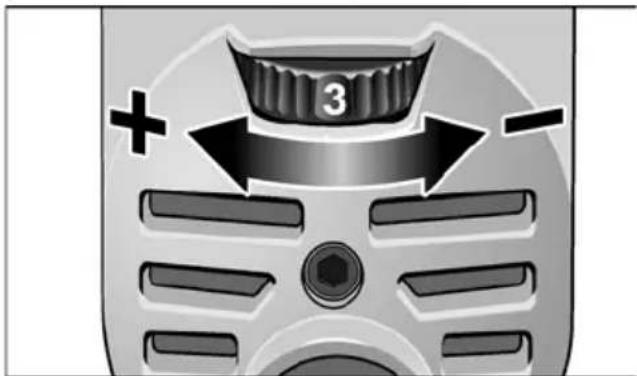

Speed preselection (LE 9-10 125 only)

Close-up of a car's front panel with a numbered knob and directional arrows (no text or symbols)

To set the operating speed, move the dial to the required value.

Safety guard (L 3709-115, L 801, L 3709-125)

WARNING!

Never work without the safety guard. The angle grinder is adapted to the job with the safety guard which can be adjusted without a tool.

A special cutting guard must be used for cutting.

CAUTION!

Risk of injury! Wear protective gloves.

■ Pull out the mains plug.

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

■ Rotate safety guard to the required position.

Quick-release guard (LE 9-10 125, L 10-10 125, L 1001)

WARNING!

When using the angle grinder for roughing or cutting, never work without the guard.

■ Pull out the mains plug.

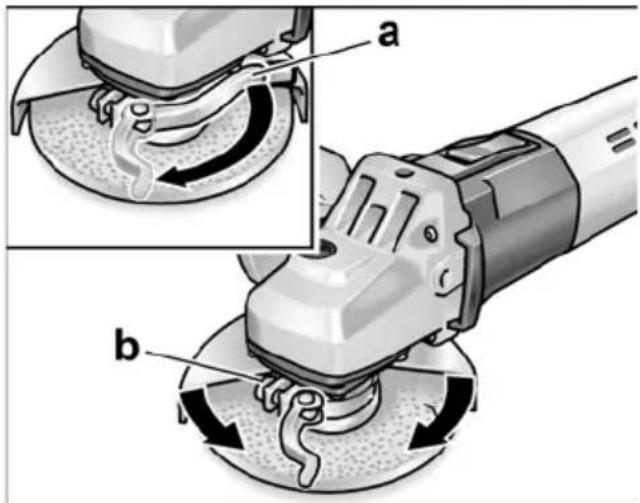

■ Loosen the clamping lever (a).
■ Adjust the guard.

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

■ Tighten screw (b) until the clamping lever can just be clamped by hand.
■ Retighten the clamping lever.
■ A special quick-release cutting guard must be used for cutting.

Attaching or changing the grinding tool

■ Pull out the mains plug.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement

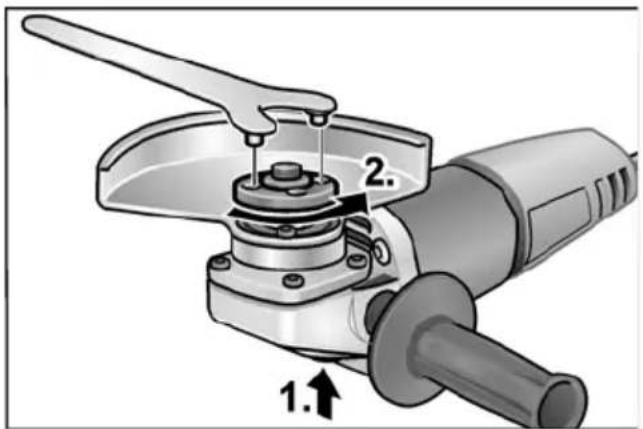

■ Press and hold down the spindle lock (1.).
■ Using the face spanner, loosen the clamping nut on the spindle in an anticlockwise direction and remove (2.).
■ Insert the grinding wheel in the correct position.

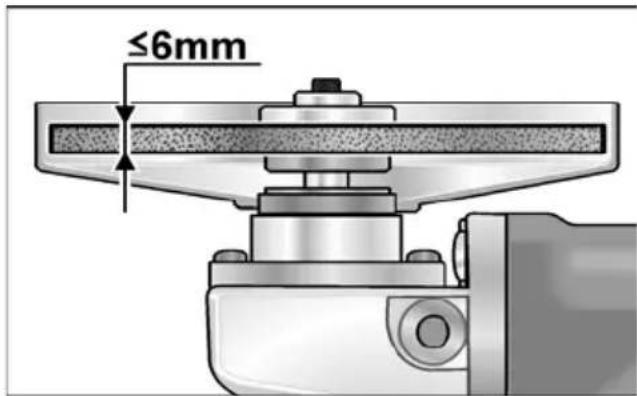

≤6mm

■ Screw the clamping nut with flange face up, onto the spindle.
■ Press and hold down the spindle lock.
■ Tighten the clamping nut with the face spanner.
■ Insert the mains plug into the socket.
■ Switch on the angle grinder (without locking into position) and leave the angle grinder running for approx. 30 seconds. Check for imbalances and vibrations.
■ Switch off the angle grinder.

Operating instructions

i NOTE

When the power tool is switched off, the grinding tool continues running briefly.

Rough-grinding

WARNING!

Never use cutting-off wheels for rough-grinding.

- Angle of wheel 20–40° for best cutting performance.

- Applying moderate pressure, move the angle grinder backwards and forwards. As a result, the workpiece will not become too hot and there will be no discoloration; nor will there be any grooves.

Cut-off grinding

WARNING!

A special cutting guard must be used for cut-off grinding.

- Do not press, tilt or oscillate the power tool.

Illustration of hands using a grinding tool to cut a workpiece on a workbench (no text or symbols visible)

- Angle grinder must always operate in the counter direction. Otherwise, there is a risk of the angle grinder jumping uncontrollably out of the groove.

- Adjust the feed to the material which is to be work: the harder the material, the slower the feed.

For further information on the manufacturer's products go to www.flex-tools.com.

Maintenance and care

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug.

Cleaning

WARNING!

If metals are ground or cut over a prolonged period, conductive dust may become deposited inside the housing. Impairment of the protective insulation! Operate the power tool via a residual-current-operated circuit-breaker (tripping current 30 mA).

Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.

Regularly blow out the housing interior and motor with dry compressed air.

Carbon brushes

The angle grinder features cut-off carbon brushes.

When the wear limit of the cut-off carbon brushes is reached, the angle grinder switches off automatically.

i NOTE

Use only original parts supplied by the manu-facturer for replacement purposes. If non-original parts are used, the guarantee obligations of the manufacturer will be deemed null and void.

When the power tool is being used, the carbon brushes can be seen sparking through the rear air inlet apertures.

If the carbon brushes spark excessively, switch off the angle grinder immediately. Take the angle grinder to a customer service workshop authorised by the manufacturer.

Gears

i NOTE

Do not loosen the screws on the gear head during the warranty period.

Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Other accessories, in particular sanding tools and cutting guards, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical specifications” conforms to the following standards or normative documents:

EN 60745 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Röhle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Table des matières

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Broche

2 Flasque taraudé

a Ecrou de serrage

b Bride de serrage

3 Capot de protection

4 Poignée

Close-up of a car door handle with a black arrow pointing to a button, no visible text or symbols

Close-up of a car's side panel with an arrow pointing to the button, no visible text or symbols

Close-up of a car's front panel with a button labeled '3' and directional arrows indicating motion (no text or symbols beyond basic labels)

Illustration of a power tool with motion arrows indicating rotation (no text or symbols)

Technical diagram showing two mechanical components labeled a and b, with arrows indicating motion or force direction.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or direction

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 A l b e r i n o

2 Flangia filettata

a Dado di serraggio

Close-up of a car door handle with a black arrow pointing left, next to a circular icon with an arrow (no text or symbols on the main object)

Close-up of a mechanical component with an arrow pointing to a section, no visible text or symbols

Close-up of a car's front panel with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool to cut a circular cutter on a workbench (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up views of the component

1 Husillo
2 Acoplamiento a rosca

a Tuerca de montaje

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the handle, no visible text or symbols

Close-up of a car's front panel with a button labeled '3' and directional arrows indicating motion (no text or symbols beyond basic markings)

Illustration of a power tool with angular workpiece and motion arrows (no text or symbols)

Technical diagram showing two steps of a power tool with labeled components (a and b) and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool on a workbench, with an arrow indicating direction (no text or symbols present)

R. H. L. B. T. D. 10-25

Eckhard Röhle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

Close-up of a car door handle with a black arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the handle (no text or symbols visible)

Close-up of a car's front panel with a circular button labeled '3' and directional arrows indicating motion (no text or symbols beyond basic markings)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement

Illustration of hands using a grinding tool on a workbench, with an arrow indicating rotation (no text or symbols present)

EN 60745 de acordo com as determinações das directivas 2014/30/UE, 2006/42/CE, 2011/65/UE.

Klaus Peter Weinper Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

Close-up of a car door handle with a black arrow pointing to a button, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the opening, no visible text or symbols

Close-up of a car's front grille with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two mechanical components labeled a and b, illustrating gear meshing or machining process with rotation arrows.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Spindel
2 Gevindflange

a Spændemøtrik

b Spændeflange

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

■ Skub vippekontakten fremad og hold den fast.
■ Slip vippekontakten for at slukke.

Konstant drift med indgreb:

2. 1.

Close-up of a car door panel with an arrow pointing to the handle, no visible text or symbols

■ Frigør vippekontakten ved at trykke på bagerste ende for at slukke.

BEMAERK

Close-up of a car dashboard with a top control knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two mechanical components labeled a and b, illustrating gear meshing or tool path changes.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or direction

Illustration of hands using a cutting tool to cut a metal sheet (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Spindel

2 Gjengeflens

a Spennmutter

b Spennflens

3 Beskyttelsesdeksel

4 Håndtak

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car's front panel with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

■ Drei sikkerhetsdekselet til den ønskede posisjonen.

Hurtigspennhette

(LE 9-10 125, L 10-10 125, L 1001)

ADVARSEL!

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or motion

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up views of the component

1 Spindel

2 Gängad fläns

a Spännmutter

b Spännfläns

3 Sprängskydd

4 Handtag

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car dashboard with a top control knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or direction

Illustration of hands using a grinding tool to cut a metal cutting board (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 K a r a

2 Kierrelaippa

a Kiinnitysmutteri

b Kiinnityslaippa

3 S u o j u s

4 Käsikahva

Close-up of a car door handle with a black arrow pointing to a button, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the opening, no visible text or symbols

Close-up of a car's front panel with a button labeled '3' and directional arrows indicating motion (no text or symbols beyond basic labels)

Illustration of a power tool with meshing and rotating components (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with numbered components and directional arrow indicating assembly or operation

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Manager Research & Development (R & D)

Bikks - y

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 A T ρ α κ τ ο ζ

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the button (no text or symbols visible)

Close-up of a car's front panel with a badge labeled '3' and directional arrows indicating motion (no text or symbols beyond basic markings)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Diagram of a power tool with labeled parts and directional arrow indicating movement or direction

Illustration of hands using a grinding tool on a workbench, with an arrow indicating direction (no text or symbols present)

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Mil

2 Dişli flanş

a Sabitleme flanşı

b Germe somunu

3 Koruyucu başlık

4 Tutamak

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the button (no text or symbols visible)

Close-up of a car's front panel with a knob labeled '3' and directional arrows (+/-), no readable text or symbols beyond the number.

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, illustrating mechanical operation.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement

Illustration of hands using a grinding tool to cut a metal cutting board (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 W r z e c i o n o

Close-up of a car door handle with a black arrow pointing to the left side, no visible text or symbols

Close-up of a car's side panel with an arrow pointing to a button, no visible text or symbols

Close-up of a car's front panel with a circular button labeled '3' and directional arrows (+/-), no readable text or symbols beyond the number.

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two steps of a power tool operation, labeled a and b, with arrows indicating motion direction.

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or operation

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 O r s ó

2 Menetes karima

a Szorító anya

b Szorító perem

3 Védősapka

4 Kézi fogantyú

Close-up of a car door handle with a black arrow pointing left, next to a circular icon with an arrow (no text or symbols)

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car's front panel with a knob labeled '3' and directional arrows (+/-), no readable text or symbols beyond the number.

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two steps of a power tool with labeled components (a and b) and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement

Illustration of hands using a grinding tool on a workbench, with an arrow indicating direction (no text or symbols present)

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 V ř e t e n o

2 Závitová příruba

a Upínací matice

b Upínací příruba

3 Ochranný kryt

4 Rukojet'

Close-up of a car door handle with a black arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the opening, no visible text or symbols

Close-up of a car's front panel with a knob labeled '3' and directional arrows (+/-), no readable text or symbols beyond the number.

Illustration of a power tool with angular workpiece and motion arrows (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating motion or operation.

Diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool on a workbench, with an arrow indicating rotation (no text or symbols present)

Klaus Peter Weinper Head of Quality Department (QD)

Close-up of a car door handle with a black arrow pointing left, next to a circular icon with an arrow (no text or symbols)

Close-up of a car door panel with an arrow pointing to the button (no text or symbols visible)

Close-up of a car's front grille with a numbered badge and directional arrows (no text or symbols)

Illustration of a power tool with motion arrows indicating rotation and cutting (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating motion or operation.

■ Utiahnite skrutku (b) tak pevne, aby sa upínacia páka dala ešte rukou upnút'.
■ Upínaciu páku opät' pevne utiahnite.
■ Na rezanie použite špeciálny rezací ochranný kryt.

Pracovné pokyny

UPOZORNENIE

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool to cut a circular cutter on a workbench (no text or symbols visible)

Bolts Q - 1

Eckhard Röhle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (OD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 V r e t e n o

2 Navojne prirubnice

a Stezna prirubnica

b Stezna matica

3 Zaštitna kapa

4 Rukodrž

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

■ Radi isključivanja ozibnu sklopku deblokirati pritiskom na zadnji kraj.

NAPUTAK

Nakon nestanka struje uključeni se aparat ne pokreće ponovno.

Prethodno biranje brzine (samo LE 9-10 125)

Close-up of a car's front grille with a numbered badge and directional arrows (no text or symbols)

Radi namještanja radnog broja okretaja kotač za namještanje postaviti na željenu vrijednost.

Sigurnosno-zaštitna kapa (L 3709-115, L 801, L 3709-125)

POZOR!

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two steps of a power tool operation, labeled a and b, with arrows indicating rotation or adjustment.

■ Vijak (b) pritegnuti tako da se zateznu polugu može samo još ručno zategnuti.
■ Zateznu polugu ponovno čvrsto zategnuti.
■ Za rezanje upotrebite specijalnu brzozateznu zaštitnu kapu.

Technical diagram of a power tool with labeled parts and directional arrows indicating assembly or operation

Illustration of hands using a cutting tool on a workbench, no text or symbols present

Hrup in tresljajin 196

Navodila za uporabo 199

Technical diagram of a power tool with numbered parts and close-up view of the component

1 V r e t e n o

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

■ Prekucno stikalo potisnite naprej in ga pridržite.
■ Za izklop prekucno stikalo izpustite.

Neprekinjeno delovanje z uporabo prekucnega stikala

2. 1.

■ Prekucno stikalo potisnite naprej (1.) in ga s pritiskom na sprednji del zaskočite (2.).

Close-up of a car door panel with an arrow pointing to the opening, no visible text or symbols

■ Za izklop pritisnite na zadnji del prekucnega stikala, tako da sprostite zaporo.

OPOMBA

Close-up of a car's front panel with directional arrows and a numbered badge (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with labeled parts and directional arrows indicating assembly or operation

■ Pritisnite na zaporo vretena in jo držite pritisnjeno (1.).
■ S ključem s kavljem zavrtite vpenjalno matico v levo in jo snemite (2.).
■ Pravilno namestite brusilno ploščo.

≤6mm

■ Vpenjalno matico privijte na vreteno tako, da bo podaljšek matice obrnjen navzgor.
■ Pritisnite na zaporo vretena in jo držite pritisnjeno.
■ Vpenjalno matico zategnite s ključem s kavljem.
■ Vstavite vtič v vtičnico.
■ Kotni brusilnik vklopite tako, da pritisnete prekucno stikalo (ne da se zaskoči) in ga pustite delovati za pribl. 30 sekund. Preverite, ali prihaja do neuravnoteženosti in tresljajev.
■ Kotni brusilnik izklopite.

Navodila za uporabo

OPOMBA

Illustration of hands using a grinding tool to cut a circular cutter on a workbench (no text or symbols visible)

Handwritten signature or scribble with a circular outline and partial text below

Eckhard Röhle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Fus

2 Flanşă cu filet

Close-up of a car door handle with a black arrow pointing left, no visible text or symbols

Close-up of a car's side panel with an arrow pointing to a button, no visible text or symbols

Close-up of a car dashboard with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating rotation or movement.

Diagram of a power tool with labeled parts and directional arrow indicating movement or positioning

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

EN 60745 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Röhle Manager Research & Development (R & D)

B C D E

Klaus Peter Weinper Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and close-up views for assembly or maintenance reference.

1 В р е т е н о

2 Фланец с резба

Close-up of a car door handle with a black arrow pointing to a component, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car's front panel with a numbered badge and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with numbered parts and directional arrow indicating assembly or operation

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Klaus Peter Weinper Head of Quality Department (QD)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Ш п и н д е л ь

2 Резьбовой фланец

а Зажимная гайка

b Зажимной фланец

3 Защитный кожух

4 Рукоятка

Close-up of a car door handle with a black arrow pointing left, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the handle (no text or symbols visible)

Close-up of a car air conditioner grille with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two steps of a robotic grinding process, labeled a and b, with arrows indicating motion direction.

Technical diagram of a power tool with labeled parts and directional arrows indicating assembly or operation

Illustration of hands using a grinding tool on a workbench, with an arrow indicating cutting direction (no text or symbols present)

Manager Research & Development (R & D)

B H Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Technical diagram of a power tool with numbered parts and close-up views of the component

1 Spindel

2 Keermega äärik

a Kinnitusmutter

b Kinnitusäärik

3 Kaitsekate

4 Käepide

Close-up of a car door handle with a black arrow pointing left, next to a circular icon with an arrow (no text or symbols)

Close-up of a car door panel with an arrow pointing to the button (no text or symbols visible)

Close-up of a car's front panel with a button labeled '3' and directional arrows indicating motion (no text or symbols beyond basic labels)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two steps of a power tool with labeled components (a and b)

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or operation

Illustration of hands using a grinding tool to cut a circular cutter on a workbench (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up views for assembly or maintenance reference.

1 Velenas

2 Srieginé jungè

a Tvirtinimo veržlé

b Tvirtinimo flanšas

3 Apsauginis gaubtas

4 Rankena

Close-up of a car door handle with a black arrow pointing to the left side, no visible text or symbols

Close-up of a car door panel with an arrow pointing to the button (no text or symbols visible)

Close-up of a car air conditioner panel with a numbered button and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components, likely illustrating a mechanical or electrical process.

Technical diagram of a power tool with labeled parts and directional arrow indicating movement or direction

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Technical diagram of a power tool with numbered parts and close-up view of the component

1 Darbvārpsta

2 Vītnatloks

Close-up of a car door handle with an arrow pointing to the left side, no visible text or symbols

Close-up of a car seatbelt switch with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car's front panel with a numbered knob and directional arrows (no text or symbols)

Illustration of a power tool with angular blades and meshing (no text or symbols)

Technical diagram showing two steps of a power tool with labeled components (a and b) and directional arrows indicating rotation or movement.

Technical diagram of a power tool with labeled parts and directional arrow indicating assembly or positioning

Illustration of hands using a grinding tool to cut a metal sheet (no text or symbols visible)

Manager Research & Development (R & D)

B C D E F

Klaus Peter Weinper Head of Quality Department (QD)

Handwritten signature or scribble with partial text and a curved line above it

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

2016/06/16

Illustration of hands using a grinding tool to cut a circular cutter on a workbench (no text or symbols)

Technical diagram of a mechanical tool with numbered components and directional arrow indicating assembly or movement.

Illustration of a power tool with angular blades and a meshing base (no text or symbols)

Technical diagram showing two views (a and b) of a power tool with labeled components and directional arrows indicating rotation or movement.

Close-up of a car's side panel showing a mounted component with directional arrows indicating movement (no text or symbols)

Close-up of a mechanical component with a highlighted section showing directional arrows (no text or symbols)

Technical diagram of a power tool with numbered parts and close-up view of the component

يجب (أ)د during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%) يُد during (*)* (أ)دوات Angola(الك (%)

ضر: يجب (م)منكم قبل (الاستخدام في كل مرة (أ)ن تقومووا ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola2 ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Ang ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada Angola(الك (%) ب Netflix (أ)دada England ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada England(الك (%) ب Netflix (أ)دada English

(315.915 :Arqm Minshor)

5- ar ...... Patient's
