USER MANUAL 13499 APA

Black rectangular device with a grid of square buttons on its side (no text or symbols visible)

© EAL GmbH, 13449 04. 2023

D Art.-Nr. 13449

LED-Magnetlicht

Operating instructions ..... 8

FR Réf. 13449

Black-and-white photo of a mechanic working on engine bay with tools, no visible text or symbols

Simple line drawing of a trash bin with crossed lines and a horizontal bar below (no text or symbols)

Cd = Cadmium, Hg = Quecksilber, Pb = Blei

9. KONTAKTINFORMATIONEN

EAL GmbH

Read the operating instructions through carefully prior to initial use and observe all of the safety notes!

Not observing these may lead to personal injury, damage to the device or to your property!

Keep the original packaging, the receipt and these instructions so that they may be consulted at a later date! When passing the product on, please also include these operating instructions.

Please check the package contents to make sure everything is intact and complete!

1. PROPER USE OF THE DEVICE

The LED magnet light serves as a light source when hiking, camping or at work. Its magnets allow it to be attached to magnetic surfaces or to clothing thanks to the fastening tab.

This device is not designed to be used by children or persons with limited mental abilities or without the required specialist knowledge. Keep children away from the device.

The device is not designated for commercial use.

Use according to the intended purpose also includes the observance of all information in these operating instructions, particularly the observance of the safety precautions. Any other use is considered to be contrary to the intended purpose and may lead to material damage or personal injuries. EAL GmbH assumes no liability for damage resulting from improper use.

2. SCOPE OF DELIVERY

LED magnet light

USB micro charging cable

3. SPECIFICATIONS

Dimensions (L x W x H): approx. 53 x 45 x 2 [mm]

Luminous flux: max. 160 lm

Weight: approx. 53 g

Charging connection: USB micro B

Battery: Li-Ion

Attachment: magnet

Battery capacity: 200 mAh

4. SAFETY PRECAUTIONS

• The warning triangle sign indicates all instructions which are important for safety. Always follow these otherwise you could injure yourself or damage the device.
  • Children may not play with the device.
• Cleaning and user maintenance may not be carried out by children without supervision.
• Do not be careless and leave the packaging lying around. This could become a dangerous toy for a child!
• Only use this product for its designated purpose!
• Do not manipulate or disassemble the device!
• For your own safety, only use accessories and spare parts that are described in these instructions or are recommended by the manufacturer!
• Do not expose the LED magnet light to high temperatures, extreme wetness or strong vibrations.
• Never look directly into the light source and never point the light beam at people or animals. The LED light can cause eye cause eye injuries.
• Never look at the light source with optical instruments. The LED light can cause eye injuries.

5. EXPLANATION OF SYMBOLS

Complies with EC directives

Labelled electrical products may not be disposed of in the household waste

Batteries may not be disposed of in the household waste system.

Devices with this symbol may only be operated in the house (dry environment)

Read the operating instructions

6. OPERATING INSTRUCTIONS

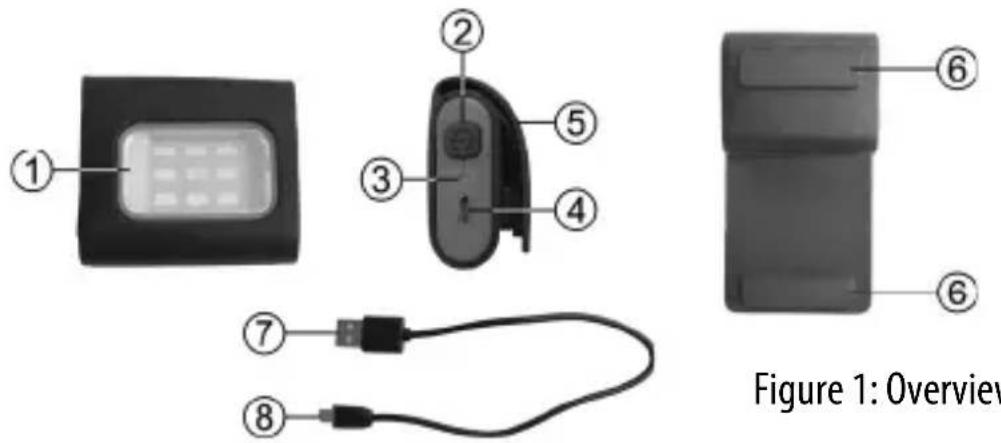

6.1 OVERVIEW

1 LED light fi eld
2 Switch
3 Charging indicator light

4 USB micro B charging socket
5 Mounting lug
6 Magnet

7 USB A plug
8 USB micro B plug

Figure 1: Overview

⑥ ⑥

6.2 CHARGING THE BATTERY

Insert the USB micro B plug (position 8 in the overview) of the charging cable into the USB micro socket (position 4 in the overview) of the LED magnet light. Insert the USB-A plug into the output of a USB charger. Connect the USB charger to a socket. The charging indicator light (position 3 in the overview) lights up red. When the battery is charged, the charging indicator light switches to green. Unplug the USB charger from the socket and remove the charging cable.

6.3 LIGHT FUNCTIONS

By repeatedly pressing the switch (position 2 in the overview), the following light functions can be switched in sequence:

30 % white - 60 % white - 100 % white - flashing red - OFF

6.4 FASTENING

Unfold the fastening tab (position 5 in the overview). Press the magnets (position 6 in the overlay) onto a magnetic surface (underside of a bonnet, water pipe, etc.). To attach to clothing, clamp a piece of fabric of the clothing between the two magnets, see example in picture 2.

Black-and-white photo of a mechanic working on the engine compartment, with visible wood shavings and tools (no text or symbols)

Figure 2: Application example

When attaching the magnets, make sure that no sensitive devices or magnetic cards (credit cards, EC cards) are near the magnets.

7. MAINTENANCE AND CARE

7.1 MAINTENANCE

The LED magnet light is maintenance-free when used as intended.

7.2 CARE

Only clean the LED magnet light with a dry, soft cloth. Do not use any sharp cleaners or cleaners containing solvents. Never allow liquids to penetrate the inside of the unit.

If you do not use the LED magnet light for a longer period of time, charge the battery every three months.

8. NOTES REGARDING ENVIRONMENTAL PROTECTION

Do not dispose of electrical appliances in household waste! Discarded electrical and electronic equipment must be collected separately and recycled in an environmentally sound manner.

Contact your municipal or city government on how to dispose of old electronic equipment.

The materials are recyclable. You are making an im- portant contribution to protecting our environment through recycling, material recycling or other forms of re-utilising old appliances!

Dispose of the compressor in accordance with the laws and conditions in your country.

9. CONTACT INFORMATION

EAL GmbH

42115 Wuppertal, Germany

[phone]
