USER MANUAL DWE4559 DEWALT

English (original instructions) 31

Line drawing of a hand using a DHWERT power tool to cut the blade (no text or symbols present)

0000 00 - 00 19

Fig. F

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

VINKELSLIBER

DWE4557, DWE4559, DWE4579

Tillykke!

DWE4557, DWE4559, DWE4579

Illustration of wood grain and a wooden log inside a circular frame (no text or symbols)

WINKELSCHLEIFER

DWE4557, DWE4559, DWE4579

Illustration of wood grain and a rolled log, with two gear-like circular insets (no text or symbols)

ANGLE GRINDERS

DWE4557, DWE4559, DWE4579

Congratulations!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DWE4557 DWE4559 DWE4579
Voltage V	AC	230 230 230
UK & Ireland V	AC	230/115 230/115 230/115
Type 5 5 5
Power input
QS W 2400 2400 2600
LX W 2200 2200
No-load/rated speed min	-1	8500 6500 6500
Wheel diameter mm	180 230 230
Spindle diameter		M14	M14	M14
Spindle length	mm	24.0	24.0	24.0
Weight*	kg	6.5	6.6	6.6
* weight includes side handle and guard
Noise values and vibration values (triax vector sum) according to EN62841-2-3:
L_PA (emission sound pressure level)	dB(A)	100	100	100
L_WA (sound power level)	dB(A)	108	108	108
K(uncertainty for the given sound level)	dB(A)	3	3	3
Surface grinding
Vibration emission value a_h,AG =	m/s2	9.4	6.7	6.3
Uncertainty K=	m/s2	1.5	1.5	1.5
Disc sanding
Vibration emission value a_h,DS =	m/s2	2.9	-	-
Uncertainty K=	m/s2	1.5	-	-

The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in EN62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration and/or noise emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration and/or noise should also take into account the times when the tool is switched off or when it is running but not actually

doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool and the accessories, keep the hands warm (relevant for vibration), organisation of work patterns.

EC-Declaration of Conformity

Machinery Directive

Angle Grinders

DWE4557, DWE4559, DWE4579

DEWALT declares that these products described under

Technical Data are in compliance with:

2006/42/EC, EN62841-1:2015 +A11:2022 EN IEC62841-2-3:2021 +A11:2021.

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

M. Rergel

Markus Rompel

Director Engineering

65510, Idstein, Germany

12.01.2024

WARNING: To reduce the risk of injury, read the

instruction manual.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Diabetes risk of electric shock.

Deicates risk of fire.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, indications and specifications provided with this

power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the

switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SPECIFIC SAFETY RULES

Safety Instructions for All Operations

a) This power tool is intended to function as a grinder, sander (DWE4557), wire brush, or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Operation such as polishing is not recommended to be performed with this power tool. Operation such as sanding (DWE4559; DWE4579) is not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not convert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury
d) Do not use accessories which are not specifically designed and specified by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
e) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
f) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
g) The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
h) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
i) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of

stopping small abrasive or workpiece fragments.

The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by the particular operation. Prolonged exposure to high intensity noise may cause hearing loss.

j) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
k) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electrical shock.
1) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
m) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
n) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
o) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
p) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
q) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip with both hands on the power tool and position your body and arms to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start up. The operator can control torque reaction or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Cutting-Off Operations

a) Use only wheel types that are specified for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.

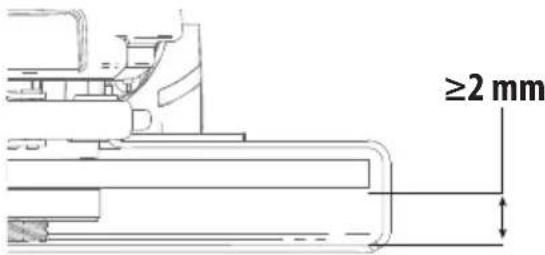

b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for specified applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. A wheel intended for larger power tool is not

suitable for the higher speed of a smaller tool and may burst.

g) When using dual purpose wheels always use the correct guard for the application being performed. Failure to use the correct guard may not provide the desired level of guarding, which could lead to serious injury.

Additional Safety Warnings Specific for Cutting-Off Operations

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operations, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold it motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.

d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.

f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

g) Do not attempt to do curved cutting. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage, which can lead to serious injury.

Additional Safety Instructions for Sanding Operations

DWE4557 only

a) Use proper sized sanding disk paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending too far beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Additional Safety Instructions for Wire Brushing Operations

a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.
b) If the use of a guard is specified for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work and centrifugal forces.

Additional Safety Rules for Grinders

a) Do not use Type 11 (flaring cup) wheels on this tool. Using inappropriate accessories can result in injury.

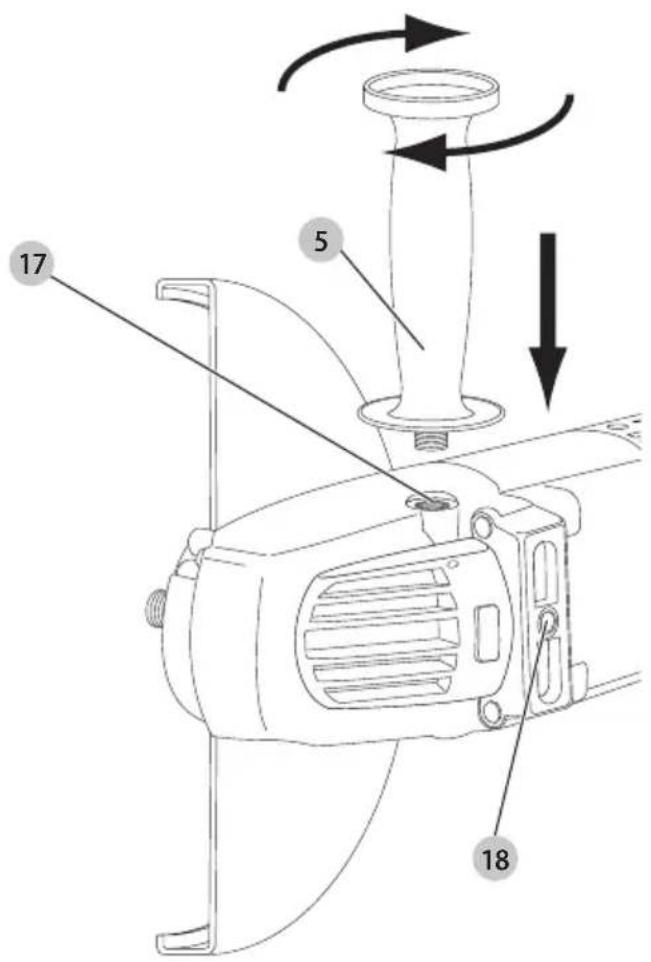

b) Always use side handle. Tighten the handle securely. The side handle should always be used to maintain control of the tool at all times.

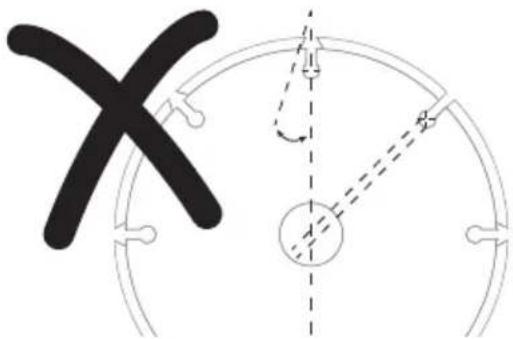

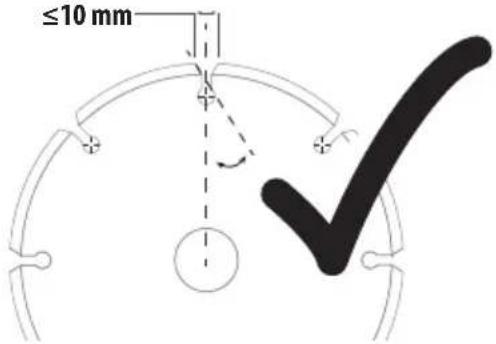

c) When using segmented diamond wheels, use only diamond wheels with a peripheral gap not greater than 10 mm and negative rake angle (refer to Additional Information for Guards and Accessories chart).

WARNING: We recommend the use of a residual current rating with a residual current rating of 30mA or less.

Residual Risks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment of hearing.
• Risk of personal injury due to flying particles.
• Risk of burns due to accessories becoming hot during operation.
• Risk of personal injury due to prolonged use.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN62841; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1.5 mm ^2 ; the maximum length is 30 m.

When using a cable reel, always unwind the cable completely.

Package Contents

The package contains:

1 Anglegrinder

1Guard

1Sidehandle

1Flangeset

1 Two-pinspanner

1 Instructionmanual

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Wear ear protection.

Wear eye protection.

Always operate with two hands.

Do not use the guard for cut-off operations.

Date Code Position (Fig. A)

The date code 19, which also includes the year of manufacture, is printed into the housing.

Example:

2024 XX XX

Year of Manufacture

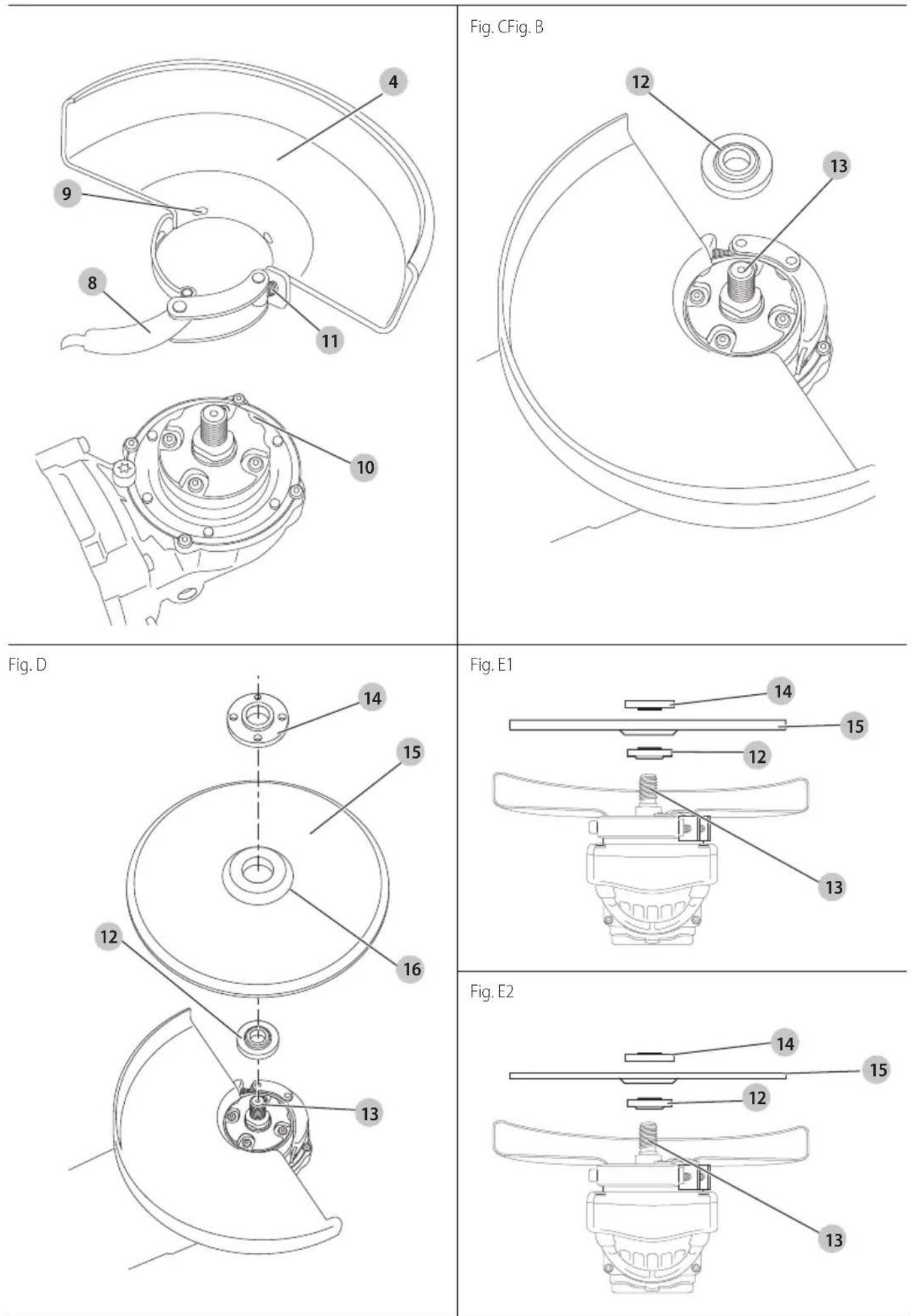

Description (Fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

1 On/off switch
2 Unlocking switch
3 Spindle lock
4 Guard
5 Side handle

6 LED indicator (DWE4579)
7 Lock-on button (DWE4579)

Intended Use

The DWE4557 heavy-duty angle grinder has been designed for professional grinding, cutting, sanding and wire brushing.

The DWE4559, DWE4579 heavy-duty angle grinders have been designed for professional grinding and cutting applications.

DO NOT use grinding wheels other than centre depressed wheels and flap-disk.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

DANGER: Do not use for wood cutting or woodcarving. Do not use toothed blades of any kind. Serious injury can result.

These heavy-duty angle grinders are professional power tools.

DO NOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

Dust Ejection System

The dust ejection system deflects debris that would be harmful to the motor and allows cleaner air to pass over the motor.

Overload Protection

DWE4579

The power supply to the motor will be reduced in case of motor overload. The power will return to normal once the tool has cooled down to suitable operating temperature.

Electronic Clutch

DWE4579

The electronic torque limiting clutch reduces the maximum torque reaction transmitted to the operator in case of jamming of a disc. This feature also prevents the gearing and electric motor from stalling. The level of the electronic clutch has been factory set and cannot be adjusted.

LED Indicator (Fig. A)

DWE4579

The LED indicator light 6, mounted at the top of the handle, acts as an alert to the activation of the electronic features of the unit described above. The light will activate and maintain a constant light when one of the above clutch or overload features is activated. Once the unit has been reset by releasing the switch or allowing the unit to cool the light will de-activate. If the LED light is flashing constantly please consult your local DEWALT service agent.

No-Volt Release Switch

DWE4579

The on/off switch has a no-volt release function. If the tool should become disconnected from the power source for any reason, the switch has to be deliberately reactivated.

Soft Start Feature

DWE4579

The soft start feature allows a slow speed build-up to avoid an initial jerk when starting. This feature is particularly useful when working in confined spaces.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Before reconnecting the tool, depress and release the trigger switch to ensure that the tool is off.

Attaching Side Handle (Fig. F)

WARNING: Before using the tool, check that the handle is triggered securely.

For grinding, screw the side handle 5 tightly into one of the holes 17 on either side of the gear case (Fig. F).

For cutting, screw the side handle 5 tightly into the top hole 18 or into one of the holes 17 on either side of the gear case.

Fitting and Removing a

Backing Pad/Sanding Sheet (Fig. A, D)

1. Place the tool on a table or flat surface, with the guard facing up.
2. Remove the backing flange 12.
3. Place the rubber backing pad correctly onto the spindle 13.
4. Place the sanding sheet on the rubber backing pad.
5. Screw the threaded clamp nut 14 onto the spindle. The ring on the threaded clamp nut must face towards the rubber backing pad.
6. Press the spindle lock button 3 and rotate the spindle 13 until it locks in position.
7. Tighten the threaded clamp nut 14 with the two-pin spanner.
8. Release the spindle lock.
9. To remove the rubber backing pad, loosen the threaded clamp nut 14 with the two-pin spanner.

Fitting a Wire Cup Brush

Screw the wire cup brush directly onto the spindle without the use of the spacer and threaded flange.

Mounting and Removing the Guard (Fig. B)

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Before reconnecting the tool, depress and release the trigger switch to ensure that the tool is off.

CAUTION: Guards must be used with this grinder.

CANTION: When using a Type 1/41/Type A (cut-off) wheel guard for facial grinding, the wheel guard may interfere with the workpiece causing poor control.

CAUTION: When using a Type 27/Type B (grinding) wheel guard for cutting-off operations with bonded abrasive wheels, there is an increased risk of exposure to emitted sparks and particles, as well as exposure to wheel fragments in the event of wheel burst.

CAUTION: When using a Type 1/41/Type A (cut-off), Type 27/Type B (grinding) wheel guard for cutting-off and facial operations in concrete or masonry, there is an increased risk of exposure to dust and loss of control resulting in kickback.

CANTION: When using a Type A (cut-off), Type B (grinding) which is wheel-type wire brush with a thickness greater than the maximum thickness as specified, the wires may catch on the guard leading to breaking of wires.

When using the DWE4557, DWE4559, DWE4579 grinder for cutting metal or masonry a Type A guard MUST be used.

nOTE: Please refer to the Grinding and Cutting Accessory Chart at the end of this section to show other accessories that can be used with these grinders.

1. Place the angle grinder on a table, spindle up.
2. Release the clamping lock 8 and hold the guard 4 over the tool as shown.
3. Align the lugs 9 with the notches 10.
4. Press the guard down and rotate it to the required position.
5. If required, increase the clamping force by tightening the screw 11.
6. Tighten the clamping lock.

To remove the guard, release the clamping lock.

CAUTION: If the guard cannot be tightened by the adjusting screw, do not use the tool. To reduce the risk of personal injury, take the tool and guard to a service centre to repair or replace the guard.

Fitting and Removing a Grinding or Cutting Disc (Fig. A, C–E)

WARNING: Do not use a damaged disc.

1. Place the tool on a table, guard up.

2. Fit the backing flange 12 correctly onto the spindle 13 (Fig. C).

3. Place the disc 15 on the backing flange 12 (Fig. D). When fitting a disc with a raised centre, make sure that the raised centre 16 is facing the backing flange 12.

4. Screw the threaded clamp nut 14 onto the spindle 13 (Fig. E):

a. The ring on the threaded clamp nut 14 must face towards the disc when fitting a grinding disc (Fig. E1);

b. The ring on the threaded clamp nut 14 must face away from the disc when fitting a cutting disc (Fig. E2).

1. Press the spindle lock button 3 and rotate the spindle 13 until it locks in position (Fig. D).
2. Release the spindle lock.
3. To remove the disc, loosen the threaded clamp nut 14 with the two-pin spanner.

Prior to Operation

• Install the guard and appropriate disc or wheel. Do not use excessively worn discs or wheels.
- Be sure the inner and outer flange are mounted correctly. Follow the instructions given in the Grinding and Cutting Accessory Chart.
- Make sure the disc or wheel rotates in the direction of the arrows on the accessory and the tool.
- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Before reconnecting the tool, depress and release the trigger switch to ensure that the tool is off.

WARNING:

- Ensure all materials to be ground or cut are secured in place.

- Secure and support the workpiece. Use clamps or a vise to hold and support the workpiece to a stable platform. It is important to clamp and support the workpiece securely to prevent movement of the workpiece and loss of control. Movement of the workpiece or loss of control may create a hazard and cause personal injury.

• Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
  • Always wear regular working gloves while operating this tool.
• Apply only a gentle pressure to the tool. Do not exert side pressure on the disc.
• Avoid overloading. Should the tool become hot, let it run a few minutes under no load condition to cool the accessory. Do not touch accessories before they have cooled. The discs become very hot during use.
• Never work with the grinding cup without a suitable protection guard in place.
• Do not use the power tool with a cut-off stand.
• Never use blotters together with bonded abrasive products.
• Be aware, the wheel continues to rotate after the tools is switched off.
  • The tool is not designed to be used with a grinding cup.
• Do not use separate reducing bushings or adapters to adapt large hole abrasive wheels.

Proper Hand Position (Fig. A)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the side handle 5, with the other hand on the body of the tool, as shown in Figure A.

Switching On and Off (Fig. A)

The on/off switch is equipped with an unlocking switch.

To run the tool, depress the unlocking switch 2 and subsequently operate the on/off switch 1.

Release the unlocking switch 2. To stop the tool, release the switch.

Lock-on Button (Fig. A)

DWE4579

For continuous operation depress the lock-on button 7 and release the on/off trigger switch.

To stop the tool press the on/off switch again.

The lock-on button can be permanently removed without compromising compliance with regulatory agencies shown on the tool's nameplate. Removal of the lock pin must be done by a DEWALT Service Centre.

Spindle Lock (Fig. A)

The spindle lock 3 is provided to prevent the spindle from rotating when installing or removing wheels. Operate the spindle lock only when the tool is turned off, unplugged from the power supply, and has come to a complete stop.

NOTICE: To reduce the risk of damage to the tool, do not engage the spindle lock while the tool is operating. Damage to the tool will result and attached accessory may spin off possibly resulting in injury.

To engage the lock, depress the spindle lock button and rotate the spindle until you are unable to rotate the spindle further.

Metal Applications

When using the tool in metal applications, make sure that a residual current device (RCD) has been inserted to avoid residual risks caused by metal swarf.

If the power supply is shut off by the RCD, take the tool to authorised DEWALT repair agent.

WARNING: In extreme working conditions, conductive and an accumulate inside the machine housing when working with metal. This can result in the protective insulation in the machine becoming degraded with a potential risk of an electrical shock.

To avoid build-up of metal swarf inside the machine, we recommend to clear the ventilation slots on a daily basis. Refer to Maintenance.

Cutting Metal

For cutting with bonded abrasives, always use a protection guard Type A.

When cutting, work with moderate feed, adapted to the material being cut. Do not exert pressure onto the cutting disc, tilt or oscillate the machine.

Do not reduce the speed of running down cutting discs by applying sideward pressure.

The machine must always work in an upgrinding motion. Otherwise, the danger exists of it being pushed uncontrolled out of the cut.

When cutting profiles and square bar, it is best to start at the smallest cross section.

Rough Grinding

Never use a cutting disc for roughing.

Always use the guard Type B.

The best roughing results are achieved when setting the machine at an angle of 30^ to 40^ . Move the machine back and forth with moderate pressure. In this manner, the workpiece will not become too hot, does not discolour and no grooves are formed.

Cutting Stone

The machine shall be used only for dry cutting. For cutting stone, it is best to use a diamond cutting disc. Operate the machine only with additional dust protection mask.

Working Advice

Exercise caution when cutting slots in structural walls.

Slots in structural walls are subject to the country-specific regulations. These regulations are to be observed under all circumstances. Before beginning work, consult the responsible structural engineer, architect or the construction supervisor.

Using Flap Discs

WARNING: Metal dust build-up. Extensive use of flap uses in metal applications can result in the increased potential for electric shock. To reduce this risk, insert an RCD before use and clean the ventilation slots daily by blowing dry compressed air into the ventilation slots in accordance with the below maintenance instructions.

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Before reconnecting the tool, depress and release the trigger switch to ensure that the tool is off.

Pop-off Brushes

The motor will be automatically shut off indicating that the carbon brushes are nearly worn out and that the tool needs servicing. The carbon brushes are not user-serviceable. Take the tool to an authorised DEWALT repair agent.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing is dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by WALT, have not been tested with this product, use of such accessories with this tool could be hazardous.

To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Accessory Chart

	Max. [mm]		[mm]	Min. Rotation [min. ^-1 ]	Peripheral speed [m/s]	Threaded hole length [mm]
	D b d
	180 6		22,23	8500 80
	230 6		22,23	6500 80
	180 - 8500 80 -
DWE4557 /DWE4597
	75 30 M14 8500 45 25.0
	180 12 M14 8500 80 25.0
	230 12 M14 8500 80 25.0

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can

be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

Additional Information for Guards and Accessories

When using segmented diamond wheels, use only diamond wheels with a peripheral gap not greater than 10 mm and negative rake angle.
DO NOT USEsegmented diamond wheels with a peripheral gap greater than 10 mm and/or a positive rake angle.
For all grinding, sanding, and wheel type wire brushing accessories, the lowest portion of the accessory must be contained within the guard enclosure with 2 mm or greater clearance to the bottom lip of guard.

Grinding and Cutting Accessory Chart
Guard Type Accessory Description How to Fit Grinder
Type B Guard		Depressed centre grinding disc	Type B guardBacking flangeType 27 depressed centre wheelThreaded clamp nut
		Flap wheel
		Wire wheels
		Wire wheels with threaded nut	Type B guardWire wheel
		Wire cup with threaded nut	Type B guardWire brush
		Backing pad/sanding sheet	Type B guardRubber backing padSanding disc[27WH]Threaded clamp nut
Grinding and Cutting Accessory Chart (cont.)
Guard Type Accessory Description How to Fit Grinder
Type AGuard		Masonry cutting disc, bonded	Type A guard
		Metal cutting disc, bonded	Backing flange
Type AGuardORType BGuard		Diamond cutting wheels	Cutting wheelThreaded clamp nut

DANGER: Do not use for wood cutting or woodcarving. Do not use toothed blades of any kind. Serious injury can result.

Illustration of wood logs and a cylindrical object with gear-like patterns (no text or symbols)

AMOLADORAS ANGULARES

DWE4557, DWE4559, DWE4579

¡Enhorabuena!

Illustration of wood logs and a gear mechanism (no text or symbols)

MEULEUSES ANGULAIRES

DWE4557, DWE4559, DWE4579

Félicitations !

Illustration of wooden logs and a cylindrical object with gear-like patterns (no text or symbols)

SMERIGLIATRICI ANGOLARI

DWE4557, DWE4559, DWE4579

Congratulazioni!

Illustration of wood logs and a gear mechanism (no text or symbols)

HOEKSLIJPMACHINES

DWE4557, DWE4559, DWE4579

DWE4557, DWE4559, DWE4579

Illustration of wood grain and a rolled log inside a circular frame (no text or symbols)

VINKELSLIPERE

DWE4557, DWE4559, DWE4579

Gratulerer!

Vinkelslipere DWE4557, DWE4559, DWE4579

Illustration of wood logs and a cylindrical object with two circular holes (no text or symbols)

REBARBADORAS ANGULARES DWE4557, DWE4559, DWE4579

Gratulerer!

Director de Engenharia

Illustration of wooden logs and a gear mechanism (no text or symbols)

KULMAHIOMAKONEET

DWE4557, DWE4559, DWE4579

Onnittelut!

DWE4557, DWE4559, DWE4579

65510, Idstein, Germany

12.01.2024

Illustration of wood logs and a cylindrical object with two circular patterns (no text or symbols)

VINKELSLIPAR

DWE4557, DWE4559, DWE4579

Gratulerar!

DWE4557, DWE4559, DWE4579

Illustration of wood grain and a log with two circular insets showing gear (no text or symbols)

AVUÇ TAŞLAMA MAKINELERI DWE4557, DWE4559, DWE4579

Tebrikler!

Illustration of wood logs and a gear mechanism (no text or symbols)

ΓΩΝΙΑΚΟΙ ΤΡΟΧΙΣΤΕΣ

DWE4557, DWE4559, DWE4579

Συγχαρητήρια!

DWE4557, DWE4559, DWE4579

Illustration of wood logs and a wooden log with gear-like patterns (no text or symbols)

Belgique et Luxembourg België en Luxemburg	DeWALT - Belgium BVBAEgide Walschaertsstraat 162800 Mechelen	Tel: NL 32 15 47 37 63Tel: FR 32 15 47 37 64Fax: [phone]	[e-mail]
Danmark	D:LWALT (Stanley Black&Decker AS)Roskildevej 222620 Albertslund	Tel: [phone]Fax: [phone]	[e-mail]
Deutschland DLWALT	Richard-Klinger-Sur. 1165510 Idstein	Tel: [phone]Fax: [phone]	[e-mail]
Ελλάς	DEWALT (Ελλάς) A.E.ΕΔΡΑ-ΓΡΑΟΕΙΑ : Στράβωνος 7& A. Βουλαγμένης Γιαράδα 166 74, ΑθήγαSERVICE : Ημερος Τόνος 2 (Χών Αδάμ) – 193 00 Ασιπρόπυργος	TnL: 00302108981616ΦaC: 00302108983570	[e-mail]
España	D:LWALT Ibérica, S.C.A.Parc de Negocios "Mlas Blau"Edificio Muntadas, c/Bergadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)	Tel: [phone]Fax: [phone]	[e-mail]
France	DLWALT (Stanley Black & Decker France SAS)62 Chemin de la Bruyère69570 Dardilly, France	Tel: [phone]Fax: [phone]	[e-mail]
SchweizSuisseSvizzera	DLWALTIn der Luberzen 428902 Urdorf	Tel: [phone]Fax: [phone]	[e-mail]
Ireland DFWALT	Building 4500, Kinsale RoadCork Airport Business ParkCork, Ireland	Tel: [phone]Fax: [phone]	[e-mail]
Italia DEWALT	via Energypark 620871 Vimercate (AlB), IT	Tel: [phone]Fax: [phone]	www.dewalt.it
Nederlands DFWALT	Netherlands BV Postbus 83,6120 AB BORN	Tel: [phone]Fax: [phone]	www.dewalt.nl
Norge DFWALT	Postbaks 46130405 Oslo, Norge	Tel: [phone]Fax: [phone]	[e-mail]
Österreich DLWALT	Werkzeug Vertriebsges m.b.HOberlaerstrasse 248, A–1230 Wien	Tel: [phone]Fax: [phone]	[e-mail]
Portugal	DEWALTEd. D Dinis, Quina da FonteRua dos Malhoos 2. 2A 2o Esq.Oeiras e S. Juliao da Barra, pago de Arcos e Caxias2770 071 Paço de Arcos	Tel: [phone]Fax: [phone]	[e-mail]
Suomi	DEWALTPL4700521 Helsinki, Suomi	Puh: 010 400 4333Faksi: 0800 411 340	[e-mail]
Sverige	DLWALTBOX 9443122 MölindalSverige	Tel: [phone]Fax: [phone]	[e-mail]
Türkiye	DCWALT Turkey Alet Üretim Tic. Ltd.Şti.İçerenköy Mahallesi Umut Sokak No: 10–12 / 82–83–84 Kat: 19Ataşehir-Istanbul, Türkiye	Tel: [phone]Faks: [phone]	[e-mail]
United Kingdom	DLWALT, 270 Bath Road;Slough, Berks SL1 4DX	Tel: [phone]Fax: [phone]	[e-mail]
Australia / New Zealand	DLWALT810 Whitehorse Road Box HillVIC 3128 Australia	Tel: Aust 1800 654 155Tel: NZ 0800 339 258	www.dewalt.com.auwww.dewalt.co.nz
Middle East Africa	DLWALTP.O. Box – 17164,Jebel Ali Free Zone (South), Dubai, UAE	Tel: [phone]Fax: [phone]	[e-mail]
