USER MANUAL Intimidator Spot 375ZX Chauvet
About This Guide
The Intimidator Spot 375ZX Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- ONLY connect this product to a grounded and protected circuit.
- DISCONNECT from power before cleaning or replacing the fuse.
- DO NOT look at the light source when the product is on.
- Make sure the power cord is not crimped or damaged.
- Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, ALWAYS use a safety cable.
- DO NOT allow flammable materials close to the product when it is operating.
- DO NOT touch the product's housing when it is on because it will be hot.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 26 ft (7.9 m) is not expected.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- The luminaire is intended for professional use only.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces. - Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with the same type and rating.
- Never carry the product by the power cord. Use only the handle to carry this product.
- The maximum ambient temperature is 104^ (40 °C). Do not operate this product at higher temperatures.
- In the event of a serious operating problem, stop using immediately.
- DO NOT open this product. It contains no user-serviceable parts.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Contact
Outside the U.S., U.K., Ireland, Germany, France, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information.
What is Included
- Intimidator Spot 375ZX
• P o w e r c o r d
- Hanging bracket
- Quick Reference Guide


To Begin
Unpack your Intimidator Spot 375ZX and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Power Linking
It is possible to link up to 4 Intimidator Spot 375ZX products at 120 V or 8 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.
Fuse Replacement
- Disconnect the product from power.
- Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
- Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes.

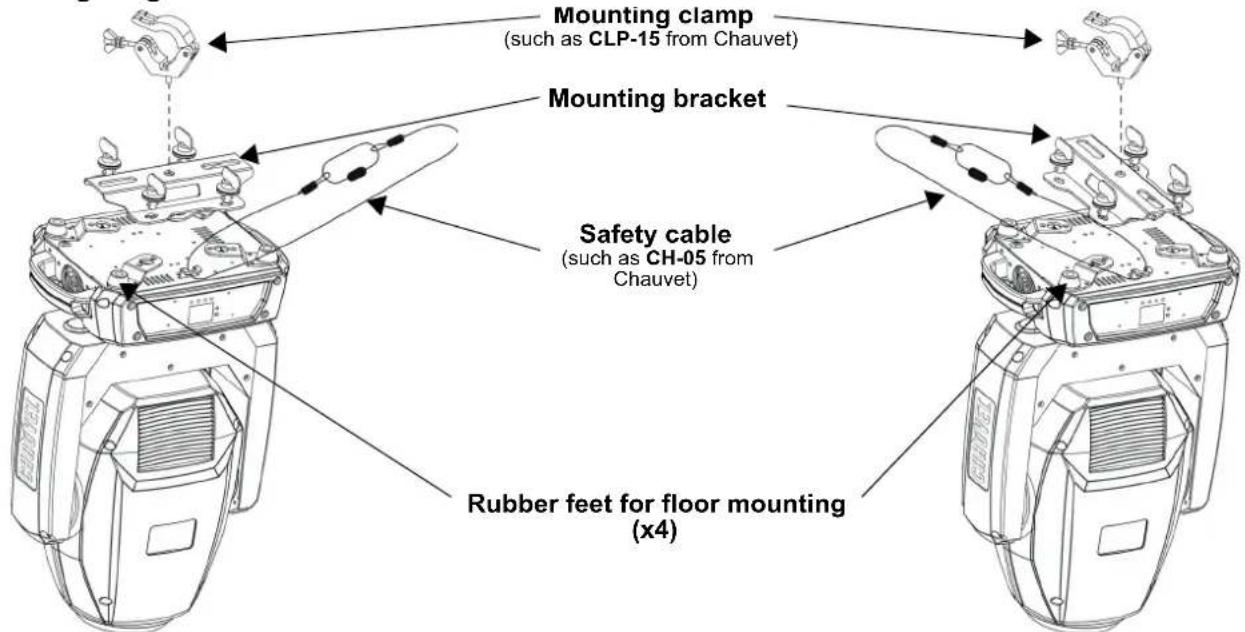

Mounting Diagram
| Button Function | |
| Exits from the current menu or function | |
| Navigates upwards through the menu list and increases the numeric value when in a function | |
| Navigates downwards through the menu list and decreases the numeric value when in a function | |
| Enables the currently displayed menu or sets the currently selected value into the selected function | |
Menu Map
Refer to the Intimidator Spot 375ZX product page on www.chauvetdj.com for the latest menu map.
| Main Level Programming Levels Description | ||||
| Address 001-512 Sets the DMX starting address | ||||
| Run Mode | DMX | 15CH | Selects DMX mode | |
| 9CH | ||||
| Slave Slave1-4 Selects Slave mode 1, 2, 3, or 4 | ||||
| Auto Selects Auto mode | ||||
| Sound Selects Sound-Active mode | ||||
| RF | RF 1-4 | Sets the product to work with the RFC-XL remote in group 1, 2, 3, or 4 (RF remote must be bound to the product first) | ||
| RFP Sets the product to work with public RF signal | ||||
| Manual | Pan | 270° | 0 to 540° | |
| Tilt 0 to | ||||
| Color Selects color options | ||||
| Gobo Selects gobo options | ||||
| Gobo Rotate | 000-255 | Rotates gobo | ||
| Prism Selects prism and rotation effect | ||||
| Focus Manual focus control | ||||
| Zoom Manual zoom control | ||||
| Dimmer | Sets dimmer value | |||
| Shutter | Sets shutter value and strobe effect | |||
| Setup | Pan Reverse | OFF | Normal pan operation | |
| ON | Reverse pan operation | |||
| Tilt Reverse | OFF | Normal tilt operation | ||
| ON | Reverse tilt operation | |||
| Screen Reverse | OFF | Normal display | ||
| ON | Reverse display | |||
| Pan Angle | 540 | Selects the 540° pan angle range | ||
| 360 | Selects the 360° pan angle range | |||
| 180 | Selects the 180° pan angle range | |||
| Tilt Angle | 270 | Selects the 270° tilt angle range | ||
| 180 | Selects the 180° tilt angle range | |||
| 90 | Selects the 90° tilt angle range | |||
| Totem Mode | OFF | Does not restrict the pan and tilt motion | ||
| UP | Restricts the pan and tilt motion for overhead mounting | |||
| DOWN | Restricts the pan and tilt motion for surface/floor mounting | |||
| Sensitivity | 001-100 | Sets sound sensitivity | ||
| DMX Loss | Hold | Holds the last setting when signal is lost | ||
| Black | Blacks out the product | |||
| Auto | Sets the unit to Auto mode when signal is lost | |||
| Sound | Sets the unit to Sound mode when signal is lost | |||
| Indicator | ON | Enables LED indicator | ||
| OFF | Disables LED indicator | |||
| Flash if DMX | ON | Sets whether the LED indicator flashes when the fixture is connected to or disconnected from the DMX | ||
| OFF | ||||
| RF | Bind | Shows instructions on how to bind the RF remote to the product | ||
| Factory Set | Loads factory defaults | |||
| Sys Info | Ver: | V_ | Displays the software version | |
| Running Mode | ---- | Displays the current running mode | ||
| DMX Address | --- | Displays the current DMX address | ||
| Temperature | --- | Displays the current product temperature | ||
DMX Linking
The Intimidator Spot 375ZX can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 498.
Master/Slave Connection
The Intimidator Spot 375ZX uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Spot 375ZX for Master/Slave operation is in the User Manual, which is available from the Chauvet website.
RF Remote
The Intimidator Spot 375ZX can be operated with the CHAUVET RFC or RFC-XL remotes. For more information about the RF Remote, download instructions for the Intimidator Spot 375ZX User Manual from www.chauvetdj.com.
Gobos

1

2

3

4

5

6

7
DMX Values
| 9Ch | 15Ch | Function | Value | Percent/Setting |
| 1 1 Pan 000 | 255 0–540° | |||
| – 2 Pan fine 000 | 255 Fine control of panning | |||
| 2 3 Tilt 000 | 255 0–270° | |||
| – 4 Tilt fine 000 | 255 Fine control of tilting | |||
| – 5 Pan/Tilt speed 000 | 255 Pan/Tilt speed, fast to slow | |||
| 3 | 6 | Color wheel | 000 007 White | |
| 008 015 Red | ||||
| 016 023 Yellow | ||||
| 024 031 Green | ||||
| 032 039 Blue | ||||
| 040 047 CTO | ||||
| 048 055 Cyan | ||||
| 056 063 Magenta | ||||
| 064 | White | |||
| 065 189 Color indexing | ||||
| 190 221 Color cycling rainbow, fast to slow | ||||
| 222 223 Stop | ||||
| 224 255 Reverse color cycling rainbow, slow to fast | ||||
| 4 | 7 | Gobo wheel(seeGobos) | 000 007 Open | |
| 008 015 Gobo 1 | ||||
| 016 023 Gobo 2 | ||||
| 024 031 Gobo 3 | ||||
| 032 039 Gobo 4 | ||||
| 040 047 Gobo 5 | ||||
| 048 055 Gobo 6 | ||||
| 056 063 Gobo 7 | ||||
| 064 071 Gobo 7 shake, slow to fast | ||||
| 072 079 Gobo 6 shake, slow to fast | ||||
| 080 087 Gobo 5 shake, slow to fast | ||||
| 088 095 Gobo 4 shake, slow to fast | ||||
| 096 103 Gobo 3 shake, slow to fast | ||||
| 104 111 Gobo 2 shake, slow to fast | ||||
| 112 119 Gobo 1 shake, slow to fast | ||||
| 120 127 Open | ||||
| 128 189 Cycle effect, slow to fast | ||||
| 190 193 Stop | ||||
| 194 255 Reverse cycle effect, slow to fast | ||||
| 5 8 Gobo rotation | 000 | No function | ||
| 001 063 Gobo indexing | ||||
| 064 145 Rotation, slow to fast | ||||
| 146 149 Stop | ||||
| 150 231 Reverse rotation, slow to fast | ||||
| 232 255 Bounce, slow to fast | ||||
| 6 | 9 | Prism | 000 003 No function | |
| 004 006 6-facet prism | ||||
| 007 065 6-facet prism rotation, slow to fast | ||||
| 066 123 6-facet prism reverse rotation, slow to fast | ||||
| 124 127 6-facet prism | ||||
| 128 131 No function | ||||
| 132 134 5-facet prism | ||||
| 135 193 5-facet prism rotation, slow to fast | ||||
| 194 251 5-facet prism reverse rotation, slow to fast | ||||
| 252 255 5-facet prism | ||||
| 7 10 | Focus 000 | ⇔ 255 Focus | ||
| - 11 | Dimmer 000 | ⇔ 255 0–100% | ||
| 8 12 | Shutter | 000 ⇔ 003 Closed | ||
| 004 ⇔ 007 Open | ||||
| 008 ⇔ 076 Strobe, slow to fast | ||||
| 077 ⇔ 145 Pulse strobe, slow to fast | ||||
| 146 ⇔ 215 Random strobe, slow to fast | ||||
| 216 ⇔ 255 Open | ||||
| - 13 | Function | 000 ⇔ 007 No function | ||
| 008 ⇔ 015 Blackout on pan/tilt movement | ||||
| 016 ⇔ 023 Blackout on color wheel movement | ||||
| 024 ⇔ 031 Blackout on gobo wheel movement | ||||
| 032 ⇔ 039 Blackout on pan/tilt/color wheel movement | ||||
| 040 ⇔ 047 Blackout on pan/tilt/gobo wheel movement | ||||
| 048 ⇔ 055 Blackout on pan/tilt/color wheel/gobo wheel movement | ||||
| 056 ⇔ 095 No function | ||||
| 096 ⇔ 103 Pan reset | ||||
| 104 ⇔ 111 Tilt reset | ||||
| 112 ⇔ 119 Color wheel reset | ||||
| 120 ⇔ 127 Gobo wheel reset | ||||
| 128 ⇔ 135 No function | ||||
| 136 ⇔ 143 Prism reset | ||||
| 144 ⇔ 151 Focus and zoom reset | ||||
| 152 ⇔ 159 All reset | ||||
| 160 ⇔ 255 No function | ||||
| - 14 | Movement macros | 000 ⇔ 007 No function | ||
| 008 ⇔ 023 Movement macro 1 | ||||
| 024 ⇔ 039 Movement macro 2 | ||||
| 040 ⇔ 055 Movement macro 3 | ||||
| 056 ⇔ 071 Movement macro 4 | ||||
| 072 ⇔ 087 Movement macro 5 | ||||
| 088 ⇔ 103 Movement macro 6 | ||||
| 104 ⇔ 119 Movement macro 7 | ||||
| 120 ⇔ 135 Movement macro 8 | ||||
| 136 ⇔ 151 Sound-active movement macro 1 | ||||
| 152 ⇔ 167 Sound-active movement macro 2 | ||||
| 168 ⇔ 183 Sound-active movement macro 3 | ||||
| 184 ⇔ 199 Sound-active movement macro 4 | ||||
| 200 ⇔ 215 Sound-active movement macro 5 | ||||
| 216 ⇔ 231 Sound-active movement macro 6 | ||||
| 232 ⇔ 247 Sound-active movement macro 7 | ||||
| 248 ⇔ 255 Sound-active movement macro 8 | ||||
| 9 15 | Zoom 000 | ⇔ 255 Zoom out to zoom in | ||
Acerca de esta guía
Master/Slave verbinding
Intentionally Left Blank Page
Contact Us
General Information Technical Support
World Headquarters
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetdj.com
U.K.
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetdj.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Benelux
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: +32 9 388 93 97
France
Address: 3, Rue Ampère Email: FRtech@chauvetlighting.fr
91380 Chilly-Mazarin
France Website: www.chauvetdj.eu
Voice: +33 1 78 85 33 59
Germany
Address: Bruno-Bürgel-Str. 11 Email: DEtech@chauvetlighting.de
28759 Bremen
Germany Website: www.chauvetdj.eu
Voice: +49 421 62 60 20
Mexico
(Entrance by Calle 2)
Zona Industrial Lerma Website: www.chauvetdj.mx
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux or Mexico, contact the dealer of record.
Intimidator Spot 375ZX QRG ML6 Rev. 1
© Copyright 2022 Chauvet
All rights reserved

®
us
UL 1573
CSA C22.2 No. 166
E113093



RoHS
