USER MANUAL HADG9CBS4BWIFI HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

ELECTRICAL INSTALLATION 05

SPECIFICATION 06

INSTALLATION (VENT OUTSIDE) 07

INSTALLATION (VENT INSIDE) 16

DESCRIPTION OF COMPONENTS 17

OPERATION 17

MAINTENANCE 20

TROBULESHOOTING 21

CONFORMITY WITH DIRECTIVES 22

ENVIRONMENTAL PROTECTION 22

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker. Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
☐ Regulations concerning the discharge of air have to be fulfilled.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambé under the range hood.
• he range hood is not intended to be installed over a hob having more than four hob elements
• These shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);
• the details concerning the method and frequency of cleaning.
• there is a fire risk if cleaning is not carried out in accordance with the instructions;
• do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

☐ Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

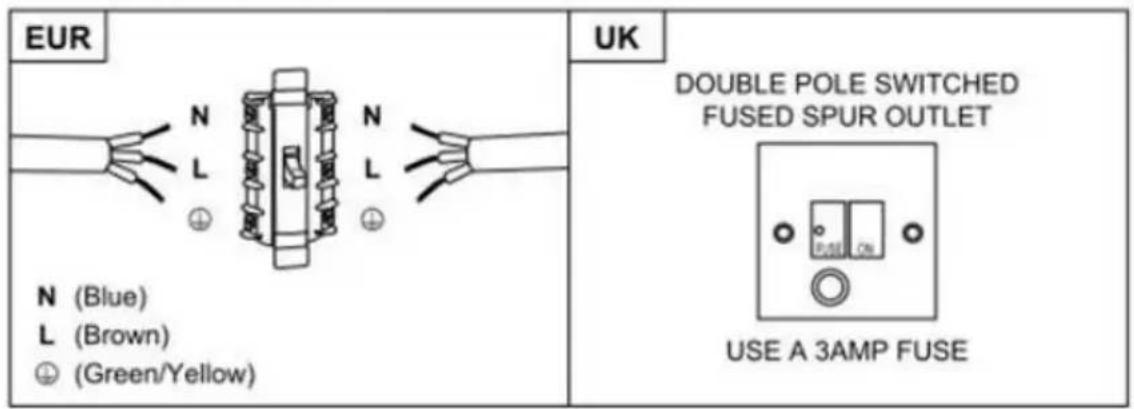

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed. This appliance is supplied with a 3 core mains cable coloured as follows:

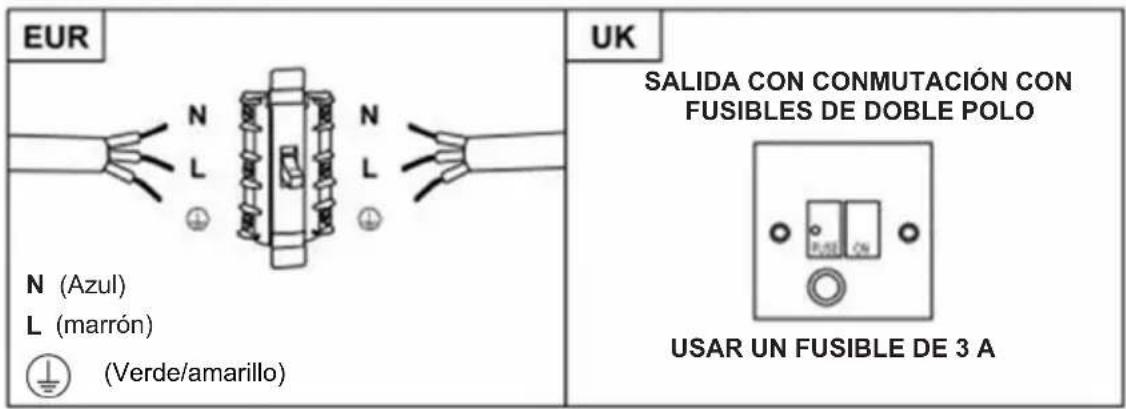

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

EUR N (Blue) L (Brown) (Green/Yellow) UK DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3AMP FUSE

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Hood body 1
Lower chimney (500mm)		1
Upper chimney (500mm)		1
Upper chimney bracket		1
Lower chimney bracket		1
Cooker hood bracket		1
φ8 rawl plugs φ8×φ6 white color		9
Screw (ST4 * 30 mm)		9
Screw (ST4 * 8 mm)		6
Air outlet		1
Carbon filter		2

INSTALLATION (wall mounting)

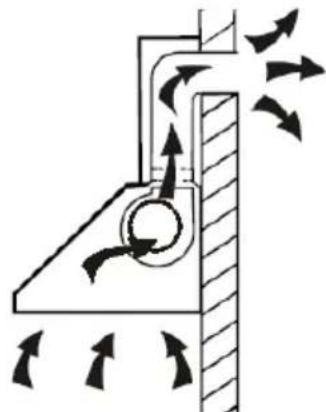

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a power outlet switch with a cable, no text or symbols visible

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

INSTALLING THE HOOD

Position the hood at the desired height respecting the minimum height above the hob.

Mark the location of the wall bracket.(Placed the holes between 700 and 800 mm above the worktop) Remove the hood and position the wall bracket to mark the locations of the holes on the wall.

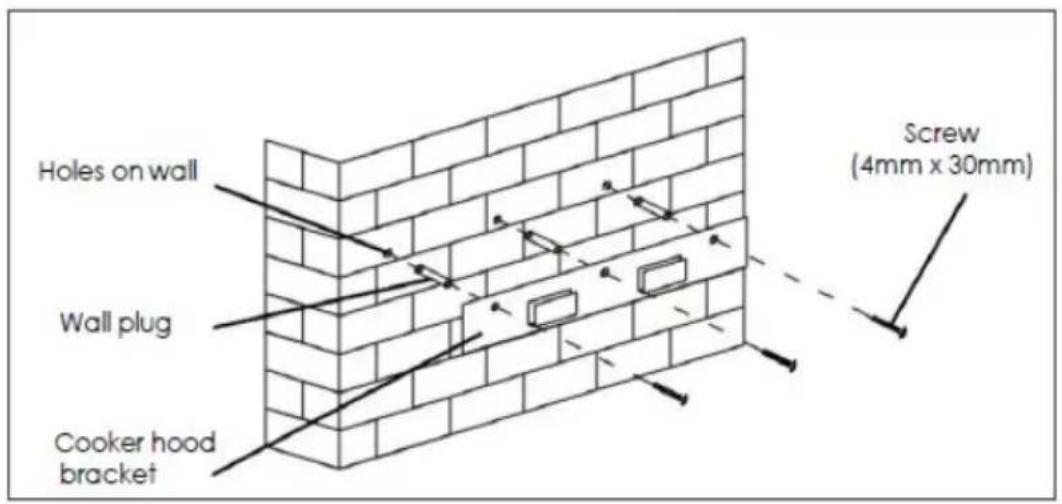

Drill the 3 holes in the wall to insert the appropriate fastening system (screw ST4x30mm)..

Holes on wall Wall plug Cooker hood bracket Screw (4mm x 30mm)

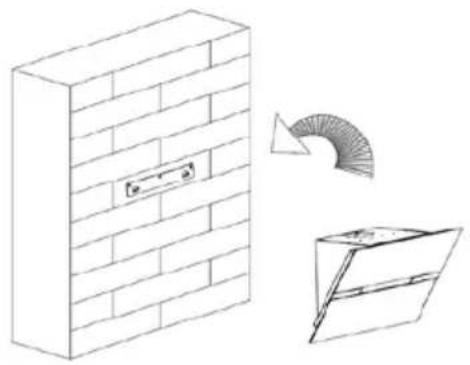

Hang the hood in the notches of the wall bracket.

Diagram showing a brick wall with a switch and a separate 3D schematic of a door mechanism (no text or symbols)

INSTALLING THE HOOD

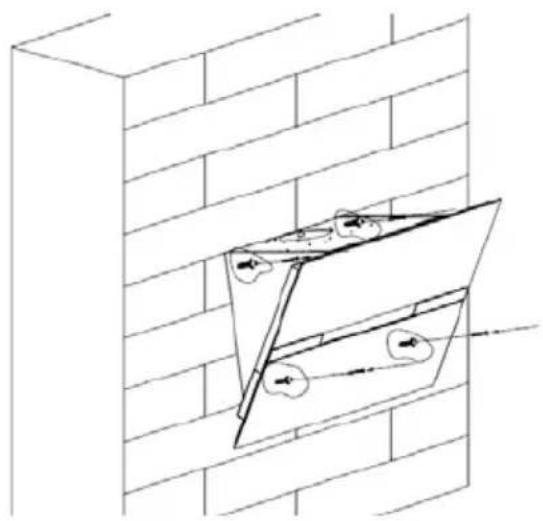

Once the hood is in place, locate the location of the 4 additional wall mount screws as shown in the following diagram.

Remove the hood to puncture the wall and install wall plugs.

Secure the body of the hood with 4 screws of 4 mm in diameter using dowels adapted to your wall.

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

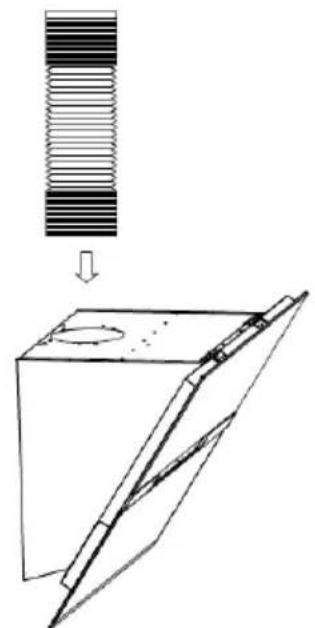

If the extraction mode is selected, place the exhaust air duct on the air outlet as shown.

Technical diagram showing a mechanical component with a spring-loaded assembly and its cross-section view (no text or labels)

INSTALLING THE HOOD

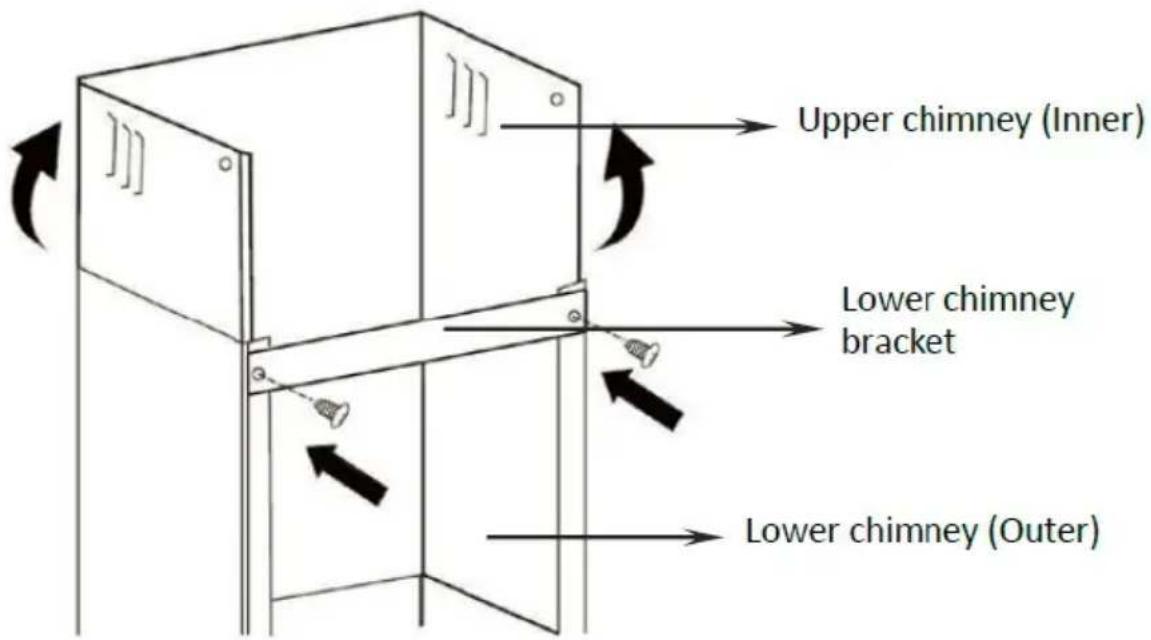

Attach the lower chimney support to the lower chimney as shown.

Use 2 screws ST4x8mm.

(Do not over tighten the screws, make sure the upper chimney can slide easily into the lower chimney)

Insert the upper chimney into the lower chimney.

Upper chimney (Inner) Lower chimney bracket Lower chimney (Outer)

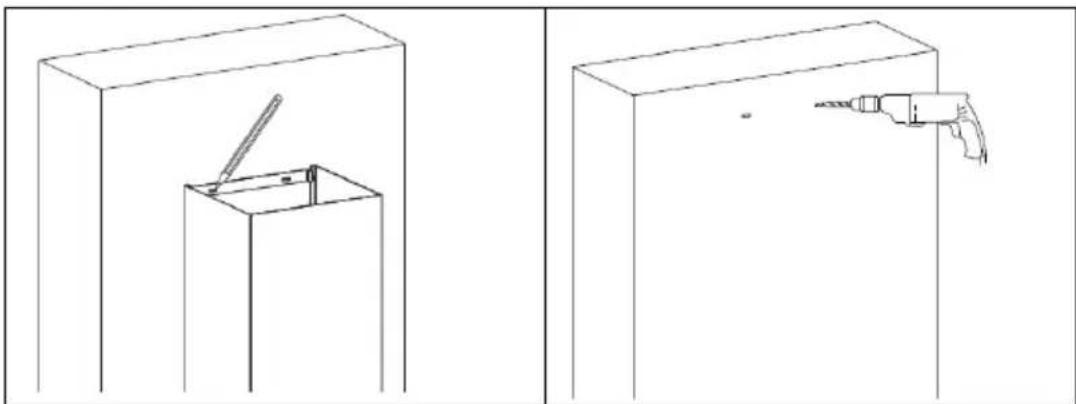

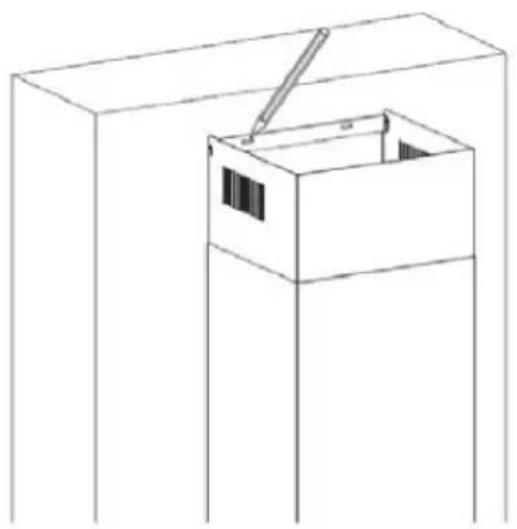

Position the bottom chimney in the appliance, then mark the holes on the wall.

Two technical line drawings showing a tool inside a box and a drill bit in a container (no text or symbols)

Remove the lower chimney, then drill holes in the wall: hole for screw diameter 8 mm

Use the dowels adapted to your wall

INSTALLING THE HOOD

Install the lower chimney, then screw it to the wall with 2 screws of diameter 8 mm

Pure technical line drawing of a 3D rectangular block with internal cutout and dimension annotations (no text or symbols)

Line drawing of a box with a handle and internal compartments, no text or symbols present

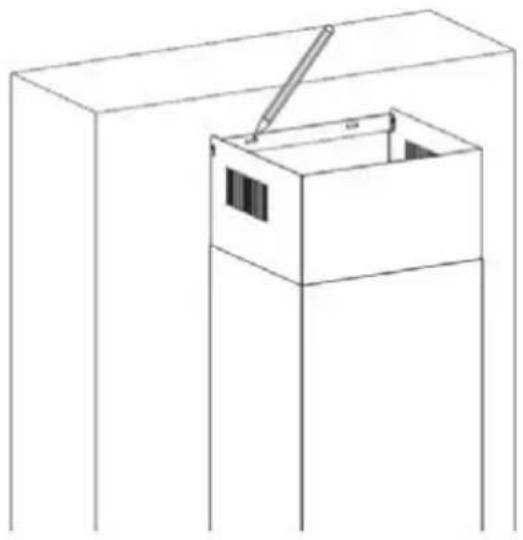

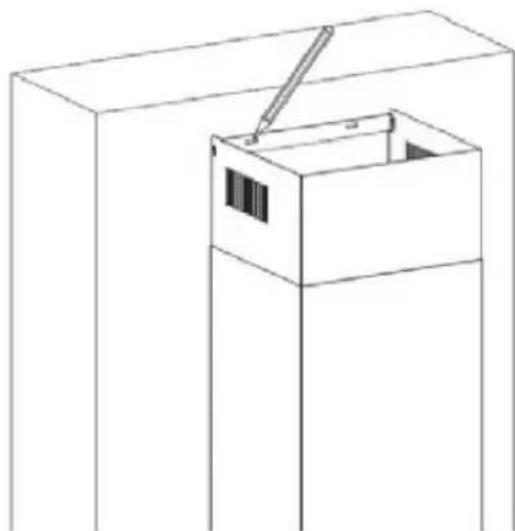

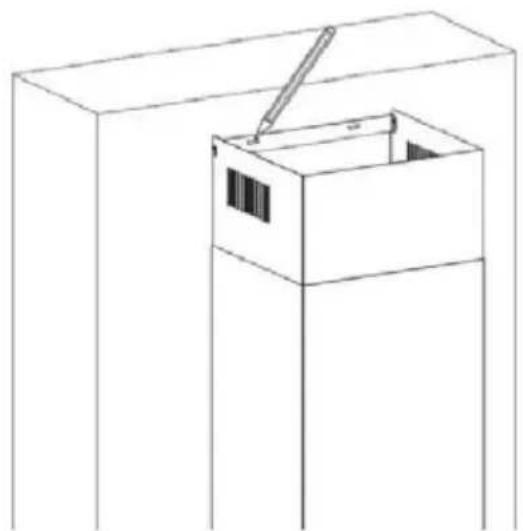

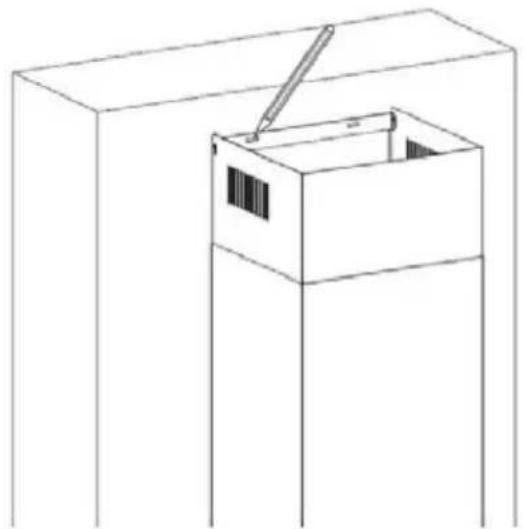

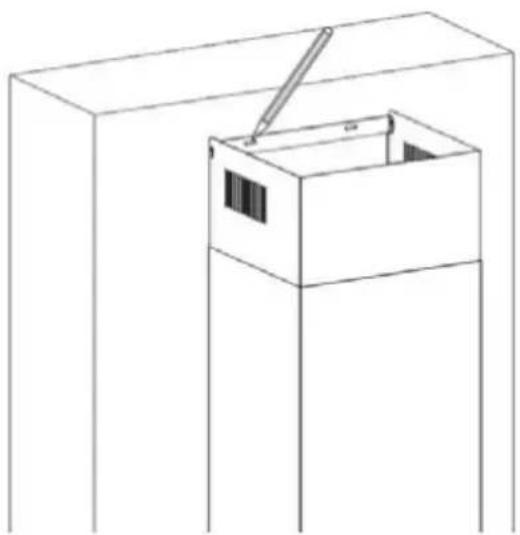

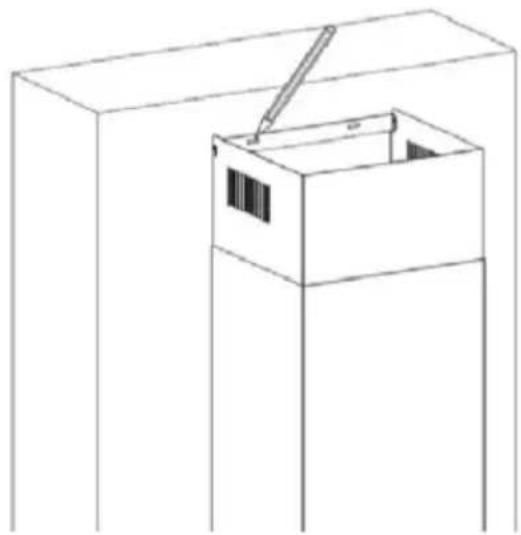

Then pull the upper chimney upwards to the desired height. Mark the locations of the mounting holes of the upper chimney support.

Lower the upper chimney and then drill holes in the wall.

Insert the dowels adapted to your wall

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

INSTALLING THE HOOD

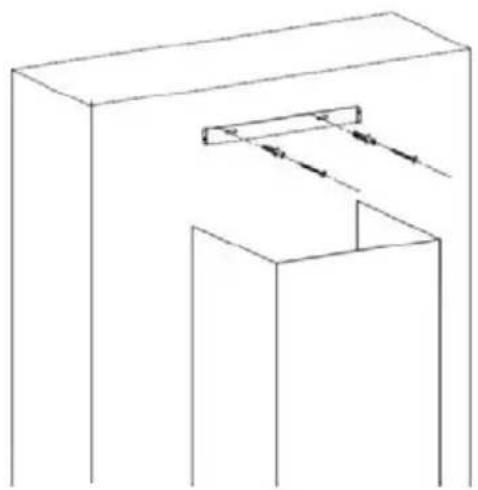

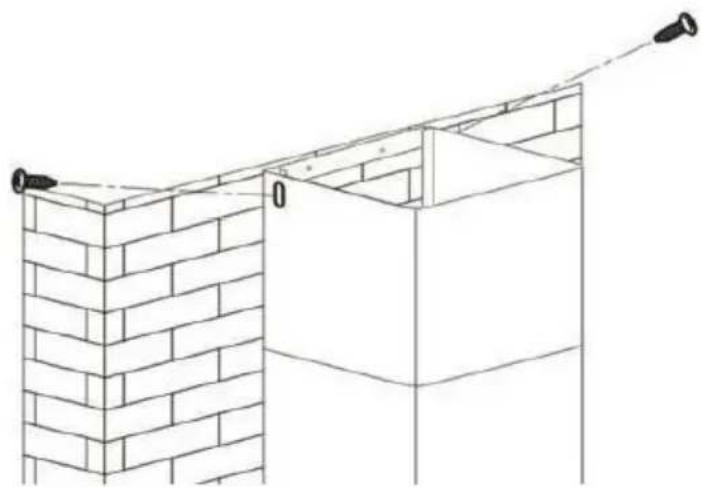

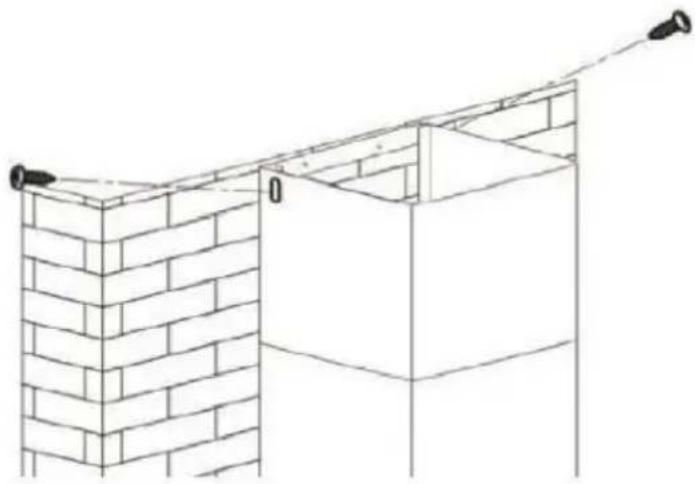

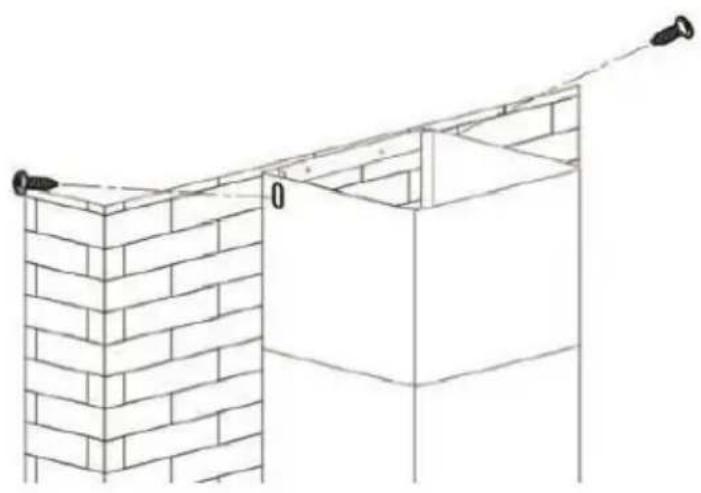

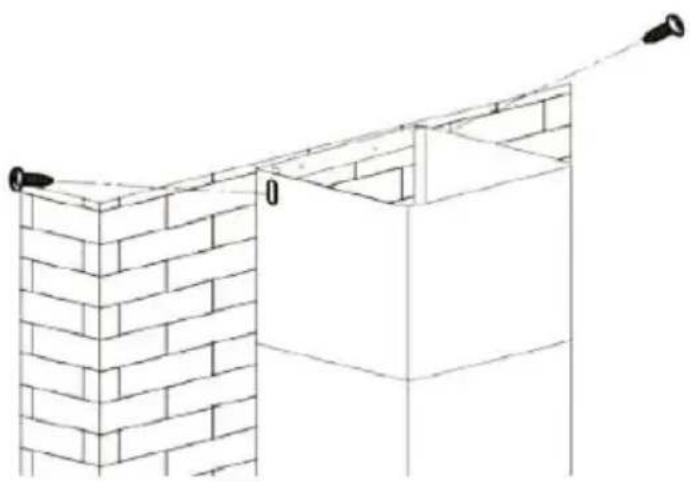

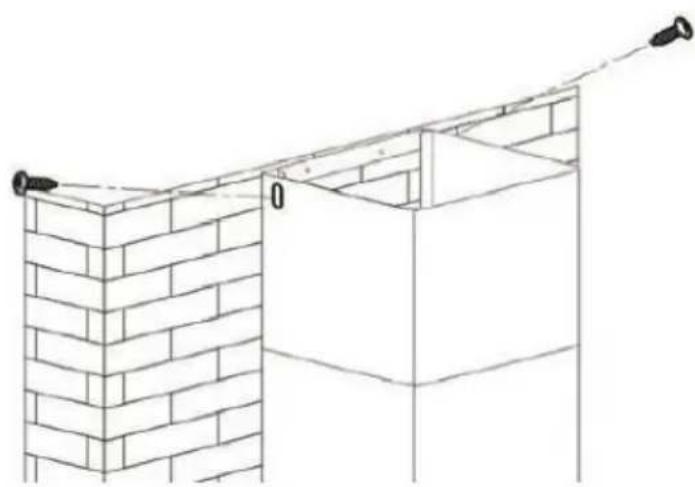

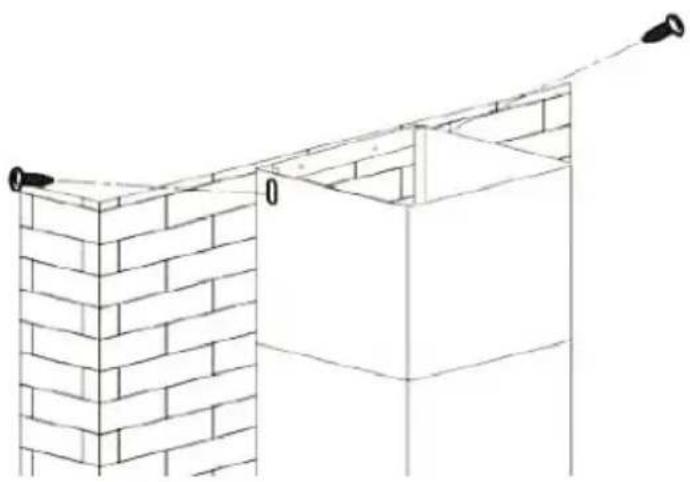

Secure the wall bracket of the upper chimney to the wall using the selected dowels (8 mm screws recommended).

Pure 3D diagram of a rectangular block with internal arrows indicating direction, no text or symbols present

Line drawing of a brick wall structure with two hanging sensors and a vertical panel, no text or symbols present

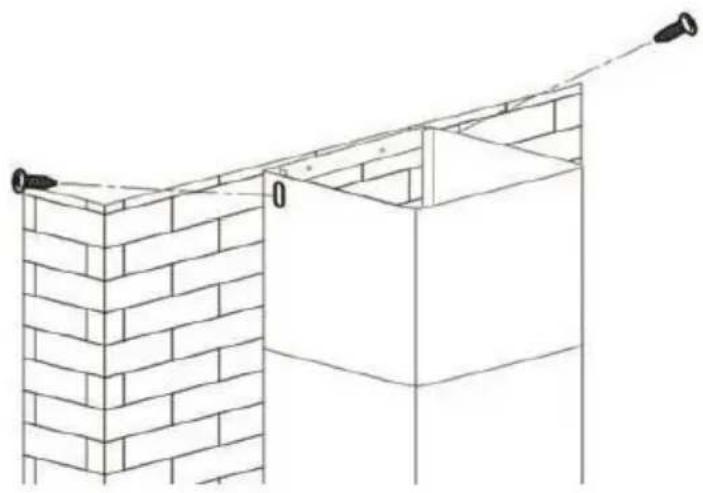

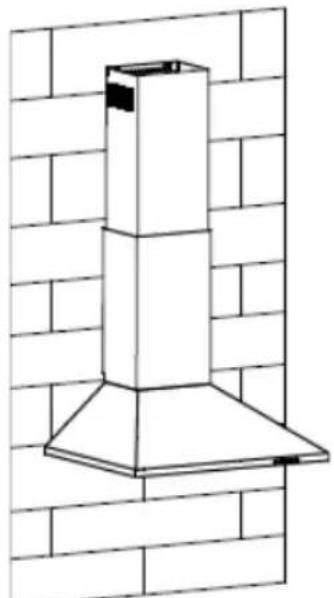

Reassemble the upper chimney and fix it to the wall bracket with 2 screws ST4x8mm

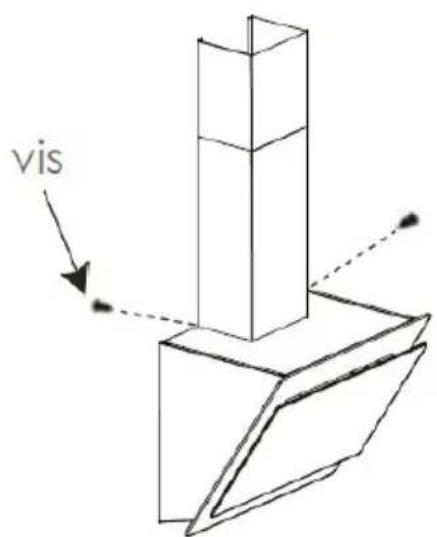

Fasten the lower chimney to the lugs of the kitchen hood using 2 screws ST4x8mm.

vis

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Air Deflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

INSTALLATION(AIR DEFLECTOR FOR T-SHAPE,CURVED GLASS,FLAT GLASS MODELS):

Air deflector is mentioned as included and not optional.

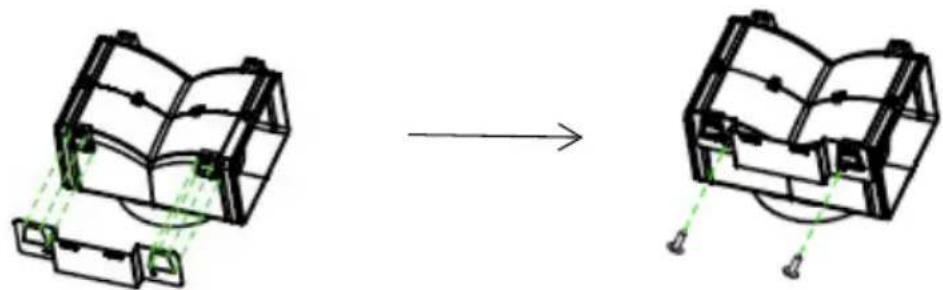

1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided as shown below:

Diagram showing a device being processed from a component, with no visible text or symbols.

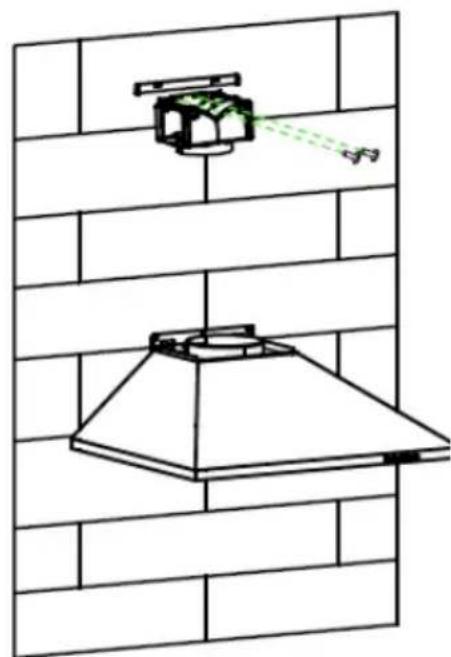

1. Drill 2 holes on the wall to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

Diagram of a chimney structure with a mounted device and a conical chimney, set against a brick wall (no text or symbols)

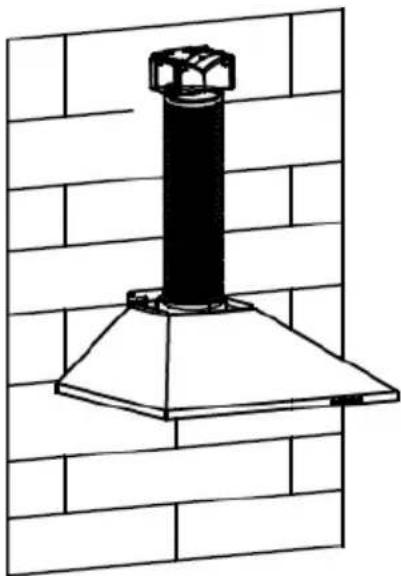

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

Line drawing of a black metal chimney mounted on a white brick wall (no text or symbols)

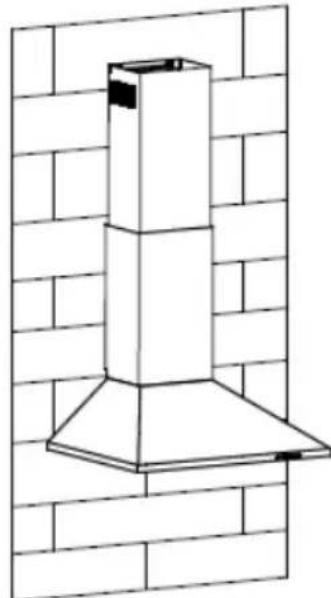

1. Install the chimney to the unit and fix it.

Line drawing of a chimney mounted on a brick wall (no text or symbols)

o “Please kindly be noted: T-shaped plastic outlet and v-flaps can not be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic outlet, no add v-flap.”

o “Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.”

INSTALLATION (VENT INSIDE)

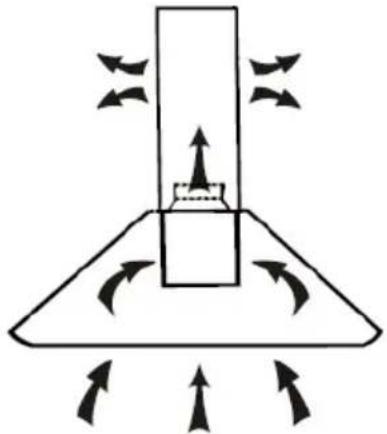

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowered

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

1

2

3

B

B^+

OPERATION

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmeing and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Boost 1(speed 4)

Press speed b button 1, the backlit of speed B button is on, and the cooker hood is working at boost mode;

B ^+ Boost 2(speed 5)

Press speed b button 2, the backlit of speed B+ button is on, and the cooker hood is working at boost mode;

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

CONFIGURATION 2

1

2

3

B

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, Press B to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Light Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

QR code image containing encoded data, no visible human-readable text

NOTE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

Exterior view of a modern office building (no signage)

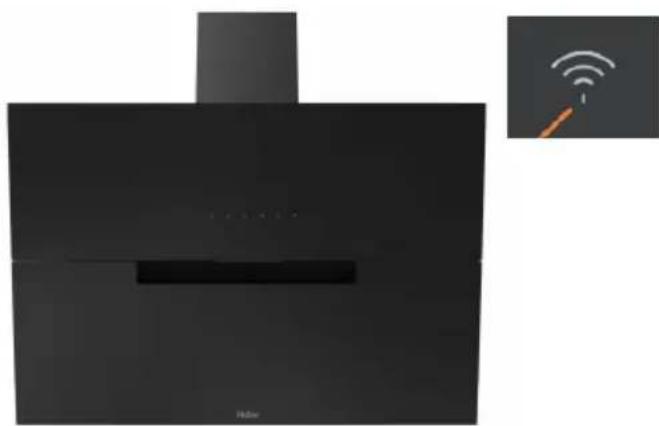

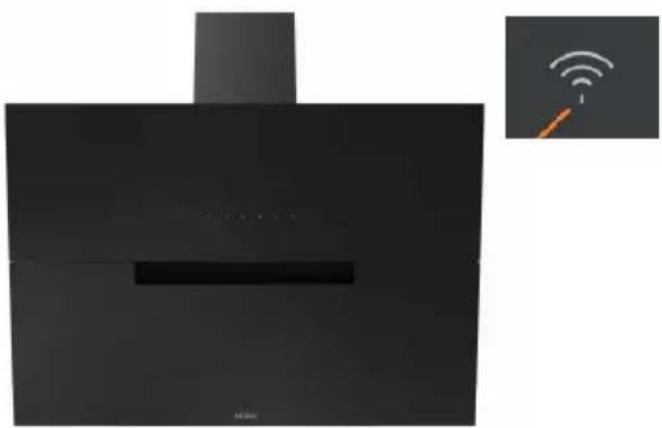

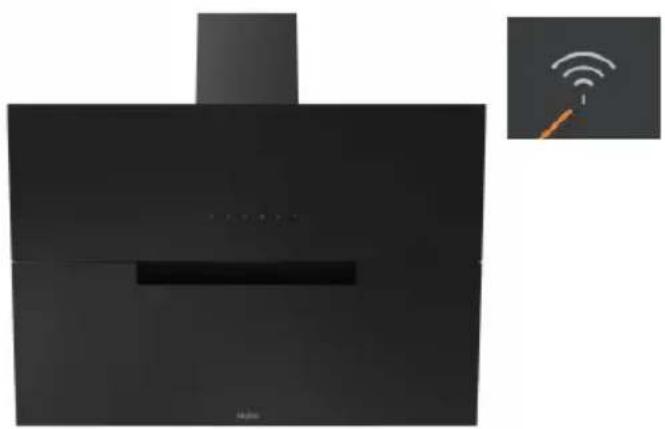

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2 W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a power outlet plug with a cable, no text or symbols visible

Diagram showing a brick wall with a door and a separate 3D box with a curved arrow (no text or symbols)

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Technical diagram showing a threaded component being inserted into a 3D mechanical part, with no visible text or symbols.

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Simple line drawing of a rectangular box with a smaller 3D cube below showing internal arrows (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

Simple line drawing of a rectangular box with a horizontal arrow inside, no text or symbols present

Isometric line drawing of a brick wall with two hanging sensors and a support structure (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a ceiling-mounted device mounted on a brick wall, with no visible text or symbols.

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Hand holding a rectangular object with an arrow pointing downward, next to a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Chiuso

NOTA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRAZIONE CAPPA HAIER

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a power outlet plug with a cable, no text or symbols visible

Diagram showing a brick wall with a window and a separate 3D box diagram with a curved arrow (no text or symbols)

INSTALLATION DE LA HOTTE

Technical line drawing of a window frame mounted on a brick wall, showing structural components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a spring and a cross-section view (no text or symbols)

INSTALLATION DE LA HOTTE

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Simple line drawing of a rectangular box with a smaller 3D cube below showing internal arrows (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

INSTALLATION DE LA HOTTE

Simple line drawing of a rectangular box with a horizontal arrow inside, no text or symbols present

Line drawing of a brick wall structure with two hanging sensors and a vertical support (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a ceiling-mounted device mounted on a platform against a brick wall (no text or symbols)

Line drawing of a black smokestack mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Hand holding a rectangular object with an arrow pointing downward, next to a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Fermé

REMARQUE :

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

REMARQUE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ENREGISTREMENT HOTTE HAIER

Black rectangular device with a vertical stack and a small inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Pure electrical circuit lines without any symbols

FR Open Book

Azul = N (Neutral) o NEUTRAL

Verde y amarillo = E (Earth) o TIERRA

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet socket (no text or symbols visible)

Diagram showing a brick wall with a window and a separate 3D box diagram with a curved arrow (no text or symbols)

Technical line drawing of a wall corner with structural components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with a threaded spring and a cross-sectional view (no text or symbols)

Two technical line drawings showing a tool interacting with a box and a drill bit (no text or symbols present)

Simple line drawing of a rectangular box with a smaller 3D cube below showing internal arrows (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

Pure technical line drawing of a 3D rectangular block with internal structure and directional arrows, no text or symbols present.

Line drawing of a brick wall structure with two hanging sensors and a support frame (no text or symbols)

Diagram showing a device transformation from an open box to a closed box, with no text or symbols present.

Technical line drawing of a roof structure with a mounted component and a conical chimney, set against a brick wall (no text or symbols)

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a slanted object (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Cierre

NOTA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRO DE UNA CAMPANA HAIER

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

ELEKTRICKÁ INSTALACE....89

INSTALACE (MONTÁŽ NA ZEĎ) 91

INSTALACE ODSAVAČE 92

SEZNAM STANDARDNÍHO INSTALAČNÍHO PŘÍSLUŠENSTVÍ...... 97

INSTALACE (DEFLEKTOR VZDUCHU PRO TVAR T,

ZAKŘIVENĚ SKLO, MODELY S PLOCHÝM SKLEM)......98

INSTALACE (ODVĚTRÁVÁNÍ DOVNITŘ) 100

POPIS SOUČÁSTÍ....101

ÚDRŽBA 104

ŘEŠENÍ PROBLÉMŮ 105

ZÁKAZNICKÁ ASISTENČNÍ SLUŽBA.... 106

ÚVOD

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a door and a folded paper panel, alongside an angle symbol (no text or labels)

INSTALACE ODSAVAČE

Technical line drawing of a window frame mounted on a brick wall, showing structural components and directional arrows (no text or symbols)

Technical diagram showing a threaded bolt and its cross-section view (no text or labels)

INSTALACE ODSAVAČE

Two technical line drawings showing a mechanical component being inserted into a box and then being inserted into a tool (no text or symbols present)

Simple line drawing of a rectangular box with a smaller 3D cube below showing internal arrows (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

Simple line drawing of a rectangular box with a horizontal arrow inside, no text or symbols present

Line drawing of a brick wall structure with two hanging sensors and a support frame (no text or symbols)

Diagram showing a device transformation from an open box to a closed box, with no text or symbols present.

Technical line drawing of a ceiling-mounted device mounted on a brick wall, with no visible text or symbols.

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Hand holding a rectangular object with an arrow pointing downward, no text or symbols present

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Zavřit

POZNÁMKA:

QR code image containing encoded data, no visible human-readable text

GET IT CN Google Play Download on the App Store

POZNÁMKA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRACE ODSAVAČE HAIER

Exterior view of a modern kitchen appliance with a chimney and ventilation slots, alongside an inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Pure electrical circuit lines without any symbols

Diagram of airflow or heat transfer through a mechanical structure with directional arrows (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a door and a separate 3D panel with a curved arrow (no text or symbols)

INŠTALÁCIA DIGESTORA

Technical line drawing of a window installation with brick walls and structural components (no text or symbols)

Technical diagram showing a mechanical component with a threaded spring and a cross-sectional view of its internal structure (no text or symbols)

INŠTALÁCIA DIGESTORA

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Simple line drawing of a rectangular box with a smaller 3D cube below showing internal arrows (no text or symbols)

Line drawing of a simple electrical cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

INŠTALÁCIA DIGESTORA

Simple line drawing of a rectangular box with a horizontal arrow inside, no text or symbols present

Isometric line drawing of a brick wall with two hanging surveillance cameras (no text or symbols)

Diagram showing a device transformation from an open box to a closed box, with no text or symbols present.

Technical line drawing of a ceiling-mounted device mounted on a brick wall, with no visible text or symbols.

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

1. Nainštaluj te komín na jednotku a upevnite ho.

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a slanted surface with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with fan-like structure and rotational arrow (no text or symbols)

POZNÁMKA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

POZNÁMKA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRÁCIA DIGESTORA HAIER

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a hanging plaque and a 3D panel with a curved arrow, alongside a separate 2D view of a folded panel (no text or symbols)

Technical line drawing of a window installation with brick walls and a panel, showing no text or symbols

Technical diagram showing a threaded component being inserted into a 3D mechanical part with a cutaway view (no text or symbols)

Two technical line drawings showing a mechanical component inside a box and a tool inserted into a housing (no text or symbols)

Pure technical line drawing of a 3D rectangular block with internal cutout and dimension arrows, no text or symbols present.

Line drawing of a box with a handle and internal compartments, no text or symbols present

Simple line drawing of a rectangular box with a tool inserted, no text or symbols present

Simple line drawing of a rectangular box with a horizontal arrow inside, no text or symbols present

Line drawing of a brick wall and adjacent structure with a vertical pipe or rod, no text or symbols present

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a ceiling-mounted spray gun mounted on a brick wall, with no text or symbols present.

Line drawing of a black metal chimney mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Diagram showing a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

FECHAR

NOTA:

QR code image containing encoded data, no visible human-readable text

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

REGISTO DO EXAUSTOR HAIER

Exterior view of a modern office building (no signage)

Pure mechanical diagram showing two downward arrows pointing to a central component, no text or symbols present

INSTALLATION (ABLUFT NACH INNEN) 163

INSTALLATION (Wandmontage)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a hanging switch and a separate 3D view of a cabinet or enclosure (no text or symbols)

MONTAGE DER DUNSTABZUGSHAUBE

Technical line drawing of a wall corner with a mounted panel and directional arrows indicating force or movement (no text or symbols)

Technical diagram showing a spring-loaded component and its cross-section view (no text or symbols)

MONTAGE DER DUNSTABZUGSHAUBE

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Simple line drawing of a rectangular box with a smaller 3D cube containing internal lines and arrows indicating direction (no text or symbols)

Line drawing of a box with a handle inserted into one corner, no text or symbols present

Simple line drawing of a rectangular box with a diagonal tool inserted, no text or symbols present

MONTAGE DER DUNSTABZUGSHAUBE

Simple line drawing of a 3D rectangular block with internal structure and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a brick wall and adjacent structure with two hanging lights (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a kitchen chimney mounted on a brick wall, with no visible text or symbols.

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

INSTALLATION (ABLUFT NACH INNEN)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Hand holding a small object over a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a curved surface (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

SCHLIESSEN

HINWEIS:

QR code image containing encoded data, no visible human-readable text

HINWEIS

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
Prepare to enter your Home Wi-Fi password.

Exterior view of a modern black appliance with a white top and control panel, alongside an inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Pure diagram of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a hanging pipe and a separate 3D view of a cabinet or enclosure (no text or symbols)

MONTAŻ OKAPU

Technical line drawing of a window installation with brick wall and structural components (no text or symbols)

Technical diagram showing a mechanical component with a spring and a cross-section view (no text or symbols)

MONTAŻ OKAPU

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Simple line drawing of a rectangular box with a smaller 3D cube containing internal lines and arrows indicating direction (no text or symbols)

Line drawing of a box with a handle inserted into one corner, no text or symbols present

Simple line drawing of a rectangular box with a diagonal tool inserted, no text or symbols present

MONTAŻ OKAPU

Simple line drawing of a 3D rectangular block with internal arrows indicating direction (no text or symbols)

Line drawing of a brick wall and adjacent structure with two hanging lights (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram of a kitchen chimney mounted on a brick wall, with no visible text or symbols

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

ZAMKNIJ

UWAGA;

QR code image containing encoded data, no visible human-readable text

UWAGA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REJESTRACJA OKAPU HAIER

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram of airflow or heat transfer through a mechanical structure with directional arrows (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Technical line drawing of a brick wall and its exterior view with a folding fan (no text or symbols)

Technical line drawing of a wall corner with a mounted panel and directional arrows indicating force or movement (no text or symbols)

Technical diagram showing a mechanical component with a spring-like structure and its cross-section view (no text or symbols)

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Pure 3D geometric diagram showing a rectangular prism with a smaller square containing internal lines and arrows, no text or symbols present.

Line drawing of a box with a handle and internal compartments, no text or symbols present

Simple line drawing of a rectangular box with a hand holding a tool, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram showing a ceiling-mounted device mounted on a brick wall, with Chinese label '内' indicating the internal component.

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

ΚΛΕΙΣΤΟ

ΣΗΜΕΙΩΣΗ:

QR code image containing encoded data, no visible human-readable text

ΣΗΜΕΙΩΣΗ

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

Exterior view of a modern black appliance with a white top and control panel, alongside an inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a hanging component and a separate 3D view of a folded panel (no text or symbols)

DAVLUMBAZIN TAKILMASI

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Diagram showing a mechanical component with a downward arrow and a separate 3D schematic view of its cross-section (no text or symbols)

DAVLUMBAZIN TAKILMASI

Two technical line drawings showing a mechanical component inside a box and a tool inserted into a housing (no text or symbols)

Simple line drawing of a rectangular box with a smaller 3D cube and internal arrows indicating direction (no text or symbols)

Line drawing of a box with a handle and internal compartments, no text or symbols present

Simple line drawing of a rectangular box with a hand holding a tool, no text or symbols present

DAVLUMBAZIN TAKILMASI

Pure technical line drawing of a 3D rectangular block with internal structure and two arrows indicating direction (no text or symbols)

Line drawing of a brick wall with a chimney and a cabinet, no text or symbols present

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram of a kitchen chimney mounted on a brick wall, with no visible text or symbols

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

KAPATIN

NOT:

QR code image containing encoded data, no visible human-readable text

NOT

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

HAIER DAVLUMBAZI KAYDEDİN

Exterior view of a modern office building (no signage)

Pure technical line drawing of a mechanical or electrical component with two downward arrows indicating force or direction (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a door and a separate 3D box with a curved arrow (no text or symbols)

INSTALAREA HOTEI

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a spring and a folded panel, no text or symbols present.

INSTALAREA HOTEI

Two technical line drawings showing a mechanical component inside a box, with one being inserted and the other holding a tool (no text or symbols present)

Pure technical line drawing of a 3D rectangular block with internal cutouts and dimension arrows (no text or symbols)

Line drawing of a cabinet with a handle and internal compartments (no text or symbols)

Line drawing of a mechanical component with a tool inserted into a rectangular block (no text or symbols)

Pure technical line drawing of a 3D rectangular block with internal channel and directional arrows, no text or symbols present

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram showing a spray gun mounted on a chimney against a brick wall, with Chinese character '内' indicating internal components.

Line drawing of a black metal chimney mounted on a white brick wall (no text or symbols)

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical electric motor with visible blades and mounting brackets (no text or symbols)

ÎNCHIDETI

NOTĂ:

QR code image containing encoded data, no visible human-readable text

NOTĂ

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ÎNREGISTRARE HOTĂ HAIER

Exterior view of a modern kitchen appliance with a mounted chimney and a close-up inset showing wireless signal icons (no text or symbols)

Pure diagram of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a power outlet plug with a cable, no text or symbols visible

Diagram showing a brick wall with a small inset image of a window and a curved arrow, alongside a 3D wireframe diagram of a cabinet or enclosure (no text or symbols)

A PÁRAELSZÍVÓ FELSZERELÉSE

Technical line drawing of a window frame installation on a brick wall, showing structural components and wiring (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

A PÁRAELSZÍVÓ FELSZERELÉSE

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Pure technical line drawing of a 3D rectangular block with internal cutout and dimension annotations (no text or symbols)

Line drawing of a box with a handle and internal compartments, no text or symbols present

Line drawing of a hand holding a tool near a rectangular box (no text or symbols)

A PÁRAELSZÍVÓ FELSZERELÉSE

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a brick wall structure with a vertical panel and two hanging sensors (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram showing a chimney with a mounted device and light path, labeled in Chinese.

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols on the diagram itself)

MEGJEGYZÉS:

QR code image containing encoded data, no visible human-readable text

MEGJEGYZÉS

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

A HAIER PÁRAELSZÍVÓ REGISZTRÁLÁSA

Exterior view of a modern office building (no signage)

Pure diagram of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a small inset image of a curved arrow and a 3D panel view (no text or symbols)

ÕHUPUHASTI PAIGALDAMINE

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a spring-like structure and a cross-section view (no text or symbols)

ÕHUPUHASTI PAIGALDAMINE

Two technical line drawings showing a tool inside a box and a hand holding a tool, both without any text or symbols.

Simple line drawing of a rectangular block with a smaller 3D cube and directional arrows indicating movement (no text or symbols)

Line drawing of a box with a pen inserted into the top box, no text or symbols present

Simple line drawing of a mechanical component with a tool inserted, no text or symbols present

ÕHUPUHASTI PAIGALDAMINE

Simple line drawing of a rectangular box with a horizontal bar and directional arrows, no text or symbols present.

Line drawing of a brick wall structure with two hanging sensors and a vertical panel (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Diagram of a kitchen chimney mounted on a brick wall, with no visible text or symbols

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

SULE

MÄRKUS.

QR code image containing encoded data, no visible human-readable text

MÄRKUS

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

HAIERI ÔHUPUHASTI REGISTREERIMINE

Exterior view of a modern black appliance with a white top and rectangular base, alongside an inset showing a Wi-Fi signal icon (no text or symbols on the device itself)

Pure mechanical diagram showing two downward arrows pointing to a horizontal line with a central component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a door and a 3D geometric structure with an arrow indicating rotation (no text or symbols)

GARTRAUKIO IRENGIMAS

Technical line drawing of a window frame mounted on a brick wall, showing structural components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a spring and a folded structure, no text or symbols present.

GARTRAUKIO IRENGIMAS

Two technical line drawings showing a tool inside a box and a drill bit being inserted (no text or symbols)

Pure technical line drawing of a 3D rectangular block with internal cutout and dimension arrows, no text or symbols present

Line drawing of a box with a pen inserted into it, no text or symbols present

Simple line drawing of a mechanical component with a lever attachment (no text or symbols)

GARTRAUKIO IRENGIMAS

Simple line drawing of a 3D rectangular block with an internal rectangular element and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a brick wall structure with a vertical support and diagonal line, no text or symbols present

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a kitchen chimney mounted on a brick wall, with no visible text or symbols.

Line drawing of a black chimney mounted on a metal frame against a brick wall background (no text or symbols)

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Kvapams sulaikyti galima naudoti anglies filtra.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a curved surface (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

UŽDARYMAS

PASTABA.

QR code image containing encoded data, no visible human-readable text

PASTABA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

GARTRAUKIO „HAIER“ REGISTRACIJA

Exterior view of a modern black appliance with a white ventilation icon and a small inset showing a Wi-Fi signal (no text or symbols on the device itself)

Pure schematic lines showing a mechanical or electrical component with downward arrows indicating force or connection (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a hanging pipe and a curved arrow indicating rotation or movement (no text or symbols)

TVAIKU NOSÜCËJA UZSTÄDĪŠANA

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a threaded spring and a cross-sectional view of its internal structure (no text or symbols)

TVAIKU NOSÜCËJA UZSTÄDĪŠANA

Two technical line drawings showing a mechanical component being inserted into a box, with no visible text or symbols.

Noņemiet apakšējo skursteni, tad izurbiet caurumus sienā: caurums skrūves diametram Φ8 mm Izmantojiet sienai pielāgotas apaltapas

TVAIKU NOSÜCËJA UZSTÄDĪŠANA

Simple line drawing of a 3D rectangular block with a smaller 2D cube and directional arrows indicating movement or force (no text or symbols)

Line drawing of a box with a pencil inserted into it, no text or symbols present

Line drawing of a mechanical component with a lever attached to a rectangular block (no text or symbols)

TVAIKU NOSÜCËJA UZSTÄDĪŠANA

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

Line drawing of a brick wall with a vertical support structure and two hanging sensors (no text or symbols)

Diagram showing a device being processed from a left-side view, with no visible text or symbols.

Diagram of a kitchen chimney mounted on a brick wall, with no visible text or symbols

Line drawing of a black chimney mounted on a metal frame against a brick wall background (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols visible)

AIZVĚ RT

PIEZIME.

QR code image containing encoded data, no visible human-readable text

PIEZIME

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

HAIER TVAIKU NOSÜCËJA REGISTRÄCIJA

Exterior view of a modern black appliance with a white top and control panel, alongside an inset showing a wireless signal icon (no text or symbols on the device itself)

Pure diagram of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

KLIENTU ATBALSTA DIENESTS

INSTALLATIE (VENTILATIE BINNEN) 352

BESCHRIJVING VAN DE ONDERDELEN 353

ONDERHOUD 356

PROBLEMEN OPLOSSEN 357

SERVICEAFDELING/KLANTENSERVICE 358

INLEIDING

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Diagram showing a brick wall with a small inset image of a curved surface and a folded panel (no text or symbols)

DE KAP INSTALLEREN

Technical line drawing of a wall corner with internal components and directional arrows (no text or symbols)

Technical diagram showing a mechanical component with a downward arrow and a 3D schematic view of its cross-section (no text or symbols)

DE KAP INSTALLEREN

Two technical line drawings showing a mechanical component being inserted into a box, with one part being inserted and the other holding a tool (no text or symbols present)

Pure technical line drawing of a 3D rectangular block with internal cutouts and dimension arrows, no text or symbols present.

Line drawing of a box with a handle and internal compartments, no text or symbols present

Simple line drawing of a rectangular box with a hand holding a tool, no text or symbols present

DE KAP INSTALLEREN

Pure technical line drawing of a mechanical assembly with no text or symbols

Line drawing of a brick wall structure with a vertical support and two hanging sensors (no text or symbols)

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a ceiling structure with a mounted component and a conical top, set against a brick wall (no text or symbols)

Line drawing of a black chimney mounted on a metal frame against a brick wall (no text or symbols)

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

INSTALLATIE (VENTILATIE BINNEN)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand holding a rectangular object above a flat surface, with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of an electric motor with visible blades and mounting brackets (no text or symbols)

SLUITEN

OPMERKING:

QR code image containing encoded data, no visible human-readable text

OPMERKING

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRATIE HAIER-AFZUIGKAP

Exterior view of a modern office building (no signage)

Pure electrical circuit lines without any symbols
