USER MANUAL Diamond Dermabrasion LANAFORM

Diamond Dermabrasion

Beauty

Beauty CLINICALLY TESTED

Exfoliating action

Action exfoliante

Close-up of hands holding a small mechanical component with an arrow indicating rotation (no text or symbols visible)

Close-up of hands holding a small object, possibly a ring or tool, with no visible text or symbols.

Close-up of hands holding a small mechanical component with an arrow pointing to it (no text or symbols visible)

Close-up of hands using a tool to adjust a small mechanical component (no visible text or symbols)

Close-up of hands performing a medical procedure on a wrist, with a tool and arrow indicating direction (no text or symbols)

Close-up of a small white cylindrical object with dark granular substance, surrounded by blurred leaf-like shapes (no text or symbols visible)

Close-up of a finger holding a small object with arrows indicating direction, next to a textured surface (no text or symbols visible)

Close-up of hands using a medical or laboratory instrument to apply a procedure (no visible text or symbols)

INTRODUCTION

Thank you for choosing the LANAFORM® «Diamond Dermabrasion».

The «Diamond Dermabrasion» uses a microdermabrasion technique supported by three abrasive diamond-based heads and continuous suction.

These diamond heads remove dead skin to alleviate the effects of skin ageing.

According to a clinical study, the Lanaform ^® «Diamond Dermabrasion» is more effective than a scrub applied at home and is even comparable to a scrub applied in a beauty salon.

Its action improves the skin's general appearance by making it smoother, younger and softer.

What's more, thanks to its exfoliating action, the «Diamond Dermabrasion» reduces skin imperfections by fading wrinkles and fine lines, dark spots, blackheads and signs of fatigue.

The skin appears healthier and more elastic and the eye area is brighter after the very first application.

This product is suitable for both oily and sensitive skin types.

- 100% of women who used the product found the «Diamond Dermabrasion» more effective than a scrub applied at home

- 100% of them felt that their skin was smoother, younger, softer and healthier

- 96% of them found that this device reduced imperfections and rejuvenated their skin.

* Results obtained following a clinical study carried out on 25 women between 30 and 60 years old, after using the device twice a week for 21 days.

PLEASE READ ALL THE INSTRUCTIONS BEFORE USING YOUR DEVICE, ESPECIALLY THIS BASIC SAFETY INFORMATION:

- This equipment is not intended for use by people, including children, with limited physical, sensory or mental abilities, or by people lacking experience or knowledge, unless they are supervised or have been instructed beforehand on how to use the equipment by someone responsible for their safety. Children should be supervised to ensure that they do not play with the device.

- Only use this device according to the instructions given in this manual.

- Check that your mains voltage is the same as that of your device.

• Always place the device on a hard, flat and level surface. Keep it away from heat sources such as stoves, radiators, etc.

- Do not leave the device in direct sunlight.

- Do not connect or disconnect the plug or electrical transformer of the device with wet hands.

- If the power cable is damaged, it must be replaced by a similar cable available from the supplier or the latter's after-sales department.

- Unplug the device before cleaning it.

- Do not wash the entire unit with water and do not immerse it in water. Consult the cleaning instructions in this manual.

- Unplug a device that has fallen into water immediately before retrieving it.

- An electrical device should never remain connected unsupervised. Unplug it when you are not using it.

- Keep the power cable away from hot surfaces.

- Never use this device in a room where aerosol products (sprays) are used or in a room where oxygen is being administered.

- Do not use this device under a cover or under a cushion. Excessive heat can cause fire, electrocution or injury.

- Never use this device in a room in which the temperature is greater than 40^ .

- If the device is stored in a room where the temperature is low, we recommend that you wait for a few minutes before

operating the device in a warmer environment. Drops of water could appear as a result of condensation and this could affect the operation of your device.

• Do not put items of clothing or towels under or on top of the device.
  • This device is designed for domestic use only.
• If you are concerned about your health or if you are following medical treatment, consult a doctor before using this appliance.
• If you experience any pain when using this device, stop using it immediately and consult your doctor.
• Do not use this appliance for a total period of more than 30 minutes. A one-hour rest period must be maintained between each use. However, we recommend that you use the «Diamond Dermabrasion» up to twice a week, depending on your skin type, spending a total of 15 minutes on your face and neck and 5 minutes on your cleavage area.
• Never use this appliance on a body part that is swollen or inflamed or if you have a skin rash.
• Do not use this equipment without consulting your doctor in the following cases: if you are pregnant or breastfeeding, if your skin has any tattoos or beauty spots, if you have skin cancer, if you have any unusual skin colouring, if you are taking any medicine or if you have very sensitive skin. If you are unsure, consult your doctor before using the «Diamond Dermabrasion».

DEVICE COMPONENTS (SEE THE ILLUSTRATION AT THE START OF THE INSTRUCTIONS):

(1) Start/Stop button
(2) Increase suction speed
(3) Decrease suction speed
(4) LED intensity level indicators
(5) a) Main handle of the device
b) Main handle filter
(6) Extra-flexible tube
(7) 3 diamond heads: a) coarse b) fine c) precision
(8) Mirror
(9) Box opening
(10) Electric cable and power supply plug
(11) Replacement filters

INSTRUCTIONS FOR USE

HOW TO USE

1. Insert the power supply plug in the hole located on the device and connect to an electric socket (point 10).
2. Then open the box, referring to the diagram above (point 9).
3. Hold the main handle of the device (point 5) and select the appropriate diamond head for the area of the body you intend to treat (point 7 (a-b-c)).

- The narrow head is designed for more sensitive areas of the face.

- The other two heads consist of a more abrasive head for oily skin and a less abrasive head for sensitive skin.

Simply insert the selected head on the handle.

EN

1. Then press the Start button (point 1) to switch the device on and set the required suction speed using the two buttons (points 2 and 3).

If you are using the device for the first time, we recommend that you select the lowest intensity level and increase this gradually depending on your skin type.

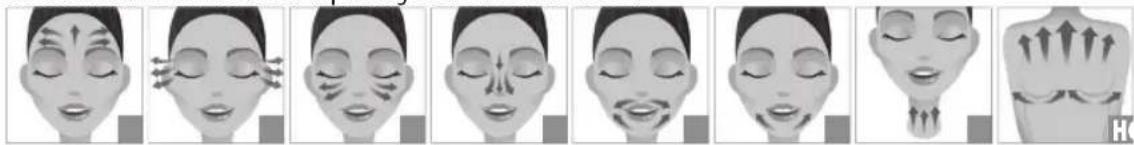

1. Follow the instructions below depending on the area to be treated.

Sequence of grayscale images showing a person's face with closed eyes, nose, mouth, and hand near the head (no text or symbols)

a) Forehead and brow furrow:

Start working gently in the area between your eyebrows and slowly move up towards the top of your forehead.

Starting from this centre line, guide the diamond head towards the right, repeating the movement until the entire area has been treated.

Go back to the centre line and work on the left side of your forehead.

b) Eyes, crow's feet:

At a distance of around 2 cm from your eyes, guide the diamond head towards the outside of your face. Hold your skin taut, using your other hand if necessary.

c) Cheeks:

Following the same procedure as for your eyes, move the diamond head towards the outside of your face, working gently down your cheeks. Keep holding your skin taut.

d) Nose:

Start from the area between your eyebrows and work down. Go back to this same starting point and work down both sides of your nose.

e) Lips:

For the upper area, start from the centre and work towards the right and left.

For the lower area, start from the centre again and work up towards the right and left.

f) Chin:

Work up from your chin towards the right side of your cheek and then the left side.

g) Neck:

Start from the bottom of your neck and work up to your jaw. Repeat this movement over your entire neck.

h) Cleavage:

Start from the top of your chest as shown in the diagram and work up to your neck.

Start at the bottom of your chest as well and work around each breast as shown in the diagram.

1. Switch off the device once you have finished using it. To do this, press the Stop/Start button again (point 1) and unplug the device (point 10).

FOR OPTIMUM RESULTS, YOU CAN USE THE «DIAMOND DERMABRASION» UP TO TWICE A WEEK DEPENDING ON YOUR SKIN TYPE, SPENDING A TOTAL OF 15 MINUTES ON YOUR FACE AND NECK AND 5 MINUTES ON YOUR CLEAVAGE AREA. ALWAYS READ THE SAFETY PRECAUTIONS SPECIFIED IN THE MANUAL AND FOLLOW THE DIAGRAMS ABOVE.

MAINTENANCE AND STORAGE:

CARE

• Clean all items after use using a slightly damp cloth.
• Do not use detergent or solvent.
  • After use, always check the filter in the main handle of the device (point 5 b)).

This filter must be kept clean and free from obstructions in order to avoid any reduction or alteration in the power of the pump. We recommend that you replace this filter every two months for daily use. Simply use a pair of tweezers to extract the filter and insert the replacement in the handle.

STORAGE

After cleaning and drying the device, store it in a dry, cool place out of the reach of children.

ADVICE REGARDING THE DISPOSAL OF WASTE

- All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.

- When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

LANAFORM ^® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM ^® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM ^® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM ^® 's control.

LANAFORM ^® may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM ^® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM ^® 's Service Centre ^® . Any attempt to maintain this product by a person other than LANAFORM ^® 's Service Centre will render this guarantee void.

The photographs and other images of the product in this manual and on the packaging are as accurate as possible, but do not claim to be a perfect reproduction of the product.

INTRODUCTION

Sequence of grayscale images showing a person's face with closed eyes, nose, mouth, and head, each with directional arrows indicating motion or movement (no text or symbols)

Sequence of facial anatomy diagrams showing eye, nose, mouth, and neck regions with directional arrows indicating movement or pressure.

Sequence of facial anatomy diagrams showing eye, nose, mouth, and hand placement with directional arrows indicating movement or pressure points.

a) Frente y ceño:

Sequence of grayscale illustrations showing a person's face with closed eyes, nose, mouth, and upper torso, each with arrows indicating motion or pressure (no text or symbols)

BESCHRÄNKTE GARANTIE

Sequence of facial anatomy illustrations showing progressive eye and mouth massage motion with directional arrows

Sequence of grayscale facial anatomy diagrams showing progressive eye and mouth massage motion with directional arrows

Sequence of grayscale images showing a human face with closed eyes, eyes closed, nose closed, and mouth closed, ending with a hand near the neck (no text or symbols)

a) Čelo in predel med obrvmi:

S predela med obrvmi pojdite počasi proti vrhu čela.

Diamantno glavo s sredine premikajte proti desni in ponavljajte ta gib, dokler tega predela ne obdelate v celoti. Enako storite na levi strani.

b) Oči in gubice okoli oči:

Diamantno glavo postavite približno 2 cm od oči in jo nato premikajte navzven. Če je potrebno, z drugo roko držite kožo napeto.

c) Lica:

Sequence of grayscale illustrations showing a person's face with closed eyes, eyes closed, nose closed, mouth closed, and hand near the head (no text or symbols)
