Important safety guidelines for this

appliance

- This appliance is meant exclusively for personal use and for the intended purpose. It is not intended for commercial use.

- Do not use the appliance outdoors and keep it away from heat sources (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

- Keep it on an appropriate surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning

- Operate the appliance only with the voltage indicated on the appliance label.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of

the appliance, and understand the resultant dangers.

• Cleaning and user maintenance must not be carried out by children unless they are older than 8 years and supervised.
• Keep the appliance and the cable out of the reach of children aged less than 8 years.
• In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.
• Fill the water tank only with cold water and do not boil the re-

maining water a second time.

• Do not move the appliance when it is being operated.
• Do not open the lid during operation. This may cause burns!
• Steam escapes from the top of the appliance during the operation. Stay away from the escaping steam. There is a risk of burns!

- The heating element remains hot for some time even after the appliance is switched off. Ensure that nobody touches the inside of the container.

There is a risk of burns!

- Use the device only with the supplied shut-off device.

• Provide clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.
• Do not boil any liquids other than water.
• The housing of the kettle becomes hot during operation. Therefore hold the kettle only using the handle provided for this purpose.

• If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.

• Children should use or clean the appliance only under supervision or guidance.

• Do not overfill the kettle, otherwise water may spurt out.
• The water level should be between the maximum and minimum marks!
• Do not allow any liquid to spill onto the device plug connection.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Kettle
• Base with connection cable
• User manual

2. Technical data

Power supply 220-240V	AC, 50-60 Hz
Power consumption 1850 - 2200 W
Water filling capacity	Max 1.7 l waterMax. 1.0 l tea
Temperature settings 70°C - 100°C in 5°C increments
Brewing time 0:00 - 10:00 min in 30 seconds increments
Features • Stainless steel glass body designAutomatic switch offKeep-warm function (30 min)Audible signal1x 24h timerAutomatic tea staining with choice between manual or one of the five predefined brewing times

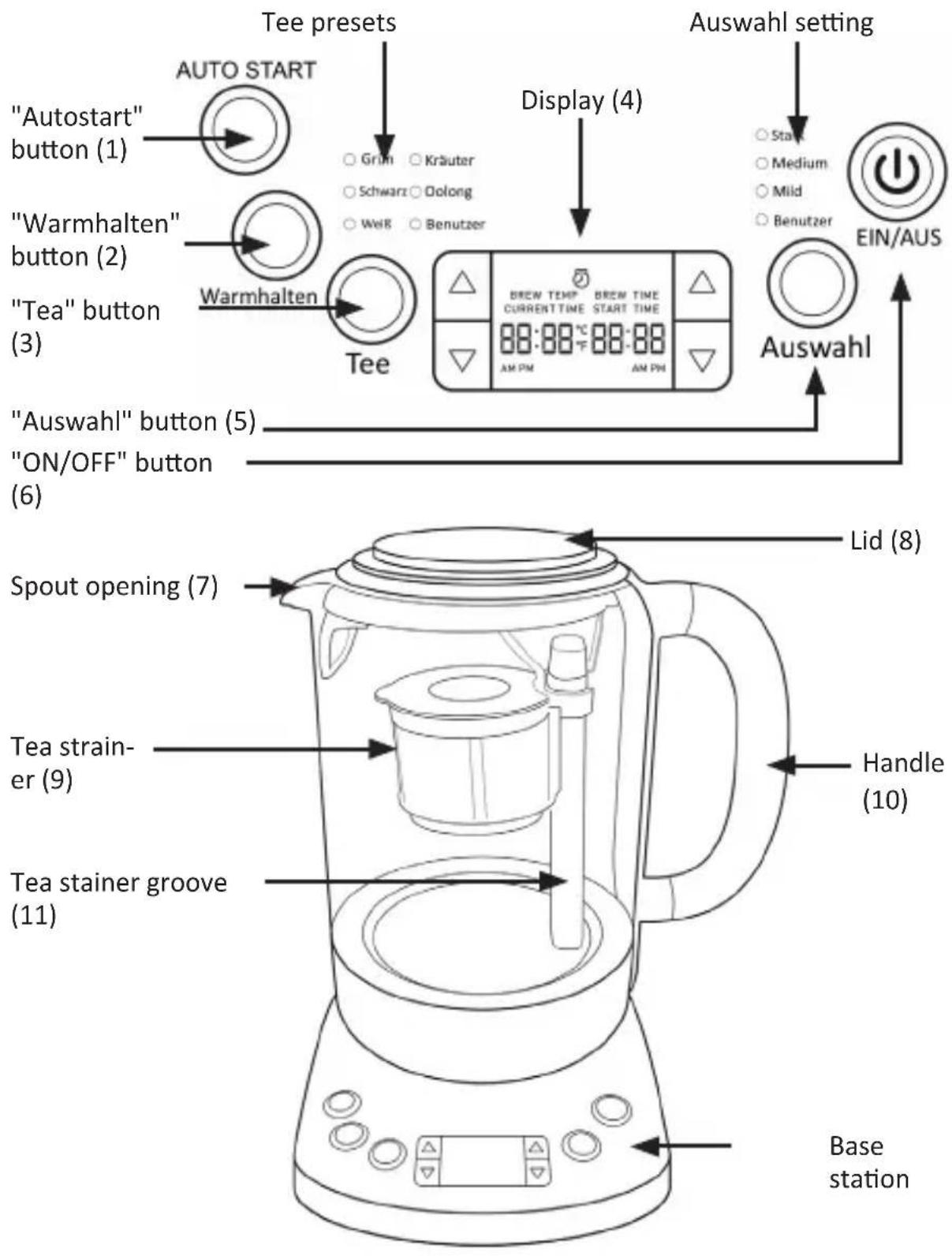

1. Product details


"Autostart" button (1) "Warmhalten" button (2) "Tea" button (3) "Warmhalten" Tee Tee presets Auto START Grün Kräuter Schwarz Dolong Weiß Benutzer Display (4) BREW TEM BREW TIME CURRENTTIME START TIME 88:88 °C 88:88 AM PM AM PM Auswahl setting Stair Medium Mild Benutzer EIN/AUS Auswahl "Auswahl" button (5) "ON/OFF" button (6) Spout opening (7) Lid (8) Tea strainer (9) Handle (10) Tea stainer groove (11) Base station

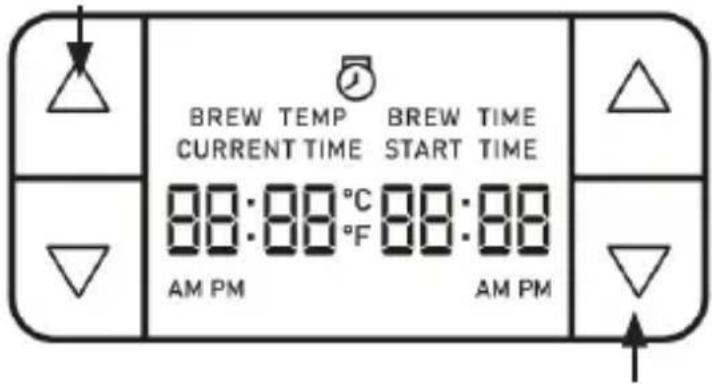

individual temperature setting (12)

(Function depending on temperature/current time mode (CURRENT TIME))

BREW TEMP BREW TIME CURRENT TIME START TIME 88:88°C 88:88 F AM PM AM PM

individual time setting (13)

(Function depending on the brewing time / switch-on time mode (START TIME))

4. Initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time Remove the kettle and the base station out of the packaging and connect the base to a properly installed earthed socket.

Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time. Boil the water by first switching the appliance to full operation using the "ON/OFF" button (6) (display is illuminated). Alternatively, you can also press the arrow keys up/down directly for the "individual temperature setting (12) until the displayed temperature reaches 100°C. Then press the "ON/OFF" button (6) at the top of the base station to start the boiling operation. Discard the water after the initial boiling. Do not operate the appliance unattended and check it for damage and proper assembly before using it each time.

Repeat this process as needed.

This appliance is intended for domestic use and similar applications such as: In staff kitchens in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities as well as B&Bs.

5. Usage

5.1 Boiling water

Turn the lid (8) counter-clockwise to the left to open it. Fill the kettle with cold water and replace the lid.

Note: A scale is provided on the outside. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled. Make sure that the total quantity of water is only 1 l when brewing tea. The minimum quantity of water is 500 ml. When boiling water normally, the maximum quantity of water is 1.7 l. Then place the kettle on the base plate.

Next to the display on the base station, buttons are provided for selecting different water temperatures and for selecting the desired tea brewing time. Press the "Up" and "Down" buttons of the individual temperature setting (12) and the individual time setting (13) to make the desired settings. You can find out more about making tea in the chapter "Boiling tea".

Press the "ON/OFF" button to start the boiling function subsequently. As soon as the water reaches the set temperature, the kettle switches off and you hear two beeps. Please remember that the boiling process may be interrupted briefly below 100°C by intermediate measurements. Please wait until the boiling process is finished. That is confirmed by the audible signal. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used.

5.2 Boiling tea

Remove the tea sieve from the kettle and fill it with the desired amount of tea. An example for filling can be found in the table below:

Filling capacity Cups / teaspoon

500 ml approx. 2 cups / 2 teaspoons of tea

750 ml approx. 3 cups / 3 teaspoons of tea

1 l approx. 4 cups / 4 teaspoons of tea

You can select predefined programs for appropriate types of teas. To do this, press the "Tea" button (3). The currently selected tea program is displayed in the "Tea preset" field next to the status LEDs.

The options available are as follows: GREEN / BLACK / WHITE / HERB / OOLONG and CUSTOM

The default values for the corresponding settings are given in the following table:

Setting Temperature	Mild Medium Strong User
Green 80°C 2 min 3 min 4 min 0-10	min
Black 100°C 1 min 2 min 3 min 0-10	min
White 85°C 2 min 3 min 4 min 0-10	min
Herbal 100°C	3 min 4 min 5 min 0-10	min
Oolong	90°C 2 min 3 min 4 min	0-10 min
Custom	70°C - 100°C	3 min 4 min 5 min 0-10 min	-10 min

The option of tea type "Custom" (3) should be used if the predefined values do not give a satisfactory result, or the optimal values of the tea type used are too far from the pre-programmed values. First press the "Tea" button (3) until the "Custom" LED starts glowing and then select the desired brewing time using the "UP" and "DOWN" buttons of the individual temperature setting (12). Then check the brewing times (see 5.3 Selecting the tea Auswahl) or start the boiling process using the "ON/OFF" button.

Note: Caution! The desired tea Auswahl also has an effect on the brewing time.

You have the option to select the tea Auswahl that affects the tea's steeping time.

First, use the "Auswahl" button (5) to choose between Mild, Medium or Strong.

If none of the above options give a satisfactory result, then use the "Custom" option. To do this, press the "Auswahl" button (5) until the "Custom" LED starts glowing. Adjust the brewing time using the individual time setting (13) buttons.

5.4 Keep-warm function

You can keep the tea or boiled water warm for up to 30 minutes.

The keep-warm function allows you to maintain a configured temperature. To do this, press the "Warmhalten" button (2) to activate the keep-warm function. The illuminated blue status ring of the button indicates that the keep-warm function is activated. To turn off the keep-warm function, press the "Warmhalten" button (2) again. As soon as the desired heating temperature is reached, it is maintained for about 30 minutes. Press the "ON/OFF" button to interrupt this operation. If you remove the kettle from the station during the keep-warm function, the appliance is switched to the standby mode.

5.5 Adjusting the brewing temperature and steeping time

You can change the preset times as desired using the "UP" and "DOWN" buttons of the individual temperature and time settings.

The temperature (individual temperature setting (12)) can be adjusted between 70^ C and 100^ C in 5^ C increments.

The brewing time (individual time setting (13)) can be adjusted between 0:00 and 10:00 minutes in 30 seconds increments.

5.6 "AUTOSTART" - function

Using this function, you can pre-program the appliance to a desired time, so that your appliance keeps the water or tea ready, e.g. in the morning for breakfast.

Fill the appliance with either water or tea and water. Always note the respective maximum filling levels.

To do this, press the "AUTOSTART" button (1) until the blue status ring of the button starts glowing.

The display now changes to the programming overview, which is indicated by the small clock symbol at the top of the display.

In addition, two times are shown on the display. On the left is the "CURRENT TIME", which represents the present time. On the right, you can see the "START TIME" which represents the switch-on time.

To adjust the times, press and hold the "AUTOSTART" button (1) for 2 seconds.

The "CURRENT TIME / START TIME" indicators start flashing in the display.

The appliance now waits 20 seconds for your input. If there is no input during this time, the appliance switches off and you will have to start the process again.

Now adjust the current time. To do this, use the "UP / DOWN" buttons of the individual temperature setting (12), then the switch-on time using the "UP / DOWN" buttons of the individual time setting (13).

When programming, pay attention to the 12-hour AM/PM classification (AM = midnight to noon / PM = (12 noon to midnight).

Close or activate the "AUTOSTART" function by pressing the "ON/OFF" button (6).

If the programming of the AUTOSTART function is successful, the status rings of the "AUTOSTART" (1) and "ON/OFF" (2) buttons glow continuously.

6. Changing the unit of temperature

To change the temperature unit between °C and °F, press the "Auswahl" button and the "Tea" button simultaneously for about 2 seconds.

7. Descaling and cleaning

We recommend to descale the kettle at regular intervals depending upon the intensity of use. Before cleaning, pull out the power plug and wait until the appliance cools down completely. Please use only commercially available descaling agents based on citric acid to descale the water container.

For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent. The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate.

Use only a damp cloth for cleaning the kettle externally. Do not use any abrasive items like wire brush or steel sponge for cleaning. Never use any cleaning agents which may corrode the surface or present a health risk if consumed! Never immerse the appliance, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

CAUTION!

7. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings.

Protect it from high humidity, water and snow. Never expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Get in touch with our customer service department in such cases. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate.

Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components must be sent for recycling or disposal separately, as improper disposal of toxic and dangerous components could permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304350 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

We hope you enjoy your new product in every way! If there is still something you're concerned about, please feel free to let us know.

You're welcome to contact our service team at any time.
