303527 - Kettle Arendo - Free user manual and instructions

Product Type	Compact Electric Kettle
Brand	Arendo
Model	303527
Power Supply	220-240 V AC, 50/60 Hz
Power Consumption	920-1100 W
Standby Consumption	< 0.5 W
Capacity	0.5 L
Temperature Levels	50 °C (green), 70 °C (blue), 80 °C (pink), 90 °C (yellow), 100 °C (red)
Keep Warm Function	Yes, for temperatures below 100 °C (1 hour)
Auto Shut-off	Yes
Sound Signal	Yes (confirmation beep and end-of-cycle)
Double Wall	Yes
Compact Design	Yes
Control Type	Touch (temperature selection and ON/OFF on handle)
Temperature Display	Digital LED (50, 70, 80, 90, 100) and colored status LED
Base	With cord, swivel
Material	Plastic, stainless steel (inner)
Weight	Approx. 0.8 kg (estimated)
Dimensions	Approx. 20 x 15 x 15 cm (estimated)
Maintenance	Regular descaling with citric acid based descaler; exterior cleaning with damp cloth
Safety	Auto shut-off, overheat protection, dry boil protection (not specified but likely), do not immerse
Warranty	Standard manufacturer (not specified, estimated 2 years)

Frequently Asked Questions - 303527 Arendo

How to use the keep warm function?

After selecting a temperature (50°C, 70°C, 80°C or 90°C), press and hold the temperature selection button until the LED flashes and the status LED turns the corresponding color. The kettle will then keep the water warm for one hour.

What are the available temperature levels and their colors?

The levels are: 50°C (green LED), 70°C (blue), 80°C (pink), 90°C (yellow) and 100°C (red). The status LED displays the corresponding color.

Can I heat something other than water?

No, the appliance is designed only for heating water. Do not heat milk, tea or other liquids directly in the kettle.

How to descale the kettle?

Use a common citric acid based descaler, following the dosage instructions. Fill the kettle with water and descaler, bring to a boil, then rinse thoroughly. Always unplug the appliance before cleaning.

What to do if the kettle does not turn on?

Check that the base is properly plugged in and the kettle is correctly placed on it. Make sure the lid is closed. If the problem persists, contact customer service.

Can I use the kettle with wet hands?

No, to avoid any electrical risk, never use the appliance with wet hands.

How to clean the exterior of the kettle?

Use a soft, slightly damp cloth. Do not use abrasive products, metal brushes or sponges that could scratch the surface.

Can I open the lid during operation?

No, never open the lid during heating. Hot steam could cause burns. Wait for the cycle to end or use the ON/OFF button to stop.

What is the maximum water capacity?

The maximum capacity is 0.5 liters. A mark inside the kettle indicates the max level. Do not exceed this level.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) or return it to the store. For more information, visit www.ecosystem.eco.

USER MANUAL 303527 Arendo

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety instructions for this device

- This device may only be used in accordance with its intended purpose and for private use. It is not for commercial application.

- Do not immerse the kettle in water!

- This device is only designed for indoor use. Keep it away from heat sources (e.g. electric stove), high temperatures and direct sunlight.

- Do not tough the kettle with wet hands.

- Do prevent the unit from dropping over, make sure that the support surface is stable.

- Pull out the main plug from the socket when the machine is not in use or during cleaning.

- Do not operate the device with other than specified power supplies.

- Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Usage, Cleaning and user maintenance shall not be made by children unless they are older than 8 and above and supervised or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

- Keep packaging items (plastic bags, carton, styrofoam, etc.) out of reach of children, as they represent a potential source of danger.

- Only fill the water tank with fresh cold water and do not cook remaining water a second time.

- Do not move the machine while it is operating.

- Never open the cover during brewing process, this could lead to burns.

- Keep away from emitting water vapour during brewing process. Otherwise it can cause burns.

• After brewing the heating element stays hot for a while. Make sure that nobody touches the inside of the kettle to avoid burns!

- The unit may only be operated by using the provided parking device.

- Allow sufficient space between this unit and other devices and walls to ensure proper ventilation. Do not cover the device.

- Do not cook any other liquids than water.

- During operation the housing becomes hot. Therefore only touch the unit by its intended handle.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Do not overfill the kettle in order to avoid water leakage.

- The appliance is only to be used with the stand provided.

Thank you for choosing this product from Arendo and for placing your trust in our company. Before using the kettle for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Electric water kettle
- Base plate with connection cable
- User manual

2. Technical data

Power supply 220-240 V	AC, 50/60 Hz
Power consumption	920-1100 W
Standby consumption < 0,5W
Quantity of water max. 0,5l
Temperature steps/Colours of the status LEDs	50°C - Green70°C - Blue80°C - Pink90°C - Yellow100°C - Red
Features • Automatic switch-offDouble-walledWarm-keeping function (only for temperatures under 100°)Compact DesignAcoustic signal
Ambient temperature 0-40°C

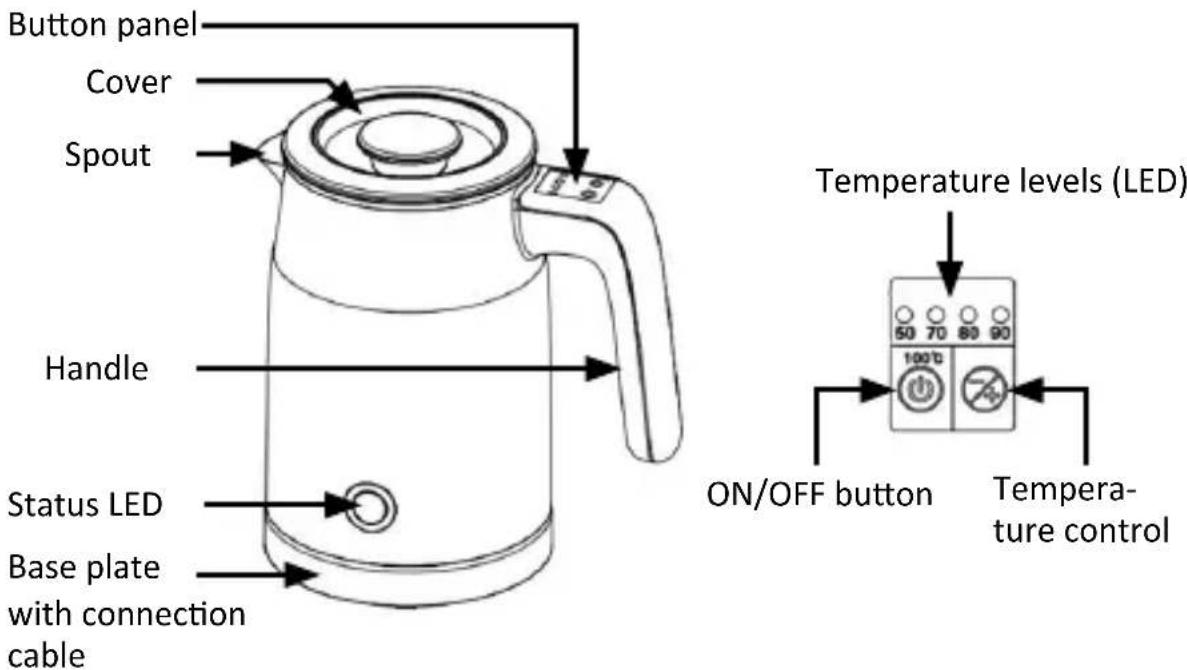

3. Product details

4. Initial start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Please remove the water kettle and base station from the packing and connect the basis only to a properly installed grounded socket.

Wipe the exterior surface and the inner surface of the kettle with a slightly damp cloth. Before regular use, fill the water reservoir with cold water to its maximum level and boil the water by pressing the "ON/OFF" button on the upper side of the handle. Then throw it away.

This device is designed for household use and similar applications only, such as for example:

• in employee cafeterias, in stores, offices and other working environments;
• by customers in hotels, motels and other residential facilities;
• in Bed and Breakfast establishments;
• in farm houses.

5. Usage

Open the cover of the water kettle. Then fill the kettle with cold water and close the cover.

Note: For the maximum filling level, a filling mark (0,5l) is located on the inner side. Please make sure not to fill in more than the maximum level as marked on the scale. If the kettle is over-filled, boiling water can be ejected. Put the kettle on the base plate. On the top of the handle, there is a control panel for the selection of different water temperatures. Press it repeatedly in order to select your desired temperature. Then press the "ON/OFF" button to start the heating process. The current temperature is shown on the control panel and also on the status LED in colour (also see under point 2 „technical data“ > colours of the status LEDs). The actuation of the keys is confirmed by a short audible signal. As soon as the target temperature is reached, a beep will sound and the temperature levels (LED) and also the status LED will turn off. The heating element switches off automatically. The procedure has been completed. Now the case can be lifted and the water can be used. If you wish to abort the cooking process, just press the "ON/OFF" button at any time.

5.1 Warm-keeping function

The “KEEP WARM” function allows you to maintain a specific temperature (50°C/70°C/80°C and 90°C). It is suitable to keep warm boiled water over a longer period of time. To do this, press and hold the „Temperature control“ button, until the temperature LED flashes and the status LED lights up in the corresponding colour. The kettle activates the keep warm function for one hour. Make sure you have set your desired temperature before.

6 .Decaling and cleaning

We recommend decalcifying the kettle in regular intervals, depending on the intensity of use. Before cleaning, it is essential to remove the power plug from the socket and wait until the device is completely cooled down. Only use conventional decaling agents based on citric acid. Please follow the manufacturer's instructions for dosing the respective product you have chosen. The base plate must not be cleaned and should not be processed with sharp or hard objects. For cleaning the outer surface of the kettle, only use a damp cloth. Never use hard or abrasive objects like a wire brush or a steel-sponge for cleaning. Please do not use any aggressive cleaning agents which could be harmful or unhealthy. It also could damage the surface. To avoid the risk of getting an electric shock, never immerse the device, the power cable or the plug into water or other liquids.

PLEASE NOTE!

7. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303527 / 303001 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

DANGER ! ATTENTION !

MO-FR 9:30am - 18pm CET

www.arendo.de
