USER MANUAL 304561 Brandson

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

IMPORTANT SAFETY GUIDELINES FOR THIS APPLIANCE

Please read this manual carefully before using the appliance!

Improper use can result in personal injury and damage to property. Those who are not familiar with the manual should not be allowed to operate the appliance. Keep this manual carefully.

The manufacturer or distributor do not accept any liability for damage caused by unintended or improper use.

• Never immerse the appliance or the power adapter in water!
• The ash vacuum cleaner is meant exclusively for personal use and for the intended purpose. It is not intended for commercial use.
• Do not use the product with wet hands.

• Operate the appliance only with the voltage indicated on the appliance label.

• Children and youngsters should not operate this appliance.

• Do not operate the product without supervision.
• In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.
• Children should be supervised to ensure that they do not play with the appliance.
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Always switch off the product after use.
• Never block the exhaust openings while the appliance is being operated!
• Do not use the ash vacuum cleaner without the filter unit in place.
• Do not carry the appliance using the cable. Disconnect the cable from the socket only by pulling the plug. Protect the cable

from oil, heat and sharp edges. Damaged cables can cause an electric shock.

• If the power cable is damaged, then it should be replaced by the manufacturer, his specialist dealer or an equally qualified person, so as to prevent any risk.
• Keep the nozzles and filters always clean and functional to ensure that the ash vacuum cleaner works efficiently and safely.
• The appliance is not suitable for sucking up water.
• Do not use the ash vacuum cleaner to clean flammable or explosive liquids, corrosive objects or material harmful to the human body.
• Make sure that the ash has cooled down before vacuuming it.
• Ensure that the temperature of the ash is not more than 50 °C.
• Do not vacuum the following items: liquids, flammable and explosive sub-

stances, corrosive and/or burning material, such as ash, match sticks and cigarettes.

- This appliance is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are supervised by a person responsible for their safety or have been instructed on how to use the appliance.

- Do not use the appliance if the filter is not installed! Do not use filters other than those supplied or recommended by the manufacturer of the appliance.

- Use the blower function of the ash vacuum cleaner only outdoors.

- Use the blower function of the ash vacuum cleaner only with an empty container.

• Use the ash vacuum cleaner only if all filters are mounted properly and neither the filter nor container is damaged.
• Route the power cable in such a way that no one can trip over it.
• Do not use the appliance on people, pets or clothes worn on the body.
• Make sure you do not vacuum body parts or hair!

Intended use

The ash vacuum cleaner is only suitable for vacuuming dry, adequately cooled ash and dry dirt. The blower function of the appliance can be used for cleaning large areas and for fanning fires outdoors. Use the appliance only for personal use. It is not intended for commercial use.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Ash vacuum cleaner
• Washable HEPA filter
• Filter protection bag
• User manual

2. Technical data

Power supply 220-240V	AC 50/60 Hz
Power consumption 1200 W
Dimensions (WxHxD) 30,5 cm x 41 cm x 30.5 cm
Filter system HEPA filter
Container volume 20 l

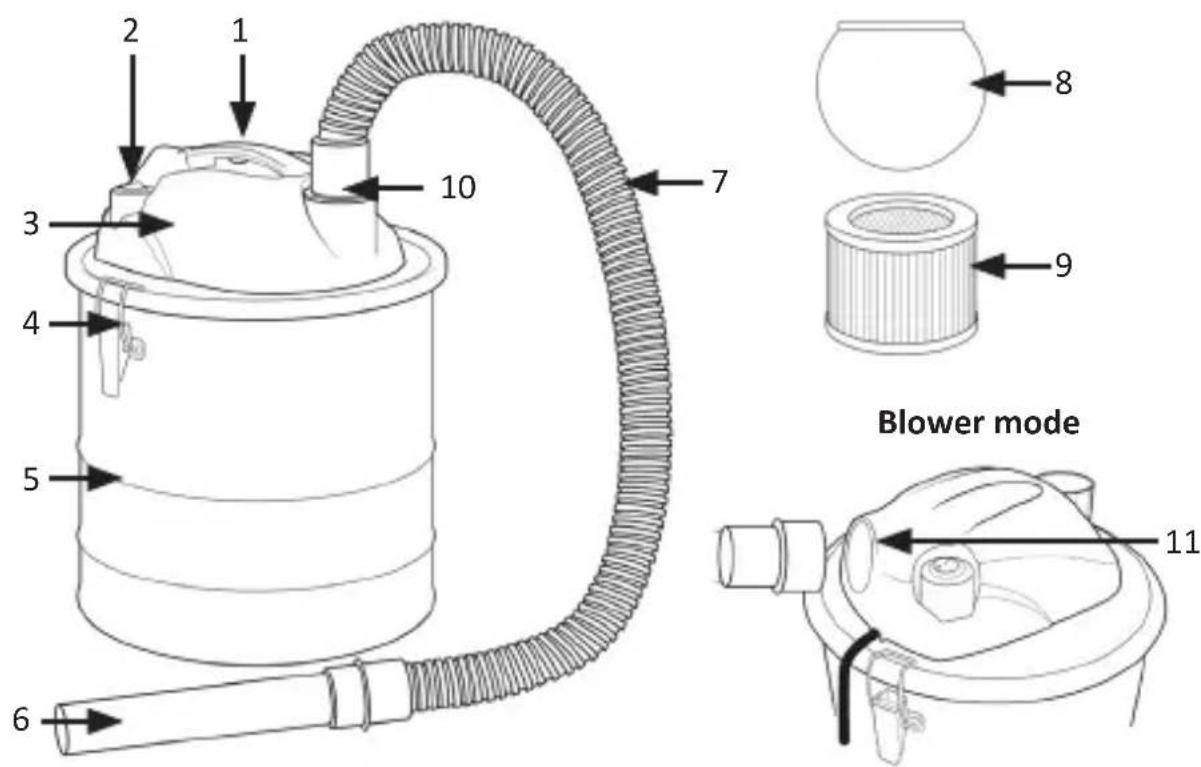

3. Product details

2 1 3 4 5 6 7 10 8 9 Blower mode 11

No. Meaning
1 Carrying handle
2 ON/OFF switch
3 Lid + motor unit
4 Lid locking mechanism
5 Container
6 Aluminium pipe
7 Suction tube / hose
8 Filter protection bag
9 Filter
10 Suction opening
11 Blower opening

4. Initial use (standard vacuuming mode)

Take the product out of the package and remove all the packaging material. Attach the filter to the bottom of the motor base. The filter should be removed and cleaned after heavy use.

Ensure that the temperature of the ash is not more than 50 °C.

• Connect one end of the hose (7) with the locking tabs firmly to the suction opening (10) of the lid with motor unit (3). The hose can be locked by slightly turning in the clockwise direction. Connect the other end of the metal hose (7) to the aluminium pipe (6).
• Then connect the mains plug to a properly installed socket.

• Turn on the ash vacuum cleaner by pushing the "On/Off" switch (2) in the direction of the "I" position.

• The appliance is ready and can now be used to vacuum, for e.g. ash.

• Move the aluminium pipe closely, slowly and evenly over the dirt. Always make sure that the product is upright.

5. Initial use (Blower mode)

In addition to the vacuuming mode, the Brandon ash vacuum cleaner provides the option to use the exhaust air through the so-called blower mode.

To do this, insert the end of the hose (7) with the locking tabs into the opening (11) of the lid / motor unit (3).

The hose can be locked by slightly turning in the clockwise direction.

You can now blow dust, chips or ash from surfaces or equipment or fan the embers on your grill by guiding the hose / aluminium pipe.

6. Disassembling the hose

To disassemble the hose, slightly rotate the end attached to the motor unit (3), in the counterclockwise direction and remove it by pulling lightly.

7. Filter

The appliance has a HEPA filter (9) on the back of the motor unit (3).

Turn off the product and remove the lid from the container.

Rotate the lid so that you can see the filter. Now you can simply remove the filter.

Note: The filter protection bag is used to keep the filter clean. The filter protection bag is used to cover the filter.

8. Cleaning and Care

Disconnect the mains adapter from the socket before cleaning.

Clean the product using a slightly moist cloth.

Open the lid and empty the container into an appropriate garbage can.

Caution! Make sure that the vacuumed ash has completely cooled down.

Remove the filter from the appliance and empty the dust compartment.

8.1 Cleaning the filter unit

Remove the filter protection bag from the filter and remove the filter unit from the appliance. Then clean all the parts of the filter unit using a brush. If a lot of dirt has accumulated, clean it using a vacuum cleaner.

Note: You can rinse the filter using cold or lukewarm water if needed. Dry the filter thoroughly before replacing it in the filter unit!

Then mount the filter back on the lid and reattach the filter protection bag over the filter.

9. Emptying the container

The vacuuming capacity is reduced if the container of the appliance is full.

Open the two locks on the motor unit (3) and then remove the lid from the container (5).

Empty the contents of the container into an appropriate garbage can.

Caution! Make sure that the contents of the container have cooled down completely.

10. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage, the appliance does not carry current only when it is disconnected. Do not short-circuit the product. Please disconnect the power cord when not in use or during storms. Use the appliance only in dry conditions. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other manner. Please follow the national regulations and restrictions. Do not use the appliance for purposes other than those described in the manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the appliance, which is not carried out by the original supplier, will void the warranty or warranty claims. The appliance should only be used by those who have read and understood this manual. The specifications of the appliance may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304561complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
