306618 - Water meter Brandson - Free user manual and instructions

Product Type	Digital Water Meter
Brand	Brandson
Model	306618
Water Protection	IPX6
Working Pressure	0.5 - 8 bar (7.25-116 PSI)
Maximum Flow Rate	2400 L/h (40 L/min)
Accuracy	±5%
Power Supply	1 CR2032 battery (3V)
Measurement Unit	Litres (L) or Gallons (GAL)
Display Modes	Flow, Auto, Average, Total
Unit Switching	Yes, between L/min and GAL/min
Recording Capacity	Up to 99999 L/GAL
Compatibility	Standard faucet connections 3/4"
Screen Type	Digital LCD
Sleep Function	Yes, after 1 minute without flow
Low Battery Indicator	Yes (flashing < 2.4V)
Operating Temperature	Approx. 0-40°C (estimate)
Frost Resistance	No
Dimensions (approx.)	100 x 50 x 50 mm
Weight (approx.)	200 g
Package Contents	Water meter, instruction manual
Maintenance	Clean with a soft cloth, avoid harsh chemicals
Safety	Do not open, avoid frost, keep out of reach of children
Recycling	Electrical device, batteries to be recycled separately

Frequently Asked Questions - 306618 Brandson

How to replace the battery?

Remove the display, open the battery compartment cover and insert a CR2032 battery respecting polarity. Close and replace the display.

How to switch between litres and gallons?

In AUTO mode, press and hold the multifunction button for 3 seconds to switch between L/min and GAL/min.

How to reset the total consumption?

In TOTAL mode, press and hold the multifunction button for 3 seconds to reset the total recorded quantity.

What is the maximum supported pressure?

The maximum working pressure is 8 bar (116 PSI). Do not exceed this limit.

Is the meter frost-resistant?

No, the device is not frost-resistant. In winter, store it away from frost and water.

What does the low battery indicator mean?

When the battery voltage is below 2.4 V, the low battery icon flashes. Replace the battery as soon as possible.

Why does the screen stay off?

Check that the battery is correctly inserted and in good condition. If the screen does not turn on, press the multifunction button or open the water to reactivate it.

Can I use the meter with hot water?

The manual does not specify a maximum temperature, but avoid high temperatures. Use it only with cold or lukewarm water.

How to clean the water meter?

Clean the device with a soft, dry cloth. Do not use harsh chemicals or pressurized water.

What to do in case of a leak?

Check that the connections are tight and compatible (3/4"). If the leak persists, stop the water and contact customer service. Do not attempt to repair it yourself.

USER MANUAL 306618 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Technical line drawing of a mechanical device with two views: one showing a control panel and the other a cylindrical component with a cross symbol (no text or labels)

+ CR2032 3V

5. Bedienung

36.8 L AUTO 8.6 L/Min AVG 468.6 L/D TOTAL 36.8 L

Thank you for purchasing a Brandon product. Please read the following quick guide carefully so that you can enjoy your new appliance.

1. Scope of delivery

• Water meter
• Operating instructions

2. Technical data

Water protection class	IPX6
Max. Water consumption 99999 L / 99999 GAL
Working pressure 0.5 - 8bar (7.25-116PSI)
Max. Flow rate 1-40L/min (0.3-10.6Gal/min)
Max. Water flow rate 2400 litres per hour
Battery type	1x CR2032, 3V
Measurement tolerance ±5%
Suitable for	3/4" standard tap connections

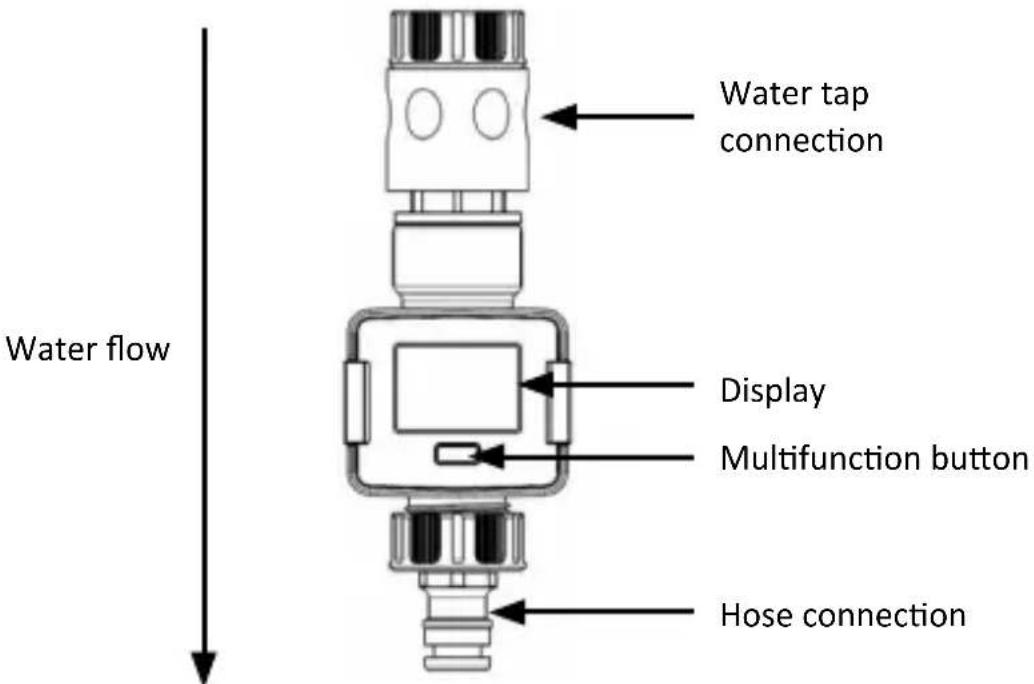

3. Product details

Water flow Water tap connection Display Multifunction button Hose connection

4. Start-up

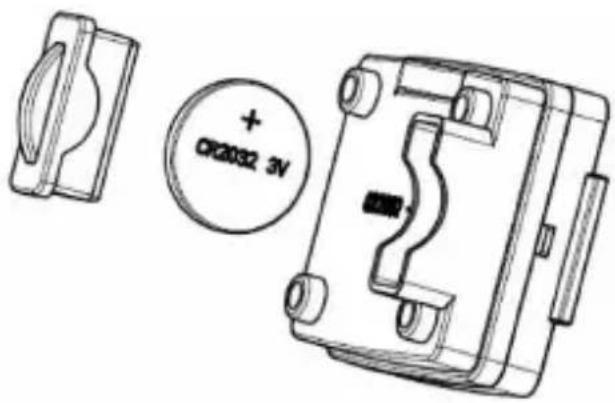

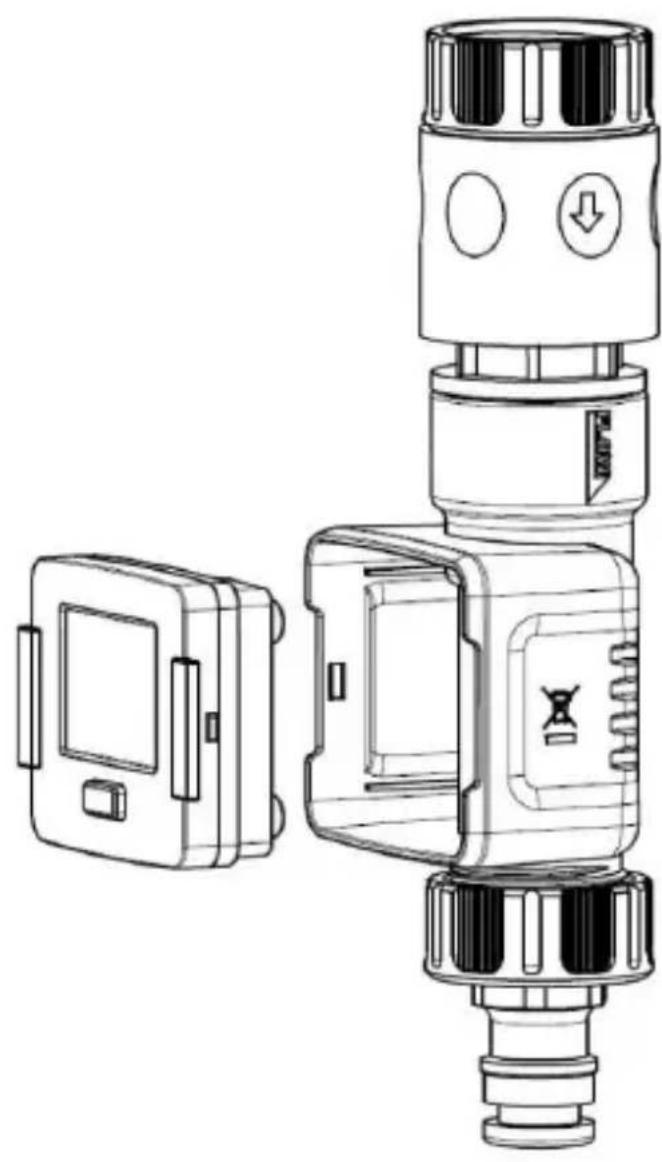

Remove the product from the packaging and remove all packaging material. Remove the display from the device. Remove the battery compartment cover from the display and insert a CR2032 battery into the battery compartment. Ensure that the polarity of the contacts is correct.

Then replace the display. Then connect the water meter to the desired connection. Observe the water flow direction (see product details). The device is now ready for operation.

Technical line drawing of a mechanical device with two views: one showing a small component and the other a multi-tiered cylindrical assembly (no text or symbols)

+ CR2032 3V

5. Operation

By pressing the “Multifunction button”, you can switch between different modes on the display.

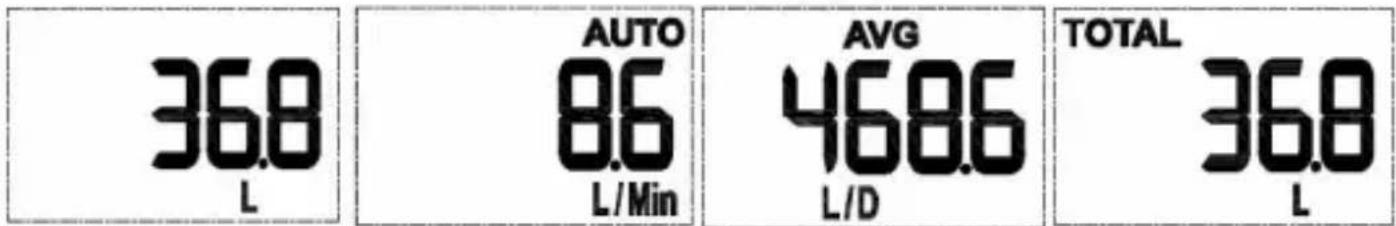

Flow rate indicator AUTO Mode Average Mode Total

36.8 L AUTO 8.6 L/Min AVG 468.6 L/D TOTAL 36.8 L

By pressing the „Multifunction button“ for 3 seconds, you can adjust the following settings in the respective display mode.

Reset

consumption

Switching the

units „GAL“-> „L“

Reset average Reset all data

FLOW MODE (flow display) - Measurement of the water flow in real time When the water flows through the flow meter, the display is activated and shows the current flow rate.

AUTO MODE (automatic mode) - Measurement of individual water consumption. When the water flows through the flow meter, the display is activated and shows the current flow rate in GAL/min or L/min. Press and hold the button for 3 seconds to switch between L/min and GAL/min.

AVERAGE MODE (average display) - Displays the daily average water consumption for the last 7 days. Press the “multifunction button” and the average water consumption of the last 7 days is displayed. Press and hold the “multi-function button” for 3 seconds to reset the average.

TOTAL MODE (total display) - The total amount of water is measured until the next reset. Press the multifunction button to display the total water consumption, maximum 99999 L / 99999 GAL. Press and hold the button for 3 seconds to reset the total quantity.

Switching the L & GAL unit - In AUTO MODE, press and hold the multifunction button for 3 seconds to switch between L/Min and GAL/Min.

Sleep mode - If no water flows for longer than 1 minute in any mode or no water flows for longer than 1 minute, the display goes into standby mode.

If the multifunction button is pressed or water is flowing, the appliance switches on automatically.

Low battery indicator - If the battery voltage is below 2.4 V, the low battery symbol flashes brightly and darkly on the screen at 0.5 second intervals. Please change the battery when the symbol appears. When changing the battery, always ensure that the polarity of the contacts is correct.

6. Safety instructions and disclaimer

At temperatures below freezing, the water flow meter should be removed from the tap and stored indoors to prevent possible freezing damage.

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not frost-proof. Always store the appliance away from water and frost in winter. Keep the appliance away from high temperatures.

Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way.

Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the device that is not carried out by the original supplier will invalidate the warranty and guarantee claims. The device may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

7. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be separated for recycling or disposal, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

8. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive: 2012/19/EU WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306618 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

5. Utilisation

36.8 L AUTO 8.6 L/Min AVG 468.6 L/D TOTAL 36.8 L

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

5. Funzionamento

36.8 L AUTO 8.6 L/Min AVG 468.6 L/D TOTAL 36.8 L

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

5. Operación

36.8 L AUTO 8.6 L/Min AVG 468.6 L/D TOTAL 36.8 L
