USER MANUAL 303282 Brandson

Technical diagram showing a mechanical assembly with labeled parts and a supporting table, including a 3D model and a close-up of the component.

Thank you for having chosen this Brandon product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1. Scope of delivery

• LED work light
• 5.5 x 2.5mm DC hollow plug power supply
  • 12 V car power supply
• User manual

2. Technical data

Power supply adapter 230V ~ / 50-60 Hz, 20 W
Power supply car adapter 12-24 V
Charging voltage 8.4 V DC / 1.0 A
Beam angle Approx. 140°
Colour temperature 6400 K
Luminous intensity 1600 Lumen
Battery capacity Li-Ion 7.4 V / 6600 mAh
Battery charging time Approx. 5 hours
Battery operating time Approx. 2.5 hours
Energy efficiency class A
Safety class III
Protection class	IP65
Working temperature -30°C up to +50°C
Dimensions (Hard glass)	17.5 cm x 13.5 cm x 0.36 cm
Features	Stable metal housing1x COB LEDCarrying handle

3. Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5 ~m between the work light and other objects!

• Any cracked protective cover (for more information, see hard-glass dimensions under "2 Technical data") must be replaced!
• Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
• Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!
• Only use and/or charge the product under supervision!

4. Start-up

Remove the device from its packaging and remove any packaging material. Please fully charge the battery with the supplied power supply before the first use. The power supply of the spotlight is located on the underside. Then connect the power supply to a properly connected power outlet. After this, mount the base to the LED work light and switch the device on or off with the ON/OFF switch on the underside.

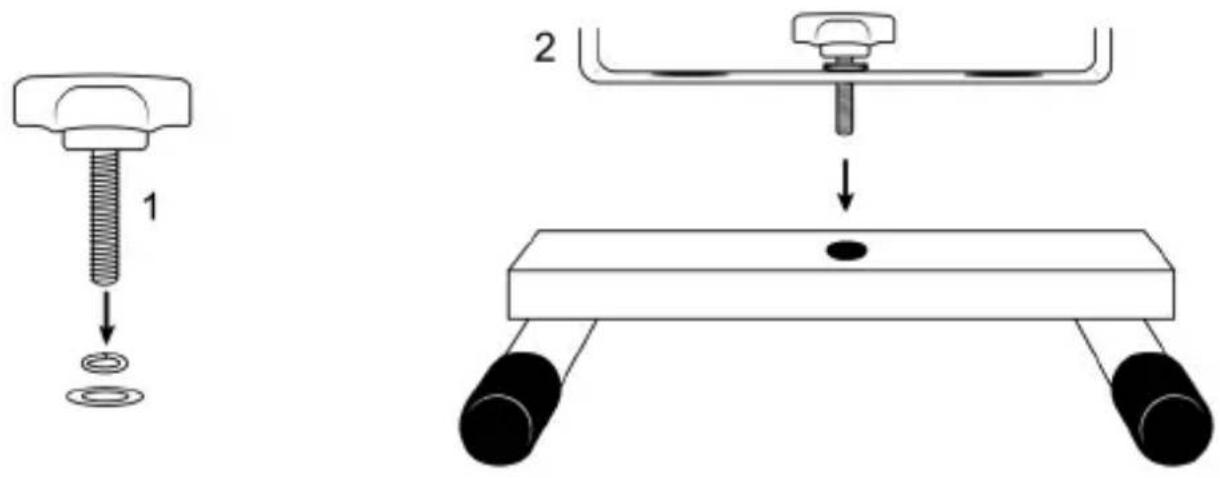

The assembly is shown in the following picture.

Diagram illustrating a mechanical assembly process with labeled parts and directional arrows

5. Safety instructions and liability disclaimer

Regularly review all connections and wiring for damage. Do not put the device into operation if damaged. Keep it away from sharp objects and other potential dangers. Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it.

The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303282 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
