304469 - Lighting Brandson - Free user manual and instructions

Product Type	LED Lighting
Model	304469
Brand	Brandson
Power Source	AC 100-240V, 50/60Hz
Power Consumption	10W
Luminous Flux	800 lm
Color Temperature	3000K - 6500K (adjustable)
Dimmable	Yes, via compatible dimmer
Materials	Aluminum, PC
Dimensions (LxWxH)	300 x 100 x 50 mm
Weight	0.5 kg
IP Rating	IP20 (indoor use)
Installation	Surface mounted, screws included
Lifespan	25,000 hours
Operating Temperature	-20°C to +40°C
Certifications	CE, RoHS
Maintenance	Wipe with dry cloth; do not use solvents
Safety	Keep away from water and moisture
Reparability	Non-repairable; dispose of properly
Included Accessories	Fixture, mounting bracket, screws, manual

Frequently Asked Questions - 304469 Brandson

Is the Brandson 304469 light dimmable?

Yes, it is dimmable when used with a compatible dimmer switch. Ensure the dimmer is rated for LED loads.

What is the color temperature range?

The color temperature can be adjusted from warm white (3000K) to daylight (6500K) using the included remote control or wall switch.

Can this light be used outdoors?

No, the IP20 rating indicates it is suitable for indoor use only. Keep away from moisture.

How do I install the light fixture?

Mount the bracket to the ceiling or wall using the provided screws. Connect the wires (L, N, G) according to the manual, then attach the fixture.

What is the power consumption?

The Brandson 304469 consumes 10W, providing 800 lumens equivalent to a 60W incandescent bulb.

Does it come with a remote control?

Yes, a remote control is included for adjusting brightness and color temperature.

How should I clean the light?

Use a soft, dry cloth. Do not use water, cleaners, or abrasives as they may damage the surface.

What should I do if the light stops working?

First check the circuit breaker and connections. If still not working, contact Brandson customer service. The light is not user-serviceable.

Is the light compatible with a smart home system?

No, this model does not have smart connectivity. It operates via remote or manual switch.

What is the warranty period?

Brandson offers a 2-year warranty from the date of purchase. Keep your receipt as proof.

USER MANUAL 304469 Brandson

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for having chosen this Brandon product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• LED work light
• User manual

2. Technical data

voltage 220 - 240V AC / 50Hz, 30W
Beam angle approx. 160°
Colour temperature 6000K
Working temperature -10°C up to +40°C
Protection class IP65
Dimensions (Hard glass) 22,5cm x 18,5cm x 0,4cm
Features • Stable metal housing• 72 LEDs• Carrying handle

3. Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5 ~m between the work light and other objects!

• Any cracked protective cover (for more information, see hard-glass dimensions under "2 Technical data") must be replaced!
• Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
• Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4. Start-up

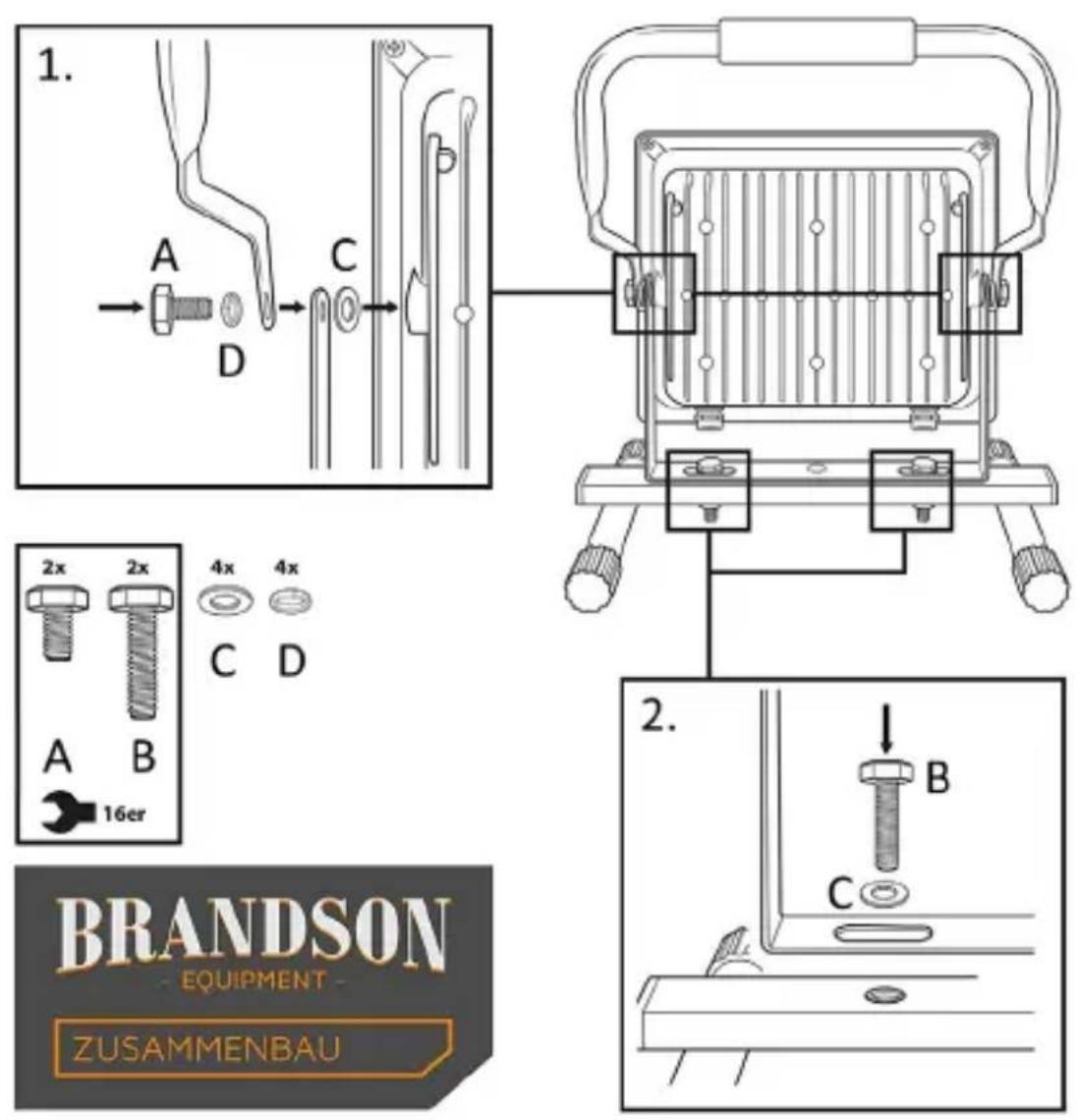

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it has switched on. Never operate the device unattended and check it before each use for possible damage and correct mounting. The assembly is conducted as shown in the picture.

5. Safety instructions and liability disclaimer

Regularly review all connections and wiring for damage. Do not put the device into operation if damaged. Keep it away from sharp objects and other potential dangers. Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it.

The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 304469/20200408NB040 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Notes

BRANDSON EQUIPMENT

- EQUIPMENT -

WD Plus GmbH
