303179 - Lighting Brandson - Free user manual and instructions

Product Type	LED Work Light
Brand	Brandson
Model	303179
Power Supply	220-240V AC, 50Hz
Power Consumption	50W
Beam Angle	Approx. 110°
Color Temperature	6500K (Daylight)
Operating Temperature	-10°C to +40°C
Protection Class	IP65 (Waterproof & Dust-tight)
Housing Material	Aluminum Die-cast with Electrostatic Coating
LED Count	120 LEDs
Carrying Handle	Yes, integrated
Scope of Delivery	LED Work Light, User Manual
Safety Notice: Hot Surface	Surface can become hot; avoid contact
Minimum Distance from Objects	0.5m (20 inches)
Glass Replacement	Replace if cracked (see manual for dimensions)
Suitable for Indoor/Outdoor	Yes (tunnel, alley, garden, etc.)
WEEE Registration Number	DE 67896761
Declaration of Conformity	Available from WD Plus GmbH

Frequently Asked Questions - 303179 Brandson

How do I install the Brandson 303179 work light?

Remove the device from packaging, plug the power cable into a properly protected socket. The light turns on automatically. For mounting, follow the assembly diagram in the manual using the provided hardware.

Is the Brandson 303179 suitable for outdoor use?

Yes, it has IP65 protection, making it waterproof and dust-tight. Suitable for outdoor areas like tunnels, alleys, and gardens. Avoid direct exposure to heavy rain or snow.

What safety precautions should I take?

Keep away from flammable materials, maintain at least 0.5m distance from objects. Never look directly at the LEDs. The surface can become hot; do not touch. Replace cracked protective glass immediately.

How do I clean the LED work light?

Disconnect from power before cleaning. Use a soft, dry cloth to wipe the housing and glass. Do not use abrasive cleaners or immerse in water.

Can I replace the LEDs or repair the light?

No, the LEDs are non-replaceable. Do not attempt to open or repair the device; it may void warranty and cause electrical hazards. Contact the manufacturer or a qualified technician.

What does the 'IP65' rating mean?

IP65 means the device is fully protected against dust ingress (first digit '6') and protected against low-pressure water jets from any direction (second digit '5'). Suitable for outdoor use but not submersion.

What is the beam angle and color temperature?

The beam angle is approximately 110°, providing wide coverage. Color temperature is 6500K, which is a cool daylight white, ideal for work areas.

How do I dispose of the Brandson 303179?

Do not dispose with household waste. Follow WEEE Directive 2012/19/EU. Return to manufacturer, purchase point, or a public collection point for electrical recycling.

What should I do if the protective glass breaks?

Immediately stop using the device and replace the glass with an identical piece (see manual for exact dimensions). Do not operate without intact glass.

Is the Brandson 303179 dimmable?

No, the device is not dimmable. It operates at full brightness when connected to power.

USER MANUAL 303179 Brandson

Thank you for having chosen this Brandon product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• LED work light
• User manual

2 Technical data

voltage 220 - 240V AC / 50Hz, 50W
Beam angle Approx. 110°
Colour temperature 6500K
Working temperature -10°C up to +40°C
Protection class IP65
Features • Stable metal housing• 120 LEDs• Carrying handle

3 Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5m between the work light and other objects!

• Any cracked protective cover (for more information, see hard-glass dimensions under "2 Technical data") must be replaced!
• Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
• Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4 Start-up

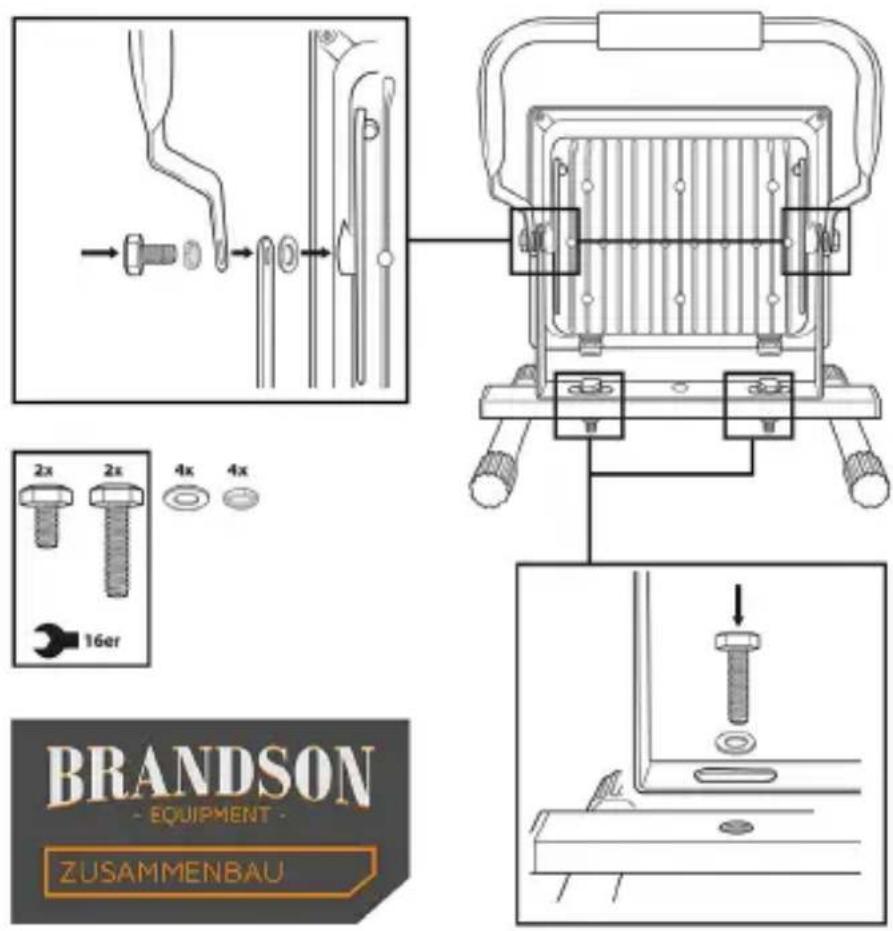

Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it has switched on. The assembly is conducted as shown in the picture.

5 Safety instructions and liability disclaimer

Regularly review all connections and wiring for damage. Do not put the device into operation if damaged. Keep it away from sharp objects and other potential dangers. Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages.

Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303179 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Notes

BRANDSON EQUIPMENT

- EQUIPMENT -

WD Plus GmbH
