Product Type	LED Work Light
Brand	Brandson
Model	302639
Power Source	220-240V AC, 50Hz
Power Consumption	30W
Light Source	72 LEDs
Color Temperature	6000K (Cool White)
Beam Angle	Approx. 160°
Protection Class	IP65 (Waterproof and Dust-Free)
Housing Material	Aluminum Die-Cast with Safety Glass
Surface Coating	Electrostatic Coating
Operating Temperature	-10°C to +40°C
Dimensions (Hard Glass)	22.5 x 18.5 x 0.4 cm
Weight	Approx. 1.2 kg
Carrying Handle	Yes
Suitable For	Indoor and Outdoor Use (tunnel, alley, garden)
Safety Features	Hot surface warning, keep distance ≥0.5m
Included Accessories	LED work light, user manual
Certifications	CE, WEEE (DE 67896761)
Disposal	Follow WEEE directive

Frequently Asked Questions - 302639 Brandson

How do I turn on the Brandson 302639 LED work light?

Simply plug the power cable into a properly protected socket. The light turns on immediately when connected.

Can I use this light outdoors?

Yes, it has an IP65 protection class, making it waterproof and dust-proof. It is suitable for tunnels, alleys, gardens, etc.

What is the beam angle?

The beam angle is approximately 160°, providing wide illumination.

Is the light dimmable?

No, this LED work light is not dimmable. It operates at full brightness when plugged in.

How do I clean the light?

Clean the housing with a damp cloth. Avoid water ingress into the electronics. Do not use harsh chemicals.

Can I replace the LEDs?

The LEDs are not designed to be replaced. If the light fails, the entire unit should be replaced.

What does IP65 mean?

IP65 means the device is dust-tight and protected against water jets from any direction.

Why does the light get hot?

The 30W power generates heat. The metal housing acts as a heat sink. Keep a distance of at least 0.5m from other objects and do not touch the surface while in use.

Can I mount it on a wall?

The light is designed with a carrying handle for portable use. It does not come with wall-mounting brackets. It is intended for free-standing or hanging use.

What is the color temperature?

The color temperature is 6000K, which is a cool white light, similar to daylight.

USER MANUAL 302639 Brandson

Thank you for having chosen this Brandon product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• LED work light
• User manual

2 Technical data

voltage 220 - 240V AC / 50Hz, 30W
Beam angle approx. 160°
Colour temperature 6000K
Working temperature -10°C up to +40°C
Protection class IP65
Dimensions (Hard glass) 22,5cm x 18,5cm x 0,4cm
Features • Stable metal housing• 72 LEDs• Carrying handle

3 Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5m between the work light and other objects!

• Any cracked protective cover (for more information, see hard-glass dimensions under "2 Technical data") must be replaced!
• Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
• Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4 Start-up

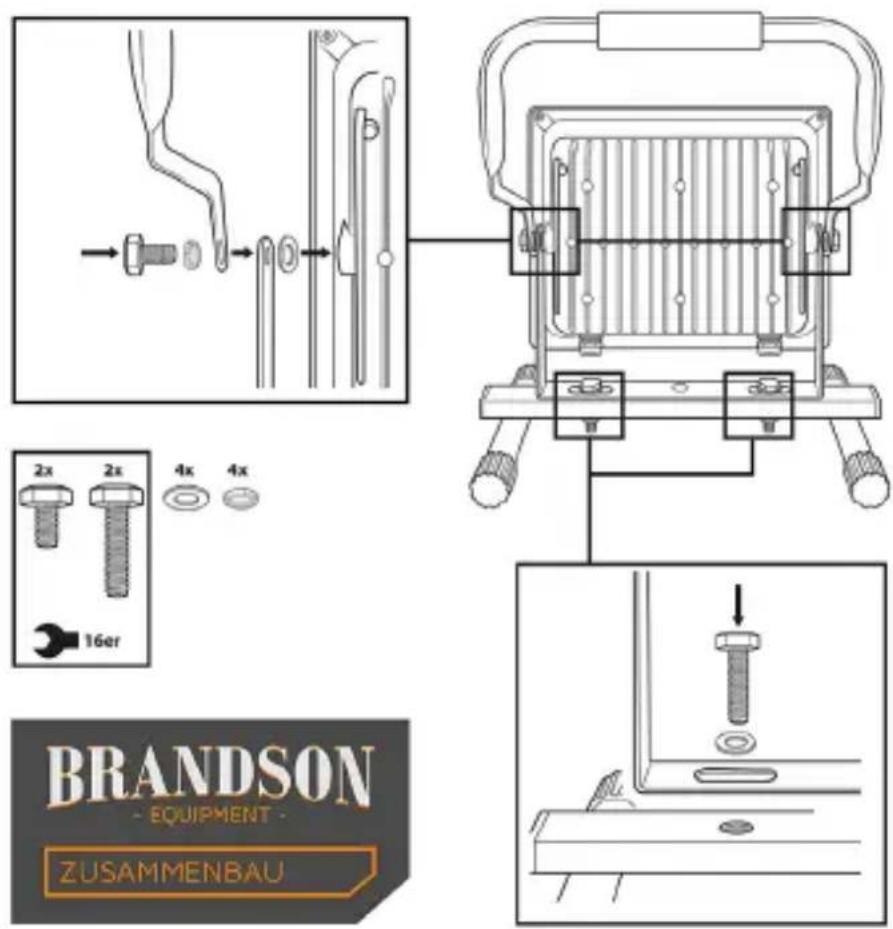

Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it has switched on. The assembly is conducted as shown in the picture.

5 Safety instructions and liability disclaimer

Regularly review all connections and wiring for damage. Do not put the device into operation if damaged. Keep it away from sharp objects and other potential dangers. Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages.

Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302639 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Notes

BRANDSON EQUIPMENT

- EQUIPMENT -

WD Plus GmbH
