USER MANUAL 303320 Brandson

This product is only suitable for well insulated rooms or for occasional use.

Table of contents

1. Deutsch....3
2. English....24
3. Français....31
4. Italiano....45
5. Español....59

Prohibition sign with red circle and black document icon, indicating no prohibition or exclusion

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual for future reference.
• Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Never block the fan in the device. This could damage the device, result in a fire or electric shock!
• Never block the air inlet of the interior fan heater!

• Disconnect the plug from the power source if the device is not being used! Do not leave the fan heater unattended!

• This device emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

• Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
• This device is intended for personal use only!
• Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.
• Cleaning and maintenance should not be carried out by children.
• This appliance can be operated by children from 8 years of age and

above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.

- CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.

- Never immerse it in water for cleaning. Wipe the body with a dry cloth.

- Place the appliance at a distance of least 1m from other objects.

- Use the product only on a flat surface.

- Disconnect the appliance from the mains when it is not being used or during cleaning.

- Keep the appliance at least 1m away

from flammable materials, such as furniture, curtains, bedding, clothing or paper.

• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• Never move the appliance during operation.
• The appliance should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or the packaging material!

• This product is not a toy!
- Close supervision is required if the product is used by or near children or frail persons.
- Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.
- Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry so as to avoid electric shock.
- Hold the heater only using the handle on the back.

• Do not use the heater in places such as garages, where petrol, paint, or other flammable materials are used or stored.
• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.
• Dust and lint deposits which get into the appliance are a common cause of overheating. Make sure that these deposits are removed regularly by disconnecting the heater from the socket, so that it can cool down and be cleaned (as described in the section on "Cleaning and care").
• Never connect the appliance to an extension cable or power strip!

• Do not use the appliance outdoors!

• Use this heater only as described in this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical injury and void the guarantee.

• CAUTION: Please do not cover!
• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is also a risk of fire!

Prohibition sign with red circle and black icon depicting a document or file, no text present

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240V AC / 50Hz
Power consumption Setting 1: 1000W /	Setting 2: 1800W
Dimensions (H x W x D) approx. 250mm	x 170mm x 150mm
Features • Oscillation option	• 2 heat settings• Display

3. Function

You can heat the desired area with the Brandon heater. Thanks to the oscillation function and the 2 heat settings, you can heat as desired.

4. Product details

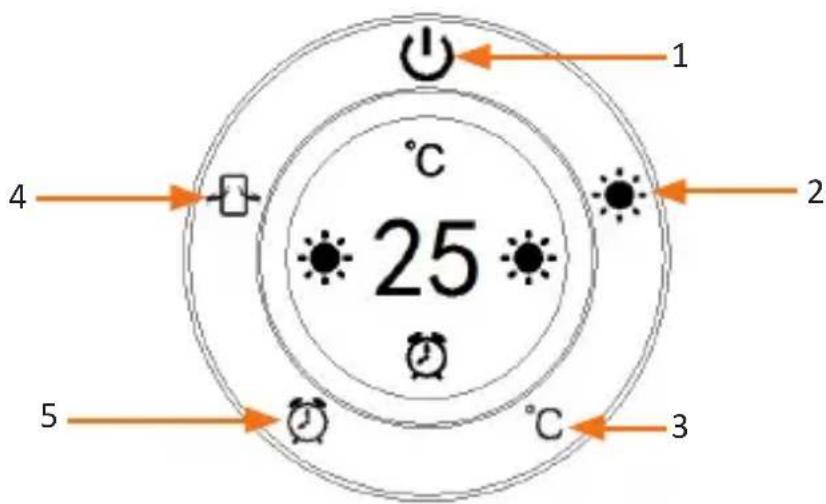

1 2 3 4 5 °C 25

No. Description
1 On/Off button
2 Mode button (setting 1, setting 2)
3 Temperature button (10-35°C)
4 Oscillation button
5 Timer button (0-8 hours)

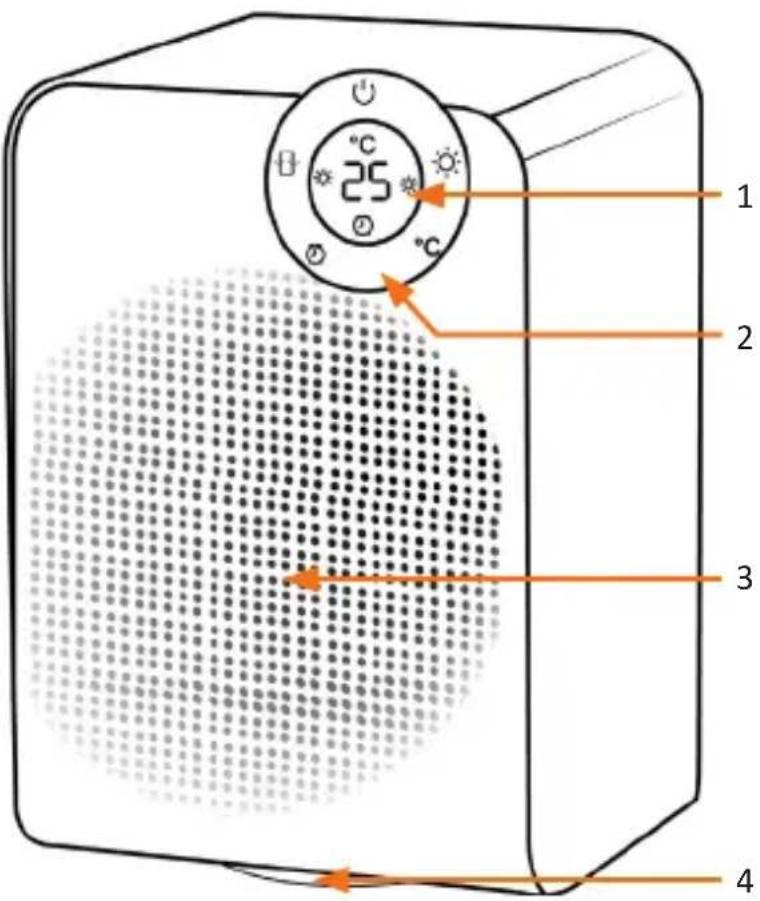

1 2 3 4

No. Description
1 Display
2 Operating controls
3 Heating elements
4 Pedestal

5. Installation

Take the appliance out of the packaging and remove any packaging material and check the appliance for any damage. The fan heater must be placed on a flat surface. Ensure that the heater is placed at least 1m away from other objects, and not directly below a socket. A socket should be available for supplying power to the appliance.

Caution! Ensure that the appliance is not placed near any flammable materials or fluids, or with the air discharge pointing in these directions.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater so that it is a couple of degrees higher than the room temperature. If the heater does not seem to be heating, increase the desired temperature on the heater to activate the heating elements.

6. Commissioning

Connect the appliance to a 220-240V AC socket. Set the ON/OFF switch at the back of the appliance to position "I" to start the appliance. The heater then shows the current temperature in the display. To switch off the appliance, set the "ON/OFF" switch to the "0" position.

Press the "button" button on the control panel at the front of the fan. The ventilation starts now.

The appliance has two different heat settings. The heat settings are shown in the form of two suns in the display (see Chapter 4 under "Product details"). Press the mode button " " to select heat setting 1 or heat setting 2. Press the button once to switch on heat setting 1, twice to switch on heat setting 2, and a third time to change to ventilation mode.

Thermostat function

Press the temperature button "" to set a desired temperature. Temperatures between 10°C and 35°C can be set. As soon as the set temperature is less than or equal to the current air temperature, the heating function is switched off. The fan does not switch off and maintains the set temperature.

If the set temperature is 2^ C more than the current air temperature, then heat setting 1 (" symbol in the display) switches on and starts heating until the room temperature reaches the desired temperature. If the set temperature is 4^ C or more than the current room temperature, the heat setting 2 (two " symbols in the display) switches on and heats the room to the set temperature.

Timer function

Press the "button" button to switch on the timer. The timer function works in all the modes. Every time you press the timer button, the value increments by one hour, up to a maximum of 8 hours. Press the timer button again to reset the timer.

If the timer is set once, the countdown function starts counting down and switches off the appliance at the end of the timer count.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. This device comes with a non self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The fan heater can be operated again only after the fuse is replaced by the manufacturer or by an equally qualified person.

8. Oscillation

The oscillation of the appliance can be switched on or off using the " " button.

9. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it.

Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean.

Clean the air inlet and outlet regularly using a vacuum cleaner.

If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

10. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

13. Warranty declaration

Regardless of statutory warranty claims, the manufacturer grants a warranty pursuant to the laws of your country, however, at least 1 year (2 years in Germany). The warranty starts on the date that the device has been sold to the consumer.

The warranty covers exclusively defects based on material or manufacturing defects. Repairs under this warranty may be performed exclusively by an authorized customer service centre. Submit the original sales receipt (showing date of sale) to assert your warranty claim.

The following are excluded from the warranty:

• Normal wear
• Improper use, e.g. overloading the device, unapproved accessories
• Damage caused by external influences, force, or foreign objects
• Damage caused by noncompliance with these operating instructions,
  e.g. connecting to the wrong voltage or noncompliance with the installation instructions
• Fully or partially disassembled devices

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

This symbol indicates that disposal of this product in the domestic waste is not permitted within the EU. Waste devices contain valuable recyclable material that should be recycled. Recycling also prevents uncontrolled waste disposal from damaging the environment and human health. Therefore, please dispose of all waste devices in the appropriate collection systems or send the device to the place where you bought the device for disposal. They will then recycle the device.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303320 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Prohibition sign with a red circle and black silhouette of a document or folder, indicating no prohibition or exclusion.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Prohibition sign with red circle and black document icon, indicating no prohibition or exclusion

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Prohibition sign with red circle and black icon depicting a document or file, crossed by a diagonal line

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Model identifier(s): WDP-303320
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_max	1.8	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	0	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	P_max	1.5	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	p_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	p_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	p_in	0,002	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No

				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive alert control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details				WD Plus GmbHWohnenbergstraße 16 · 30179 Hannover	No
