USER MANUAL 305647 Brandson

Important safety guidelines for this device

• The manufacturer is not liable for damage caused by incorrect or improper use.
• Please use only in protected outdoor areas and protect it against moisture, liquids and sunlight.
• Always inspect the cable visually before using it. Pay special attention to dirt and damage to the charging plug and cable.
• Do not use the product if the cable or plug are damaged.

• Modifications or changes may be fatal and result in the immediate lapse of warranty

• Do not operate the charging cable near flammable gases, liquids or dusts.

• Connect the cable only to a proper and suitable infrastructure. If you have any doubts, get them checked for suitability by a specialist.
• Disconnect using the plug only and do not pull the cable.
• Never disconnect the plug by force.
• Make sure you remove the charging cable before you drive off.
• Keep pets away from the charging cable.
• Do not use any adapter or extension cable.

• Do not connect the cable in series.

• This product is not suitable for children.

• Clean the charging cable only when it is not plugged and use only a dry cloth!
• Keep the product away from water. Do not immerse the product in water!
• Do not make any modifications to the charging cable, charging plug and charging coupling.
• Never use the cable outside the specified temperature window.
• Do not dismantle the cable.

• Operate the cable only in surroundings where there is no flammable or explosive material.

• Please do not drive over the charging cable, plug and coupling with the car, do not step on it or put other objects there.

• Please do not stretch the charging cable tight or unplug it by pulling the plug or coupling when it is connected.
• Please do not twist, throw, bend or leave the cable on the floor.
• Do not insert any objects into the contacts.

• Ensure that the cable is not jammed in the car door.

• Never use the cable unsupervised.

• Not following the safety instructions can lead to injuries and property damage for which the user shall be liable.

The plugs are manufactured in accordance with the standards EN 50620 and EN62196-2 2017.

Proper use

The charging cable must only be used for electric and hybrid vehicles that are approved for this type and mode of charging. The cable must only be connected to the intended and approved charging stations. Any other use is not allowed. The user manual is valid for charging mode 3 with charging types 1 and 2. Follow the instructions in the manual, because only these instructions ensure safe charging and use of the charging cable.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Cable
• User manual

2. Technical data

Rated voltage 250V (1 phase)	/480 V (3 phases) AC
Rated current (power)	16A 1 phase, 3.6 kW16A 3 phases, 11 kW32A 1 phase, 7.2k W32A 3 phases, 22kW
Frequency 50/60 Hz
Insulation resistance >1000 MΩ
Increase in contact temperature	< 50 K
High voltage strength 2000 V
Contact resistance 0.5 mΩ
Mechanical life >10000 mating cycles in idle condition
Pull-off force of the plug 45N-100N
Shock resistance Dropping from a height of 1 m and driving over with a 2T vehicle
Housing Thermoplastic, flame retardant according to UL94 V-0
Cable material TPE/ TPU
Connections	Copper alloy, silver plated
Protection category IP54
Certification CE/ TÜV
Certification Standards	• IEC62196-1 2014• IEC62196-2 2017
Warranty 2 years
Vehicle plug (EV) EN 62196 Type 2 female
Charging station plug (EVSE)	EN 62196 Type 2 male
Operating temperature -30°C - + 50°C
Working humidity 5%-95%
Working height < 2000 m

3. Usage

To start charging

1. Plug the type 2 socket (female) into the electric vehicle's input jack.
2. Plug the type 2 plug (male) firmly into the socket of the AC charging station (EVSE).
3. Lock your electric vehicle and the AC charging station (EVSE) charges the vehicle.

To stop charging

1. Unplug the type 2 socket (female) from the vehicle outlet.
2. Unplug the type 2 plug (male) from the EVSE outlet to disconnect the power supply.
3. Stow the EV charging cable away.

Note: For more information specifically for charging your vehicle, please refer to the vehicle manufacturer's user manual.

4. Pin assignment

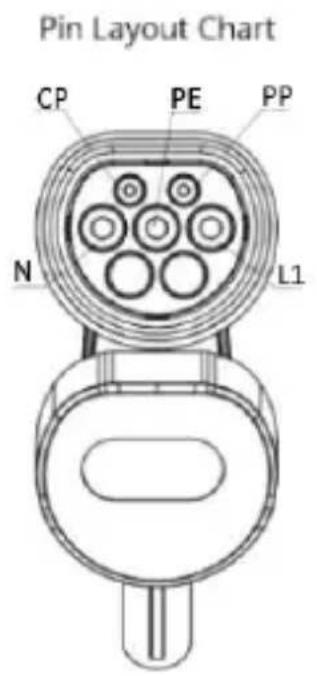

Pin Layout Chart CP PE PP N L1

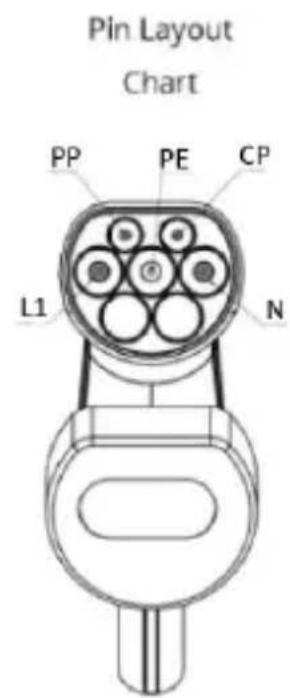

Pin Layout Chart PP PE CP L1 N

5. Additional instructions

• This is a mode 3 electric car (EV) charging cable specifically for electric cars with type 2 inputs. Do not use it for electric cars having other input types.
• This cable has a precise internal structure. If you have any questions, please contact our customer service. Please do not dismantle the product without professional technical support.
• The product is only suitable for charging electric vehicles. Please do not use it for other purposes, including towing, tying etc.
• Do not use the product if it is damaged.
  • The device has to be earthed.
  • Pay attention to the risk of electric shock or burn.
  • This device does not contain any user serviceable parts.

6. Common problems

• Pins don't snap into place - When plugging in the cable, apply a little more force until the pins are properly connected to the charging station or electric vehicle.
• Charging settings on the electric vehicle - Make sure that no timers or other settings are turned on in the vehicle.
• The vehicle is locked - The vehicle must be unlocked and switched off to start charging.
• Plugging in another cable - This cable must be plugged directly into a type 2 socket.

7. Cleaning

Caution! Pull out the power plug from the vehicle and the charging station before starting to clean! The cable must not be connected!

Use a dry cloth for cleaning. The device must never be immersed in water for cleaning or come into contact with water. This could lead to electric shock or fire!

8. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard.

The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305647 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement in this regard can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
