Product type	LED construction spotlight
Brand	Brandson
Model	305006
Power supply	220 - 240 V ~ / 50 Hz
Power consumption	50 W
Number of LEDs	120
Beam angle	Approximately 110°
Color temperature	6500 K (cold white light)
Protection rating	IP65 (water and dust tight)
Operating temperature	-10 °C to +40 °C
Housing material	Die-cast aluminum with electrostatic coating
Protective glass	Tempered safety glass
Carrying handle	Integrated
Minimum safety distance	0.5 m from any object
Usage	Indoor and outdoor (tunnels, paths, gardens, etc.)
Package contents	Spotlight, instruction manual
Hot surface	Attention: do not touch during operation
Do not look at LEDs	Risk of eye injury
Maintenance and cleaning	Disconnect before cleaning, use a soft dry cloth
Repairability	Do not open or repair yourself, contact customer service

Frequently Asked Questions - 305006 Brandson

How to install the spotlight?

Plug the power cable into a wall socket. The spotlight turns on automatically. Mount it using the supplied bracket (screws and plugs) keeping a distance of at least 0.5 m from other objects.

Is the spotlight waterproof?

Yes, it has a protection rating of IP65, making it water jet and dust proof. It is therefore suitable for outdoor use.

Can I look directly at the LEDs?

No, do not look directly at the LEDs, as this may cause eye injury. Direct the spotlight away from people and animals.

Why does the spotlight get hot?

The housing gets hot during operation, this is normal. Do not touch it with bare hands and keep a distance of at least 0.5 m from flammable materials.

What to do if the spotlight does not turn on?

Check that the wall socket is functional and the power cable is not damaged. If the problem persists, contact customer service.

Can I use a dimmer with this spotlight?

No, this spotlight is not dimmable. Its power supply is designed for fixed voltage 220-240 V~ / 50 Hz.

How to clean the spotlight?

First disconnect it. Use a soft dry cloth to wipe the surface. Never use abrasive cleaners or solvents.

The protective glass is broken, what to do?

Do not use the unit without intact protective glass. Replace it with safety glass of the exact dimensions specified in the technical specifications.

What is the lifespan of the LEDs?

The LEDs have a long lifespan, typically over 30,000 hours. They are not individually replaceable.

How to dispose of the spotlight at end of life?

Do not dispose of it in household waste. Return it to a WEEE collection point or to the dealer according to European directive 2012/19/EU.

USER MANUAL 305006 Brandson

Thank you for having chosen this Brandon product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• LED work light
• User manual

2. Technical data

voltage 220 - 240V AC / 50	Hz, 50 W
Beam angle Approx. 110°
Colour temperature 6500 K
Working temperature -10°C up to +40°C
Protection class IP65
Features • Stable metal housing• 120 LEDs• Carrying handle

3. Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5 ~m between the work light and other objects!

• Any cracked protective cover (for more information, see hard-glass dimensions under "2 Technical data") must be replaced!
• Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
• Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4. Start-up

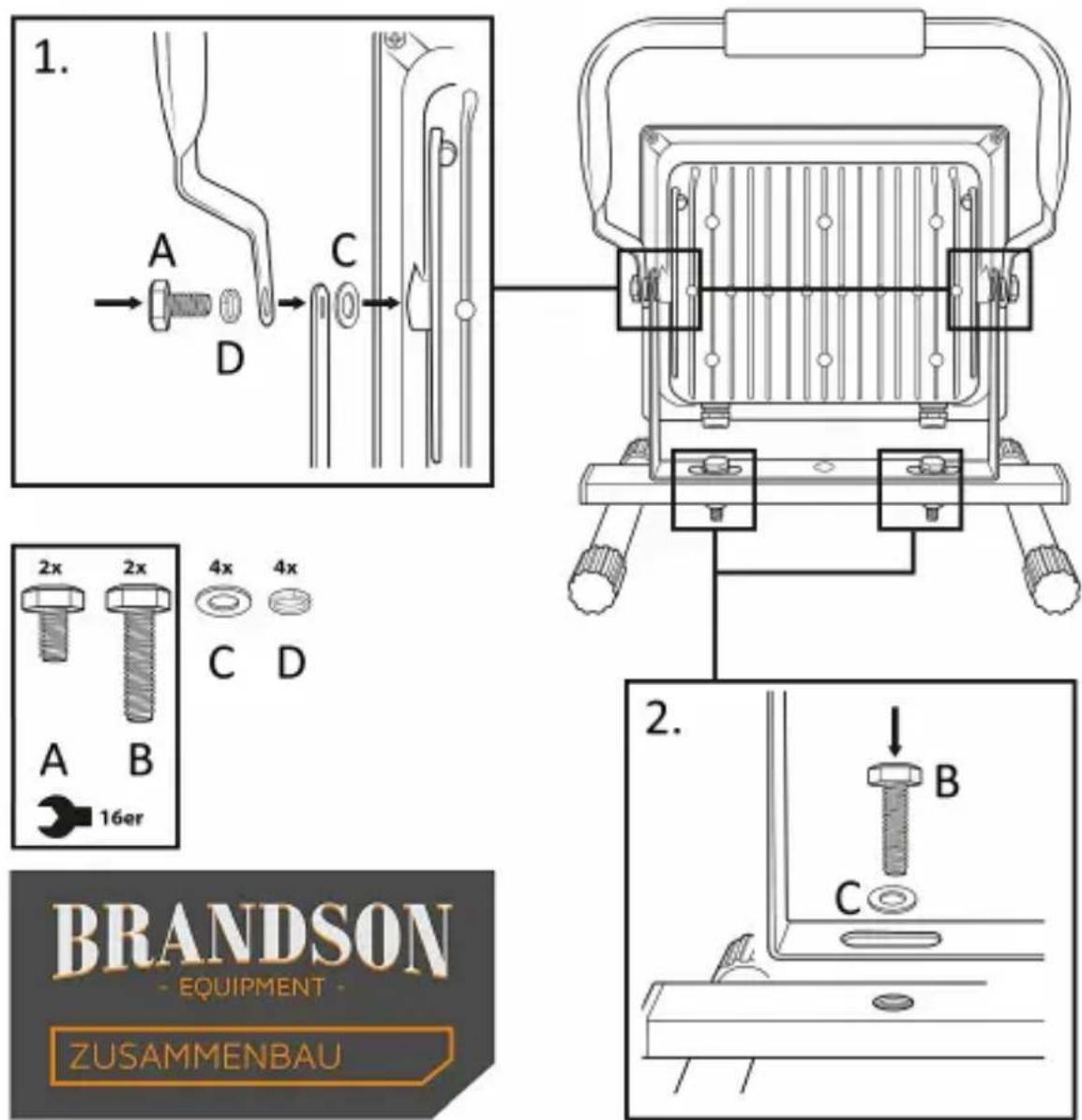

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it has switched on. The assembly is conducted as shown in the picture. Never operate the device unattended and check it before each use for possible damage and correct mounting.

1. A D C 2x 2x 4x 4x C D A B 16er 2. B C BRANDSON -EQUIPMENT - ZUSAMMENBAU

5. Safety instructions and liability disclaimer

Regularly review all connections and wiring for damage. Do not put the device into operation if damaged. Keep it away from sharp objects and other potential dangers. Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 305006 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
