USER MANUAL BC40STTI2202 Be Cool

Diagram showing two different fan types with a plus sign and equals sign, illustrating the equivalence between one and the other.

HERZLICHEN GLÜCKWUNSCH!

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts for identification

MONTAGE DES LÜFTERS

Diagram showing two different fan types with a plus sign and equals sign, illustrating the equivalence between one and the other.

FÉLICITATIONS!

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

BE COOL

VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON- RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES OU DES DOMMAGES AUX PERSONNES ET/OU AUX BIENS ET/OU INVALIDER LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LA CONNEXION ÉLECTRIQUE

Warning symbols including a hand symbol, warning triangle with exclamation mark, and triangular hazard symbol

Exploded view diagram of a mechanical assembly with numbered parts for identification

ASSEMBLAGE DU VENTILATEUR

Diagram illustrating a circular process with numbered steps and directional arrows indicating cycle or feedback.

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

CONGRATULAZIONI!

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol.

Exploded view diagram of a mechanical assembly with numbered parts and labeled parts

MONTAGGIO DEL VENTILATORE

Diagram showing two different types of outdoor fans, one with a plus sign and the other with a blank rectangle, illustrating the equivalence.

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT LETSEL OF SCHADE AAN PERSONEN EN/OF EIGENDOMMEN EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a fan assembly with numbered parts and labeled parts

DE VENTILATOR MONTEREN

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

FELICIDADES!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

BE COOL

Three black-and-white warning symbols: no hand, warning triangle, and lightning bolt

Exploded view diagram of a mechanical assembly with numbered parts and labeled parts

MONTAJE DEL VENTILADOR

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST KE ZRANĚNÍ NEBO POŠKOZENÍ OSOB A/NEBO MAJETKU A/NEBO KE ZTRÁTĚ ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Three black-and-white warning symbols: a hand crossed out with a circle, an exclamation mark, and a triangular symbol with a lightning bolt.

Exploded view diagram of a mechanical assembly with numbered parts for identification

MONTÁŽ VENTILÁTORU

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TENTO NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE VIESŤ K ZRANENIU ALEBO POŠKODENIU OSÔB A/ALEBO MAJETKU A/ALEBO K STRATE PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Warning symbols including a hand holding a prohibition sign, a warning triangle with an exclamation mark, and a triangular hazard symbol.

https://www.schuss-home.at/downloads

Exploded view diagram of a mechanical assembly with numbered parts for identification

MONTÁŽ VENTILÁTORA

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS DE LA BE COOL.

BE COOL

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACEST MANUAL DE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR POATE DUCE LA RĂNIREA SAU LA DETERIORAREA PERSOANELOR ȘI/SAU A BUNURILOR ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Warning symbols including a hand holding a circle, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts for identification

ASAMBLAREA VENTILATORULUI

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY LEAD TO INJURY OR DAMAGE TO PERSONS AND/OR PROPERTY AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRICAL CONNECTION.

Warning symbols including a hand holding a circle, an exclamation mark, and a warning triangle with lightning.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.
2. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.
3. Keep packaging material out of the reach of children. There is a risk of choking if swallowed!
4. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.
5. Before connecting to the mains power supply, you must check if the type of mains current and voltage comply with the details given on the rating plate of the device.

BE COOL

1. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.

2. Avoid the use of an extension cable, as this may overheat and cause a fire.

3. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

4. If the device has a defect, switch it off and contact your dealer or the customer hotline.

5. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer. You can view our customer service points online at www.becool.at.

6. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.

7. Do not use the device without supervision. Always switch the device off when leaving the room.

8. Children must not be allowed to play with the device.

9. Do not twist or kink the power cable.

10. Do not use the device with wet hands.

11. Do not use the device outdoors.

12. Never use the device in rooms in which gas, oil or

BE COOL

sulphur are present.

1. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.

2. Do not place any objects on the device.

3. Place the device on a stable and level subsurface.

4. Never cover the device.

5. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.

6. Always switch the device off before pulling the power plug.

7. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.

8. Do not touch the plug with wet hands to avoid electrical shocks.

9. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.

10. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorised customer hotline / service point.

11. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

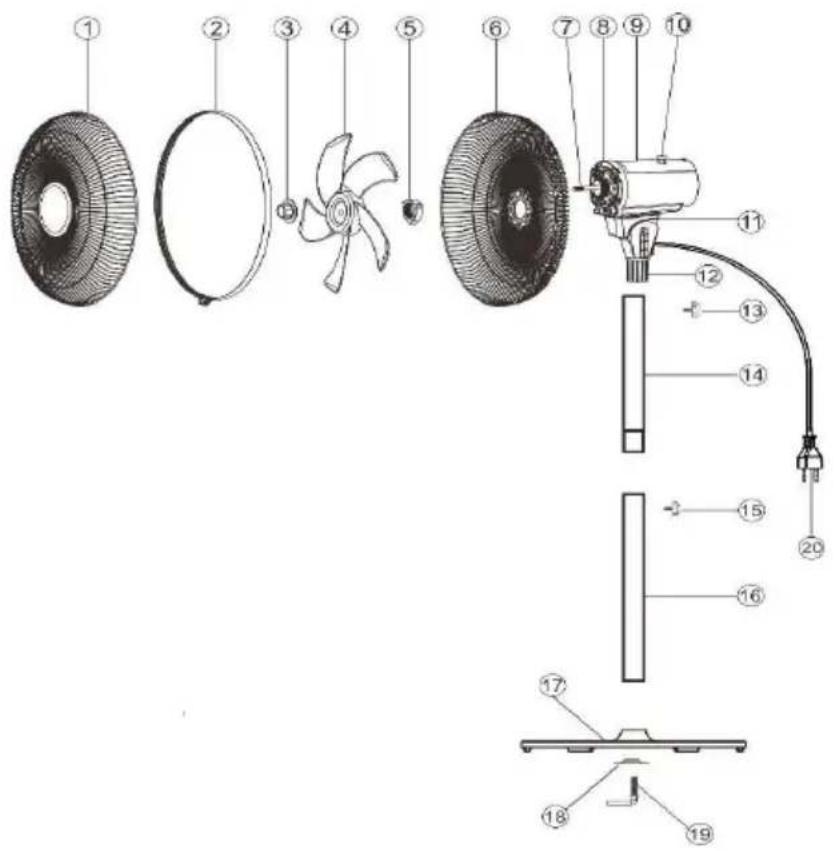

OVERVIEW THE FAN

1. Front Grill
2. Grill ring
3. Blade Lock Nut
4. Blade
5. Grill Lock Nut
6. Back Grill
7. Motor
8. Front Motor Cover
9. Motor Cover
10. Oscillation Button
11. Motor Holder
12. Connection Holder
13. Fixed Screw#1
14. SS Holder#1
15. Fixed Screw#2
16. SS Holder#2
17. Base
18. Gasket
19. Fixed Screw
20. Power cord

Exploded view diagram of a fan assembly with numbered parts and labeled parts

ASSEMBLING THE FAN

1. Take all of the appliance parts out of the packaging and remove all packaging materials and inserts.
2. Insert the SS Holder #2 (16) into the Base (17), and tighten up by the Gasket (18) and Fixed Screw (19)
3. Connect SS Holder#1 to SS Holder#2(16), and tighten up by Fixed Screw#2(15)
4. Connect Motor Holder to SS Holder#1(14), and tighten up by Fixed Screw#1(13)
5. Take the back grill (6), put it on the motor (7), and fixed by grill lock nut

BE COOL

(5)

1. Take the blade (4), put it into the motor (7), and fixed by blade lock nut (3)

2. Take the front grill (1), put it to match the back grill (6). And fixed by Grill ring (2).

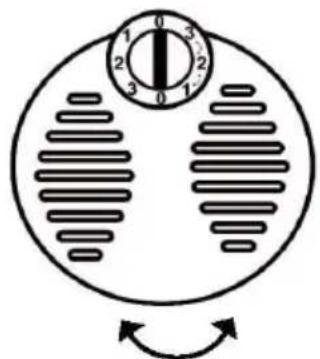

SPEED FUNCTION

There's 3 speed to select:

0- It's the power off button to stop

1- Low speed

2- Mid speed

3- High speed

Switch

Diagram illustrating a circular process with numbered segments and directional arrows, possibly representing a cycle or state transition.

Speed button with oscillation

CLEANING AND MAINTENANCE

Before cleaning the appliance always disconnect the power plug from the receptacle.

- The appliance, the power cord and the power plug should not be immersed in water or other liquids when you are cleaning them. Clean them with a dry cloth.

- If it is very dirty, the outside of the appliance can be wiped carefully with a moist cloth and then dried carefully. Make sure that no moisture penetrates into the interior of the appliance.

- Do not use any harsh cleaners, steel brushes, scouring powder or other hard objects to clean the appliance as these can cause scratches on the surfaces.

BE COOL

• Clean the appliance regularly.
• Never use solvents, benzene or oil-based cleaners as these can damage the housing.
• Re-tighten visible screw connections on the appliance regularly in order to ensure that the device is functioning properly.

Technical information
Rated voltage	220 – 240 V
Frequency	50 Hz
Rated input power	50 W
Noise Levels	60 dB(A)
Dimensions	400 x 400 x 1250 mm
Weight	5,5 kg
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0Service line: [phone] – 502www.becool.atCommercial register no.: 236974 t /Commercial register court: Vienna

BE COOL

WARRANTY

By purchasing a BECOOL quality product you have acquired an innovative, long lasting and reliable item.

For this BECOOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value. When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.
• Damages caused by improperly closed condensation drains on air conditioning devices or improperly inserted water container.
• Unfulfilled customer expectations.
• Damage caused by force majeure, water, lightning and overvoltage.
• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.
• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced!

Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BECOOL device!

ADDRESS

Schuss Home Electronic GmbH

Scheringgasse 3 A-1140 Vienna

Tel.: [phone]

Type designation: ....

Serial number:

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!

BE COOL

Diagram showing two different types of outdoor fans on stands, with a plus sign and equals sign indicating equivalence.

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH, PRZESTRZEGAJĄC INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE PROWADZIĆ DO OBRAŻEŃ CIAŁA LUB USZKODZENIA OSÓB I/LUB MIENIA I/LUB UNIEWAŻNIENIA GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts for identification

MONTAŻ WENTYLATORA

Diagram showing a circular arrangement of vertical bars with a central scale and directional arrows, likely representing a physical or mathematical concept.

Diagram showing two different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and quantity.

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Three black-and-white warning symbols: a hand crossed out, an exclamation mark, and a triangular hazard symbol.

Exploded view diagram of a mechanical assembly with numbered parts for identification

NAMESTITEV VENTILATORJA

Diagram showing two different types of outdoor fans with a plus sign and equals sign, illustrating the equivalence between fan count and quantity.

UVJETI ČESTITAMO!

PUNO HVALA NA TOME ONA SEBE ZA A PROIZVOD BE COOL ODLUČIO IMATI.

BE COOL

KROZ PRIJE ONA S ZAPOČNITE INSTALIRANJE, RAD ILI ODRŽAVANJE. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNO INFORMACIJA DO SIGURNOST, LOKACIJA I ELEKTRIČNI PRIKLJUČAK.

Warning symbols including a hand holding a circle, an exclamation mark, and a lightning bolt symbol

Exploded view diagram of a mechanical assembly with numbered parts for identification

UGRADNJA VENTILATORA

1. Izvadite sve dijelove uređaja iz pakiranja i uklonite sav materijal pakiranja.
2. Umetnite postolje (16) u postolje (17) i zategnite ga brtvenim prstenom (18) i pričvrsnim vijkom (19).
3. Spojite nastavak uspravne cijevi (14) na okretnu cijev (16) i zategnite ga pričvrsnim vijkom (15).
4. Spojite držač motora na nastavak cijevi (14) i zategnite ga pričvrsnim vijkom (13).
5. Uzmite stražnju zaštitnu rešetku (6), postavite je na osovinu motora (7) i pričvrstite je navojnom maticom (5).

BE COOL

Diagram illustrating a circular process with numbered steps and directional arrows indicating cycle or feedback.

Razina brzine s oscilacijom

ČIŠĆENJE I ODRŽAVANJE
