The wall sander GE 6 R-EC is designed

• for commercial use in industry and trade,
  — for sanding walls and ceilings inside and outside,
• for sanding smoothed drywalls,
• for use with tools which FLEX offer for these power tools and which are authorised to run at a speed of at least 1,650 r.p.m.

It is not permitted to use cutting-off wheels, roughing wheels, fan-like grinding wheels or wire brushes.

When using the wall sander GE 6 R-EC, connect a Class M dust extractor.

Safety Warnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operations such as grinding, wire brushing, or for polishing and cut-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
■ Do not covert this power tool to operate in a way which is not specifically designed and specified by the tool manufacturer. Such a conversion may result in a loss of control and cause serious personal injury.
- Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
■ The dimensions of the accessory mounting must fit the dimensions of the mounting hardware of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

• Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
  ■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  ■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
  ■ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
• Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
  ■ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
  ■ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  ■ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
  ■ Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
  ■ Do not attach a saw chain woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Sanding

■ Do not use excessively oversized sanding disc paper. Follow manufac-turers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Additional safety instructions

■ Use only extension cables permitted for outdoor use.
■ It is not recommended to sand lead paint. Lead paint should be removed by a specialist only.

If plaster board or plaster is sanded, this may cause static electricity to build up on the tool. To ensure your safety, the wall sander is earthed.
■ Remove dust with an earthed dust extractor only.
■ Do not work on materials which release hazardous substances (e.g. asbestos). Take precautions if hazardous, combustible or explosive dust is likely to occur. Wear protective dust mask.
■ Use dust extraction system.

Damage to property!

The mains voltage and the voltage specifications on the rating plate must correspond.

Noise and vibration

NOTE

Values for the A-weighted sound pressure level and for the total vibration values can be found in the table on page 5. The noise and vibration values have been determined in accordance with EN 62841.

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

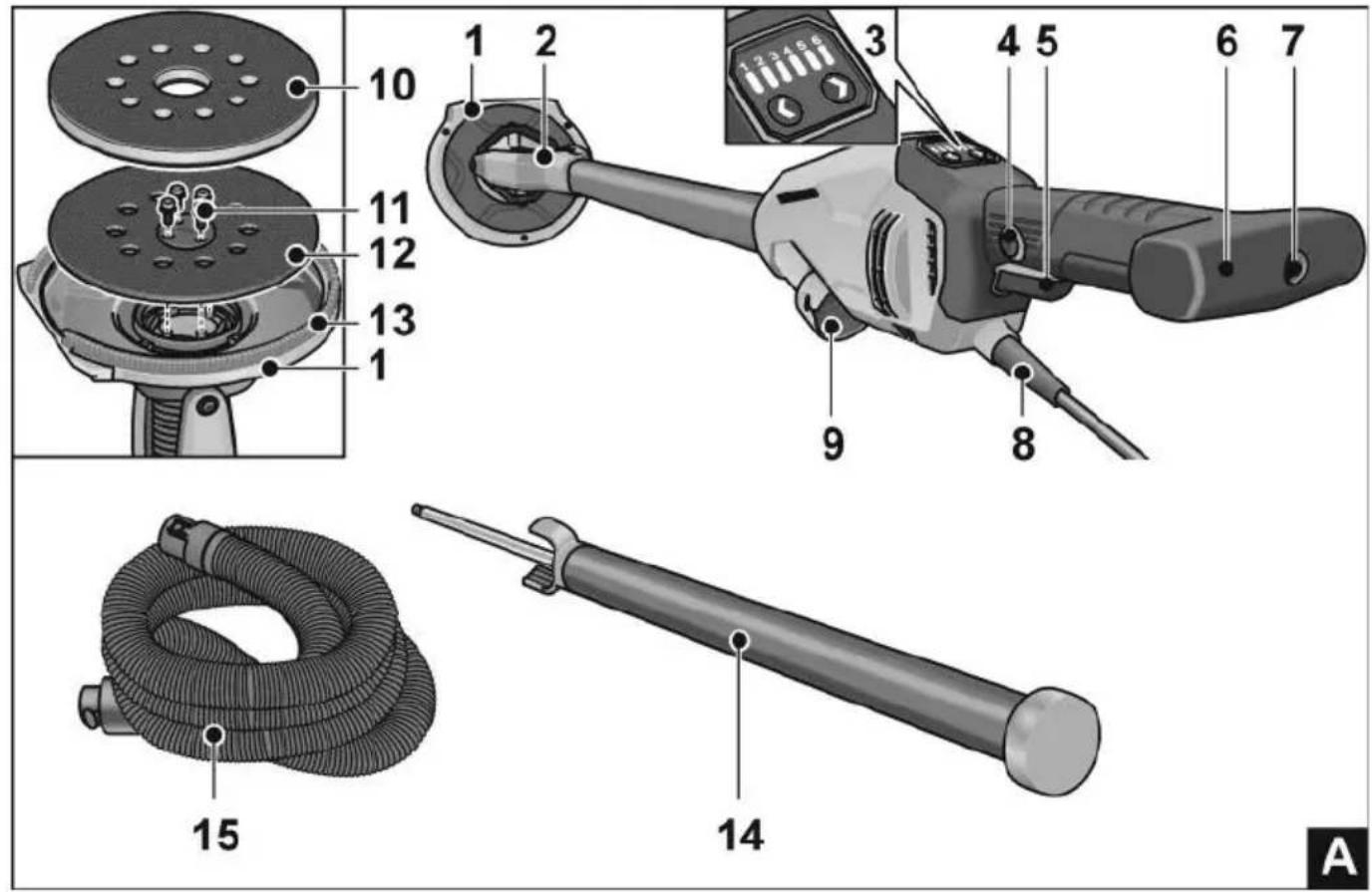

Overview (Figure A)

1 Sanding head
with open brush ring for sanding edges
2 Gimbal bearings
3 Digital speed preselection
4 Locking button
5 S w i t c h
6 Handle
7 Opening for extension
8 4.0 m power cord with plug
9 32 mm connection
10 Velcro plate

11 Mounting screws 4x
12 Backing pad
13 Brush ring
14 Extension (optional)
15 Suction hose (optional)

Instructions for use

Before switching on the power tool

Unpack power tool and accessories and check that no parts are missing or damaged.

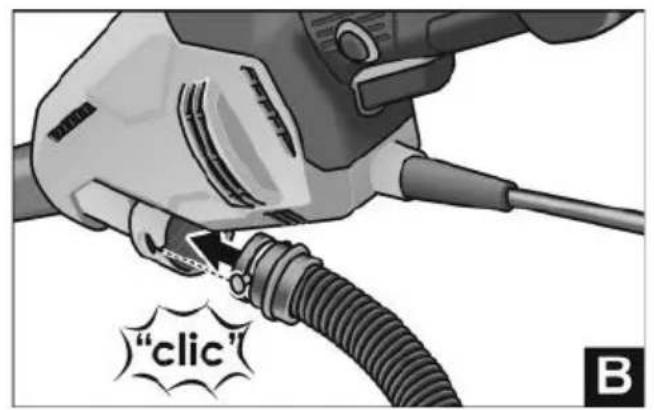

Connecting the extractor (Figure B)

■ Connect extraction hose to the 32 mm connector.

NOTE

The connection of GE 6 R-EC is a specific FLEX development. If electric power tools are used with conventional connection pieces together with the extraction hose of the GE 6 R-EC, an adapter from the FLEX accessories programme can be used.

Using a dust extraction system

CAUTION!

• When using the wall sander, connect a Class M dust extractor.
• If a dust bag is used which is not authorised for use with dry construction dust, the amount of dust particles in the air may increase at the work place. Over a prolonged period high concentrations of dust in the air may damage the human respiratory system.
  ■ Insert the special dust bag for dry construction dust into your dust extractor according to the instructions supplied with the dust extractor.
  ■ Connect extraction hose to the dust extraction system. Follow the operating instructions for the dust extraction system! If required, use an appropriate adapter!

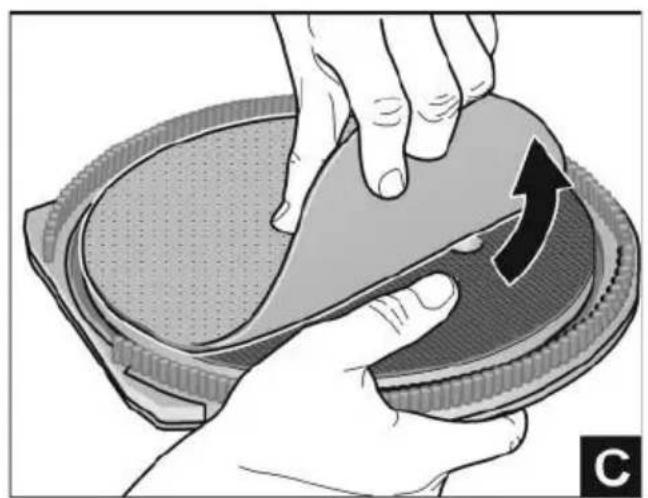

Attaching or changing the sanding tool (Figure C)

CAUTION!

Before performing any work on the electric power tool, pull out the mains plug.

■ Remove worn sanding tool from the Velcro pad.
■ Place the sanding sheet in the centre of the Velcro pad and press on.
■ Conduct a test run to check that the sanding tool is clamped in the centre.

CAUTION!

Never use the Velcro pad as a sanding tool. Never use the wall sander without the sanding sheet, otherwise the work surface will be seriously damaged!

Switching the electric power tool on and off

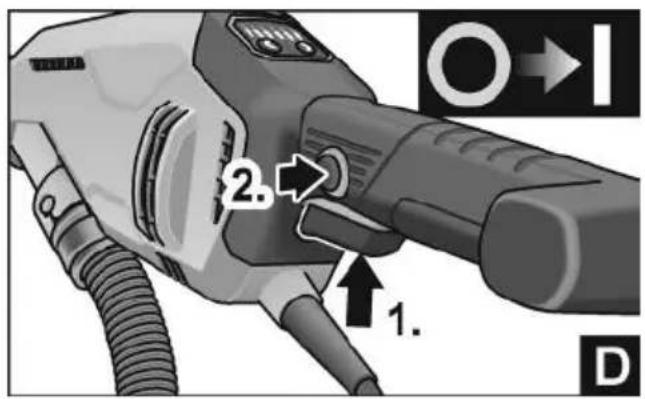

Switch on the machine (Figure D):

■ Press the switch (1.).
■ To engage, press the locking button and release switch(2.).

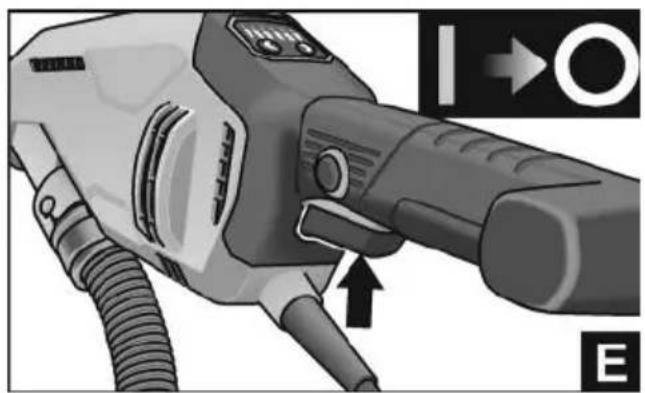

Switch off the machine (Figure E):
■ Press the switch briefly.

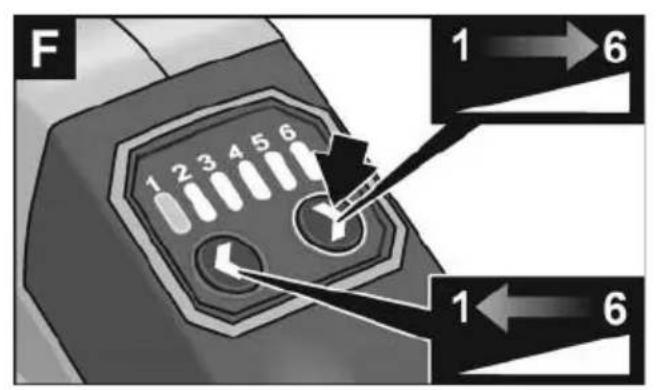

Preselecting the speed (Figure F)

To set the working speed, select the desired value using the buttons on the control panel.

Using extension (optional)

An extension is available for the wall sander GE 6 R-EC. The extension can be used to increase the range when working with the wall sander.

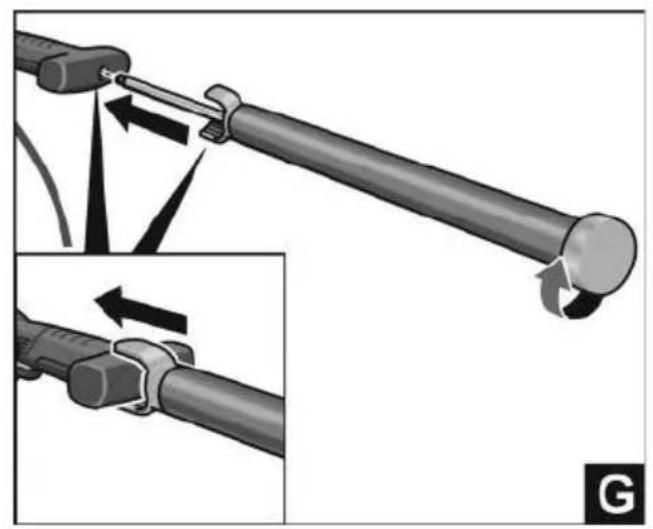

Figure G:

■ Insert the extension as far as it will go into the hole on the spade. Turn the handle to tighten the extension until a click is heard.

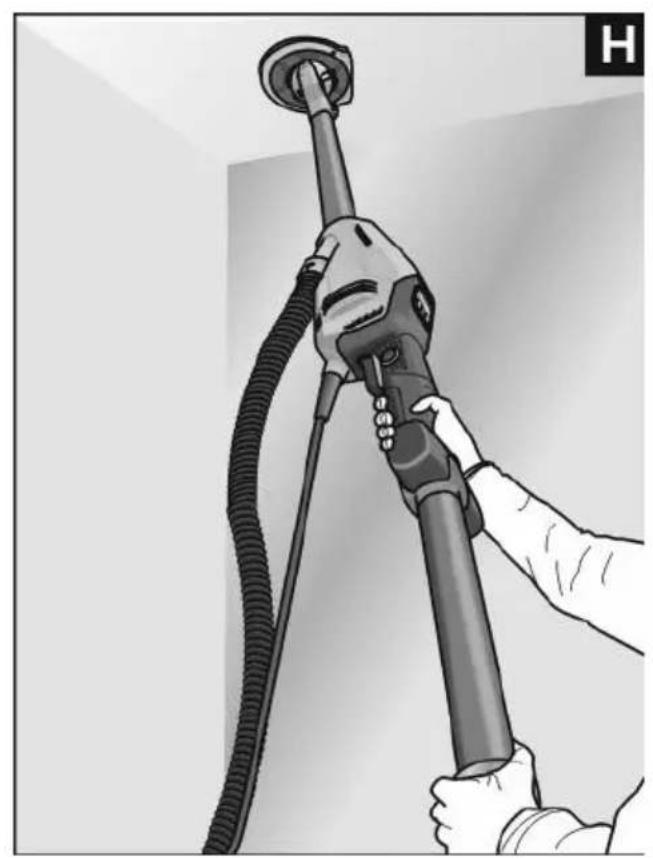

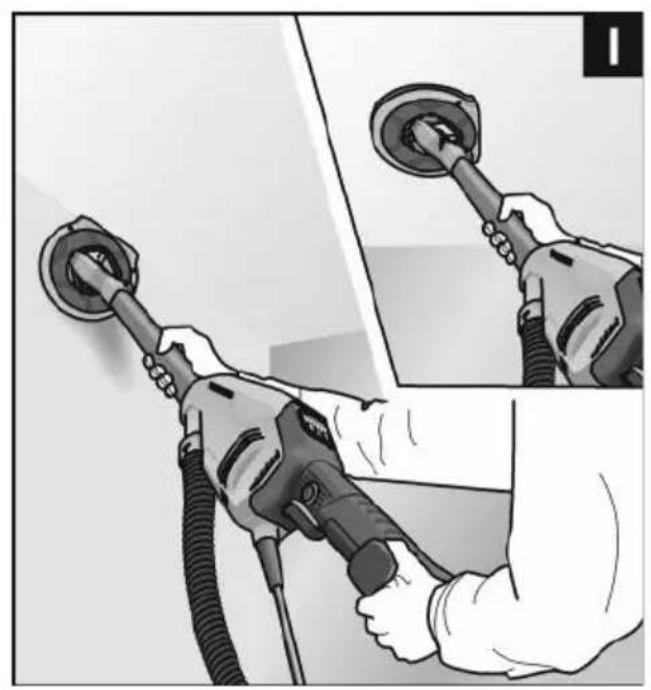

Working with the power tool (Figure H and I)

CAUTION!

Hold the electric power tool with both hands! When working, always have one hand on the handle – even when working with attached extension. Keep your hands away from the sanding head. Otherwise, your hand could become caught, as the sanding head swivels in different directions.

1. Attach sanding tool.
2. Connect dust extraction system.
3. Insert mains plug.
4. Set required speed.
5. Switch on dust extraction system.
6. Hold the wall sander with both hands. This provides the best possible combination of range and leverage for the application.
7. Switch on the device.
8. Press the wall sander gently against the work surface (the pressure should be just enough to ensure that the sanding head is flush with the work surface).
9. Increase the pressure to bring the sanding sheet into contact with the work surface. In doing so, swing the sander in overlapping movements to smooth the surface to the required fineness.

CAUTION!

The rotating parts of the sanding head must not come into contact with sharp projecting objects (e.g. nails, screws, junction boxes). The Velcro pad may be damaged if it comes into contact with projecting objects.

The Velcro pad can be replaced if it is damaged or severely abraded (see section entitled "Maintenance and care").

Operating instructions

Brush ring

A brush-type ring surrounds the sanding head. This ring has two functions:

— As the ring projects above the surface of the sanding plate, it is the ring which comes into contact with the work surface first. As a result, the sanding head is brought parallel to the work surface before the sanding tool comes into contact with the work surface.
This avoids a sickle-shaped depression caused by the edge of the sanding disc.

— The ring also retains the dust until it is extracted by the dust extractor.

If the brush ring is damaged or shows excessive wear, it should be replaced (see section entitled "Maintenance and care"). Replacement brush rings are available from any FLEX customer service centre.

Sanding in dry construction

The wall sander features a unique swivel head. As this head can swivel in different directions, the sanding head can be adjusted to the work surface.

As a result, the user can sand the upper, middle and lower wall areas or ceiling profiles without having to change his position. When working, apply only as much pressure as is required to keep the sanding plate in contact with the work surface. Excessive pressure may result in a disagreeable spiral pattern of scratches and an uneven work surface.

Move the sander constantly while the sanding plate is in contact with the work surface. In doing so, ensure that you move the sander evenly and over a wide area.

If you stop the sander on the work surface or move the sander unevenly, this may result in a disagreeable spiral pattern of scratches and an uneven work surface.

i NOTE

The wall sander features an overload cutout for protecting the device. If the load is too great, the device switches off and immediately restarts.

Maintenance and care

WARNING!

Before performing any work, pull out the mains plug.

Transport and storage

Take care of your power tool. After use, always store the power tool in the tool bag provided.

Never expose the power tool to excessive temperatures (no higher than 50 °C) in order to preserve the service life of your power tool.

Cleaning

WARNING!

Do not use water or liquid detergents.

■ Clean the device with a vacuum cleaner.
■ Regularly blow out the housing interior and motor with dry compressed air.
■ Blow out the sanding head and gimbal bearing with dry compressed air.

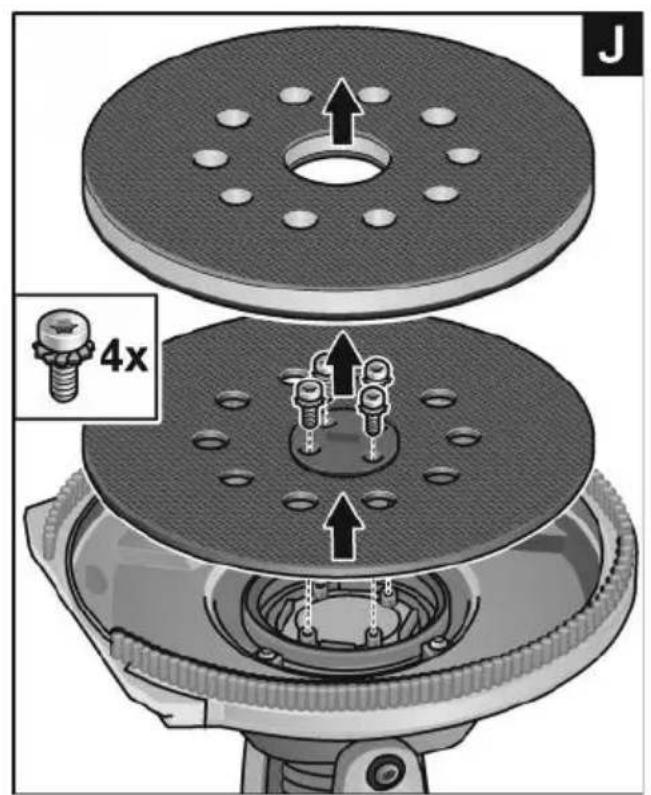

Replacing Velcro or backing pad (Figure J)

■ Pull the Velcro plate off the backing pad.
■ Loosen the four screws with a 4 mm hexagon key (not included) and remove the sanding disc.
■ Assemble sanding head in reverse sequence.

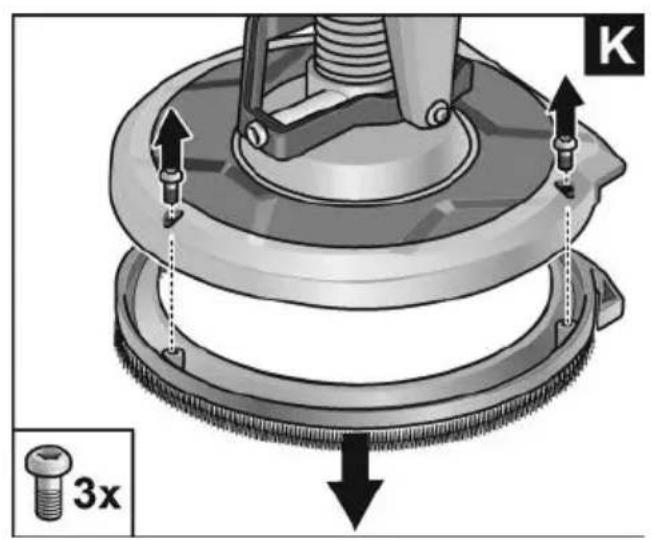

Replacing brush ring and edge guard (Figure K)

■ Remove the sanding head (see section "Replacing Velcro or backing pad").
■ Loosen the retaining screws.
■ Take the ring out of the housing.
■ Insert a new brush ring into the housing and screw in the retaining screws.
■ Assemble sanding head in reverse sequence.

Repairs

NOTE

Repairs and replacement of the supply cord may be carried out by an authorised customer service centre only.

NOTE

During the warranty period do not loosen the screws on the housing.

Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Spare parts and accessories

Further accessories, in particular insert tools, as well as exploded drawings and spare parts lists can be found on our homepage "http://www.flex-tools.com/" www.flex-tools.com or contact a sales partner

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options!

Declaration of Conformity

We declare under our sole responsibility that the product described under page 5 conforms to the following standards or normative documents:

EN 62841 in accordance with the regulations of the directives 2014/30/EU 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Declaration of Conformity

We as the manufacturer: FLEX Elektrowerkzeuge GmbH, Business address: Bahnhofstr. 15,

71711 Steinheim, Germany

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery (Safet

Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091,

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

Regulations S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:

BS EN 62841-1+A11:2015.

BS EN IEC 62841-2-3 +A11:2021, BS EN 55014-1:2017,

BS EN 55014-2:2015, BS EN 61000-3-2:2014, BS EN 61000-3-3:2013

Place of declaration: Steinheim, Germany.

Responsible person: Peter Lameli, Technical

Contact details for Great Britain:

FLEX Power Tools Limited,

Unit 8 Anglo Office Park, Lincoln Road,

HP 12, 3RH Buckinghamshire,

United Kingdom.

Peter Lameli Technical Head

B C D E F

Klaus Peter Weinper Head of Quality Department (QD)

19.05.2021

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Symboles utilisés

AVERTISSEMENT!

Bolts Q - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

15.12.2020

Peter Lameli
Technical Head

Bolts Q - 1

Klaus Peter Weinper
Head of Quality
Department (QD)

15.12.2020

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

2014/30/UE, 2006/42/WE, 2011/65/UE.

Peter Lameli Technical Head

Klaus Peter Weinper

Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head
Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head
Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head
Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

15.12.2020

Peter Lameli Technical Head

B. H. Q. - 1

Klaus Peter Weinper Head of Quality Department (QD)

2020/12/15

ال Coord Structure and the information that is obtained from the data.
