Bubble Footcare - Electric foot bath LANAFORM - Free user manual and instructions

USER MANUAL Bubble Footcare LANAFORM

Top-down view of a LANAFORM water dispenser with bubbles and a central vent (no text or symbols visible)

MASSAGING VIBRATION AND BUBBLES

HEAT MAINTENANCE TECHNOLOGY

Three circular objects: a perforated plate with spherical holes, a textured circular pattern, and a dark rectangular block (no text or symbols visible)

3 PEDICURE ACCESSORIES

BAIN BULLES

POUR PIEDS

BUBBELBAD

VOOR VOETEN

FUSSSPRUDELBAD

BAÑO DE BURBUJAS

PARA LOS PIES

BAGNO DI BOLLE

PERI PIEDI

HYDROMASAŽER

DO STÓP

_

| _

一

1

Fig 1 1 2 3 4 5 6

Fig 3

Illustration of a human foot and ankle with circular patterns on the skin, showing foot and ankle segments (no text or symbols)

Fig 4

Diagram of a human foot and foot with floating objects on a surface, showing layered structure (no text or symbols)

Fig 2

7 8

Fig 5

Illustration of a human foot resting on a surface with measurement markings (no text or symbols)

Fig 6

Simple line drawing of a human foot and a block on a curved surface (no text or symbols)

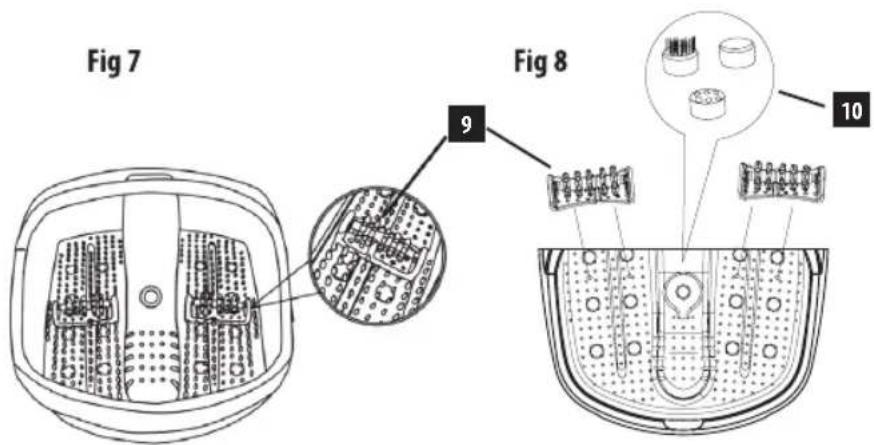

Fig 7 Fig 8 9 10

EN

The photographs and other images of the product in this manual and on the packaging are as accurate as possible, but do not claim to be a perfect reproduction of the product.

We would like to thank you for choosing "BUBBLE FOOTCARE" by LANAFORM. The relaxing, stimulating and invigorating effect of "BUBBLE FOOTCARE" will help reduce stress, fatigue and muscle pain. "BUBBLE FOOTCARE" guarantees a quality massage with its removable massage rollers and acupressure points. In addition, it includes a set of pedicure accessories to help you with your foot care before or after your massage session.

PLEASE READ ALL THE INSTRUCTION PRIOR TO USING YOUR «BUBBLE FOOTCARE», IN PARTICULAR THESE FEW BASIC SAFETY INSTRUCTIONS:

- Only use this appliance for the purposes described in this manual.

- Make sure that the voltage indicated on the appliance corresponds to that of your power supply.

This appliance is not intended for use by persons (including children) whose physical, sensorial or mental capabilities are impaired, or by persons lacking experience or knowledge, unless they are supervised or instructed in the use of the appliance first by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Please do not use accessories which are not recommended by LANAFORM or which are not supplied with this appliance.

- If the power lead is damaged, it must be replaced by a special or similar lead available from the supplier or after-sales department.

Do not use this appliance if the plug is damaged, if it is not working correctly, if it has been dropped or damaged or if it has fallen into water. If this is the case, have the appliance inspected and repaired by the supplier or its after-sales department.

- Do not carry this appliance by its power lead and do not use this lead as a handle.

- Always unplug the appliance after using it. Then let it cool before handling or cleaning it.

- Should the appliance fall into water, unplug it

immediately before retrieving it.

- An electrical appliance should never be left plugged in and unsupervised. Disconnect it from the mains electricity supply if you are not using it.

- Keep the power lead away from hot surfaces.

- Never use this appliance in a room where aerosol products (sprays) are used or in a room where oxygen is administered.

- This appliance is intended exclusively for family use.

- This appliance is intended solely for indoor use on a flat surface.

- Never obstruct the appliance's air vents and never place the device on an unstable surface such as a carpet or mattress. This could prevent air circulation. Make sure that the air vents are not clogged with hair, lint, dust, etc. Do not insert any objects into the air vents.

- Check the water temperature before using.

- Do not fill the "BUBBLE FOOTCARE" higher than the "MAX" limit marked on the inside wall.

- Do not use this appliance near a shower, pool or any other location in the presence of water.

- Never attempt to plug or unplug this appliance if you are in contact with water or in a damp environment. This could result in the risk of electric shock.

- Before plugging or unplugging the appliance, make sure that the rotating switch is in the "0" position.

- Never immerse or plunge the appliance into water or any other liquid in order to clean it.

Only use "BUBBLE FOOTCARE" when sitting down.

- Never use this appliance if you are sleepy or during your sleep.

- Before using, use caution if you are on a slippery surface in order to avoid falling.

- If water leaks from the appliance, stop using this product immediately and return it to the supplier or the after-sales service department.

- If you are worried about your health, consult a doctor before using this appliance.

- If you feel any pain while using this appliance, stop using it immediately and consult your doctor.

- Never used this appliance if your feet are swollen, inflamed, or are affected by a rash.

- This product is a non-professional massage appliance designed to relax tired muscles. Do not use this appliance as a substitute for proper medical care.

- This appliance is designed for short periods of use. We recommend using the appliance for a period of a maximum

of 15 minutes. It must then be turned off so that the motor can cool down for at least 15 minutes.

- Without medical approval, it is strongly recommended that the "BUBBLE FOOTCARE" appliance should not be used by pregnant women, people subject to thrombosis or who suffer from bodily pain for which the cause has not been identified or by people who wear a heart pacemaker. The appliance is also not recommended for use by diabetics.

INSTRUCTIONS

1) Details:

• Very high quality stylish bubble bath.
  • Equipped with pedicure accessories.
  • Practical thanks to its pouring spout.
• Maintains heat.
  • Vibrating massage (with or without water).
  • Bubble action (70 air jets).
• 4 removable massage rollers.
• Stimulating acupressure surface that massages the soles of the feet (400 acupressure points).

2) Description of the «BUBBLE FOOTCARE»: Diagram (Fig 1 & Fig 2):

1 Rotating control switch
2 Accessories compartment lid
3 Rotating head (pedicure accessories)
4 Air jets
5 Acupressure points
6 Pouring spout
7 Power cable
8 Plug
9 Removable rollers
10 Pedicure accessorie

3) Using the «BUBBLE FOOTCARE»:

1 Place the appliance on a flat, stable and hard surface with a non-slip mat nearby in order to prevent the risk of falling.
2 Fill the appliance (with water at the desired temperature) up to the "MAX" level. Never exceed this level.
3 Check that the appliance is in the "0" position before plugging it into the mains supply. Also make sure your hands are not wet and your feet are not in the water.
4 Sit on a chair and place your feet into the water. Never stand up in the "BUBBLE FOOTCARE".
5 Then select the type of massage desired:

The functions available are:

Heat + Bubbles (1) (Fig 3):

• Turn the switch to position 1.
• This function provides a relaxing foot bath thanks to the generation of bubbles in water that is kept at a constant temperature.

Heat + Bubbles + Vibrations (2) (Fig 4):

• Turn the switch to position 2.
• This function provides a unique vibrating massage and a relaxing foot bath thanks to the generation of bubbles in water that is kept at a constant temperature.

Vibrations (3) (Fig 5):

• Turn the switch to position 3.
• This function provides a unique vibrating massage (only option that can be used with or without water).

Accessories:

- To benefit from an invigorating and stimulating massage, use the acupressure points and the four removable rollers that can be attached by gentle pressure.

• A pedicure set (Fig 6 & Fig 8) is also provided comprising:

A massaging head.

An abrasive head.

A head fitted with a brush.

In order to fit the desired accessory, simply press it gently onto the rotating head.

- In general, the massage should not last more than 10 to 15 minutes.

- Once you have finished your massage, return the switch to the «0» position before unplugging the appliance. Finally empty the appliance.

MAINTENANCE

Storage:

• Place the massage appliance in its box or in a dry place.
• Prevent the appliance from coming into contact with sharp or pointed objects which could damage the outside surface.
• Do not wrap the power cord around the appliance. (This could cause wear and tear and break the cord).

Cleaning:

• Make sure you unplug the device and allow it to cool down before cleaning it.

- Do not immerse the «BUBBLE FOOTCARE» in water or any other liquid in order to clean it. Use a gentle detergent

and a soft and slightly damp sponge. Dry by dabbing with a clean and dry cloth.

- Never use abrasive detergents, brushes or thinning agents to clean it.

TECHNICAL SPECIFICATION

Voltage: 220-240V

Frequency: 50Hz

Power: 135W

ADVICE REGARDING THE DISPOSAL OF WASTE:

- All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.

- When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

LANAFORM guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The LANAFORM guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this LANAFORM product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside LANAFORM's control.

LANAFORM may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, LANAFORM will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through LANAFORM's Service Centre ^® . Any attempt to maintain this product by a person other than LANAFORM's Service Centre will render this guarantee void.

FR

Vibrations (3) (Fig 5)

BESCHRÄNKTE GARANTIE

MANUFACTURER & IMPORTER

LANAFORM SA

POSTAL ADDRESS
