Brand	TP-Link
Model	TL-WR3002X
Product Type	WiFi Router
Dimensions (approx.)	195 x 125 x 35 mm
Weight (approx.)	300 g
Power Supply	12V/1A power adapter
Main Functions	Router, access point, WiFi repeater, client, hotspot, USB connection sharing, USB 3G/4G modem
WiFi Standard	WiFi 6 (802.11ax) dual band
Maximum Theoretical Speed	Up to 3000 Mbps (2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps)
Ports	1 Gigabit WAN/LAN port, 3 Gigabit LAN ports, 1 USB 2.0 port
Wireless Security	WPA2, WPA3, AES encryption
Management	Web interface http://tplinkwifi.net, TP-Link Tether app
Reset Button	Yes, press and hold for 6 seconds to restore factory settings
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use chemicals.
Safety Instructions	Keep away from water, fire, humidity. Do not disassemble. Use only the supplied adapter.
Spare Parts and Repairability	Not applicable (device not user-serviceable). Contact TP-Link support.
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH (non-condensing)

Frequently Asked Questions - TL-WR3002X TP-LINK

What to do if I forget the router's web management password?

If you are using a TP-Link ID, click 'Forgot password?' on the login page. Otherwise, reset the router to factory defaults by holding the Reset button for 6 seconds, then go to http://tplinkwifi.net to create a new password.

How to find my WiFi password?

If you haven't changed the default password, it is on the router label. Otherwise, connect a computer to the router via Ethernet cable, open http://tplinkwifi.net, log in, and go to the Wi-Fi page to view or change the password.

How to restore the router to factory defaults?

With the router powered on, press and hold the Reset button for about 6 seconds, then release. The LEDs will blink, and the router will restart with factory defaults.

What to do if I have no Internet access?

If you are using a cable modem, restart it. Wait for its LED to be on, then reconnect the router to the modem with an Ethernet cable. Make sure you are in Router mode. If the problem persists, contact TP-Link support.

What to do if my WiFi network frequently disconnects?

By default, the channel is set to Auto. If disconnections occur, set a fixed channel (e.g., 1, 6, or 11) in the Wi-Fi settings to stabilize the connection.

What to do if I cannot access the router's administration page?

Check that your computer is configured to obtain an IP address automatically via DHCP. Restart the router and the computer, then try again. If necessary, reset the router.

How to improve unstable or weak WiFi signal?

Change the WiFi channel to reduce interference. Place the router in an open area, away from electronic devices (microwaves, cordless phones). In repeater mode, place it halfway between the main access point and the WiFi dead zone.

What are the different usage modes of the router?

The router can operate in Router, Access Point, WiFi Repeater, Client, Hotspot, USB 3G/4G Modem, or USB Connection Sharing mode. Refer to the table in the manual to choose the appropriate mode.

How to configure the router for the first time?

Connect your device to the default WiFi (SSID and password on the label) or via an Ethernet cable. Open a browser and go to http://tplinkwifi.net. Create an administrator password, then follow the quick setup wizard.

Can I manage my router from my smartphone?

Yes, download the TP-Link Tether app from the App Store or Google Play. Scan the QR code in the manual for easy access. The app allows you to configure and manage the router easily.

USER MANUAL TL-WR3002X TP-LINK

Quick Installation Guide

Portable Router

For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106510872 REV1.0.0

This guide is applied to TP-Link portable routers. Here we take TL-WR1502X as an example. Your router may not support all the functions demonstrated.

CONTENTS

07 / Deutsch
11 / English
15 / Español
19 / Ελληνικά
23 / Français
27 / Italiano
31 / Português
35 / Suomi
39 / Nederlands
43 / Svenska
47 / Norsk
51 / Dansk
55 / Türkçe

Hardware Connection

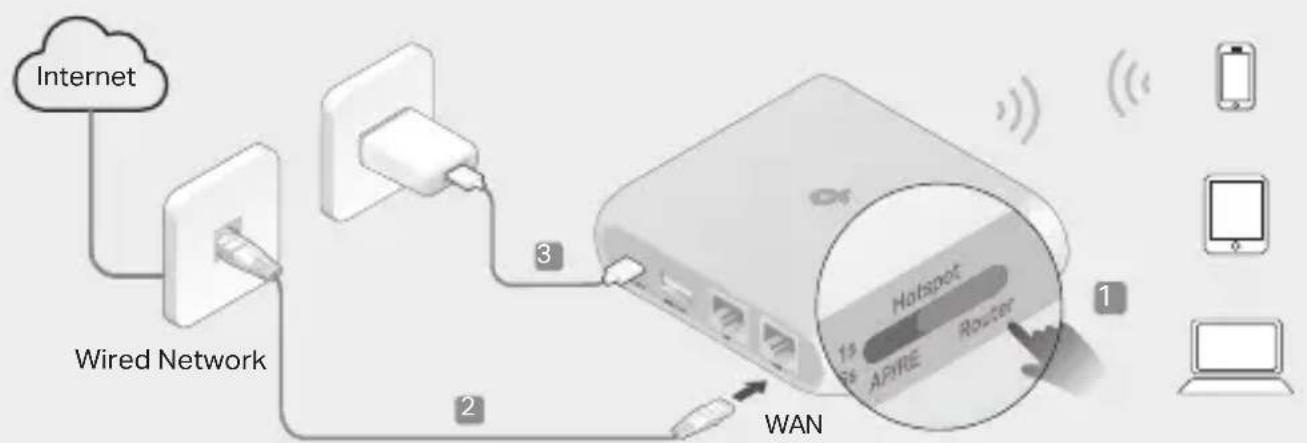

- Router Mode


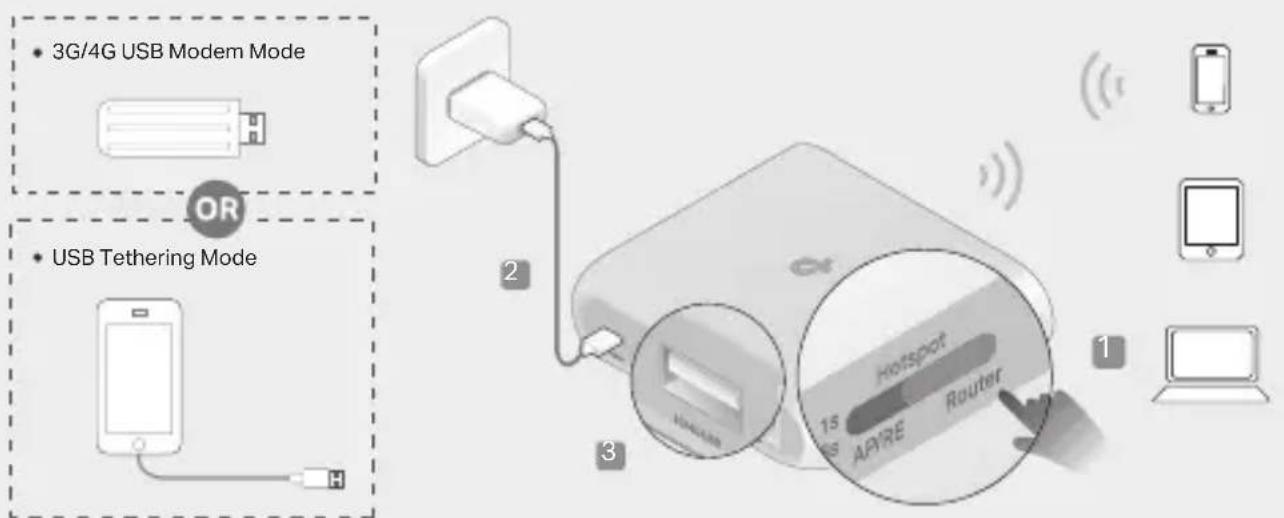

■ 3G/4G USB Modem Mode / USB Tethering Mode

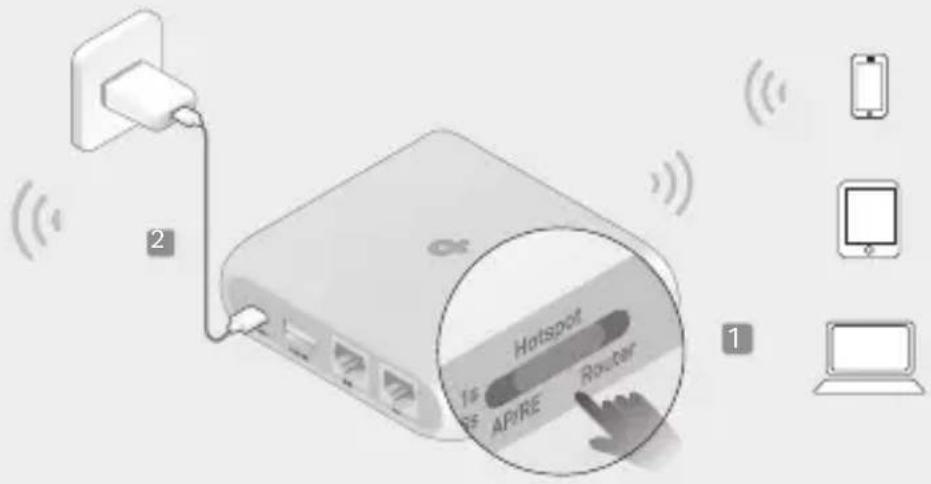

■ Hotspot Mode

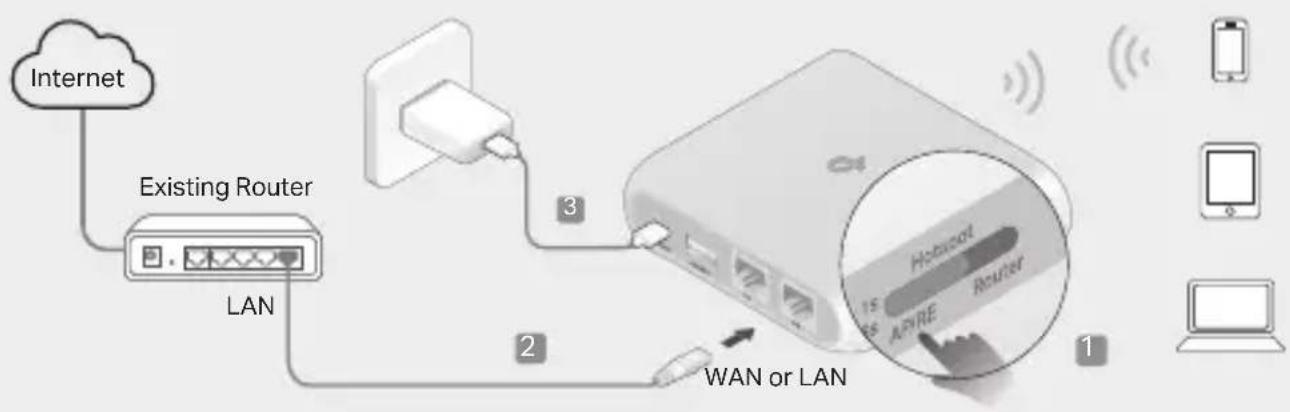

■ Access Point Mode


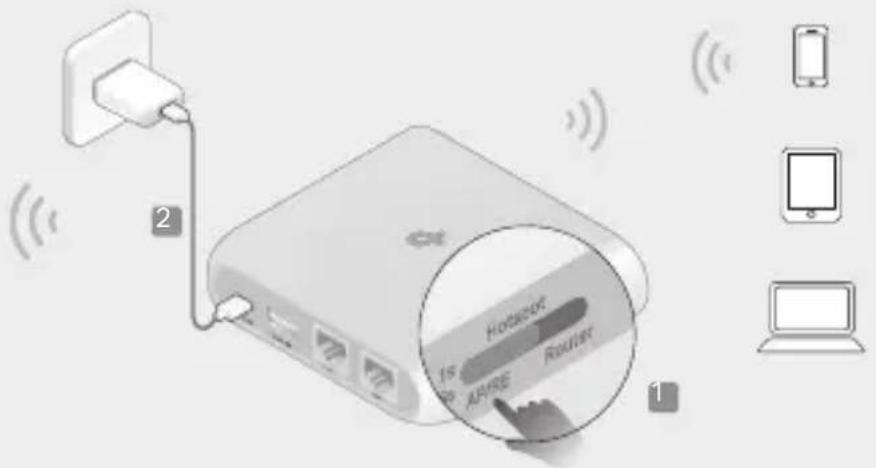

■ Range Extender Mode

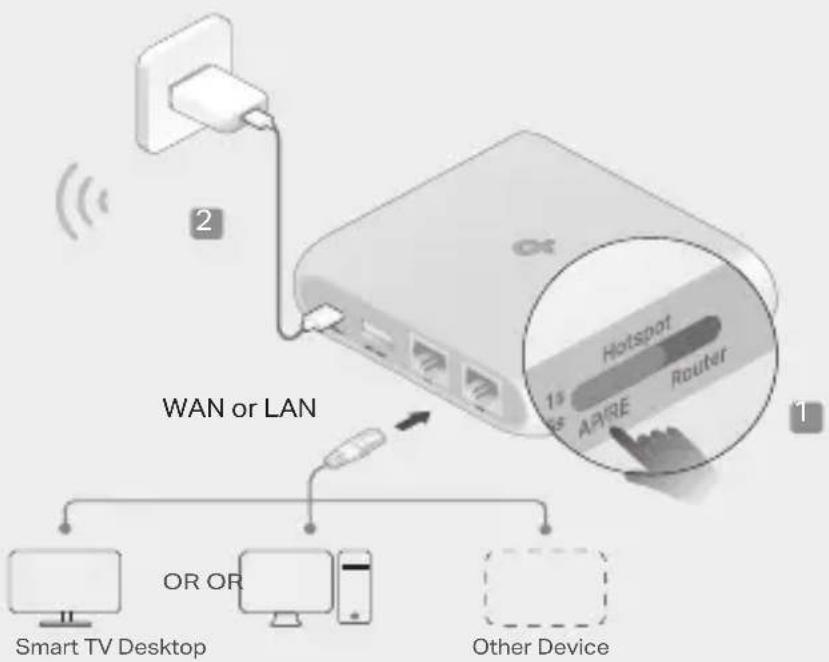

■ Client Mode

Refer to the following table to determine an appropriate mode as needed.

I Want to... Mode
Share the internet with more wireless devices when the wired network is limited to one device at a time.	Router
Share a 3G/4G USB modem's data with other devices. 3G/4G USB Modem
Share a mobile device's cellular data with other devices. USB Tethering
Turn an existing public Wi-Fi into a private network (wired and wireless).	Hotspot
Turn an existing wired-only network into a wireless network. Access Point
Expand an existing Wi-Fi network for better Wi-Fi coverage. Range Extender
Connect a wired-only device, such as a smart TV, media player, or game console, to a Wi-Fi network.	Client

Connect the Hardware

Connect the hardware according to the diagrams in the opening chapter of this guide.

English

Configure the Router

1. Connect your device to the router wirelessly or with an Ethernet cable. The SSIDs (wireless network names) and password are printed on the router's label.
   Note: In Client mode, you can only connect your devices to the router through a wired connection.
2. Launch a web browser and type http://tplinkwifi.net in the address bar. Create a password for future login attempts.
3. Start the Quick Setup. Follow the step-by-step instructions to complete the initial configuration.

Enjoy the internet!

Note: If you have changed the default SSID and password, you have to reconnect your wireless devices to the new Wi-Fi network.

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. Scan the QR code to download Tether from the Apple App Store or Google Play.

FAQ (Frequently Asked Questions)

Q1. What should I do if I forget the router's web management password?

• If you are using a TP-Link ID to log in, click Forgot Password? on the login page and then follow the instructions to reset it.
• Alternatively, refer to FAQ > Q3 to reset the router. Then visit http://tplinkwifi.net to create a new login password.

Q2. What should I do if I forget my Wi-Fi password?

• If you have not changed the default wireless password, it can be found on the label of the router.
• Connect a computer directly to the LAN port of the router using an Ethernet cable. Log in to the router's web management page at http://tplinkwifi.net, and go to the Wireless page to retrieve or reset your wireless password.

Q3. How do I restore the router to its factory default settings?

- With the router powered on, press and hold the Reset button for about 6 seconds, and then release the button.

Q4. What can I do if there is no internet access?

• If using a cable modem, reboot the modem, then wait until its Online LED is solid (ON). Reconnect the cable to the router.
• Set the router to Router Mode according to the instructions. If internet access is still not available after completing the steps above, contact TP-Link Technical

English

Support.

Q5. What can I do if my wireless keeps dropping?

- By default, your wireless channel is set to Auto, which automatically selects the least-congested channel between 1 and 11 for best performance, but it may also cause frequent wireless drops. In this case, setting your wireless channel to a fixed one will prevent it from changing, and likely stabilize your network connection.

Q6. What can I do if I can't access the router's web management page?

• Set the computer to obtain an IP address automatically.
• Reboot your router and computer, and try again.

Q7. What should I do if my wireless signal is unstable or too weak?

It may be caused by too much interference.

• Set your wireless channel to a different one.
• Choose a location with fewer obstacles that may block the signal between the portable router and the main AP. An open corridor or a spacious location is ideal.
• Move the router to a new location away from Bluetooth devices and other household electronics, such as cordless phones, microwaves, and baby monitors, to minimize signal interference.
• In Range Extender mode, the ideal location to place the router is halfway between your main AP and the Wi-Fi dead zone. If that is not possible, place the router closer to your main AP to ensure stable performance.

Domande Frequenti (FAQ)

Perguntas Frequentes (FAQ)

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
