USER MANUAL Snowdon Majority

Snowdon Bluetooth Soundbar

User Manual

MAJORITY

What's In the Box? 3

Controls And Functions.... 4

Product Set-Up.... 6

Mounting the Snowdon Soundbar to the wall.... 6

Connecting to the Mains Supply.... 8

Instructions Guide....

Mode Indicator Lights.... 10

Audio Settings.... 10

Using the RCA Connection.... 11

Using the Optical Input 12

Using the Line Input.... 13

Bluetooth Operation.... 14

Troubleshooting.... 15

Specification.... 16

Warranty.... 16

Safety Information.... 17

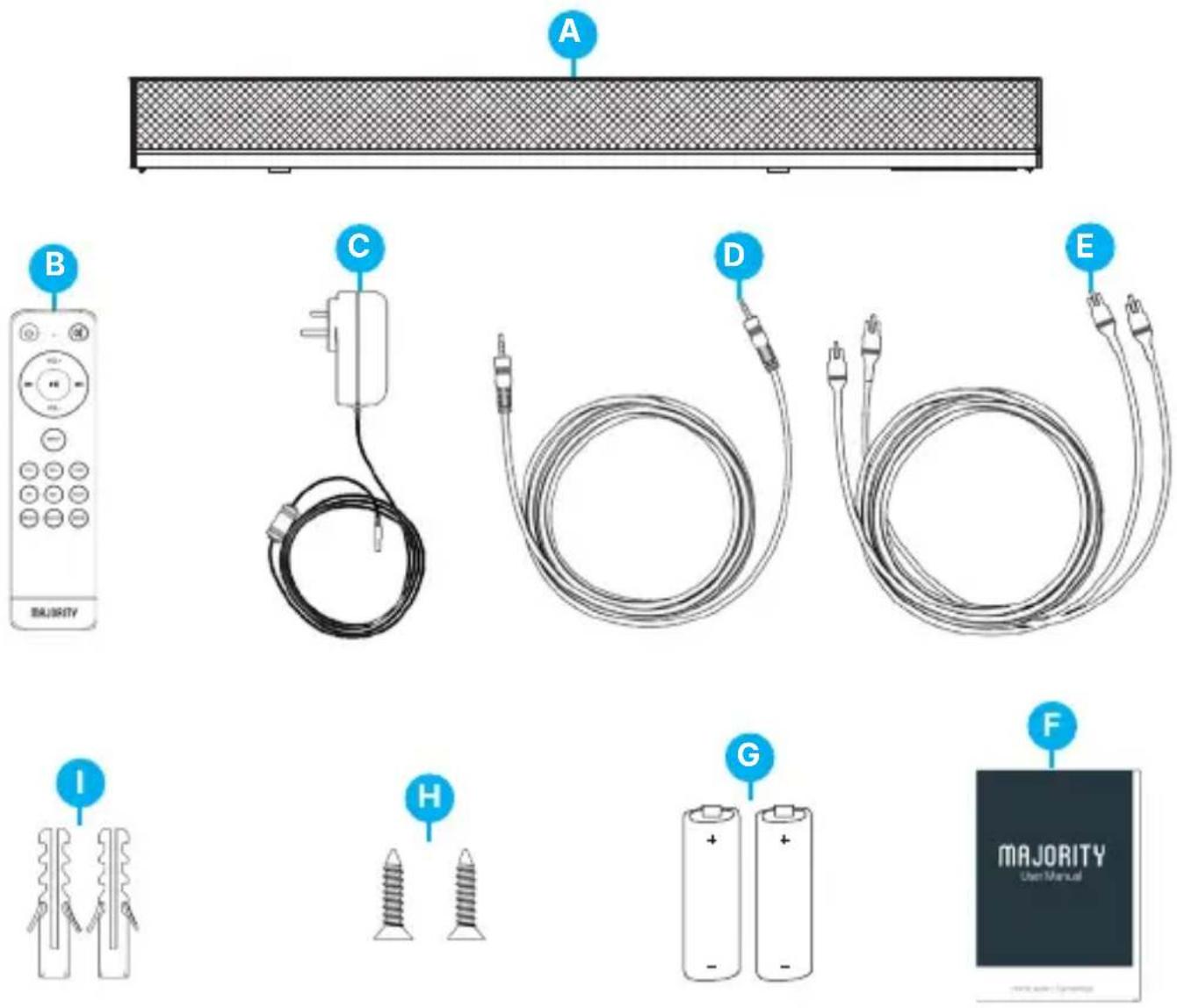

What's in the Box?

A. Majority Snowdon Soundbar

B. Remote Control

C. Power Adaptor

D. 3.5mm to 3.5mm audio cable

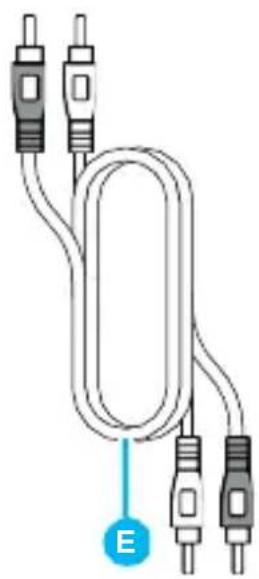

E. RCA Stereo audio cable

F. Instructions Guide

G. "AAA" size batteries

H. Screws

I. Wall Plugs

A B C D E I H G F BAJORITY MAJORITY User Manual

Side View / Control Buttons

POWER SOURCE VOL+ VOL- LINE IN PMR 3 4 5 1 2 6

1. Switch the unit on/off
2. Bluetooth pairing button
3. Press to change the soundbar modes
4. Line in socket
5. Increase volume
6. Decrease volume


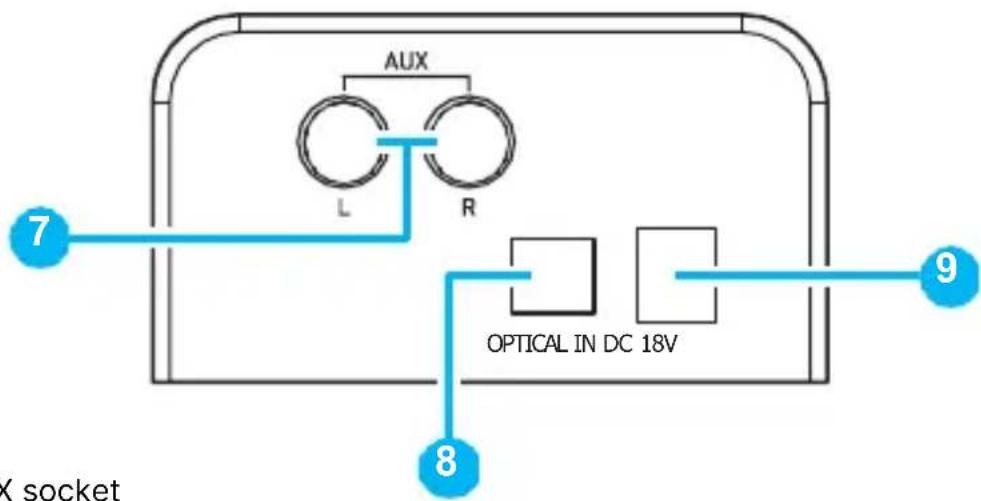

1. AUX socket
2. OPTICAL IN socket
3. DC IN (18V) socket

Remote Control

11 12 VOL+ 20 13 21 VOL- 14 15 INPUT 16 TR+ BA+ PAIR 22 17 TR- BA- FLAT 23 MUSIC DIALOG MOVIE 18 MAJORITY

1. Power ON/ Standby
2. Volume +
3. Previous
   Use in Bluetooth Mode to play the previous track.
4. Volume -
5. INPUT
   Press repeatedly to change the soundbar mode to Optical, Line In, AUX or BT.
6. Treble + /- Increase /decrease Treble
7. Bass +/- Increase/Decrease Bass
8. Music, Dialog, Movie- Sound effect equalisers. (see page 10).
9. Mute
10. Play/Pause.
    Press to play/pause audio in Bluetooth Mode.
11. Forward/Next.
    Press to jump to the next audio track in Bluetooth Mode.
12. Pair
    Press to pair with a device in Bluetooth Mode. Press again to disconnect
13. Flat
    Press to restore to default sound settings.

Wall Mounting

Safety

1. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage. If you are going to install this soundbar yourself, you must have studied installations, such as electrical wiring and plumbing that may be buried inside the wall. It is installer's responsibility to verify that the wall can safely support the total load of the soundbar.
2. Additional tools are required for the installation (not included).
3. Do not over-tighten screws.
4. Keep this user manual for future reference.
5. Use an electric stud finder to check the wall type before drilling and mounting (not included).

Tools & fixings required (not included)

1. Drill fitted with masonry drill bit
2. Pencil
3. Spirit level
4. Screwdriver
5. Ruler

Place the soundbar in the desired position and using a spirit level, check that the soundbar is level.

Make a light pencil mark on the wall at the top edge of both fixing brackets. The mark should be positioned directly above each bracket. Note the mounting points on the soundbar (one is 160mm from the end while the other is 160mm from the other end), so you should use the soundbar as a template to get the right mounting positions.

Place the soundbar away from the work area and then mark two fixing points 7mm below the light pencil marks for the screws. These marks should be 430mm apart and level. Before drilling, use a spirit level to check that the fixing points marked are level.

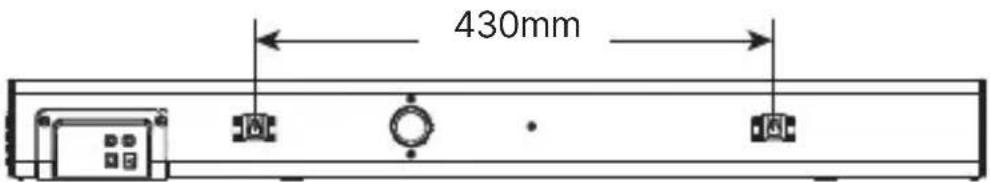

Distance between the holes of two metal brackets

430mm

If fixing to a solid masonry wall, use a masonry drill bit, drill holes to a depth of approximately 30mm and insert the wall plugs. Insert the screws into the wall plugs and drive home the screws until the heads stand proud on the wall by about 1mm.

Illustration of a drill bit and a flatboard with holes, labeled (1), showing no text or symbols on the diagram itself.

Simple 3D diagram of a rectangular plate with two small oval marks and a diagonal line, labeled (2) (no text or symbols on the plate itself)

If fixing to timber, follow the directions above, but only drill a small pilot hole for each screw and do not use the wall plugs provided.

If fixing to hollow plaster board walls, use a drill bit suitable for wood and replace the wall plugs with wall anchors appropriate for the application. Locate the fixing points into wall studs and cross braces where possible.

Locate the soundbar onto the screw heads and check that the screws are fully engaged into the keyhole mount before releasing your hold.

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Simple line drawing of a triangular object with circular holes and a rectangular base, no text or symbols present.

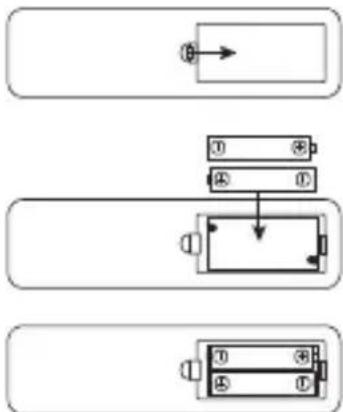

Battery Replacement for the Remote Control

1. Press and slide the back cover to open the battery compartment.

2. Insert two "AAA" size batteries (supplied). Make sure the (+) and (-) ends of the batteries match (+) and (-) ends indicated in the battery compartment.

3. Close the battery compartment cover.

Handling the battery

Improper or incorrect use of batteries may cause corrosion or battery leakage which can cause fire, personal injury or damage to property.

We recommend using the battery type indicated in this manual.

Don't install or mix new and old batteries OR mix different types of batteries.

Don't dispose used batteries as a kind of domestic waste. Dispose of them according to local regulations.

Handling the Remote Control

Don't drop the remote control.

Don't spill liquids on the remote control.

Don't place the remote control on a wet object or near any source of excessive heat.

Take out the batteries from the remote control if it is not necessary to use for a long period of time. Otherwise, they may have corrosion and leakage which incurs physical injury, property damage or fire etc.

Remote Control Operation Range

The remote control sensor at the front of the soundbar is sensitive to the remote control's commands up to a maximum of 6 metres away and within a maximum arc of 40 degrees.

Please note that the operating distance may vary depending on the brightness of the room.

Max. 6 m

PLEASE NOTE: The instructions within this user manual will refer to the button number on the soundbar (Ref 'number'), or buttons on remote control e.g. (Rem. 'number'), in accordance with the diagrams from pages 4 and 5.

Connecting to Mains Supply

Ensure that the power supply voltage is within 100V\~240V.

Unwind the mains cable to its full length. Connect the mains plug to a mains socket. Ensure the plug is fully inserted into the mains socket.

The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.

Insert the power adaptor into the soundbar DC IN port (Ref.9), then plug to AC Socket.

This unit is designed to use a power adaptor. Connecting the unit to any other power source may cause damage to the unit.

Diagram showing electrical connections with a plug, cable, and labeled components including '131' and '132'

Important

Ensure all audio cable connections of the unit are properly inserted before connecting the soundbar to the mains power socket.

Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

Mode Indicator Lights

Soundbar Connection LED light mode indicator colour
Power off	Red
Opticalmode	Yellow
RCA mode	White
Line in mode (AUX)	Green
Bluetooth ready	Flashing blue
Bluetooth connected Blue

Audio Settings

Equaliser Sound Mode	Bass/Treble Functions
Music	Manually change BASS and TRE settings between 0dB and +8dB.
Dialog	BASS+ BASS- TRE+ TREfunctions disabled
Movie	BASS+ BASS- TRE+ TREfunctions disabled
Flat	Restore to default settings + manually change BASS and TRE settings between -8dB and +8dB.

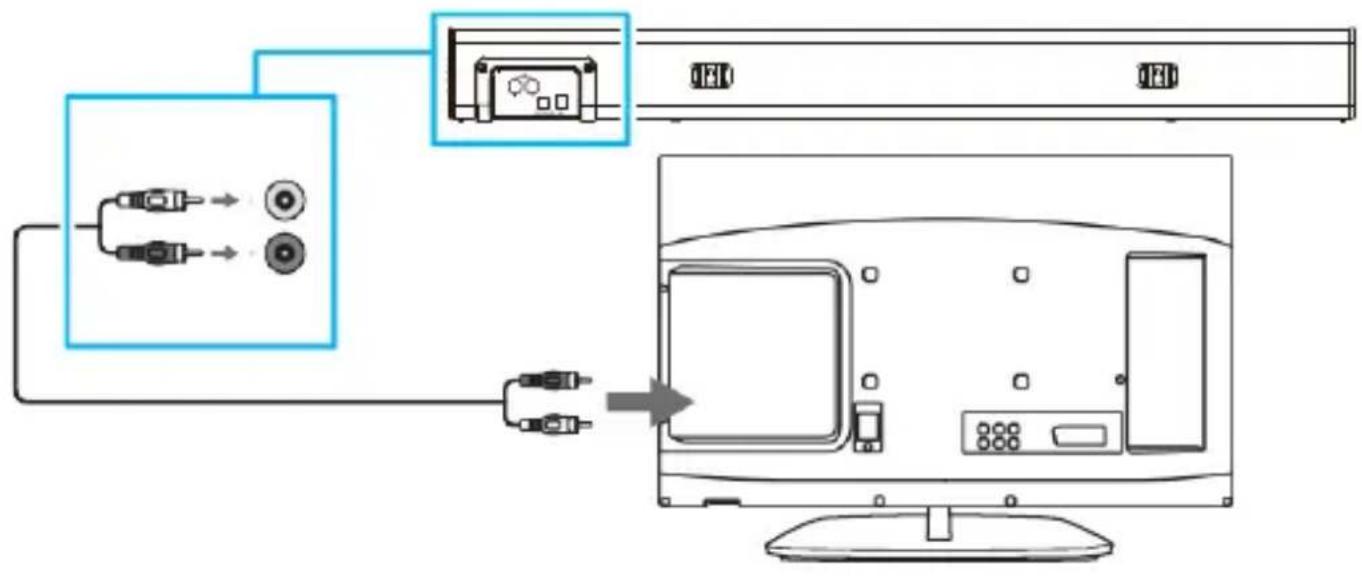

Using the RCA Stereo Input

Connect Majority Snowdon with a TV, using the RCA Stereo audio cable included in the box by following these steps:

• Step 1: Connect the soundbar with your TV using the RCA stereo cable. Power off and unplug the TV and the soundbar and prepare for connection. Insert the two jack ends into TV RCA (L/R) audio output port and the other ends into the AUX (L/R) Input ports of the soundbar (Ref.7). Once the cables are properly inserted into both the soundbar and your device, connect both to the mains and switch them on.
• Step 2: Change the soundbar mode. Press the 'INPUT' button on the remote control (Rem.15) or press the 'Source' button on the soundbar (Ref.2) repeatedly to change the soundbar mode into the RCA mode. The LED indicator will show a white light.

Please Note: If you are not receiving a picture or encountering interference, please ensure that the RCA cable is being connected to Output RCA ports on your TV set. This will ensure that the sound is being exported correctly.

If your TV does not have Output RCA ports, please use an alternative connection method.

• Step 3: Adjust TV/device audio settings as per the connection type used.


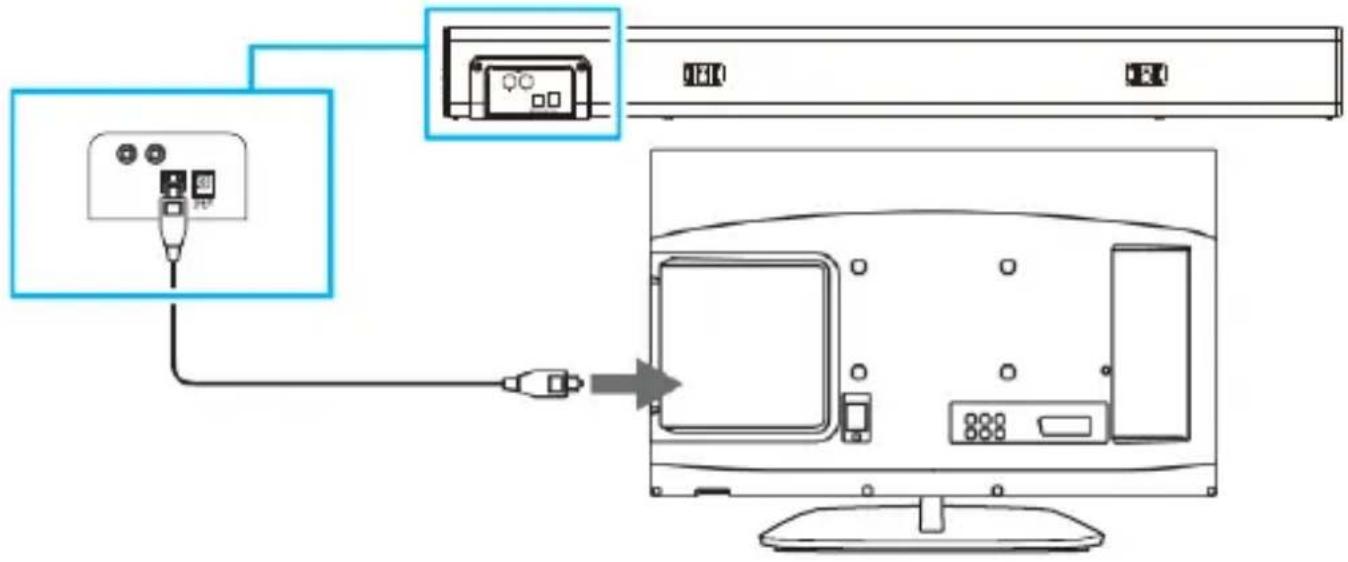

Using the Optical Input

Connect the Majority Snowdon with an audio source/TV/PC or similar device with an Optical Audio Output using a Digital Optical Audio cable (not included).

• Step 1: Connect the soundbar with your device: Unplug and power off the soundbar and your device before connecting. Insert one end of the Optical cable into the soundbar (Ref.8) and the other end on your device Optical output port. Once the cables are properly inserted into both the soundbar and your device, connect both to the mains and power them on.
• Step 2: Change the soundbar mode. Press the 'INPUT' button on the remote control (Rem.15) or press the 'Source' button on the soundbar (Ref.2) repeatedly to change the soundbar mode to Optical. The LED indicator will show a yellow light.
• Step 3: Adjust audio settings on your device. Using the native controls on your connected device, ensure the audio settings are set to Optical Audio and PCM.

Audio from the connected audio source will now be heard through the soundbar.

Diagram showing connection between a device with ports and an attached monitor, labeled with icons and Chinese text.

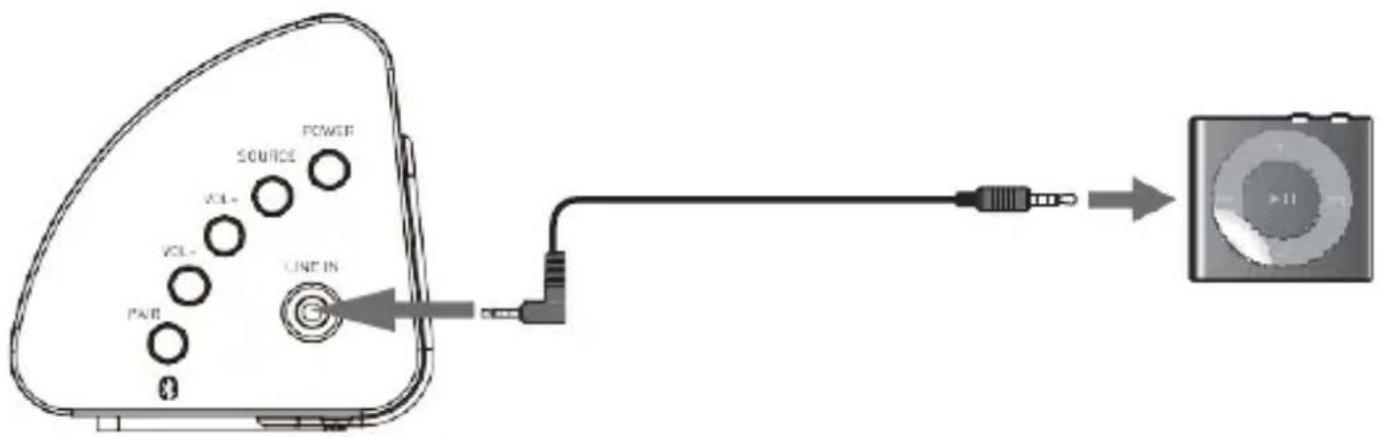

Using the Line Input

Connect the Majority Snowdon to a TV/ PC/ Tablet/MP3 player or other audio device that has an audio output/headphone port using the 3.5mm to 3.5mm audio cable included in the box.

Before use, disconnect any cables connected to the Stereo RCA Inputs.

• Step 1: Connect the soundbar with your device. Unplug and power off the soundbar and your device before connecting. Insert one end of the 3.5mm audio cable (included) into the Line In port on the unit (Ref.6) and the other end into the audio output/headphone on your audio source (TV, PC, laptop, tablet, phone, etc).
• Step 2: Change the soundbar mode. Press the 'INPUT' button on the remote control (Rem.15) or press the 'Source' button on the soundbar (Ref.2) repeatedly to change the soundbar mode to Line In Mode. The LED indicator will show a green light.

The audio played through the connected device will now be heard through the soundbar.

POWER SOURCE VCL+ VCL- LINE IN PAIB

Bluetooth Operation

The Majority Snowdon can be paired via Bluetooth with any Bluetooth-enabled device, such as a Smart TV, PC, Phone, Tablet, or similar, to play audio through the soundbar.

• Press the 'INPUT' button on the remote control (Rem.15) or press the 'Source' button on the soundbar (Ref.2) repeatedly to change the soundbar mode to Bluetooth Mode. The LED indicator will flash a blue light.
• Using the native controls on your Bluetooth device, select "Majority Snowdon" from the list when prompted to pair with the soundbar.

If your device requests a password, enter the default "0000". If you encounter issues at this stage, please refer to the user manual for your Bluetooth device for instructions on pairing and connecting Bluetooth devices.

- When successfully connected, a beep will be heard from the soundbar, and the LED indicator will show a steady blue light. After initial pairing, the unit will stay paired unless manually unpaired by the user, or until the device is switched off or reset.

If your device should become unpaired or you find it is unable to connect, repeat the steps above.

To pair/unpair press the 'PAIR' button once on the remote control (Rem.22) whilst the soundbar is in Bluetooth mode. Press again to disconnect/unpair.

Observation Potential Cause/Solution
Nopower/function	Check whether the power is switched on or off at the wall.Check whether the power adaptor is properly connected to power outlet or not.
Nosound	Check whether the unit is set to MUTE.Check whether your desired mode is correctly selected.Check if cables are properly inserted.Check your device's audio settings- ensure these are set to PCM. (This is applicable when connected to TV or PC/laptop).
Issues with Bluetooth connection	Check whether you have pressed the PAIR button before pairing.Check whether the external device requires password "0000" to start with.Check if soundbar or your device are paired with other devices. Unpair and try pairing again.
Functiondisturbance	Switch off and unplug the unit. Leave for 2 minutes and switch it on again.If a particular mode is causing problems, please try an alternative connection to your TV such as Optical,AUX or Bluetooth.
Remote control does not work [properly]	Check whether the battery needs replacing. Replace if necessary.Check whether there are obstacles blocking the remote sensor.
Hissing/static/humming noise	Check and ensure the audio setting of the input source (e.g. TV, PC, games console, DVD player, etc.) is set to PCM.Try a different cable or different type of connection.Ensure there are no cables crossing over which can cause humming interference noise.

Specification

Power Supply	DC 18V 1.5A
Frequency Response	30Hz-20KHz
SNR	70dB
Separation	45dB
Bluetooth V5.0
Dimension (WxHxD)	81×8.3×8.3 cm
NetWeight 1.5kg

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find "Register Your Product". You will also be given the chance to extend your warranty for an additional 24 months, free of charge.
