USER MANUAL KCF 4-22 HILTI

Technical diagram of a fan with numbered labels pointing to different components

Technical diagram of a mechanical device with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Internal view of a computer drive bay with labeled component (7), no visible text or symbols on the device itself.

Technical diagram of a fan with numbered parts labeled ①, ②, and ③

Labeled diagram of a mechanical component with numbered parts for identification

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

- The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hilti's website. To do this, follow link or scan the QR code in this documentation, marked with the symbol.

- Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1 Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal wor are used:

DANGER

DANGER!

- Draws attention to imminent danger that will lead to serious personal injury or fatality.

WARNING

WARNING!

- Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION!

- Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

These numbers refer to the illustrations at the beginning of these operating instructions.

3

The numbers in illustrations refer to important work steps or to components important for the work steps. In the text, the corresponding numbers draw attention to these work steps or components, e.g. (3).

Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview section.

This symbol is intended to draw your special attention to certain points for handling the product.

1.3 Symbols on the product

1.3.1 General symbols

The following symbols can be used on the product:

Read the operating instructions.

HILTI

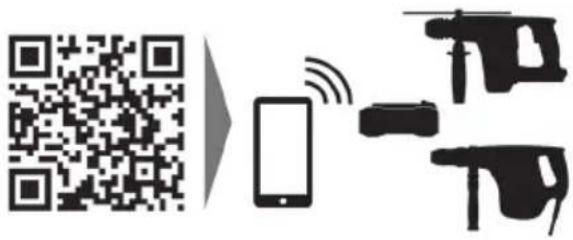

	The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.
	Direct current (DC)
Li-Ion	Li-ion battery
[c6y3]	Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any other way.
	Never strike the battery with an object and never use the battery as a striking tool.
	Hilti Li-ion battery type series used. Observe the information given in the section headed Intended use.
[wYXZ]	If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

1.4 Product information

HILTI products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.

The type designation and serial number are printed on the rating plate.

Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product.

Product information

Jobsite fan KCF 4-22
Generation 01
Serial no.

1.5 Declaration of conformity

The manufacturer declares, on his sole responsibility, that the product described here complies with the applicable legislation and standards.

The technical documentation is filed here:

Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany

2 Safety

2.1 General safety instructions

Read all safety instructions and other instructions.

• Keep fingers away from the front and rear fan covers.
  This product can be used by children 8 years of age or older and by persons with physical, sensory or mental disabilities or little relevant experience or know-how if they are supervised or have received instruction on the safe use of the product and the resulting hazards.
• Do not use a product that is damaged, bent or cracked.
• Do not switch on the product unless both the front and the rear fan covers are installed.
• Do not disassemble the product yourself, even when performing maintenance.
  Remove the battery pack before carrying out maintenance tasks or storing the product.
  Risk of trapping hand when adjusting the fan angle; gently push or pull the carrying handle.
• Keep your hair, clothing and jewelry away from openings and moving parts.
  ▶ Do not insert objects into openings.
  Risk of injury by moving parts. Do not touch the fan rotor while it is in motion. Make sure that the product is switched off and wait until the fan rotor stops before picking up or carrying the product.
  ▶ Switch the product off before removing the battery.
  Risk of injury by falling products. Before starting work, check that the battery is secure.

▶ No one is permitted underneath the product when it is mounted overhead. A falling product could result in serious personal injury or property damage.
- When the product is suspended by the hooks, do not shake the product or the object from which it is suspended.
- Do not suspend the product from electric wires or anything that is not secure. Personal injury or property damage could occur.
▶ Make sure that the product is mounted on a firm, smooth surface when secured by the keyhole slots and make sure the screw heads are fully seated in the keyhole slots.
- Do not attempt to install the product on the ceiling.
The hooks are not designed to support additional weight. Do not attach or hang anything on the fan as otherwise breakage can occur. Do not, under any circumstances, use the hooks to support your weight or other things.
- Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in the technical data. Do not use the product in bathrooms or other rooms with high temperatures, high humidity.
- Do not expose the product to high temperatures or fire. Do not bring the product near stoves or other heat sources. To reduce the risk of fire, do not place items of clothing or other flammable materials of the product when it is in use.
- Do not use the product as a blower; avoid prolonged contact with dust.
▶ If unusual sounds, smells or other abnormalities are perceptible, switch the product off immediately.
- Do not allow water to get inside the product. Do not immerse the product in water or in any other liquid.
- Do not use cleaning agents or chemicals on non-metallic parts of the product. Use of these chemicals can weaken the plastic parts. If cleaning is necessary, use only a slightly damp cloth with soapy water
For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series.

2.2 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
  Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosio
  ▶ Use only batteries that are in perfect working order.
  ▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
• Do not under any circumstances modify or tamper with batteries!
• Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C (176 °F).
  ▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
  ▶ Never use recycled or repaired batteries.
  ▶ Never use the battery or a battery-operated power tool as a striking tool.
  ▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
  ▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.

Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

3D model of a mechanical fan assembly with numbered parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

① Front fan cover
② Speed adjusting knob
③ Battery

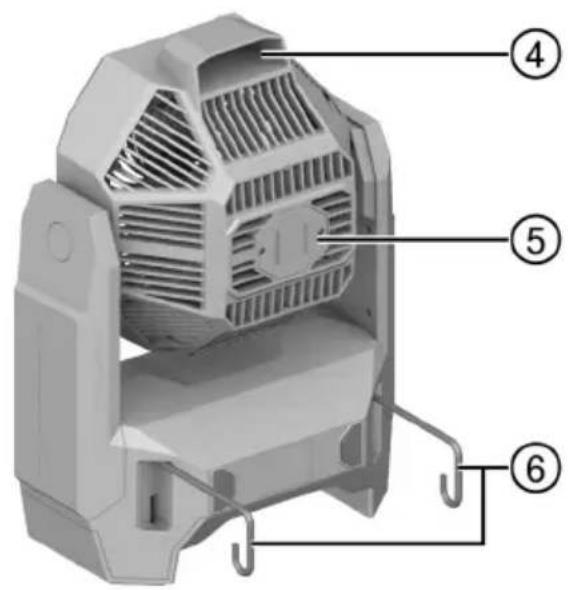

④ Carrying handle
⑤ Rear fan cover
⑥ Hook

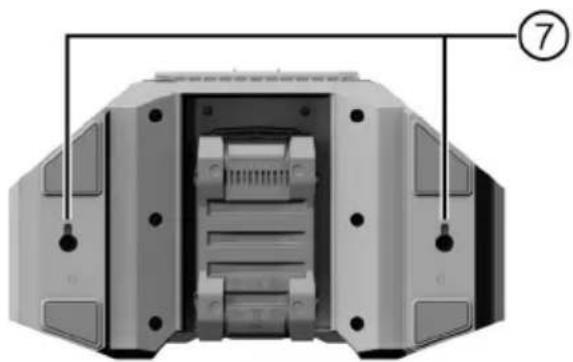

⑦ Keyhole slot

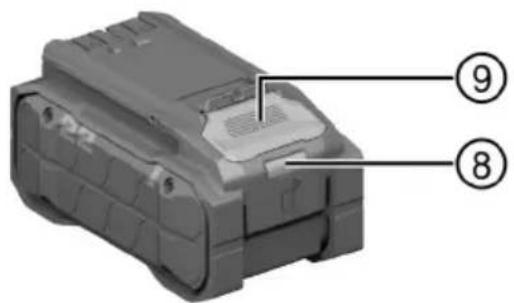

⑧ Battery status indicator
⑨ Battery release button

3.2 Intended use

The product is a cordless jobsite fan for professional use and is intended for dry indoor use.

• For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series. For optimum performance, Hilti recommends the batteries stated in this table for this product.
• For these batteries, use only Hilti chargers of the type series stated in this table.

3.3 Items supplied

Jobsite fan, operating instructions

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

3.4 Status indicators of the Li-ion battery

Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.

3.4.1 Indicators for state of charge and fault messages

WARNING

Risk of injury by a falling battery!

If the release button is pressed with a battery inserted in the product, subsequently check that the battery is correctly re-engaged and secure.

Short-press the release button of the battery to get whichever of the following status indications is applicable at the time.

State of charge and, if applicable, faults are indicated constantly as long as the connected product is switched on.

Status Meaning
Four (4) LEDs show constantly green State of	charge: 100 % to 71 %
Three (3) LEDs show constantly green State of	charge: 70 % to 51 %
Two (2) LEDs show constantly green	State of charge: 50 % to 26 %
One (1) LED shows constantly green	State of charge: 25 % to 10 %
One (1) LED slow-flashes green	State of charge: < 10 %
One (1) LED quick-flashes green	The Li-ion battery is completely discharged. Recharge the battery.If the LED again starts quick-flashing after the tery has been charged, consultHilti Service.
One (1) LED quick-flashes yellow The Li-ion battery	battery or the product in which it is inserted is overloaded, too hot or too cold, or experiencing some other fault.Bring the product and the battery to the recommended working temperature and do not overload the product when it is in use.If the message persists, consultHilti Service.
One (1) LED shows yellow The Li-ion battery and the product in which it is inserted are not compatible. ConsultHilti Service.
One (1) LED quick-flashes red The Li-ion battery is locked and cannot be used.ConsultHilti Service.

3.4.2 Indicators showing the battery's state of health

To check the battery's state of health, press the release button and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one LED showing constantly green.	(1)The battery can remain in use.
All LEDs show in sequence, followed by one LED quick-flashing yellow.	(1)The check to ascertain the battery's state of health did not complete. Repeat the procedure, or consult Hilti Service.
All LEDs show in sequence, followed by one LED showing constantly red.	(1)If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, the battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

4 Technical data

4.1 Product information

Rated voltage	21.6 V
Weight in accordance with EPTA-Procedure 01, without battery	3.4 kg
Ambient temperature for operation	-17 °C ... 60 °C
Storage temperature	-20 °C ... 60 °C

4.2 Battery

Battery operating voltage	21.6 V
Weight, battery	See the section headed "Intended use"
Ambient temperature for operation	-17 °C ... 60 °C
Storage temperature	-20 °C ... 40 °C
Battery charging starting temperature	-10 °C ... 45 °C

5 Preparations at the workplace

WARNING

Risk of injury by inadvertent starting!

Before inserting the battery, make sure that the product is switched off.
Remove the battery before making any adjustments to the power tool or before changing accessories.

Observe the safety instructions and warnings in this documentation and on the product.

5.1 Charging the battery

1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 16

5.2 Inserting the battery

WARNING

Risk of injury by short circuit or falling battery!

Before inserting the battery, make sure that the contacts on the battery and the contacts on the product are free of foreign matter.
▶ Make sure that the battery always engages correctly.

1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.

5.3 Removing the battery

1. Press the battery release button.
2. Remove the battery from the product.

6 Operation

Observe the safety instructions and warnings in this documentation and on the product.

6.1 Switching on and off

The product can be used as a table fan. Additionally, the product can be set on a flat surface, suspended from various construction materials by means of the hooks, or mounted on a wall by means of drywall screws correctly engaged in the keyhole slots. Make sure that the product is secure.

1. To switch the product on, turn the speed adjusting knob clockwise.
   To increase fan speed, turn the speed adjusting knob farther clockwise to the desired speed setting.
2. To switch the product off, turn the speed adjusting knob counter-clockwise until it engages.

7 Care and maintenance

Care of the product

WARNING

Risk of injury with battery inserted!

▶ Always remove the battery before carrying out care and maintenance tasks!

• Carefully remove stubborn dirt.
• Carefully clean the fan covers, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.

Care of the Li-ion batteries

• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of moisture (e.g. by being dipped in water or left in the rain). If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable container and consult Hilti Service.
• Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning agents containing silicone as these can attack the plastic parts. Do not touch the contacts of the battery and do not remove the factory-applied grease from the contacts.

- Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as these can attack the plastic parts.

Maintenance

WARNING

Danger of electric shock! Improper repairs to electrical components may lead to serious injuries including burns.

▶ Repairs to the electrical section of the tool or appliance may be carried out only by trained electrical specialists.
- Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
- Do not use the product if signs of damage are found or if parts malfunction. Immediately have the proof repaired by Hilti Service.
- After cleaning and maintenance, install all guards and protective devices and check that they are in full working order.

To help ensure safe and reliable operation, use only genuine Hilti spare parts, consumables and accessories. Spare parts, consumables and accessories approved by Hilti for use with your product can be found at your Hilti Store or online at: www.hilti.group

8 Transport and storage

Transport of electrical products and batteries

CAUTION

Accidental starting during transport!

▶ Always transport your products with the batteries removed!

▶ Remove the battery/batteries.
▶ Never transport batteries loose and unprotected. During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.
- Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
▶ Prior to each use and before and after prolonged transport, check the product and the batteries for damage.

Storage of electrical products and batteries

WARNING

Accidental damage caused by defective or leaking batteries!

▶ Always store your products with the batteries removed!

• Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in the technical data.
• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
  ▶ Never leave batteries in direct sunlight, on sources of heat, or behind glass.
• Store the product and batteries where they cannot be accessed by children or unauthorized persons.
  ▶ Prior to each use and before and after prolonged transport, check the product and the batteries for damage.

9 Troubleshooting

If a problem occurs, always observe the status indicator of the battery. See the section headed Status indicators of the Li-ion battery → page 16.

If the trouble you are experiencing is not listed in this table or you are unable to rectify the problem by yourself, contact Hilti Service.

Trouble or fault Possible cause Action to be taken
LEDs of the battery show nothing	Battery faulty. ▶ Contact Hilti Service.
Product does not work.	The battery is not fully inserted.	▶ Push the battery in until it engages with an audible click

10 Disposal

WARNING

Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.

▶ DO NOT send batteries through the mail!
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
- Dispose of your battery out of the reach of children.
▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.

Most of the materials from which Hilti products are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.

- Do not dispose of power tools, electronic equipment or batteries as household waste!

11 Manufacturer's warranty

▶ Please contact your local Hilti representative if you have questions about the warranty conditions.

12 Further information

Accessories, system products and more information about your product can all be found → here.

China RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

This table is valid for the China market.

Taiwan RoHS (Restriction of Hazardous Substances)

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

13 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

▶ Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosio
▶ Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
- Do not under any circumstances modify or tamper with batteries!
- Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C.
▶ Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
▶ Never use recycled or repaired batteries.
▶ Never use the battery or a battery-operated power tool as a striking tool.
▶ Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
- Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
▶ Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
- Do not use or store the battery in explosive environments.
If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in section headed What to do in case of a battery fire.

What to do in case of damaged batteries

▶ Always contact Hilti when a battery is damaged.
▶ Never use a battery that is leaking fluid.
- Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid.
▶ Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid.
To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3) or silicate (Vermiculite). Then seal the lid air-tight and store the contai away from flammable gases, liquids or objects.
- Dispose of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

▶ Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem.
▶ If you suspect an internal battery problem, contact Hilti Service.
▶ A battery that no longer works, cannot be recharged or leaks fluid has to be disposed of correctly. See the section headed Maintenance and disposal.

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns or explosions.

▶ Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape.
  Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire.
  ▶ Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature.
  Leave the battery in the bucket for at least 24 hours until it has cooled down completely.
  ▶ See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17°C and +60°C / 1°F and 140°F.
  Storage temperature to be kept between -20°C and +40°C / -4°F and 104°F.
• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.
• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.
• Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
  ▶ Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag.
  ▶ Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush.
  ▶ Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain).
  If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

▶ See the section headed What to do in case of damaged batteries.

- Improper disposal may cause health hazards from leaking gases or fluids. Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

- Do not dispose of batteries as household waste.

▶ Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

3D model of a mechanical fan assembly with numbered parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional view of a mechanical component with numbered annotation (7), no visible text or symbols

① Voorste ventilatorafdekking
② Toerentalregelaar
③ Accu
④ Handgreep
⑤ Achterste ventilatorafdekking
⑥ Haak
⑦ Sleutelgathanger
⑧ Statusweergave accu
⑨ Accu-ontgrendelingstoets

3.2 Correct gebruik

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (no readable text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Jobsite Fan		型號(型式): Type designation:			KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-”indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered components (no text or symbols visible)

Labeled diagram of a mechanical component with numbered parts 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan with labeled parts (no text or symbols present)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered components (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a mechanical fan assembly with numbered parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

① Fremre viftedeksel
② Turtallsregulator
③ Batteri
④ Bærehåndtak
⑤ Bakre viftedeksel
⑥ Krok
⑦ Nøkkelhulloppheng
⑧ Statusindikator for batteri
⑨ Utløserknapp for batteri

3.2 Forskriftsmessig bruk

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

13 Hilti Li-Ion-batterier

3D model of a fan assembly with numbered parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered components (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Šī tabula attiecas uz Kīnas tirgu.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Šī tabula attiecas uz Taivānas tirgu.

13 Hilti litija jonu akumulatori

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

① Priekinis ventiliatoriaus dangtis
② Sukimosi greičio reguliatorius
③ Akumuliatorius
④ Nešimo rankena
⑤ Galinis ventiliatoriaus dangtis
⑥ Kablys
⑦ Pakabinimo skylè
⑧ Akumuliatoriaus büsenos rodmuo
⑨ Akumuliatoriaus atblokavimo mygtukas

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical device with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan or evaporator with labeled parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Táto tabul'ka sa vzt'ahuje na trh Číny.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Táto tabuǐka sa vztāhuje na trh Taiwanu.

3D model of a fan or evaporator with labeled parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered components (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan or propeller device with labeled parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

① Prednji pokrov ventilatora
② Regulator broja okretaja
③ Akumulatorska baterija
④ Ručka za prenošenje
⑤ Stražnji pokrov ventilatora
⑥ Kuke
⑦ Ovjes ključanice
⑧ Statusni prikaz akumulatorske baterije
⑨ Tipka za deblokadu akumulatorske baterije

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko tržište.

Taiwan RoHS (Direktiva za ograničenje uporabe opasnih tvari)

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan or propeller device with labeled parts (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

① Prednji poklopac ventilatora
② Regulator za broj obrtaja
③ Akumulatorska baterija
④ Ručka za nošenje
⑤ Zadnji poklopac ventilatora
⑥ Kuke
⑦ Otvori za kačenje
⑧ Prikaz statusa akumulatorske baterije
⑨ Tasteri za deblokiranje akumulatorske baterije

3.2 Namenska upotreba

Proizvod je ventilator sa akumulatorskom baterijom. Namenjen je za profesionalnu upotrebu u suvim prostorima.

• Za ovaj proizvod koristite isključivo Hilti Nuron litijum-jonske akumulatorske baterije serije B 22. Za optimalnu snagu Hilti preporučuje upotrebu akumulatorskih baterija koje su navedene u ovoj tabeli.
• Za ove akumulatorske baterije koristite isključivo Hilti punjače sa serijama navedenih u ovoj tabeli.

3.3 Sadržaj isporuke

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Ova tabelu važi za tržište Kine.

Tajvan RoHS (Direktiva za ograničenje upotrebe opasnih supstanci)

限用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Ova tabela važi za tržište u Tajvanu.

13 Hilti Li-Ion akumulatorske baterije

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Labeled diagram of a mechanical component with numbered parts 4, 5, and 6

Cross-sectional diagram of a mechanical or electronic component with numbered annotation (7), showing internal layered structure without any readable text or symbols.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan with numbered labels pointing to different components

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical or electronic component with internal channels and mounting holes (no text or symbols)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Jobsite Fan		型號(型式): Type designation:			KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-”indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Technical diagram of a fan assembly with numbered parts labeled ①, ②, and ③

Labeled diagram of a mechanical device with numbered parts for identification

Cross-sectional diagram of a mechanical or electronic component with no visible text or symbols

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan
Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閘口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

3D model of a fan assembly with numbered components (no text or symbols visible)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

① フロントファンカバー

② 回転数コントローラー

③ バッテリー

④ キャリングハンドル

⑤ リアファンカバー

⑥ フック

⑦ キーホールスロット

⑧ バッテリーステータス表示

⑨ バッテリーロック解除ボタン

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

3.2 正しい使用

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	○	○	○	○	○	○
风扇前盖Fan front cover	○	○	○	○	○	○
扇叶Fan blade	○	○	○	○	○	○
PCB组件PCB assembly	○	○	○	○	○	○
连接轴Connecting shaft	○	○	○	○	○	○
马达Motor	○	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
垫片Gasket	○	○	○	○	○	○
弹簧Springs	○	○	○	○	○	○
开口垫圈Split washer	○	○	○	○	○	○
缓冲垫Cushion pad	○	○	○	○	○	○
脚垫Foot pad	○	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

この表は中国市場に適用されるものです。

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

この表は台湾市場に適用されるものです。

3D model of a fan or propeller device with numbered labels pointing to components (no text or symbols on the fan itself)

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

Technical diagram of a mechanical component with numbered parts labeled 8 and 9

Cross-sectional diagram of a mechanical component with numbered annotation (7), no readable text or symbols present.

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

본 도표는 대만 시장에 적용됩니다.

13 Hilti 리튬이온 배터리

안전 및 사용 관련 지침

Technical diagram of a fan assembly with numbered parts for identification

Technical diagram of a printer component with labeled parts 7 and 8, showing front and side views.

24F., No. 16, Xinzhan Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.)

Tel. [phone]

12 其他資訊

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

此表適用於臺灣市場。

13 Hilti鋰電池

使用與操作說明

Exploded view diagram of a mechanical fan assembly with numbered parts for identification

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

该表适用于中国市场。

限用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
閥口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

该表适用于中国台湾市场。

13 Hilti 锂离子电池

使用和操作说明

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

•

.תְפַרָה בִיַעֹרָה

•

ת-הכלה

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Jobsite Fan

Products: KCF 4-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr(VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
左支架Left bracket	o	o	o	o	o	o
风扇前盖Fan front cover	o	o	o	o	o	o
扇叶Fan blade	o	o	o	o	o	o
PCB组件PCB assembly	o	o	o	o	o	o
连接轴Connecting shaft	o	o	o	o	o	o
马达Motor	o	o	o	o	o	o
螺钉Screws	o	o	o	o	o	o
垫片Gasket	o	o	o	o	o	o
弹簧Springs	o	o	o	o	o	o
开口垫圈Split washer	o	o	o	o	o	o
缓冲垫Cushion pad	o	o	o	o	o	o
脚垫Foot pad	o	o	o	o	o	o
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O: Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X: Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking "X" based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Jobsite Fan		型號(型式):Type designation:		KCF 4-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
左支架Left bracket	o	o	o	o	o	o
風扇前蓋Fan front cover	o	o	o	o	o	o
扇葉Fan blade	o	o	o	o	o	o
PCB 組件PCB assembly	o	o	o	o	o	o
連接軸Connecting shaft	o	o	o	o	o	o
馬達Motor	o	o	o	o	o	o
螺釘Screws	o	o	o	o	o	o
墊片Gasket	o	o	o	o	o	o
彈簧Springs	o	o	o	o	o	o
開口墊圈Split washer	o	o	o	o	o	o
緩沖墊Cushion pad	o	o	o	o	o	o
腳墊Foot pad	o	o	o	o	o	o
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “o”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o”- indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

EC Declaration of Conformity | UK Declaration of Conformity

HILTI

Manufacturer:

Hilti Corporation

Hilti (Gt. Britain) Limited

No. 1 Circle Square, 3 Symphony Park

Manchester, England, M1 7FS

KCF 4-22 (01)

Serial Numbers: 1-99999999999

2014/30/EU | Electromagnetic Compatibility Regulations 2016

2011/65/EU | The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

EN 60335-1:2012,

AC:2014, A11:2014,

A13:2017, A1:2019,

A2:2019, A14:2019

EN IEC 55014-1:2021

EN 60335-2-80:2003, A1:2004, A2:2009

EN IEC 55014-2:2021

Dr. Tahar Zrilli

Head of Quality and Process Management Business Area Electric Tools & Accessories

Schaan, 11.12.2023

Head of BU Power Tool & Accessories

Business Area Electric Tools & Accessories

NURON

B 22-55 (01)	0,56 kg	1.23 lb
B 22-85 (01)	0,77 kg	1.70 lb
B 22-110 (01)	0,92 kg	2.03 lb
B 22-170 (01)	1,34 kg	2.95 lb
B 22-255 (01)	1,87 kg	4.12 lb

C 4-22

C 6-22

C 8-22

HILTI

Hilti Corporation

LI-9494 Schaan

Tel.:[phone]

Fax:[phone]

www.hilti.group

Diagram showing a QR code, a smartphone with wireless signal, and three types of devices: a drone, a phone, and a camera.
