GB Operating Instructions

VC-200074

Vehicle Jump Starter Power Bank

CE

Item no: 2878223

1 Intended use

The product is a fast charging power bank (max. 45W) and vehicle jump start system for petrol (max. 10L) and diesel (max. 8L) engines.

This product must only be used with vehicles that have 12V systems.

The product has an integrated LED light with SOS mode.

Contact with moisture must be avoided under all circumstances.

If you use the product for purposes other than those described, the product may be damaged.

Improper use can result in short circuits, fires, electric shocks or other hazards.

The product complies with the statutory national and European requirements.

For safety and approval purposes, you must not rebuild and/or modify the product.

Read the operating instructions carefully and store them in a safe place. Make this product available to third parties only together with the operating instructions.

All company names and product names are trademarks of their respective owners. All rights reserved.

USB4®, USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

2 Delivery contents

Product
"Smart" starter cables
USB-C® to USB-A charger cable
USB-C® to USB-C® charger cable
Auxiliary power outlet to DC male cable adaptor
Storage case
Operating instructions

3 Operating Instructions for download

Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the complete operating instructions (or new/current versions if available). Follow the instructions on the web page.

4 Description of symbols

The following symbols are on the product/appliance or are used in the text:

The symbol warns of hazards that can lead to personal injury.

The symbol warns of dangerous voltage that can lead to personal injury by electric shock.

Read the operating instructions carefully.

5 Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

5.1 General

The product is not a toy. Keep it out of the reach of children and pets.
Do not leave packaging material lying around carelessly. This may become dangerous playing material for children.
If you have questions which remain unanswered by this information product, contact our technical support service or other technical personnel.
- Maintenance, modifications and repairs must only be completed by a technician or an authorised repair centre.

5.2 Handling

- Handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.

5.3 Operating environment

- Do not place the product under any mechanical stress.

• Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam and solvents.
  ■ Protect the product from high humidity and moisture.
  ■ Protect the product from direct sunlight.

5.4 Operation

Consult an expert when in doubt about the operation, safety or connection of the product.
If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation can no longer be guaranteed if the product:

– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.

5.5 Li-ion battery

The rechargeable battery is permanently built into the product and cannot be replaced.
- Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!
Never short-circuit the contacts of the rechargeable battery. Do not throw the battery or the product into fire. There is a danger of fire and explosion!
Charge the rechargeable battery regularly, even if you do are not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the rechargeable battery first.
■ Never charge the rechargeable battery of the product unattended.
When charging, place the product on a surface that is not heat-sensitive. It is normal that a certain amount of heat is generated during charging.

5.6 LED light

• Do not look directly into the LED light!
• Do not look into the beam directly or with optical instruments!

5.7 Connected devices

Also observe the safety and operating instructions of any other devices which are connected to the product.

5.8 Photosensitive epilepsy

People suffering from photosensitive epilepsy are susceptible to seizures or loss of consciousness if exposed to flashing lights or light patterns.

5.9 Electrical safety

■ Switch off the vehicle engine and electronics before connecting the product.
- Clean the battery terminals to maintain proper contact and prevent short circuits.
Avoid electric shock! Do not operate the product with wet hands and check the battery clamp and cable insulation is not damaged.
■ Remove metal jewelry (e.g., necklaces, rings) when working with batteries to reduce the risk of short circuits, electric shocks, or burns.

5.10 Personal safety

• Wear eye protection to prevent injuries from explosions or corrosive chemicals while working with lead-acid batteries.
  Risk of explosion! Never operate the product in areas where flammable fumes or gases are present (e.g. petrol stations).
  Risk of burns - Allow engine compartments to cool down as they can reach high temperatures.
• Keep away from moving engine parts like belts, pulleys and fans.
  Risk of entanglement and burns! Loose clothing and jewelry can get caught or entangled in moving or hot parts.
• Explosive / noxious gases may be produced / present during use. Always use the product in a well-ventilated area.
  ■ Have someone nearby in case there is an emergency.

5.11 Lead-acid battery

• Keep fresh water, soap and eyewash within reach.
• If battery acid contacts skin or clothes, wash immediately with soap and water.
• Avoid touching eyes. If acid enters eyes, flush with water for 10 minutes and seek medical help immediately.

6 Product Overview

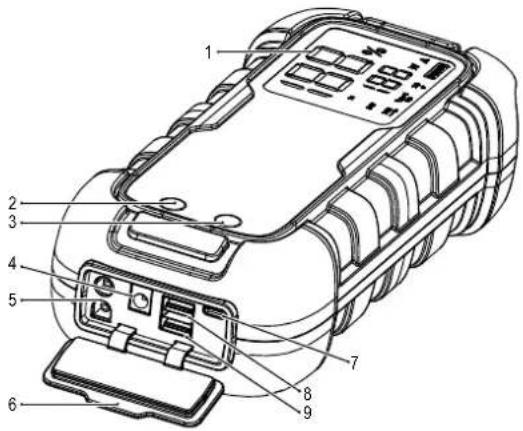

6.1 Product

Technical diagram of a device with numbered parts, likely an electronic or mechanical component with labeled parts 1 through 9.

1 LCD screen 2

BOOST button

3 ON/OFF button

4 DC output jack

5 Starter cables socket 6 Ports cover

7 USB-C®: input/output 8 USB-A: output

9 USB-A: output

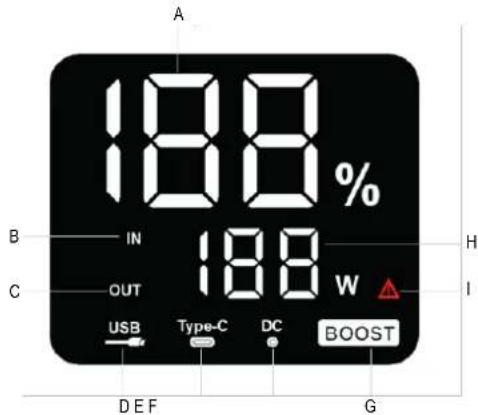

6.2 Display

A 188% B IN C OUT 188 W ▲ USB Type-C DC BOOST D E F G H I

A Product battery %:

charge / discharge / standby

BIN:

Input connected

C OUT: Output connected D USB-A connected

E USB-C® connected F DC jack connected

G BOOST:

Ready to jump start the vehicle

H Charging / discharging power

I Warning, see section:

Warning messages [▶ 5]

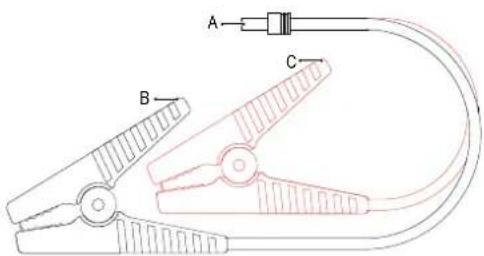

6.3 Starter cables

A B C

A Starter cables plug B Black starter clamp (-)

C Red starter clamp (+)

7 Charge the product

Tip:

Use a 45W fast charger to maximize recharging performance.

Preconditions:

√ You have a suitable power adaptor.

1. Connect one end of the included USB-C® cable to a power adaptor.
2. Connect the other end of the cable to the USB-C® input on the product.
3. Press the button to start charging.

→ The battery capacity will show on the display.

→ The display will switch OFF when charging is complete.

8 Connection

8.1 Preparation for connection

Before connecting the cables to a battery:

■ Switch OFF all vehicle electrics (e.g. air conditioner, heater, radio, lights etc.).
■ Make sure the ignition key is in the "OFF" position. For push-to-start ignition, make sure the vehicle is completely OFF.
- Check the battery contact terminals are clean.
Prepare your vehicle for ignition (e.g. place gear in park and engage the emergency brake).

8.2 Connecting the leads

Important:

Always connect test leads to terminals in the correct order.

1. Connect the red clamp to the positive (+) terminal.
2. Connect the black clamp to the negative (-) terminal.
3. Wiggle the clamps back and forth to ensure proper connection.

8.3 Disconnecting the leads

When finished using the product:

1. Disconnect the red clamp.
2. Disconnect the black clamp.

9 Operation

Important:

Fully charge the product before using it for the first time. See section: Charge the product [▶ 5]

9.1 Jump start the vehicle

Preconditions:

√ The product is at least 50% charged. See section: Charge the product [▶ 5].
√ The vehicle is prepared for connection. See section: Preparation for connection [▶ 5].

1. Connect the starter cables. See section: Connecting the leads [▶ 5].
2. Press the Button to switch the product ON.
3. Press and hold the BOOST button until BOOST appears on the display.
4. Start the vehicle engine.

→ An alarm will sound if any protection mechanisms activate. See section: Warning messages [▶ 5]

1. If the engine starts, disconnect the starter cables. See section: Disconnecting the leads [▶ 5].
2. If the engine does not start, switch the ignition OFF and repeat steps 3 & 4.

Important:

Let the vehicle run for approximately 30 mins. to recharge the battery.

9.2 Power bank

Preconditions:

To use this product as a power bank you will need a suitable charging cable.

1. Connect one end of the charging cable to your mobile device, and the other end to an output on the product.
2. Press the button to start charging.
3. Disconnect the cable when charging is complete.

Note:

DC output port

• The DC output port is capable of delivering 15V 10A.
• Use it with the included auxiliary power outlet to DC male cable adaptor.

9.3 LED light

1. Press and hold the button to switch the LED ON/OFF.
2. Press the button repeatedly to cycle through modes: constant ON → SOS → flashing → OFF.

10 Warning messages

If a protection mechanism activates, an alert will sound and a warning message will appear on the display.

Message Cause Solution
C_trend	+ Beeping +"9"	The clamps are connected in reverse.	Check the orientation of the clamps and connect them to the correct terminals. See section: Connection [▶ 5]
C_trend	+ Beeping +"8"	The jump starter temperature is too low or too high.	Restore the jump starter temperature to: -20 to +60 °C
C_trend	+ Beeping +"7"	Over-current protection Avoid starting the vehicle for 30 seconds to prevent damage to the jump starter.
C_trend	+ Beeping +"6"	The vehicle has been started more than 4 times in 10 minutes.	Avoid starting the vehicle for 10 minutes to disable protection mode.
C_trend	+ Beeping +"5"	The clamps have short circuited.	Ensure the clamps are not touching or connected to the same piece of metal.
C_trend	+ Beeping +"4"	The voltage of the car battery is higher than 12.6V.	No jump starting is needed. Disconnect the jump starter from the vehicle.
C_trend	+ Beeping +"3"	The voltage of the jump starter is too low.	Recharge the jump starter as soon as possible to prevent battery damage. See section: Charge the product [▶ 5]

11 Cleaning and care

Important:

• Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions. They damage the housing and can cause the product to malfunction.

• Do not immerse the product in water.

• Disconnect the product from the power supply.

• Clean the product with a dry, fibre-free cloth.

12 Disposal

This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life.

Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non-destructive manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste. Conrad provides the following return options free of charge (more details on our website):

in our Conrad offices
■ at the Conrad collection points
at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of.

It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany.

13 Technical data

13.1 General

Input (USB-C®) 5 V/DC 3 A, 9 V/DC 3 A, 12 V/DC 3 A, 15 V/DC 3 A, 20 V/DC 2.25 A

Rechargeable battery 4x 14.8 V 5000 mAh 74 Wh, Li-ion (non-removable)

Recharge time .... 10 hrs (normal adaptor) 2 hrs (PD 45 W adaptor)

LED light modes .... Constant ON → SOS → flashing → OFF Brightness: max. 280 lm

Operating conditions.... -20 to +60 °C, 40 – 85 % RH (non-condensing)

Storage conditions.... 0 to +45 °C, 40 – 85 % RH (non-condensing)

Dimensions (L x W x H).... 243 x 113 x 66 mm

Weight 1500 g

13.2 Protection mechanisms

Over temperature .... discharging: 60 °C ±5 °C recharging: 60 °C ±5 °C

Low temperature.... discharging: -20 °C ±5 °C recharging: -20 °C ±5 °C

Overvoltage (USB-C®)..... max. 6 V

Overcharge.... 16.6 V

Over discharge .... software: 12.5 V - 13 V hardware: 10.8 V - 11 V

Overcurrent.... USB-A: max. 3.7 A USB-C® (5 - 15 V): max. 3.5 A USB-C® (20 V): max. 2.7 A DC output: max. 15 A

13.3 Power bank

Output (USB-C®) 5 V/DC 3 A, 9 V/DC 3 A, 12 V/DC 3 A, 15 V/DC 3 A, 20 V/DC 2.25 A (max. 45 W)

Output 2 (USB-A) .... 5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1.5 A (max. 18 W)

Output 2 (USB-A) .... 5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1.5 A (max. 18 W)

Output (DC) 15 V/DC 10 A (max. 150 W)

13.4 Jump starter

Vehicle on-board system..... 12 V/DC

Start current (peak value).... 1000 A (2000 A)

Jump starts.... approx. 15 (affected by factors such as ambient temperature, size, and mechanical condition of the engine)

Suitable engine types .... Petrol (displacement max. 10 L), Diesel (displacement max. 8 L)

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).

All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited. This publication reflects the technical status at the time of printing.

Copyright by Conrad Electronic SE. *2878223_V2_0124_dh_mh_en 18014399421691275-2 I3/O2 en

VOLTCRAFT

F Mode d'emploi

VC-200074

Technical diagram of a device with numbered components, likely an electronic or mechanical assembly.

1 Écran LCD 2

Bouton BOOST

3

Bouton Marche/Arrêt

A 188% B IN C OUT 188 W ▲ USB Type-C DC BOOST D E F G H I

Entrée (USB-C®).... 5 V/CC 3 A, 9 V/CC 3 A, 12 V/CC 3 A, 15 V/CC 3 A, 20 V/CC 2,25 A

Surtension (USB-C®).... 6 V max.

Surcharge.... 16,6 V

Sortie (USB-C®).... 5 V/CC 3 A, 9 V/CC 3 A, 12 V/CC 3 A, 15 V/CC 3 A, 20 V/CC 2,25 A (45 W max.)

Sortie 2 (USB-A)....5 V/CC 3 A, 9 V/CC 2 A, 12 V/CC 1,5 A (18 W max.)

Sortie 2 (USB-A)....5 V/CC 3 A, 9 V/CC 2 A, 12 V/CC 1,5 A (18 W max.)

Sortie (CC).... 15 V/CC 10 A (150 W max.)

Technical diagram of a device with numbered parts, likely an electronic or mechanical component with labeled parts 1 through 9.

1 LCD-schem 2

BOOST-knop

3

AAN/UIT-knop

4 DC-uitgang

A 188% B IN C OUT 188 W ▲ USB Type-C DC BOOST D E F G H I

A Productaccu %:

opladen / ontladen / stand-by

BIN:

Ingang aangesloten

Overspanning (USB-C®)..... max. 6 V

Overladen.... 16,6 V

Overontladen.... software: 12,5 - 13 V hardware: 10,8 - 11 V

Overstroom.... USB-A: max. 3,7 A USB-C® (5 - 15 V): max. 3,5 A USB-C® (20 V): max. 2,7 A DC-uitgang: max. 15 A

13.3 Powerbank

Uitgang (USB-C®).... 5 V/DC 3 A, 9 V/DC 3 A, 12 V/DC 3 A, 15 V/DC 3 A, 20 V/DC 2,25 A (max. 45 W)

Uitgang 2 (USB-A).... 5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1,5 A (max. 18 W)

Uitgang 2 (USB-A)....5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1,5 A (max. 18 W)

Uitgang (DC).... 15 V/DC 10 A (max. 150 W)

13.4 Startbooster

Copyright by Conrad Electronic SE. *2878223_V2_0124_dh_mh_nl 18014399421691275-4 I3/O2 en
