Operating Instructions

VC-CJS76

4 in 1 Jump Starter System with Air

Compressor

Item no: 3204897

CC

1 Intended use

The product is a jump starter for petrol (max. 4L) and diesel (max. 2.5L) engines. Other features include:

LED light
Power bank
Air compressor

Contact with moisture must be avoided under all circumstances.

If you use the product for purposes other than those described, the product may be damaged.

Improper use can result in short circuits, fires, electric shocks or other hazards.

The product complies with the statutory national and European requirements.

For safety and approval purposes, you must not rebuild and/or modify the product.

Read the operating instructions carefully and store them in a safe place. Make this product available to third parties only together with the operating instructions.

All company names and product names are trademarks of their respective owners. All rights reserved.

USB4®, USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

2 Delivery contents

Product
USB-C® to USB-A cable
"Smart" starter cables
3xvalve connectors
1x Air hose
Operating instructions

3 Operating Instructions for download

Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the complete operating instructions (or new/current versions if available). Follow the instructions on the web page.

4 Description of symbols

The symbol with the exclamation mark in the triangle is used to indicate important information in this document. Always read this information carefully.

Read the operating instructions carefully.

5 Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

5.1 General

The product is not a toy. Keep it out of the reach of children and pets.
- Do not leave packaging material lying around carelessly. This may become dangerous playing material for children.
If you have questions which remain unanswered by this information product, contact our technical support service or other technical personnel.
- Maintenance, modifications and repairs must only be completed by a technician or an authorised repair centre.

5.2 Handling

• Handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.

5.3 Operating environment

Do not place the product under any mechanical stress.
- Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam and solvents.
Protect the product from high humidity and moisture.
Protect the product from direct sunlight.

5.4 Operation

• Consult an expert when in doubt about the operation, safety or connection of the product.
  If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation can no longer be guaranteed if the product:

• is visibly damaged,

• is no longer working properly,
• has been stored for extended periods in poor ambient conditions or
• has been subjected to any serious transport-related stresses.

5.5 Li-ion battery

• Never damage the rechargeable battery. Damaging the casing of the rechargeable battery might cause an explosion or a fire!
• Never short-circuit the contacts of the rechargeable battery. Do not throw the battery or the product into fire. There is a danger of fire and explosion!
• Charge the rechargeable battery regularly, even if you do not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the rechargeable battery first.
  Never charge the rechargeable battery of the product unattended.
• When charging, place the product on a surface that is not heat-sensitive. It is normal that a certain amount of heat is generated during charging.

5.6 LED light

Do not look directly into the LED light!
Do not look into the beam directly or with optical instruments!

5.7 Connected devices

• Also observe the safety and operating instructions of any other devices which are connected to the product.

5.8 Photosensitive epilepsy

People suffering from photosensitive epilepsy are susceptible to seizures or loss of consciousness if exposed to flashing lights or light patterns.

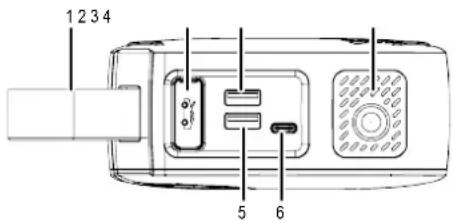

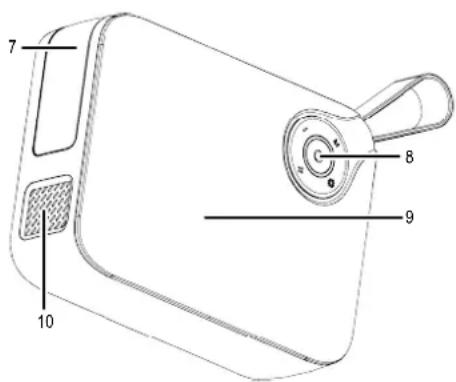

6 Product overview

6.1 Product

1 Carry handle 2 Starter cables socket

3 USB Output 2: Charger (USB-A)
5 USB Output 1: Charger (USB-A)

4 Air hose socket

6 USB Input:Charging (USB-C@)

7 Light panel 8 Control panel

9 Display 10 Compressor heat dissipation vent

6.2 Control panel

Icon Description
①	Multifunction button:Power ON/OFFSwitch the compressor ON.Recharge connected devices Check remaining battery capacity.
M	Mode
+	Increase
-	Decrease
	Flashlight

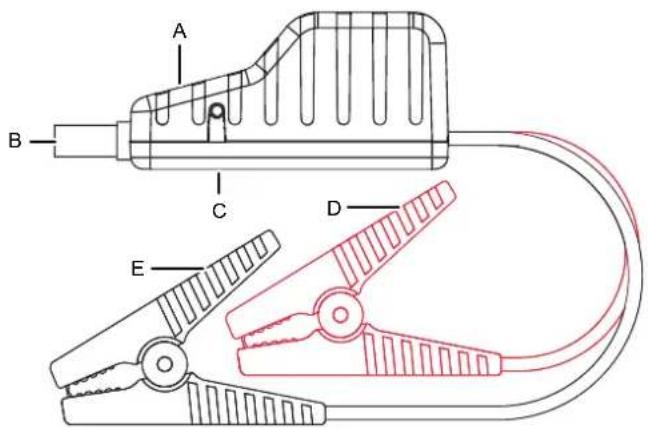

6.3 Starter cables

A Starter status indicator B Starter cables plug
C Force start button D Red starter clip (+)
E Black starter clip (-)

7 Charge the product battery

Important:

• Do not charge the power bank using the USB-A ports on a computer. The current supplied by these ports may not be sufficient and can damage the computer.
• To prolong the battery life, it is recommended to fully charge the battery every 3 - 6 months.
• Do not jump start the vehicle while charging the batteries!

Press the button to check the battery status.
To recharge the battery, connect one end of the charging cable to a power supply and the other end to the USB-C® charging input USB Input on the product.

Battery level indicators flashing: charging in progress
Battery level indicators constant on: fully charged.

8 Power bank

Preconditions:

To use this product as a power bank you will need a suitable charging cable.
1. Connect one end of the charging cable to your mobile device, and the other end to a charger output on the product.
2. Charging will start a few moments after connection.

OUT will show on the display to show when charging is in progress.

9 LED light

Long press the button to switch the light ON/OFF.
Press the button repeatedly to cycle through modes: ON SOS Strobe.

10 Air compressor

For a list of pressure ranges for each setting, see: Technical data [7].

10.1 Settings

Button Action Description
M	Short press Press repeatedly to toggle through pressure pre-sets: (car), (motorcycle), (bicycle), (ball) (manual setting mode).
M	Press and hold When the pressure unit flashes, press repeatedly to select a pressure unit: PSI, BAR, KPA, Kg/cm2.
+/-	Short press Increase / decrease the air pressure setting.
①	Short press Start/stop the compressor.

Tip:

Select a pressure pre-set, then press + / - to fine tune the air pressure level.

10.2 Inflation

Important:

Inspect the product before inflating. Check the valve and the air hose is not damaged.
- Do not bend or restrict the air hose while the compressor is in use.
Risk of damage due to water ingress Do not use in rain or wet conditions.
In case of an electrical or mechanical fault, immediately switch OFF and disconnect the product.
Only use on inflatable items (e.g. tires, balls, air bed). Take extra care not to over-inflate.
Please refer to your vehicle handbook for the correct tire pressure required for your vehicle.
- Carefully observe the tire pressure and air pressure units when using "manual setting mode". Over inflating can cause an object to burst.
- Allow a vehicle tire to cool down before inflating.

Preconditions:

You have read all the safety information and know the correct inflation pressure for the task.

1. Press and hold switch the power ON.
2. Make sure the correct pressure unit is selected.
3. Select a pressure level pre-set and/or manually adjust the air pressure level.
4. (If needed) attach a valve connector to the end of the air hose.
5. Connect the air hose to the air hose socket on the product.
6. Connect the air hose to the valve on the object you are inflating.

The object's pressure level will show on the display.

1. Press 0start/stop the compressor.
2. Press and hold switch the power OFF.
3. Disconnect the air hose.

Important:

Prevent overheating. For every 8 minutes of continuous use, the product must cool down for 5 minutes before using again.

11 Quick starting system

Important:

Only use the included starter cables.
Clean corroded or dirty vehicle battery terminals before connecting the cables.
Do not use if a cable or clip is damaged.
To prevent damage to the product, only use with 12V vehicle onboard systems.
Never short circuit the two pole terminals e.g. Do not clamp both cables together or to the same piece of conductive material.

11.1 Before jump starting the vehicle

Prepare vehicle for ignition. Place gear in park/neutral and engage the emergency brake.
Switch off all vehicle electronics e.g. air conditioner, heater, radio, and lights.
Make sure there is at least 50% charge in the starter.

11.2 Normal starting method

Important:

If ignition fails after 3 attempts, disconnect the quick start system, wait 5 mins then try the Force starting method.

1. Connect the starter cables plug to the starter cables socket.
2. Clip the red and black cables to the electrodes of the vehicle battery in the following sequence.

Red clamp to positive (+).
- Black clamp to negative (-).

1. Check the starter status indicator:

2. Alternating red/green flashing (normal) proceed to step 4.

3. Other status, see sections:

4. Smart starter indicators [7]

5. Jump starter warning messages [7]

6. Attempt to start the vehicle

7. Do not start the ignition for more than 3 secs at a time.

8. Allow the starter to cool down for 30 secs between each start attempt.
   Maximum 3 attempts within 2 mins.

9. If the engine starts, disconnect the black terminal followed by the red terminal. Replace the sockets cover.

Let the vehicle run for approx. 30 mins to recharge the battery.

11.3 Force starting method

Important:

Use this method if the normal starting method fails.

If ignition fails after 3 attempts, disconnect the quick start system and contact a specialist workshop.

1. Connect the starter cables plug to the starter cables socket.

2. Clip the red and black cables to the electrodes of the vehicle battery in the following sequence.

Red clamp to positive (+)
- Black clamp to negative (-)

1. Check the starter status indicators:

2. Alternating red/green flashing (normal) proceed to step 4.

3. Other status, see sections:

4. Smart starter indicators [7].

5. Jump starter warning messages [7].

6. Press and hold the Force Start Button for 3 secs until the status LED lights solid green.

7. Start the vehicle within 30 seconds after the LED lights solid green.

8. Attempt to start the vehicle. Do not start ignition for more than 3 secs at a time.

9. Allow the starter to cool down for 30 secs between each start attempt.
   Maximum 3 attempts within 2 mins.

10. If the engine starts, disconnect the quick start system and replace the sockets cover.

Let the vehicle run for approx. 30 mins to recharge the battery.

12 Smart starter indicators

12.1 Normal

Status indicator Status
Alternating red/green flashing Quick start systeem is ready/starting in pro-gress.
Green steady on Force start mode is activated.

12.2 Protection mode

Status indicator Status
Red steady/red flashing	Connection error. Please check all contacts.
Red on/alarm sound on	■ Reversed polarity: check if the clamps are connected the wrong way around. ■ Short-circuit: Both cables are clamped together or clamped to the same piece of conductive metal.
Red steady on	■ Reverse charging protection is triggered. Voltage of the con- nected battery is >12.6 V. ■ The jump starter is not needed as the vehicle battery is enough to start the vehicle.
Red flashing quickly Over	temperature: Clamp >65 (±5) °C. Remove the clips until the starter status indicator returns to normal (alternating red/green flashing).
Green flashing slowly Quick start battery charge is too low, recharge it.

13 Jump starter warning messages

If a protection mechanism activates, a warning message will appear on the display.

Message Cause Solution
H0+↑	High temperature protection Output cuts off if temperature is >45 °C during charging, or >60 °C during discharging.	Remove the conditions triggering temperature protection to engage, and wait sufficient time for the product to cool down.
H1+↑	Over-voltage protection Output cuts off if the voltage >13V during charging.	Not applicable.
E0+↑	Over-current protection Output will cut off when engaged.	Avoid starting the vehicle for 30 seconds to prevent damage to the jump starter.
E0+↑	The clamps have short circuited. Power will cut off when triggered.	Ensure the clamps are not touching or connected to the same piece of metal.
E2+↑	Sensor error The product cannot be used.

Message Cause Solution
	Indicates that there is a prob-lem with the air pressure sensor

14 Cleaning and care

Important:

• Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions. They damage the housing and can cause the product to malfunction.

• Do not immerse the product in water.

• Disconnect the product from the power supply.

• Clean the product with a dry, fibre-free cloth.

15 Disposal

This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life.

Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non-destructive manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free takeback of waste. Conrad provides the following return options free of charge (more details on our website):

in our Conrad offices
at the Conrad collection points
at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of. It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany.

16 Technical data

16.1 General

Charging input (USB-C®)	5 V/DC 2 A, 9 V/DC 2 A, 12 V/DC 1.5 A Fast charge 18 W
Battery pack (rechargeable)	Capacity: 7200 mAh Configuration: 4 cells Per Cell: 1800 mAh, 3.7 V Total Energy: 26.64 Wh
Battery pack (recharge time)	approx. 4-5 hours
Protection	Short circuit, overload, low voltage, over voltage, overcharge, over temperature, reverse charging, reverse polarity
Over-discharge protection	≤13 V ±0.3 V
Over-temperature protection	>65 °C ±5 °C
Reverse charging protection	≥12.6 V ±0.3 V
Operating conditions	-20 to +50 °C, 20 – 85 % RH (non-condensing)
Storage conditions	-20 to +50 °C, 20 – 85 % RH (non-condensing)
Dimensions (W x H x D)	approx. 126 x 173 x 55 mm
Weight	1.23 kg

16.2 Power bank

Charger output (USB-A)	Output 1:
	5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1.5 A
	Fast charge 18 W
	Output 2:
	5 V/DC 3 A, 9 V/DC 2 A, 12 V/DC 1.5 A
	Fast charge 18 W

16.3 Jump starter

Vehicle on-board system............ 12 V/DC

Start current (peak value).......... 300 A (600 A)

Cycle times (life).......... approx. 1000 cycles

Jump starts per battery charge.......... approx. 15 (affected by factors such as ambient temperature, size, and mechanical condition of the engine)

Suitable engine types.. Gasoline (displacement ≤ 4.0L )Diesel (displacement ≤ 2.5L

16.4 Air compressor

Duty cycle. 8 minutes ON, 5 minutes OFF

Air pressure max. 10 bar (150 psi)

Icon Inflation	mode Air pressure
	Car tyre 1.8-3.5 bar (26-51 psi, 180-350 kPa, 1.84-3.58 kg/cm2)
	Motorcycle tyre 1.8-2.98 bar (26-43.5 psi, 180-300 kPa, 1.84-3.05 kg/cm2)
	Bicycle tyre 2.08-4.48 bar (30-65 psi, .210-450 kPa, 2.12-4.6 kg/cm2)
	Basketball 0.27-1.09 bar (4-16 psi, 25-110 kPa,0.29-1.11 kg/cm2)
	Custom setting 0-10.3 bar (0-150 psi, 0-999 kPa,0-10.5 kg/cm2)

16.5 LED light

Light. 6000-6500K,250Im,5W

Light modes. ON SOS Strobe

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited. This publication reflects the technical status at the time of printing. Copyright by Conrad Electronic SE. *3204897_V1_0824_dh_mh_en 1571625099-2 11/O1 an

VOLTCRAFT

Mode d'emploi

VC-CJS76

C

USB Input : Charge (USB-C®)

Entree de charge (USB-C®) 5 V/CC 2 A, 9 V/CC 2 A, 12 V/CC 1,5 A

Charge rapide 18 W

surcharge, surchauffe, inversion de charge, inversion

de polarit

Conditions de stockage -20 a +50^ 20-85% HR (sans condensation)

Dimensions (L x H x P)............env. 126 x 173 x 55 mm

Poids 1,23 kg

16.2 Batterie externe

5V/CC3A,9V/CC2A,12V/CC1.5A

Charge rapide 18 W

Sortie 2 :

5V/CC3A,9V/CC2A,12V/CC1,5A

Charge rapide 18 W

Copyright by Conrad Electronic SE.

*3204897_V1_0824_dh_mh_fr 1571625099-3 I1/O1 an

VOLTCAFT

Gebruksaanwijzing

VC-CJS76

3 USB Output 2: CPLer (USB-A)
5 USB Output 1: CPLader (USB-A)

9 Display 10 Warmleafvoeropening compressor

6.2 Bedieningspaneel

5V/DC3A,9V/DC2A,12V/DC1,5A

Snel opladen 18 W

Uitgang 2:

5V/DC3A,9V/DC2A,12V/DC1,5A

Snel opladen 18 W

16.3 Startbooster

Boordspanning 12 V/DC

Startstroom (piek) 300 A (600 A)

Copyright by Conrad Electronic SE.

*3204897_V1_0824 dh_mh_nl 1571625099-4 H1/O1 en
