USER MANUAL WX478.1 WORX
| Stichsäge | D | P14 |
| Scie sauteuse | F | P22 |
| Seghetto alternativo | I | P30 |
| Sierra de calar | ES | P38 |
| Serra tico-tico | PT | P46 |
| Decoupeerzaag | NL | P54 |
| Stiksav | DK | P62 |
| Pendelstikksag | NOR | P68 |
| Pendelsticksåg | SV | P74 |
| Pilarka szablasta | PL | P82 |
| Σέγα χεριού | GR | P90 |
| Rezgőfúrész | HU | P98 |
| Fierăstrău pendular | RO | P106 |
| Přímočará pila | CZ | P114 |
| Priamočiara píla | SK | P122 |
| Vbodna žaga | SL | P130 |
| Original instructions | EN |
| Originalbetriebsanleitung | D |
| Notice originale | F |
| Istruzioni originali | I |
| Manual original | ES |
| Manual original | PT |
| Oorspronkelijke gebruiksaanwijzing | NL |
| Original brugsanvisning | DK |
| Opprinnelige Instruksjonene | NOR |
| Bruksanvisning i original | SV |
| Instrukcja oryginalna | PL |
| ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ | GR |
| Eredeti használati utasítás | HU |
| Instrucțiuni originale | RO |
| Původní návod k používání | CZ |
| Pôvodný návod na použitie | SK |
| Izvirna navodila | SL |
WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
JIG SAW SAFETY WARNINGS
- Hold jig saw by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.
SYMBOLS
 | To reduce the risk of injury, user must read instruction manual |
| Double insulation | |
| Warning | |
| Wear ear protection | |
| Wear eye protection | |
| Wear dust mask | |
| Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. | |
| Before any work on the machine itself, pull the mains plug from the socket outlet. | |
| Wear protective gloves | |
| Wood | |
| Aluminium |
 | Metal |
 | Plastic |
 | Lock |
 | Unlock |

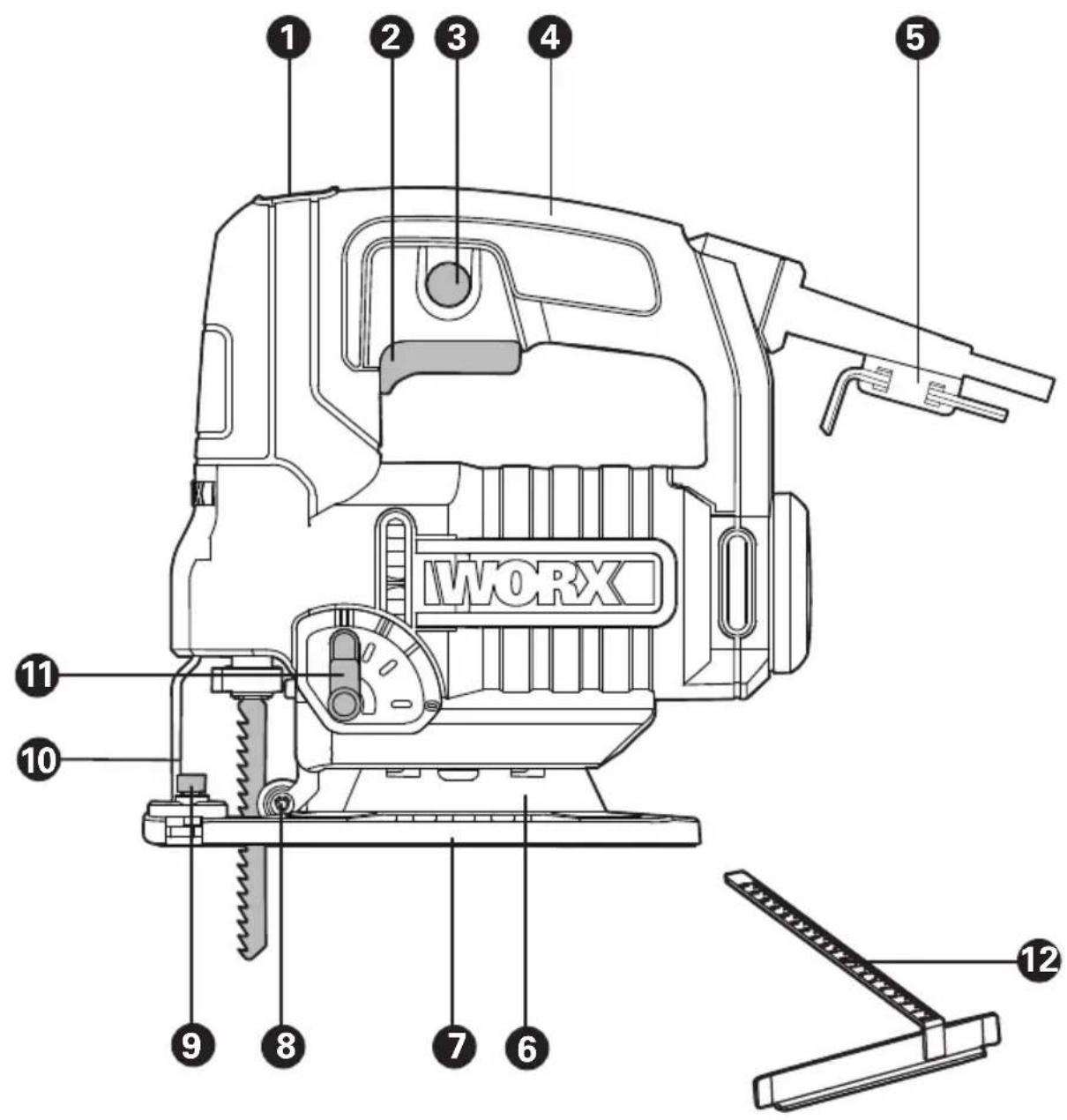

- VARIABLE SPEED CONTROL (ONLY FOR WX478 WX478.1 WX479)
- ON/OFF SWITCH
- LOCK-ON BUTTON
- SOFT GRIP HANDLE
- ALLEN KEY
- ANGLE PLATE
- BASE PLATE
- ROLLER GUIDE
- PARALLEL GUIDE FIXING
- FINGER PROTECTION GUIDE
- PENDULUM FUNCTION CONTROL
- PARALLEL GUIDE (ONLY FOR WX478 WX478.1 WX479)*
*Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX477 WX477.1 WX478 WX478.1 WX479 (460-479-designation of machinery, representative of Jig Saw)
| WX477 WX477.1 WX478 WX478.1 WX479 | ||||
| Rated Voltage 220-240V~50Hz | ||||
| Rated power 550W 650W 750W | ||||
| Rated No-load speed 3100/min 1000-3100/min | ||||
| Stroke length 20mm | ||||
| Bevel capacity ±45° | ||||
| Protection Class | ☐/II | |||
| Cutting depth | Wood | 65mm | 90mm | 100mm |
| Aluminum | 12mm | 20mm | ||
| Steel | 6mm | 8mm 10mm | ||
| Weight | 2.2kg | 2.3kg | ||
NOISE INFORMATION
| WX477 WX477.1 WX478 | WX478.1 WX479 | |
| A weighted sound pressure L | _pA :86.0dB(A) L | _pA :87.4dB(A) |
| A weighted sound power L | _wA : 97.0dB(A) L | _wA : 98.4dB(A) |
| K _pA & K _wA 3.0dB(A) | ||
| Wear ear protection. | ||
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 62841:
| WX477 WX477.1 WX478 WX478.1 WX479 | |||
| Cutting wood | Vibration emission value a | _h=4,195m/s^2 | a_h=5,074m/s^2 |
| Uncertainty K = 1.5m/s2 | |||
| Cutting steel metal | Vibration emission value | a_h=7,848m/s^2 | a_h=9,548m/s^2 |
| Uncertainty | K = 1.5m/s2 | ||
The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.
WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimise your vibration and noise exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSORIES
| WX477WX477.1 | WX478WX478.1 | WX479 | |
| Hex key 1 1 1 | |||
| Metal cutting blade | 1 | 1 | 1 |
| Wood cutting blade | 1 | 1 | 1 |
| Aluminum cutting blade | 1 | 1 | 1 |
| Parallel guide / 1 | 1 | ||
| Vacuum adaptor | / | 1 | 1 |
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE
The machine is intended for sawing wood, plastic, metal and building materials while resting firmly on the workpiece. It is suitable for straight and curved cuts with mitre angles to 45^ . The saw blade recommendations are to be observed.
ASSEMBLY AND OPERATION
| Action | Figure |

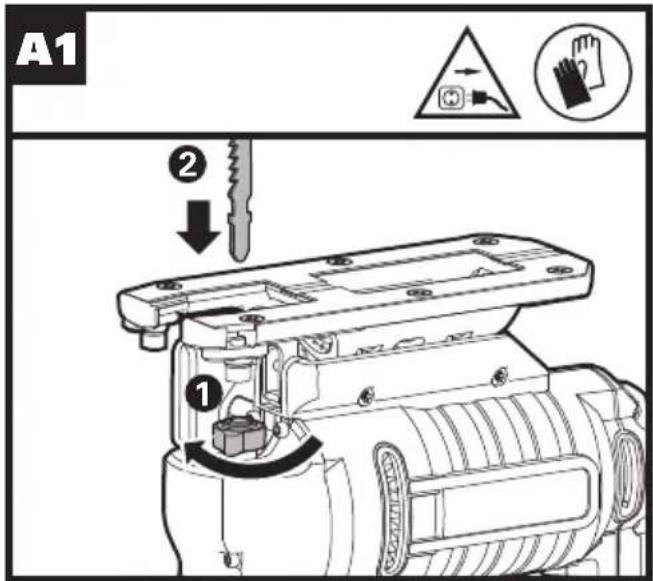

| Blade Installation | See Fig. A1 |

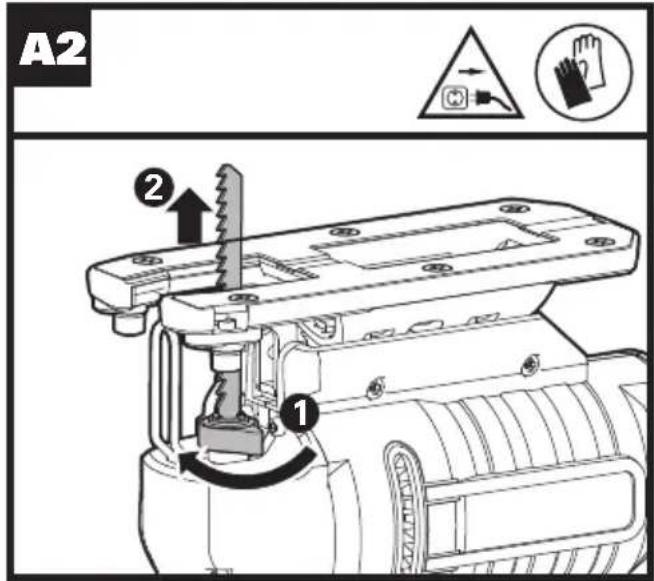

| Blade Removing See Fig. A2 | |

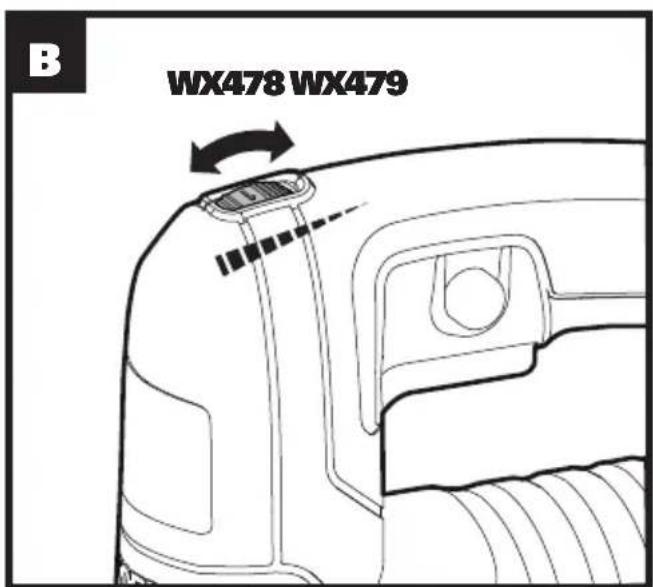

| Variable Speed Control (Only for WX478 WX478.1 WX479) | See Fig. B |

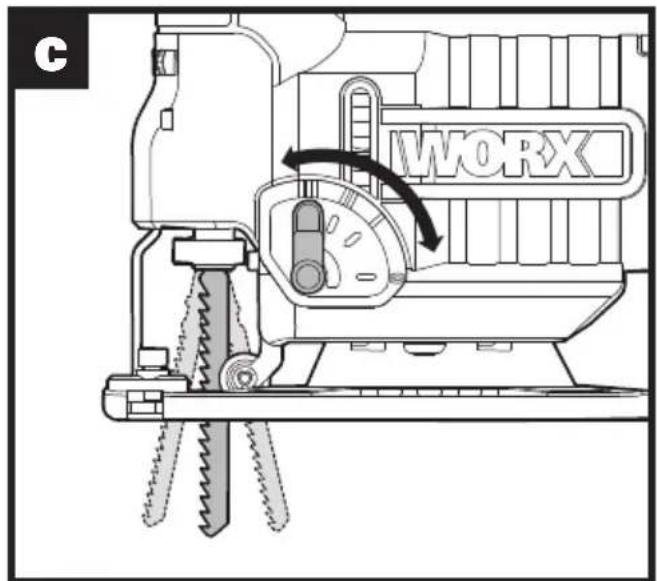

| Pendulum Function See Fig. C | |

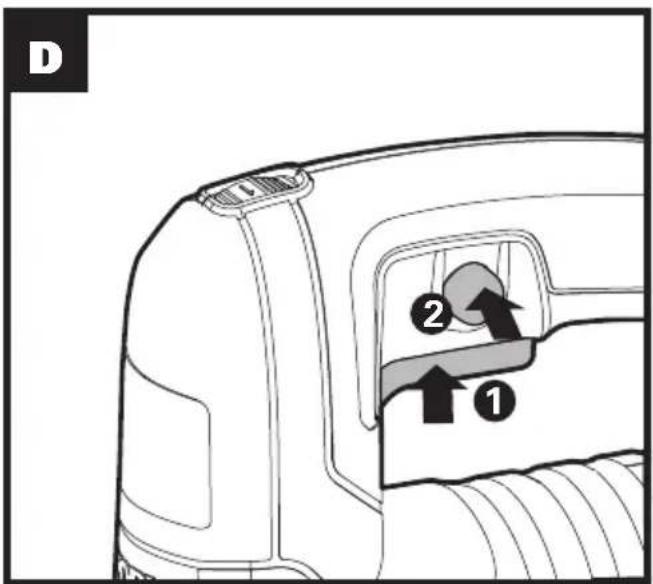

| ON/OFF Switch See Fig. D | |
| Lock-On Button | See Fig. D |

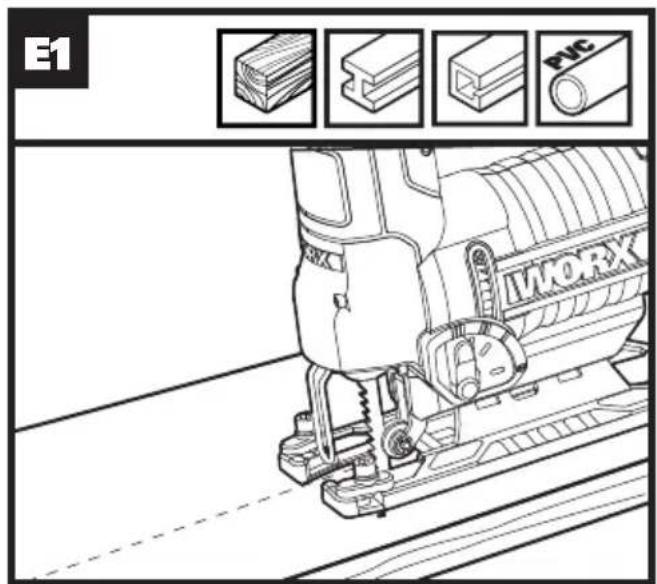

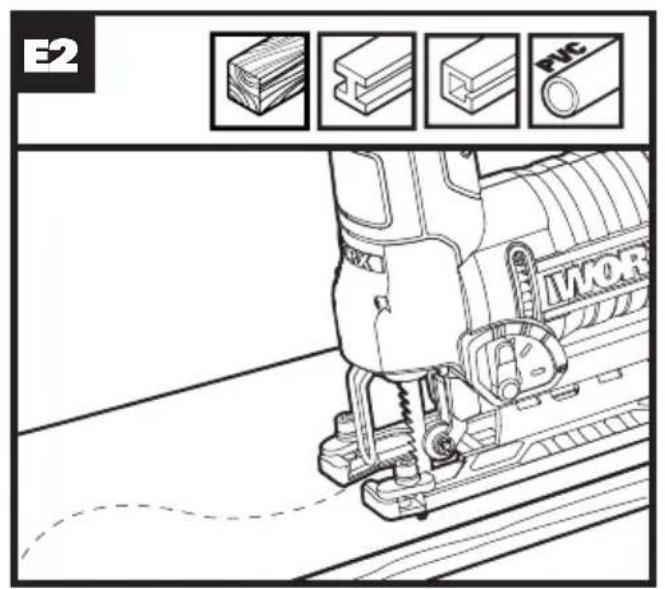

| Straight Cut and Curve Cut | See Fig. E1,E2 |

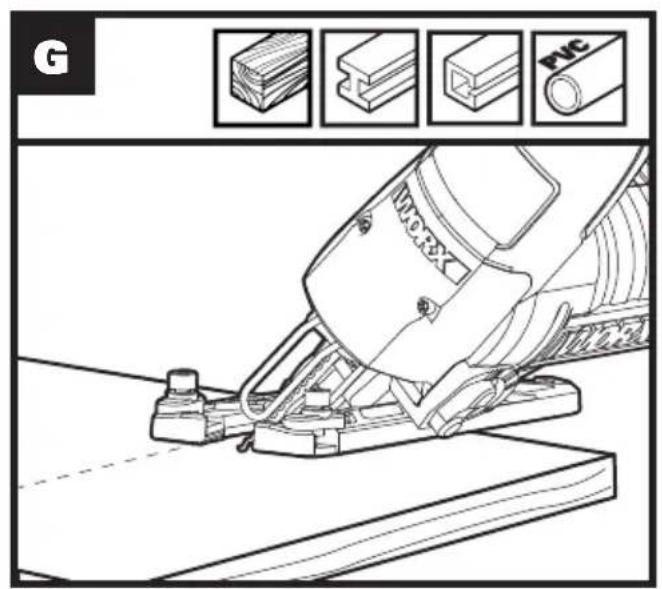

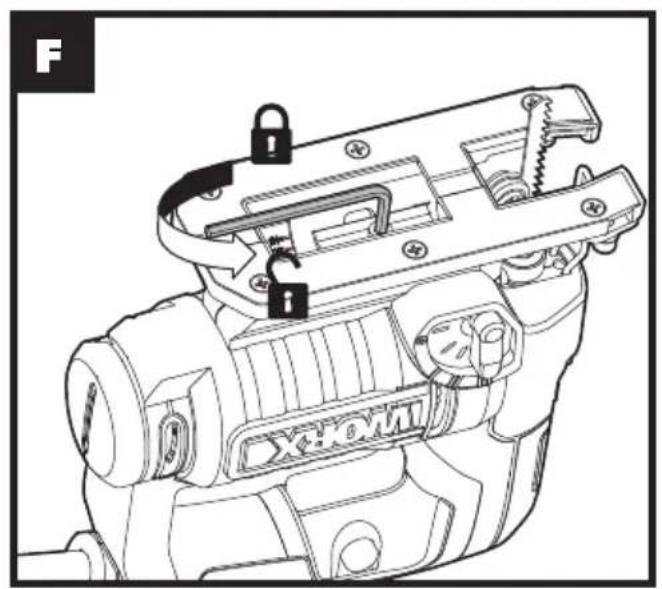

| Bevel Cut | See Fig. F,G |

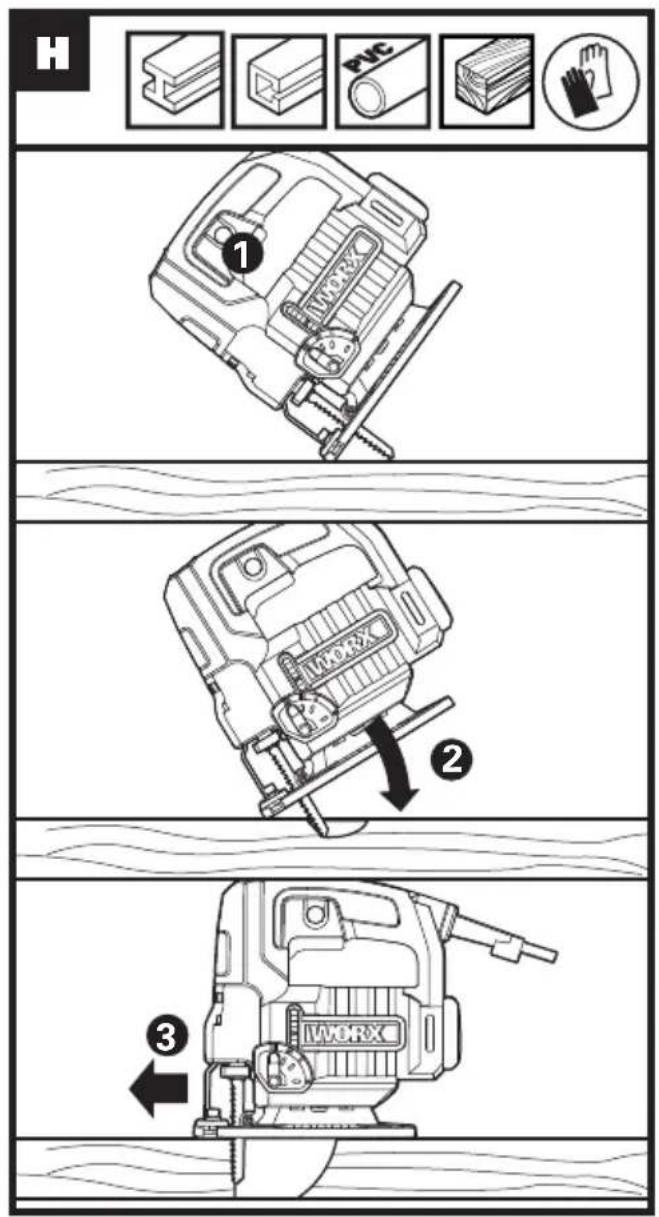

| Plunge Cut | See Fig. H |

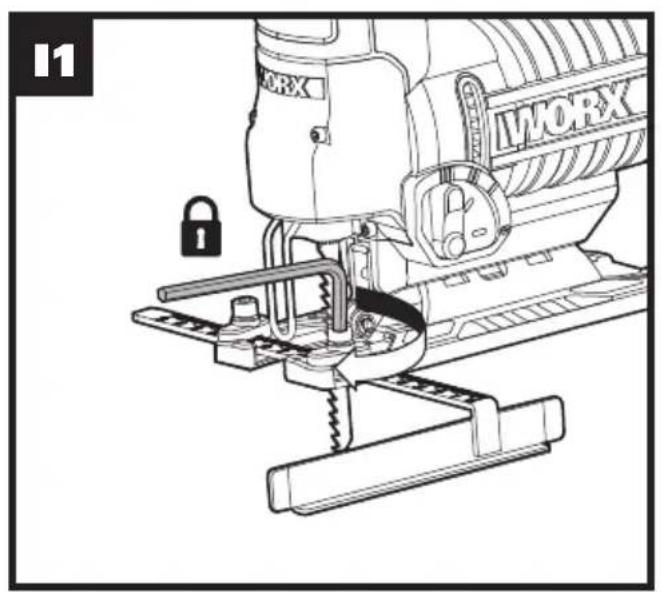

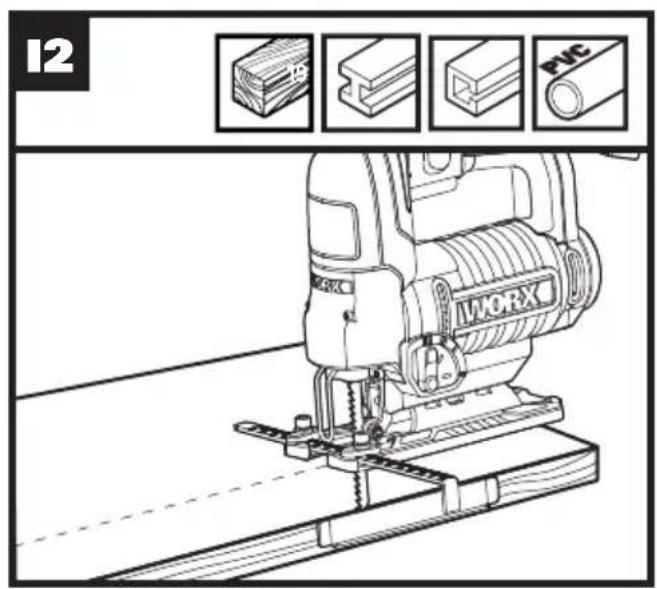

| Parallel Guide (Only for WX478 WX478.1 WX479) | See Fig. I1,I2 |

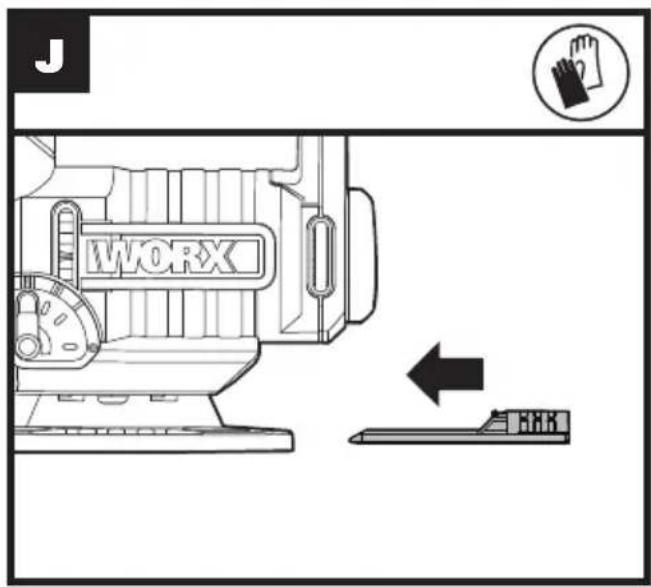

| Blade Storage (Only for WX478 WX478.1 WX479) | See Fig. J |

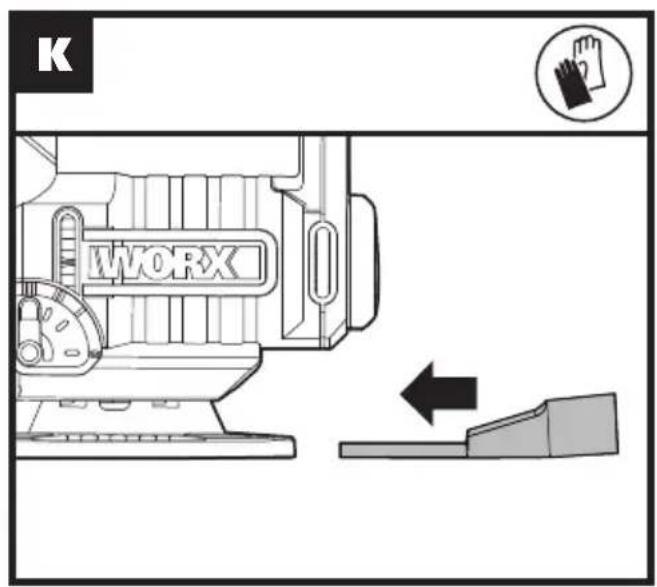

| Vacuum Adaptor (Only for WX478 WX478.1 WX479) | See Fig. K |
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
TROUBLESHOOTING
| Symptom Possible | Causes Possible Solution | |
| Tool will not start when power on | Power cord is not plugged. | Check to make sure power cord is connected well into a working outlet. |
| Poor cut quality | Blade is worn out.Blade is assembled incorrectlyPushing rate is too fast. | Make sure the blade is sharp and not broken.Make sure the blade is installed properly.Push the machine slowly. |
| Work efficiency is low. | Blade is worn outIncorrect speed settingIncorrect Pendulum function setting | Change to a new blade.Adjust the variable speed control according to the materialAdjust the pendulum function control according to the material |
| Blade is not clamped tightly by the Blade Holder. | Blade is not inserted into place fully. | Dismantle the blade and reinstall it correctly. |
DECLARATION OF CONFORMITY
We,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product,
Description Worx Jigsaw
Type WX477 WX477.1 WX478 WX478.1
WX479 (460-479-designation of machinery, representative of Jig Saw)
Function Sawing various materials
Complies with the following directives,
2006/42/EC
2014/30/EU
2011/65/EU&(EU)2015/863
Standards conform to:
EN 62841-1
EN 62841-2-11
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
The person authorized to compile the technical file, Name Marcel Filz
Address Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Typ WX477 WX477.1 WX478 WX478.1 WX479
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SÉCURITÉ DU PRODUIT AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX POUR L'OUTIL
INFORMATIONS RELATIVES AU BRUIT
INFORMATIONS RELATIVES AUX VIBRATIONS
DÉCLARATION DE CONFORMITÉ
Nous,
Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Modèle WX477 WX477.1 WX478 WX478.1 WX479
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SICUREZZA DEL PRODOTTO AVVISI GENERALI PER LA SICUREZZA DEGLI UTENSILI A MOTORE
Codice WX477 WX477.1 WX478 WX478.1 WX479
18, Dongwang Road, Suzhou Industrial
Modelo WX477 WX477.1 WX478 WX478.1
WX479 (460-479- denominaciones de maquinaria, representantes de Sierra de Calar)
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SEGURANÇA DO PRODUTO AVISOS GERAIS DE SEGU- RANÇA DE FERRAMENTAS ELÉCTRICAS
Tipo WX477 WX477.1 WX478 WX478.1 WX479
10, 50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWIN- GEN VOOR VERMOGENSMACHINE
| WX477 WX477.1 | WX478 WX478.1 WX479 | ||
| Zagen van board | Trillingswaarde | a_h = 4,195m/s^2 | a_h = 5,074m/s^2 |
| Fout K = 1.5m/s2 | |||
| Zagen van houten balk | Trillingswaarde | a_h = 7,848m/s^2 | a_h = 9,548m/s^2 |
| Fout K = 1.5m/s2 | |||
Type WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUKTSIKKERHED GENERELLE SIKKERHEDSIN- STRUKSER FOR EL-VÆRKT∅J
| WX477WX477.1 | WX478WX478.1WX479 |
Den totale værdi for vibration malt ifølge EN62841:
| Savbord | Værdi for vibration | a_h = 4,195m/s^2 | a_h = 5,074m/s^2 |
| Usikkerhed | K = 1.5m/s2 | ||
| Savning i metal | Værdi for vibration | a_h = 7,848m/s^2 | a_h = 9,548m/s^2 |
| Usikkerhed | K = 1.5m/s2 | ||
Type WX477 WX477.1 WX478 WX478.1
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUKTSIKKERHET GENERELLE ADVARSLER FOR ELEKTROVERKT∅Y
| WX477WX477.1 | WX478WX478.1WX479 |
Type WX477 WX477.1 WX478 WX478.1
WX479 (460-479-betegner maskin, anger
Pendelstikksag)
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
PRODUKTSÄKERHET GENERELLA SÄKERHETSVAR- NINGAR FÖR ELVERKTYG
Typ WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BEZPIECZEŃSTWO PRODUK- TU OGÓLNE OSTRZEŻENIA DOTYCZĄCE BEZPIECZEŃSTWA PODCZAS PRACY Z ELEKTRONARZĘDZIAMI
Typ WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Τύπος WX477/WX477.1/WX478/
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BIZTONSÁGOS TER- MÉKHASZNÁLAT ELEKTROMOS KÉZISZ- ERSZÁMOK BIZTONSÁGOS HASZNÁLATÁVAL KAPCSO- LATOS ÁLTALÁNOS FIGYEL- MEZTETÉSEK
Típus WX477 WX477.1 WX478 WX478.1
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UN- ELTE ELECTRICE
Tip WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
Adjunct Inginer Şef, Testare si certificare
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BEZPEČNOST VÝROBKU OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEK- TRICKÉ NÁSTROJE
Typ WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
BEZPEČNOST VÝROBKU VŠEOBECNÉ BEZPEČNOSTNÉ UPOZORNENIA
Typ WX477 WX477.1 WX478 WX478.1 WX479
50825 Cologne, Germany
Allen Ding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
VARNOST IZDELKA SPLOŠNA VARNOSTNA OPO- ZORILA
Vrsta izdelka WX477 WX477.1 WX478 WX478.1
WX479 (460-479-oznaka naprave, predstavnik vbodnih žag)
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
you've got the power
www.worx.com
Copyright © 2021, Positec. All Rights Reserved.
AR01001605
